Description
The HDMI Extender with Loopout can extend HDMI signal over 500ft/150m to an HDMI compatible display via a single Cat5e/6 cable. It also supports bi-directional Infrared control signal and RS-232 transmission together with HDMI signal — allowing you to control your DVD player at the TV side, or control your TV at the DVD player side when using this extender.
Features
☆ HDCP 1.4 and DVI compliant
☆ Video resolutions up to 1080p@60Hz (YUV 4:4:4), as specified in HDMI 1.4
☆ HDMI High Bit Rate (HBR) audio pass-through
☆ 150 meters transmission distance over CAT6 cable
☆ POC (Power over Cable) — either TX or RX powered by one 24V/1A supply
☆ Bi-directional infrared control signal transmission
☆ Bi-directional RS-232 signal transmission
Package Contents
① 1× HDMI Extender (Transmitter)
② 1× HDMI Extender (Receiver)
③ 1× Wideband IR Emitter Cable
④ 1× Wideband IR Receiver Cable
⑤ 1× 24V/1A Power Adaptor
⑥ 1× User Manual
Specifications
| Technical | |
| HDMI Compliance | HDMI 1.4 |
| HDCP Compliance | HDCP 1.4 |
| Video Bandwidth | 165MHz |
| Video Resolution | Up to 1080P@60Hz YUV 4:4:4, RGB 4:4:4 |
| Color Space | RGB, YUV 4:4:4, YUV 4:2:2 |
| Color Depth | 8-bit |
| HDMI Audio Formats | LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X |
| ESD Protection | IEC 61000-4-2: ±8kV (Air-gap discharge), ±4kV (Contact discharge) |
| Connection – Transmitter | |
| Input |
1× IN [HDMI Type A, 19-pin female] 1× IR IN [3.5mm stereo mini-jack] 1× RS-232 [phoenix jack] |
| Output |
1× HDBaseT OUT [RJ45] 1× OUT [HDMI Type A, 19-pin female] (Loop out) 1× IR OUT [3.5mm stereo mini-jack] |
| Connection – Receiver | |
| Input |
1× HDBaseT IN [RJ45] 1× IR IN [3.5mm stereo mini-jack] |
| Output |
1× OUT [HDMI Type A, 19-pin female] 1× IR OUT [3.5mm stereo mini-jack] 1× RS-232 [phoenix jack] |
| Mechanical | |
| Housing | Metal Enclosure — Black |
| Dimensions | 140mm [W] × 65mm [D] × 18mm [H] |
| Weight | 481g |
| Power Supply | Input: AC 100–240V 50/60Hz | Output: DC 24V/1A (CE/FCC/UL certified) |
| Power Consumption | 6W (Max) |
| Environmental | |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20%~90% RH (non-condensing) |
Operation Controls and Functions

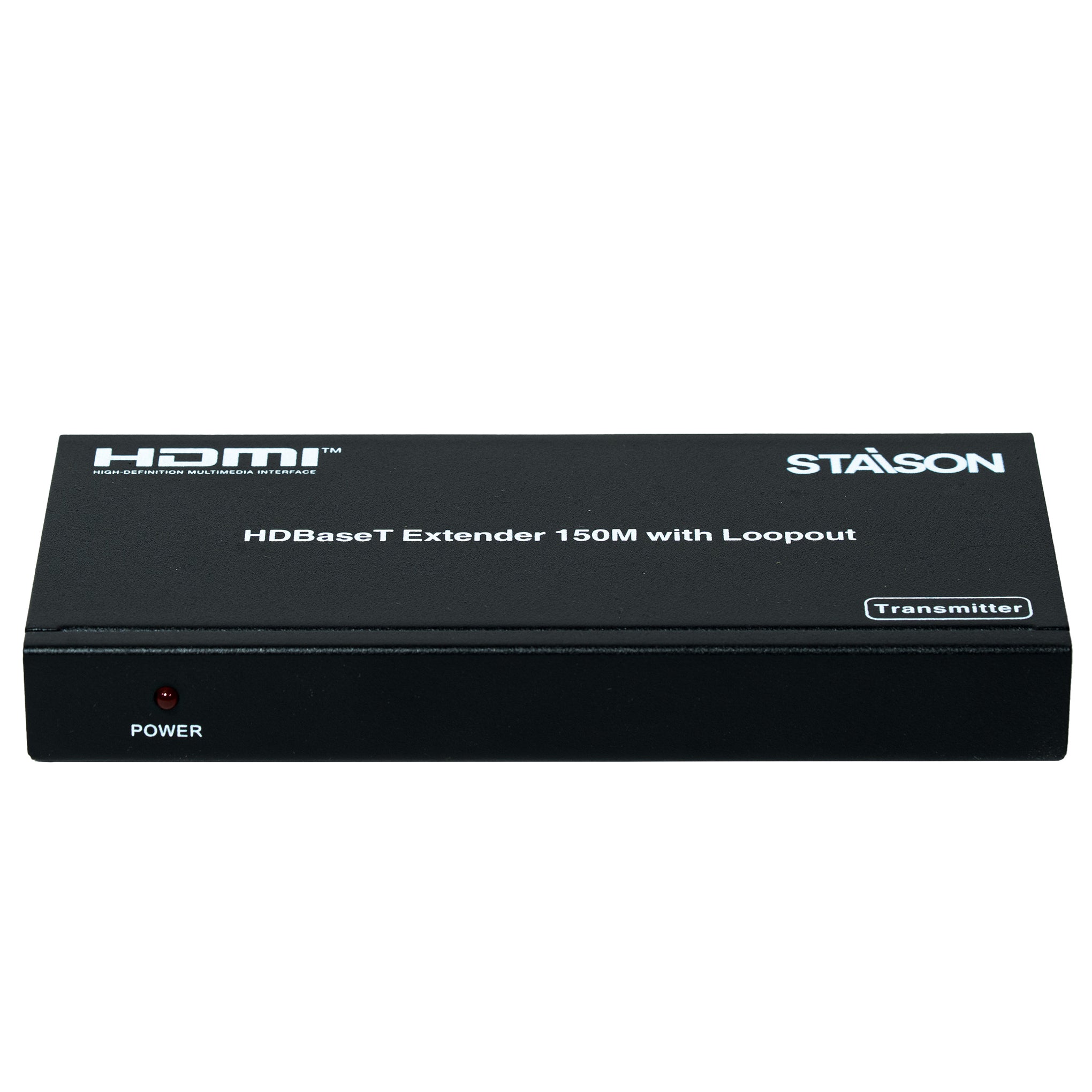

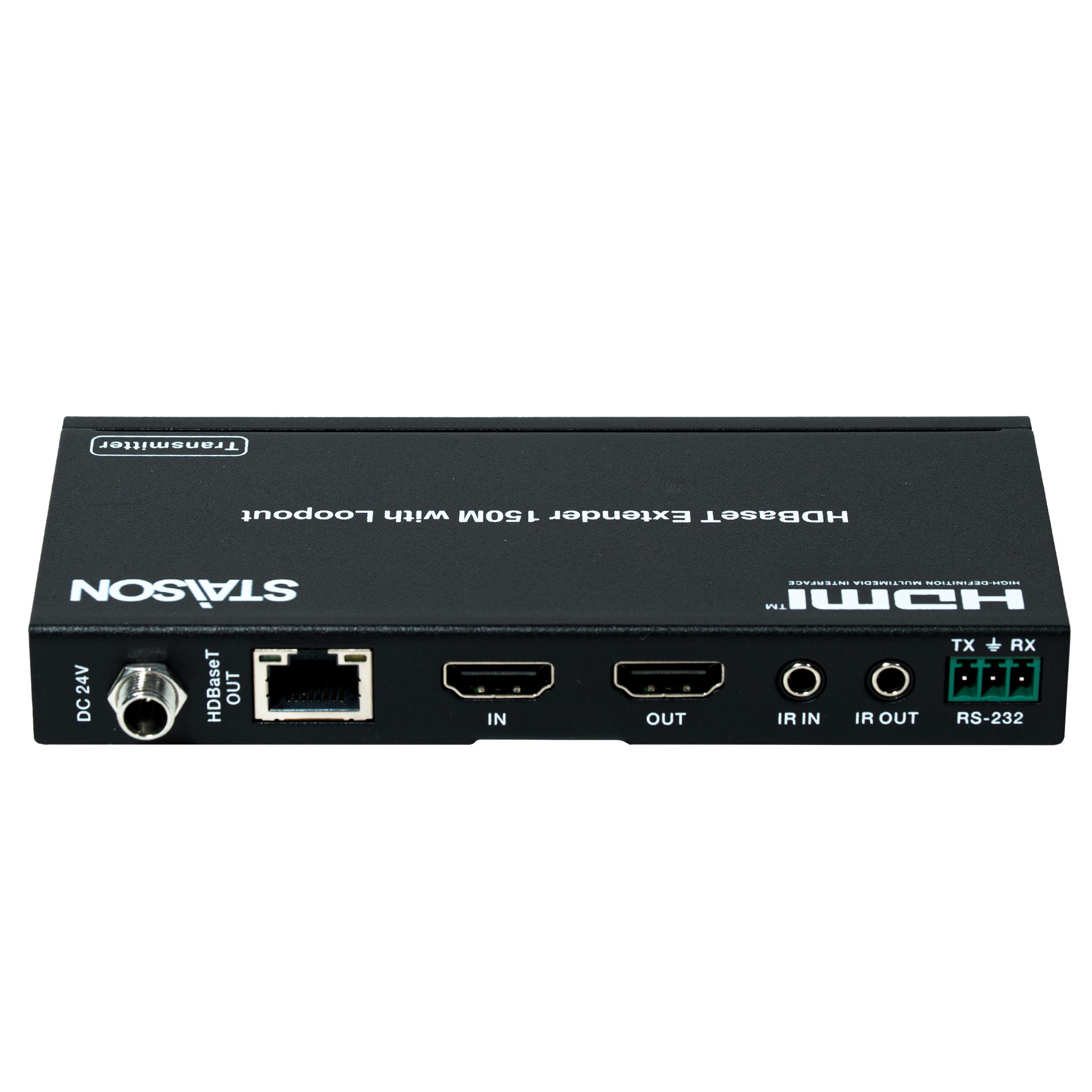

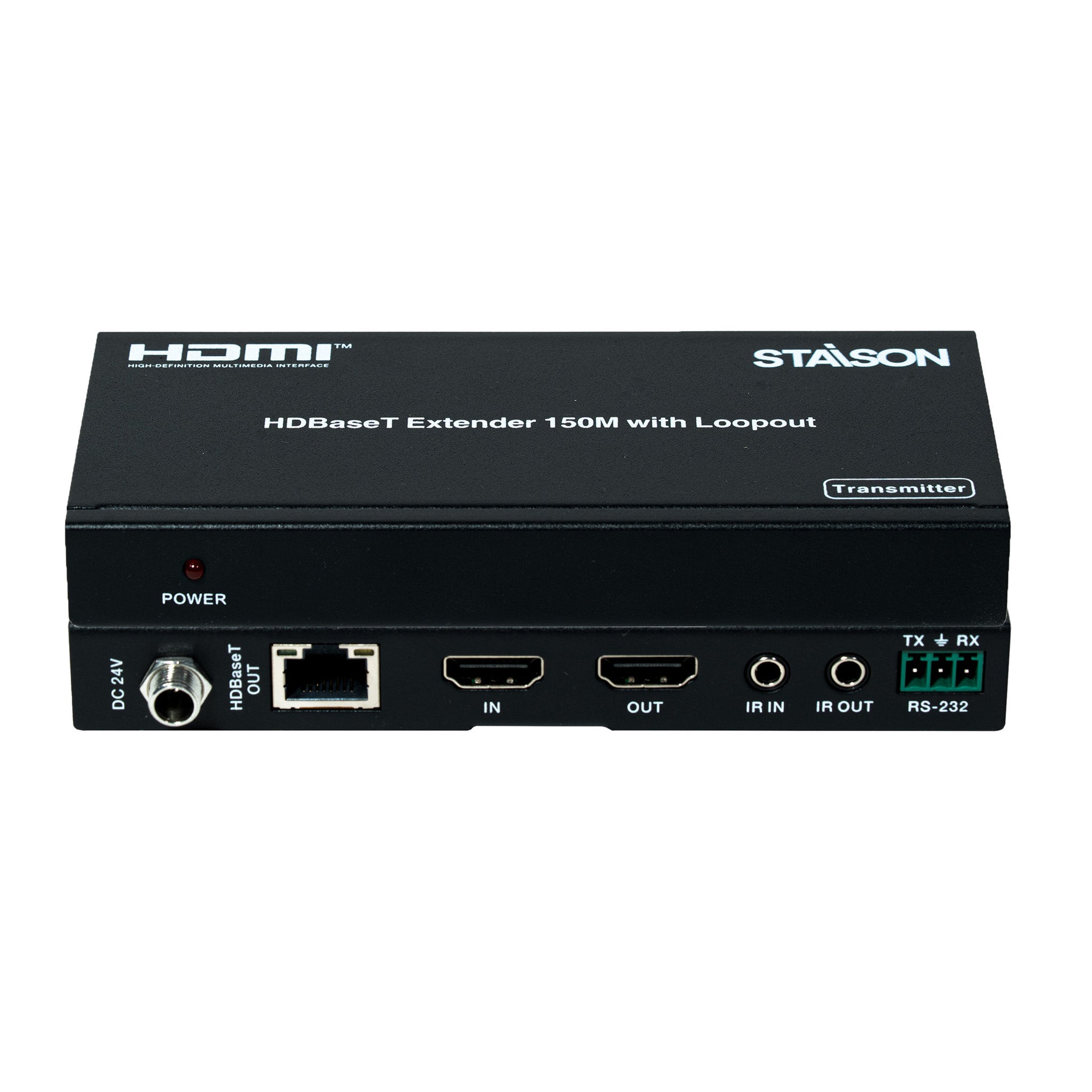

Transmitter Panel
| No. | Name | Function Description |
|---|---|---|
| 1 | Power LED | System power indicator. |
| 2 | DC 24V | Connect 24V/1A adaptor to AC wall outlet for power supply. |
| 3 | HDBaseT OUT | Standard HDBaseT output port. Connect to HDBaseT Receiver with a UTP cable using the direct interconnection method. |
| 4 | IN | Connect to HDMI source device such as Blu-ray or PS4 player. |
| 5 | OUT (Loop) | Connect to HDTV or monitor HDMI input port for local loop output. |
| 6 | IR IN | Channel 2 IR Receiver. Connect to an IR receiver cable. |
| 7 | IR OUT | Channel 1 IR Transmitter. Connect to an IR emitter cable. |
| 8 | RS-232 | 3-pin phoenix connector, used for RS-232 command transmission. |
| 9 | Connection Signal Indicator | Illuminated: Transmitter and Receiver are in good connection. Flashing: Transmitter and Receiver are in poor connection. Dark: Not connected. |
| 10 | Data Signal Indicator | Illuminated: HDMI signal with HDCP. Flashing: HDMI signal without HDCP. Dark: No HDMI signal. |

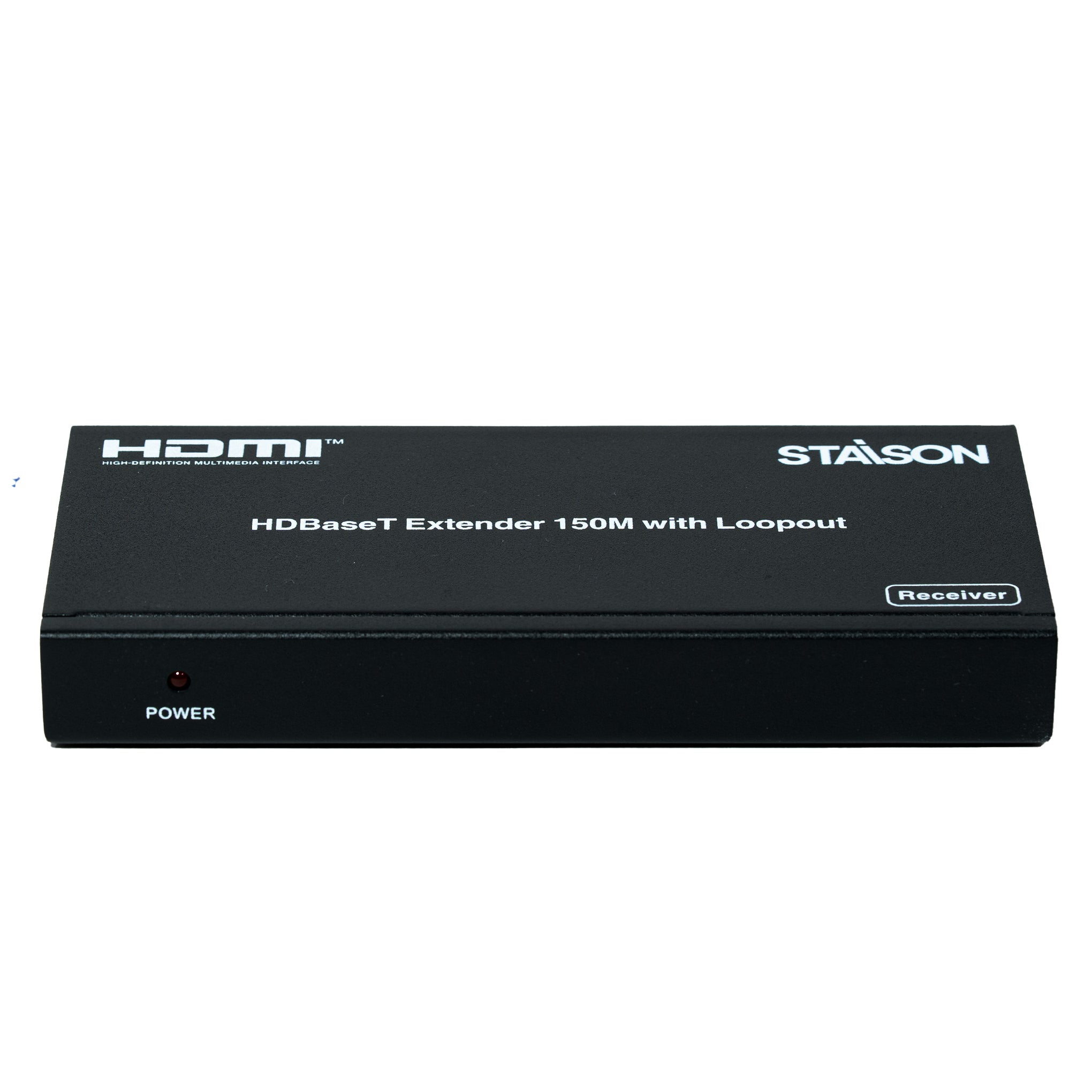

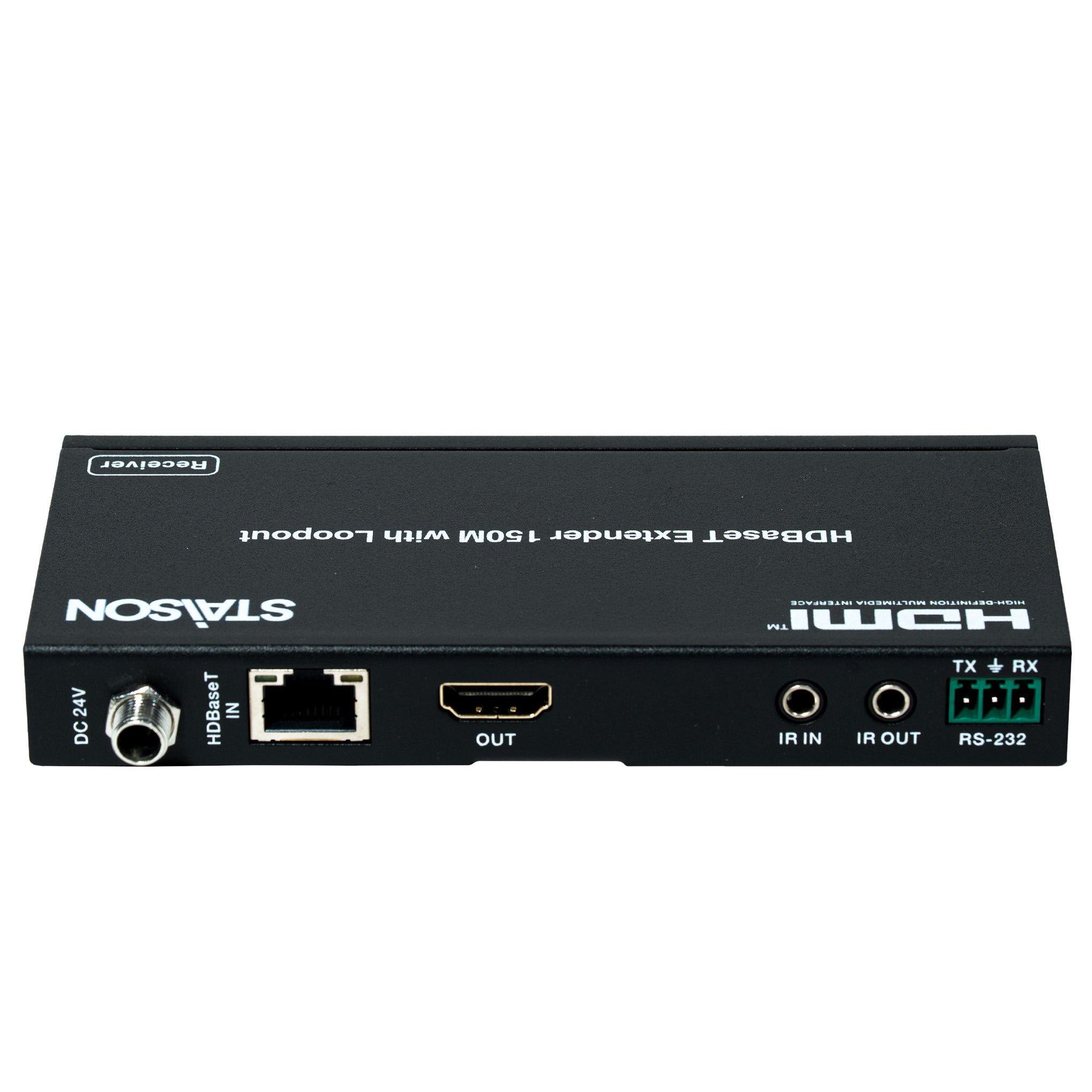

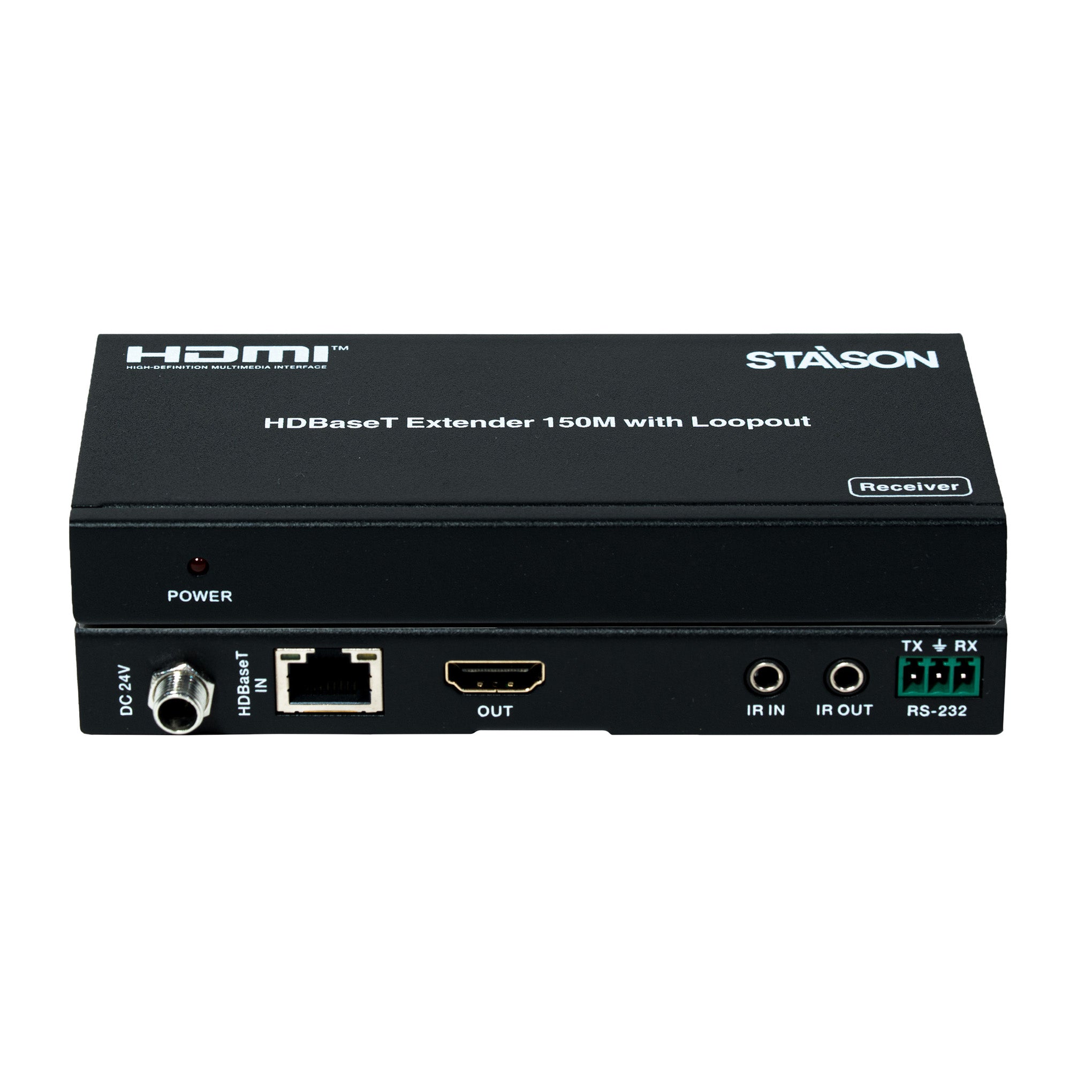

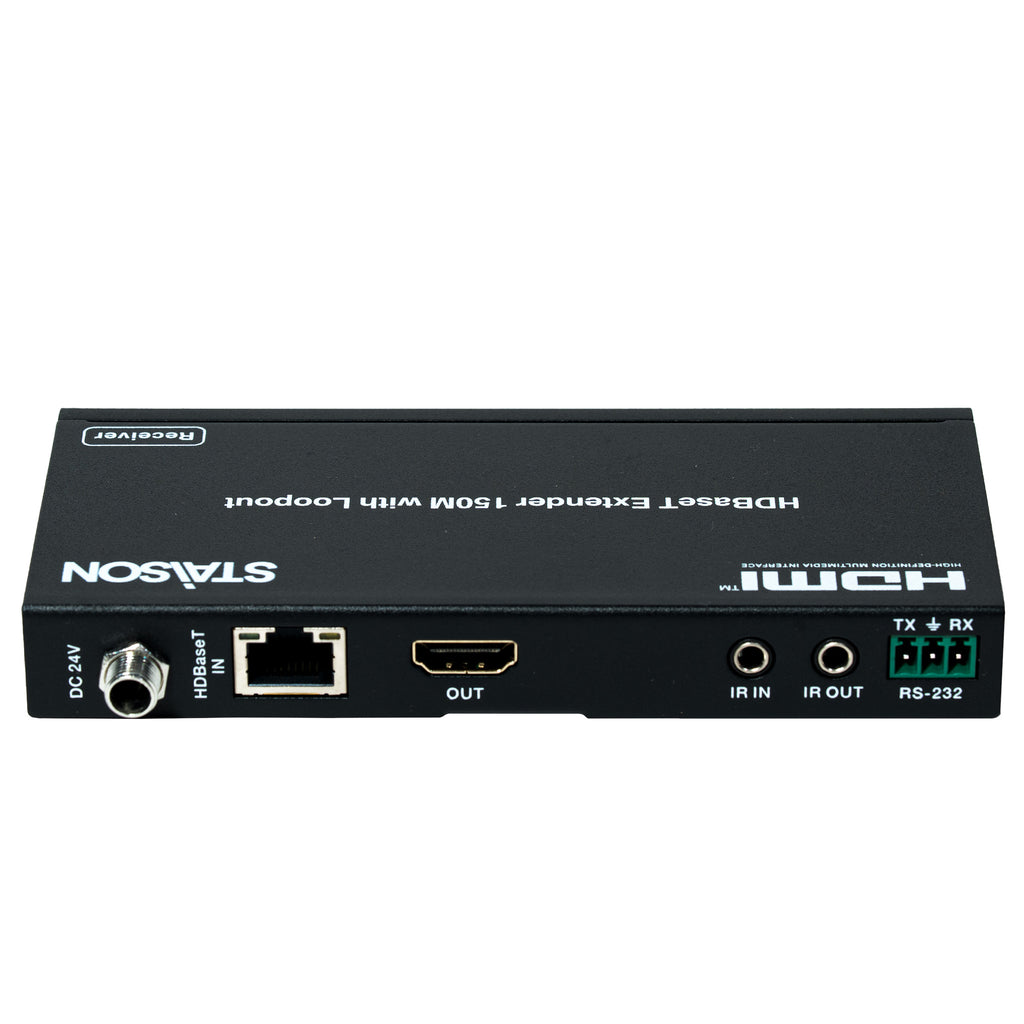

Receiver Panel
| No. | Name | Function Description |
|---|---|---|
| 1 | Power LED | System power indicator. |
| 2 | DC 24V | Connect 24V/1A adaptor to AC wall outlet for power supply. |
| 3 | HDBaseT IN | Standard HDBaseT input port. Connect to HDBaseT Transmitter with a UTP cable using the direct interconnection method. |
| 4 | OUT | Connect to the HDTV or monitor. |
| 5 | IR IN | Channel 1 IR Receiver. Connect to an IR receiver cable. |
| 6 | IR OUT | Channel 2 IR Transmitter. Connect to an IR emitter cable. |
| 7 | RS-232 | 3-pin phoenix connector, used for RS-232 command transmission. |
| 8 | Connection Signal Indicator | Illuminated: Transmitter and Receiver are in good connection. Flashing: Poor connection. Dark: Not connected. |
| 9 | Data Signal Indicator | Illuminated: HDMI signal with HDCP. Flashing: HDMI signal without HDCP. Dark: No HDMI signal. |
Feature Descriptions
① POC (Power over Cable) Application Example
② Bidirectional Infrared Control Application Example
③ Bidirectional RS-232 Control Application Example
Application Example
Note: The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
