Description
This Dante 2CH Analog Audio Encoder is an audio transmitter based on the Dante Ultimo solution. It supports balanced/unbalanced audio input and 3-level gain adjustment. It encodes audio signals and transmits the audio to the receiving end through the network (Dante). It supports PoE function.
Features
☆ Analog audio input supports balanced/unbalanced audio input (unbalanced: connect to "+" and "GND")
☆ Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
☆ Dante solution supports AES67 RTP audio transmission
☆ Audio input supports 3-level gain adjustment: +18dBu, 0dBu (default) and -10dBV
☆ Supports DC 12V power supply and PoE function (IEEE 802.3af Class 0)
Package Contents
① 1x Dante 2CH Analog Audio Encoder
② 1x 6pin-3.81mm Phoenix Connector (male)
③ 1x 2pin-3.81mm Phoenix Connector (male)
④ 1x User Manual
Specifications
| Technical | |
| Network Bandwidth | 100M |
| Audio Format | PCM 2.0 44.1kHz/48kHz/96kHz up to 24bit |
| Transmission Distance | 100m (CAT6/6A) |
| Control Method | Dante Controller |
| Connection | |
| Input | 1x PWR [2pin-3.81mm phoenix connector, DC 12V] 1x AUD [6pin-3.81mm phoenix connector, balanced/unbalanced 2CH analog audio] |
| Output | 1x DANTE [RJ45 connector, PoE] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 120mm [W] × 47mm [D] × 26mm [H] |
| Weight | 186g |
| Power Supply | DC input: 12V PoE input: IEEE 802.3af Class 0 |
| Power Consumption (Max) | 1.2W |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Operating Humidity | 20%~90% (relative humidity, non-condensing) |
Operation Controls and Functions

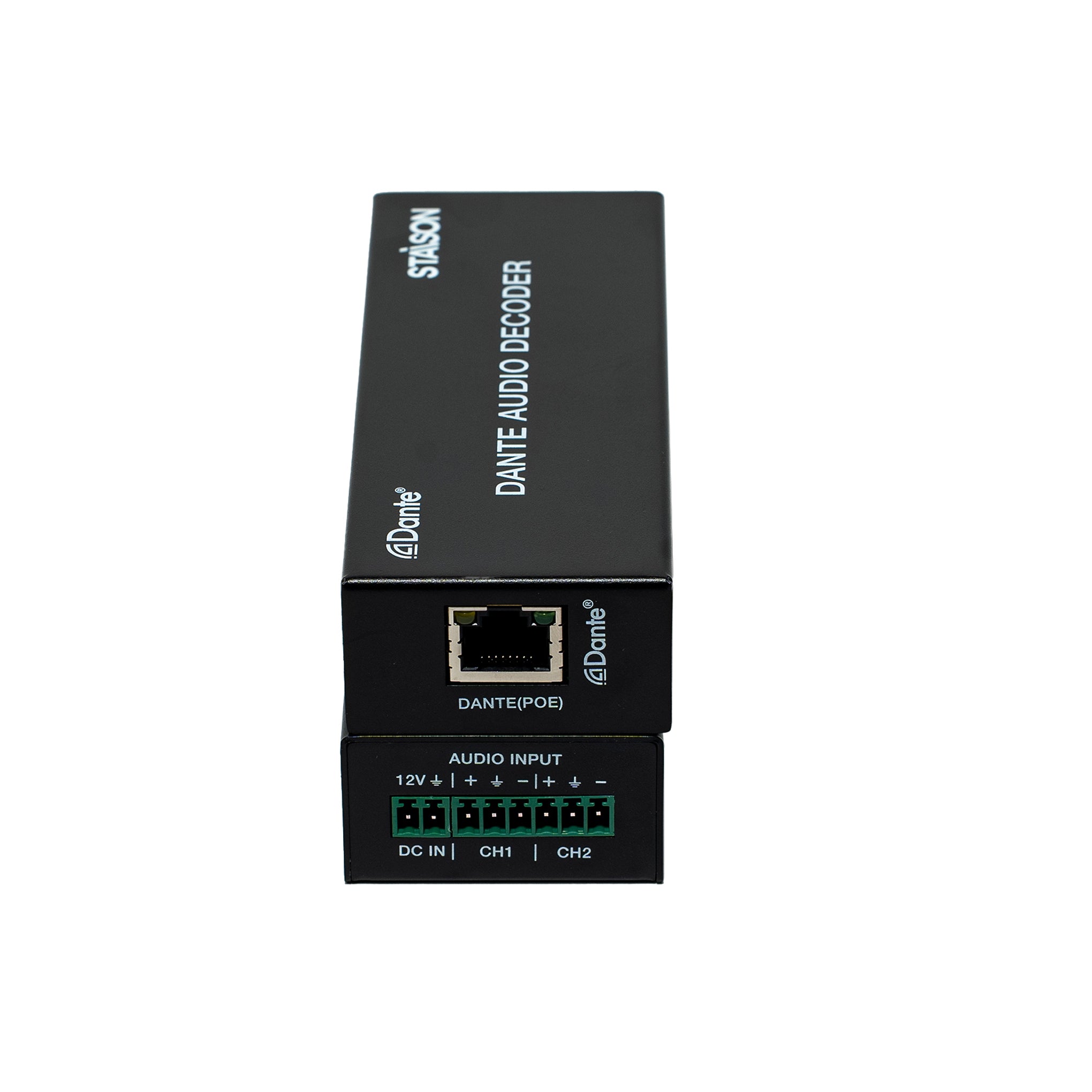

Panel Overview

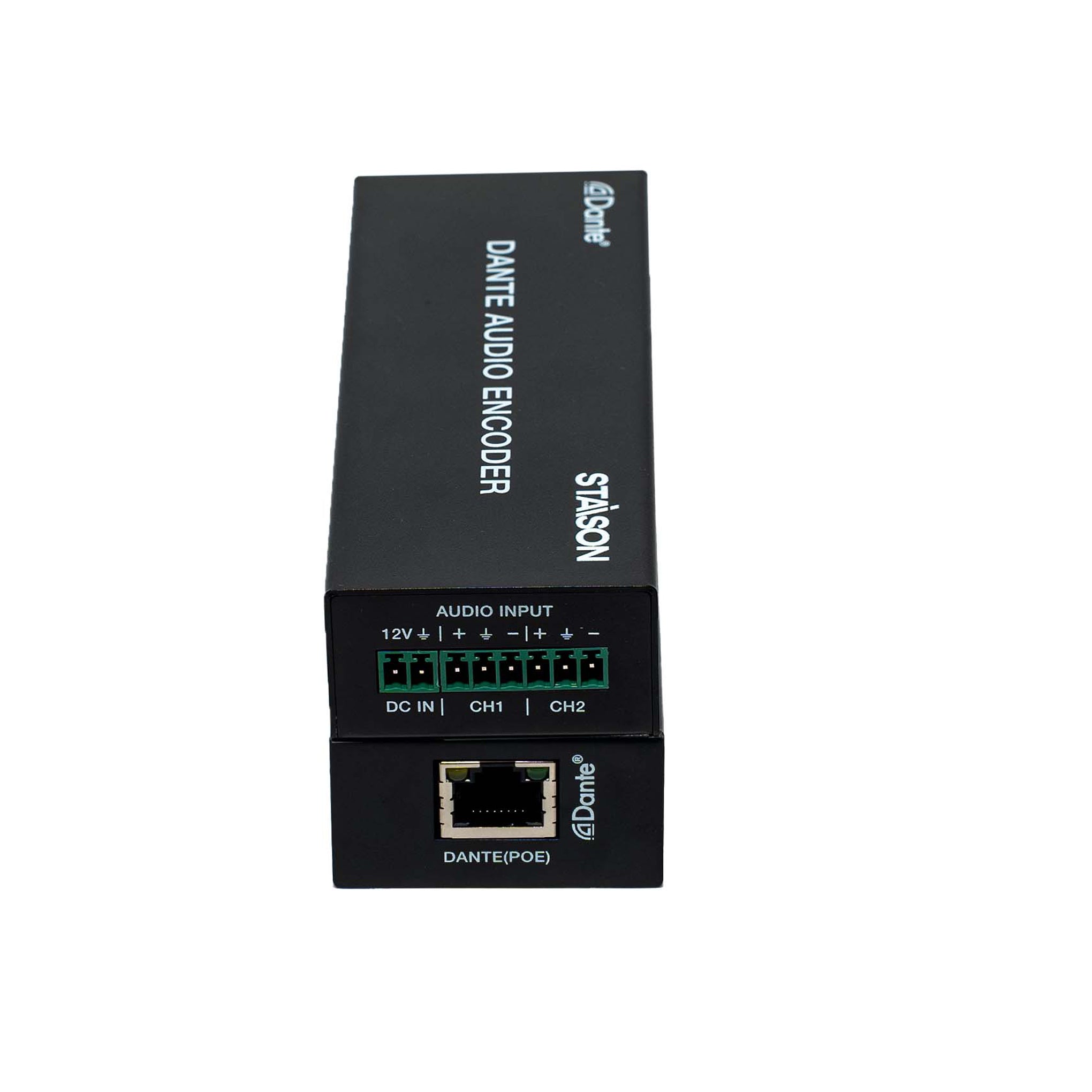

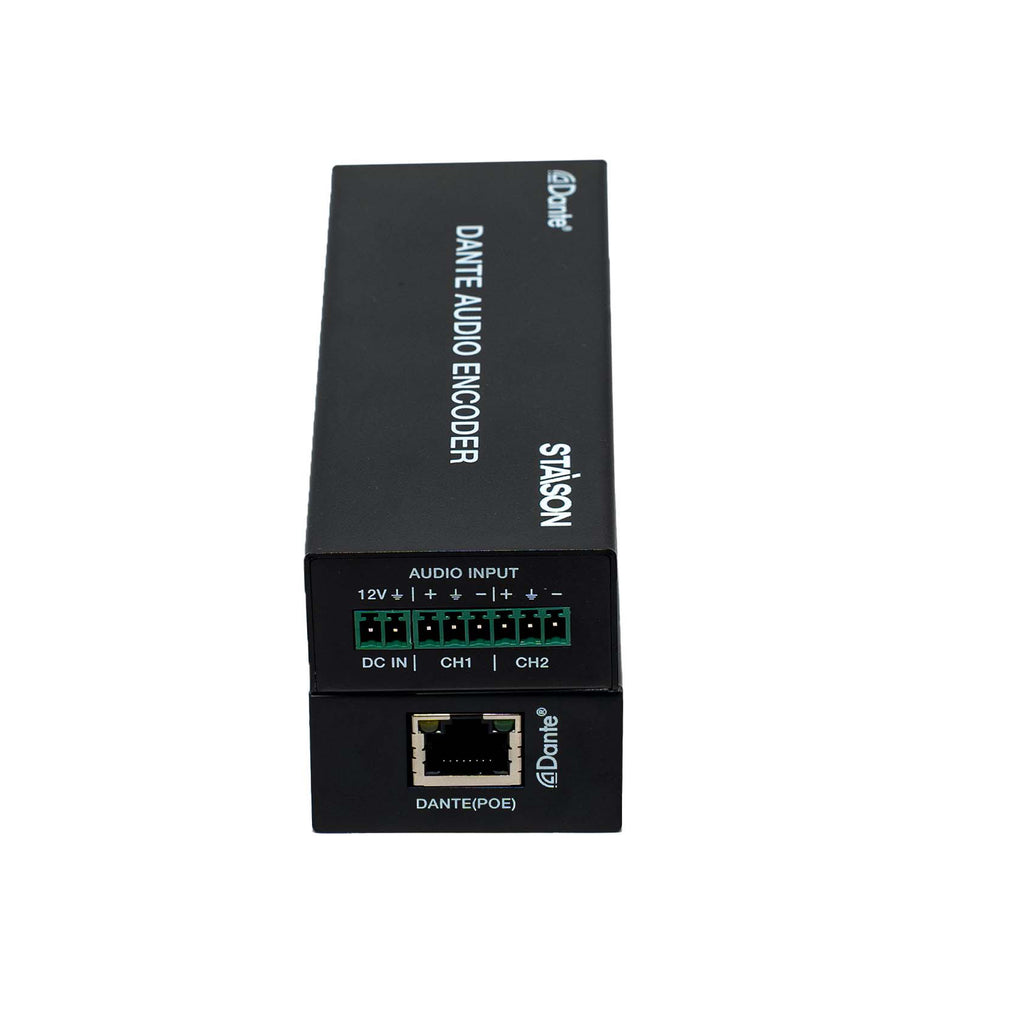

| No. | Name | Function Description |
|---|---|---|
| 1 | DC IN | DC 12V power input port. |

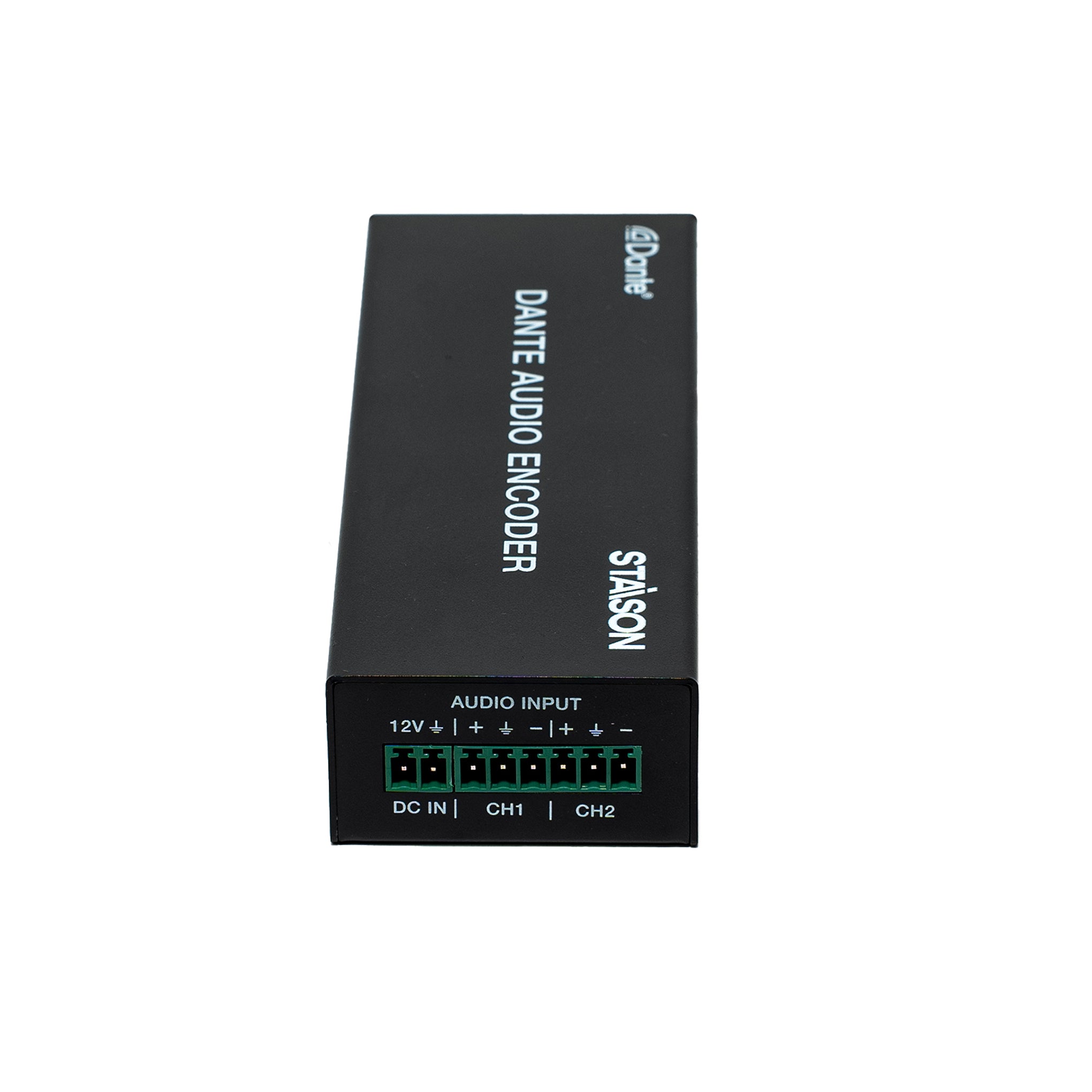

| 2 | AUDIO INPUT (CH1/CH2) |
2 channel analog audio input ports, supporting balanced and unbalanced audio. |

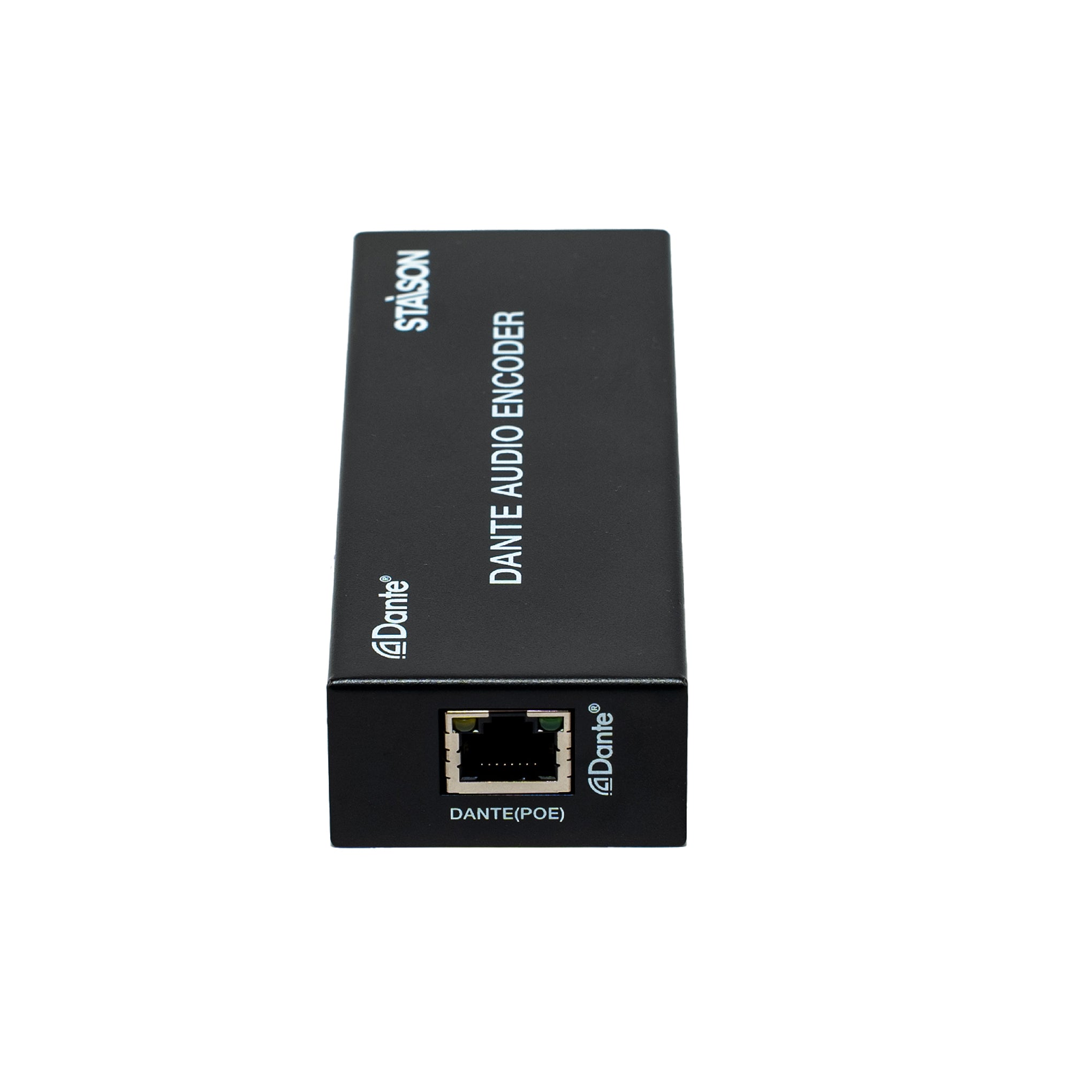

| 3 | DANTE (PoE) | Dante digital audio output port. Connect to the network switch through RJ45 cable, supporting PoE PD power supply. Green LINK LED is always on after normal connection. Yellow DATA LED flashes when there is data transmission. |

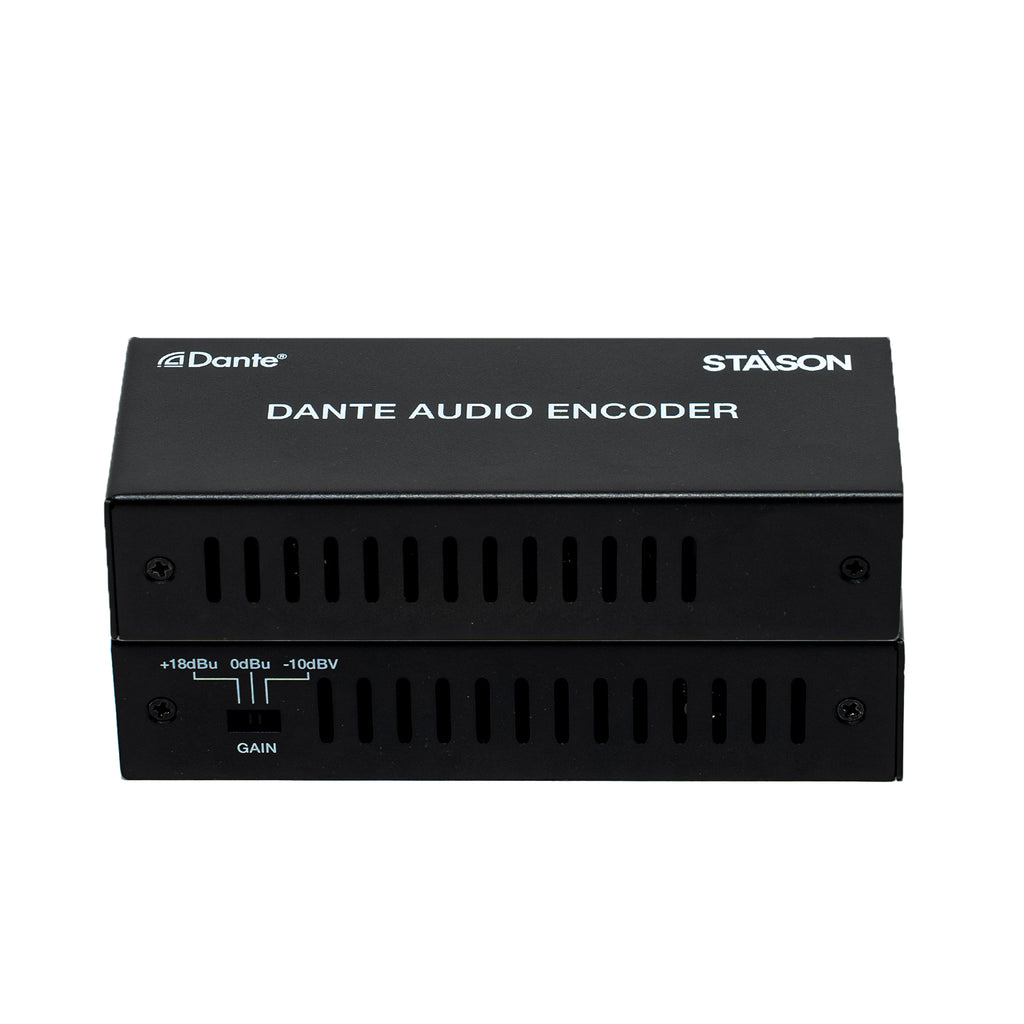

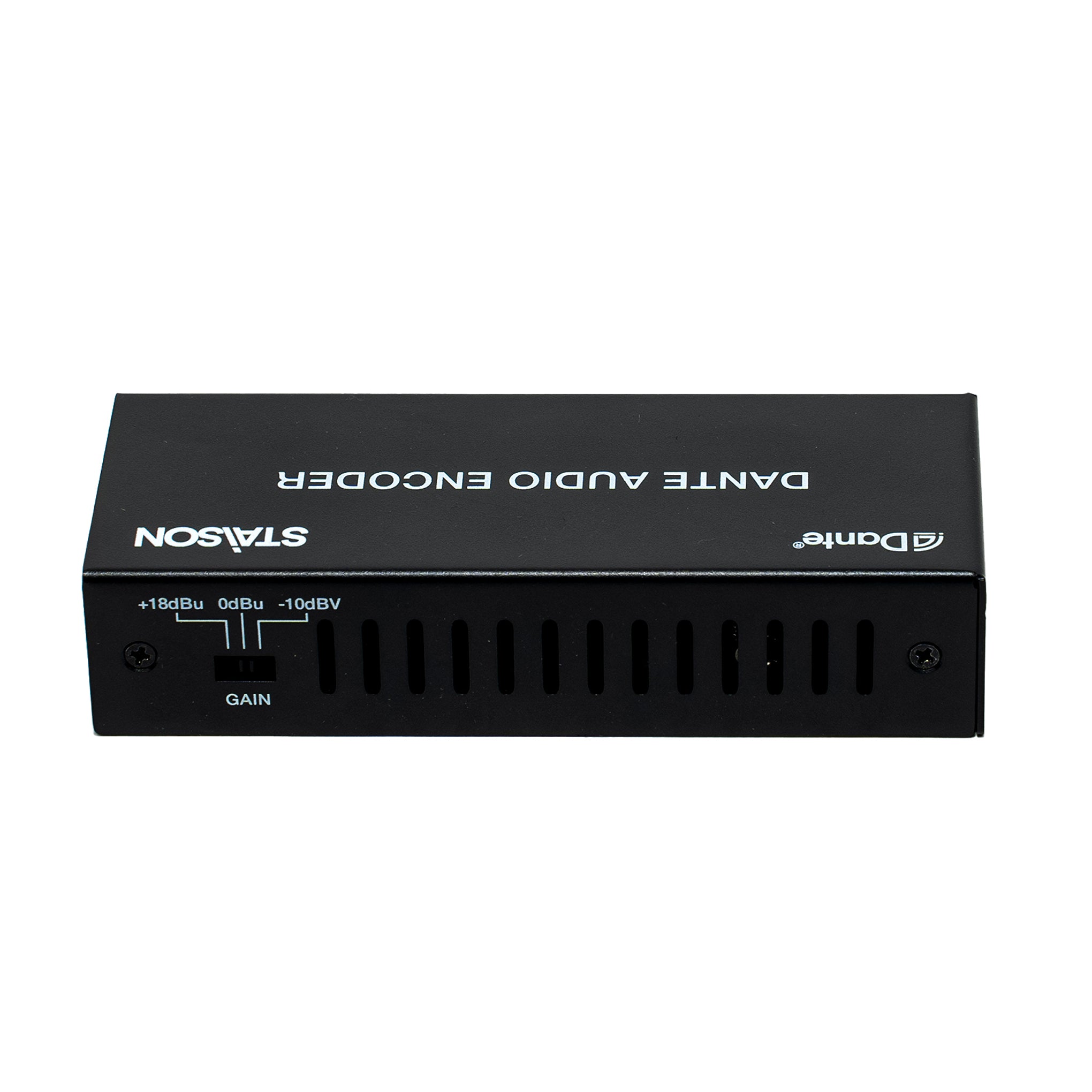

| 4 | GAIN Switch | 3-position DIP switch for audio input gain adjustment. Positions: +18dBu, 0dBu (default), -10dBV. |
