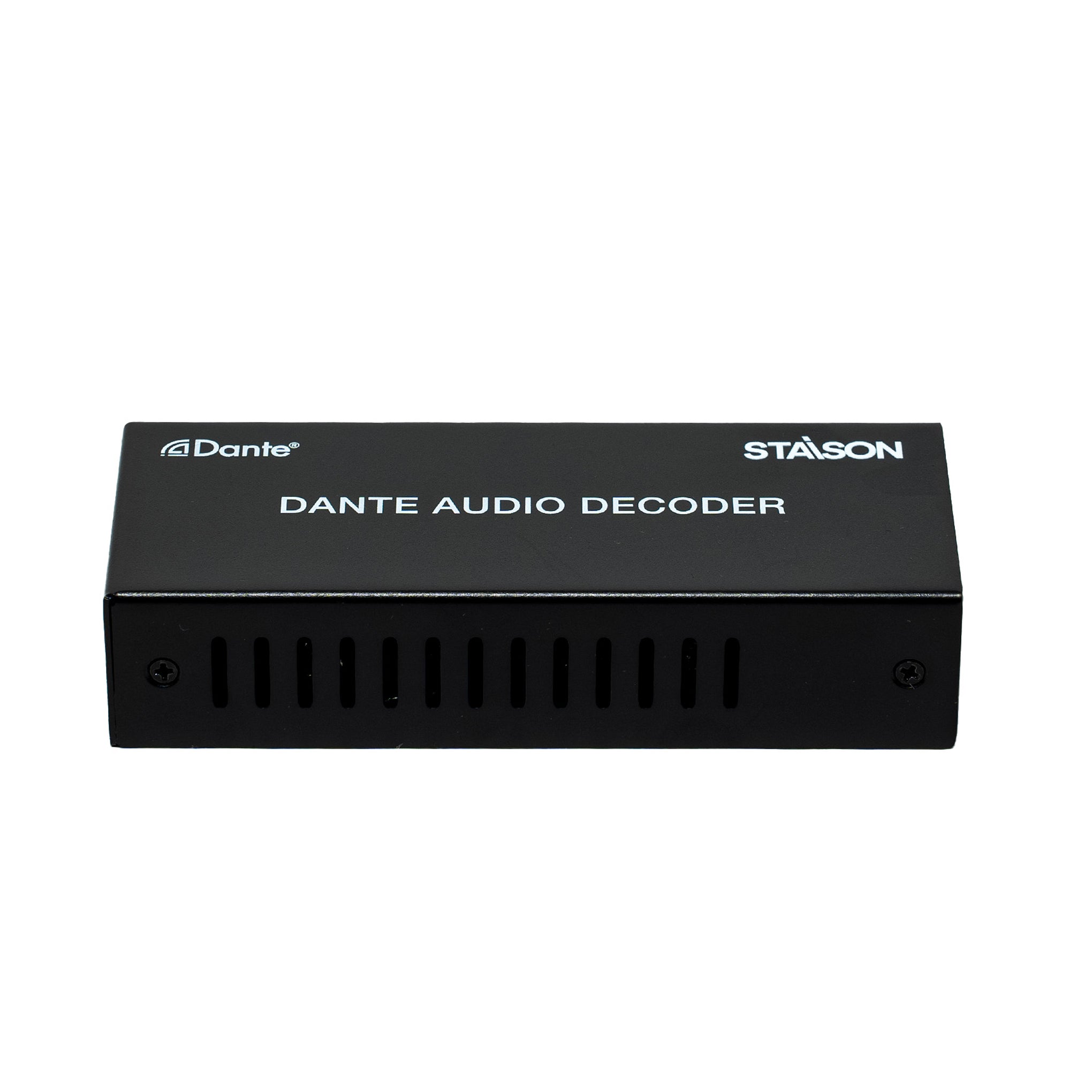

Description
This Dante 2CH Analog Audio Decoder is an audio receiver based on the Dante Ultimo solution. It supports balanced/unbalanced audio output and 3-level gain adjustment. It receives audio signals from the transmitting end through the network (Dante), then decodes and outputs the audio as analog audio. It supports POE function for simplified single-cable installation.
Features
☆ Analog audio output supports balanced/unbalanced audio output (unbalanced: connect "+" and "GND")
☆ Audio sampling rate supports 44.1kHz, 48kHz and 96kHz (24bit)
☆ Dante solution supports AES67 RTP audio transmission
☆ Audio output supports 3-level gain adjustment: +18dBu, 0dBu (default) and -10dBV
☆ Supports DC 12V power supply and POE function (IEEE802.3af Class 0)
Package Contents
① 1× Dante 2CH Analog Audio Decoder
② 1× 6-pin 3.81mm Phoenix Connector (male)
③ 1× 2-pin 3.81mm Phoenix Connector (male)
④ 1× User Manual
Specifications
| Technical | |
| Audio Input | 1× DANTE [RJ45 connector, PoE] |
| Audio Output | 1× AUD — 6-pin 3.81mm Phoenix connector (2CH balanced/unbalanced) |
| Power Input | 1× PWR — 2-pin 3.81mm Phoenix connector (DC 12V) |
| Audio Format | PCM 2.0 — 44.1kHz / 48kHz / 96kHz up to 24bit |
| Gain Adjustment | 3-level: +18dBu / 0dBu (default) / -10dBV |
| Audio Output Type | Balanced or Unbalanced (unbalanced: use "+" and "GND") |
| Dante AES67 | Supports AES67 RTP audio transmission |
| Control Method | Dante Controller |
| Network Bandwidth | 100M |
| Transmission Distance | 100m (CAT6 / 6A) |
| Power Supply | DC 12V input — or — PoE IEEE802.3af Class 0 |
| Power Consumption | 1.32W |
| Mechanical | |
| Housing | Metal Enclosure — Black |
| Dimensions | 120mm [W] × 47mm [D] × 26mm [H] |
| Weight | 186g |
| Environmental | |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20%~90% RH (non-condensing) |
Operation Controls and Functions
Device Panel
| No. | Name | Function Description |
|---|---|---|

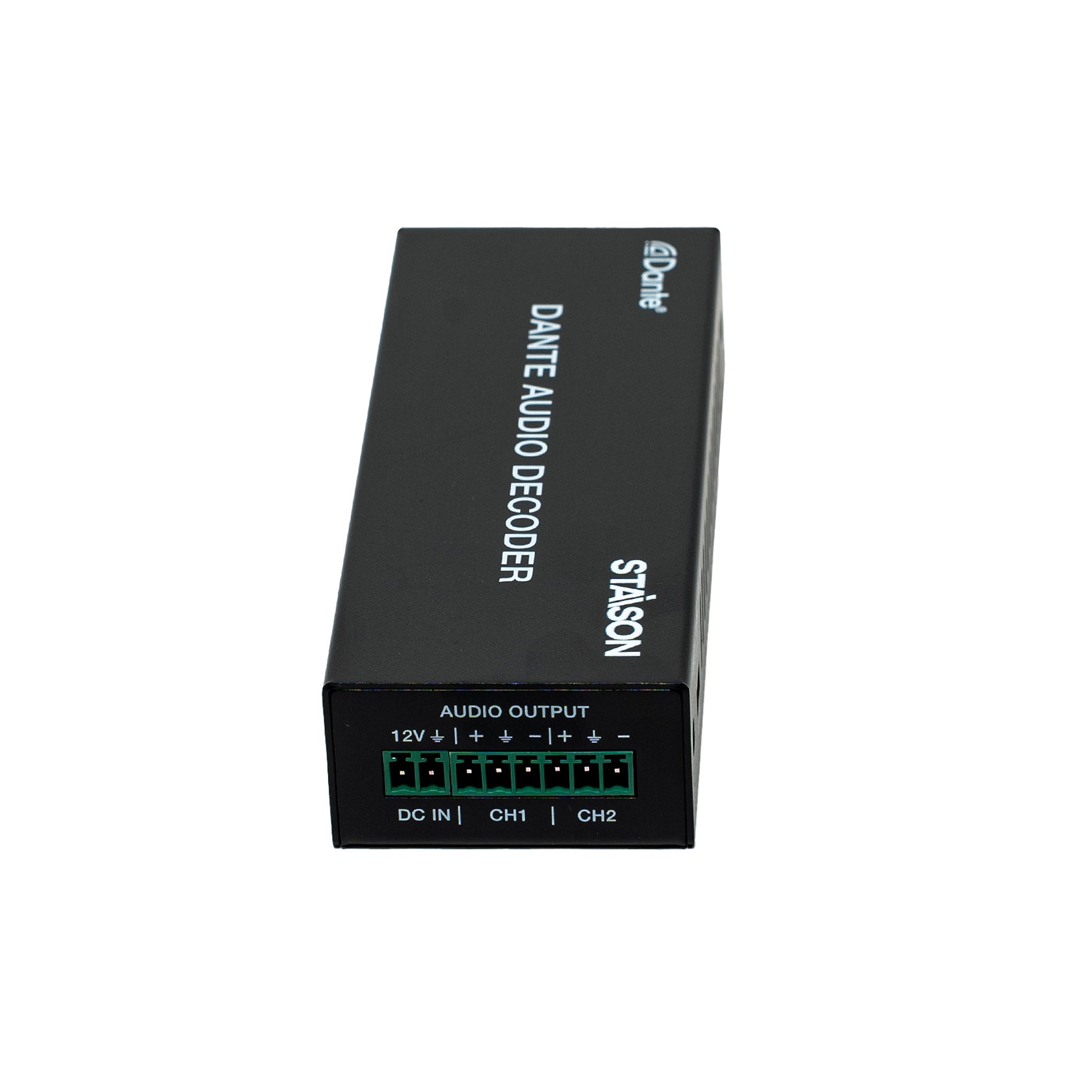

| 1 | AUDIO OUTPUT (CH1 / CH2) | 2-channel analog audio output via 6-pin Phoenix connector. Supports both balanced and unbalanced audio output. For unbalanced wiring, connect to "+" and "GND" pins. |
| 2 | DC IN | DC 12V power input port via 2-pin 3.81mm Phoenix connector. |

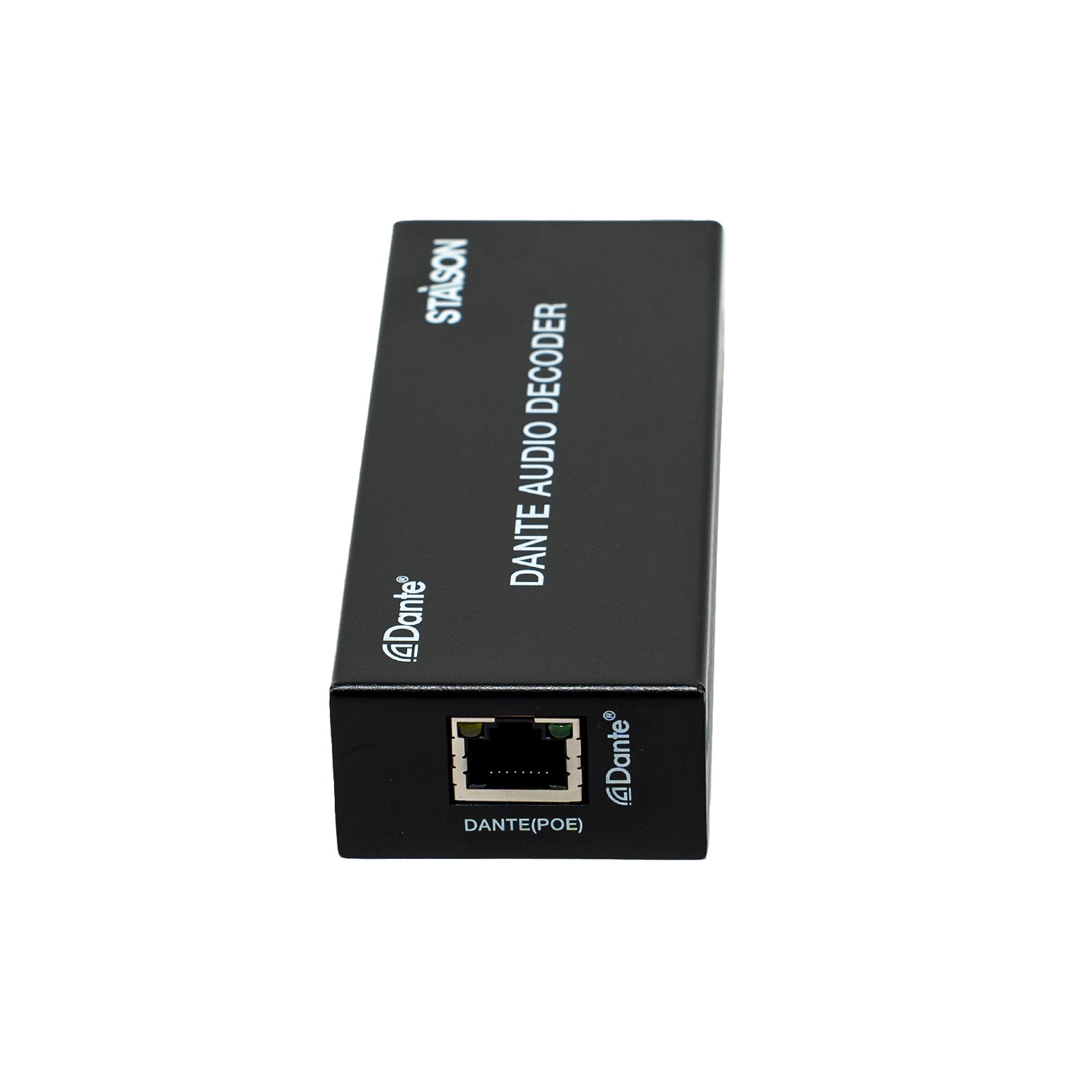

| 3 | DANTE (PoE) | Dante digital audio input port — connect to Network Switch via RJ45 cable, supporting PD power supply (PoE). Green LINK LED: Always on after normal connection. Yellow DATA LED: Flashing when data is transmitting. |

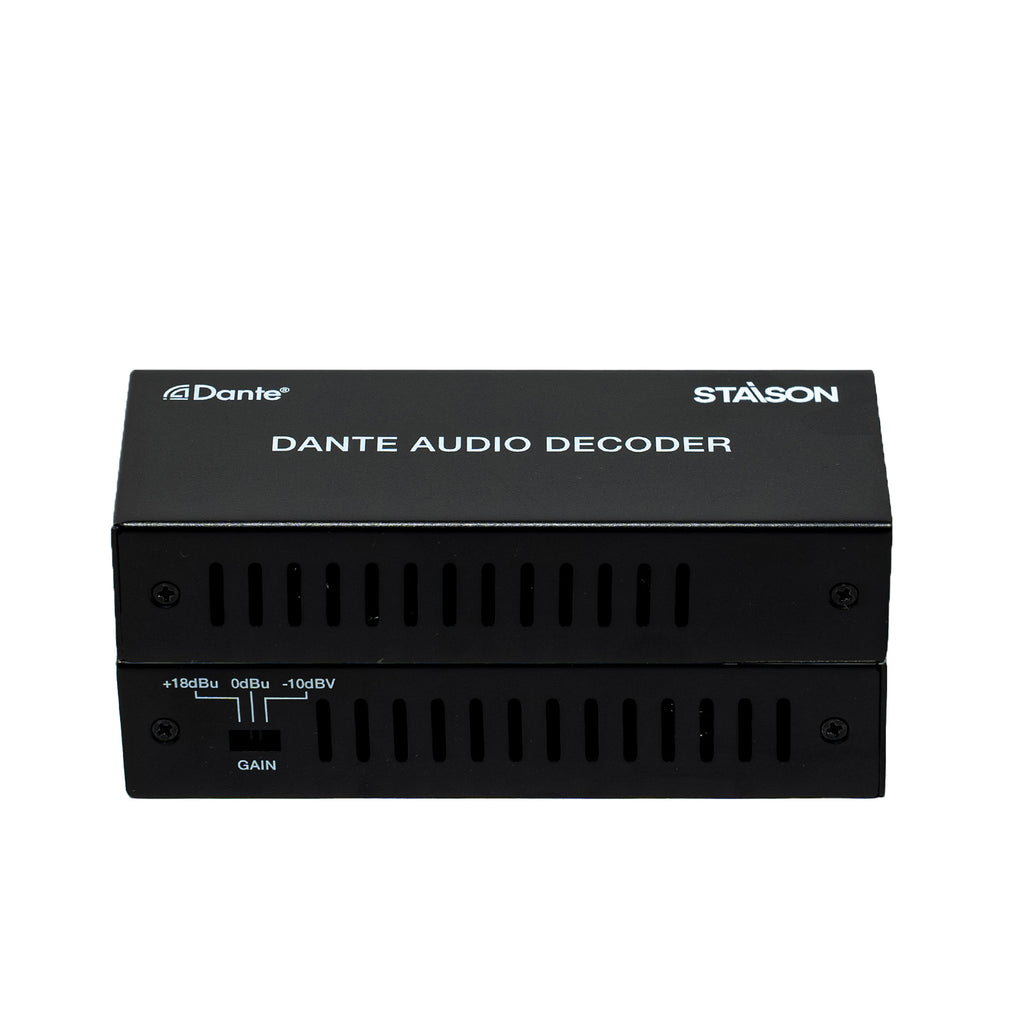

| 4 | GAIN Switch | Used for audio output gain adjustment. Three selectable levels: +18dBu — High gain 0dBu — Default (standard line level) -10dBV — Consumer level |
Application Example
