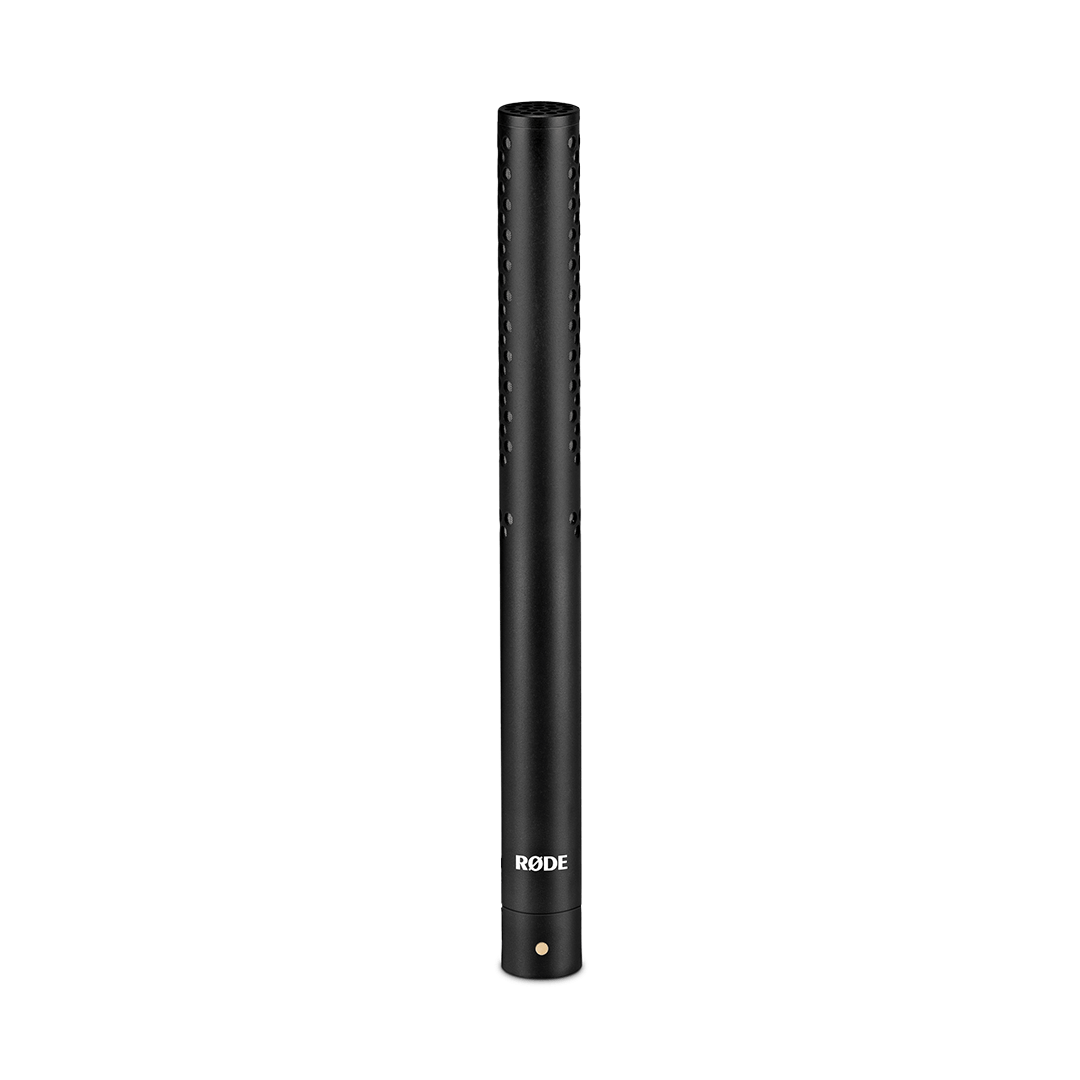

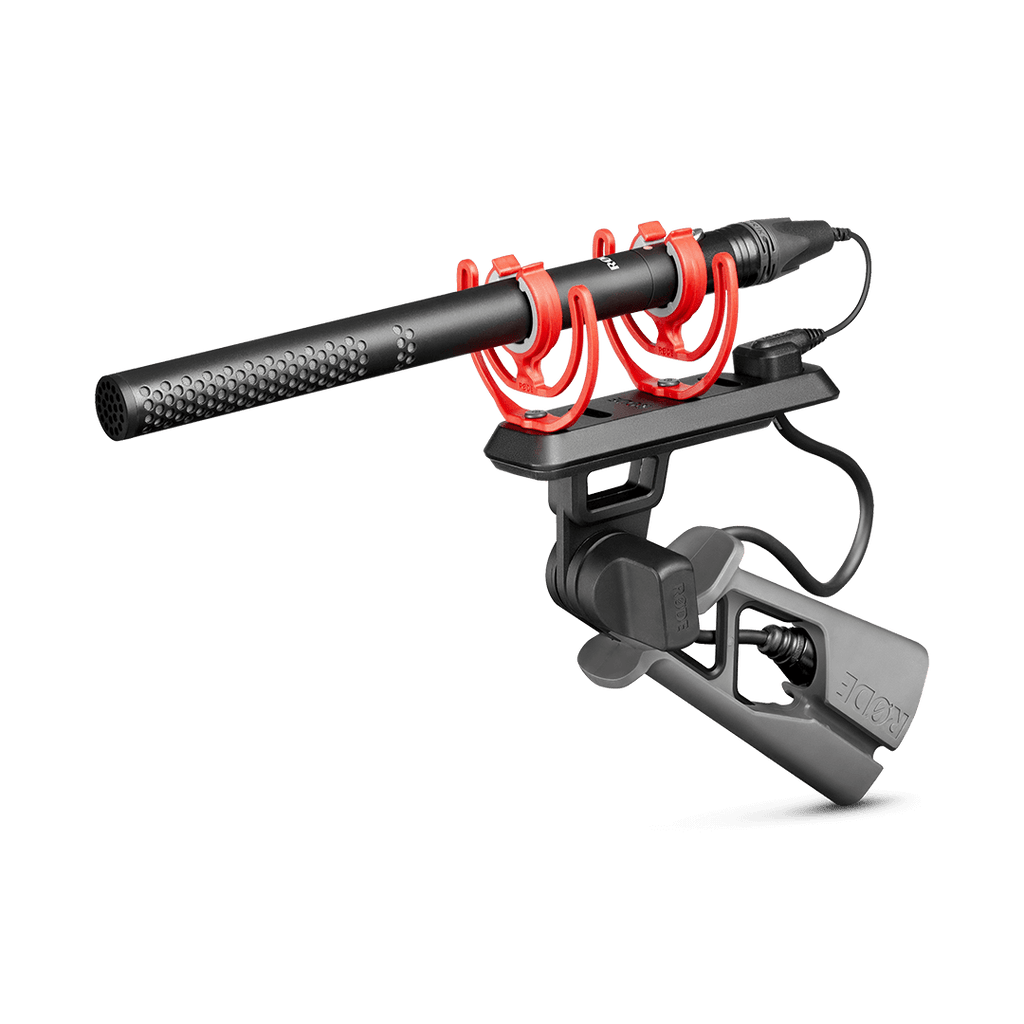

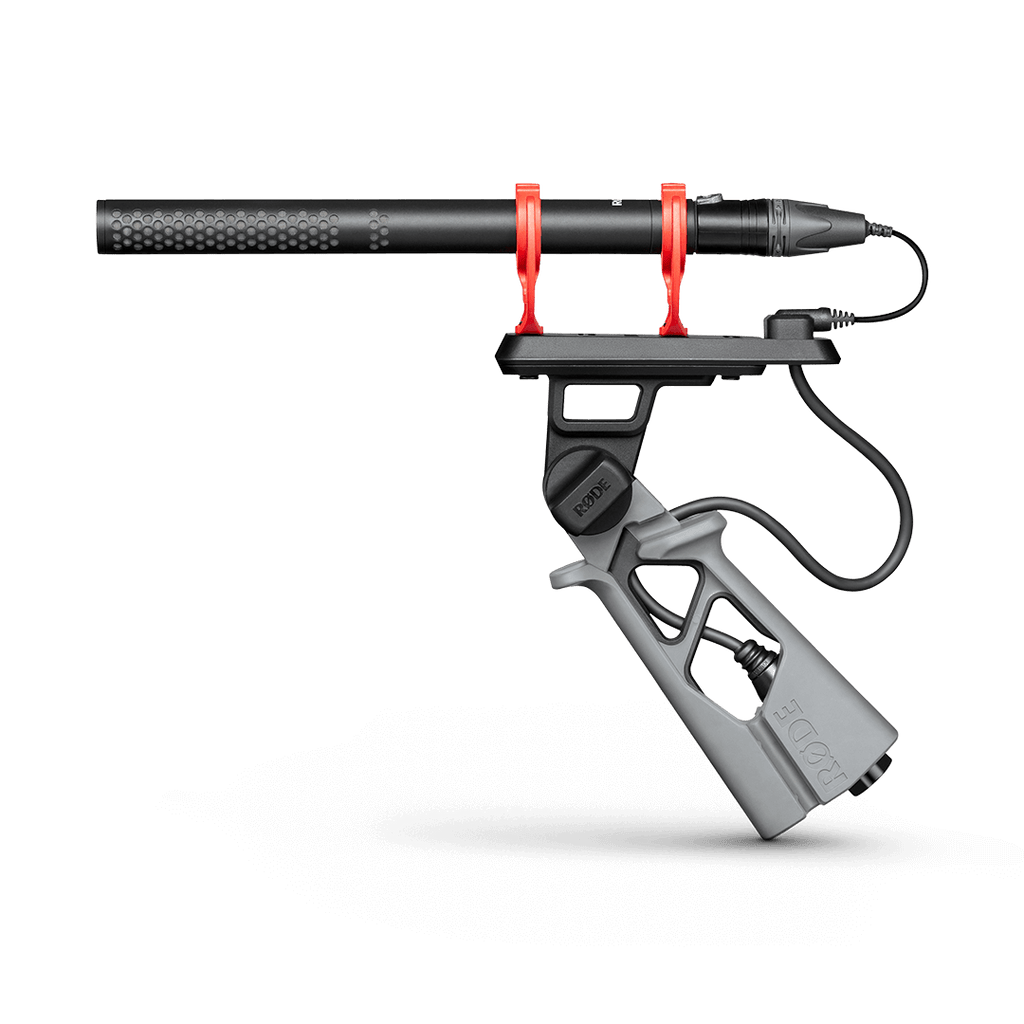

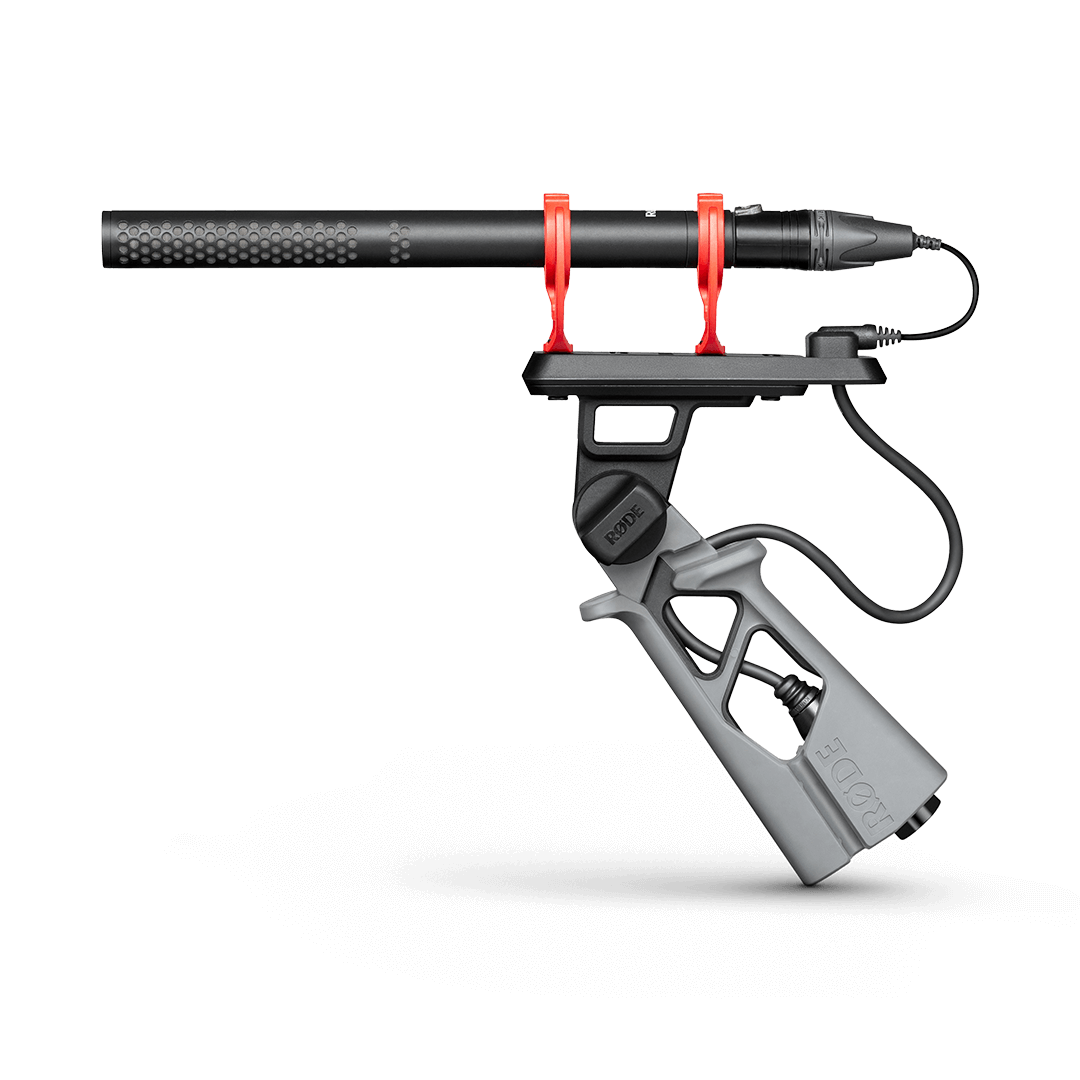

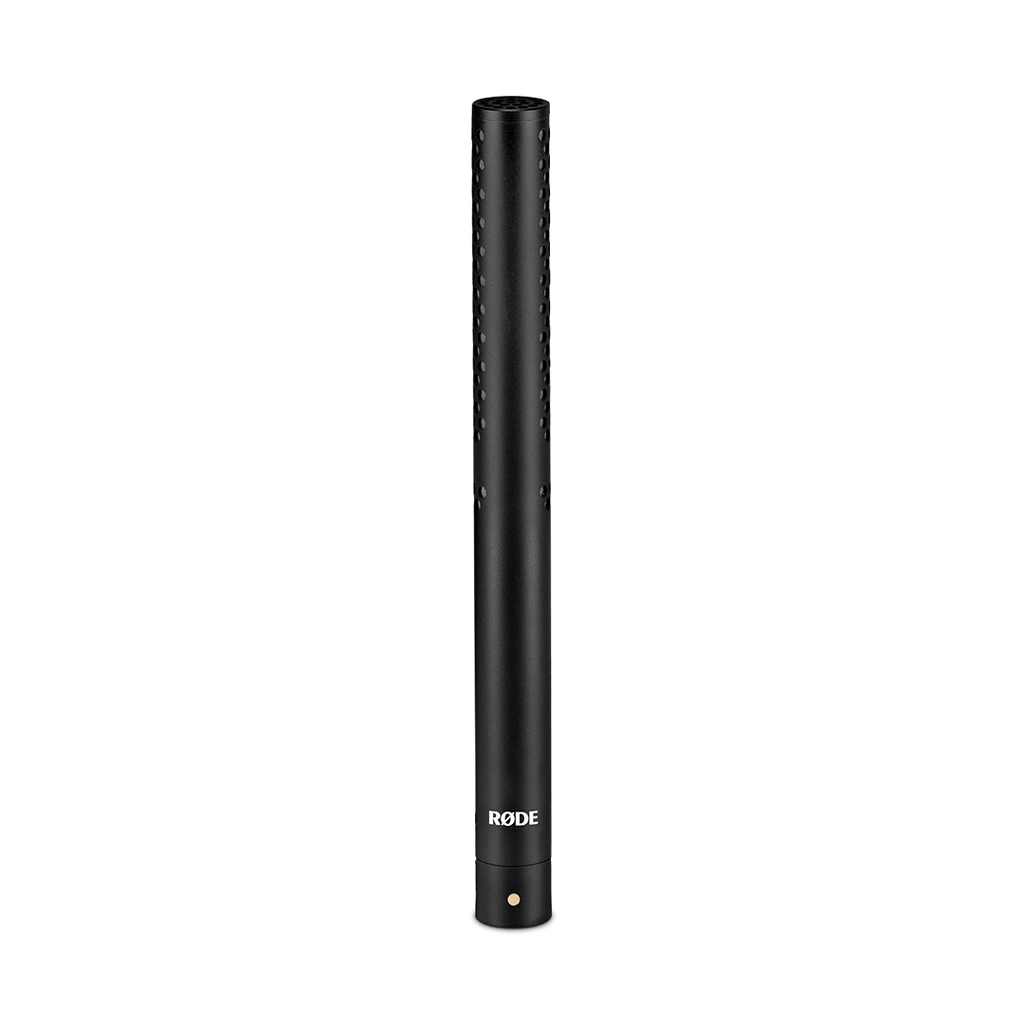

The NTG1 is a lightweight condenser shotgun microphone, designed for professional applications in film, video, television and broadcast. Its full frequency response, low noise and transparency make it ideal in a range of applications, including filmmaking, voice-over and streaming, while its low weight (105 grams) makes it an ideal boom microphone. It also features a switchable high-pass filter for added flexibility.
Key Features
- Premium shotgun microphone
- Low noise and full frequency response
- Highly directional supercardioid polar pattern
- High-pass filter (80Hz)
- Lightweight (105 grams) and easy to use
Specifications
Acoustic & Electrical
| Acoustic Principle |
Line Gradient |
| Active Electronics |
JFET impedance convertor with bipolar output buffer |
| Capsule |
0.50" |
| Polar Pattern |
Supercardioid |
| Address Type |
End |
| Frequency Range |
20Hz - 20kHz |
| Output Impedance |
50Ω |
| Maximum SPL |
139dB SPL |
| Maximum Output Level |
6.9mV (@ 1kHz, 1% THD into 1KΩ load) |
| Sensitivity |
-36.0dB re 1 Volt/Pascal (15.00mV @ 94 dB SPL) +/- 2 dB @ 1kHz |
| Equivalent Noise Level (A-Weighted) |
18dBA |
| Power Requirements |
P24 and P48 |
| Output Connection |
XLR |
Mechanical
| Weight (g) |
105 |
| Dimensions (mm) |
219 (H) x 22 (W) x 22 (D) |
