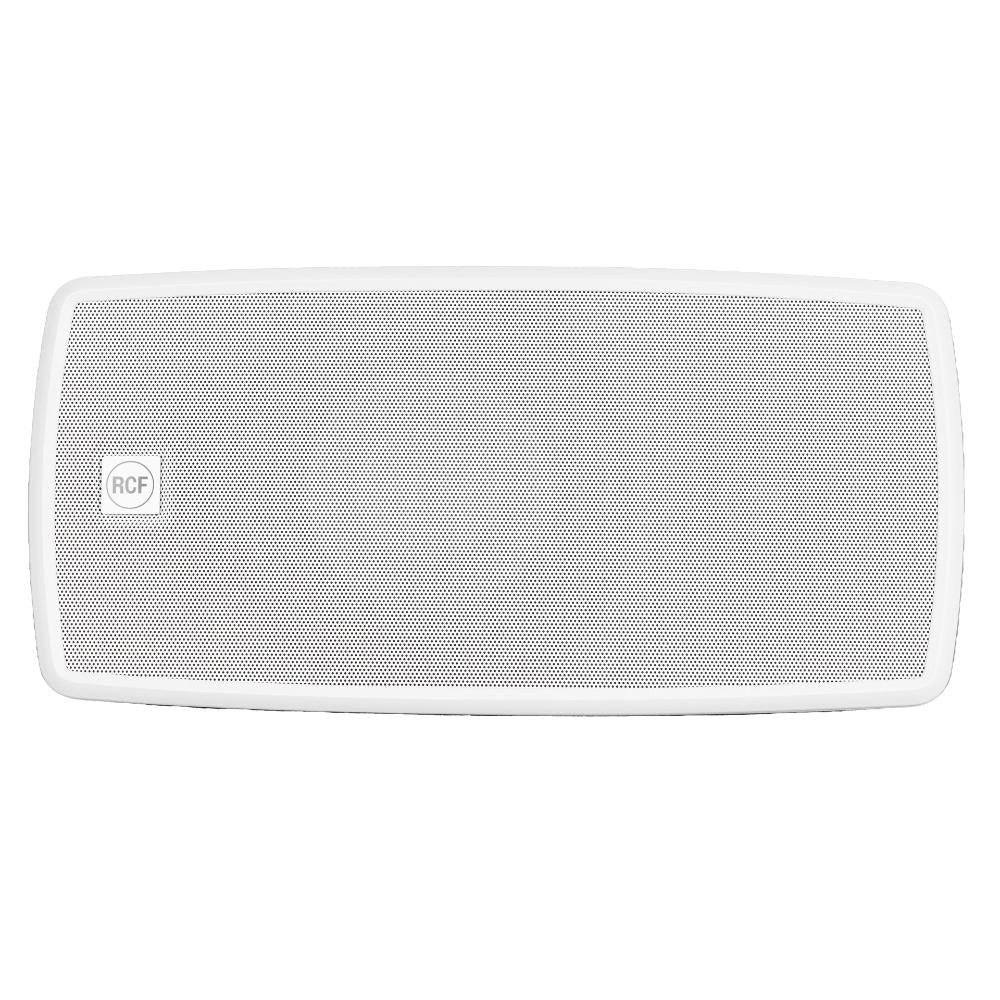

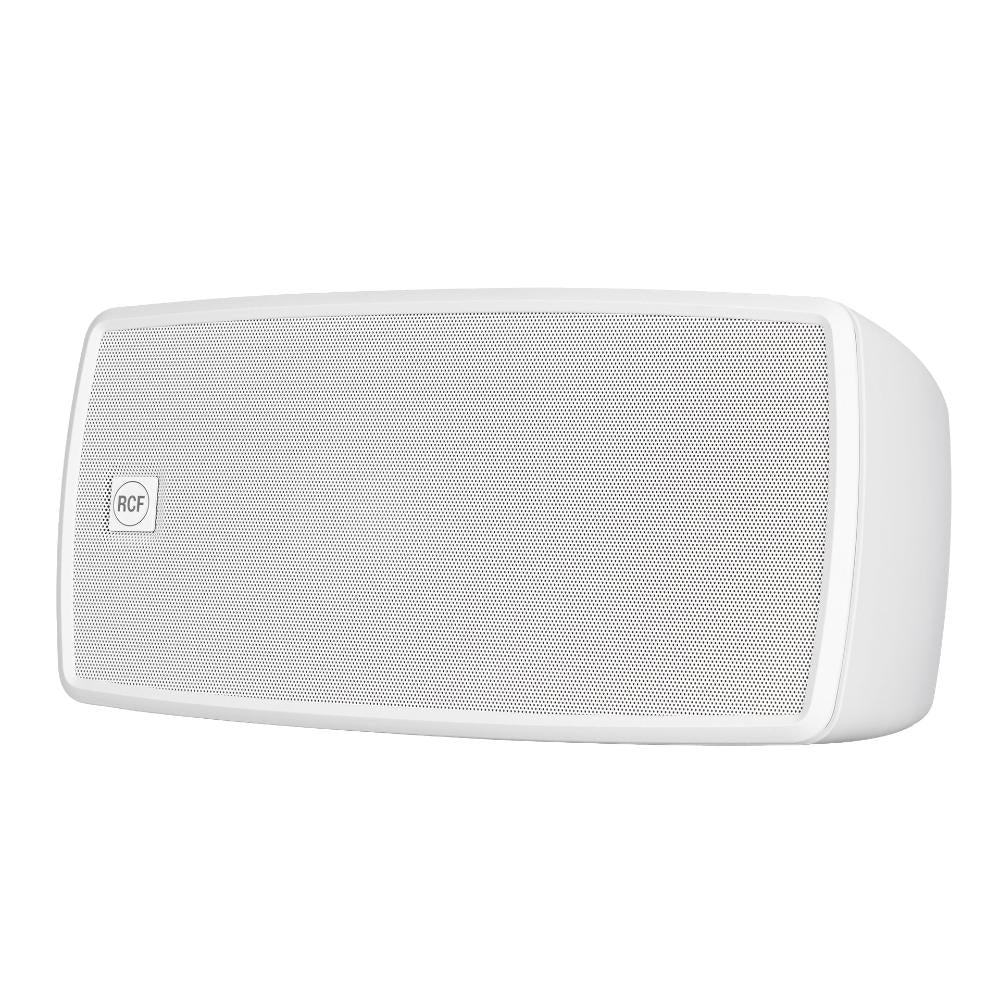

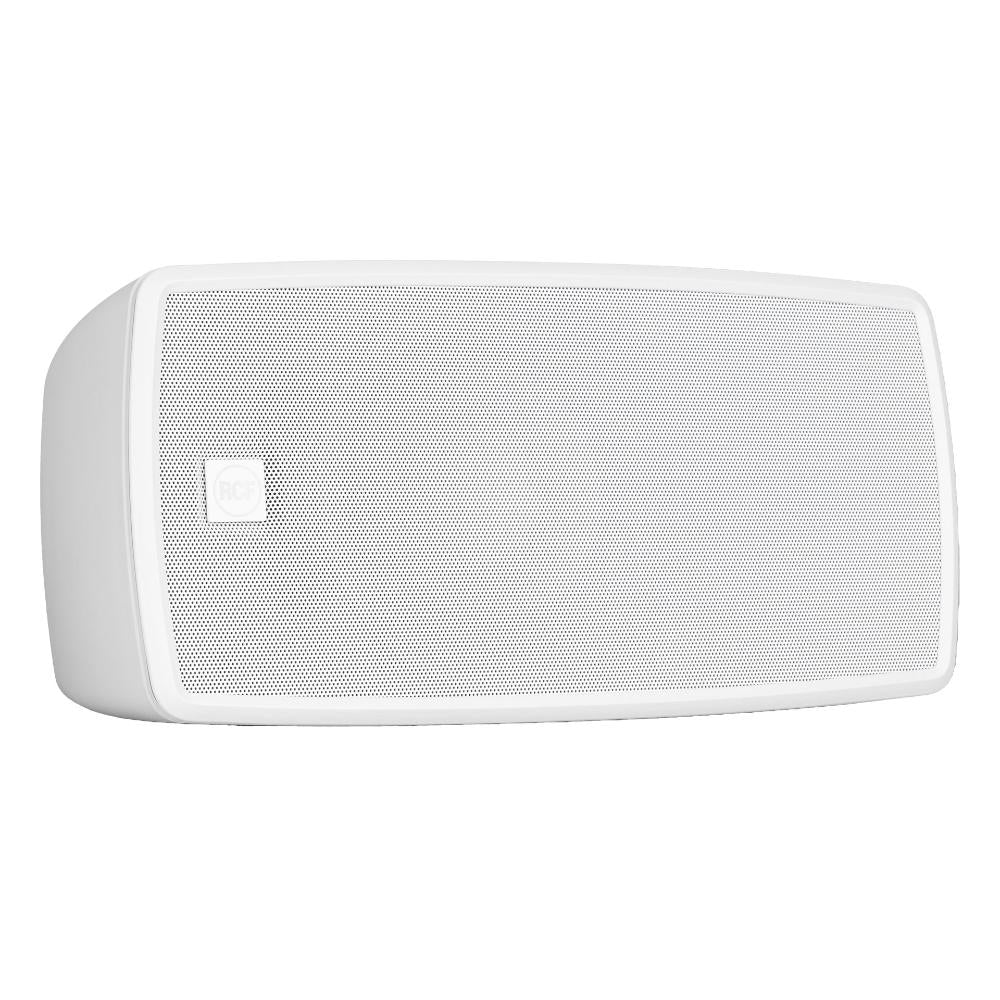

RCF WMR 60T W – IP55 - Two-way wall mount monitor speaker 6,5" + 1", 80 W AES power handling, with transformer, White
The RCF WMR 60T W is a professional audio product from the RCF Business Music Speakers series, designed for business music applications. Built to RCF's exacting standards of Italian engineering excellence, this product delivers reliable, high-performance audio in professional environments.
Product Details
-
Model: WMR 60T W
-
Series: Business Music Speakers
-
Application: BUSINESS MUSIC
-
SKU: 13100071
Description
BUSINESS MUSICINSTALLED
WMR 60T
TWO-WAY WALL-MOUNT MONITOR SPEAKER
- 80W RMS power handling
- 114 dB max SPL
- Self-extinguishing plastic cabinet and aluminum front grille
- IP55 protection grade
Features
- 80W RMS power handling
- 114 dB max SPL
- 70 ÷ 20000 Hz frequency range
- 140° x 100° constant directivity coverage angle
- 6.5" high power woofer
- 1" neodymium dome tweeter
- Self-extinguishing plastic cabinet and aluminum front grille
- Connection board integrated into the wall support
- 4 pole EUROBLOCK connector (audio input and parallel link output)
- IP55 protection grade
WMR 60T is a multi-purpose two-way wall-mounted speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, WMR 60T pairs any building's aesthetic. The high-quality transducers guarantee a precise music reproduction of the entire frequency band and provide impressive sound pressure levels for such a compact enclosure. The installation is easy thanks to the dedicated connection board inside the (included) wall mount support, which allows the installer to set the desired tilt first, fix the speaker, and finally connect it without the need for any tooling.
Music nurtures engagement and improves the feeling of hospitality provided by the environment. With a wide conical coverage angle of 140° x 100°, WMR speakers feature a two-way configuration with a bass-reflex cabinet design, ideal for both speech and music reproduction.

All products designed for Business Music applications offer optimal background performance and consistent tonal quality across all the Series preserving the same performance even during high-powered foreground music. The combination of modern monochrome and discreet design blends into any environment.
Uncompromised performance
Quality components and careful acoustic design make the WMR Series a perfect choice for demanding applications. Designed for bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls, and corporate spaces. Their extra-wide directivity significantly reduces the number of speakers and installation points.

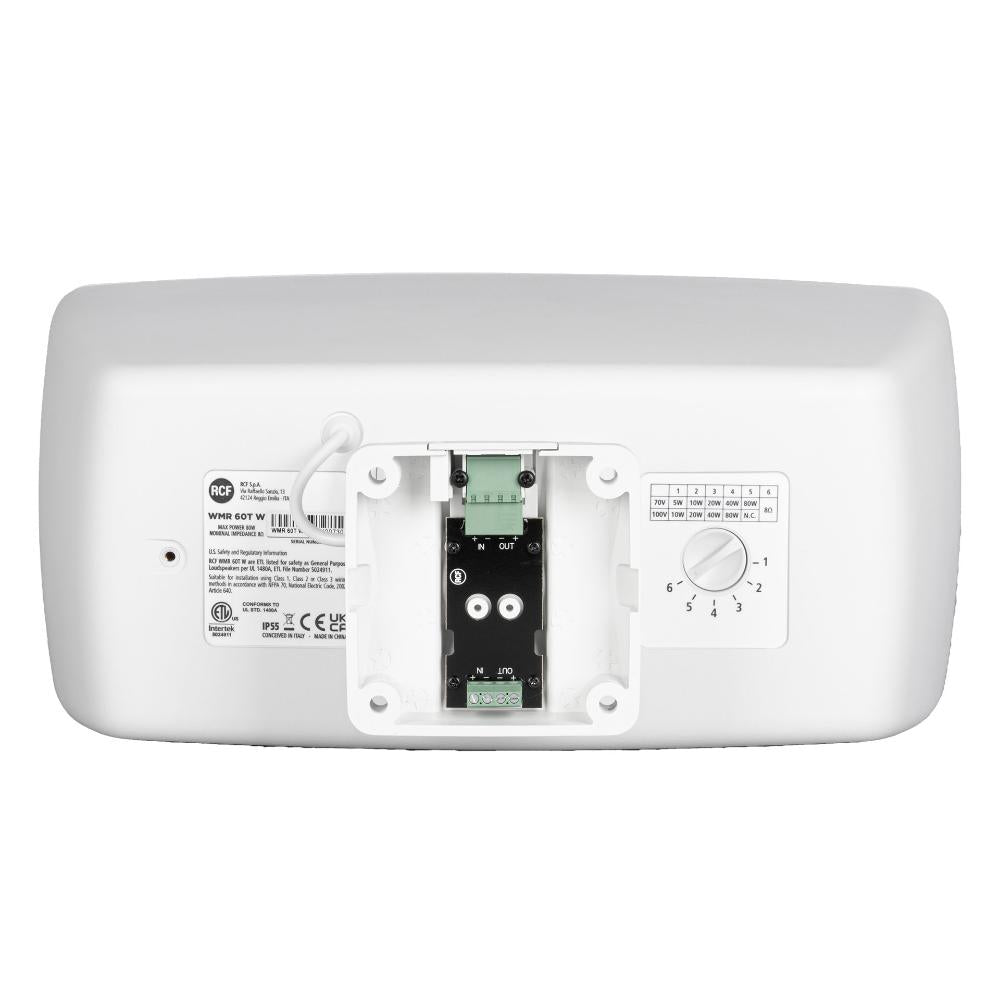

Housed in a compact self-extinguishing plastic cabinet, all models feature Euroblock inputs, a line transformer for 70V-100V systems, and quick and easy installation. The connection panel is embedded inside the wall mount support, for both ease of installation and elegance. The stepped swivel mount is fast to configure and secure.
Technical Specifications
Professional Loudspeaker System
Acoustical Specifications
| Frequency Response (-10dB) |
70 Hz - 20000 Hz |
| Max SPL @ 1m |
114 dB |
| Horizontal Coverage Angle |
140° |
| Vertical Coverage Angle |
100° |
| System Sensitivity |
89 dB |
Power Section
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
80 W RMS |
| Peak Power Handling |
320 W PEAK |
| Protections |
Bulb lamp |
| Crossover Frequencies |
2500 Hz |
| Recommended Amplifiers |
DMA 504, DMA 162, DMA 82, DMA 162P |
Transducers
| Dome Tweeter |
1 x 1.0'' neo, 1.0'' v.c |
| Woofer |
1 x 6.5'', 1.2'' v.c |
Input/Output Section
| Input Connectors |
Euroblock |
| Output Connectors |
Euroblock |
| Constant Voltage Transformer |
70/100 V |
Constant Voltage Power Selections
| 80 W |
125 ohm |
| 40 W |
250 ohm |
| 20 W |
500 ohm |
| 10 W |
1000 ohm |
| 5 W |
2000 ohm |
Standard Compliance
| IP Protection Grade |
IP 55 |
| Safety Agency |
CE compliant, UL 1480A |
Physical Specifications
| Cabinet/Case Material |
ABS |
| Hardware |
Wall mount bracket |
| Grille |
Steel |
| Color Options |
Black (RAL 9005), White (RAL 9003) |
Size & Weight
| Height |
403 mm / 15.87 inches |
| Width |
193 mm / 7.6 inches |
| Depth |
293 mm / 11.54 inches |
| Weight |
6 kg / 13.23 lbs |
Shipping Information
| Package Height |
298 mm / 11.73 inches |
| Package Width |
468 mm / 18.43 inches |
| Package Depth |
338 mm / 13.31 inches |
| Package Weight |
7.5 kg / 16.53 lbs |
