RCF WMR 50T monitor – IP55 Two-Way Wall Mount Speaker 40W AES
RCF WMR 50T monitor is a professional IP55 two-way wall mount speaker designed for business music and commercial audio installations. Built to RCF's exacting standards of Italian engineering excellence, the RCF WMR 50T monitor delivers reliable, high-performance audio in professional indoor and outdoor environments.
Product Details
-
Model: WMR 50T
-
Series: Business Music Speakers
-
Application: BUSINESS MUSIC
-
SKU: 13100051
Description
BUSINESS MUSICINSTALLED
RCF WMR 50T monitor features a 5-inch high-power woofer, 1-inch neodymium dome tweeter, 40 W RMS power handling, 110 dB maximum SPL and IP55 weather protection. The RCF WMR 50T monitor is ideal for business music systems, retail stores, restaurants, hotels and commercial installations.
WMR 50T
TWO-WAY WALL MOUNT MONITOR SPEAKER
- 40W RMS power handling
- 110 dB max SPL
- Self-extinguishing plastic cabinet and aluminum front grille
- IP55 protection grade
Features
- 40W RMS power handling
- 110 dB max SPL
- 80 ÷ 20000 Hz frequency range
- 140° x 100° constant directivity coverage angle

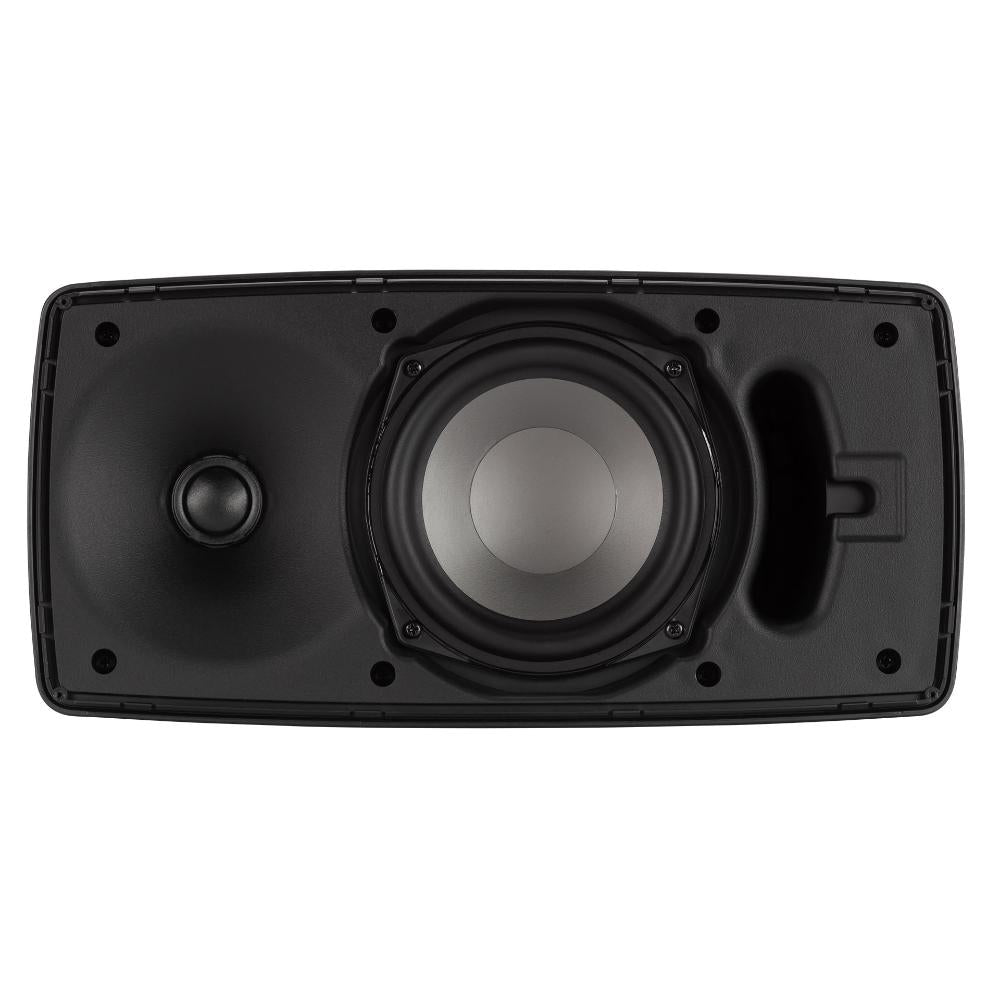

- 5" high power woofer
- 1" neodymium dome tweeter
- Self-extinguishing plastic cabinet and aluminum front grille
- Connection board integrated into the wall support
- 4 pole EUROBLOCK connector (audio input and parallel link output)
- IP55 protection grade
WMR 50T is a multipurpose two-way wall-mounted speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, WMR 50T pairs any building's aesthetic. The high-quality transducers guarantee a precise music reproduction of the entire frequency band and provide impressive sound pressure levels for such a compact enclosure. The installation is easy thanks to the dedicated connection board inside the (included) wall mount support, which allows the installer to set the desired tilt first, fix the speaker, and finally quickly connect it without the need for any tooling.
The RCF WMR 50T monitor provides balanced sound reproduction, excellent speech clarity and wide 140° × 100° coverage. Its bass-reflex enclosure and professional acoustic design deliver consistent performance for both background music and public announcements.
Multipurpose soundMusic nurtures engagement and improves the feeling of hospitality provided by the environment. With a wide conical coverage angle of 140° x 100°, WMR speakers feature a two-way configuration with a bass-reflex cabinet design, ideal for both speech and music reproduction.
All products designed for Business Music applications offer optimal background performance and consistent tonal quality across all the Series preserving the same performance even during high-powered foreground music. The combination of modern monochrome and discreet design blends into any environment.
Uncompromised performanceQuality components and careful acoustic design make the WMR Series a perfect choice for demanding applications. Designed for bars and restaurants, leisure hospitality, recreational facilities, theme parks, shopping malls, and corporate spaces. Their extra-wide directivity significantly reduces the number of speakers and installation points.

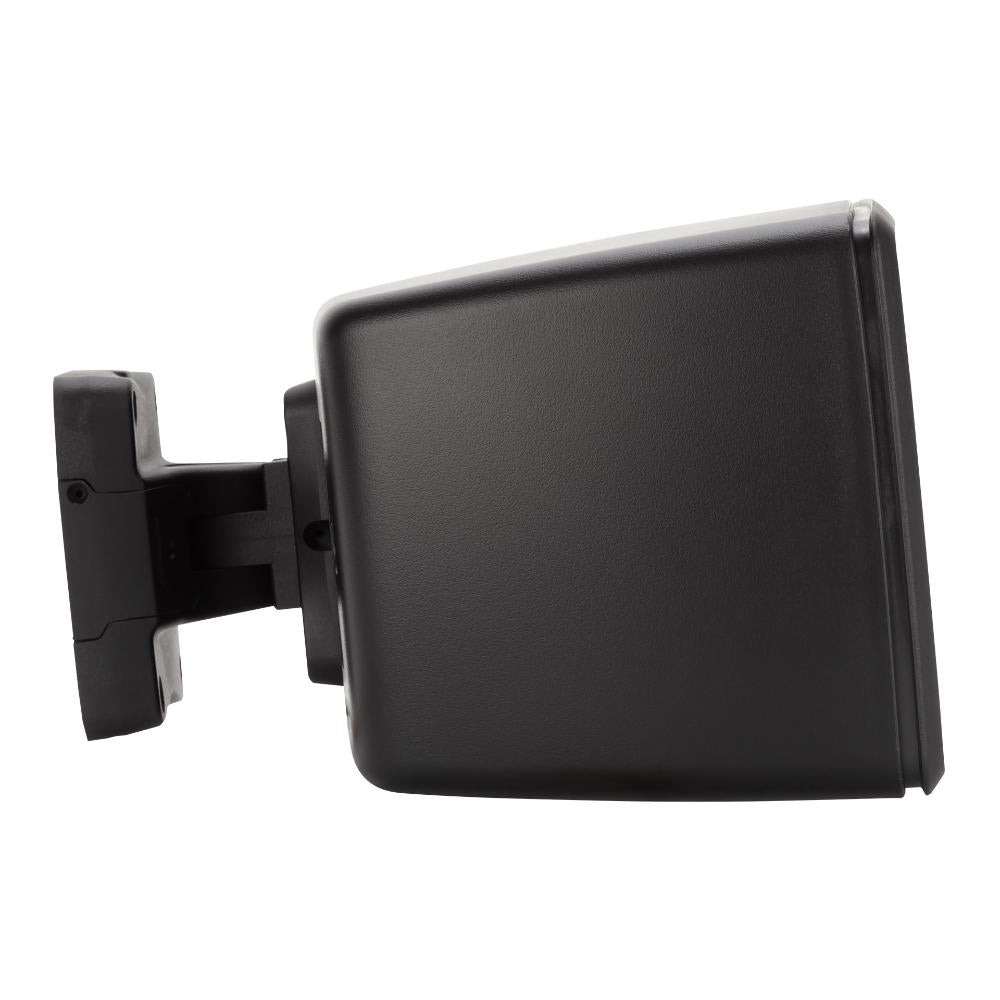

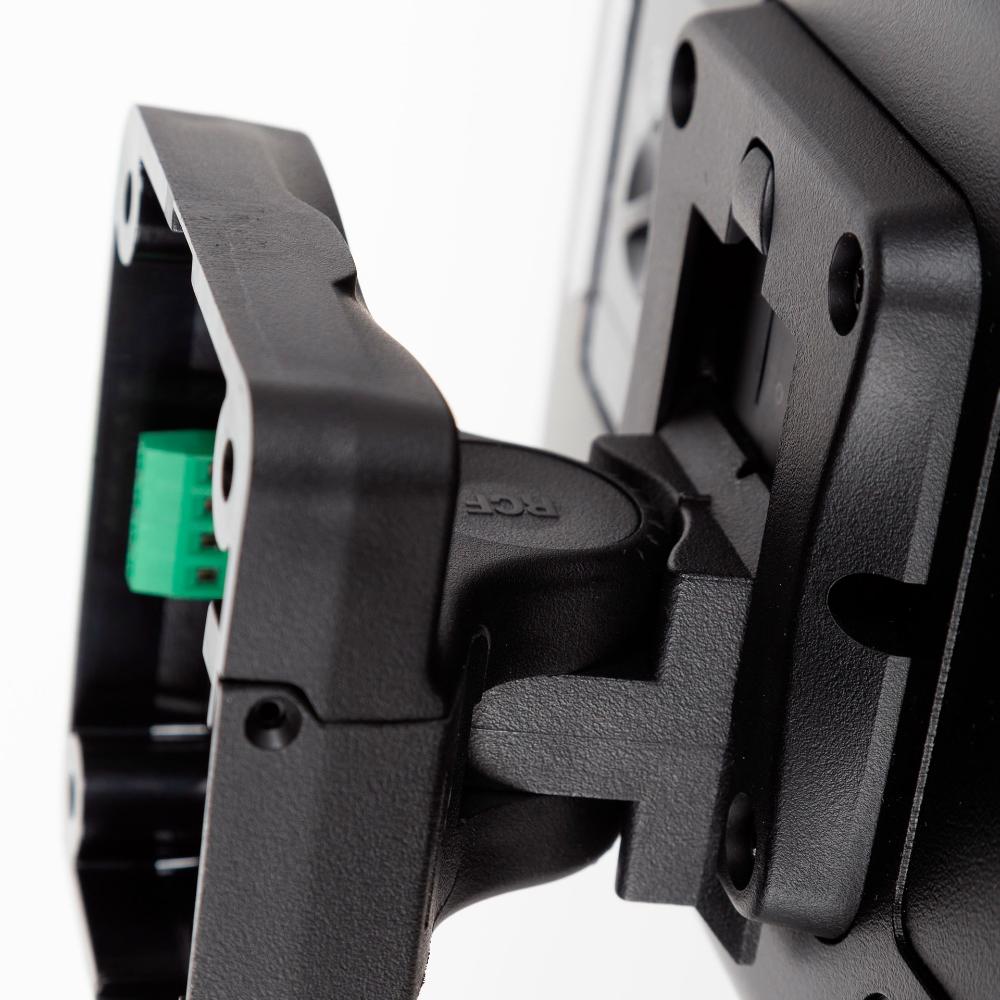

Smooth installationHoused in a compact self-extinguishing plastic cabinet, all models feature Euroblock inputs, a line transformer for 70V-100V systems, and quick and easy installation. The connection panel is embedded inside the wall mount support, for both ease of installation and elegance. The stepped swivel mount is fast to configure and secure.
Part number:
13100051
WMR 50T
Black - RAL 9005, EAN 8024530017460
13100074
WMR 50T W
Technical Specifications
Professional Loudspeaker System
Acoustical Specifications
| Frequency Response (-10dB) |
80 Hz - 20000 Hz |
| Max SPL @ 1m |
110 dB |
| Horizontal Coverage Angle |
140° |
| Vertical Coverage Angle |
100° |
| System Sensitivity |
88 dB |
Power Section
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
40 W RMS |
| Peak Power Handling |
160 W PEAK |
| Protections |
Bulb lamp |
| Crossover Frequencies |
2500 Hz |
| Recommended Amplifiers |
DMA 504, DMA 162, DMA 82, DMA 162P |
Transducers
| Dome Tweeter |
1 x 1.0'' neo, 1.0'' v.c |
| Woofer |
1 x 5.0'', 1.0'' v.c |
Input/Output Section
| Input Connectors |
Euroblock |
| Output Connectors |
Euroblock |
| Constant Voltage Transformer |
70/100 V |

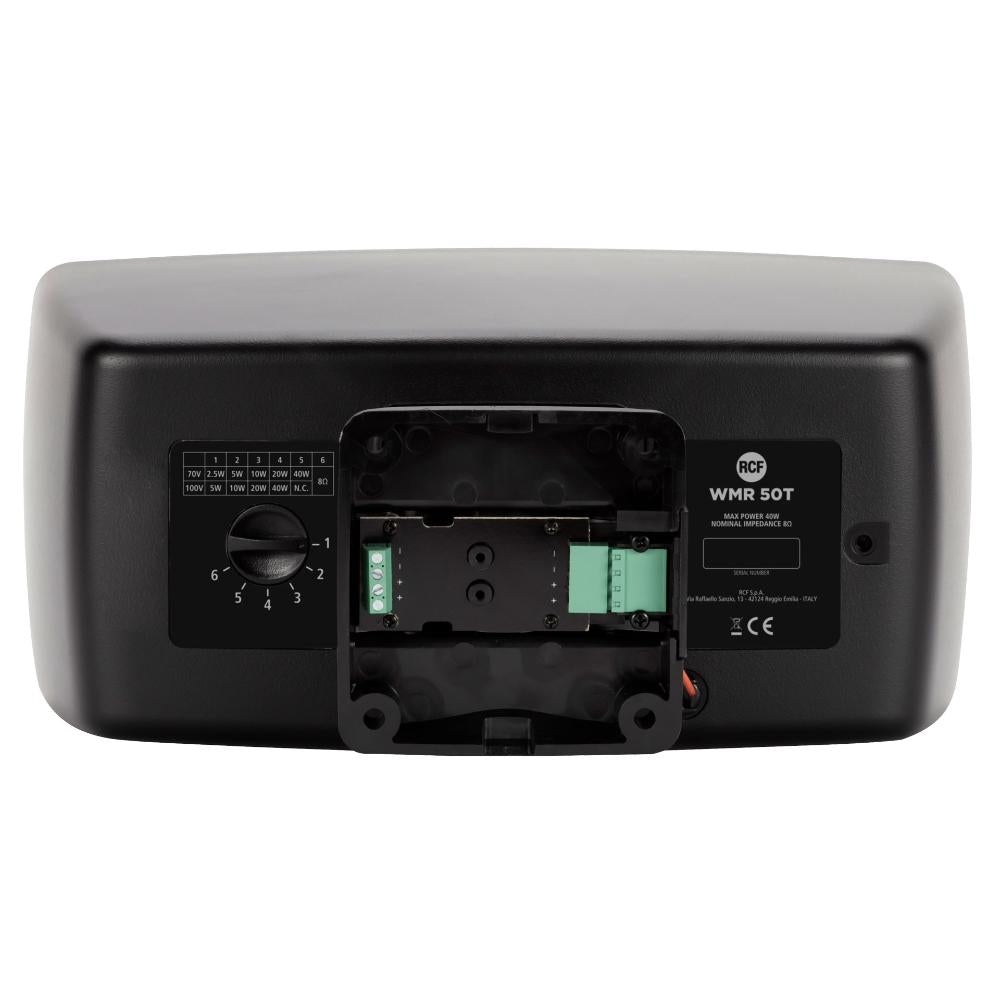

Constant Voltage Power Selections
| 40 W |
250 ohm |
| 20 W |
500 ohm |
| 10 W |
1000 ohm |
| 5 W |
2000 ohm |
| 2.5 W |
4000 ohm |
Standard Compliance
| IP Protection Grade |
IP 55 |
| Safety Agency |
CE compliant, UL 1480A |
Physical Specifications
| Cabinet/Case Material |
ABS |
| Hardware |
Wall mount bracket |
| Grille |
Steel |
| Color Options |
Black (RAL 9005), White (RAL 9003) |
Size & Weight
| Height |
349 mm / 13.74 inches |
| Width |
170 mm / 6.69 inches |
| Depth |
253 mm / 9.96 inches |
| Weight |
4.2 kg / 9.26 lbs |
Shipping Information
| Package Height |
278 mm / 10.94 inches |
| Package Width |
418 mm / 16.46 inches |
| Package Depth |
308 mm / 12.13 inches |
| Package Weight |
5.3 kg / 11.68 lbs |
