Description
RCF WMR 50T – IP55 - Two-way wall mount monitor speaker 5" + 1", 40 W AES power handling, with transformer
The RCF WMR 50T is a professional audio product from the RCF Business Music Speakers series, designed for business music applications. Built to RCF's exacting standards of Italian engineering excellence, this product delivers reliable, high-performance audio in professional environments.
Product Details
- Model: WMR 50T
- Series: Business Music Speakers
- Application: BUSINESS MUSIC
- SKU: 13100051
Description
WMR 50T
TWO-WAY WALL MOUNT MONITOR SPEAKER
- 40W RMS power handling
- 110 dB max SPL
- Self-extinguishing plastic cabinet and aluminum front grille
- IP55 protection grade
Features
- 40W RMS power handling
- 110 dB max SPL
- 80 ÷ 20000 Hz frequency range
- 140° x 100° constant directivity coverage angle

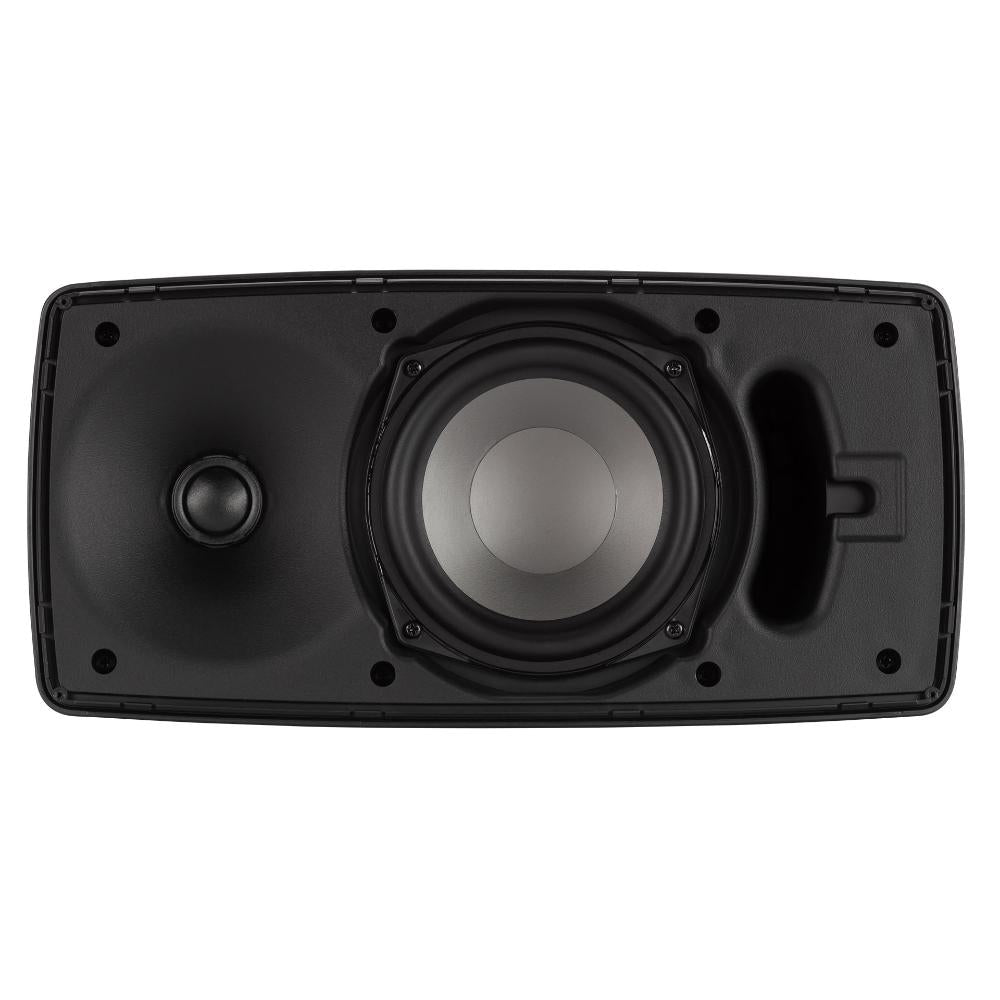

- 5" high power woofer
- 1" neodymium dome tweeter
- Self-extinguishing plastic cabinet and aluminum front grille

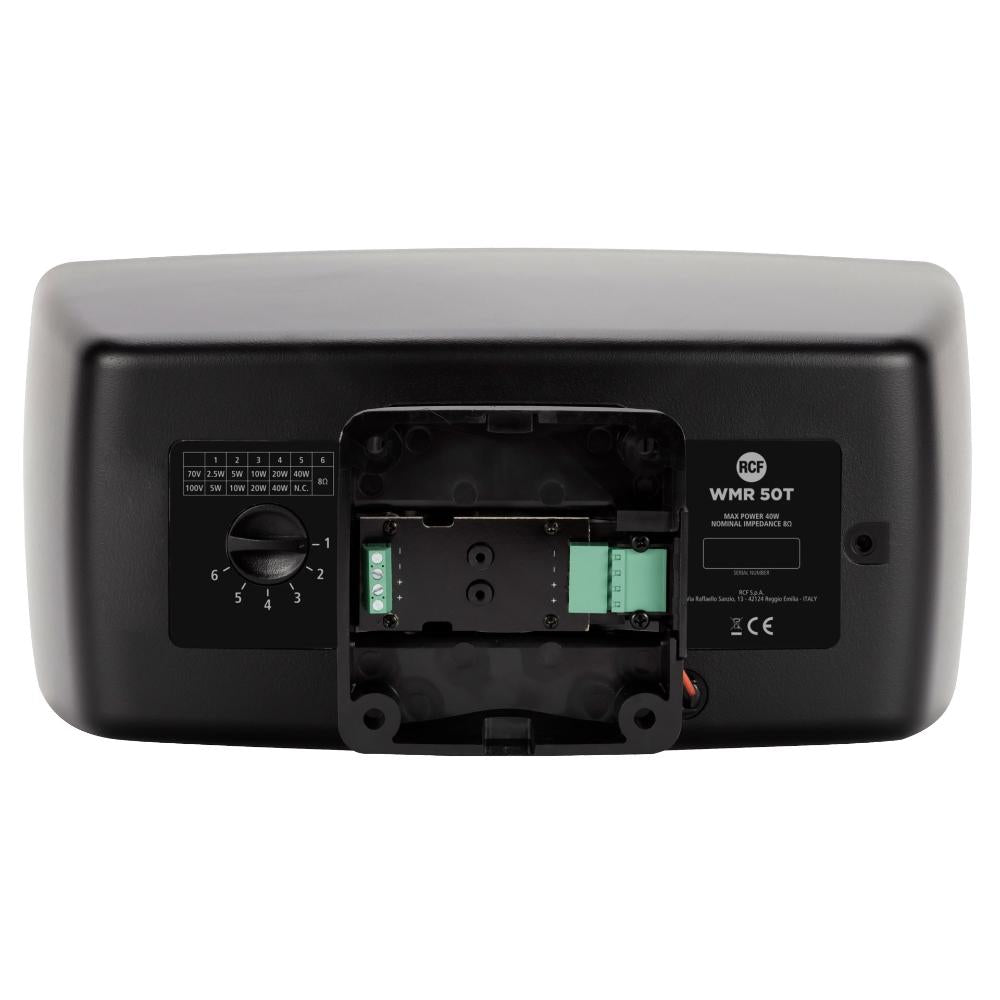

- Connection board integrated into the wall support
- 4 pole EUROBLOCK connector (audio input and parallel link output)
- IP55 protection grade

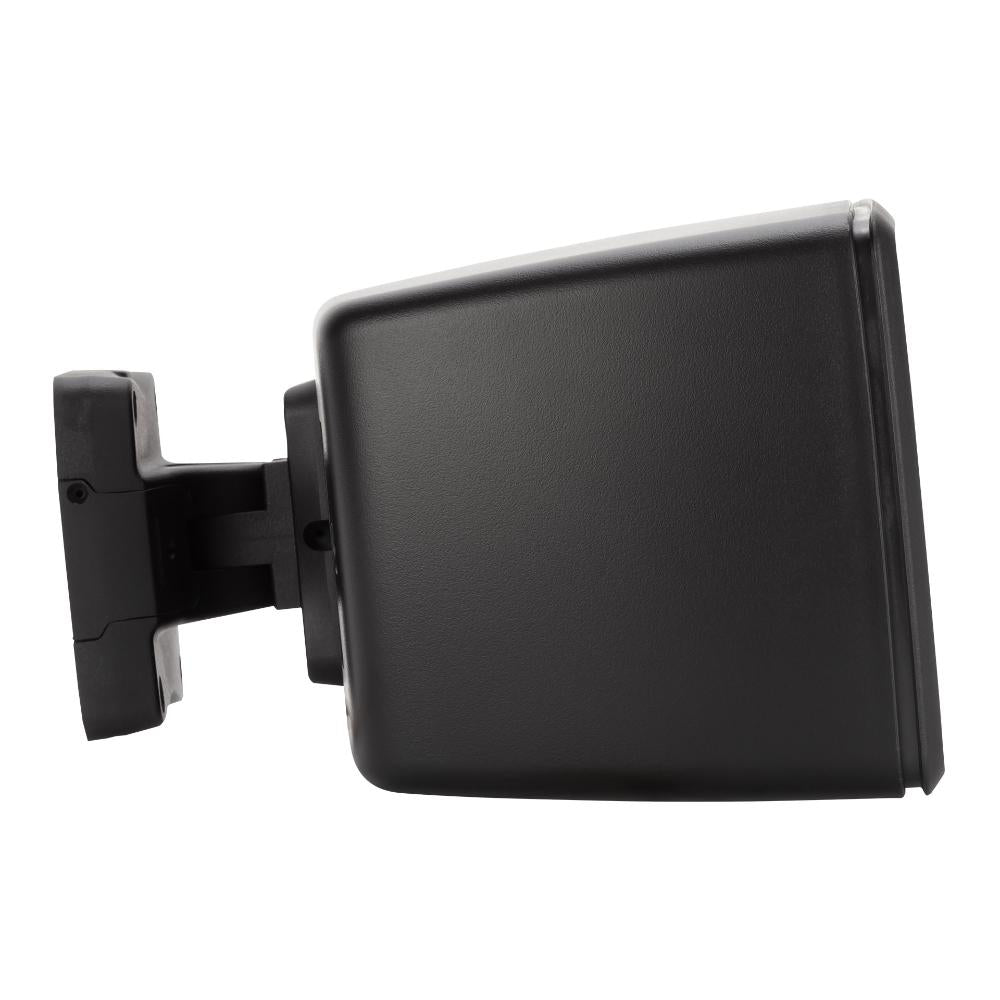

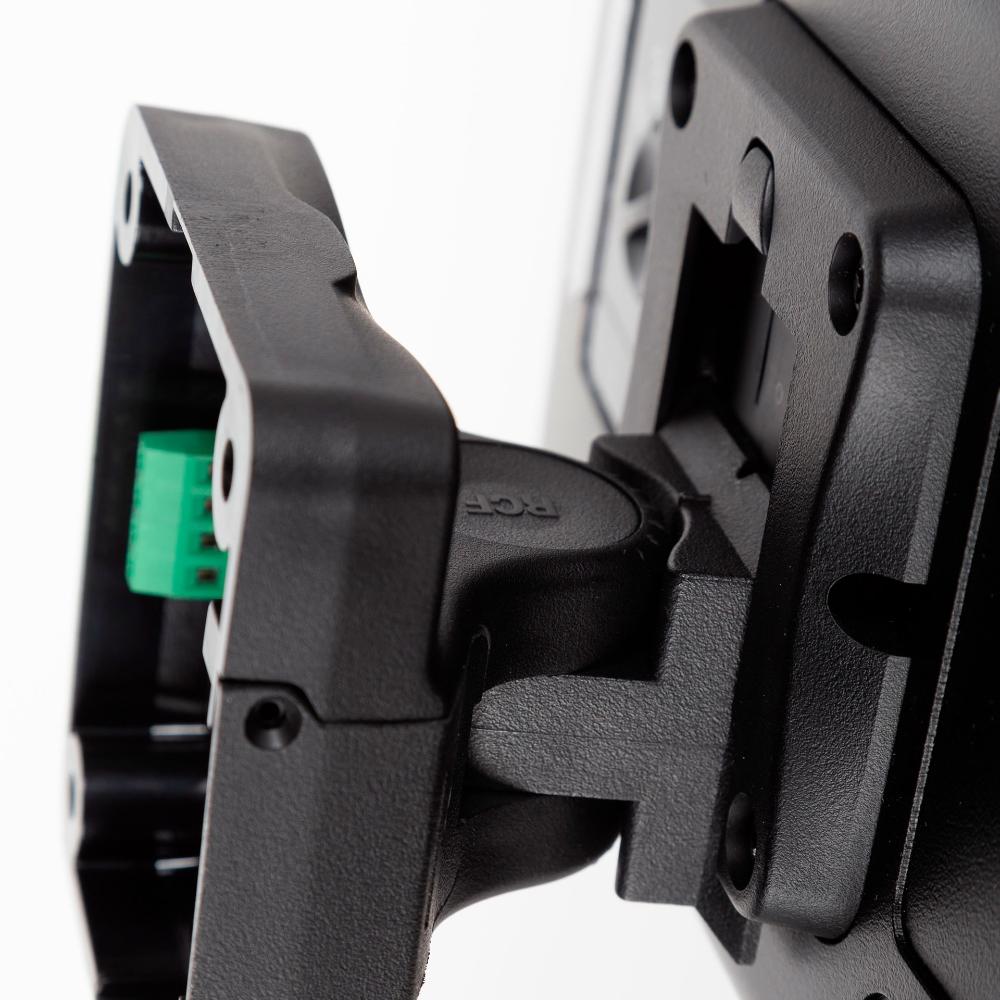

WMR 50T is a multipurpose two-way wall-mounted speaker, suitable for a wide range of applications. Thanks to its elegant and discreet design and accurate details, WMR 50T pairs any building's aesthetic. The high-quality transducers guarantee a precise music reproduction of the entire frequency band and provide impressive sound pressure levels for such a compact enclosure. The installation is easy thanks to the dedicated connection board inside the (included) wall mount support, which allows the installer to set the desired tilt first, fix the speaker, and finally quickly connect it without the need for any tooling.
Multipurpose sound
All products designed for Business Music applications offer optimal background performance and consistent tonal quality across all the Series preserving the same performance even during high-powered foreground music. The combination of modern monochrome and discreet design blends into any environment.
Uncompromised performance
Smooth installation
Part number:
13100051
WMR 50T
Black - RAL 9005, EAN 8024530017460
13100074
WMR 50T W
Technical Specifications
Professional Loudspeaker System
Acoustical Specifications
| Frequency Response (-10dB) | 80 Hz - 20000 Hz |
| Max SPL @ 1m | 110 dB |
| Horizontal Coverage Angle | 140° |
| Vertical Coverage Angle | 100° |
| System Sensitivity | 88 dB |
Power Section
| Amplification | Full Range |
| Nominal Impedance | 8 ohm |
| Power Handling | 40 W RMS |
| Peak Power Handling | 160 W PEAK |
| Protections | Bulb lamp |
| Crossover Frequencies | 2500 Hz |
| Recommended Amplifiers | DMA 504, DMA 162, DMA 82, DMA 162P |
Transducers
| Dome Tweeter | 1 x 1.0'' neo, 1.0'' v.c |
| Woofer | 1 x 5.0'', 1.0'' v.c |
Input/Output Section
| Input Connectors | Euroblock |
| Output Connectors | Euroblock |
| Constant Voltage Transformer | 70/100 V |
Constant Voltage Power Selections
| Power Selection | Impedance |
| 40 W | 250 ohm |
| 20 W | 500 ohm |
| 10 W | 1000 ohm |
| 5 W | 2000 ohm |
| 2.5 W | 4000 ohm |
Standard Compliance
| IP Protection Grade | IP 55 |
| Safety Agency | CE compliant, UL 1480A |
Physical Specifications
| Cabinet/Case Material | ABS |
| Hardware | Wall mount bracket |
| Grille | Steel |
| Color Options | Black (RAL 9005), White (RAL 9003) |
Size & Weight
| Height | 349 mm / 13.74 inches |
| Width | 170 mm / 6.69 inches |
| Depth | 253 mm / 9.96 inches |
| Weight | 4.2 kg / 9.26 lbs |
Shipping Information
| Package Height | 278 mm / 10.94 inches |
| Package Width | 418 mm / 16.46 inches |
| Package Depth | 308 mm / 12.13 inches |
| Package Weight | 5.3 kg / 11.68 lbs |
