Features
- 20 x Class D, 50 W amplifiers
- 96 dB Max SPL (@ 30 m)

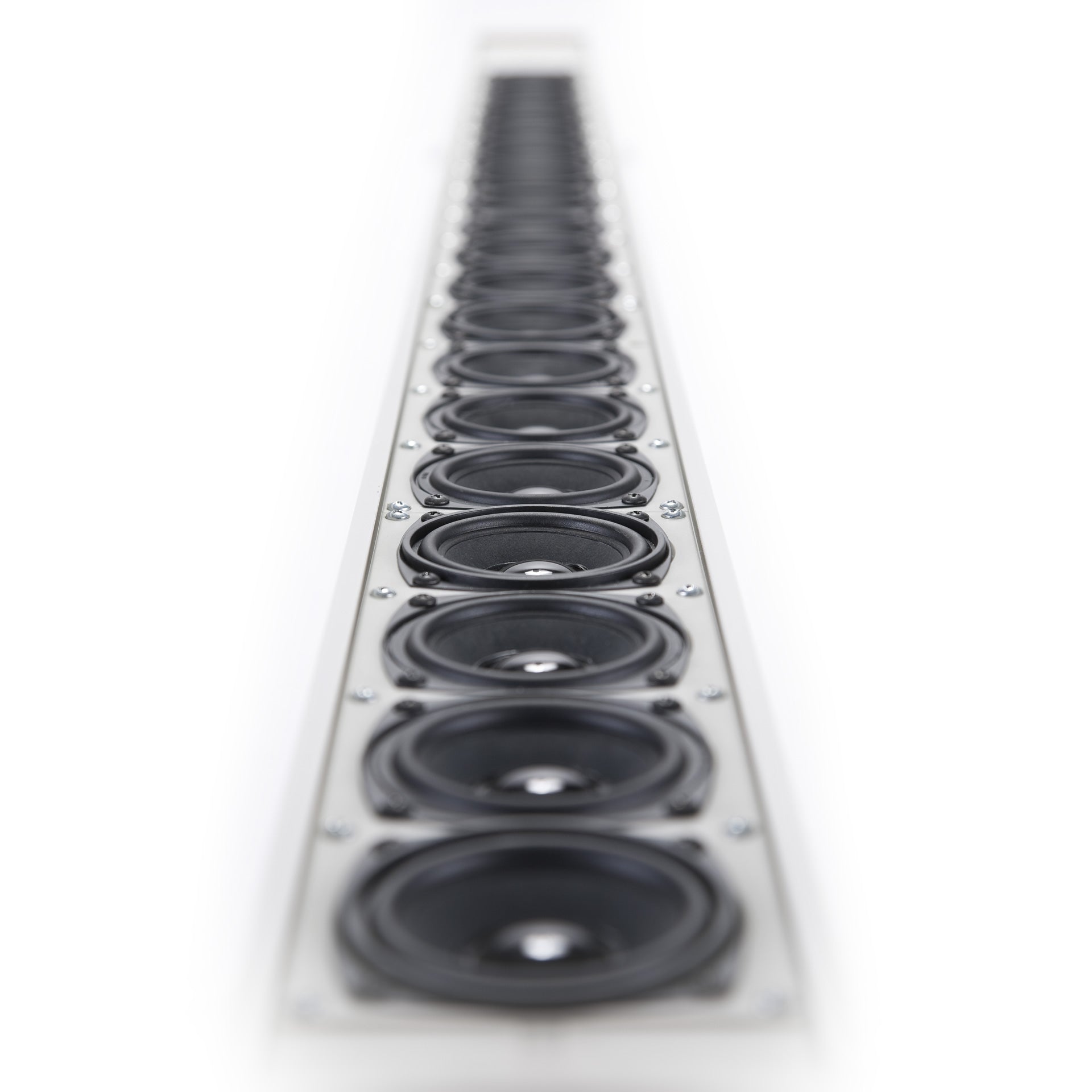

- 20 x 3.5" full range neo speakers
- 48 kHz 32 bit processing
- Horizontal dispersion 130°
- Vertical Coverage Beam from 10° to 30°
- Vertical Steering from 0° to –40°
- Standard installation accessories included
- Extruded aluminium body
- Indicators and control for EN 60849 monitoring facility

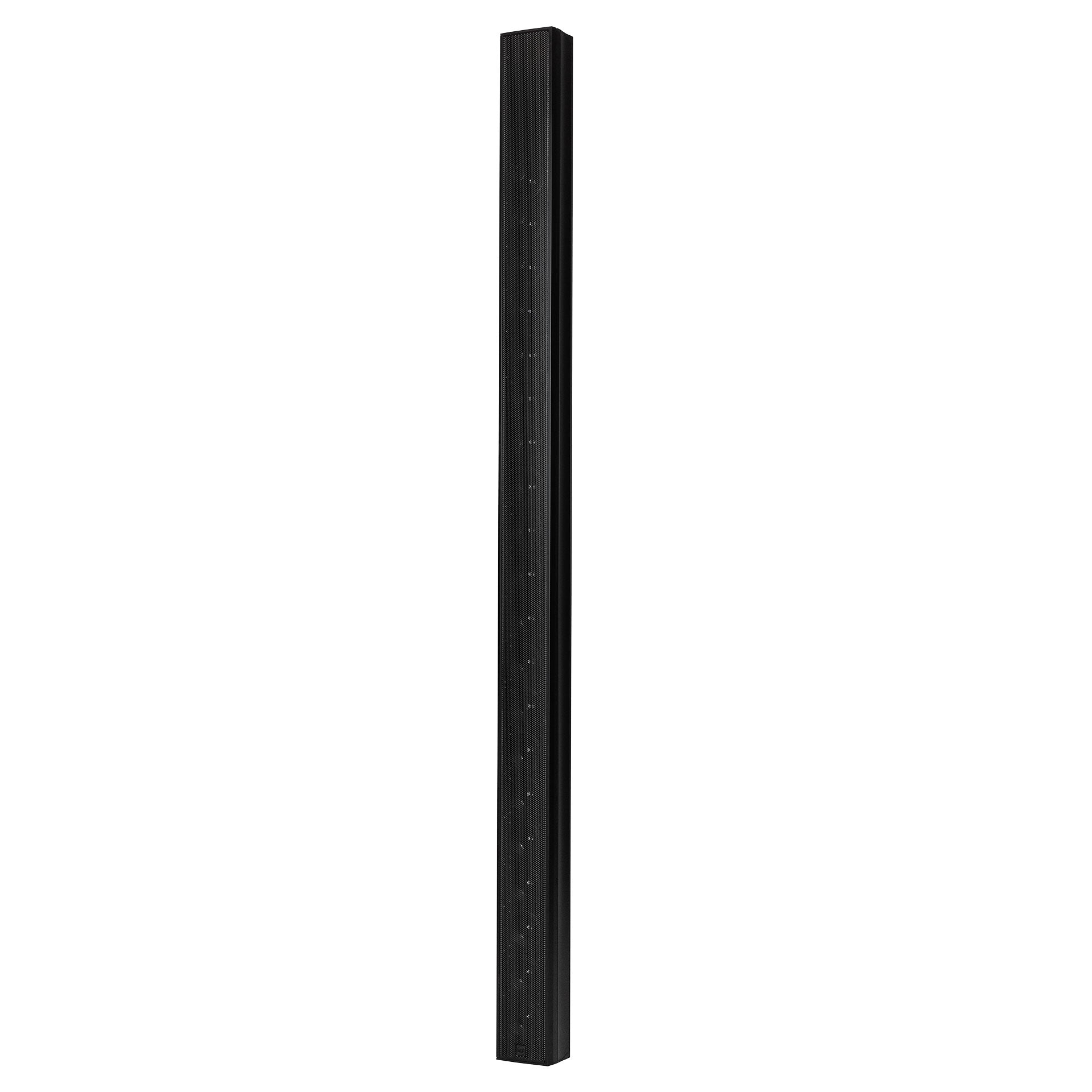

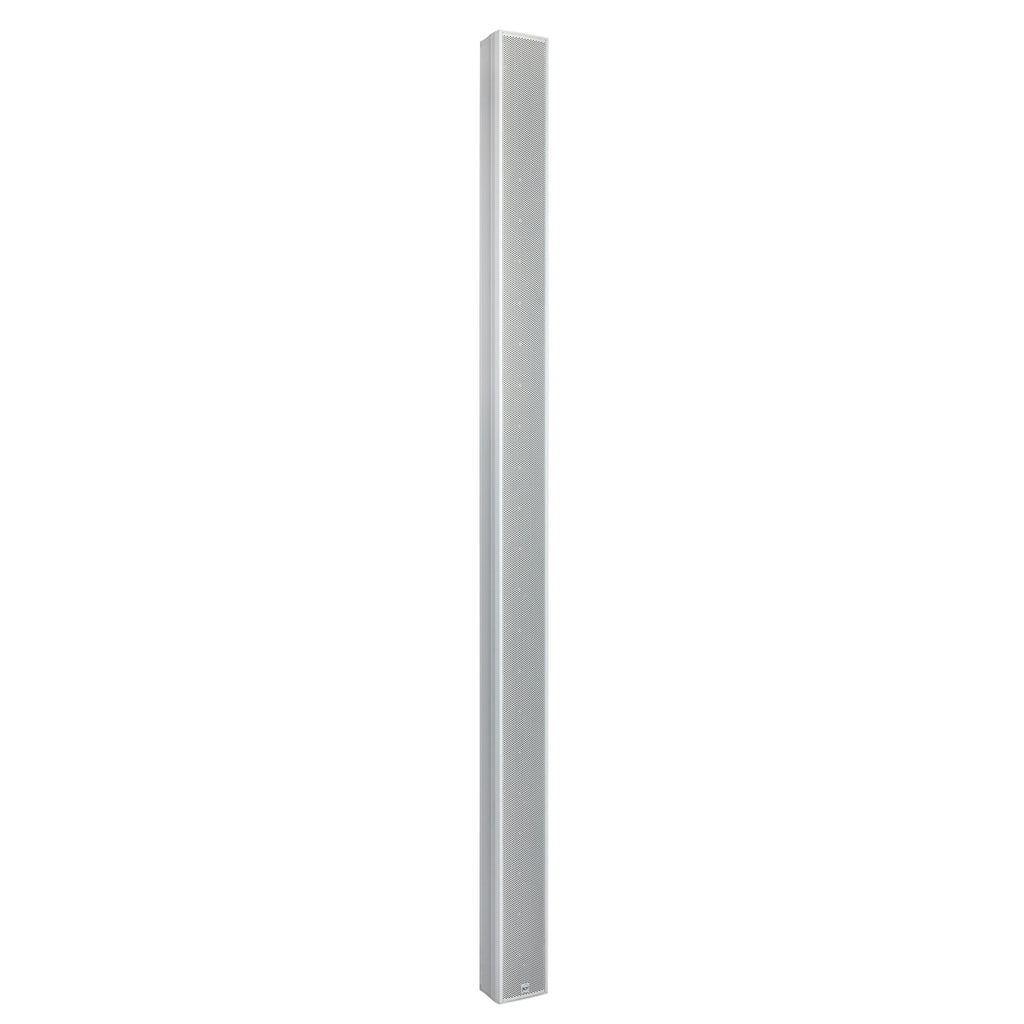

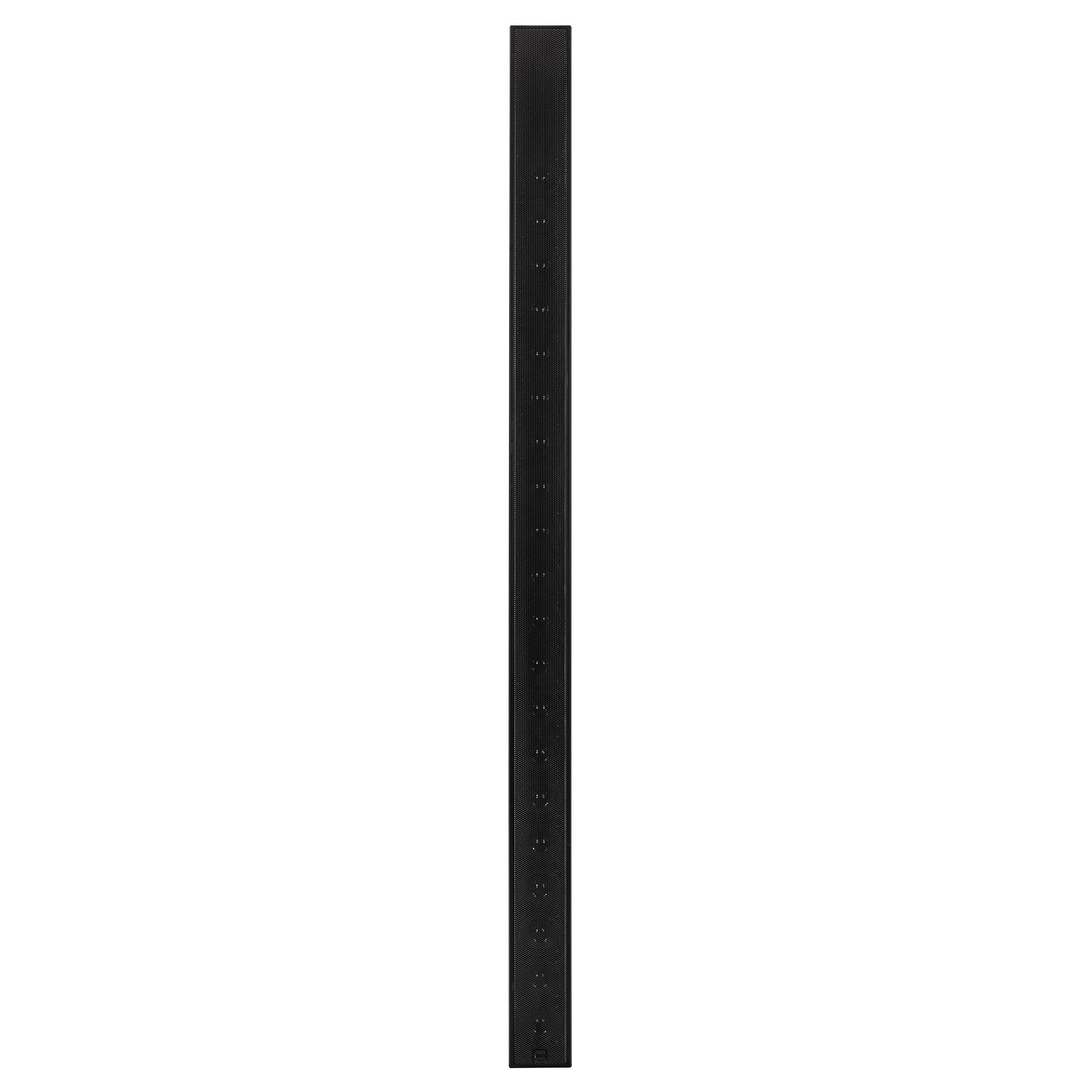

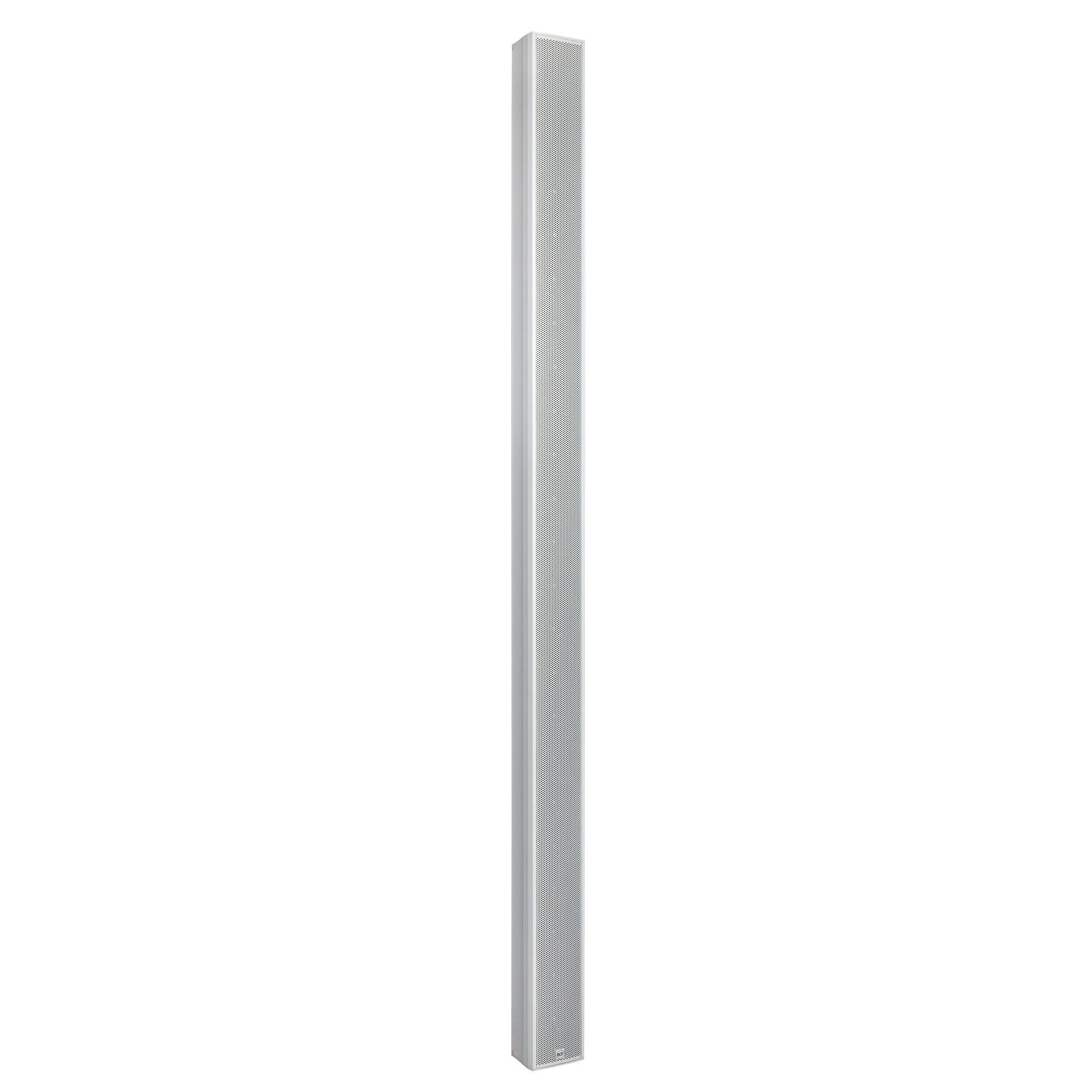

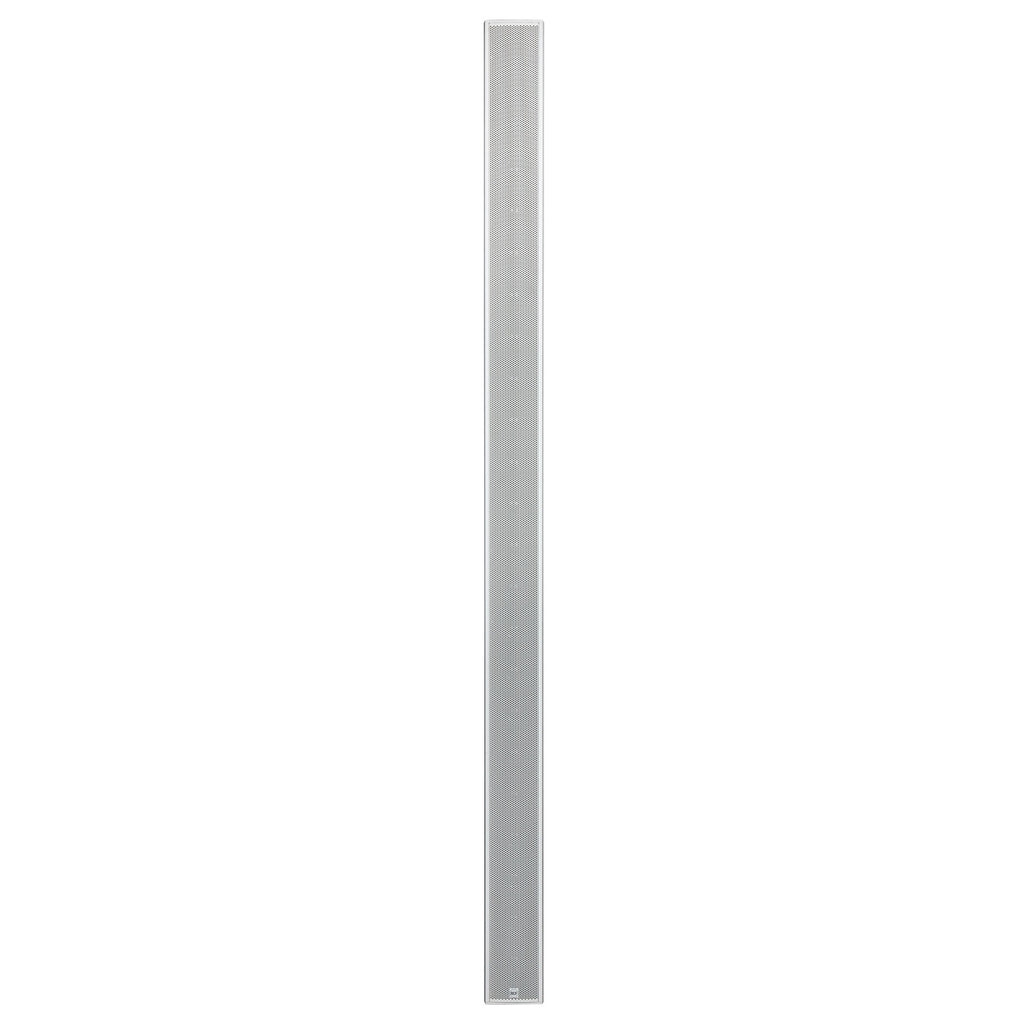

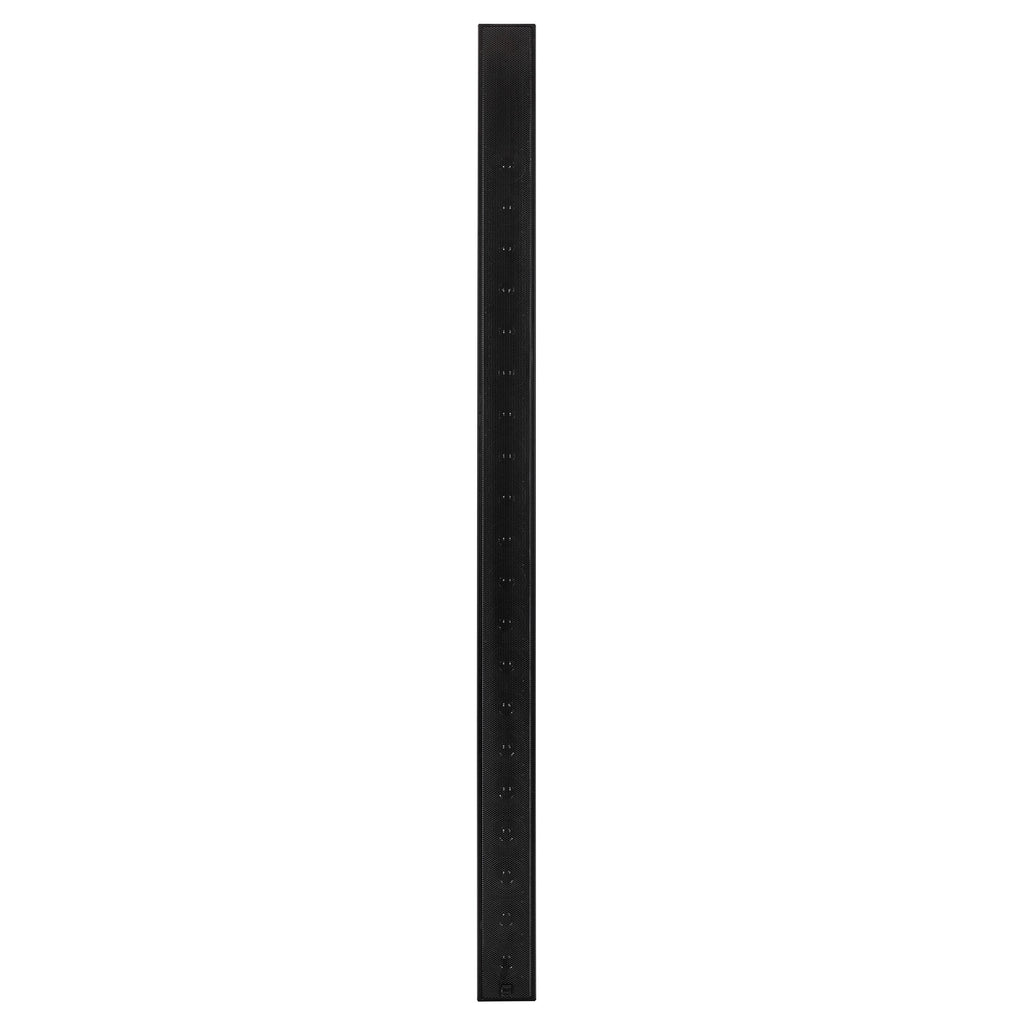

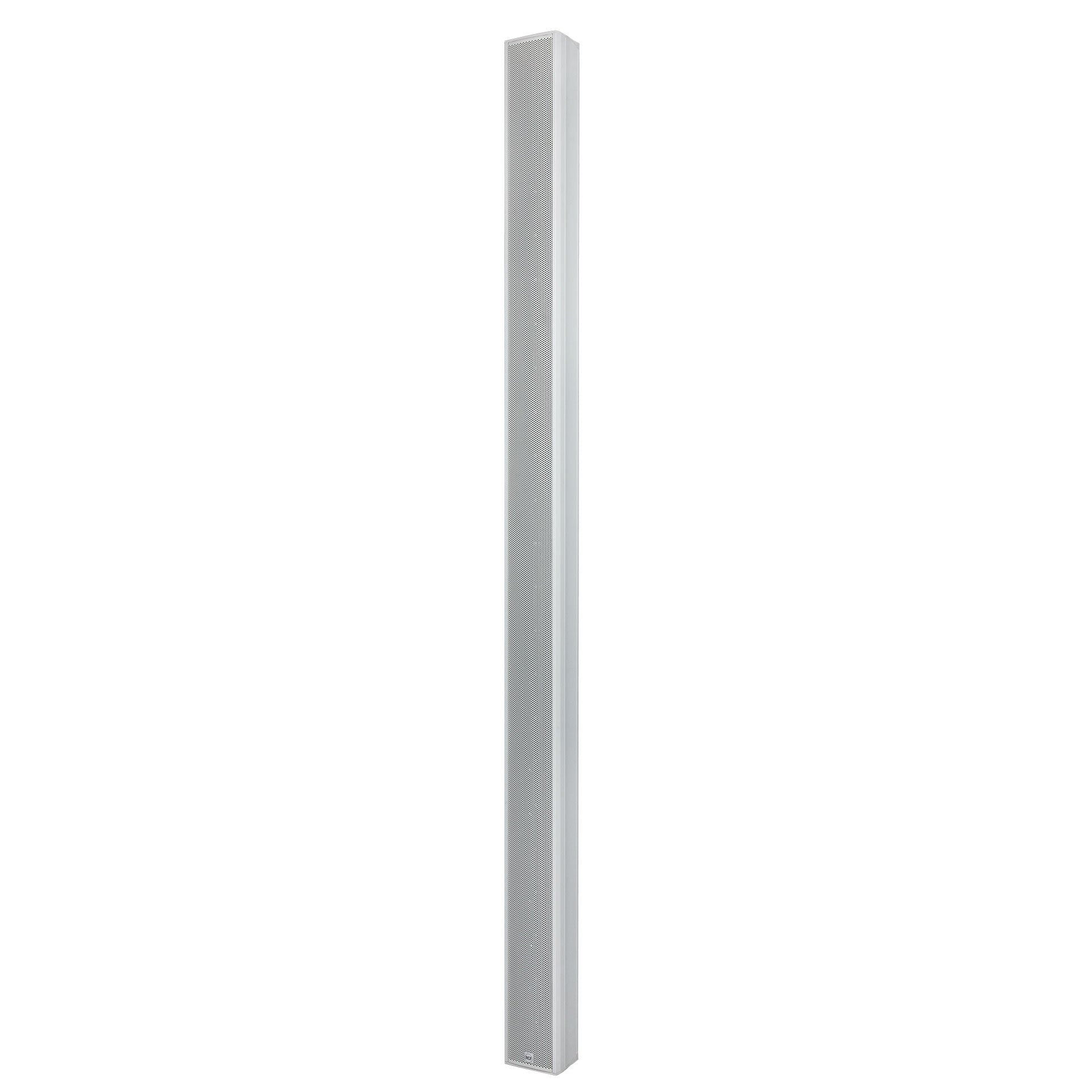

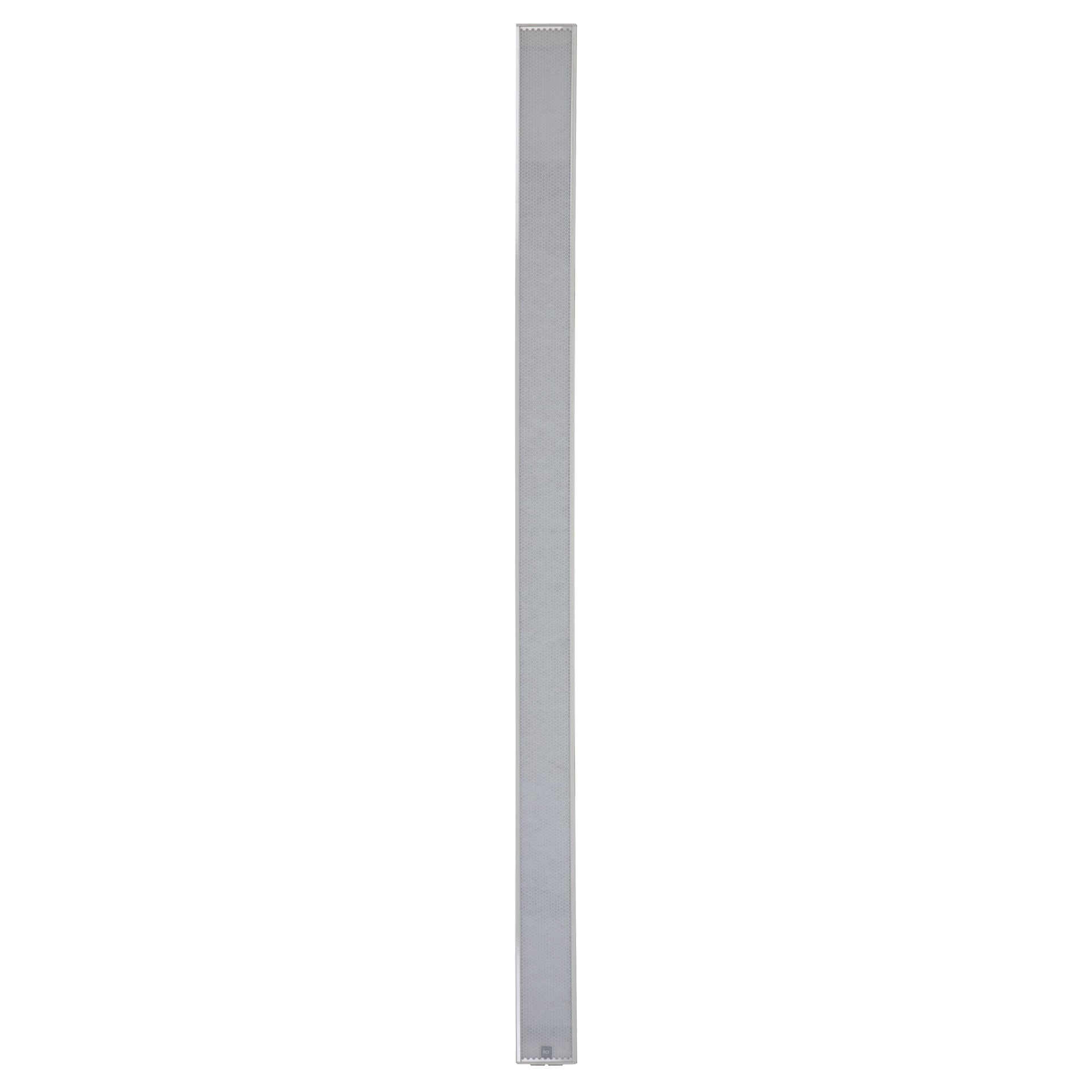

The VSA 2050 II is a multi-amplified vertical steerable array that represents one of the latest RCF applications in terms of digital audio technology. Thanks to powerful DSPs it processes the audio signal sent to each speaker for controlling its vertical acoustic dispersion to address the audio signal exactly to the listening area, avoiding to send the acoustic energy to ceilings and empty floors, thus not introducing bad reflections that would affect speech intelligibility, mainly in critical environments with high reverberation time. Full RDNet compatibility.
Specifications
| Acoustical Specifications |
| Frequency Response |
100 Hz - 18,000 Hz |
| Max SPL @ 30m |
96 dB |
| Horizontal Coverage Angle |
130° |
| Vertical Coverage Angle |
30° |
| Transducers |
| Fullrange |
20 x 3.5" Neo, 1.0" v.c. |
| Input/Output Section |
| Input Signal |
Bal/Unbal |
| Input Connectors |
Ceramic Screw Terminals |
| Input Sensitivity |
0 dBu |
| Processor Section |
| Protections |
Thermal, Short Circuit |
| Limiter |
Soft Limiter |
| RDNet |
Onboard |
| Power Section |
| Total Power |
1300 W Peak, 650 W RMS |
| Cooling |
Convection |

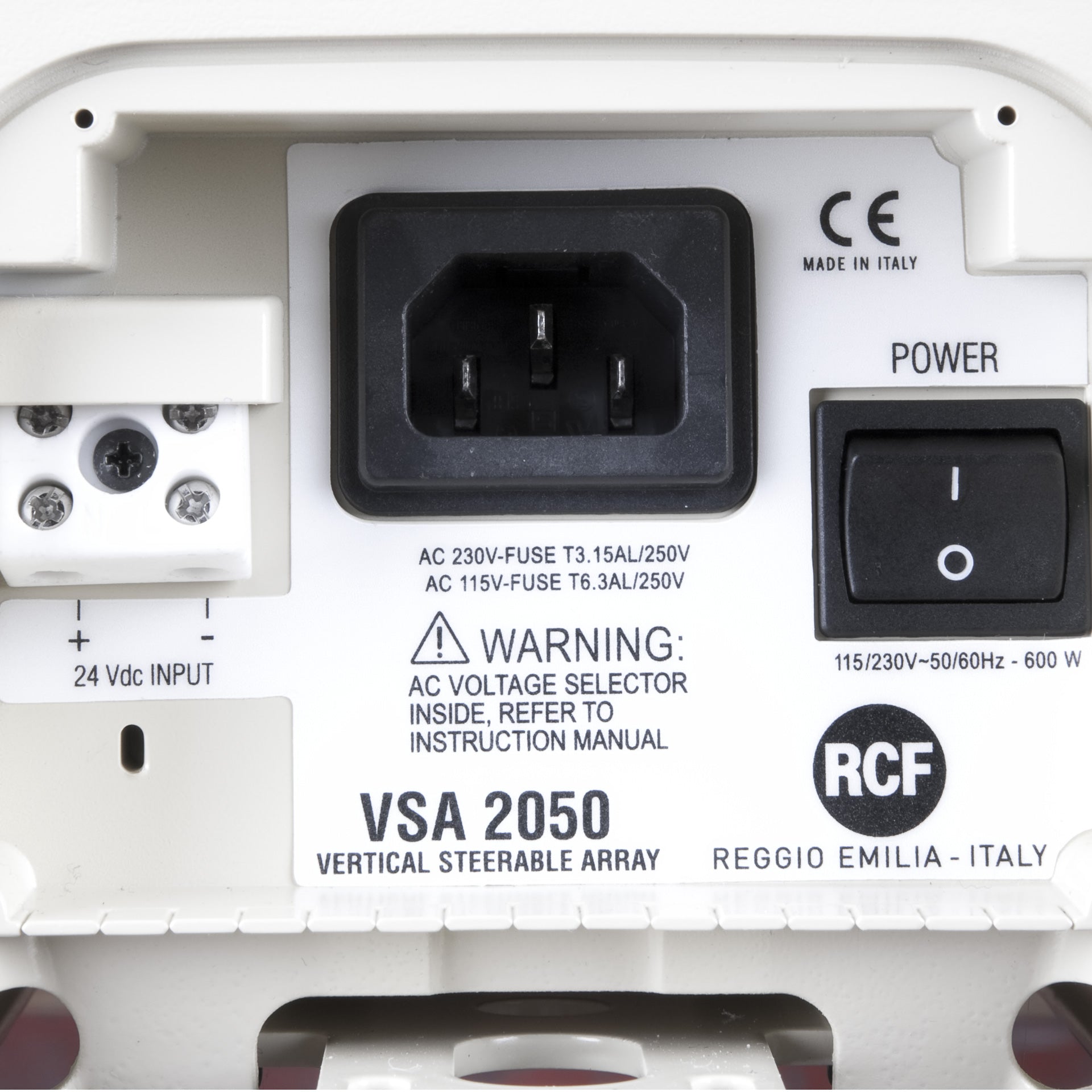

| Connections |
VDE |
| Standard Compliance |
| Safety Agency |
CE Compliant |
| Physical Specifications |
| Cabinet/Case Material |
Aluminum |
| Hardware |
2 x Wall Mounting Flange |
| Color |
White - RAL 9003, Black - RAL 9005, Custom Color |
| Size / Weight |
| Height |
2070 mm / 81.5 inches |
| Width |
125 mm / 4.92 inches |
| Depth |
97 mm / 3.82 inches |
| Weight |
20 kg / 44.09 lbs |
| Shipping Information |
| Package Height |
180 mm / 7.09 inches |
| Package Width |
2264 mm / 89.13 inches |
| Package Depth |
200 mm / 7.87 inches |
| Package Weight |
31.5 kg / 69.45 lbs |
