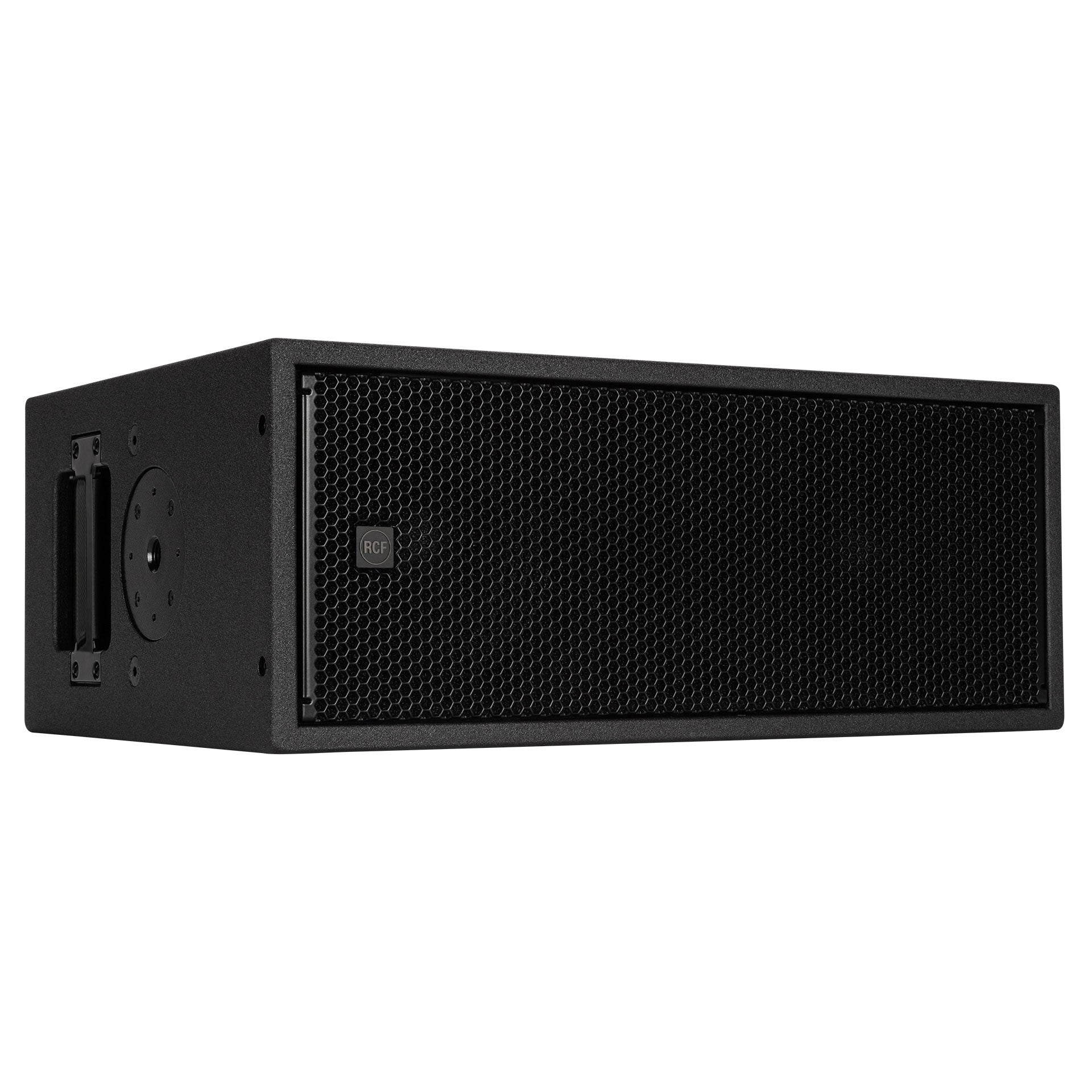

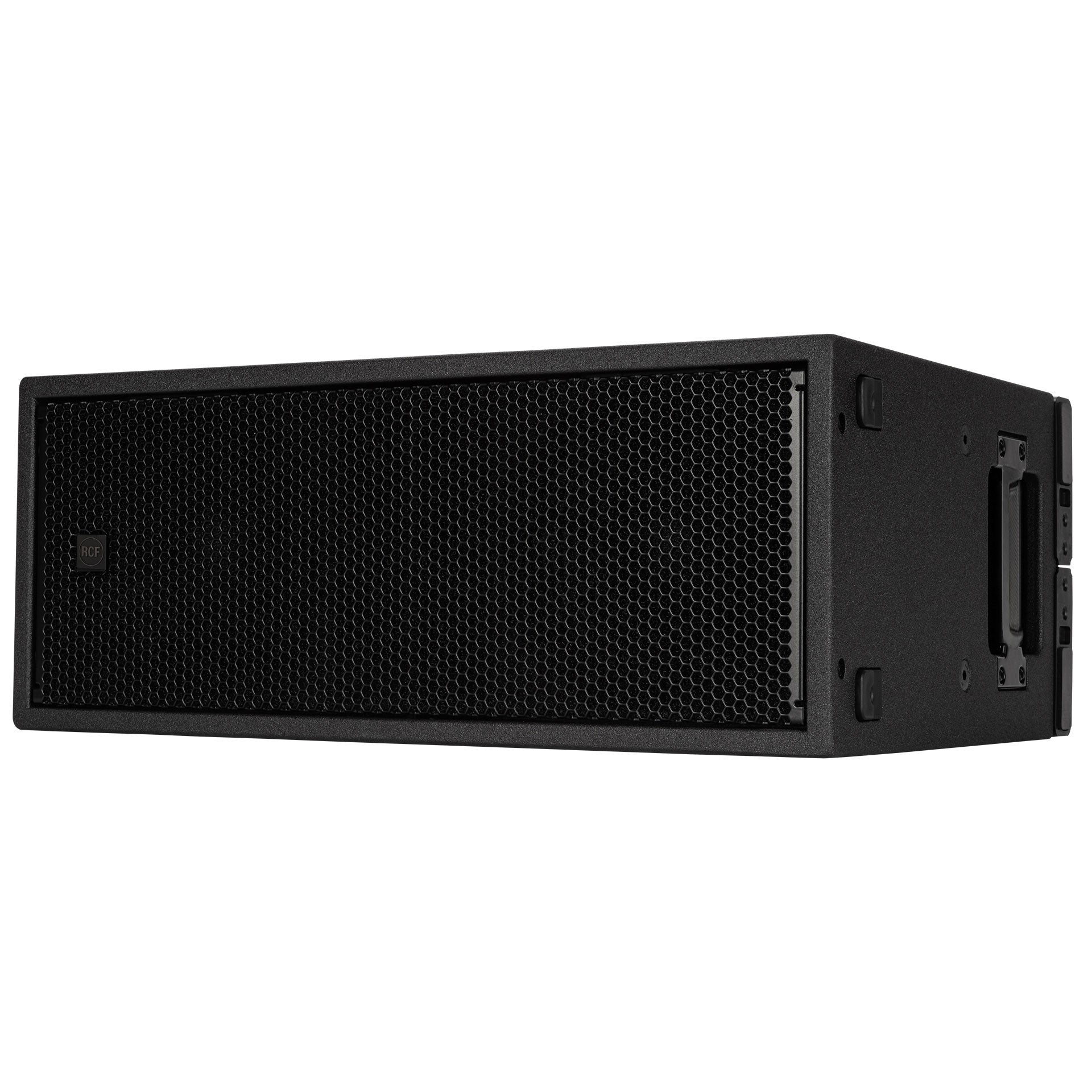

RCF SUB 808-AS HIGH-PERFORMANCE ACTIVE SUBWOOFER

Features

• 129 dB max SPL
• 40 Hz to 400 Hz frequency range
• 2 x 8’’ neodymium woofers, 2.5’’ v.c.
• 2000 W Class-D Amplifier
• RDNet Networked Management
• Bass Motion Control excursion management
• powerCON TRUE1 TOP mains connectors

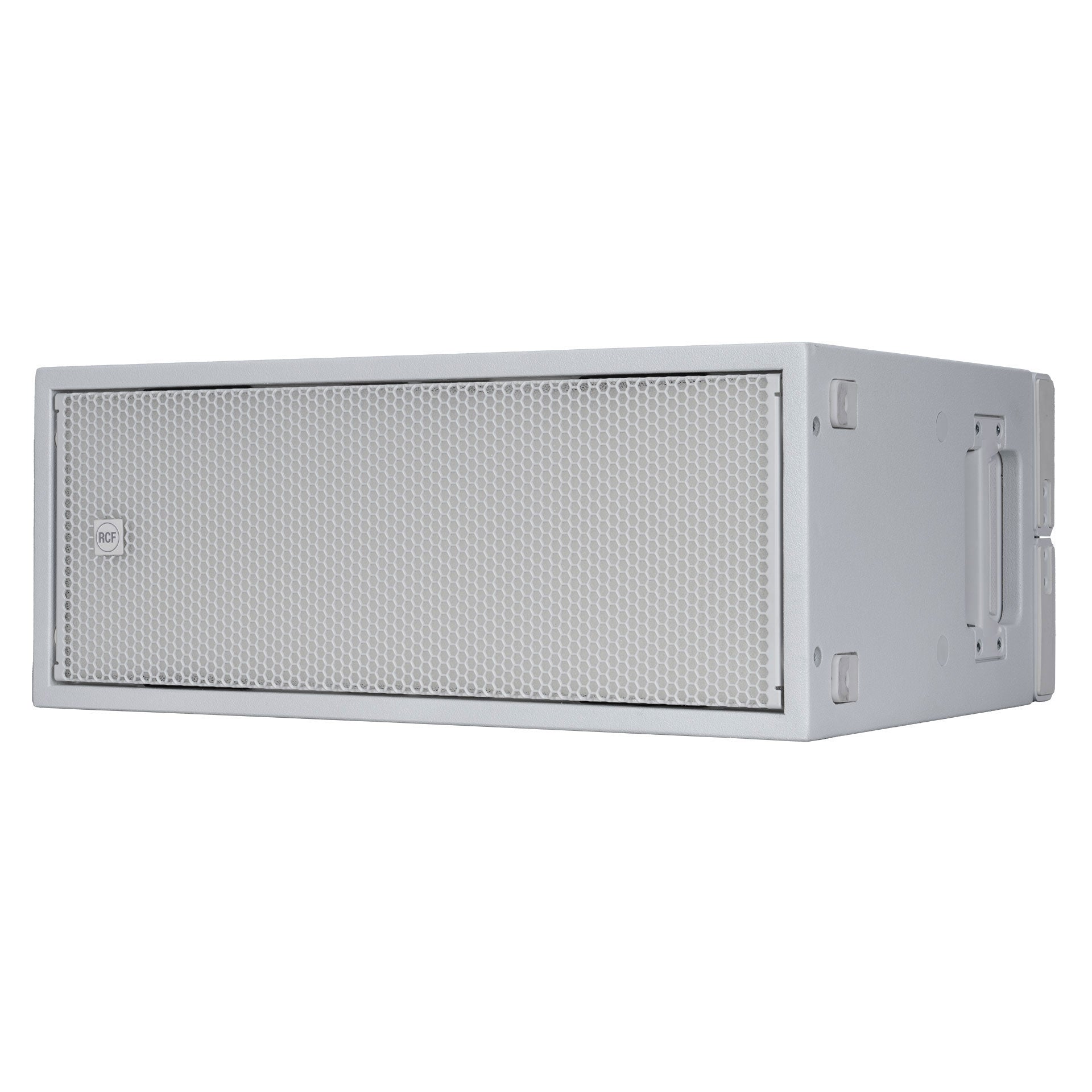

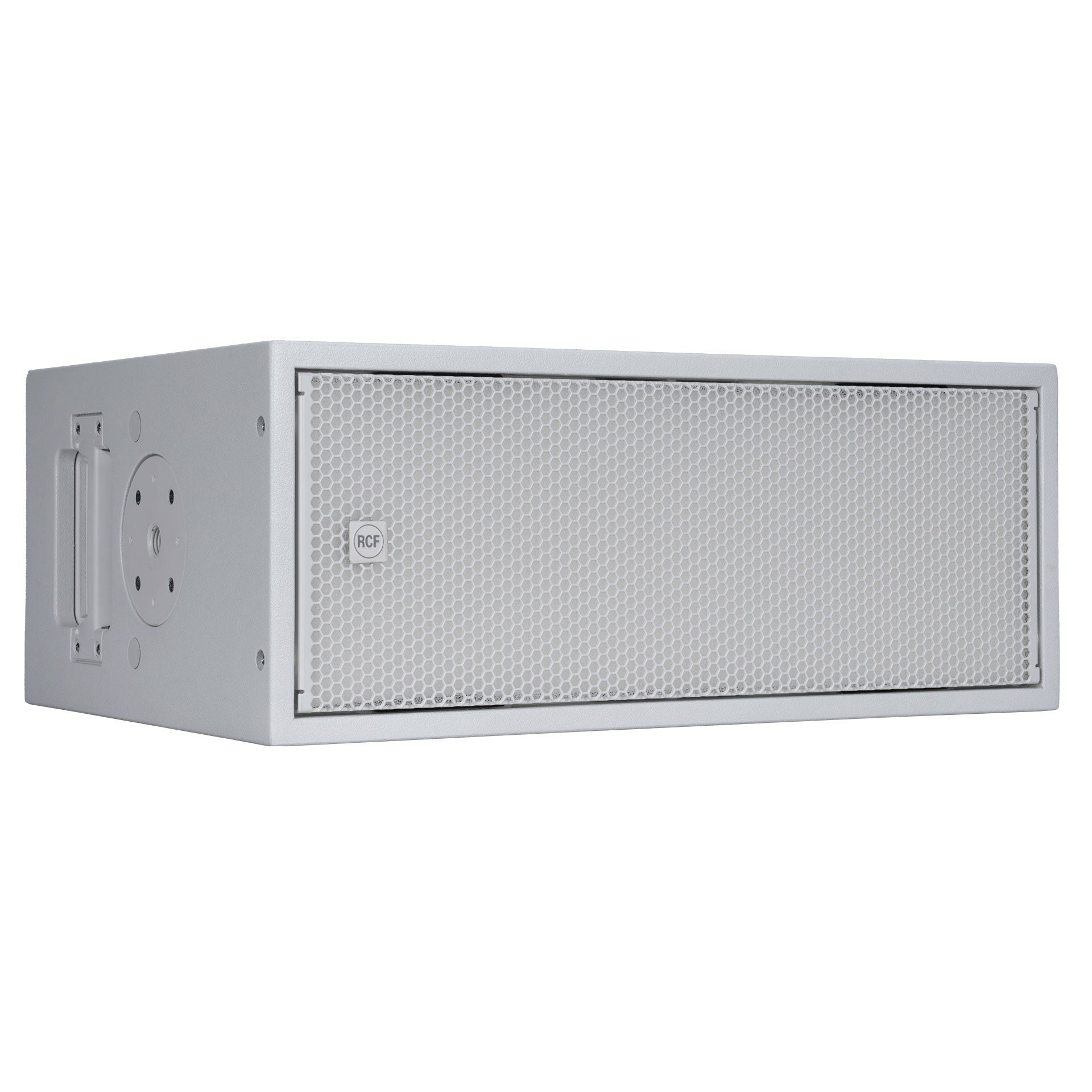

• Available in full black or white coating

Specifications

Acoustical Specifications
Frequency Response	40 Hz - 400 Hz
Max SPL @ 1m	129 dB
Woofer	2 x 8" neo, 2.5" v.c

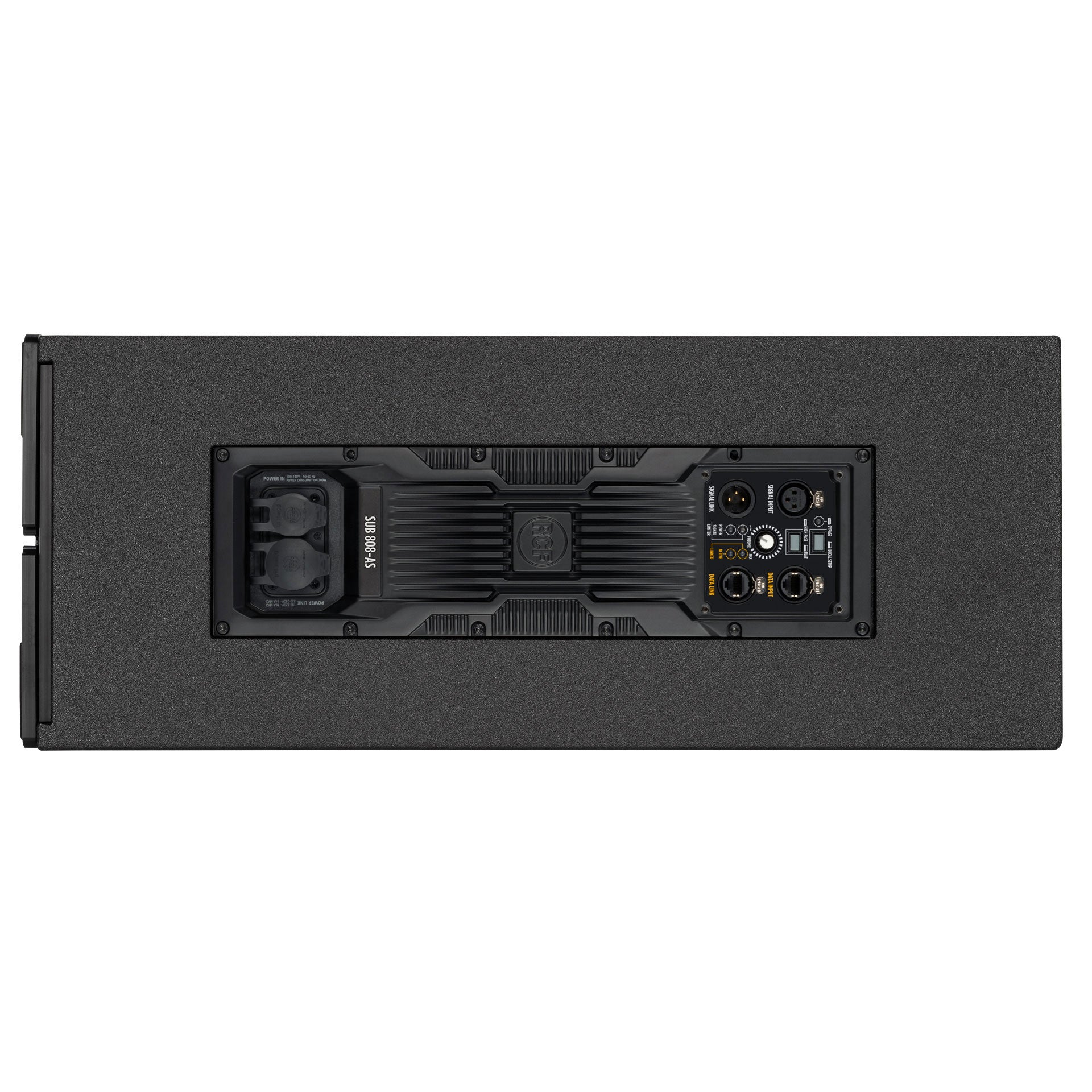

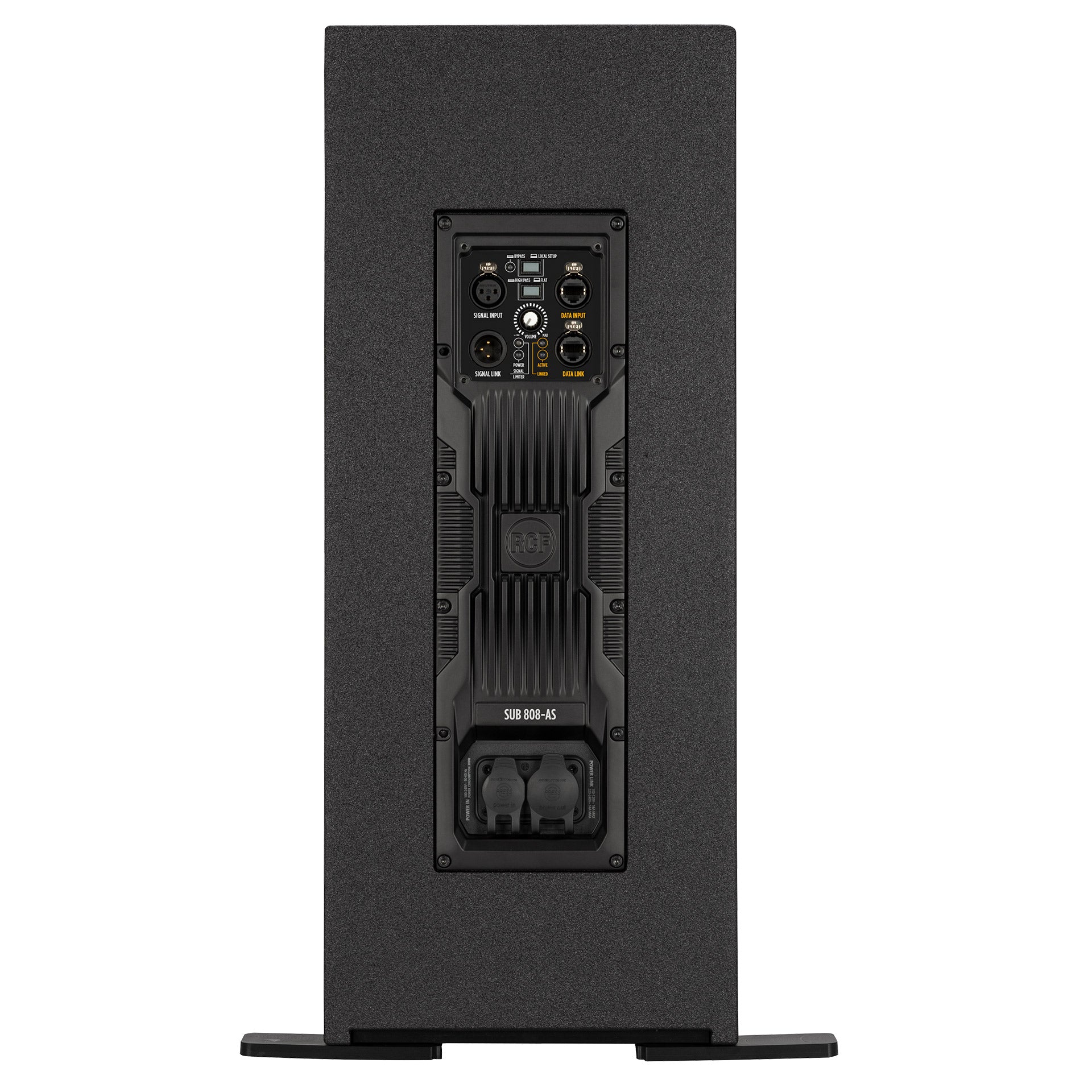

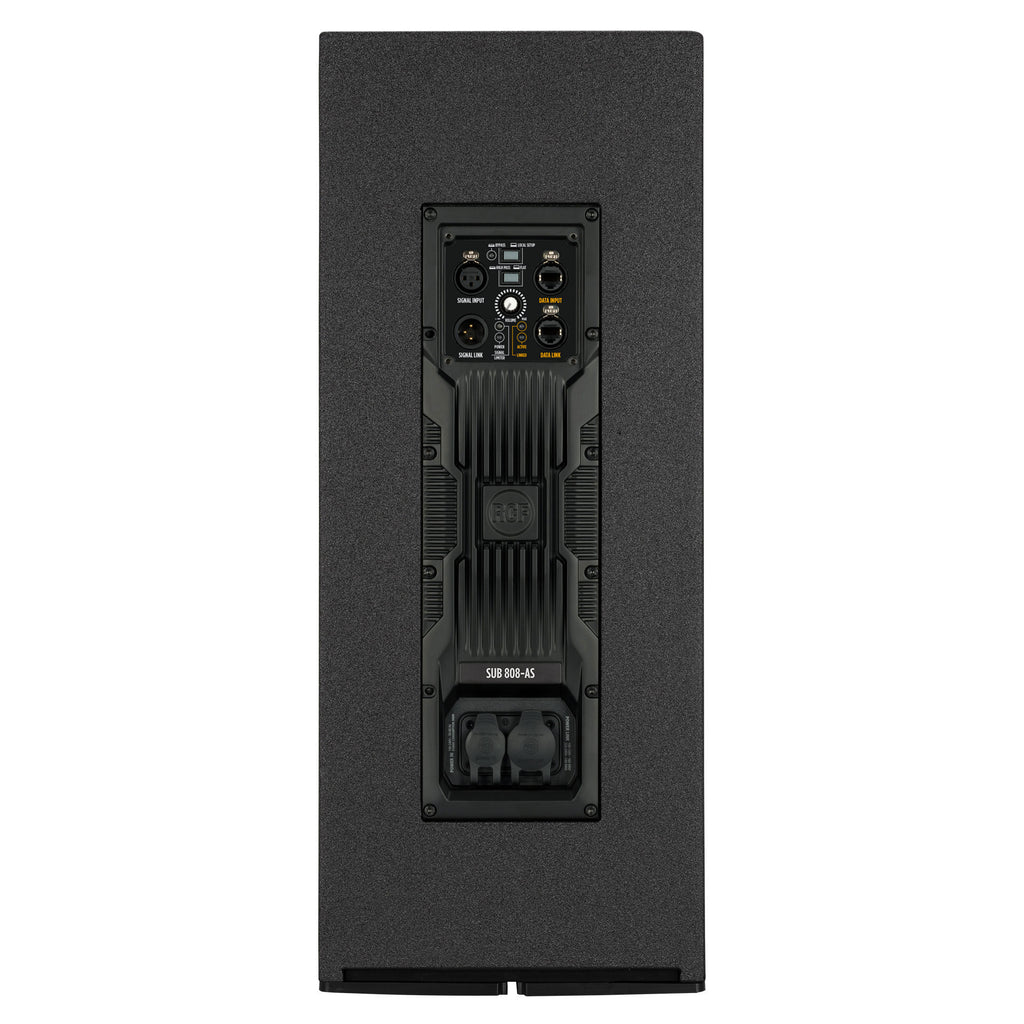

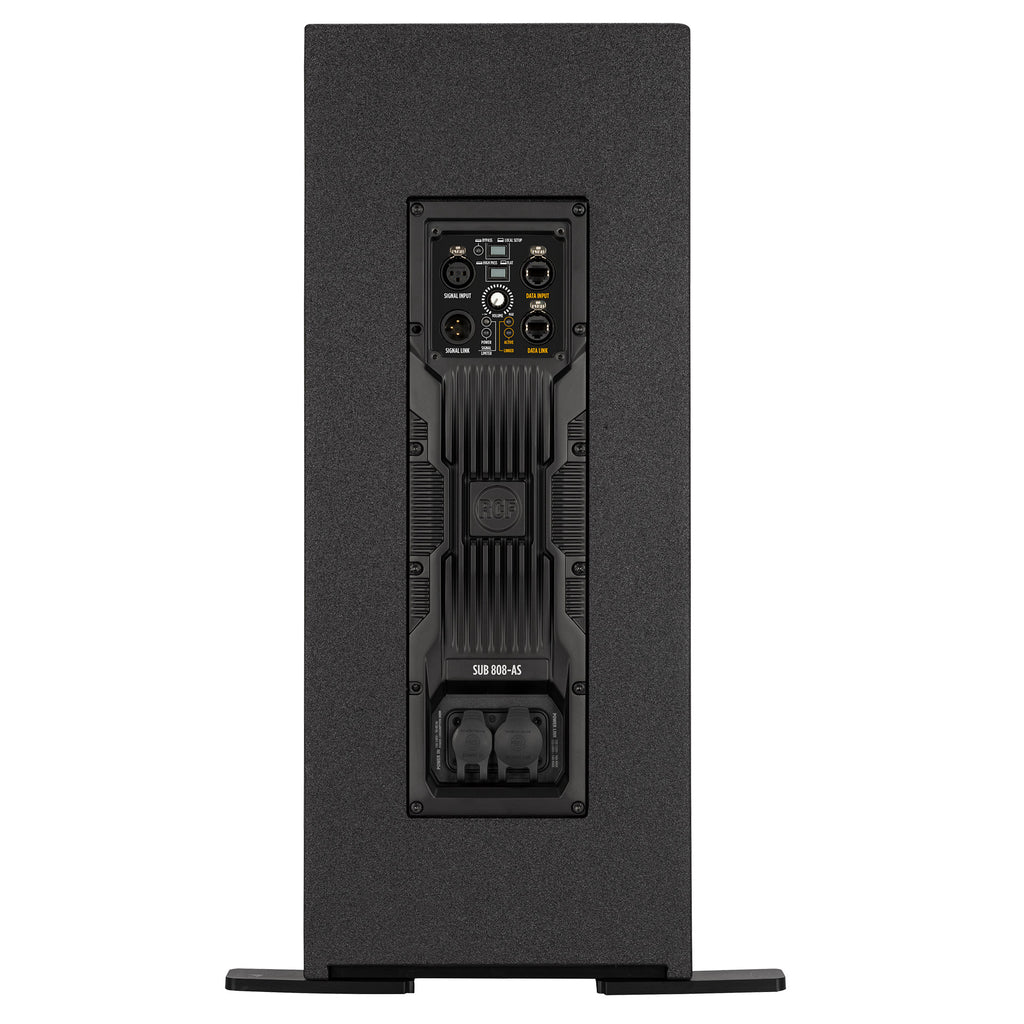

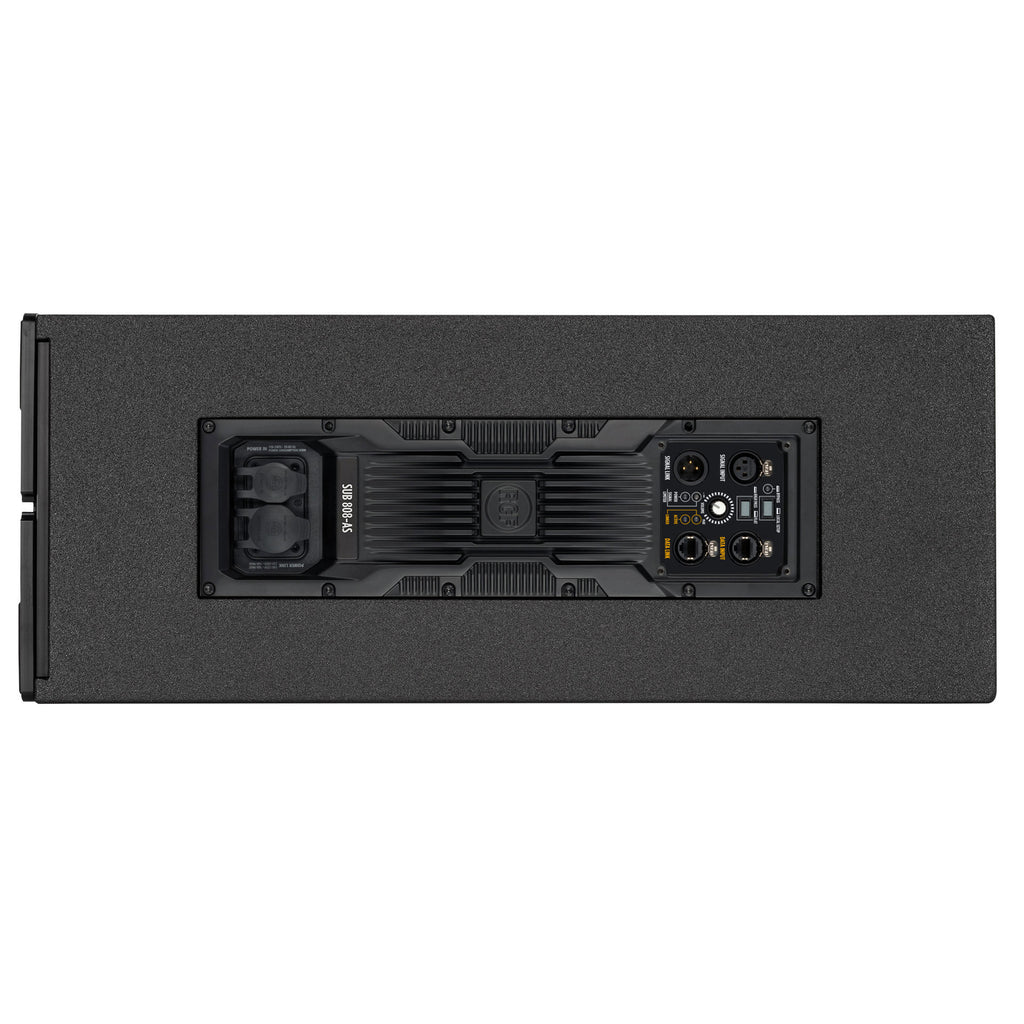

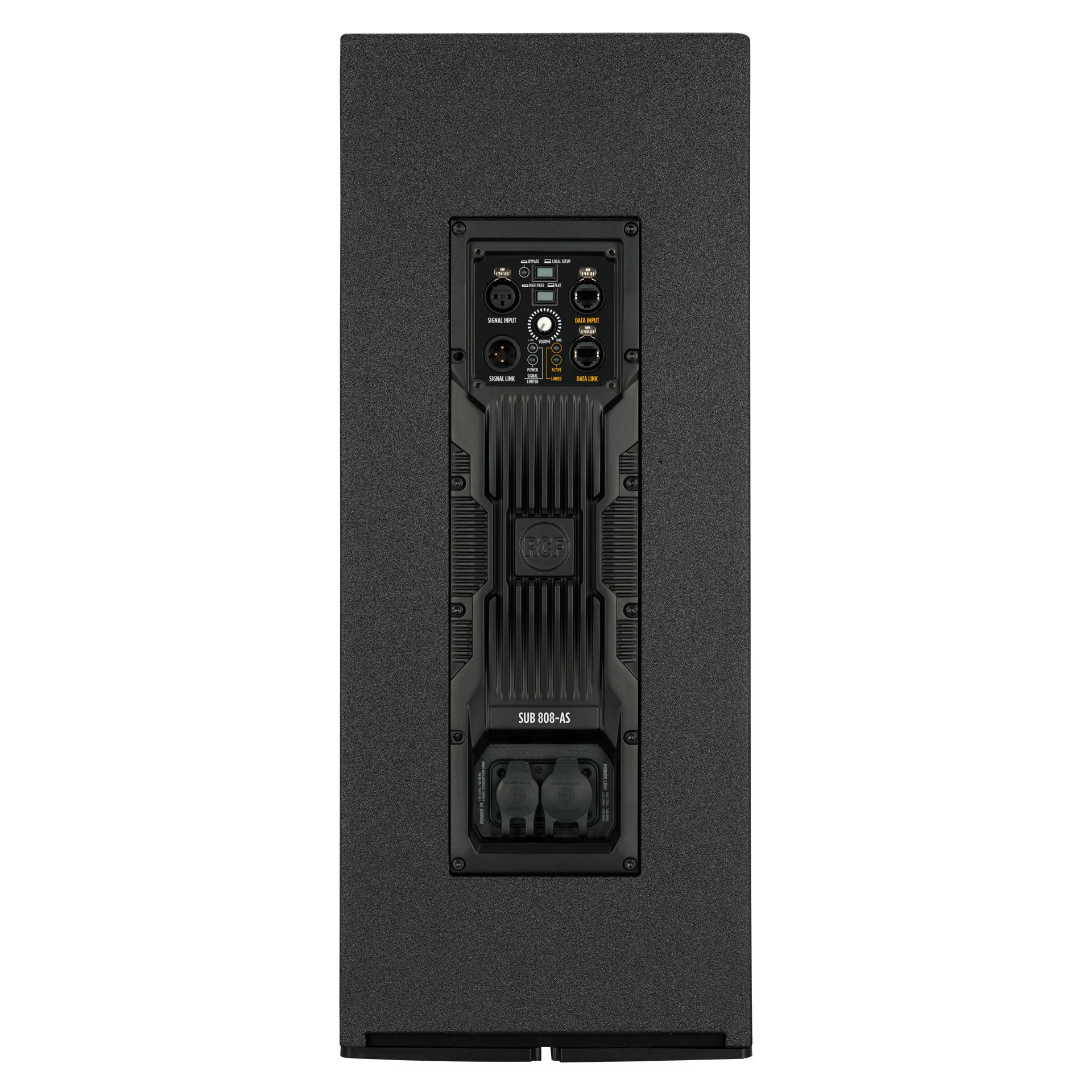

Input/Output Section
Input Signal	Bal/Unbal
Input Connectors	XLR, RDNet EtherCon
Output Connectors	XLR, RDNet EtherCon
Input Sensitivity	-2 dBu / +4 dBu
Processor Section
Protections	Excursion
Limiter	Fast Limiter
Controls	Volume
RDNet	Onboard
Power Section
Total Power	2000 W Peak
Low Frequencies	2000 W Peak
Cooling	Convection
Connections	PowerCon TRUE1 TOP IN/OUT
Standard Compliance
Safety Agency	CE Compliant
Physical Specifications
Cabinet/Case Material	Baltic Birch Plywood

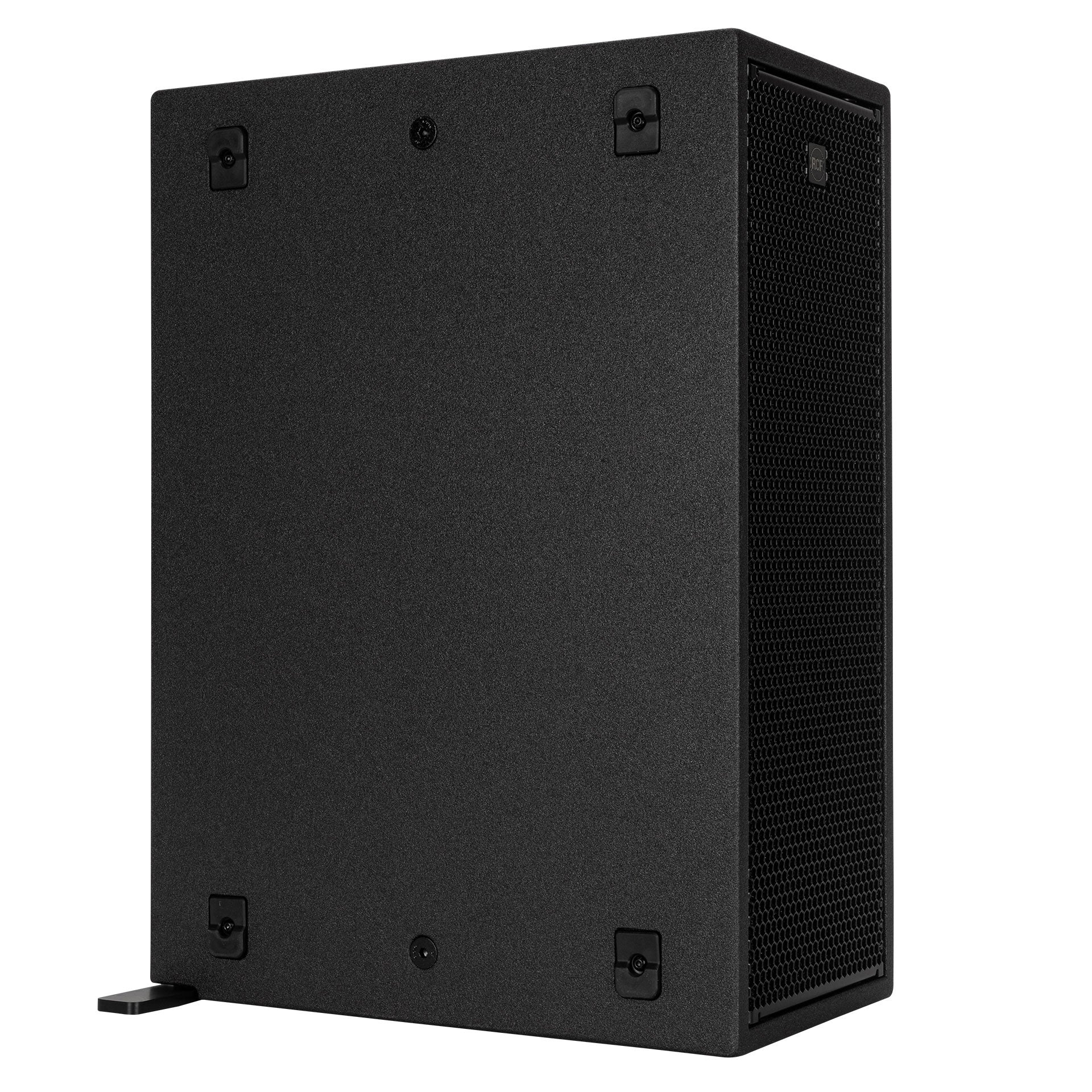

Hardware	2 x M20 top and side, 8 x M10 (2 x side)
Handles	1 x side

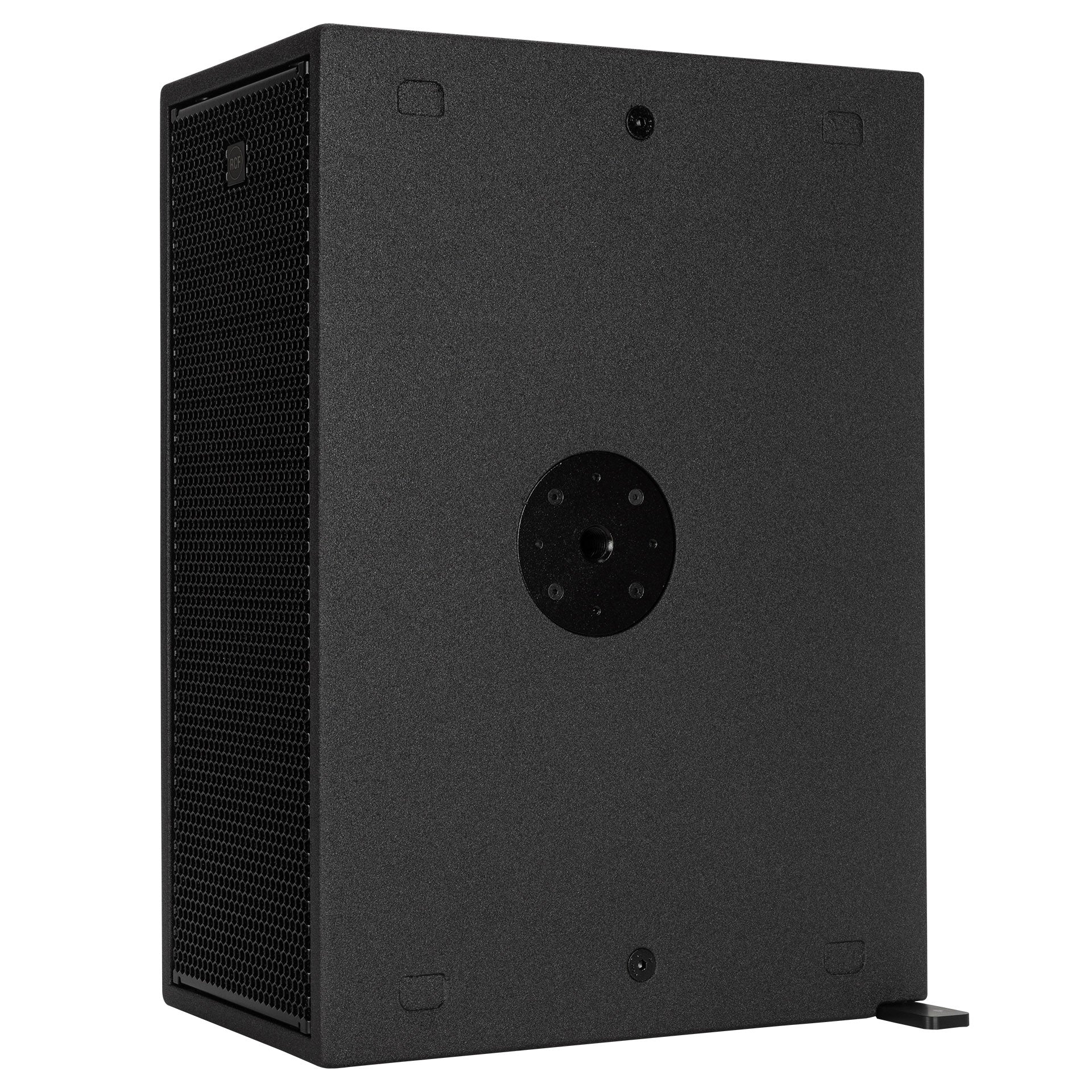

Pole Mount/Cap	35 mm insert

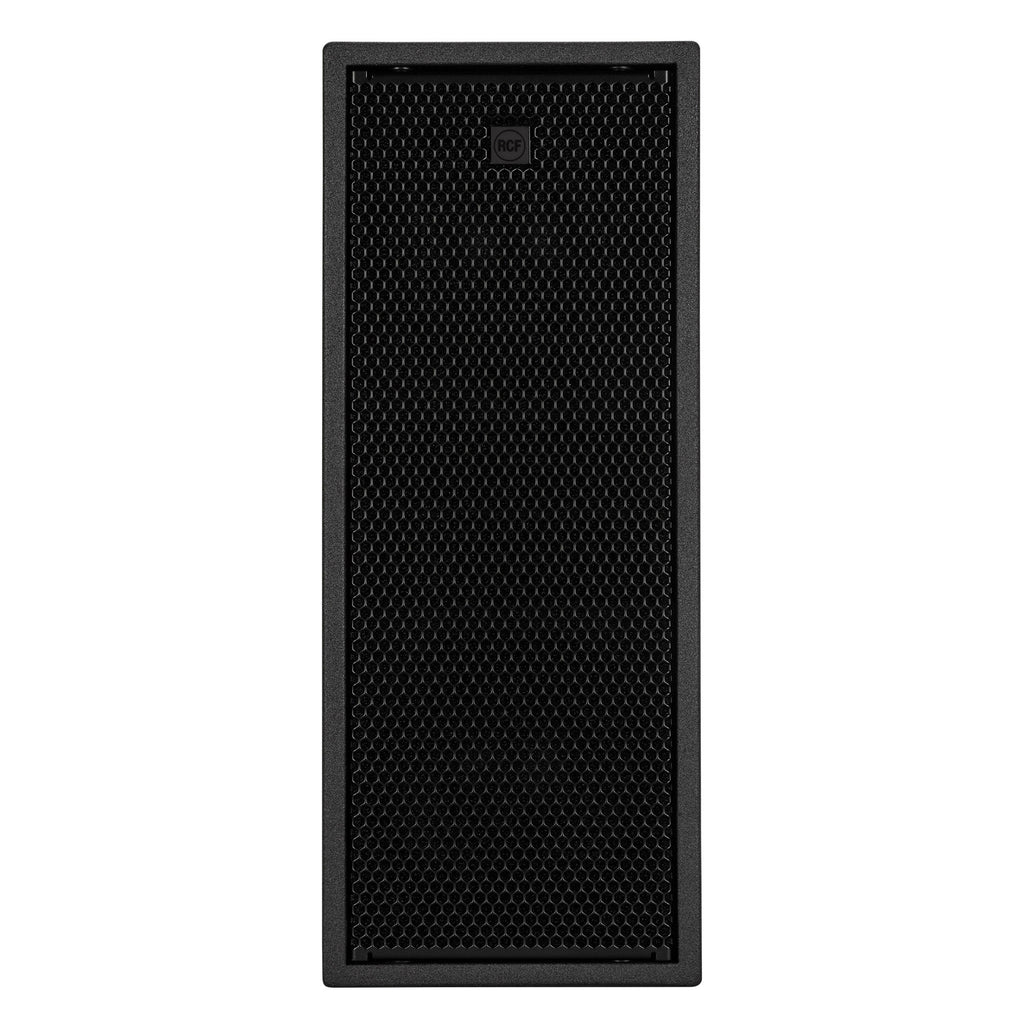

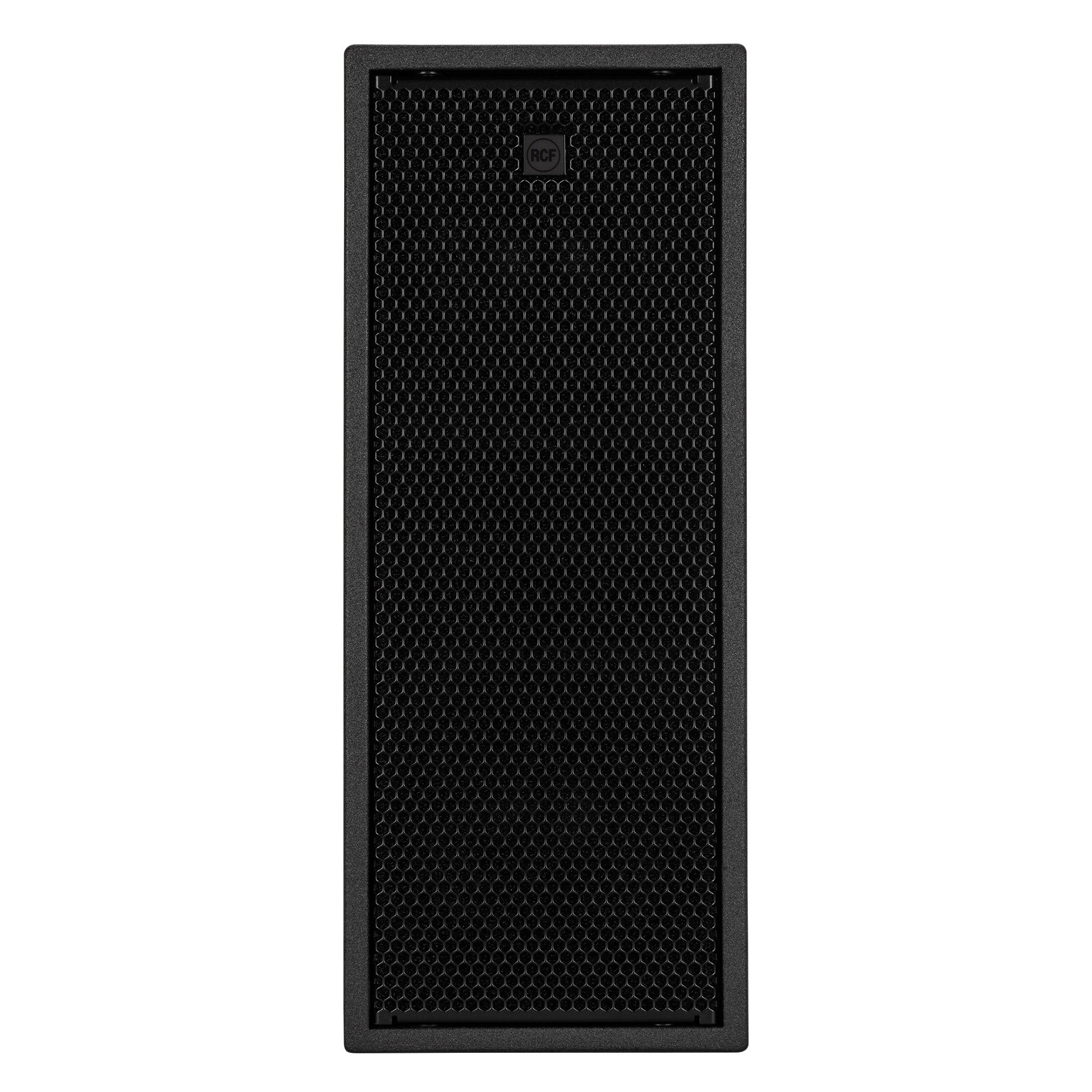

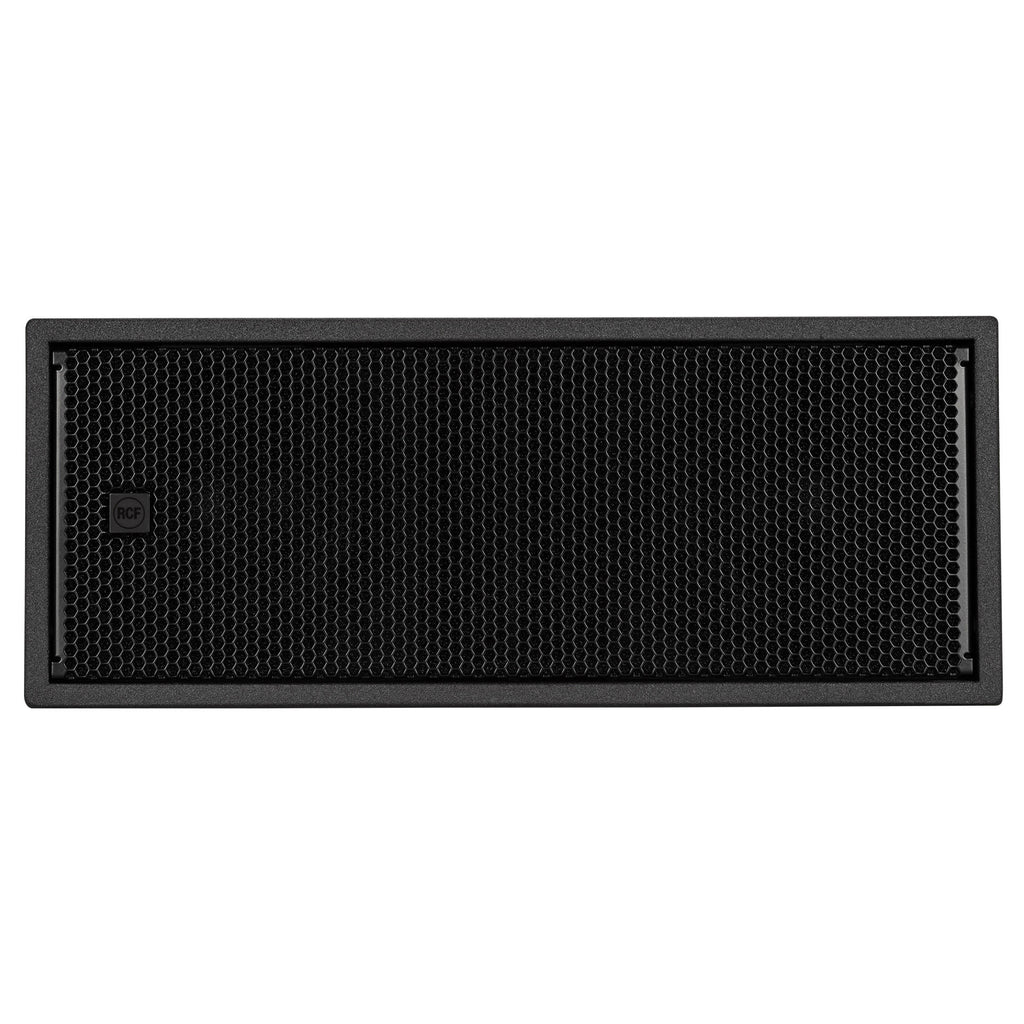

Grille	Steel with clothing
Color	Black, White
Size / Weight
Height	243.5 mm / 9.59 inches
Width	603.5 mm / 23.76 inches
Depth	430 mm / 16.93 inches
Weight	20 kg / 44.09 lbs
Shipping Information
Package Height	290 mm / 11.42 inches
Package Width	480 mm / 18.9 inches
Package Depth	650 mm / 25.59 inches
Package Weight	21 kg / 46.3 lbs
