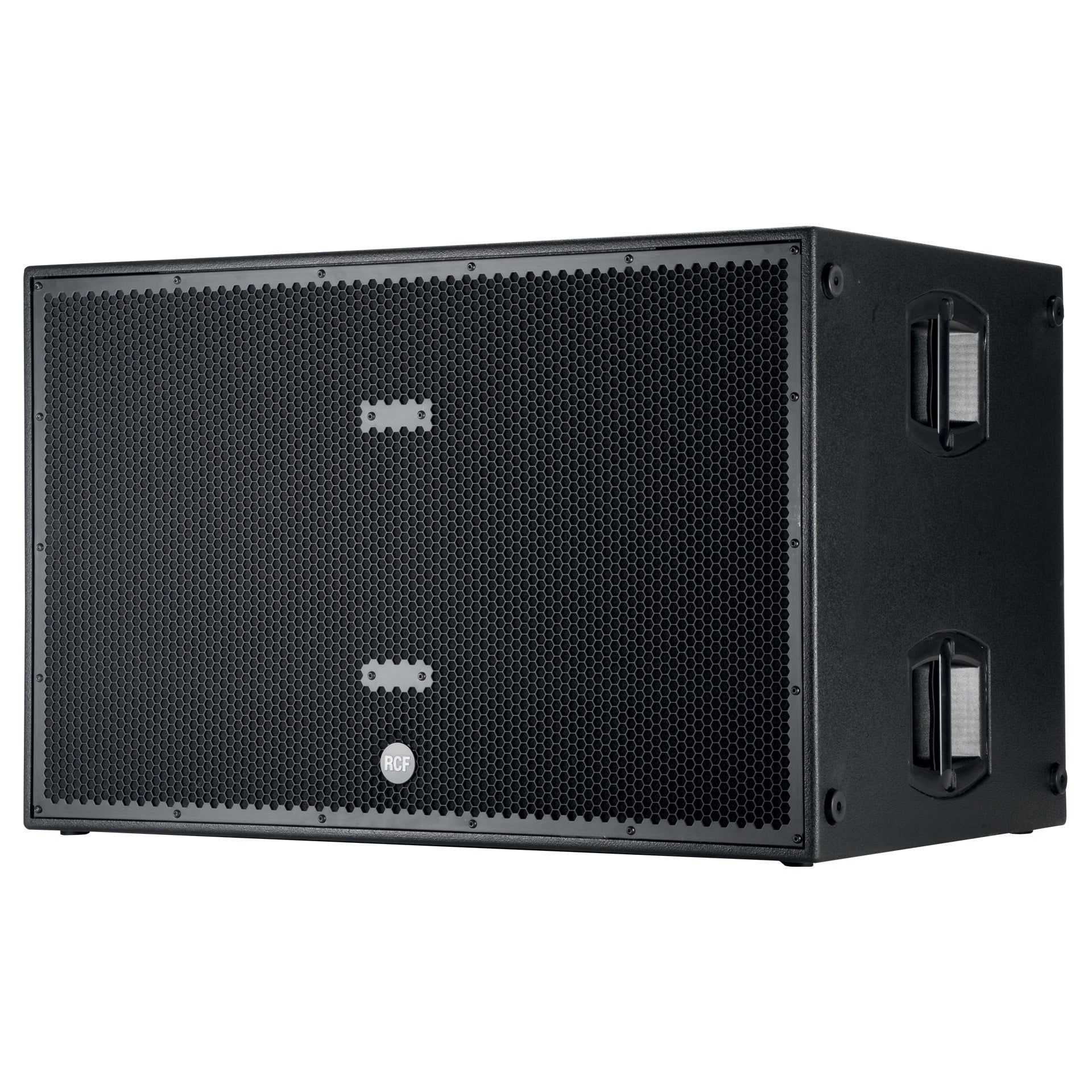

RCF SUB 8006-AS ACTIVE HIGH POWER SUBWOOFER

Features

• 5000 Watt Peak power - 2500 Watt RMS
• 141 dB max SPL
• 30 Hz - 120 Hz frequency response
• 2 x 18" Woofer
• DSP controlled Input section with selectable presets
• Delay control
• Integrated mechanics for multiple configuration with HDL 20-A
• Baltic birch tour grade cabinet

Specifications

Acoustical Specifications
Frequency Response	30 Hz - 120 Hz
Max SPL @ 1m	141 dB
Woofer	2 x 18", 4.0" v.c

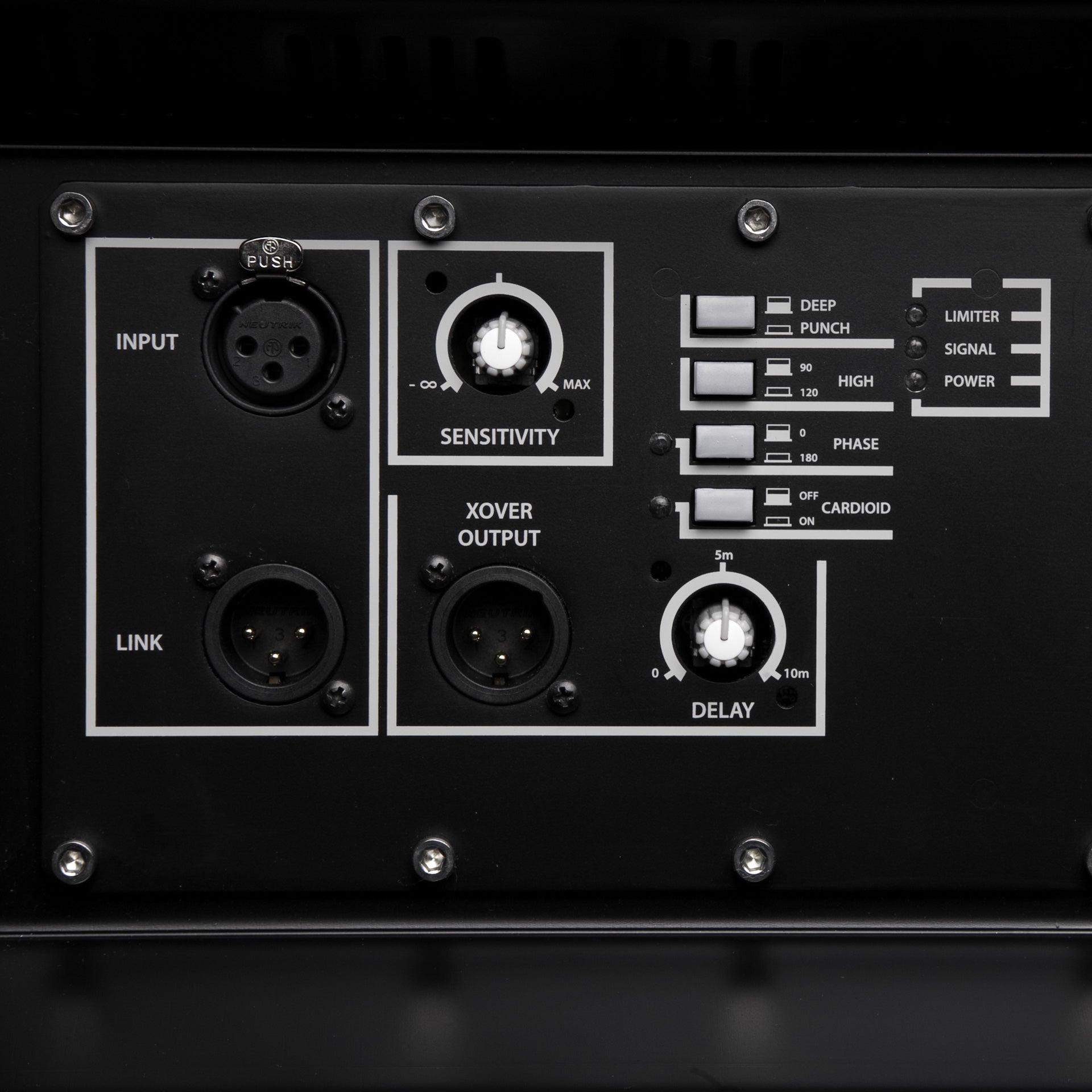

Input/Output Section
Input Signal	Bal/Unbal
Input Connectors	XLR
Output Connectors	XLR
Input Sensitivity	-2 dBu / +4 dBu
Processor Section
Hi-Pass Frequencies	100 Hz
Low-Pass Frequencies	80 Hz
Protections	Thermal, RMS
Limiter	Fast Limiter

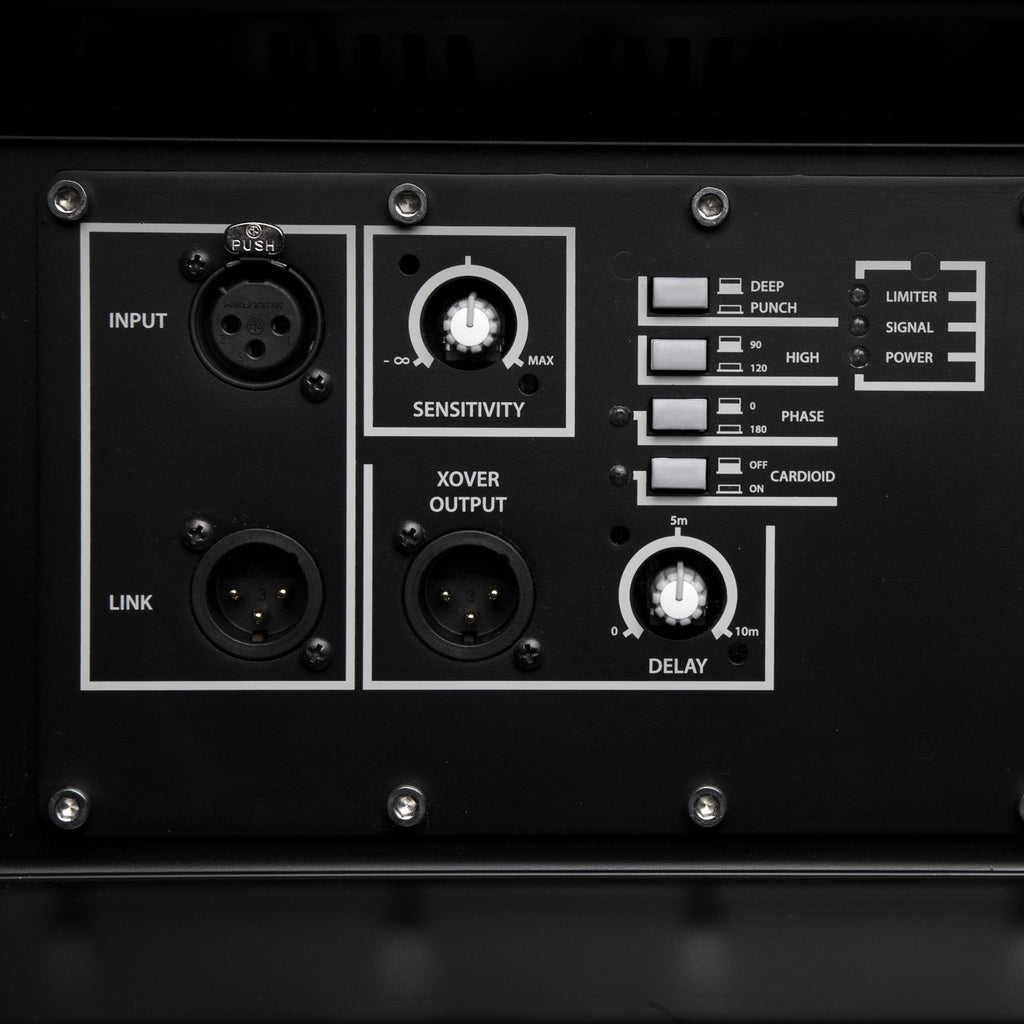

Controls	Xover, Phase switch, Deep/Punch, Output Delay Settings, Cardioid
Power Section
Total Power	5000 W Peak, 2500 W RMS
Low Frequencies	5000 W Peak, 2500 W RMS
Cooling	Convection

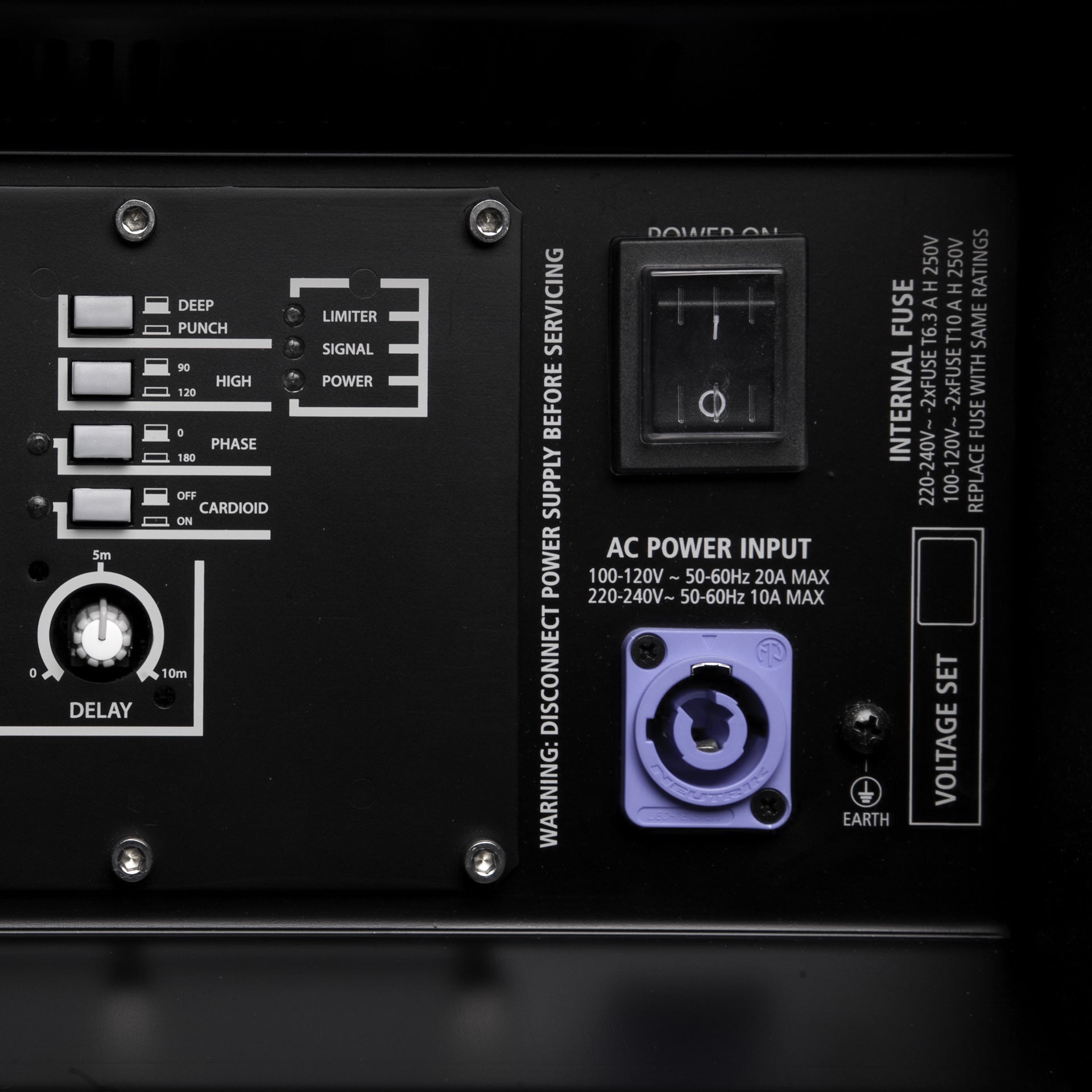

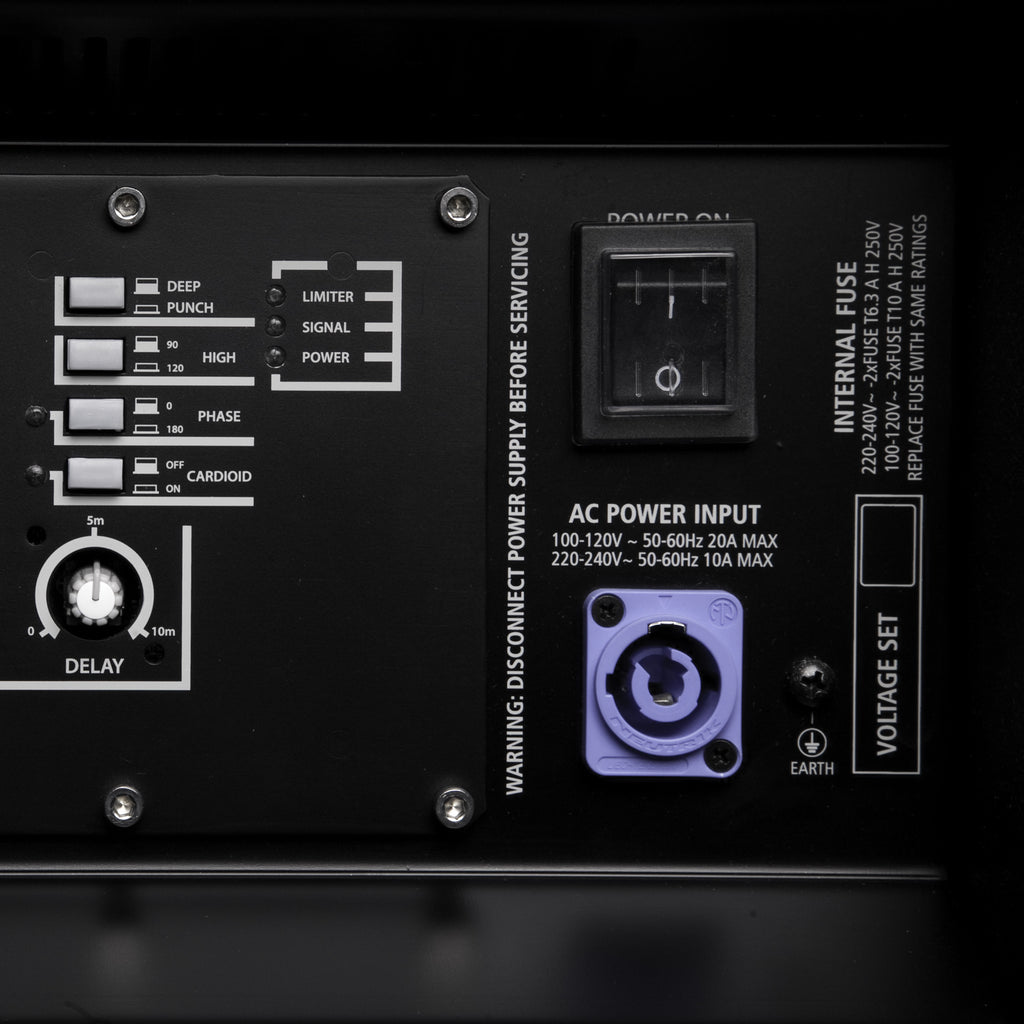

Connections	PowerCon IN/OUT
Standard Compliance
Safety Agency	CE Compliant
Physical Specifications
Cabinet/Case Material	Baltic Birch Plywood
Hardware	Mounting Points

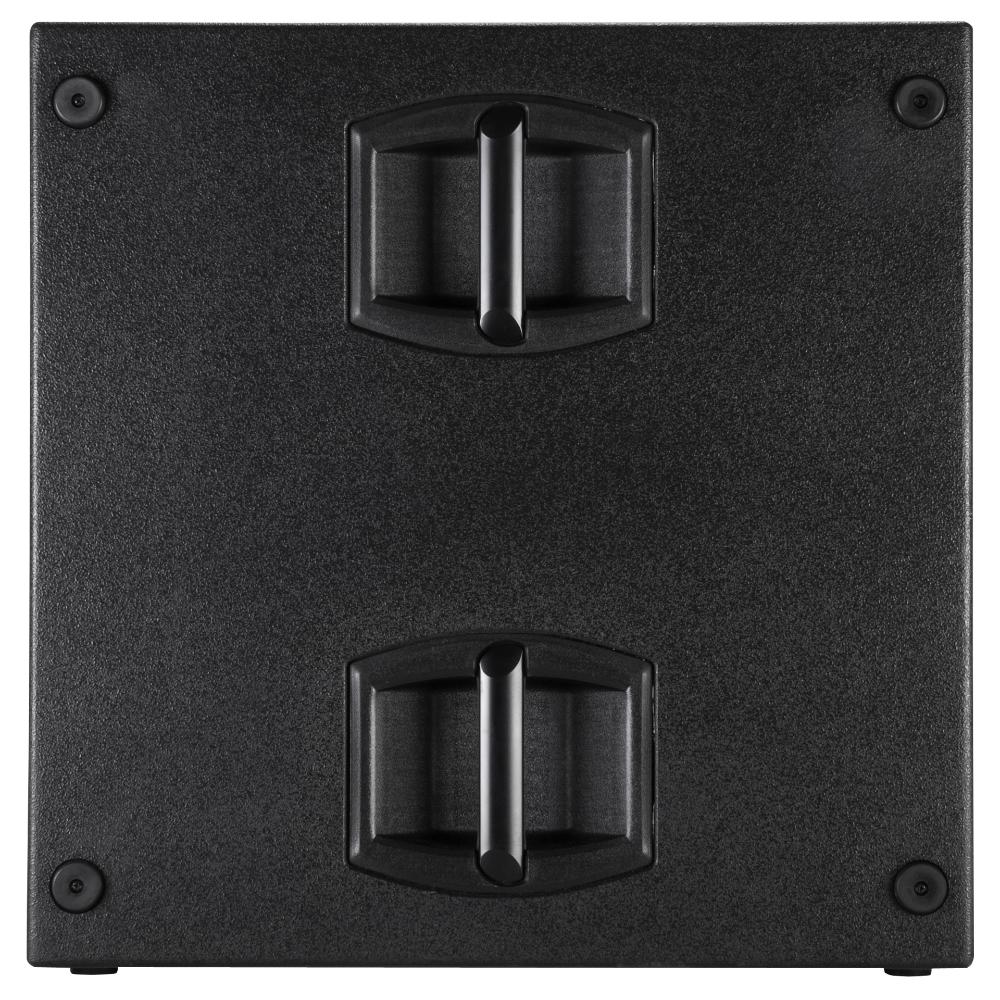

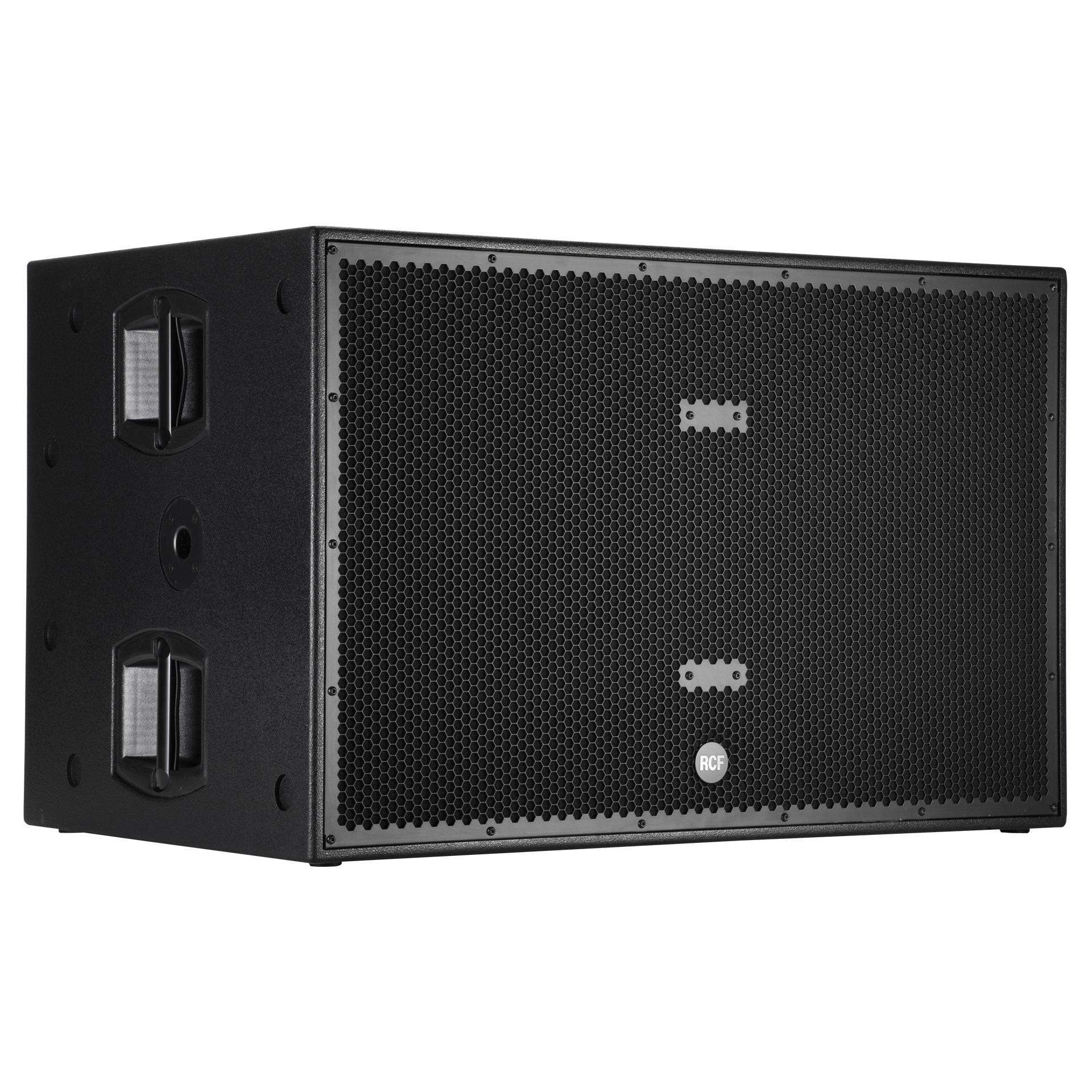

Handles	4 side

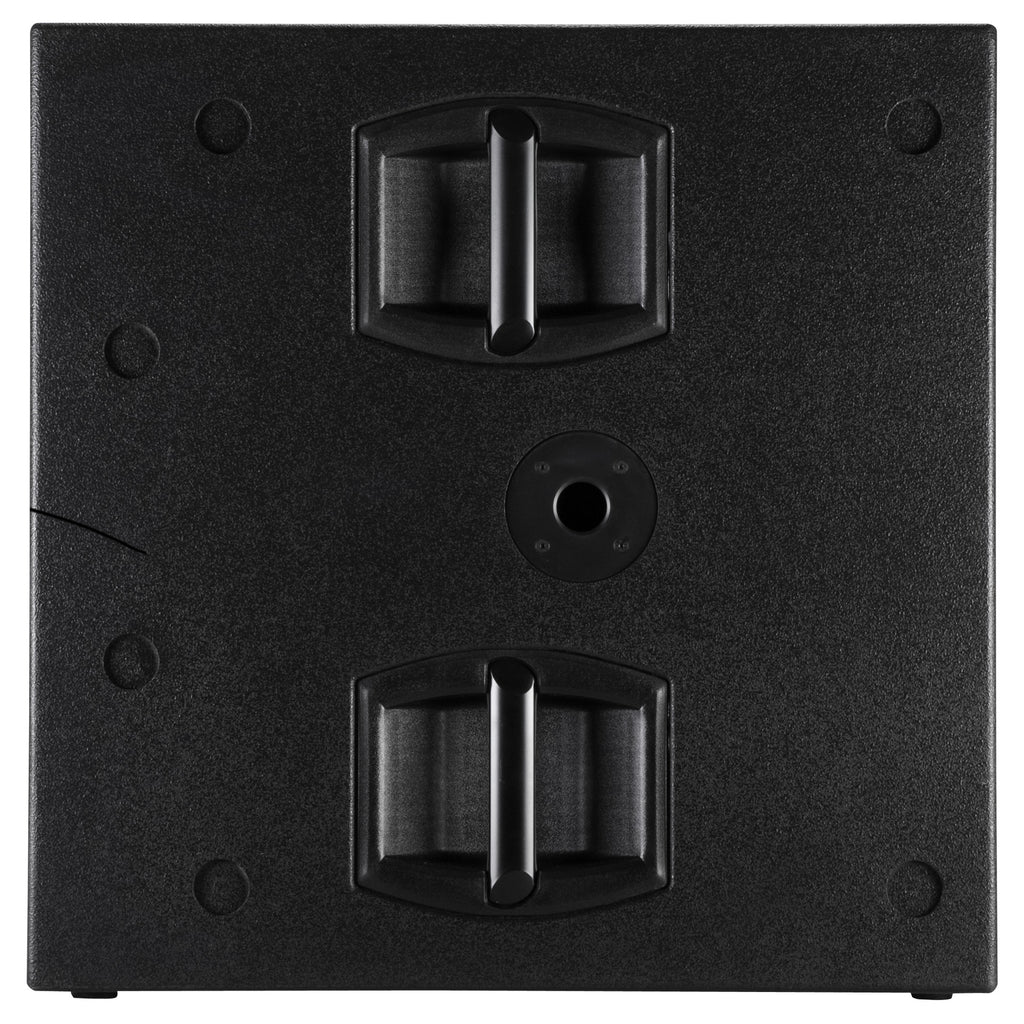

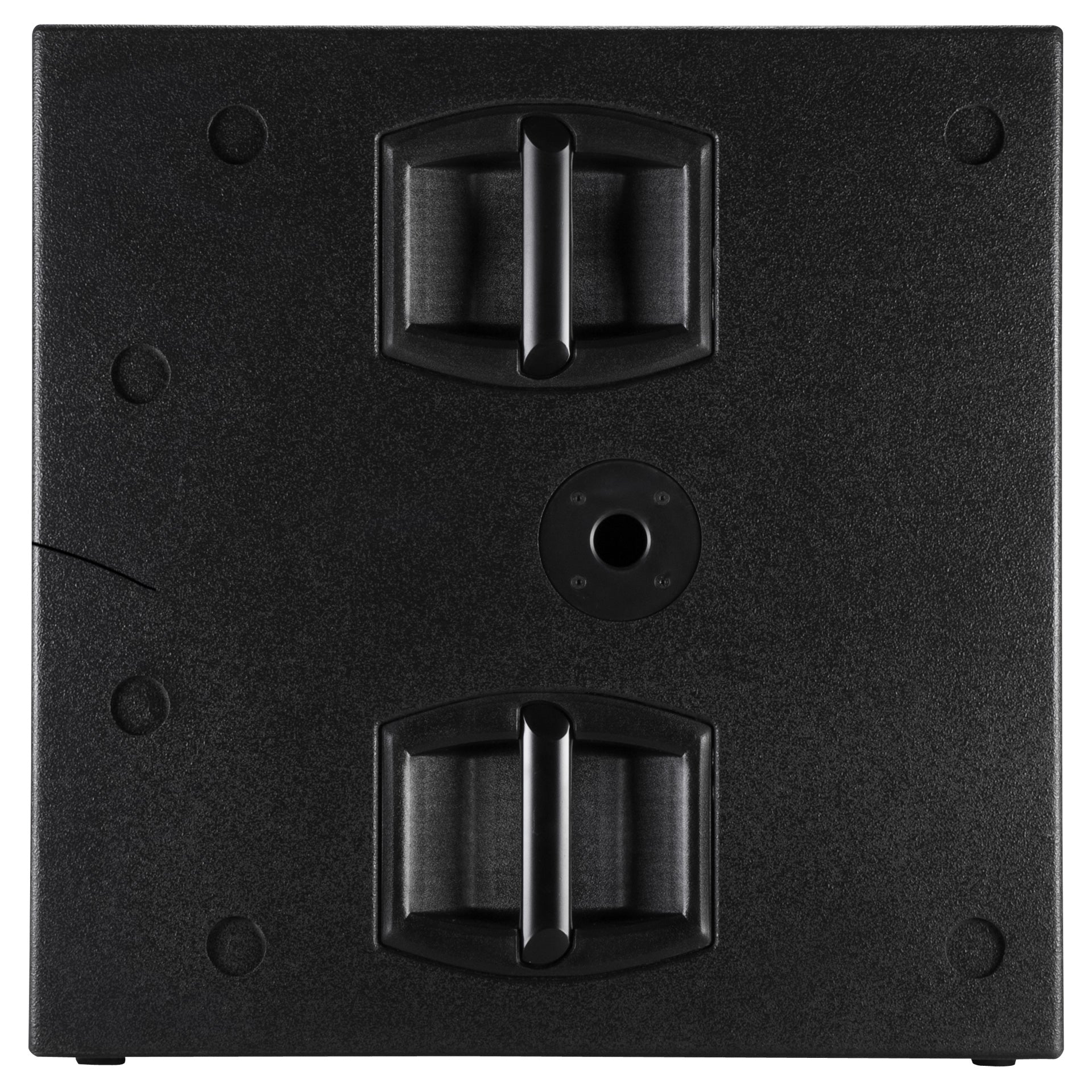

Pole Mount/Cap	M20 thread
Grille	Steel
Color	Black
Size / Weight
Height	709 mm / 27.91 inches
Width	1109 mm / 43.66 inches
Depth	700 mm / 27.56 inches
Weight	96.4 kg / 212.53 lbs
Shipping Information
Package Height	763 mm / 30.04 inches
Package Width	1156 mm / 45.51 inches
Package Depth	753 mm / 29.65 inches
Package Weight	109 kg / 240.3 lbs
