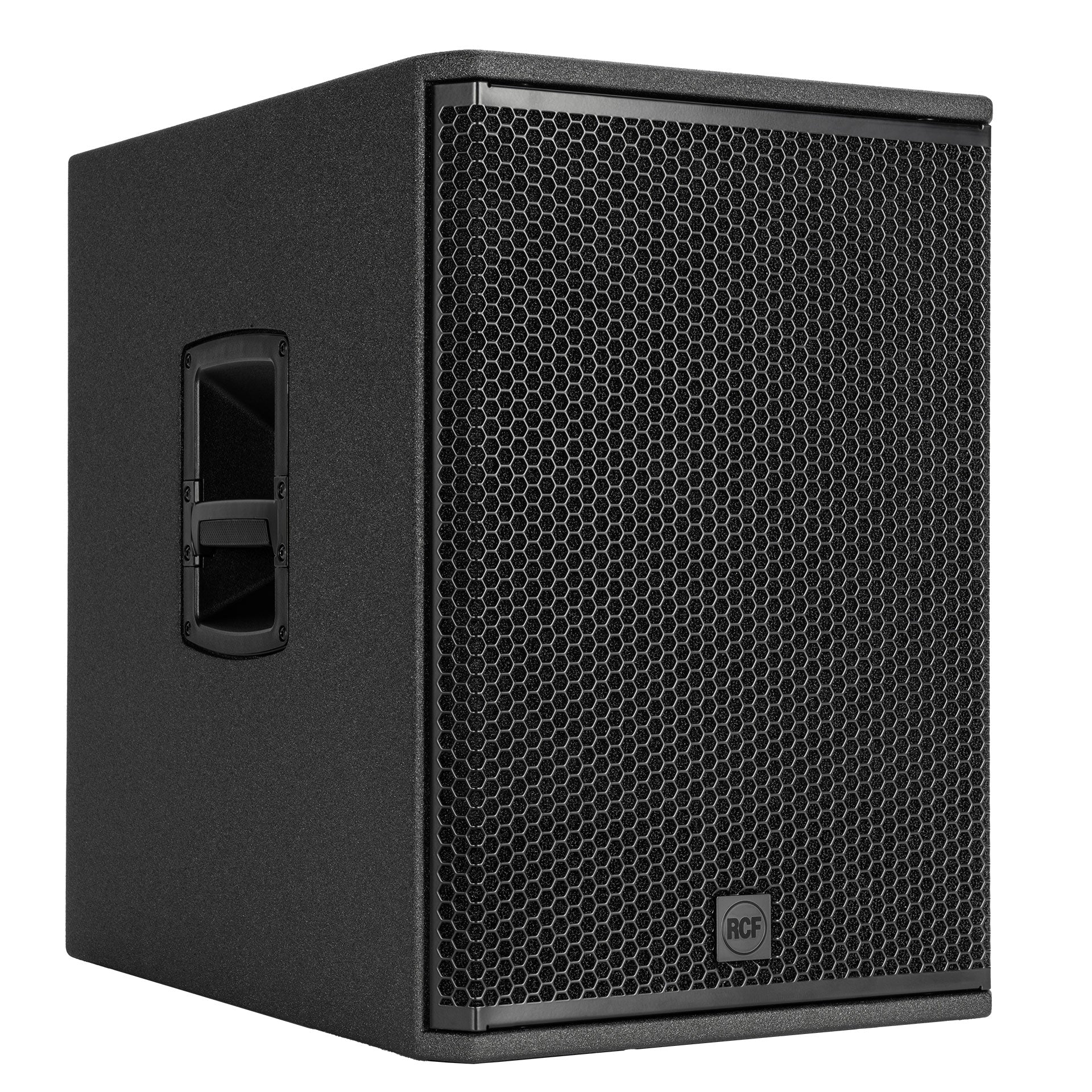

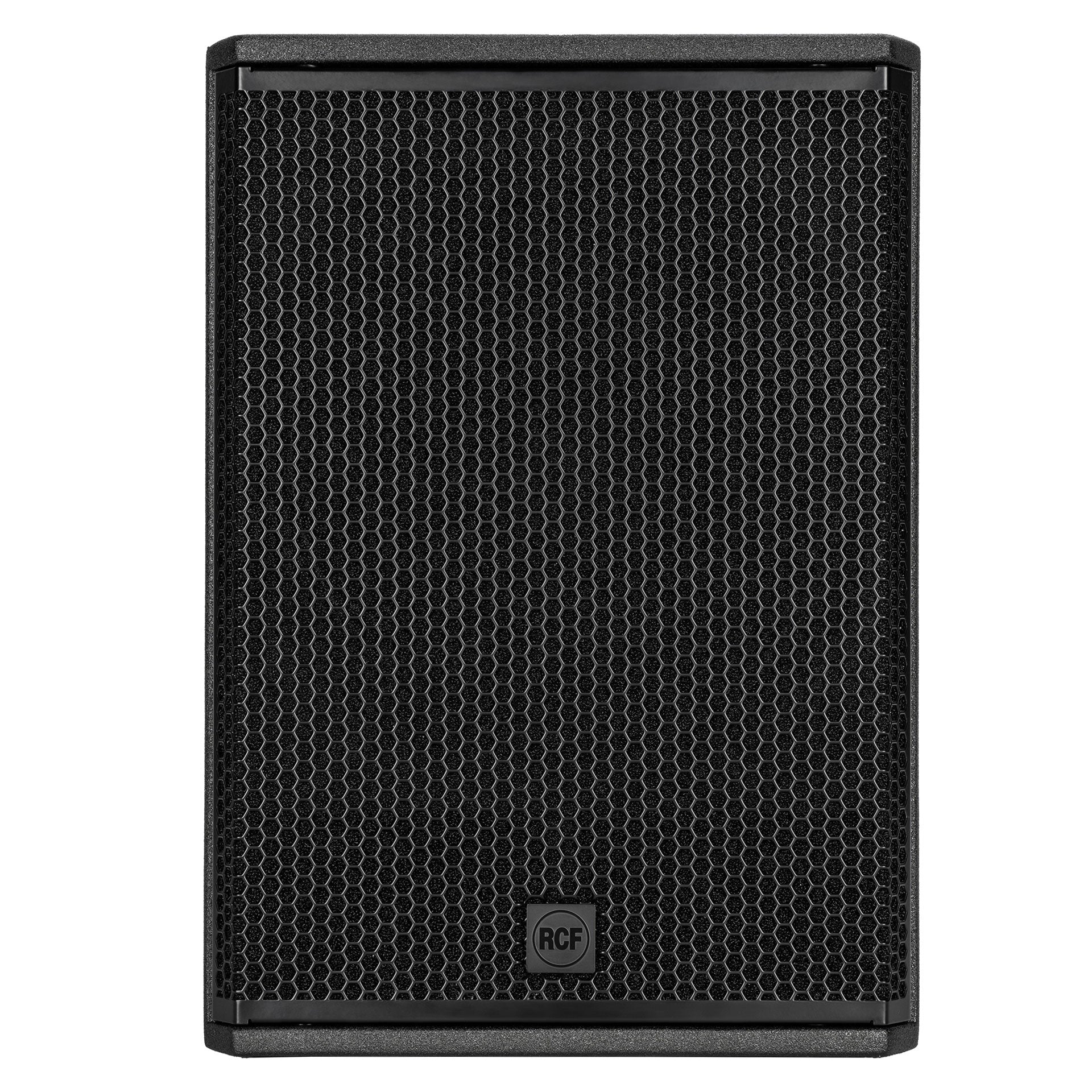

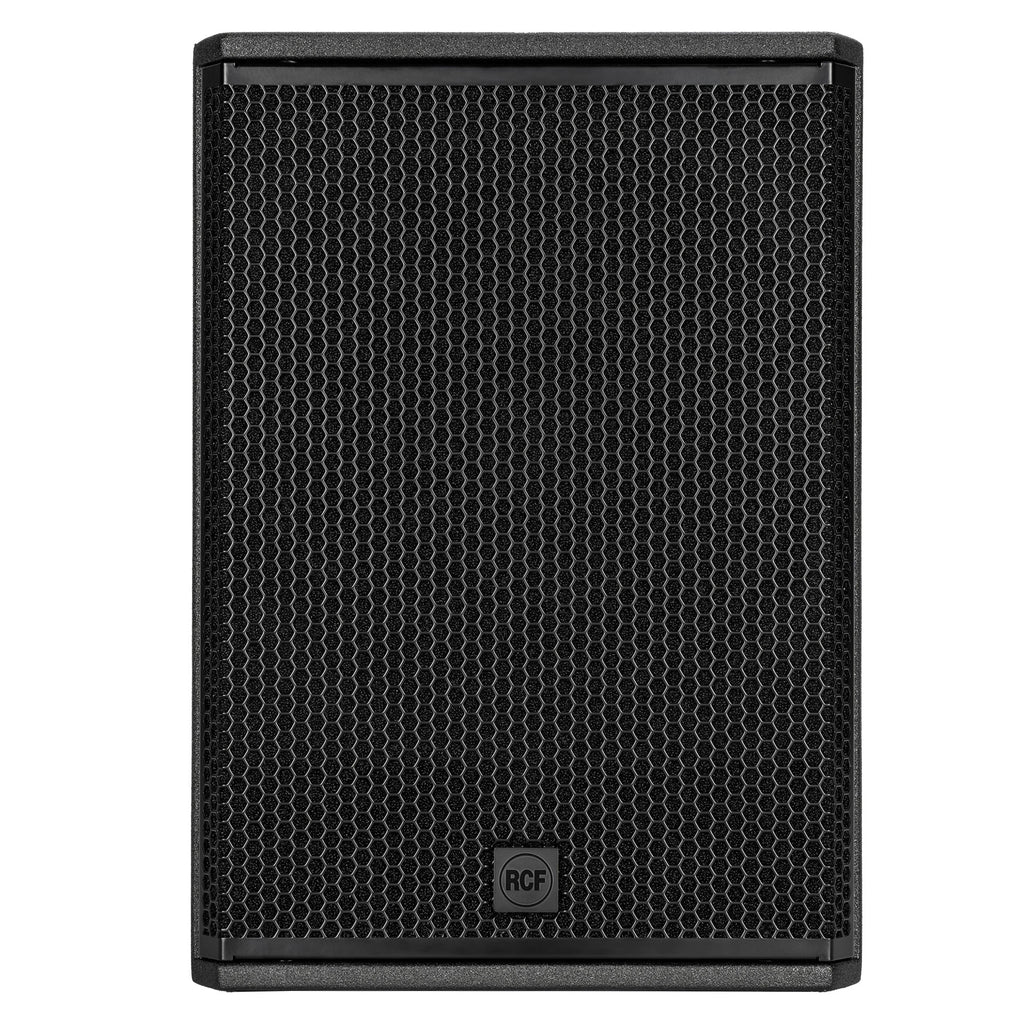

RCF SUB 705-AS MK3 Active Subwoofer

RCF SUB 705-AS MK3 Active Subwoofer Features

• 1400 Watt Class-D Amplifier
• 15” Woofer, bass reflex housing
• Stereo Crossover
• Switchable Crossover Frequencies
• Polarity-reverse switch
• Electronic equalization, soft limiter and protection

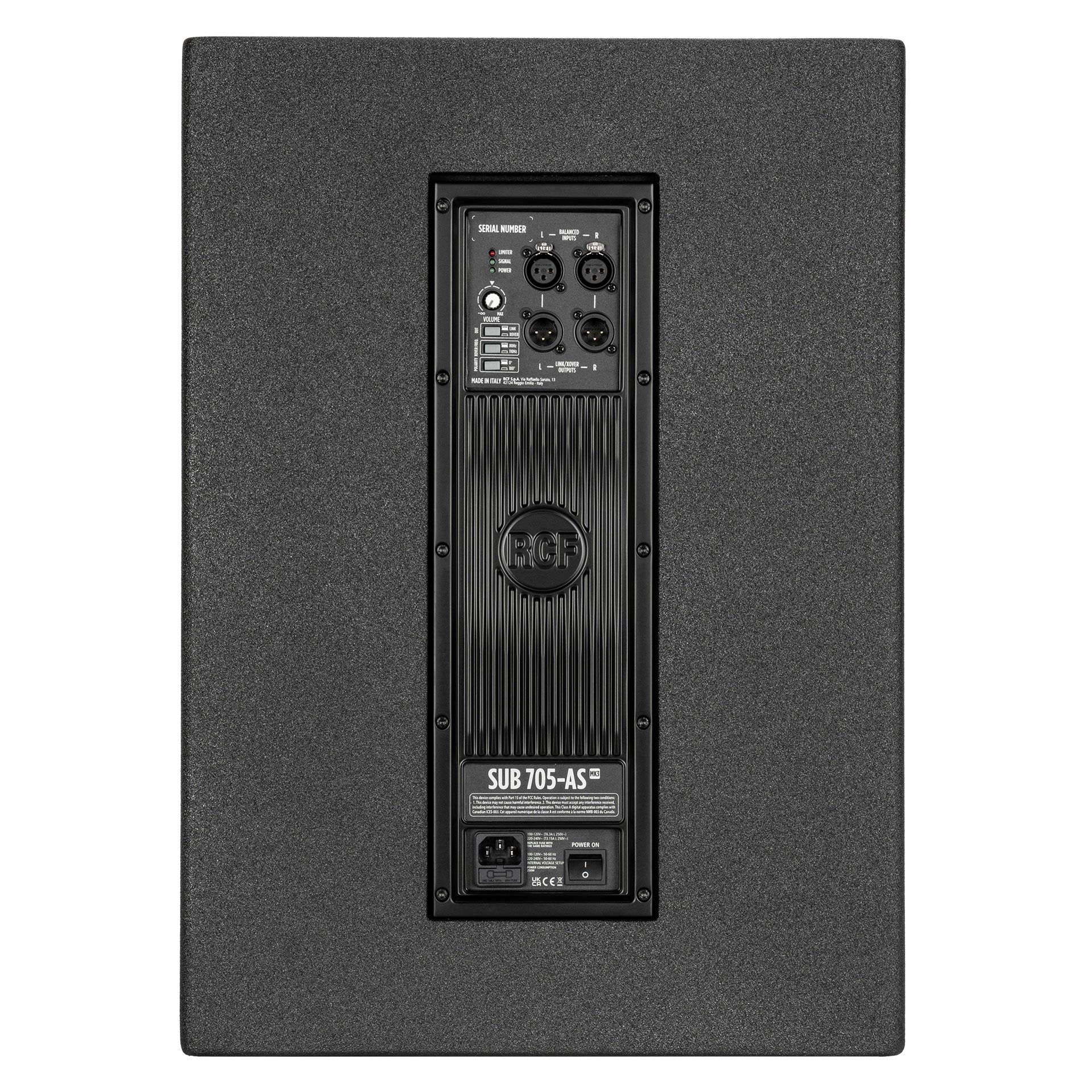

• Stereo XLR input, Stereo XLR signal output
• Bass Motion Control excursion management

RCF SUB 705-AS MK3 Active Subwoofer Specification

Specification	Details
Frequency Response	40 Hz – 120 Hz
Max SPL @ 1m	131 dB
Woofer	15", 3.0" voice coil
Input Signal	Balanced / unbalanced
Input Connectors	XLR
Output Connectors	XLR
Input Sensitivity	-2 dBu / +4 dBu
Hi-Pass Frequencies	110 Hz
Low-Pass Frequencies	80 Hz
Protections	Thermal, RMS
Limiter	Soft limiter
Controls	Volume, EQ, phase, crossover
Total Power	1400 W peak, 700 W RMS
Low Frequencies	1400 W peak, 700 W RMS
Cooling	Convection
Connections	VDE
Safety Agency	CE compliant
Cabinet / Case Material	Baltic birch plywood

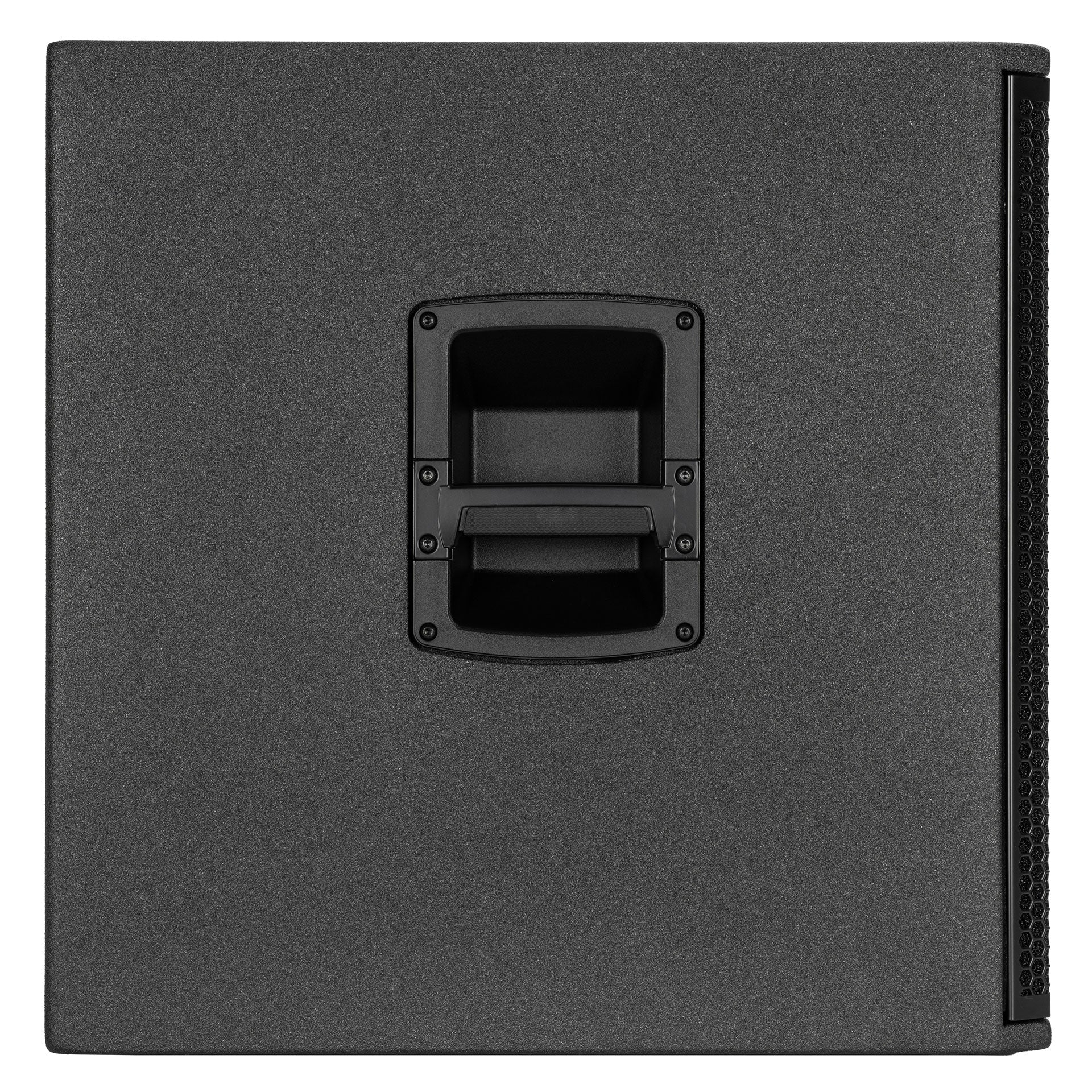

Handles	One each side

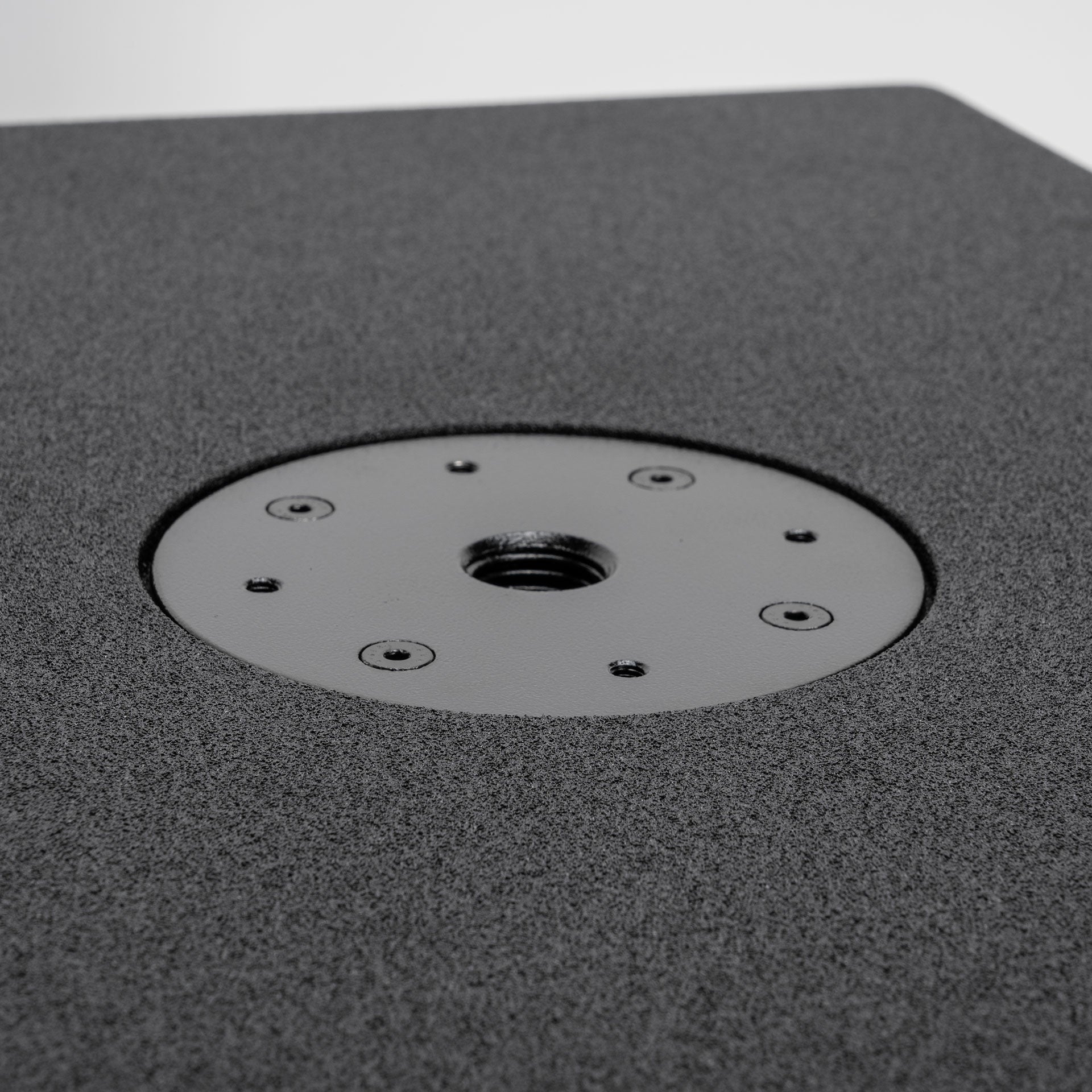

Pole Mount / Cap	M20 thread
Grille	Steel with cloth backing
Color	Black
Dimensions (H x W x D)	598 x 420 x 590 mm (23.54 x 16.54 x 23.23 in)
Weight	30 kg (66.14 lb)
Package Dimensions (H x W x D)	648 x 638 x 478 mm (25.51 x 25.12 x 18.82 in)
Package Weight	34.9 kg (76.94 lb)
