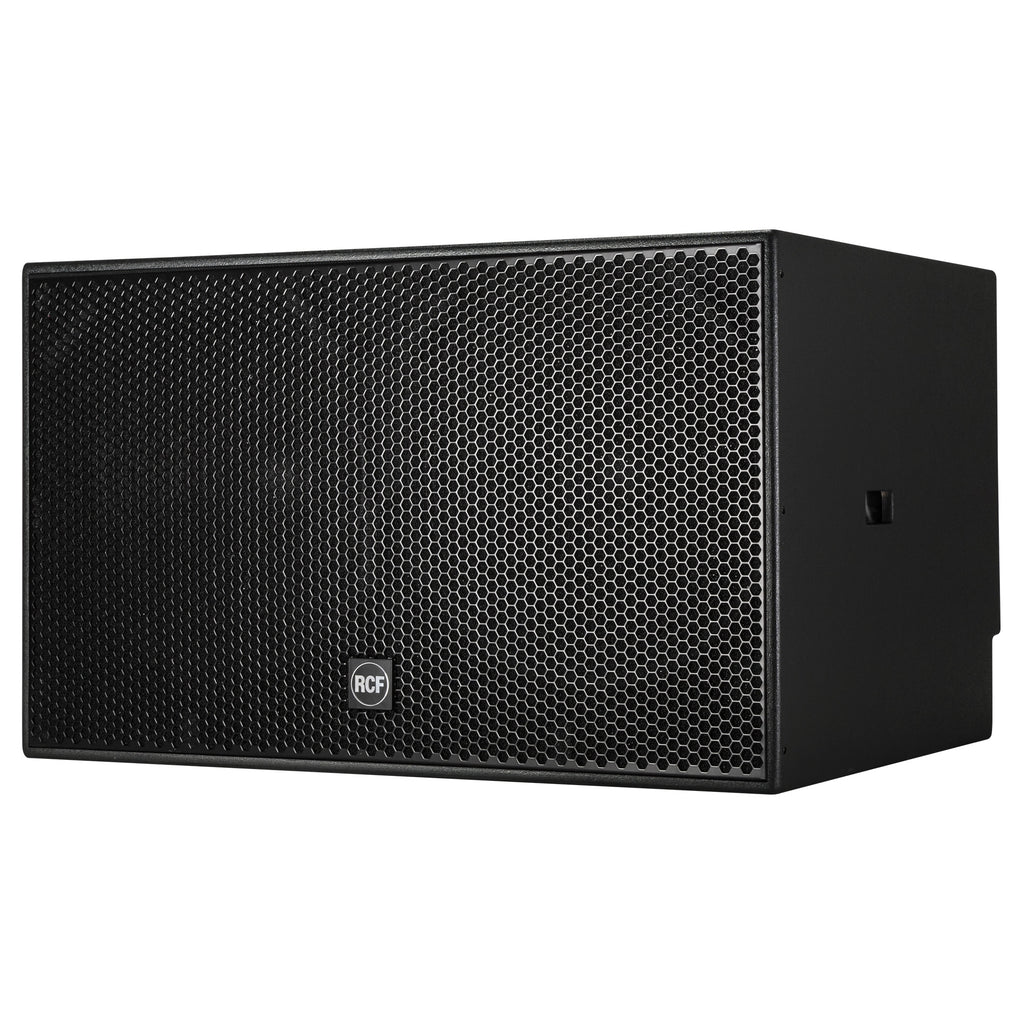

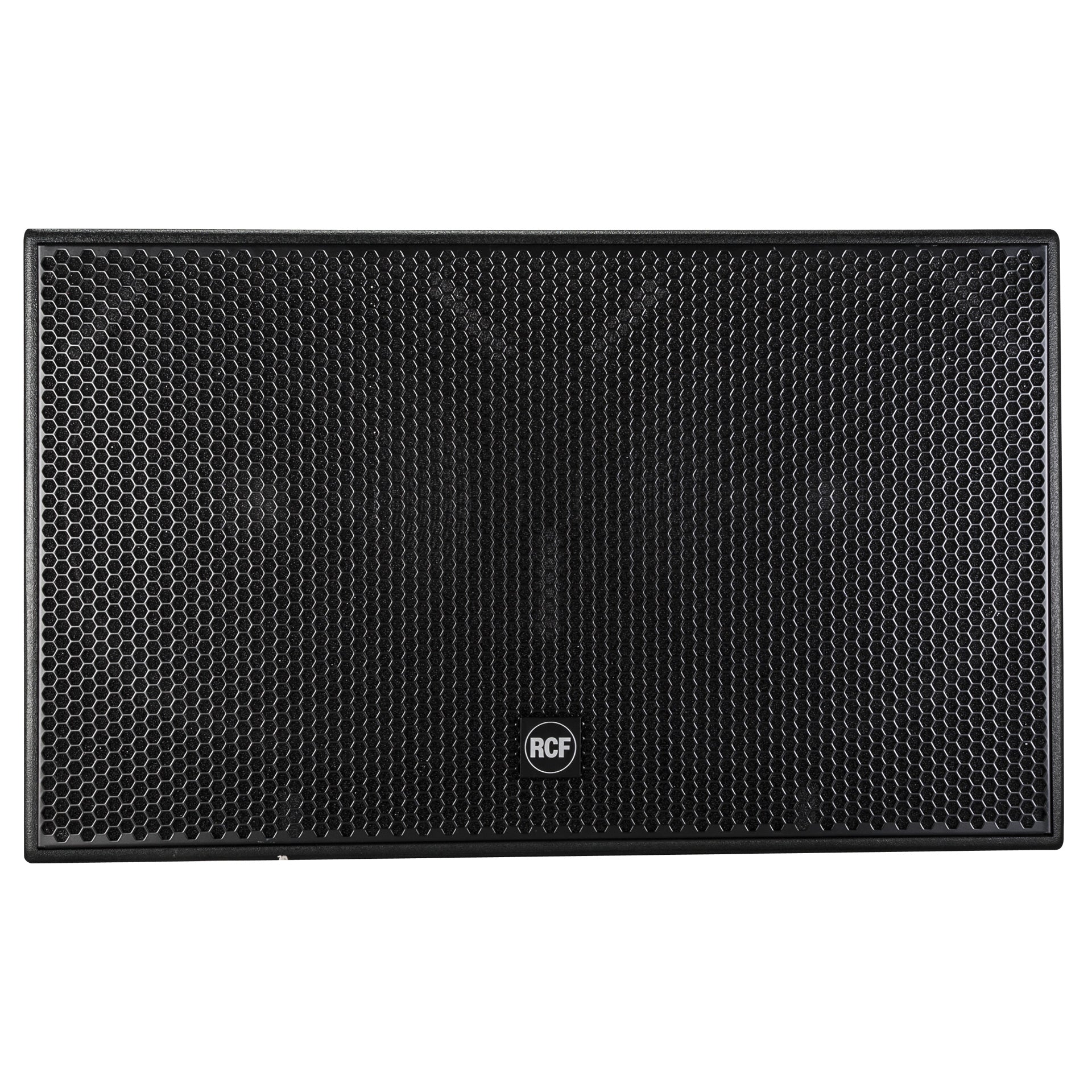

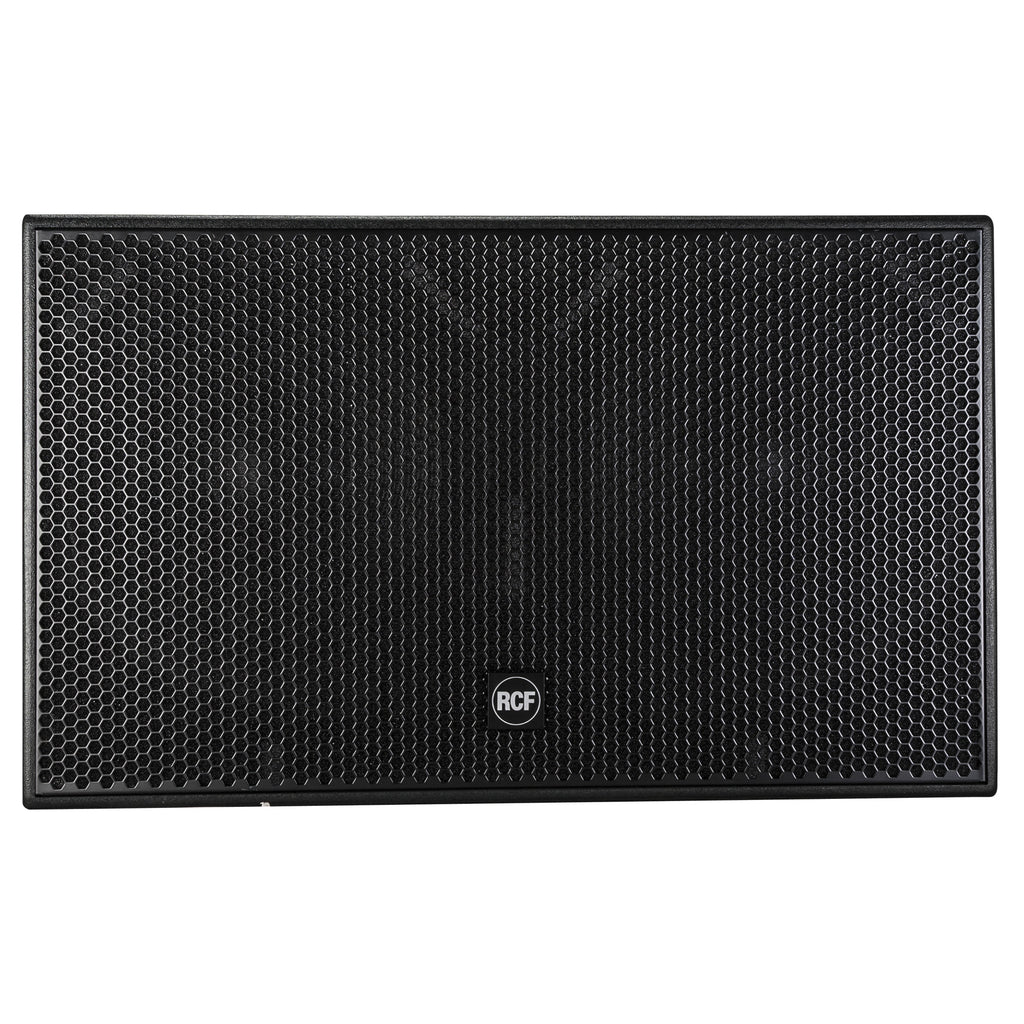

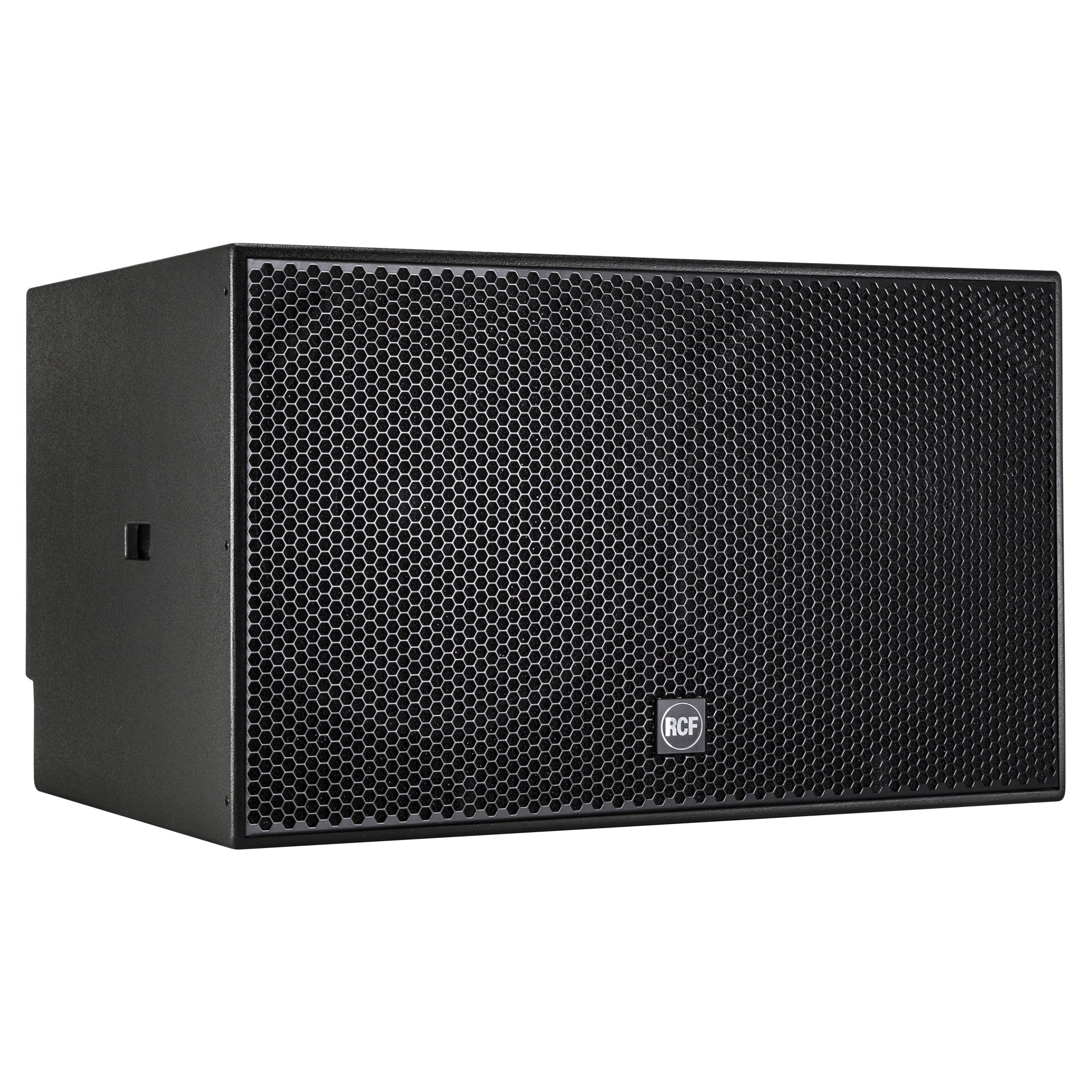

RCF S 8028 II BASS REFLEX SUBWOOFER

Features

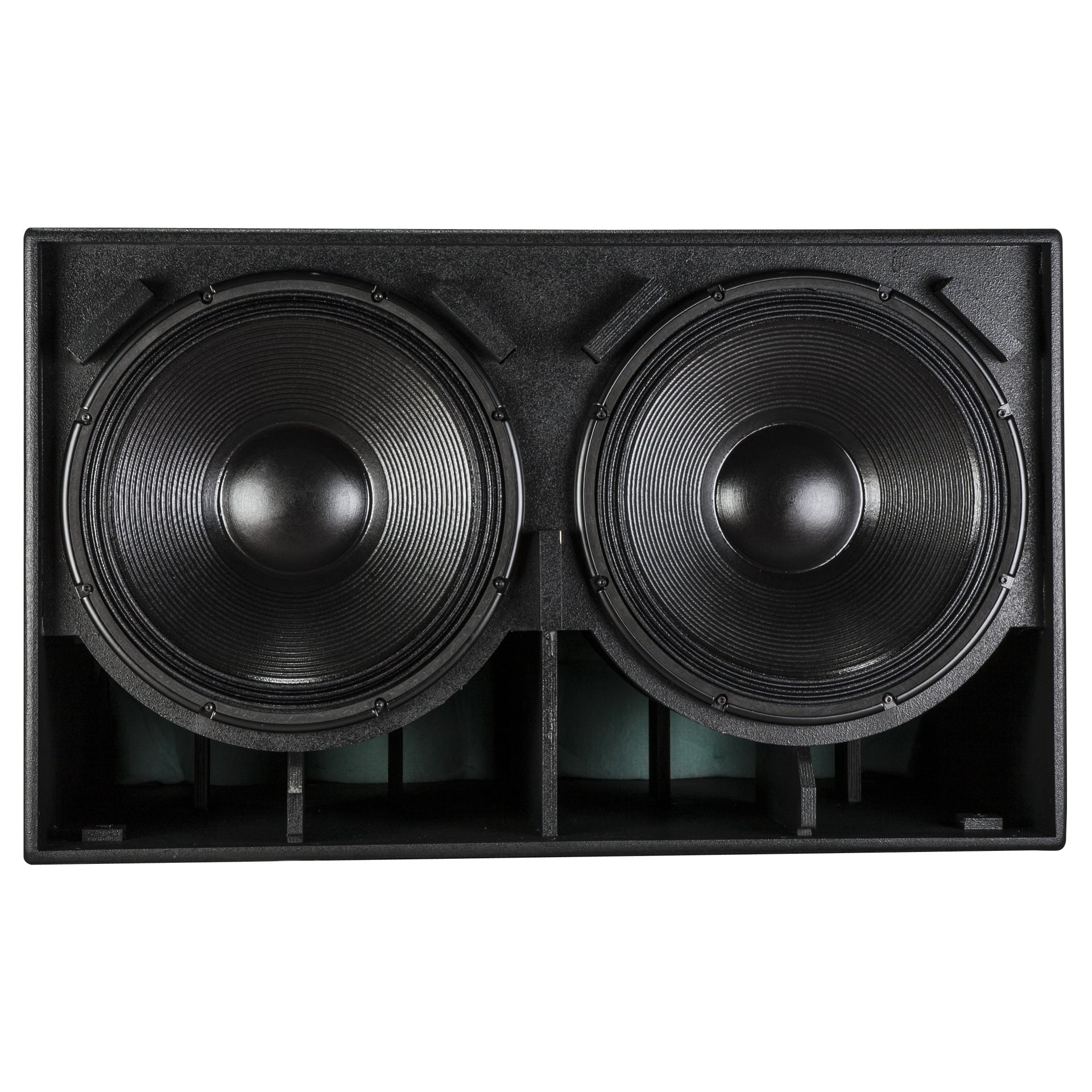

• 2 x 18" high-efficiency 4.0" voice-coil woofer with Inside/Outside Coil Technology
• 141 dB maximum sound pressure level
• Response down to 30 Hz
• System Power rating 3000 Watt RMS

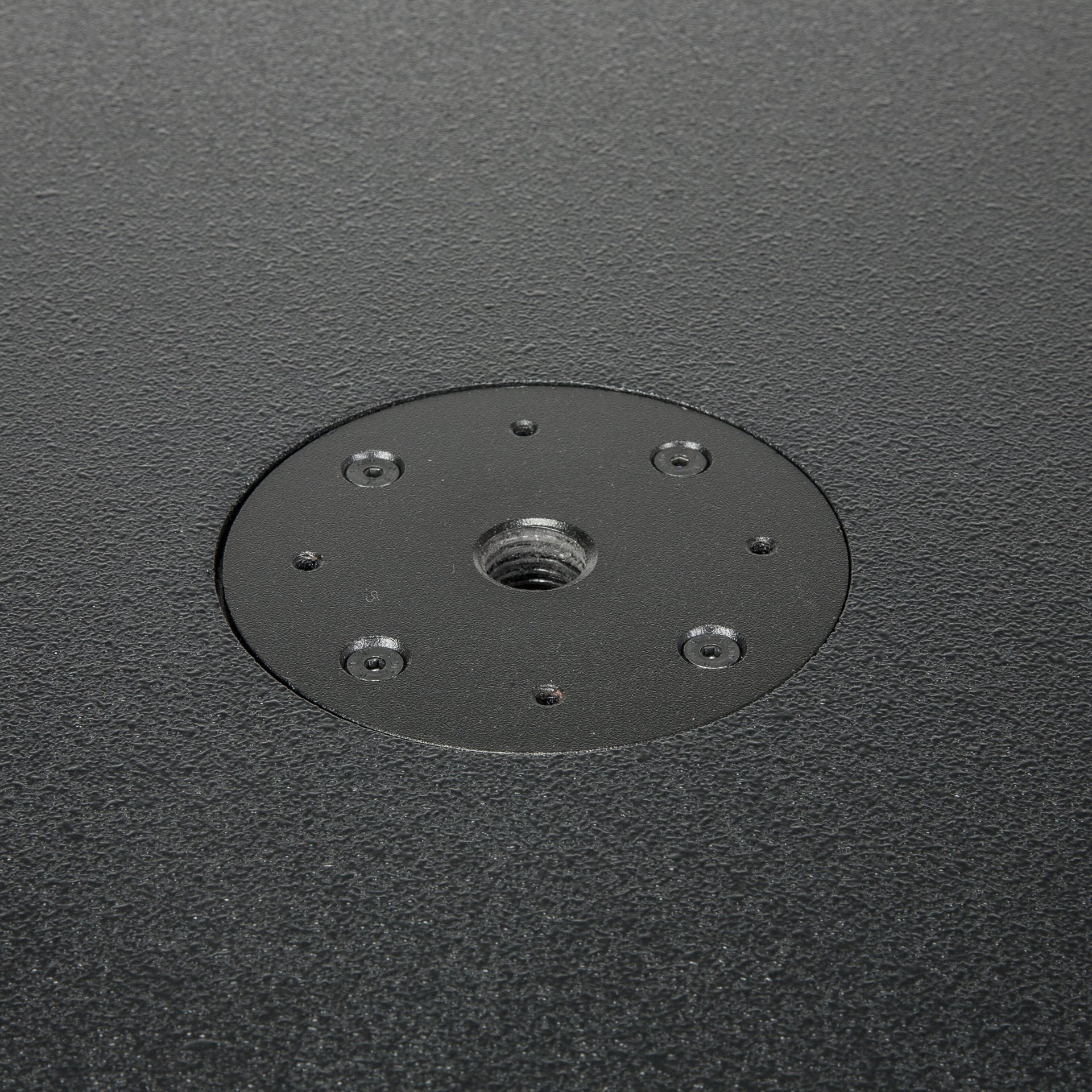

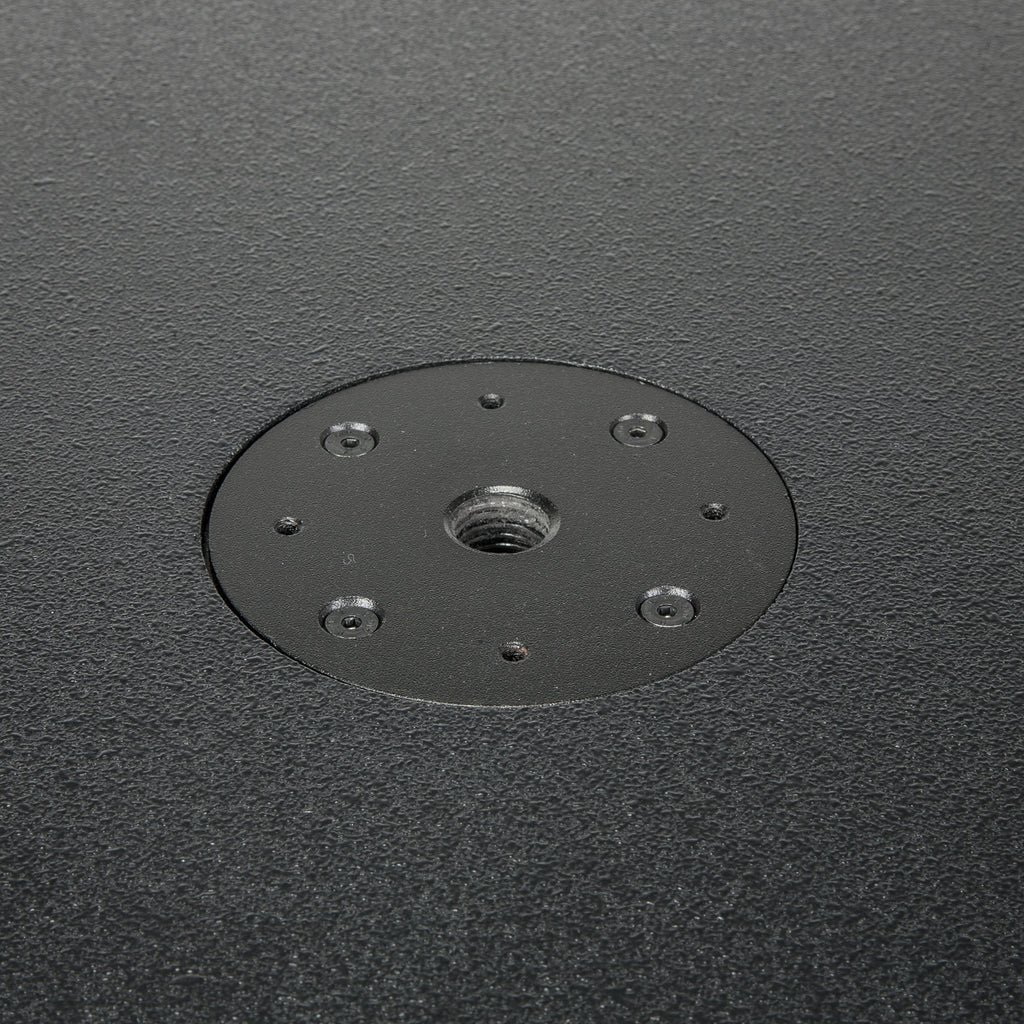

• M20 standard pole mount in top section of cabinet
• Baltic Birch cabinet painted with black, heavy duty, textured epoxy

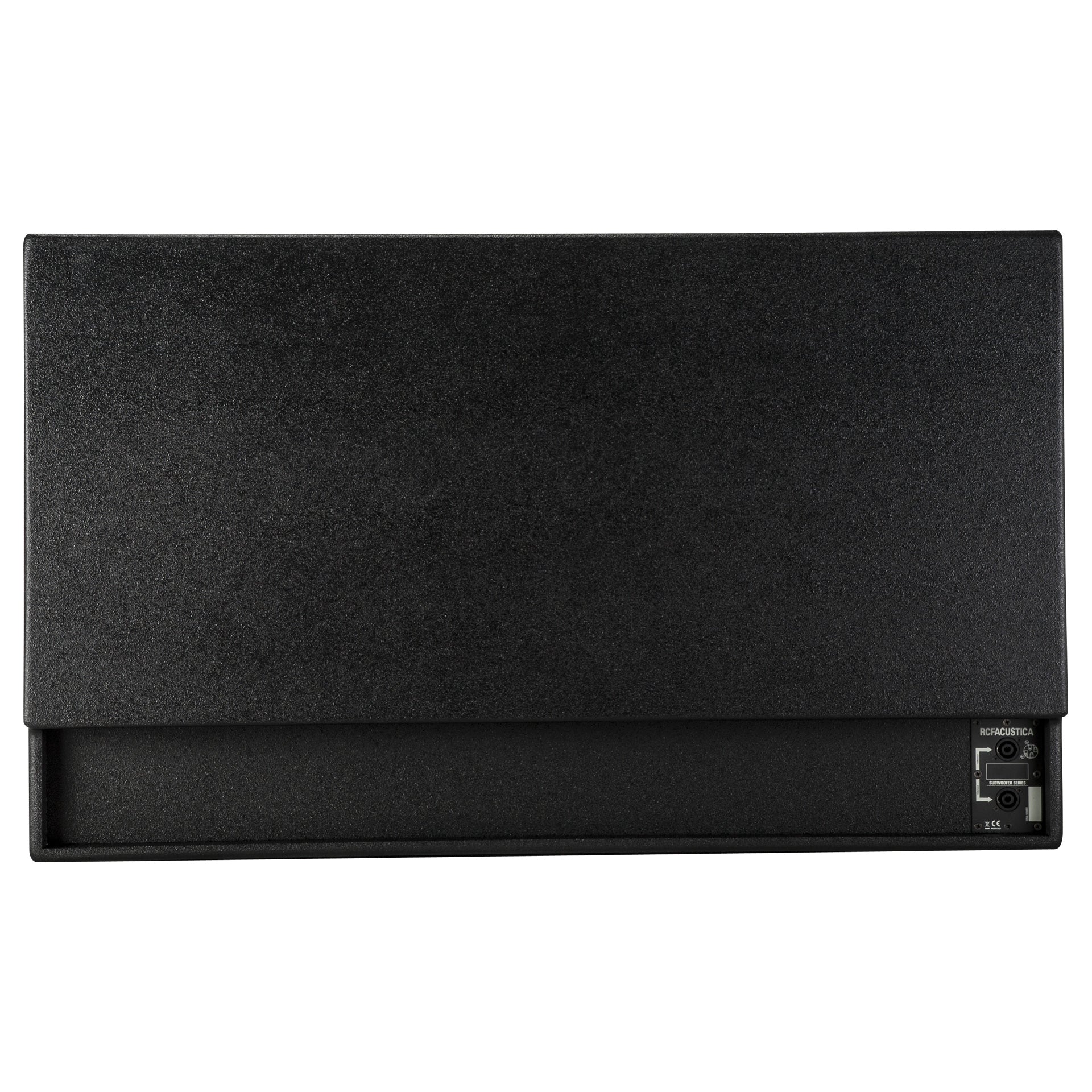

• Recessed Speakon NL4 Input/Output
• Protective metal grille, polyester fabric coated

Specifications

Acoustical Specifications
Frequency Response (-10dB)	30 Hz - 200 Hz
Max SPL @ 1m	141 dB
System Sensitivity	101 dB
Power Section
Amplification	Full Range
Nominal Impedance	4 ohm
Power Handling	3000 W
Peak Power Handling	12000 W Peak
Transducers
Woofer	2 x 18'', 4.0'' v.c
Input/Output Section
Input Connectors	Speakon® NL4
Output Connectors	Speakon® NL4
Standard Compliance
Safety Agency	CE Compliant
Physical Specifications
Cabinet/Case Material	Baltic Birch Plywood

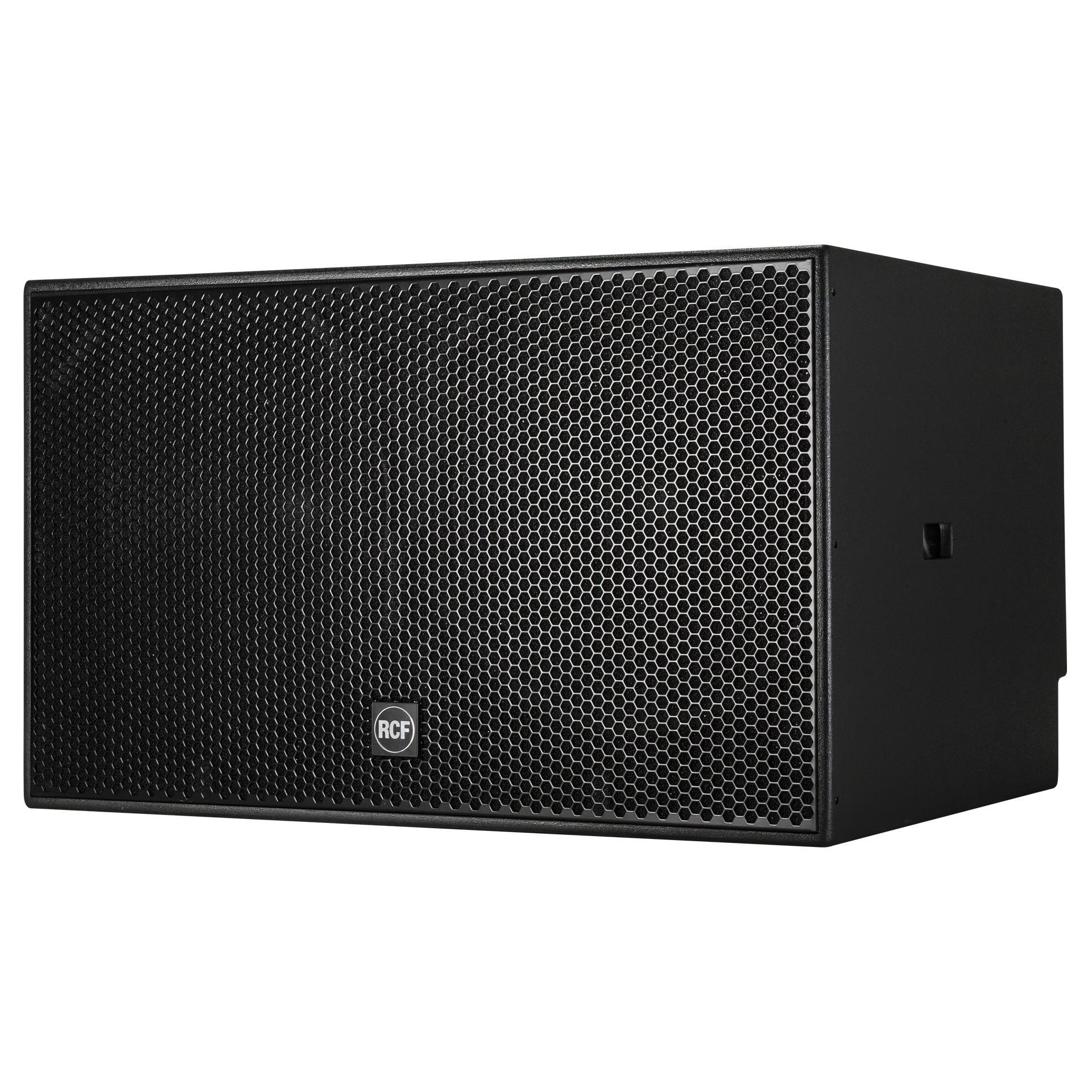

Handles	Integrated Hand Carry Points
Pole Mount/Cap	M20 thread
Grille	Metal
Color	Black
Size / Weight
Height	639 mm / 25.16 inches
Width	1045 mm / 41.14 inches
Depth	770 mm / 30.31 inches
Weight	80 kg / 176.37 lbs
Shipping Information
Package Height	675 mm / 26.57 inches
Package Width	1080 mm / 42.52 inches
Package Depth	805 mm / 31.69 inches
Package Weight	85 kg / 187.39 lbs
