RCF S 8018 II High-Efficiency Subwoofer is a professional passive 18-inch subwoofer designed for installed sound systems, delivering powerful low-frequency performance with up to 137 dB maximum SPL and response down to 30 Hz.
Features
- 18" high-efficiency 4" voice-coil woofer with Inside/Outside Coil Technology
- 137 dB maximum sound pressure level
- Response down to 30 Hz
- Rectangular box enclosure with protective metal grille

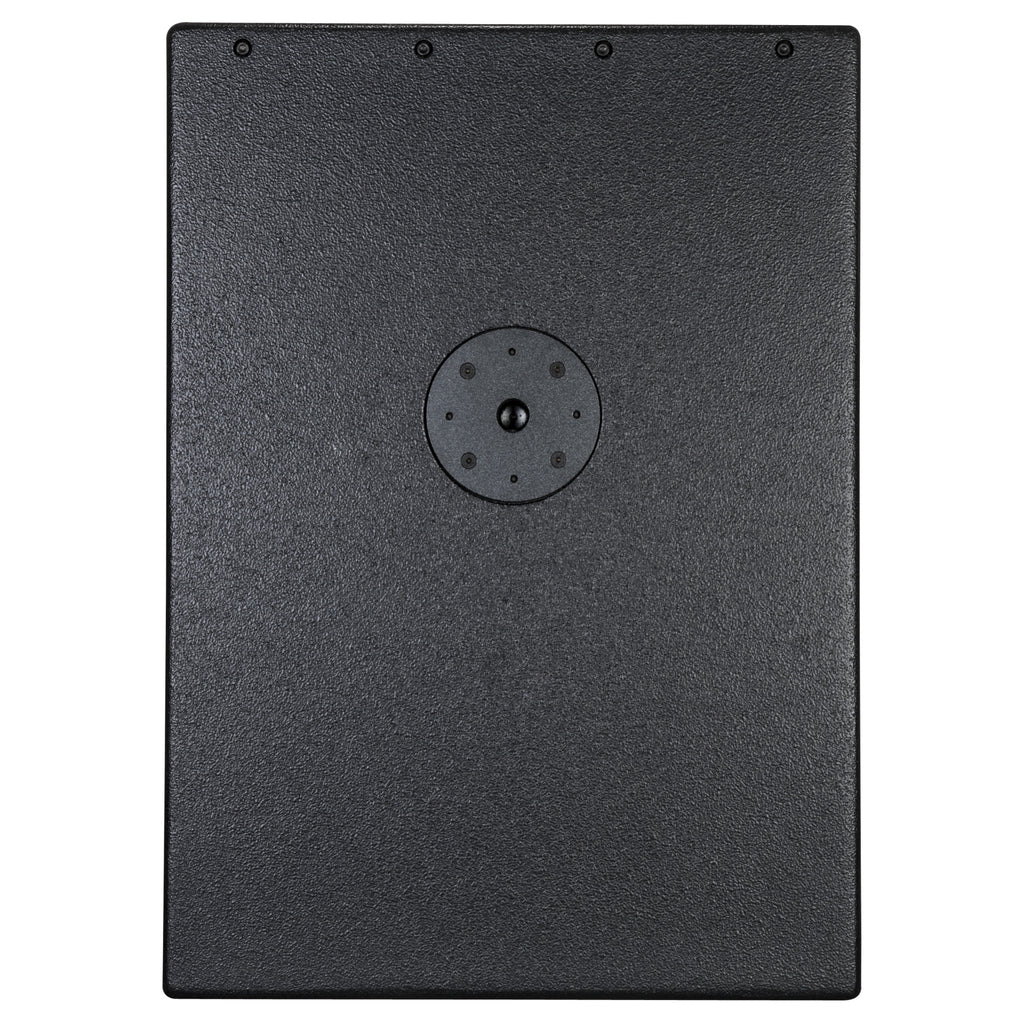

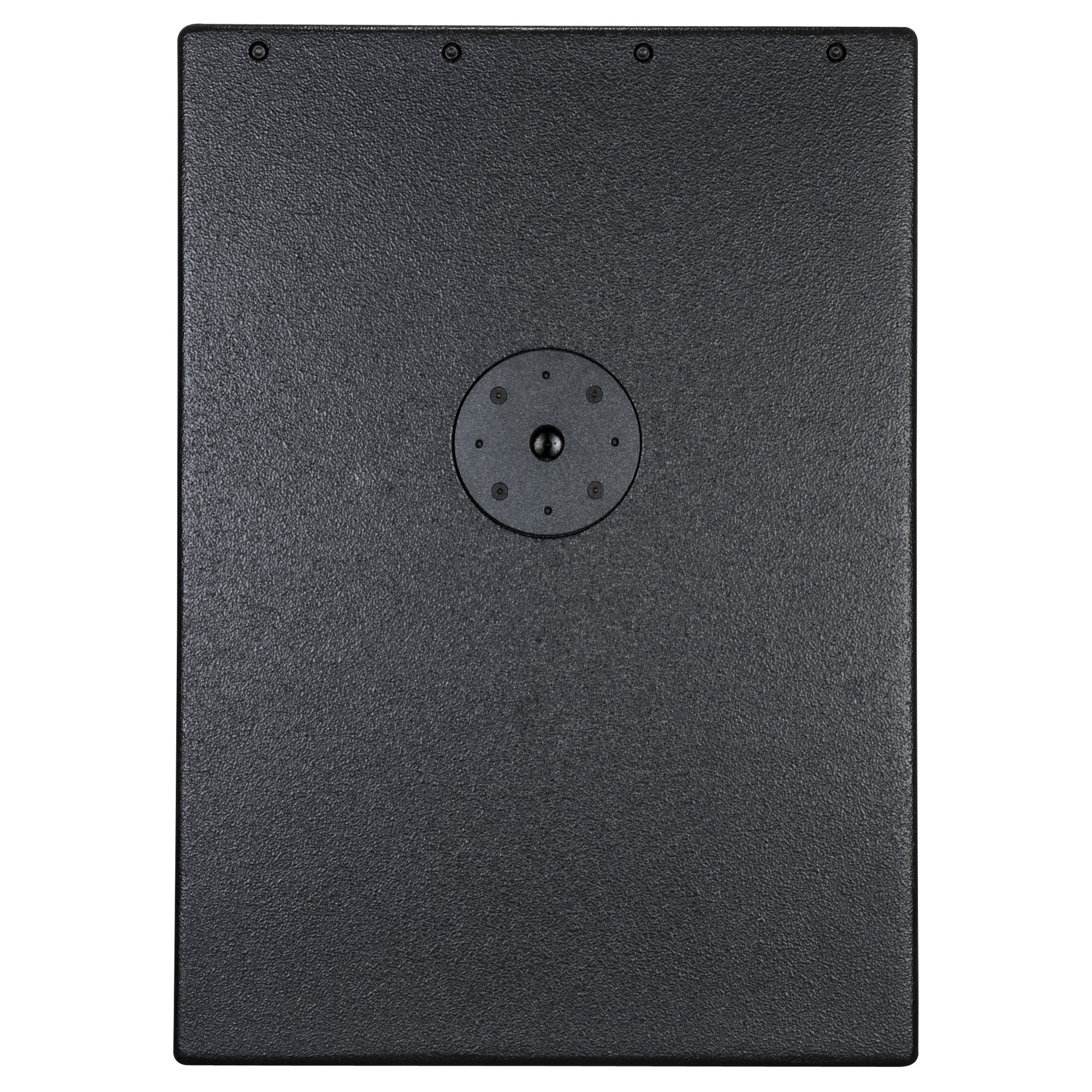

- 35 mm standard pole mount in top section of cabinet
- Baltic Birch cabinet painted with black, heavy duty, textured epoxy
- Integrated hand carry points

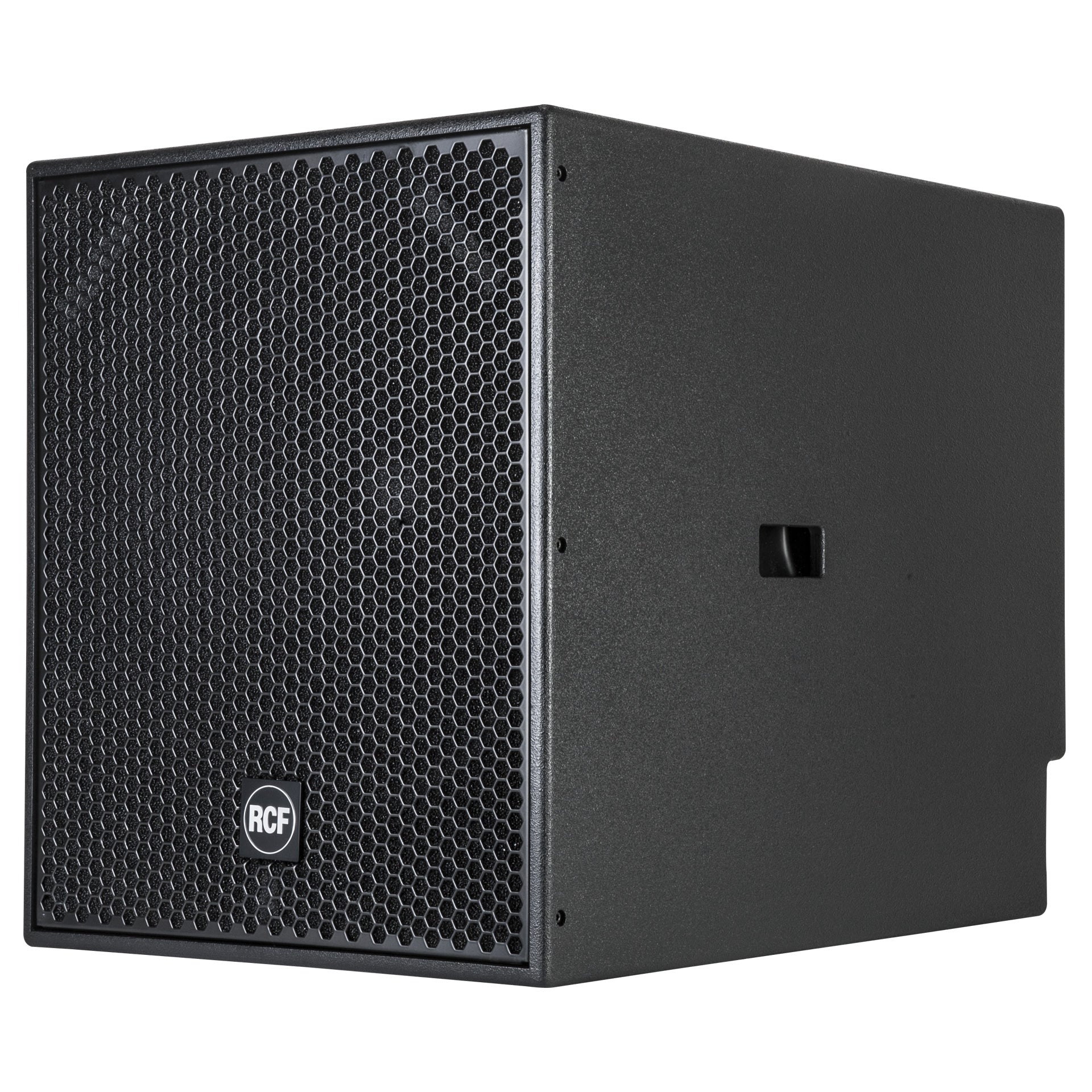

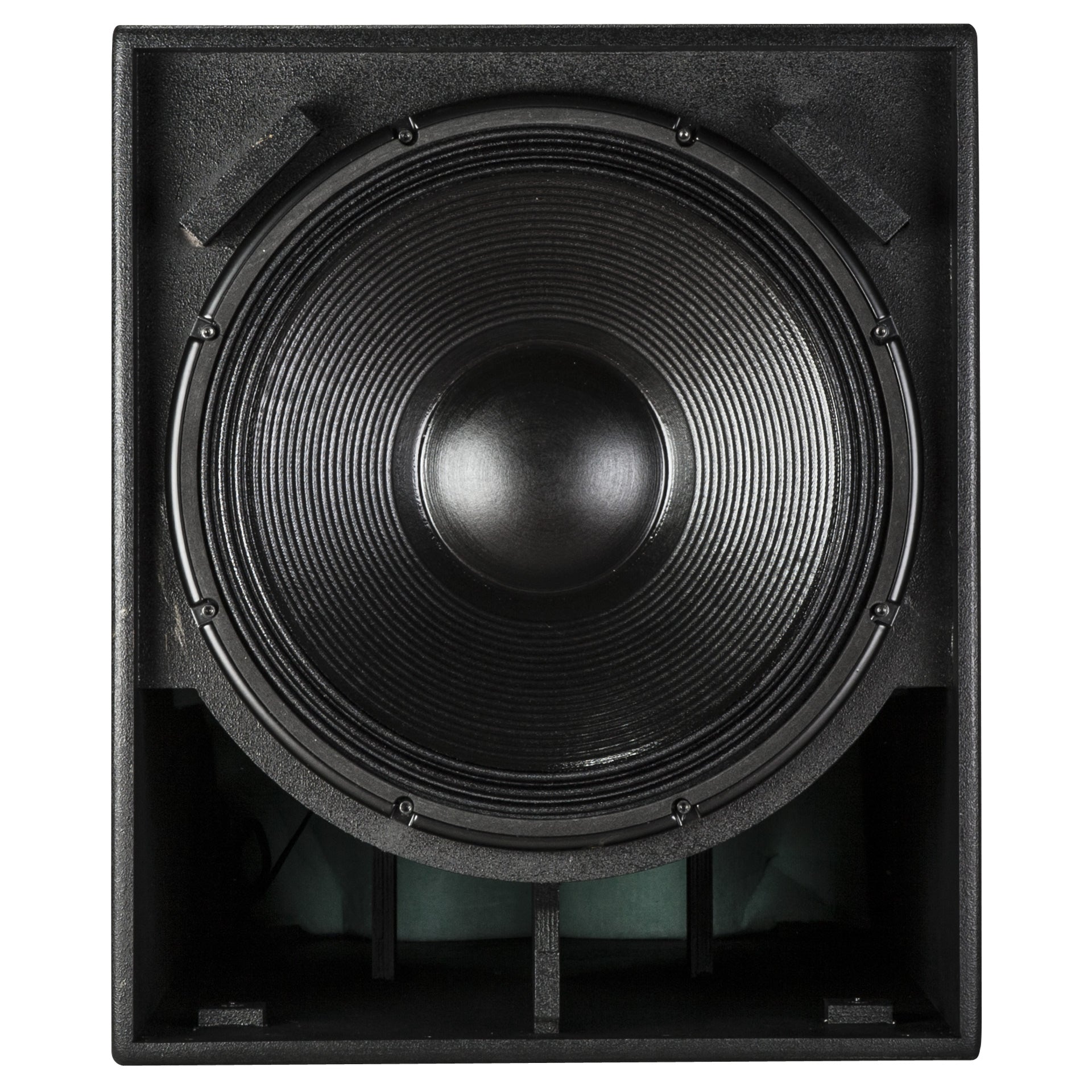

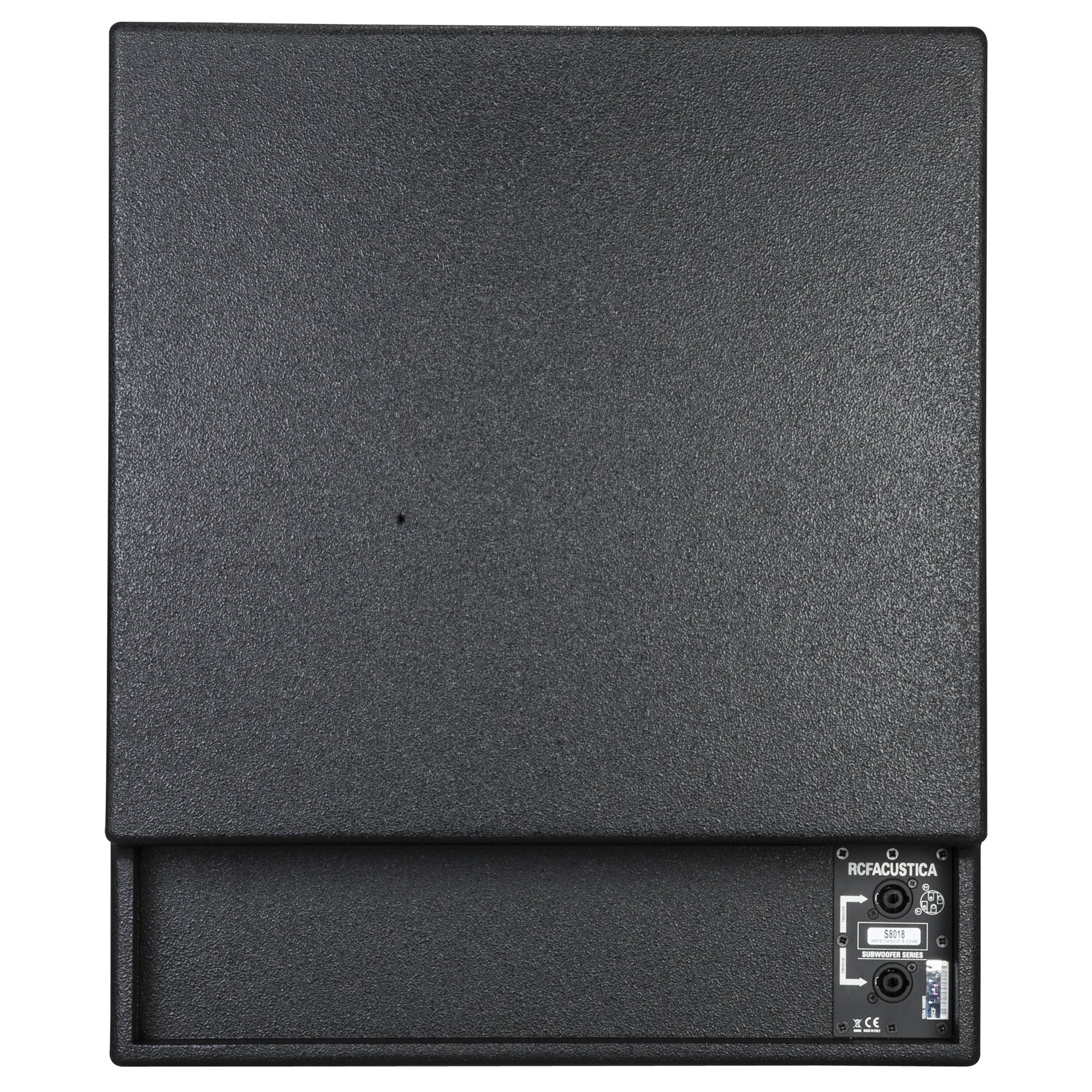

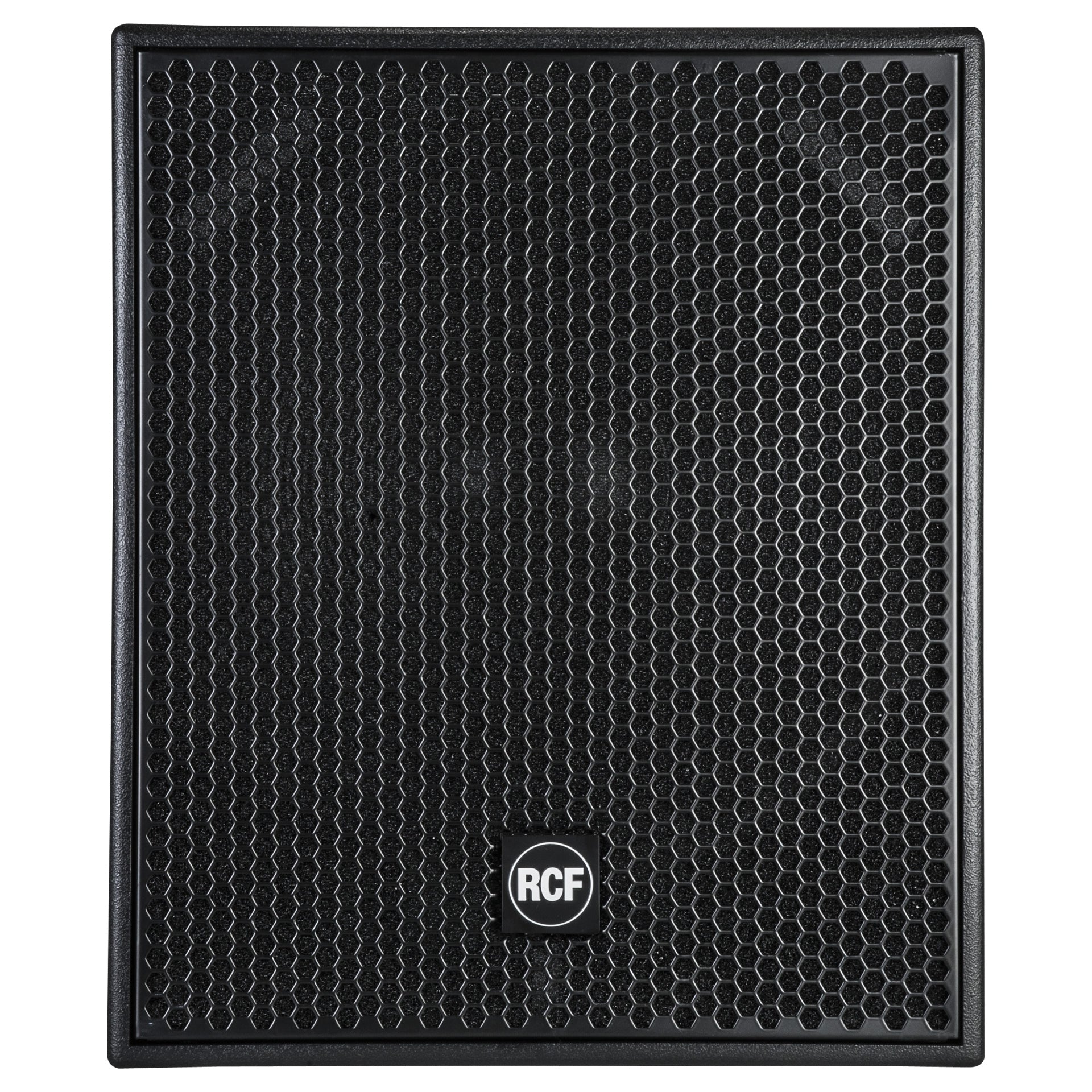

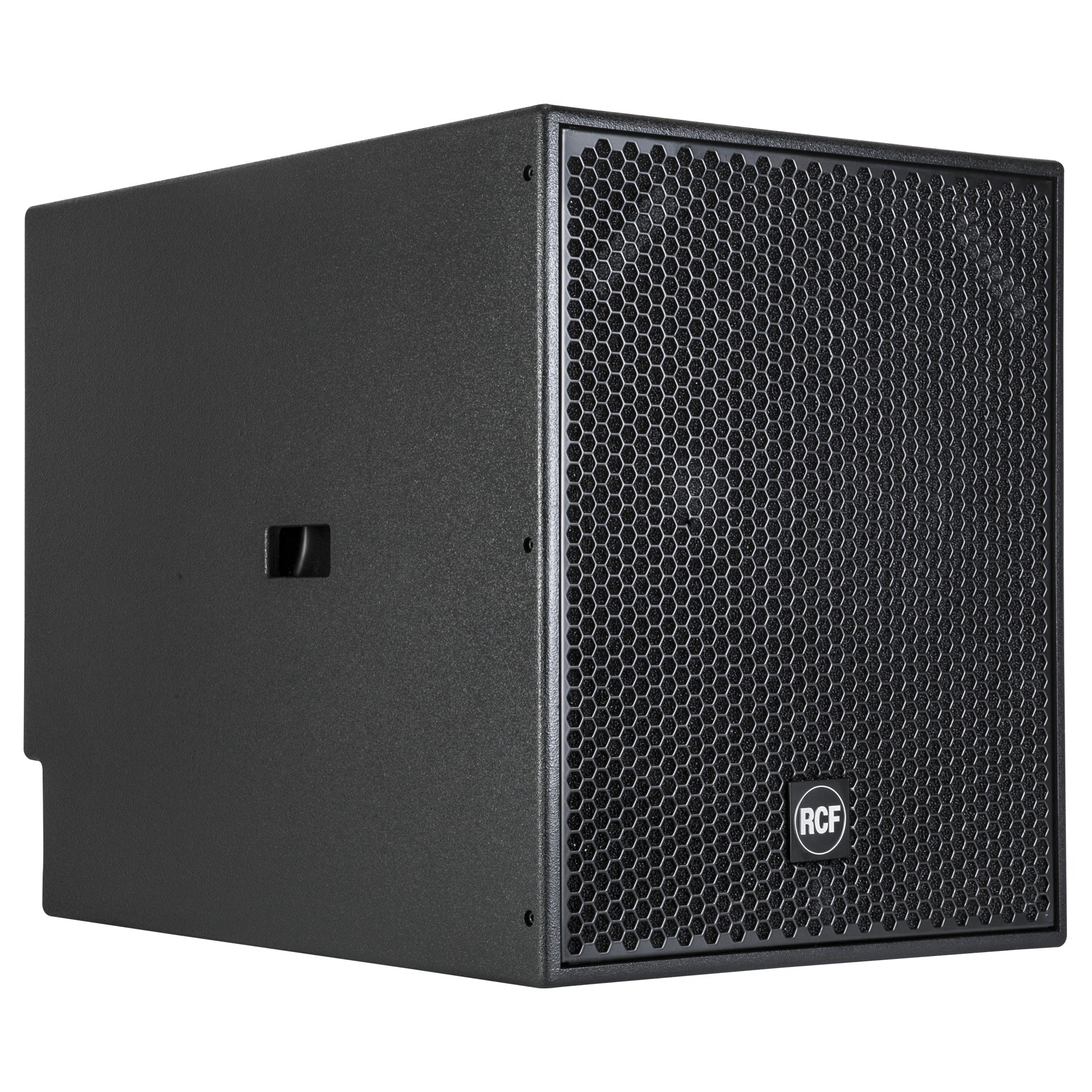

RCF S 8018 II High-Efficiency Subwoofer is a professional passive 18-inch subwoofer designed for installed sound systems, delivering up to 137 dB maximum SPL with response down to 30 Hz. The low-frequency transducer is a hypervented vented, high excursion RCF Precision 18” woofer with a 4” inside/outside voice coil to minimize power compression and extend the life of the product. Using bass-reflex loading the subwoofer design ensures an efficient acoustic response down to 30 Hz. The Baltic birch plywood enclosure is painted with black, heavy duty, textured epoxy. The front is protected by a strong powder coated metal grille. The cabinet features two Neutrik Speakon™ connectors in a recessed input plate. A M20 pole mount adaptor is provided on the top of the cabinet, integrated hand carry points on the cabinet sides.
Specifications
| Acoustical Specifications |
| Frequency Response (-10dB) |
30 Hz - 200 Hz |
| Max SPL @ 1m |
137 dB |
| System Sensitivity |
100 dB |
| Power Section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
1500 W |
| Peak Power Handling |
6000 W Peak |
| Transducers |
| Woofer |
18" Neo, 4.0" v.c. |
| Input/Output Section |
| Input Connectors |
Speakon® NL4 |
| Output Connectors |
Speakon® NL4 |
| Standard Compliance |
| Safety Agency |
CE Compliant |
| Physical Specifications |
| Cabinet/Case Material |
Baltic Birch Plywood |
| Handles |
Integrated Hand Carry Points |
| Pole Mount/Cap |
M20 Thread |
| Grille |
Metal |
| Color |
Black |
| Size / Weight |
| Height |
639 mm / 25.16 inches |
| Width |
530 mm / 20.87 inches |
| Depth |
770 mm / 30.31 inches |
| Weight |
43 kg / 94.8 lbs |
| Shipping Information |
| Package Height |
675 mm / 26.57 inches |
| Package Width |
805 mm / 31.69 inches |
| Package Depth |
565 mm / 22.24 inches |
| Package Weight |
48 kg / 105.82 lbs |
