RCF RDNET CONTROL 8 8 OUTPUT MASTER UNIT

Features

• Ethernet (remote control) and USB (direct control) PC connection to RDNet
• Control up to 8 SUB-NETS of up to 32 Slave Devices
• All devices are cyclically scanned (“POLLING”) 10 times a second
• Auto detect device placement
• Controlling slave devices status and functions
• Monitoring and displaying faults and warnings sent from slave devices
• Storing subnet user filters configuration in a removable memory card

Specifications

Specification	Details
Number of Subnets	8

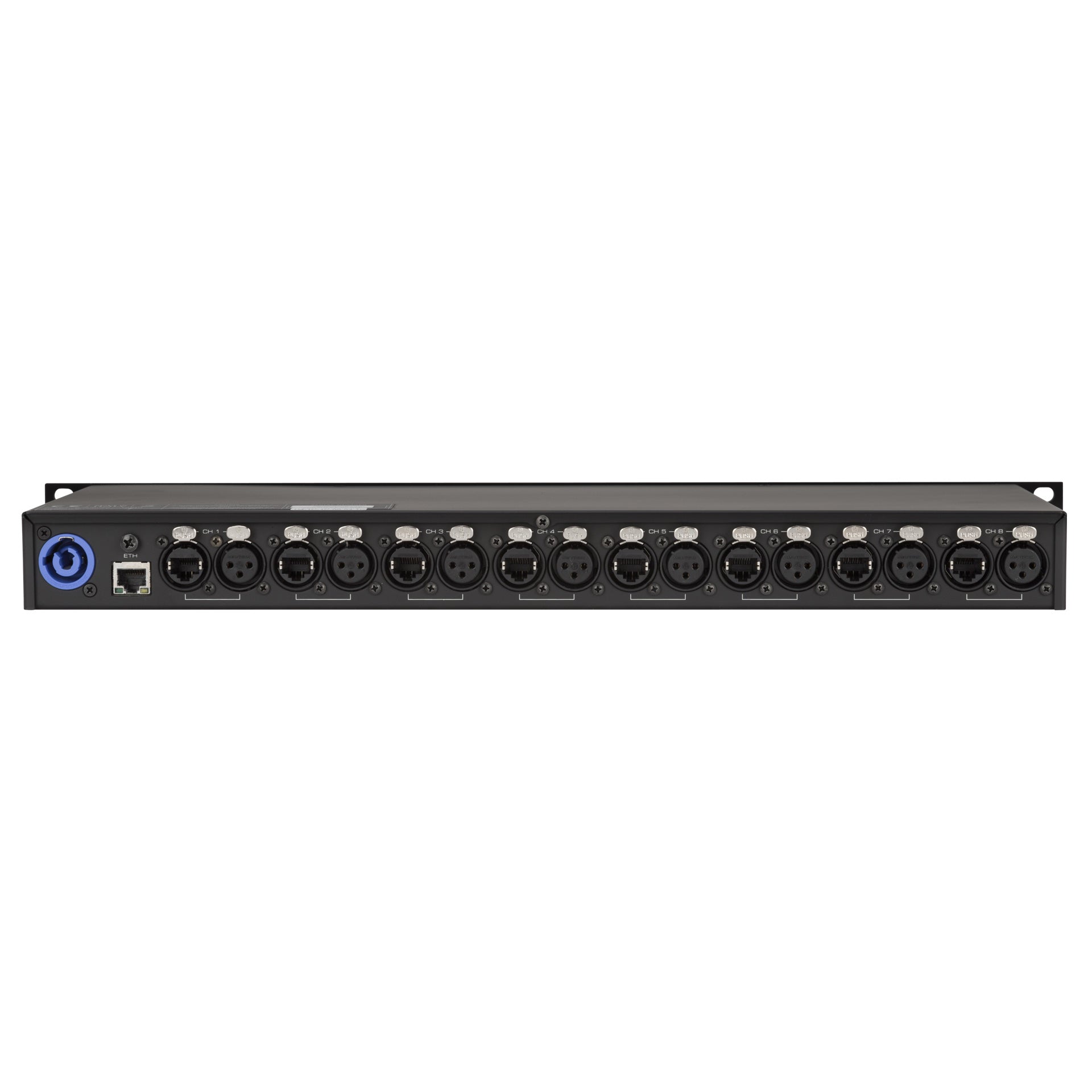

Connectors	RJ45, XLR
Max Number of Devices (per subnet)	32
Configuration	PC software
PC Connection	USB (type B), Ethernet
Data Storage	SD card (max. 4 GB)
Operating Voltage	90–240 V~ 50/60 Hz
Power Consumption	15 W
RDNet	Onboard
Safety Agency	CE compliant
Cabinet / Case Material	Metal
Color	Black
Rack Mounting	19", 1U
Dimensions (H x W x D)	44 x 482 x 182 mm (1.73 x 18.98 x 7.17 in)
Weight	2.71 kg (5.97 lb)
Package Dimensions (H x W x D)	106 x 269 x 544 mm (4.17 x 10.59 x 21.42 in)
Package Weight	3.71 kg (8.18 lb)
