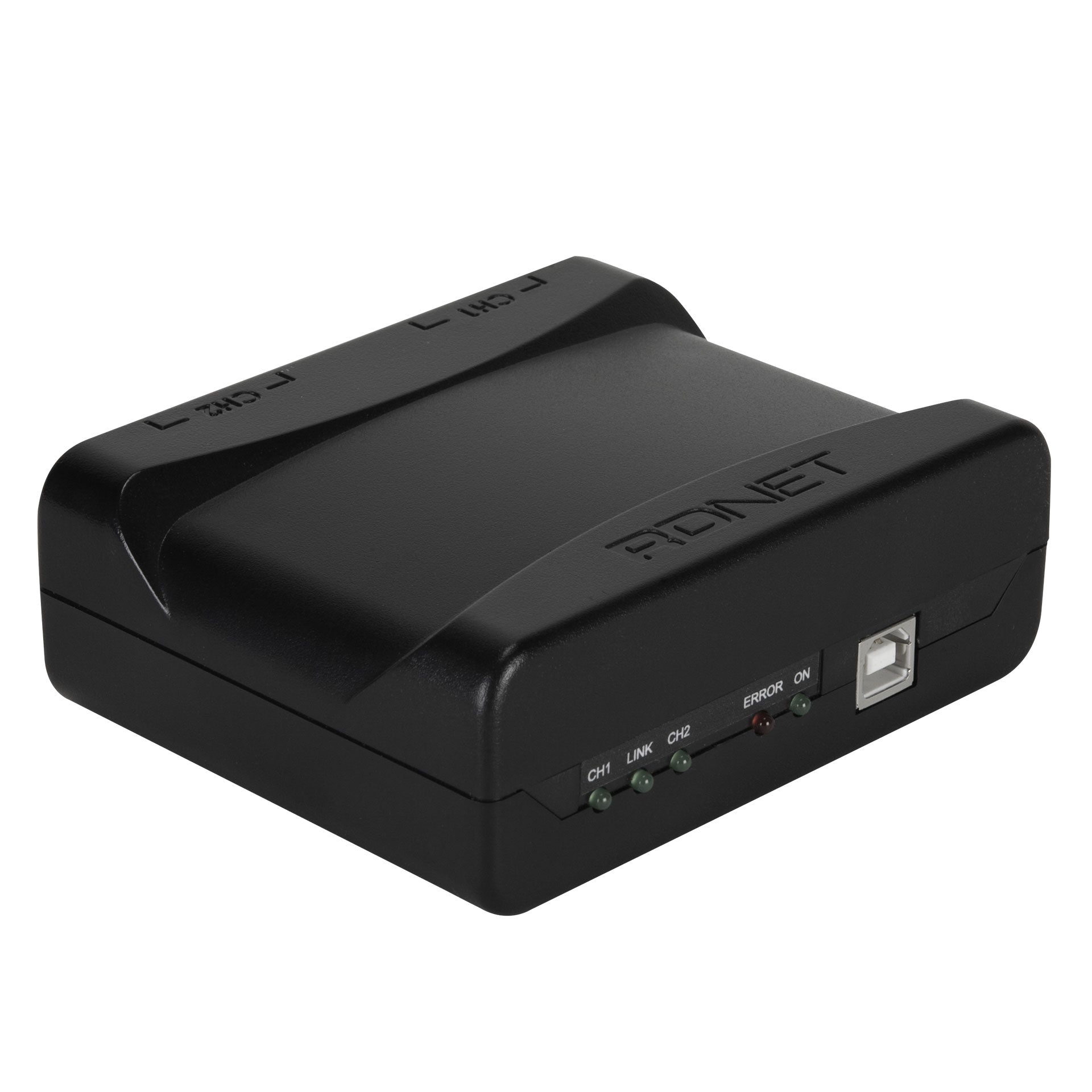

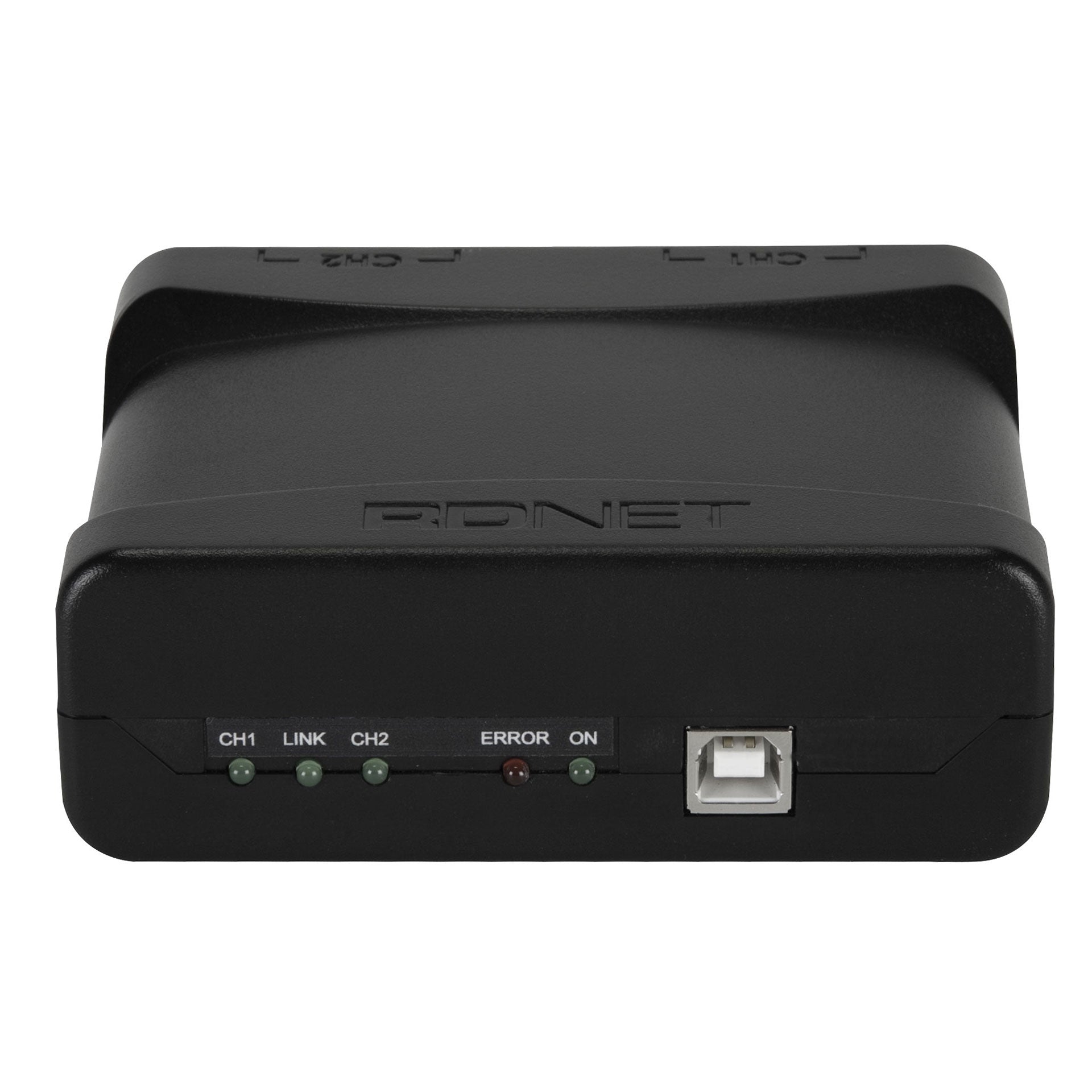

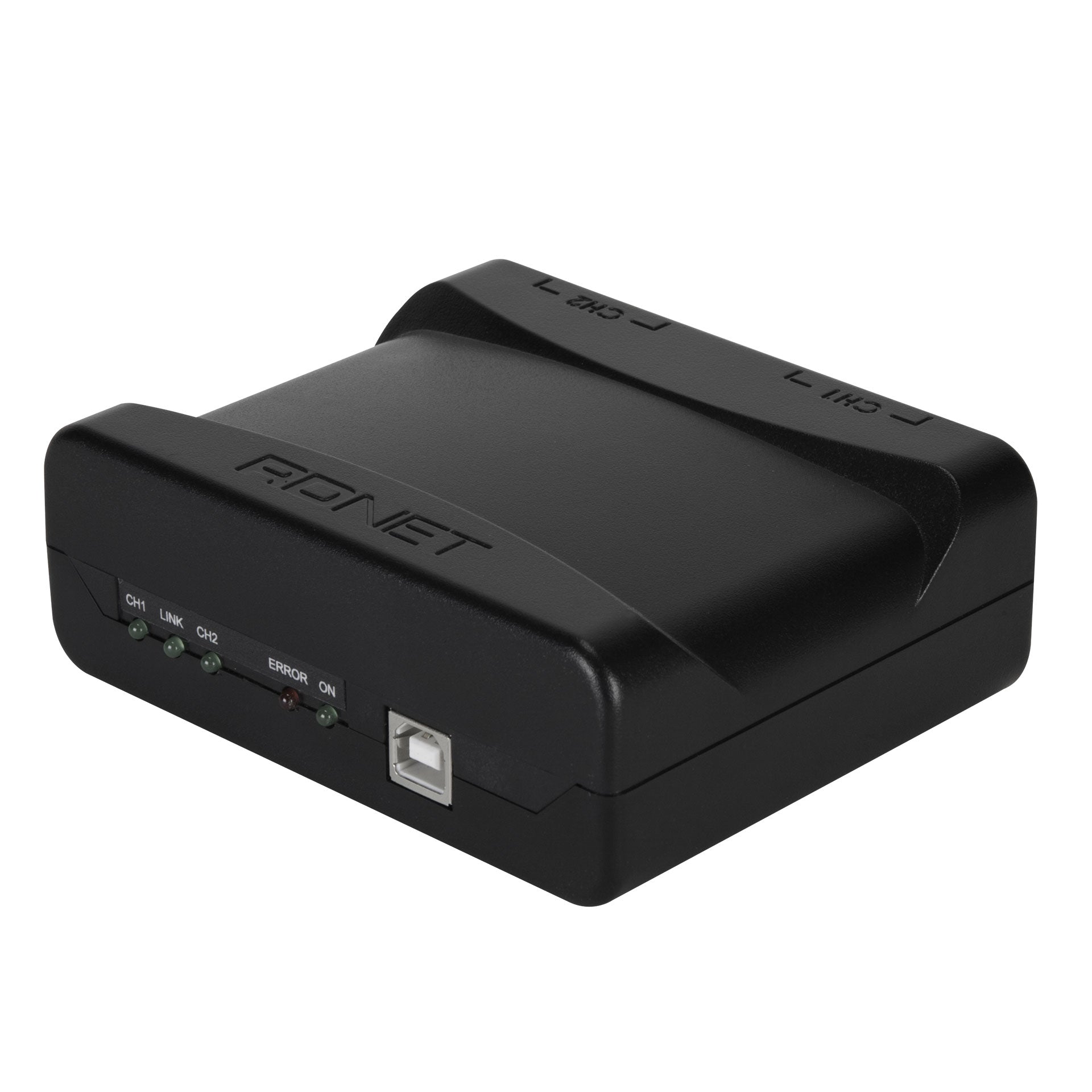

RCF RDNET Control 2 2 Output Master Unit

RCF RDNET CONTROL 2 2 OUTPUT MASTER UNIT Features

• Real-time USB device monitoring and control
• Control up to 2 sub-nets of up to 32 slave devices
• All devices are cyclically scanned (“POLLING”) 10 times a second
• Auto detect device placement
• Connected devices are automatically added to the software synoptic

RCF RDNET CONTROL 2 2 OUTPUT MASTER UNIT Specifications

General Specifications
Number of Subnets	2

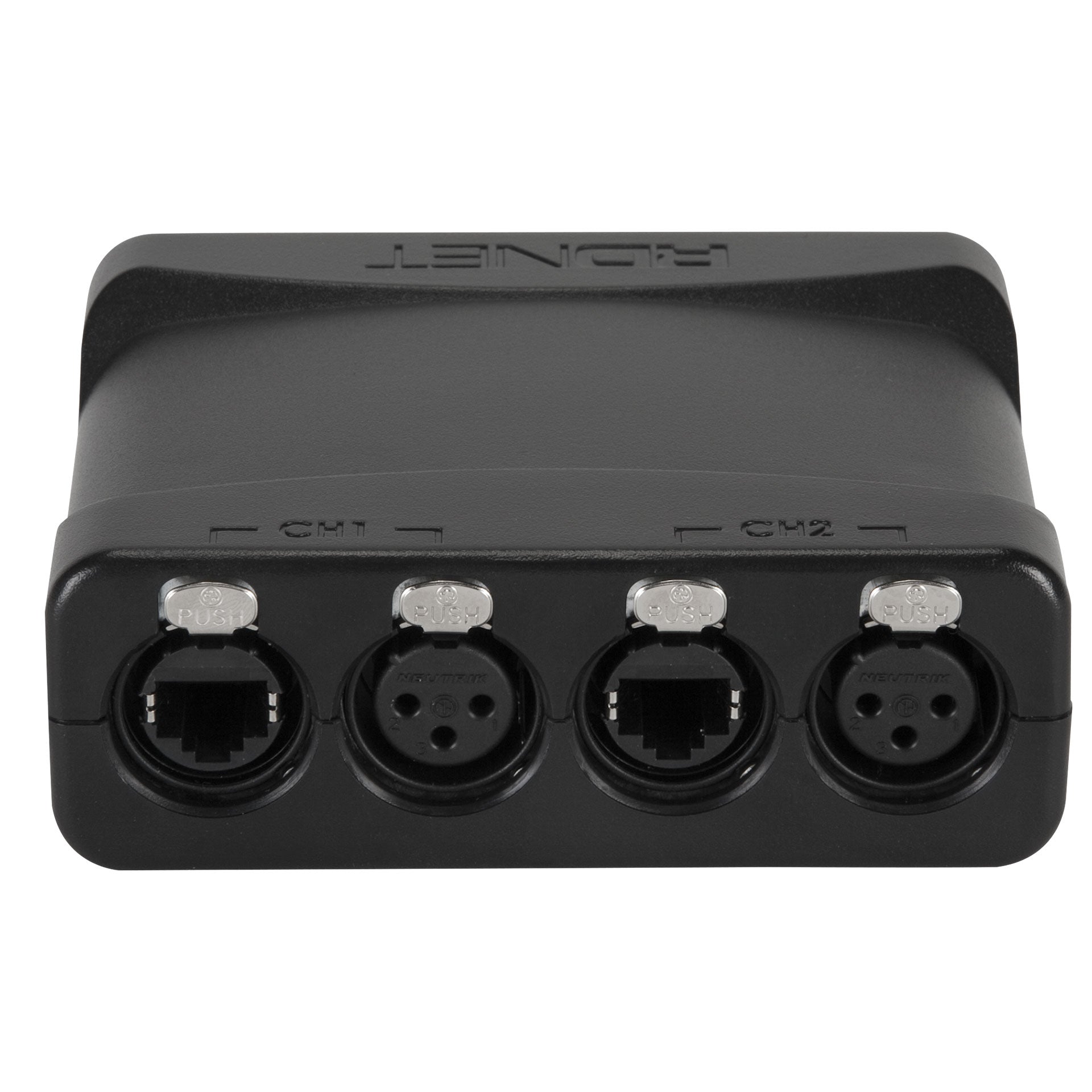

Connectors	RJ45, XLR
Max Number of Devices (per subnet)	32
Configuration	PC Software
PC Connection	USB (Type B)
Power Supply	Powered by USB Socket
RDNet	Onboard
Standard Compliance
Safety Agency	CE Compliant
Physical Specifications
Cabinet/Case Material	ABS
Color	Black
Size / Weight
Height	41 mm / 1.61 inches
Width	111 mm / 4.37 inches
Depth	90 mm / 3.54 inches
Weight	0.17 kg / 0.37 lbs
Shipping Information
Package Height	58 mm / 2.28 inches
Package Width	205 mm / 8.07 inches
Package Depth	134 mm / 5.28 inches
Package Weight	0.25 kg / 0.55 lbs
