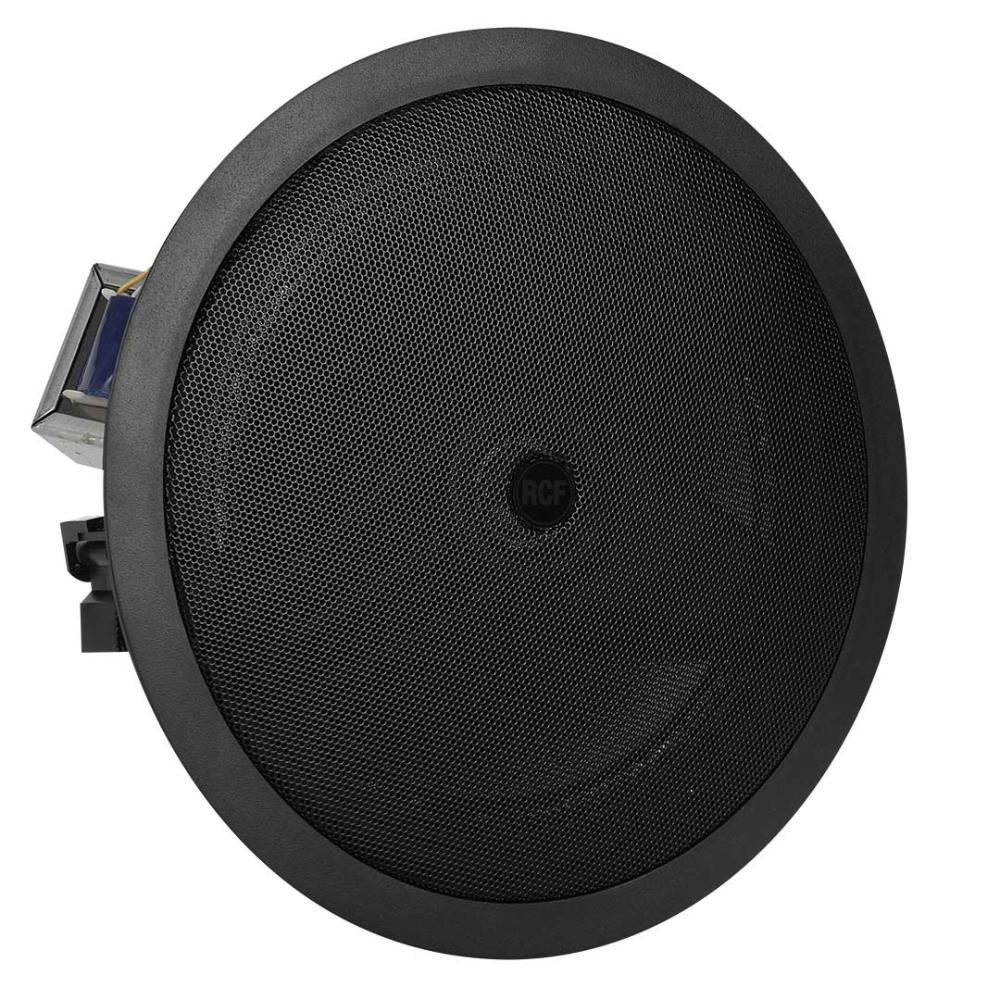

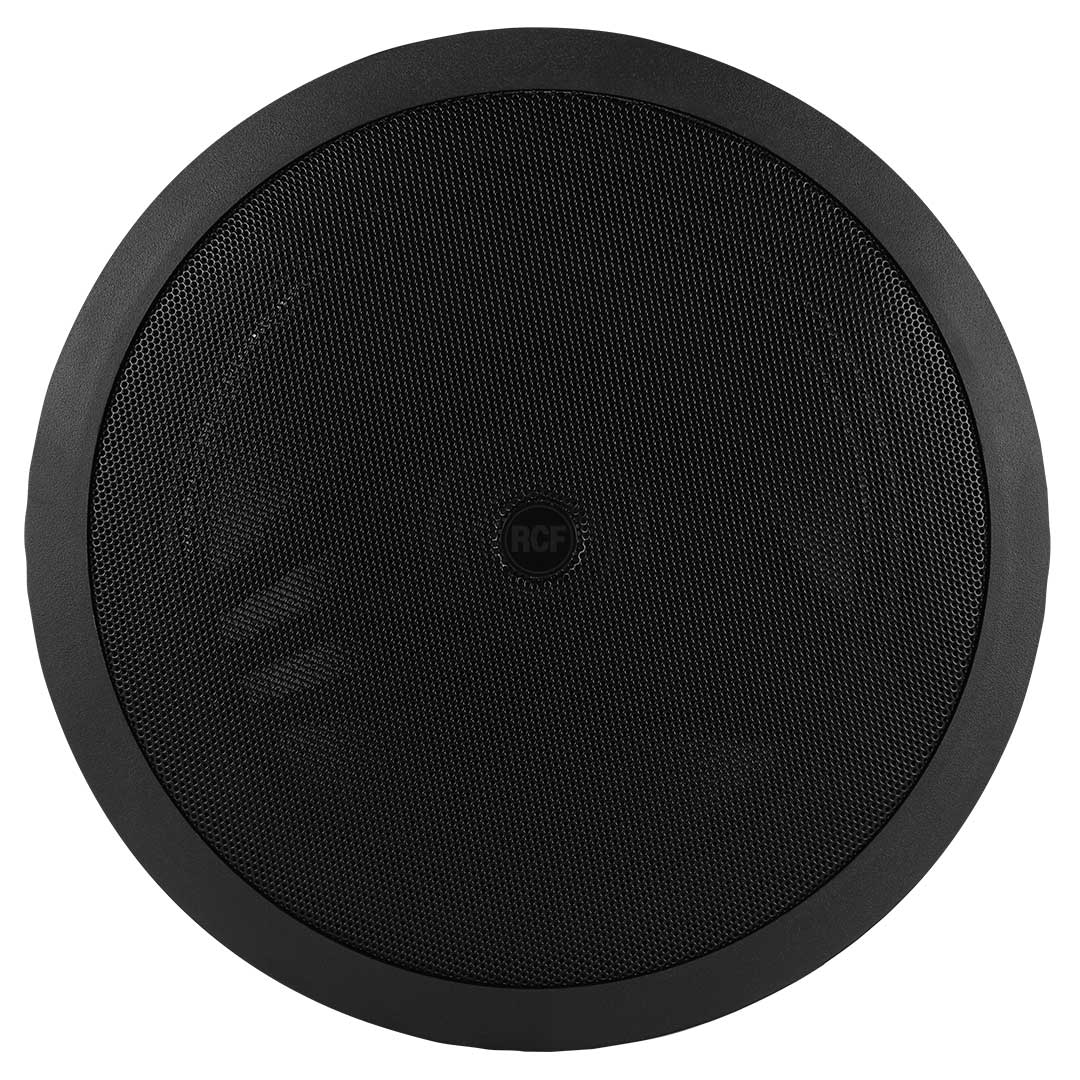

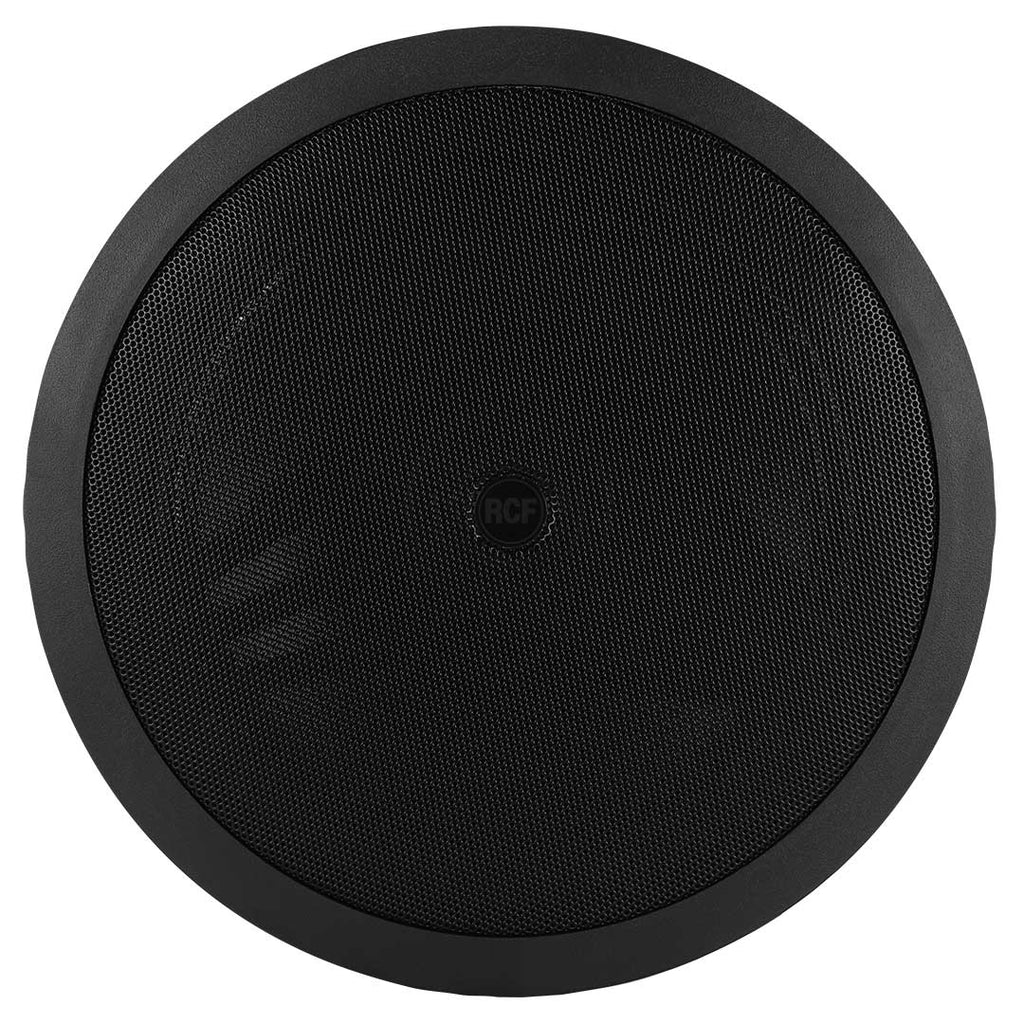

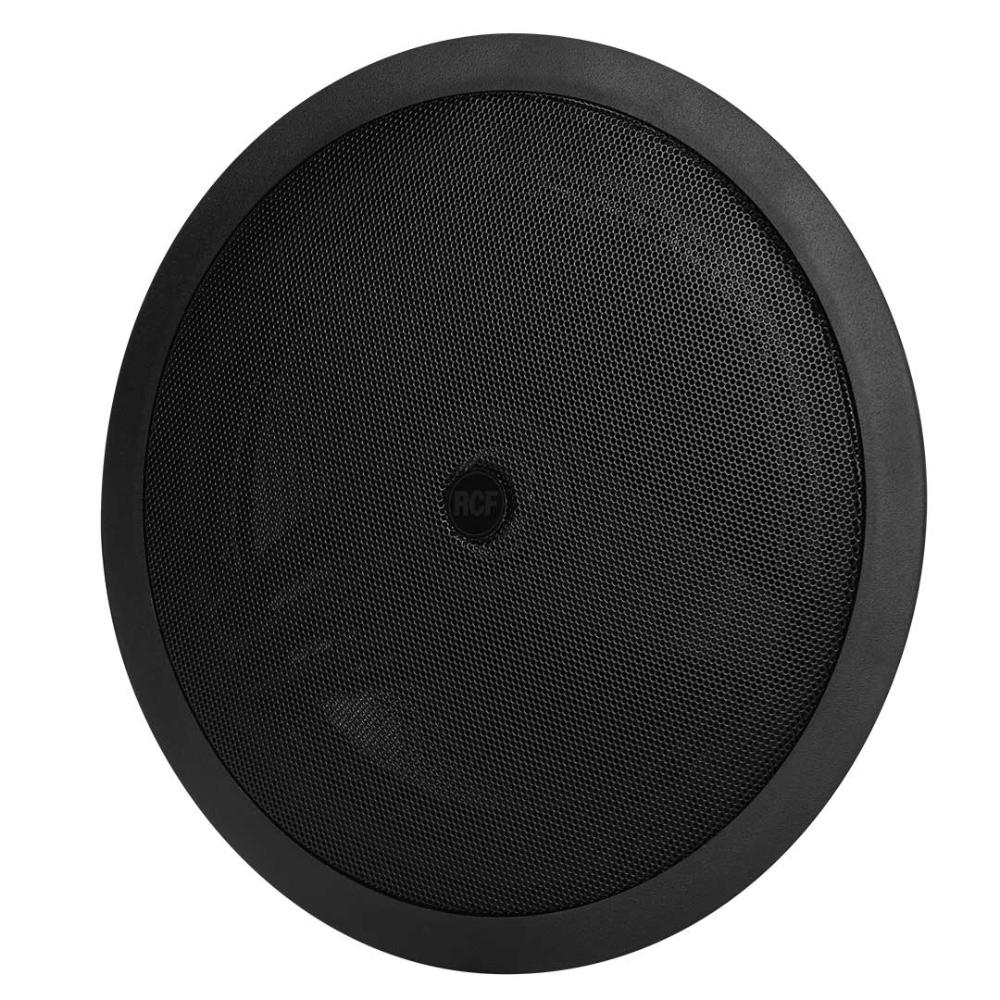

RCF PL 8X B – 8" coax flush mnt. ceil. speaker with line transf., 20W, IP 44, black
The RCF PL 8X B is a professional audio product from the RCF Ceiling Speakers series, designed for commercial audio applications. Built to RCF's exacting standards of Italian engineering excellence, this product delivers reliable, high-performance audio in professional environments.
Product Details
-
COMMERCIAL | INSTALLED
PL 8X
COAXIAL CEILING SPEAKER
- 8" woofer with 1" dome tweeter
- Power selectable (70 V / 100 V): 20 W – 10 W – 5 W – 2.5 W
- 93 dB sensitivity
- Colour white RAL 9003 and black RAL 9005
Features
- 8" woofer with 1" dome tweeter
- Power selectable (70 V / 100 V): 20 W – 10 W – 5 W – 2.5 W
- 93 dB sensitivity
- Colour white RAL 9003 and black RAL 9005
- Plastic frame UL 94 V0, aluminium grille
PL 8X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 8” coaxial woofer with a 1” tweeter placed on a bridge support. PL 8X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
Technical Specifications
Professional Ceiling Speaker - 8"
Acoustical Specifications
| Frequency Response (-10dB) |
60 Hz - 20000 Hz |
| Max SPL @ 1m |
109 dB |
| Coverage Angle |
80° |
| System Sensitivity |
93 dB |
Power Section
| Amplification |
Full Range |
| Power Handling |
20 W RMS |
| Peak Power Handling |
80 W PEAK |
| Recommended Amplifiers |
DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162 |
Transducers
| Dome Tweeter |
1.0'' |
| Woofer |
8'' |
Input/Output Section
| Input Connectors |
Screw Terminals |
| Output Connectors |
Screw Terminals |
| Constant Voltage Transformer |
70/100 V |
Constant Voltage Power Selections
| 20 W |
500 ohm |
| 10 W |
1000 ohm |
| 5 W |
2000 ohm |
| 2.5 W |
4000 ohm |
Standard Compliance
| IP Protection Grade |
IP 44 |
| Safety Agency |
CE compliant |
Physical Specifications
| Cabinet/Case Material |
Plastic |
| Hardware |
Plastic Material |
| Grille |
Aluminium |
| Color Options |
White (RAL 9003), Black (RAL 9005) |
Size & Weight
| Depth |
88 mm / 3.46 inches |
| Recessed Depth |
80 mm / 3.15 inches |
| Diameter |
247 mm / 9.72 inches |
| Cut Out Diameter |
224 mm / 8.82 inches |
| Weight |
1.23 kg / 2.71 lbs |
Shipping Information
| Package Height |
280 mm / 11.02 inches |
| Package Width |
280 mm / 11.02 inches |
| Package Depth |
130 mm / 5.12 inches |
| Package Weight |
2.09 kg / 4.61 lbs |
