RCF PL 6X B is a professional 6-inch coaxial ceiling speaker...
RCF PL 6X B – 6" coax flush mnt. ceil. speaker with line transf., 12W, IP 44, black
The RCF PL 6X B is a professional audio product from the RCF Ceiling Speakers series, designed for commercial audio applications. Built to RCF's exacting standards of Italian engineering excellence, this product delivers reliable, high-performance audio in professional environments.
Product Details
-
Model: PL 6X
-
Series: Ceiling Speakers
-
Application: COMMERCIAL AUDIO
-
SKU: 13100087
COMMERCIAL | INSTALLED
PL 6X
COAXIAL CEILING SPEAKER
- 6" woofer with 1" dome tweeter
- Power selectable (70 V / 100 V): 12 W – 6 W – 3 W – 1.5 W
- 92 dB sensitivity
- Colour white RAL 9003 and black RAL 9005
The RCF PL 6X B is designed for offices, hotels, schools, retail stores and commercial installations.
Features
- 6" woofer with 1" dome tweeter
- Power selectable (70 V / 100 V): 12 W – 6 W – 3 W – 1.5 W
- 92 dB sensitivity
- Colour white RAL 9003 and black RAL 9005
- Plastic frame UL 94 V0, aluminium grille

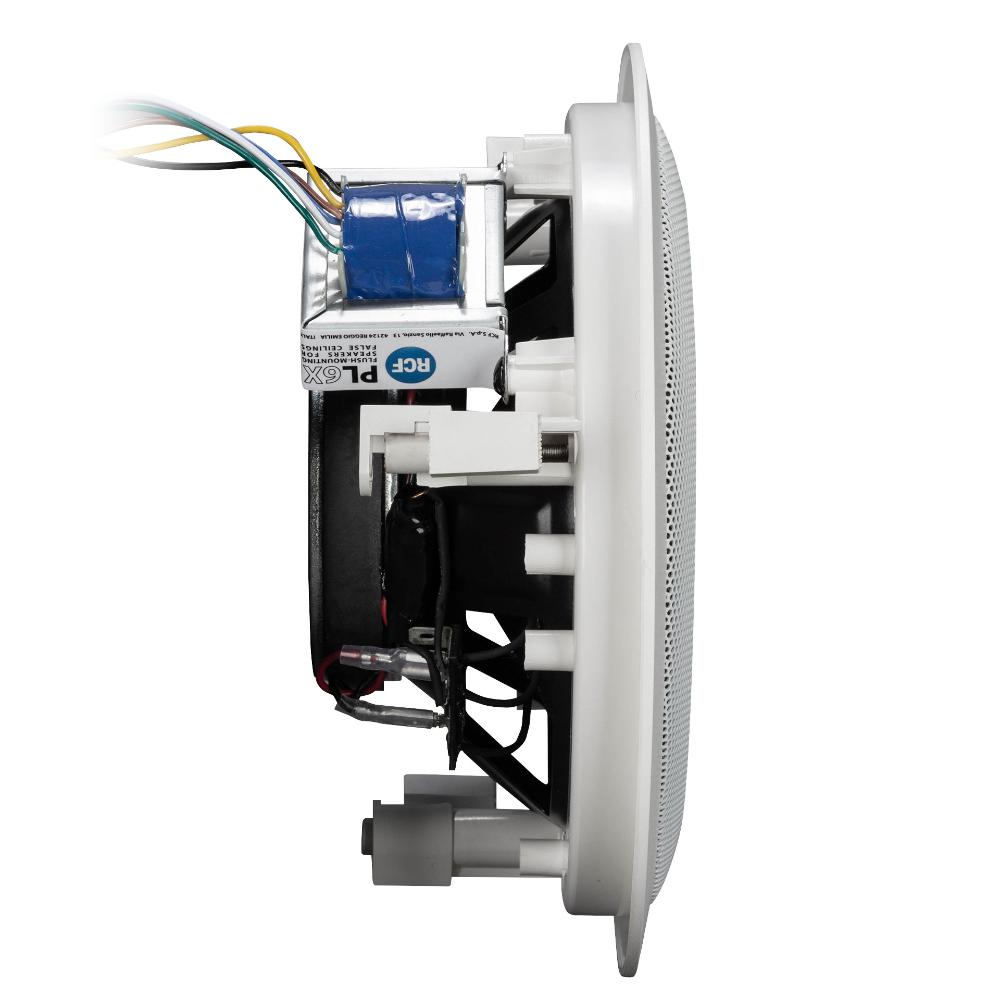

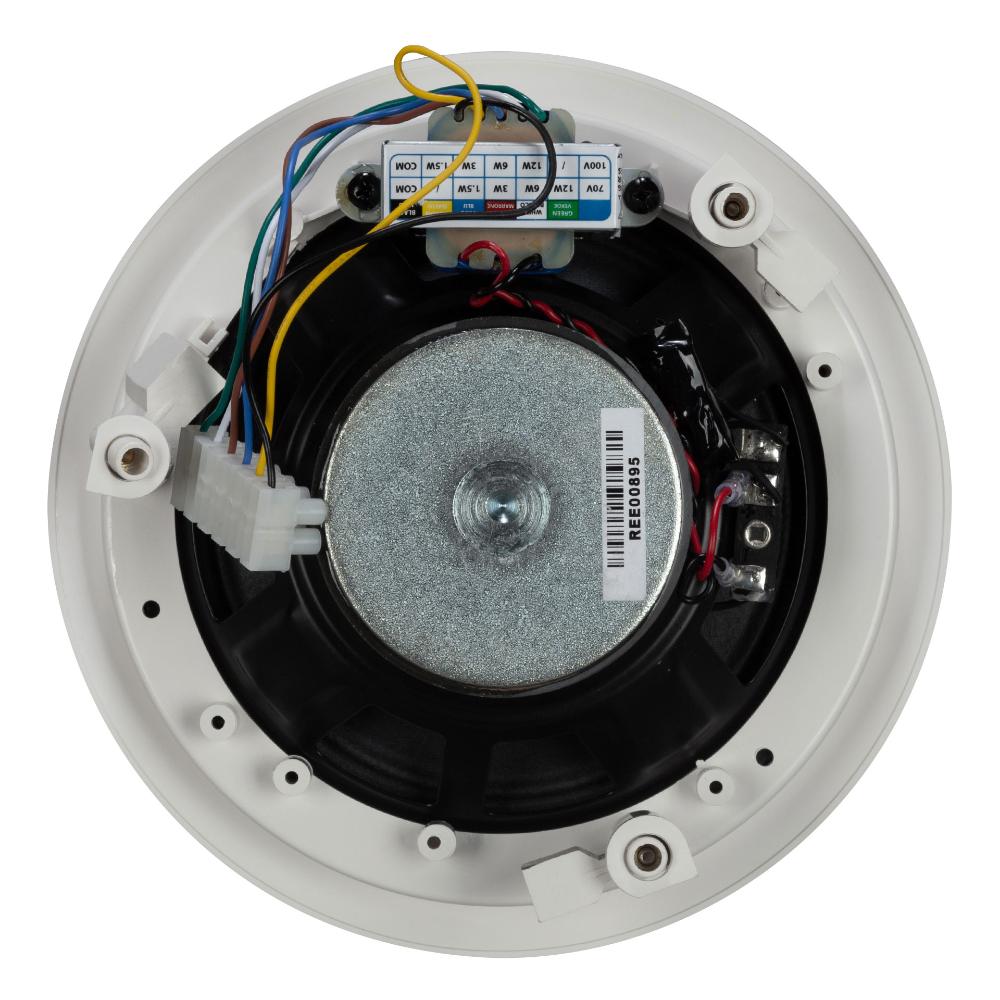

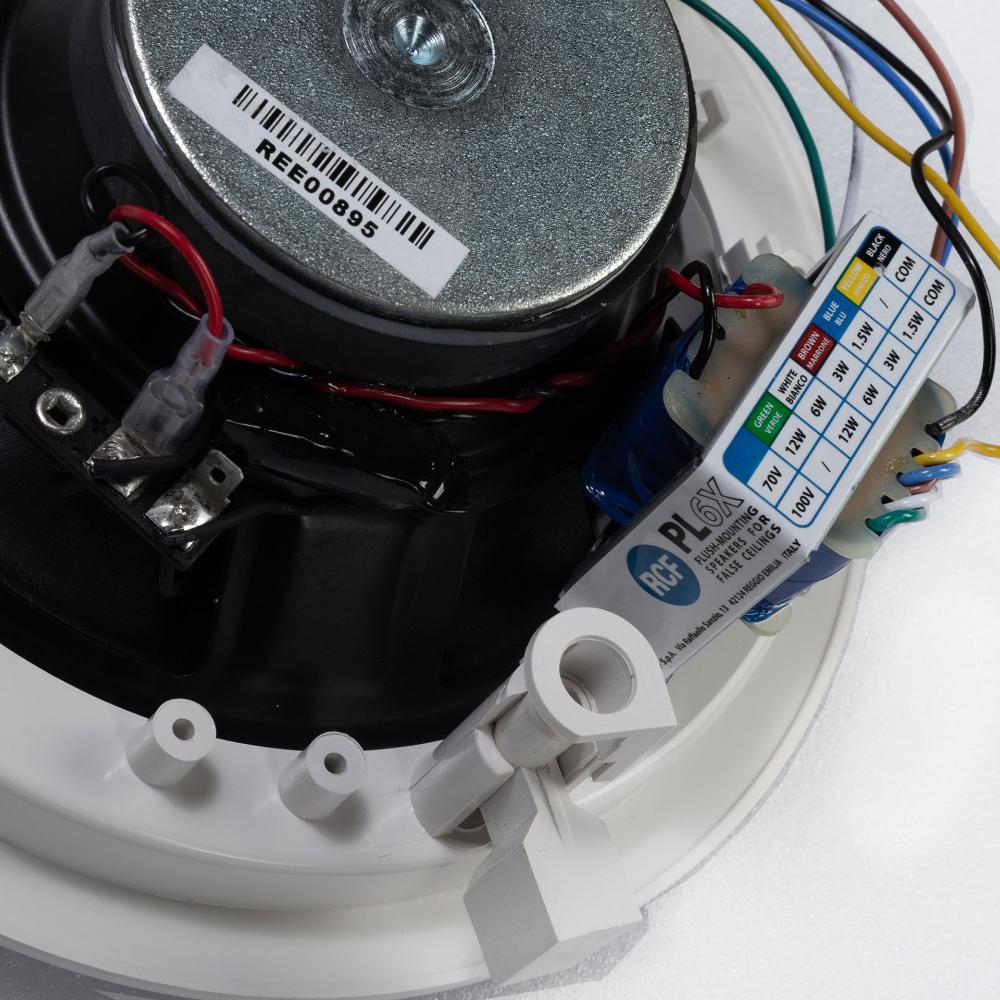

PL 6X is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 6” coaxial woofer with a 1” tweeter placed on a bridge support. PL 6X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
Technical Specifications
Professional Ceiling Speaker - 6"
Acoustical Specifications
| Frequency Response (-10dB) |
70 Hz - 20000 Hz |
| Max SPL @ 1m |
106 dB |
| Coverage Angle |
100° |
| System Sensitivity |
92 dB |
Power Section
| Amplification |
Full Range |
| Power Handling |
12 W RMS |
| Peak Power Handling |
48 W PEAK |
| Recommended Amplifiers |
DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162 |
Transducers
| Dome Tweeter |
1.0'' |
| Woofer |
6.0'' |
Input/Output Section
| Input Connectors |
Screw Terminals |
| Output Connectors |
Screw Terminals |
| Constant Voltage Transformer |
70/100 V |

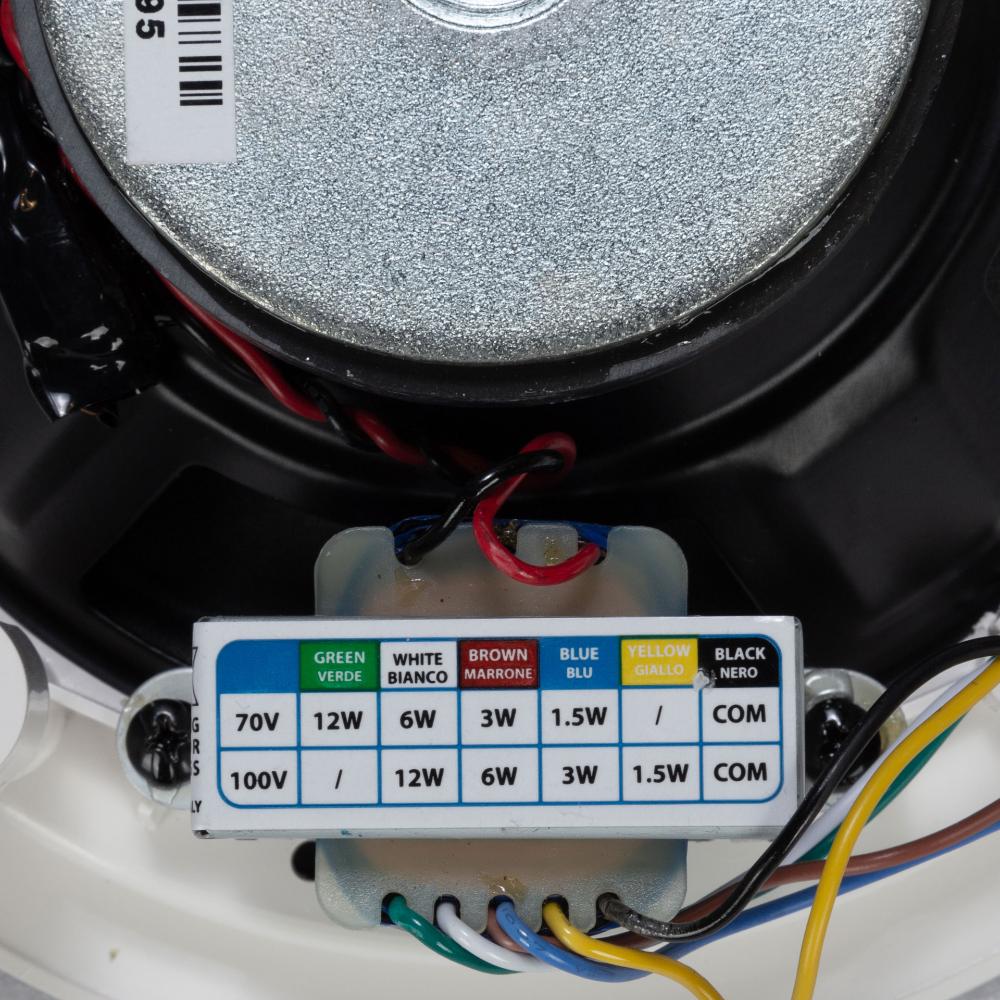

Constant Voltage Power Selections
| 12 W |
833 ohm |
| 6 W |
1667 ohm |
| 3 W |
3333 ohm |
| 1.5 W |
6667 ohm |
Standard Compliance
| IP Protection Grade |
IP 44 |
| Safety Agency |
CE compliant |
Physical Specifications
| Cabinet/Case Material |
Plastic |
| Hardware |
Plastic Material |
| Grille |
Aluminium |
| Color Options |
White (RAL 9003), Black (RAL 9005) |
Size & Weight
| Depth |
73 mm / 2.87 inches |
| Recessed Depth |
66 mm / 2.6 inches |
| Diameter |
204 mm / 8.03 inches |
| Cut Out Diameter |
182 mm / 7.17 inches |
| Weight |
0.78 kg / 1.72 lbs |
Shipping Information
| Package Height |
240 mm / 9.45 inches |
| Package Width |
240 mm / 9.45 inches |
| Package Depth |
110 mm / 4.33 inches |
| Package Weight |
1.56 kg / 3.44 lbs |
