RCF PL 60 – 6" twin-cone flush mounting ceiling speaker, white, 6W, 70-100V
The RCF PL 60 is a professional audio product from the RCF Ceiling Speakers series, designed for commercial audio applications. Built to RCF's exacting standards of Italian engineering excellence, this product delivers reliable, high-performance audio in professional environments.
COMMERCIAL | INSTALLED
PL 60
HIGH EFFICENCY CEILING SPEAKER
- 6" fullrange transducer
- Power selectable (70 V / 100 V): 6 W – 3 W – 1.5 W
- 91 dB sensitivity
- Colour white RAL 9003
Features
- 6" fullrange transducer
- Power selectable (70 V / 100 V): 6 W – 3 W – 1.5 W
- 91 dB sensitivity
- Colour white RAL 9003
- Plastic frame, steel grille

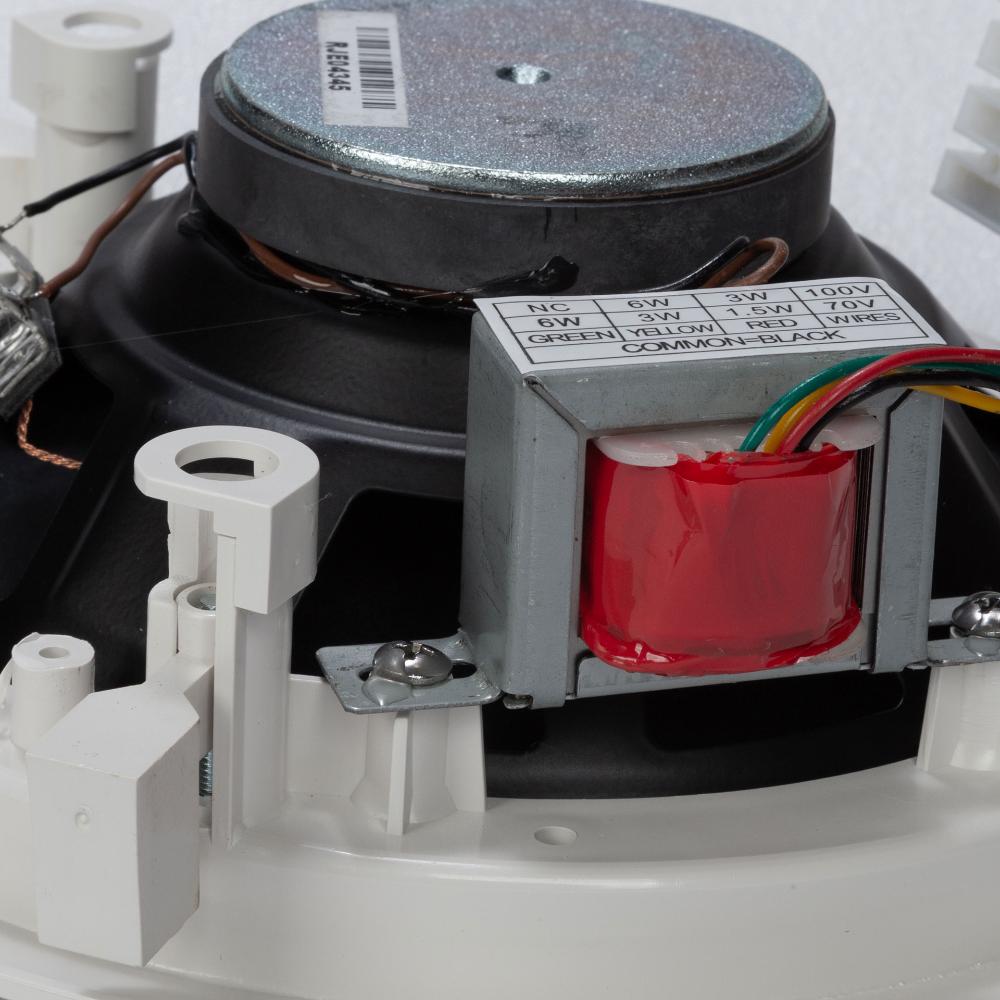

The PL60 is a ceiling speaker with an elegant design, intended for recess installation in false ceilings or panels. It is ideal for the reproduction of announcements and background music and features a multiplesocket line transformer for use with constant voltage systems.
Technical Specifications
Professional Ceiling Speaker - 6" Fullrange
Acoustical Specifications
| Frequency Response (-10dB) |
90 Hz - 20000 Hz |
| Max SPL @ 1m |
107 dB |
| Coverage Angle |
90° |
| System Sensitivity |
91 dB |
Power Section
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
6 W |
| Peak Power Handling |
24 W PEAK |
| Recommended Amplifiers |
DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162 |
Input/Output Section
| Input Connectors |
Screw Terminals |
| Output Connectors |
Screw Terminals |
| Constant Voltage Transformer |
70/100 V |
Constant Voltage Power Selections
| 6 W |
1667 ohm |
| 3 W |
3333 ohm |
| 1.5 W |
6667 ohm |
Standard Compliance
| Safety Agency |
CE compliant |
Physical Specifications
| Cabinet/Case Material |
Plastic |
| Hardware |
Plastic Material |
| Grille |
Steel |
| Color |
White (RAL 9003) |
Size & Weight
| Depth |
75 mm / 2.95 inches |
| Recessed Depth |
69 mm / 2.72 inches |
| Diameter |
204 mm / 8.03 inches |
| Weight |
0.34 kg / 0.75 lbs |
Shipping Information
| Package Height |
105 mm / 4.13 inches |
| Package Width |
240 mm / 9.45 inches |
| Package Depth |
235 mm / 9.25 inches |
| Package Weight |
1.07 kg / 2.36 lbs |
