RCF PL 50 – 6" twin-cone flush mounting ceiling speaker, white, 6W, 70-100V, plastic grille
RCF PL 50 is a professional 6-inch ceiling speaker designed for commercial audio installations. The RCF PL 50 features a full-range transducer, selectable 6W and 3W power taps for 100V constant voltage systems, and delivers clear speech and background music with reliable performance.
Product Details
COMMERCIAL | INSTALLED
PL 50
CEILING SPEAKER
- 6" fullrange transducer
- Power selectable (100 V): 6 W – 3 W
- 90 dB sensitivity
- Colour white RAL 9003
Features
- 6" fullrange transducer
- Power selectable (100 V): 6 W – 3 W
- 90 dB sensitivity
- Colour white RAL 9003
- Plastic frame and grille

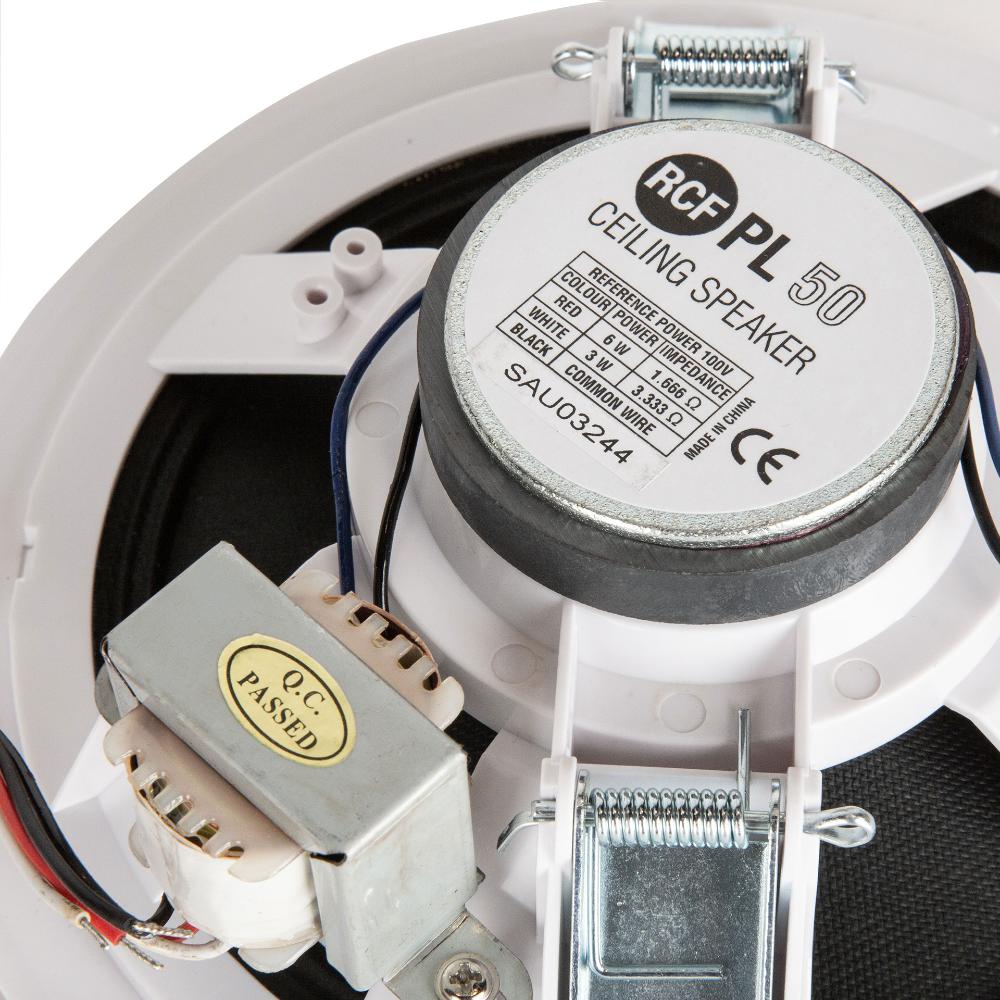

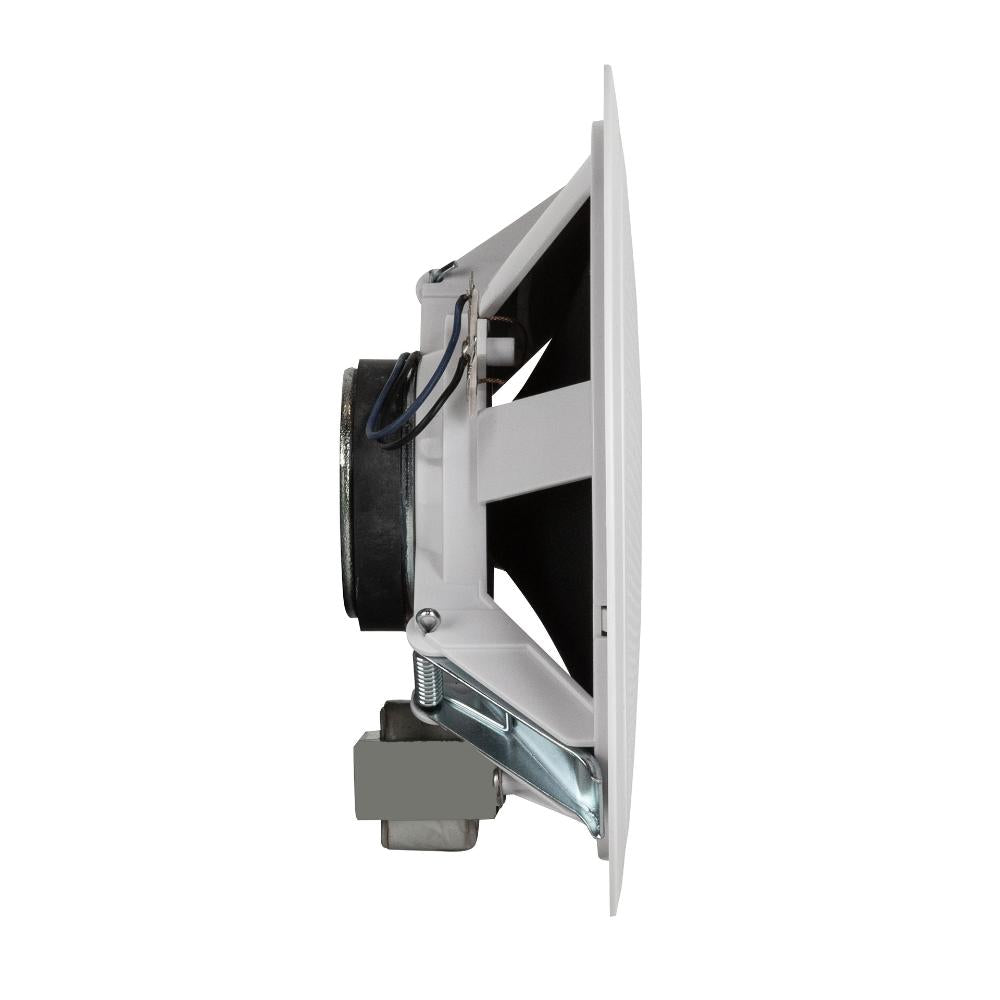

PL 50 is a flush-mount ceiling 6” (dual-cone) loudspeaker. It has an internal transformer that allows direct connection to 100 V constant voltage lines. The transformer has 2 inputs for power tapping: 6 – 3 W. The false-ceiling installation is made through its 2 spring clamps without using tools and other additional attachment components.
Technical Specifications
Professional Ceiling Speaker - 6" Compact
Acoustical Specifications
| Frequency Response (-10dB) |
100 Hz - 20000 Hz |
| Max SPL @ 1m |
98 dB |
| Coverage Angle |
150° |
| System Sensitivity |
90 dB |
Power Section
| Amplification |
Full Range |
| Power Handling |
6 W |
| Peak Power Handling |
24 W PEAK |
| Recommended Amplifiers |
DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162 |
Input/Output Section
| Input Connectors |
Screw Terminals |
| Output Connectors |
Screw Terminals |
| Constant Voltage Transformer |
100 V |
Constant Voltage Power Selections
| 6 W |
1667 ohm |
| 3 W |
3333 ohm |
Standard Compliance
| Safety Agency |
CE compliant |
Physical Specifications
| Cabinet/Case Material |
Plastic |
| Hardware |
Metal |
| Grille |
Plastic |
| Color |
White (RAL 9003) |
Size & Weight
| Depth |
65 mm / 2.56 inches |
| Recessed Depth |
59 mm / 2.32 inches |
| Diameter |
186 mm / 7.32 inches |
| Weight |
0.5 kg / 1.1 lbs |
Shipping Information
| Package Height |
80 mm / 3.15 inches |
| Package Width |
200 mm / 7.87 inches |
| Package Depth |
200 mm / 7.87 inches |
| Package Weight |
0.6 kg / 1.32 lbs |
