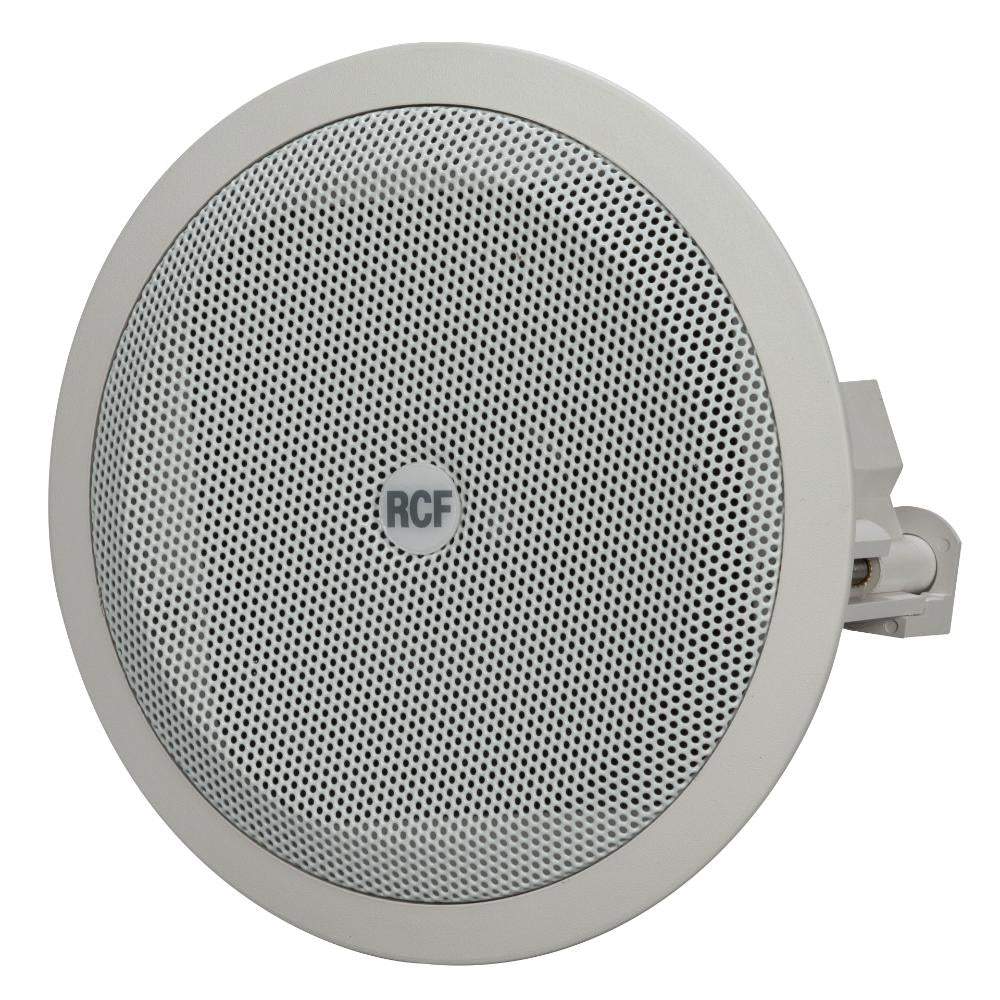

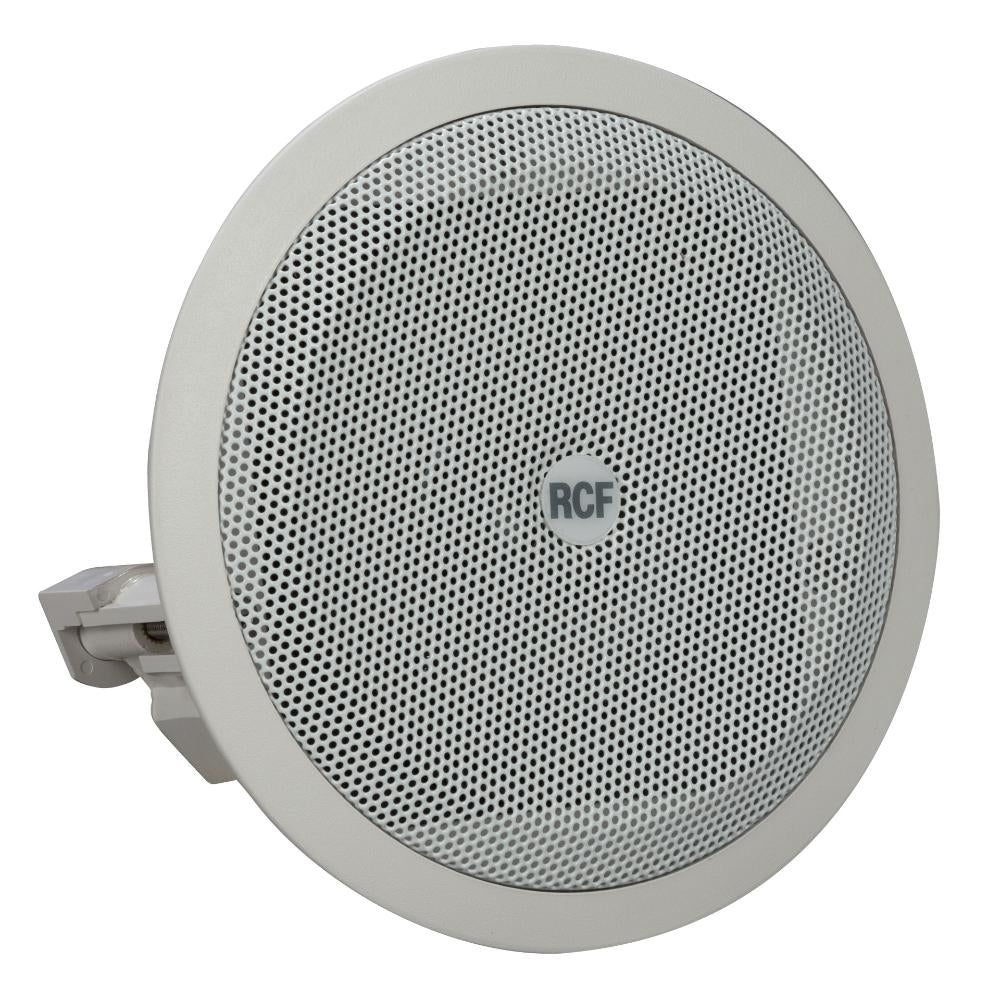

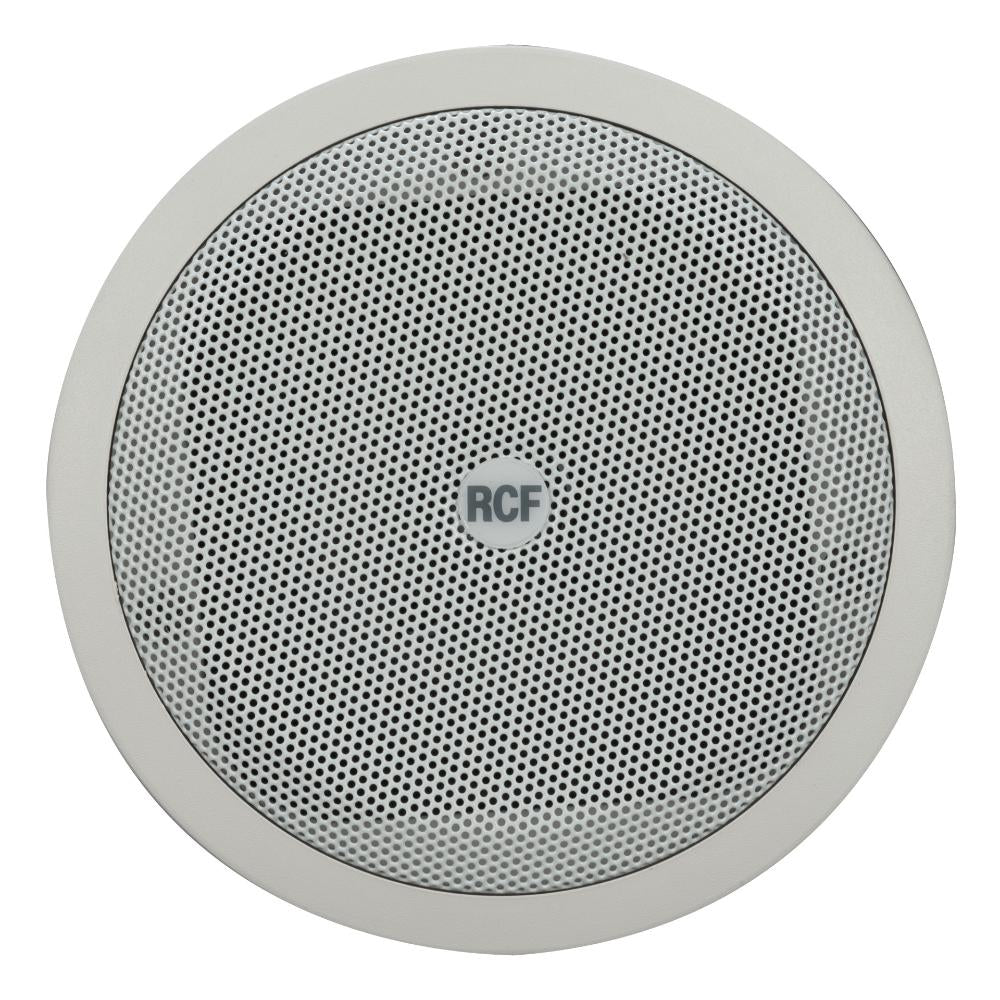

RCF PL 40 – 31/2" flush mnt. ceil. speaker with line transf., 8W, IP 44
RCF PL 40 is a professional 3.5-inch ceiling speaker with an 8W line transformer and IP44 protection for commercial audio installations. The RCF PL 40 delivers clear speech and background music through 70V/100V constant voltage systems.
Product Details
-
COMMERCIAL | INSTALLED
PL 40
CEILING SPEAKER

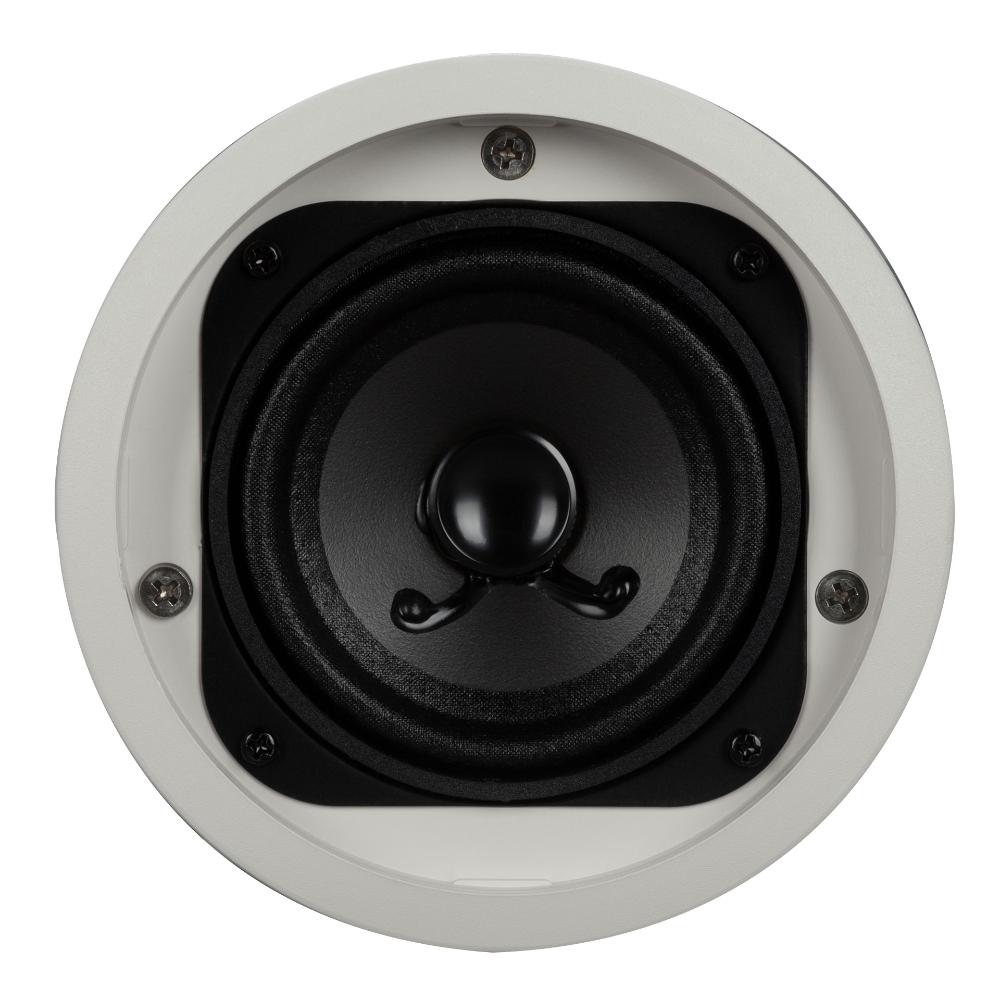

- 3.5" fullrange transducer
- Power selectable (100 V): 8 W – 6 W – 4 W – 2 W
- 88 dB sensitivity
- Colour white RAL 9003
Features
- 3.5" fullrange transducer
- Power selectable (100 V): 8 W – 6 W – 4 W – 2 W
- 88 dB sensitivity
- Colour white RAL 9003
- Plastic frame UL 94 V0, aluminium grille

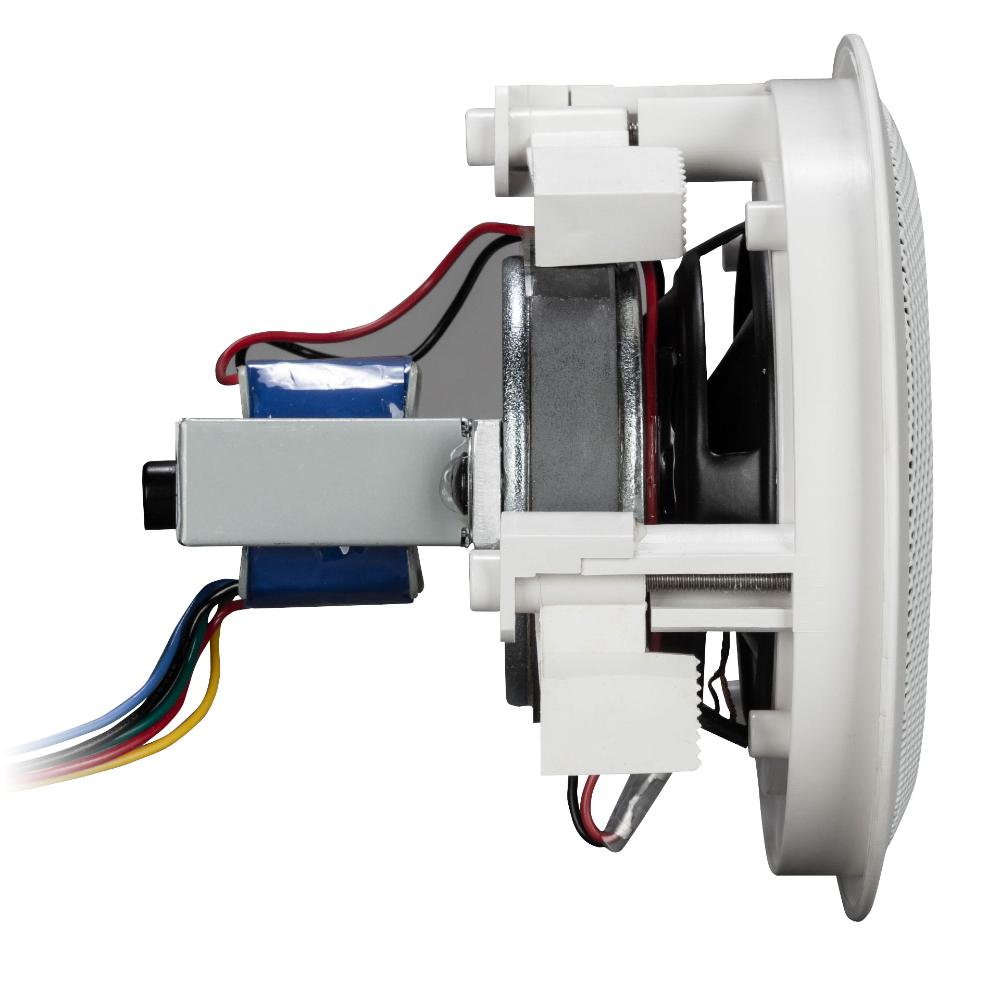

PL 40 is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 3.5” fullrange transducer, PL 40 is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
Technical Specifications
Professional Ceiling Speaker - 3.5"
Acoustical Specifications
| Frequency Response (-10dB) |
90 Hz - 20000 Hz |
| Max SPL @ 1m |
100 dB |
| Coverage Angle |
120° |
| System Sensitivity |
88 dB |
Power Section
| Amplification |
Full Range |
| Power Handling |
8 W RMS |
| Peak Power Handling |
32 W PEAK |
| Recommended Amplifiers |
DMA 504, DMA 162, DMA 82, DMA 162P, ES 2160, ES 3080, AM 2320, AM 2160, AM 2080, AM 1125, UP 8504, UP 8502, UP 8501, UP 2321, UP 2162 |
Input/Output Section
| Input Connectors |
Screw Terminals |
| Output Connectors |
Screw Terminals |
| Constant Voltage Transformer |
100 V |
Constant Voltage Power Selections
| 8 W |
1250 ohm |
| 6 W |
1667 ohm |
| 4 W |
2500 ohm |
| 2 W |
5000 ohm |
Standard Compliance
| IP Protection Grade |
IP 44 |
| Safety Agency |
CE compliant |
Physical Specifications
| Cabinet/Case Material |
Plastic |
| Hardware |
Plastic Material |
| Grille |
Aluminium |
| Color |
White (RAL 9003) |
Size & Weight
| Depth |
110 mm / 4.33 inches |
| Recessed Depth |
103 mm / 4.06 inches |
| Diameter |
130 mm / 5.12 inches |
| Cut Out Diameter |
122 mm / 4.8 inches |
| Weight |
0.38 kg / 0.84 lbs |
Shipping Information
| Package Height |
120 mm / 4.72 inches |
| Package Width |
175 mm / 6.89 inches |
| Package Depth |
175 mm / 6.89 inches |
| Package Weight |
1.2 kg / 2.65 lbs |
RCF PL 40 is ideal for offices, schools, hotels, retail stores and public buildings. Choose RCF PL 40 for reliable commercial ceiling audio installations.
