| Acoustical Specifications |
| Frequency Response |
45 Hz - 20000 Hz |
| Max SPL @ 1m |
135 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
50° |
| Transducers |
Compression Driver 1 x 1.4'' neo, 3.0'' v.c |
| Woofer |
3 x 10'' neo, 2.5'' v.c |

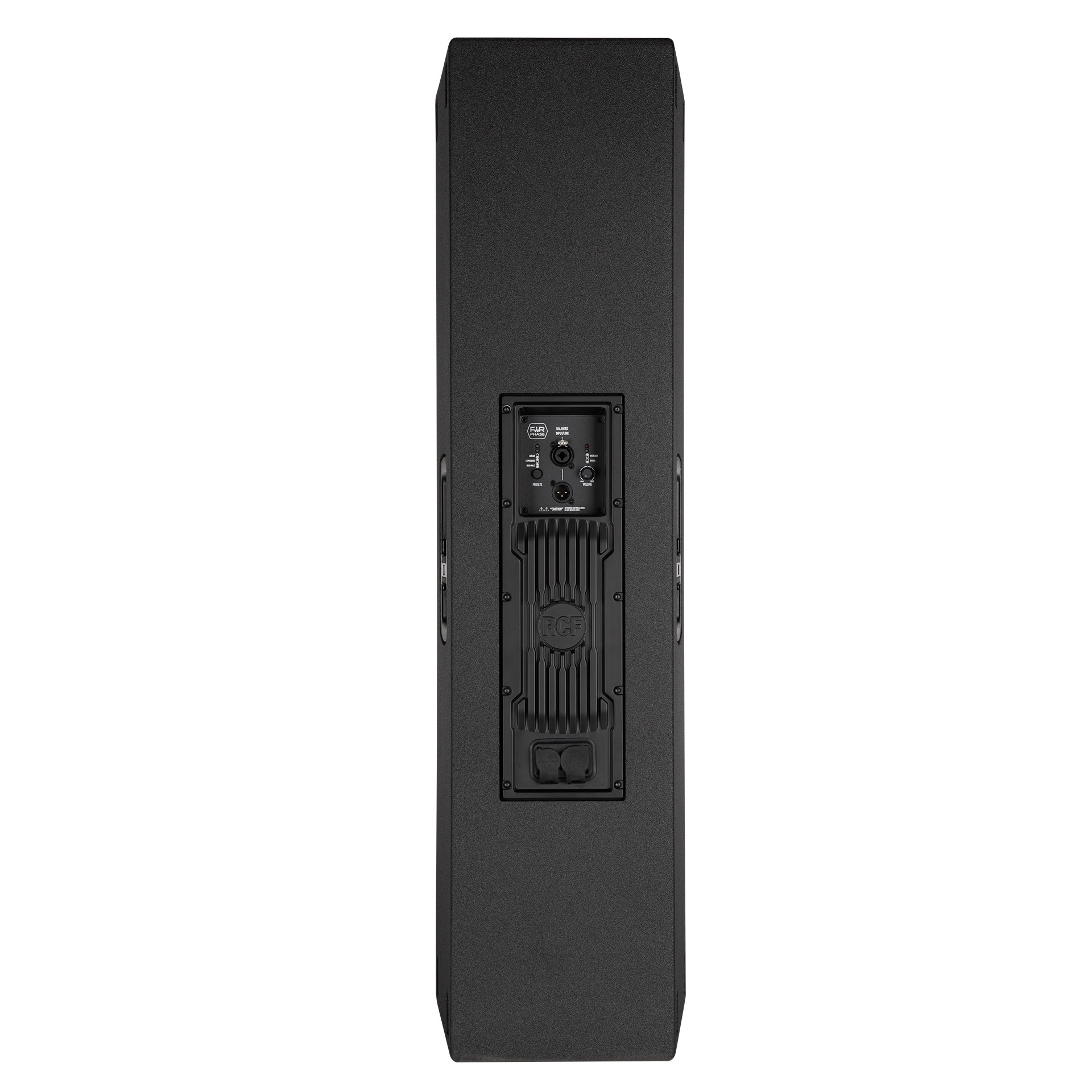

| Input/Output Section |
| Input Signal |
Bal/Unbal |
| Input Connectors |
Combo XLR/Jack |
| Output Connectors |
XLR |
| Input Sensitivity |
-2 dBu/+4 dBu |
| Processor Section |
| Crossover Frequencies |
800 Hz |
| Protections |
Thermal, Excursion, RMS |
| Limiter |
Soft Limiter |
| Controls |
Linear/Boost/High-Pass Presets, Volume |
| Power Section |
| Total Power |
2100 W Peak |
| High Frequencies |
700 W Peak |
| Low Frequencies |
1400 W Peak |
| Cooling |
Convection |
| Connections |
Powercon TRUE1 TOP IN/OUT |
| Standard Compliance |
| Safety Agency |
CE Compliant |
| Physical Specifications |
| Cabinet/Case Material |
Baltic Birch Plywood |
| Hardware |
8 x M8, 8 x Quick Lock |

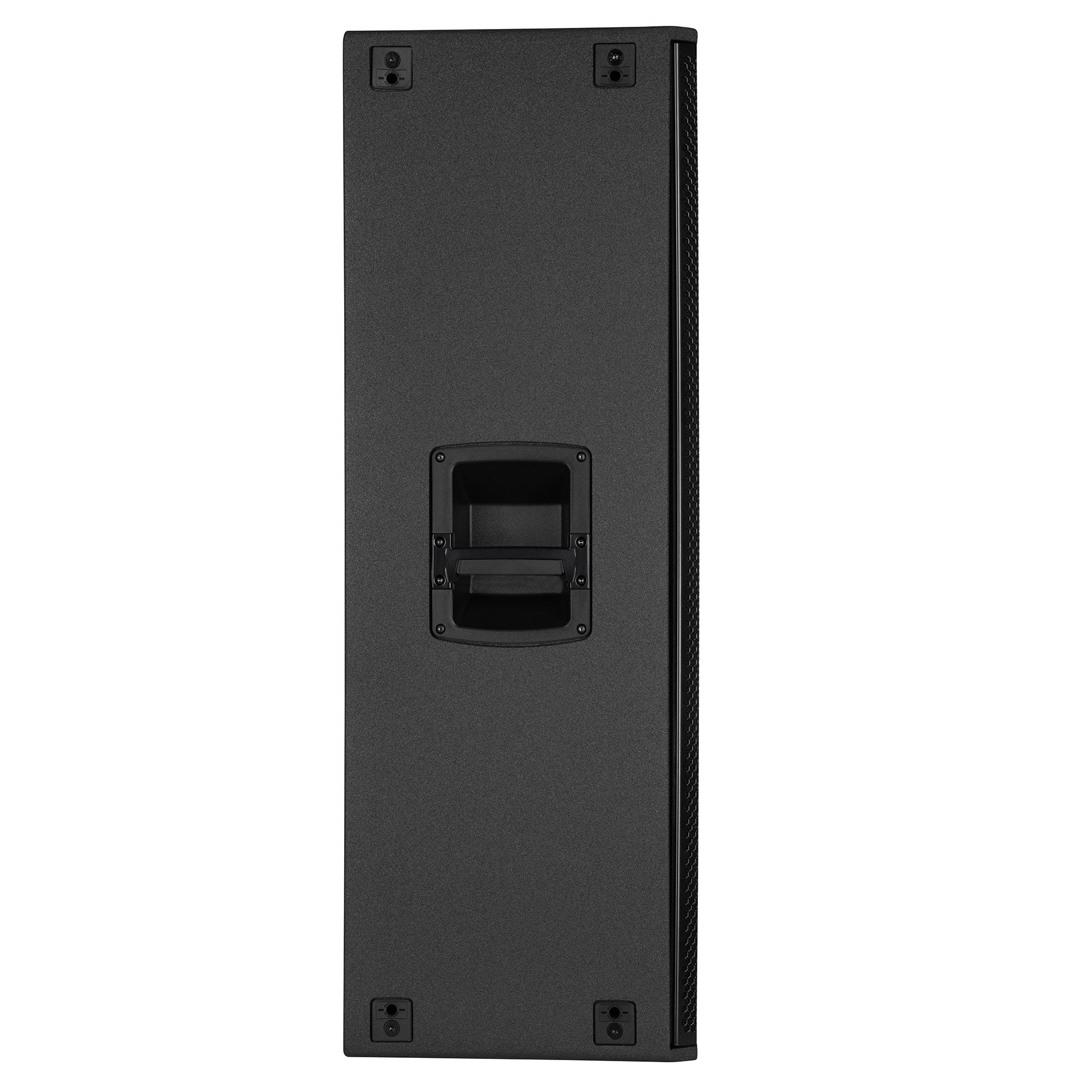

| Handles |
2 Side |

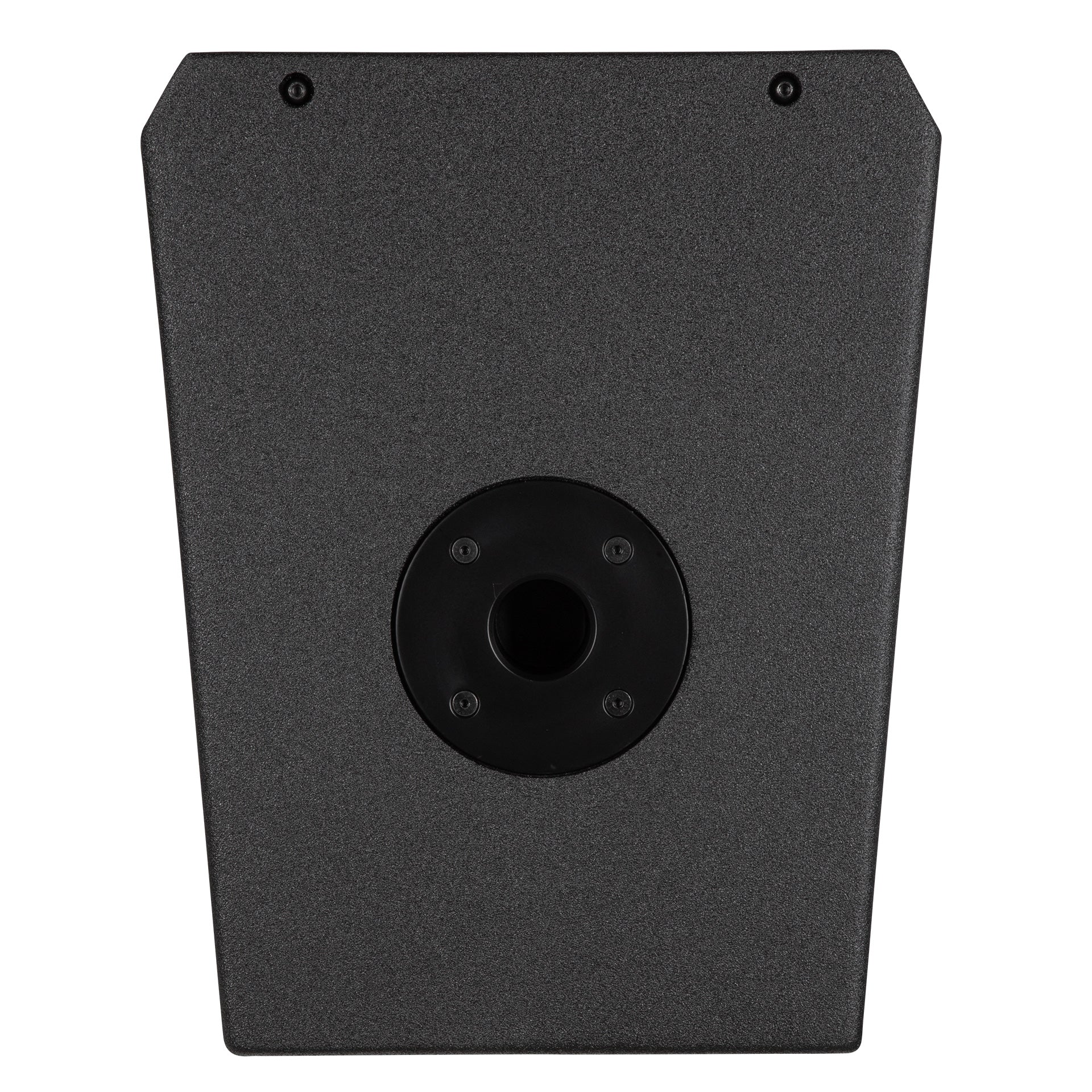

| Pole Mount/Cap |
35 mm insert |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
| Height |
1080 mm / 42.52 inches |
| Width |
297.5 mm / 11.71 inches |
| Depth |
373 mm / 14.69 inches |
| Weight |
31.55 kg / 69.56 lbs |
| Shipping Information |
| Package Height |
400 mm / 15.75 inches |
| Package Width |
1115 mm / 43.9 inches |
| Package Depth |
327 mm / 12.87 inches |
| Package Weight |
28.4 kg / 74.19 lbs |
