| Frequency Response |
45 Hz – 20,000 Hz |
| Max SPL @ 1m |
135 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
25° |

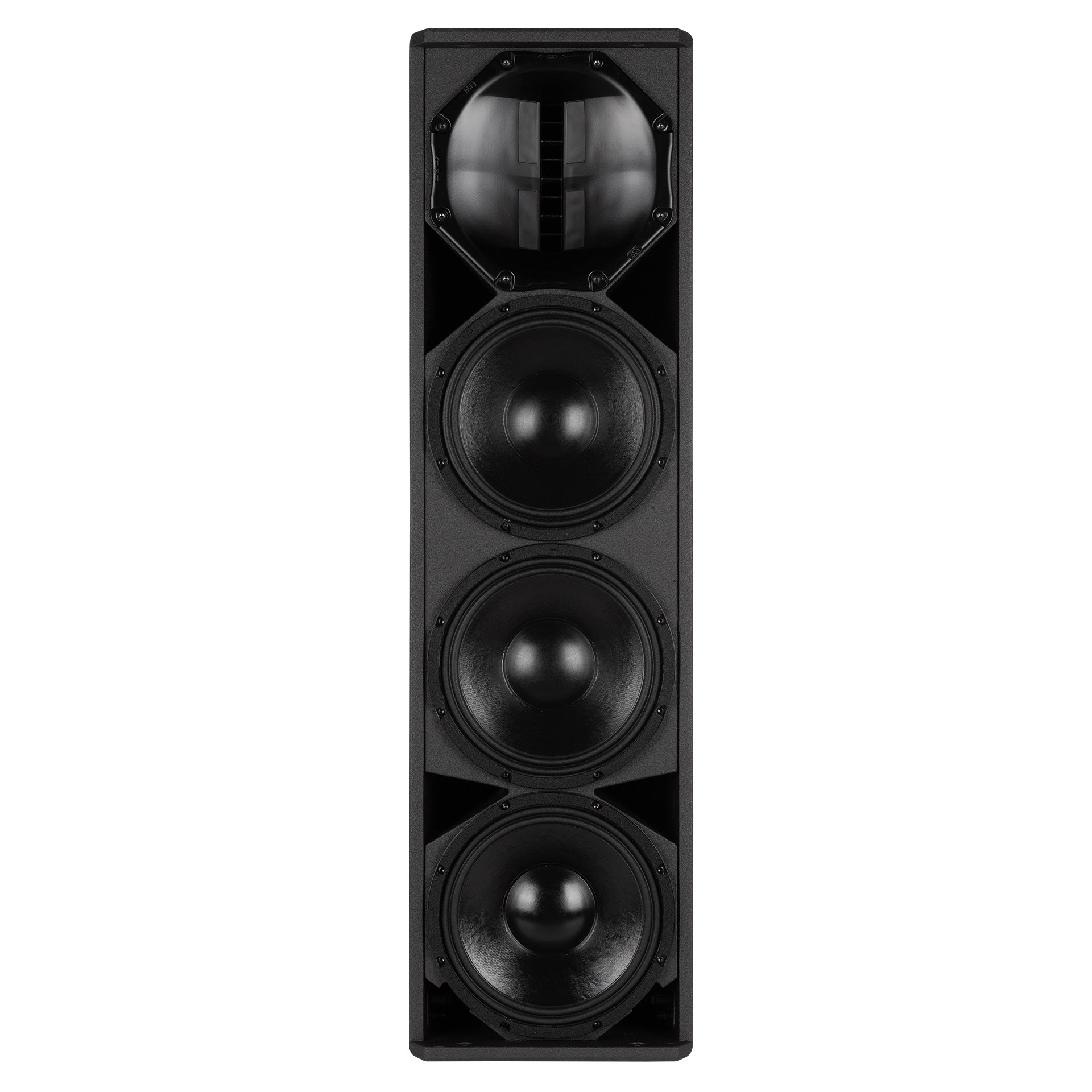

| Compression Driver |
1 x 1.4" neo, 3.0" voice coil |
| Woofer |
3 x 10" neo, 2.5" voice coil |
| Input Signal |
Balanced / unbalanced |

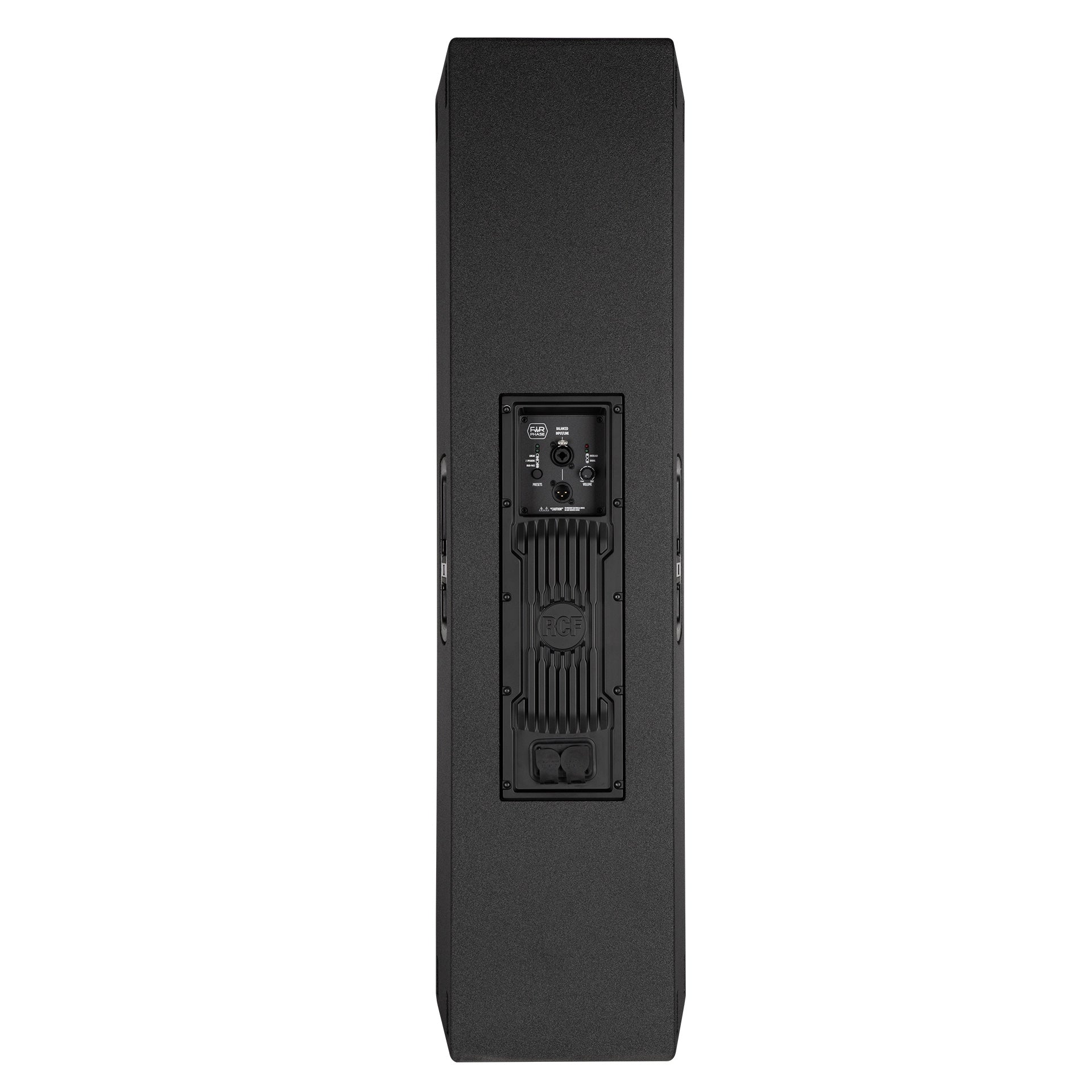

| Input Connectors |
Combo XLR/jack |
| Output Connectors |
XLR |
| Input Sensitivity |
-2 dBu / +4 dBu |
| Crossover Frequencies |
800 Hz |
| Protections |
Thermal, excursion, RMS |
| Limiter |
Soft limiter |
| Controls |
Linear / 2 Speakers / High-Pass presets, volume |
| Total Power |
2100 W peak |
| High Frequencies |
700 W peak |
| Low Frequencies |
1400 W peak |
| Cooling |
Convection |
| Connections |
Powercon TRUE1 TOP IN/OUT |
| Safety Agency |
CE compliant |
| Cabinet / Case Material |
Baltic birch plywood |
| Hardware |
8 x M8, 8 x quick lock |

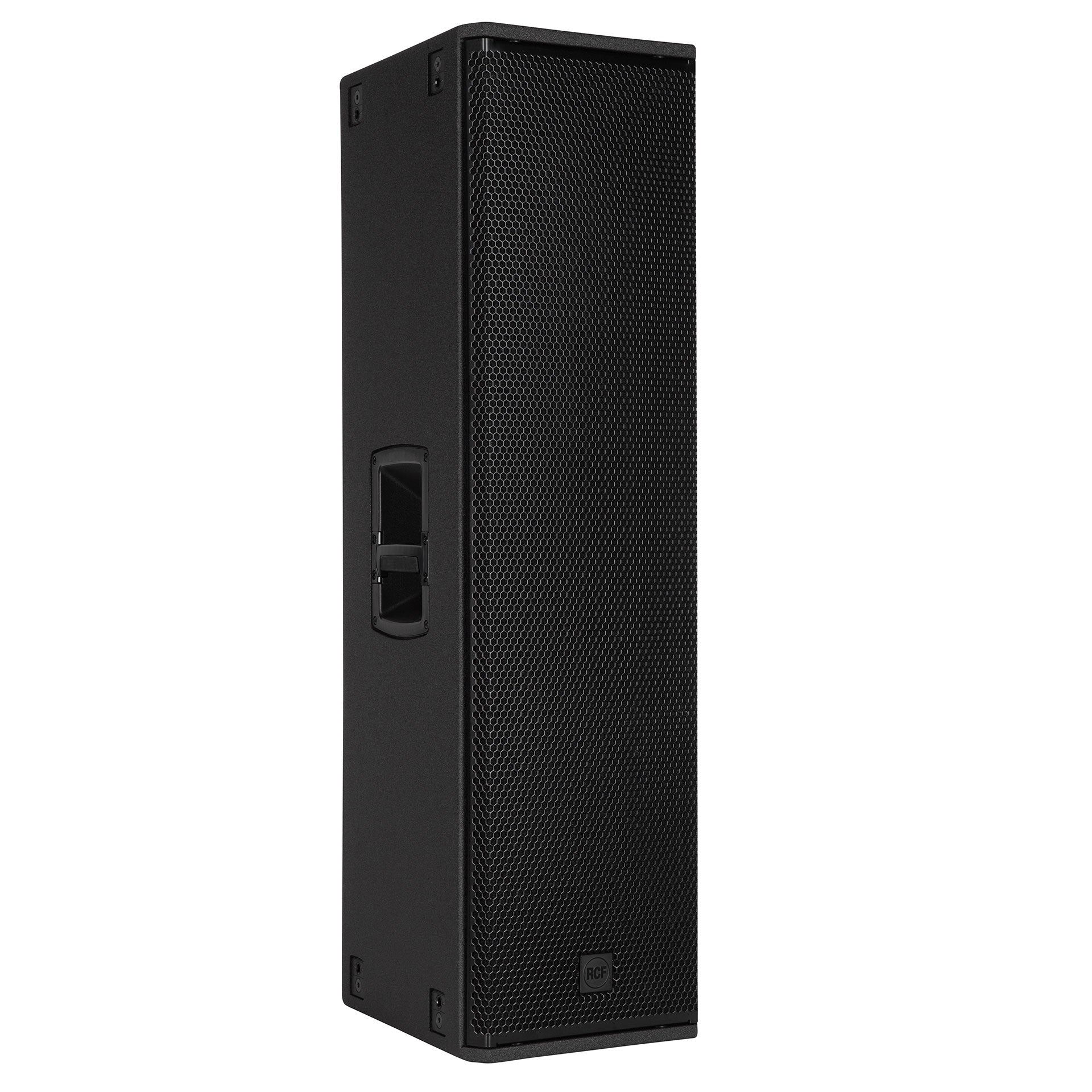

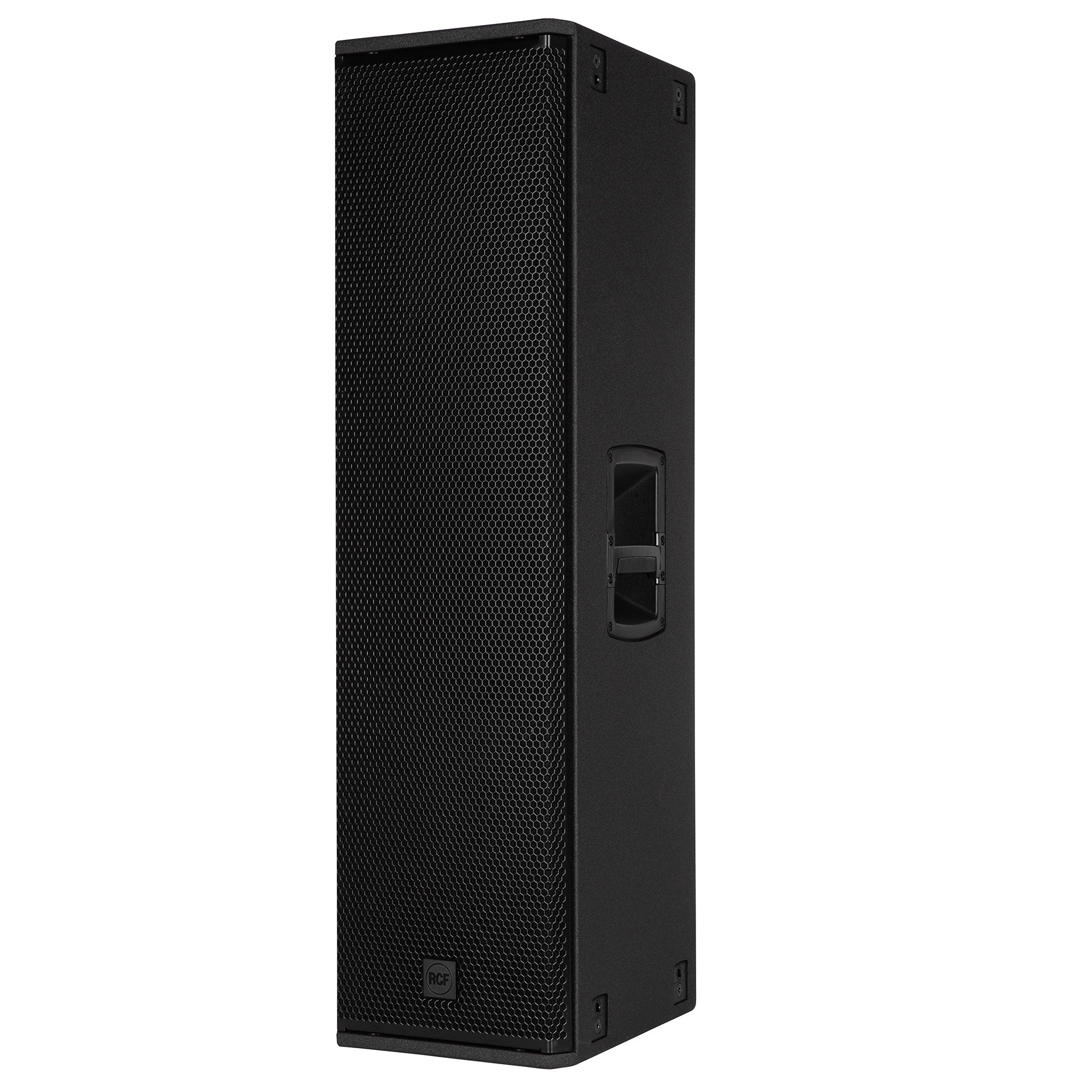

| Handles |
2 side |

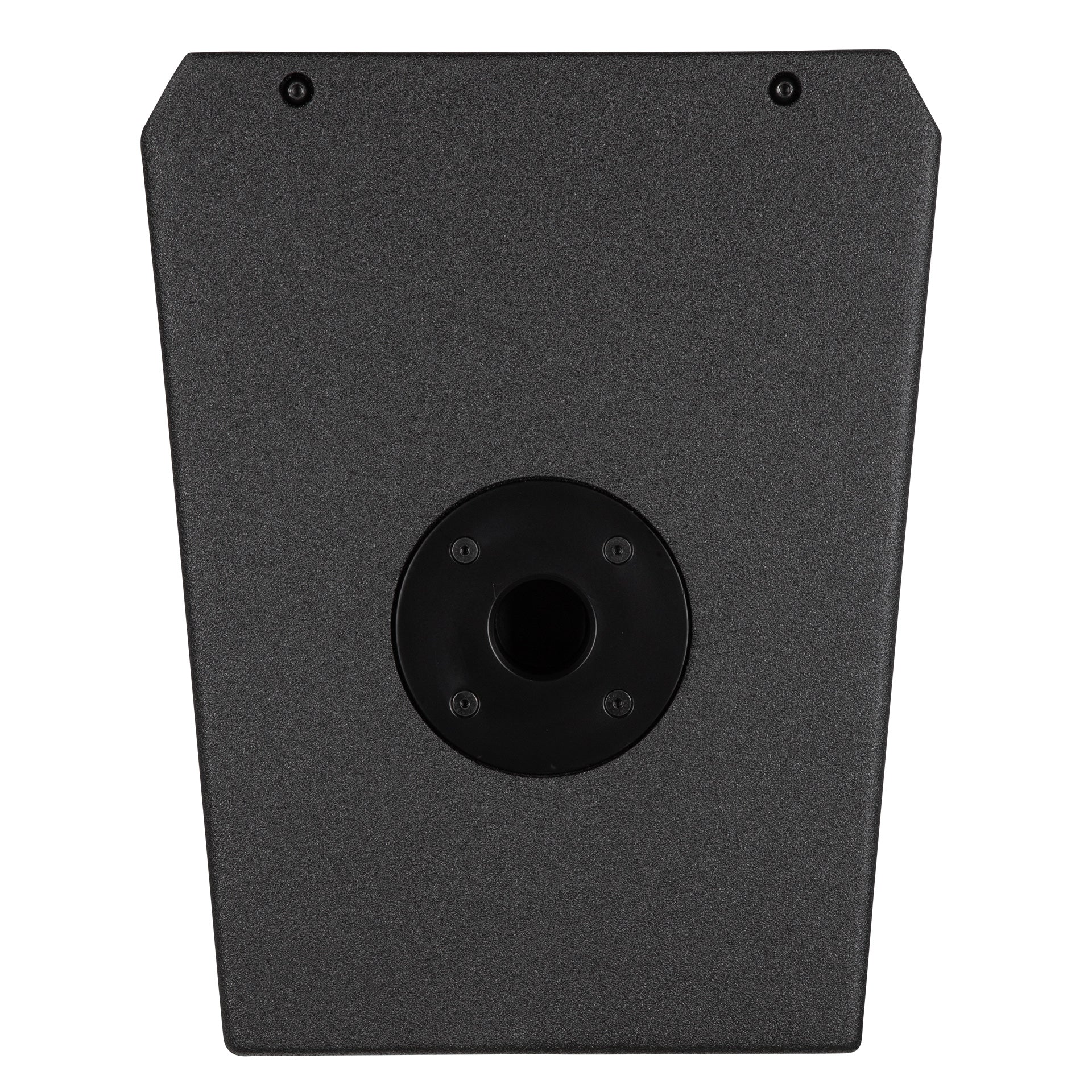

| Pole Mount / Cap |
35 mm insert |

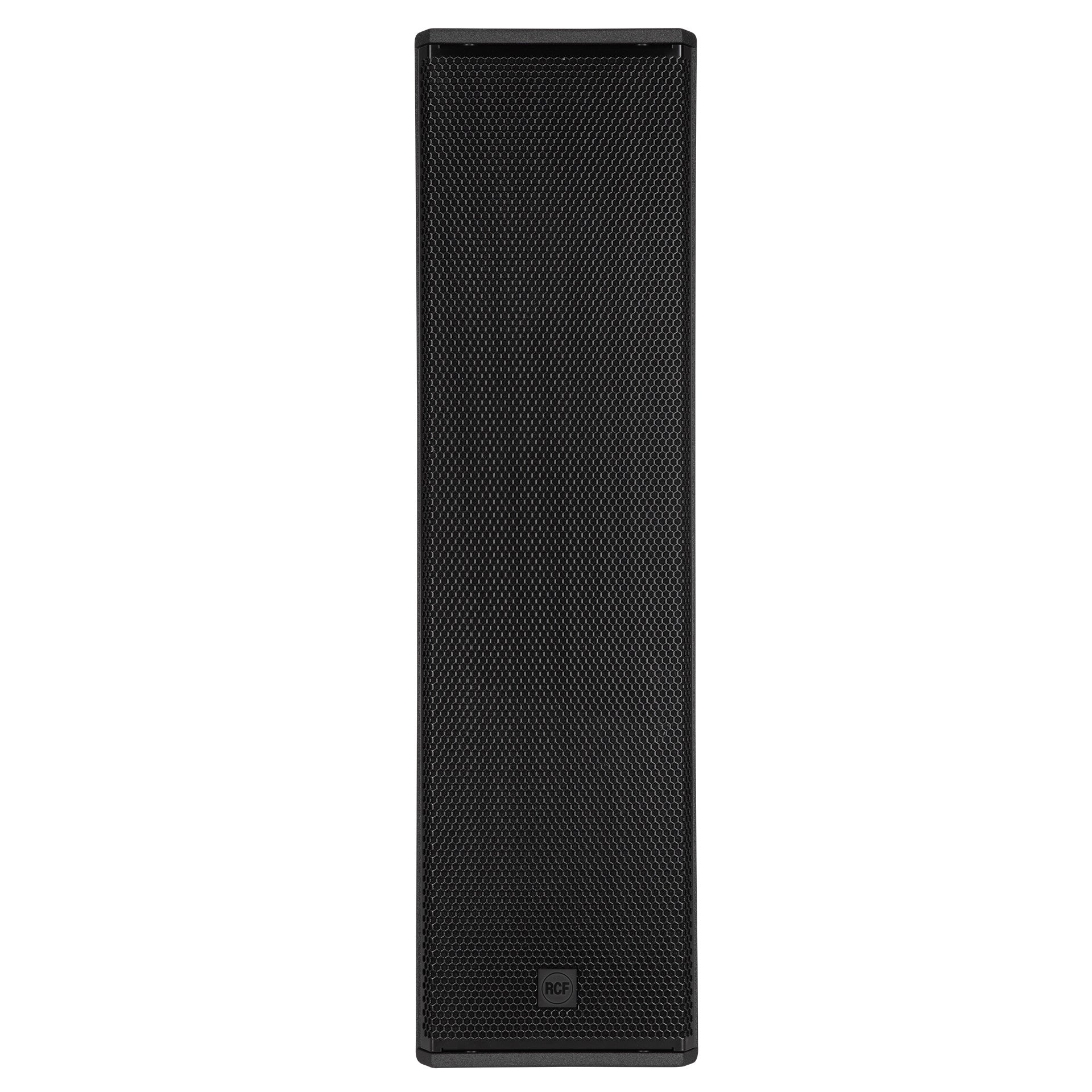

| Grille |
Steel |
| Color |
Black |

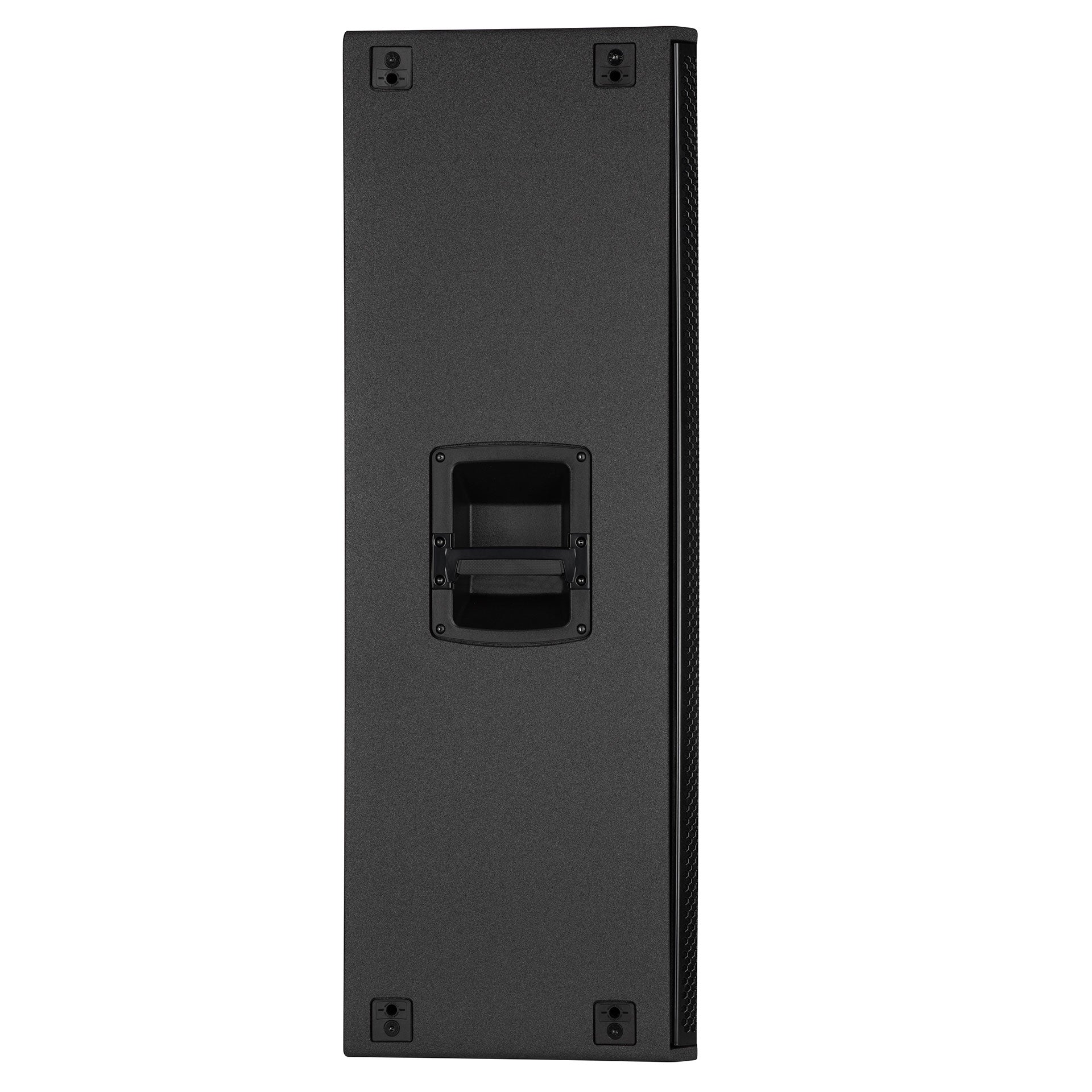

| Dimensions (H x W x D) |
1080 x 297.5 x 373 mm (42.52 x 11.71 x 14.69 in) |
| Weight |
33.4 kg (73.63 lb) |
| Package Dimensions (H x W x D) |
400 x 1115 x 327 mm (15.75 x 43.9 x 12.87 in) |
| Package Weight |
35.5 kg (78.26 lb) |
