| Acoustical Specifications |
| Frequency Response |
70 Hz - 20000 Hz |
| Max SPL @ 1m |
128 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
70° |

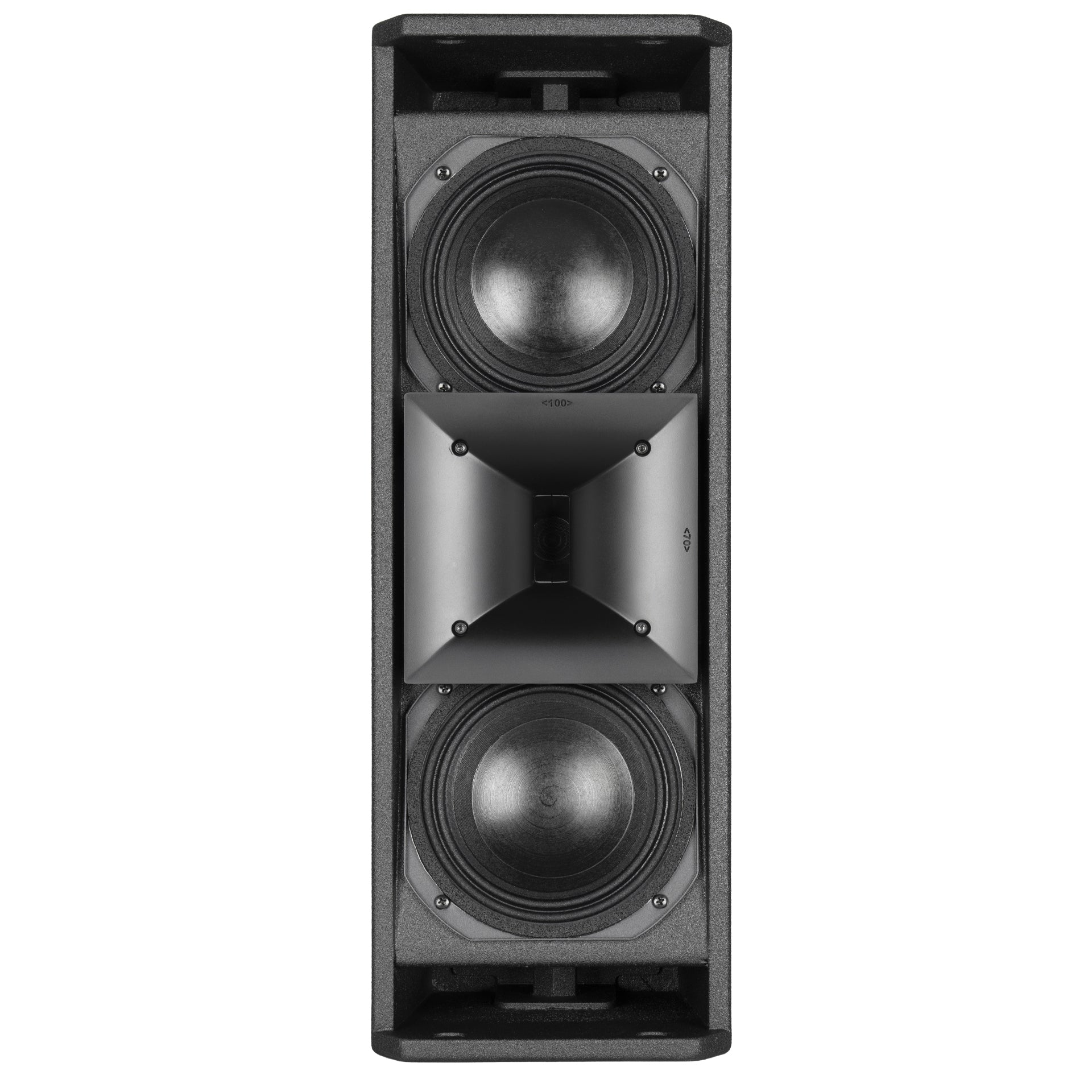

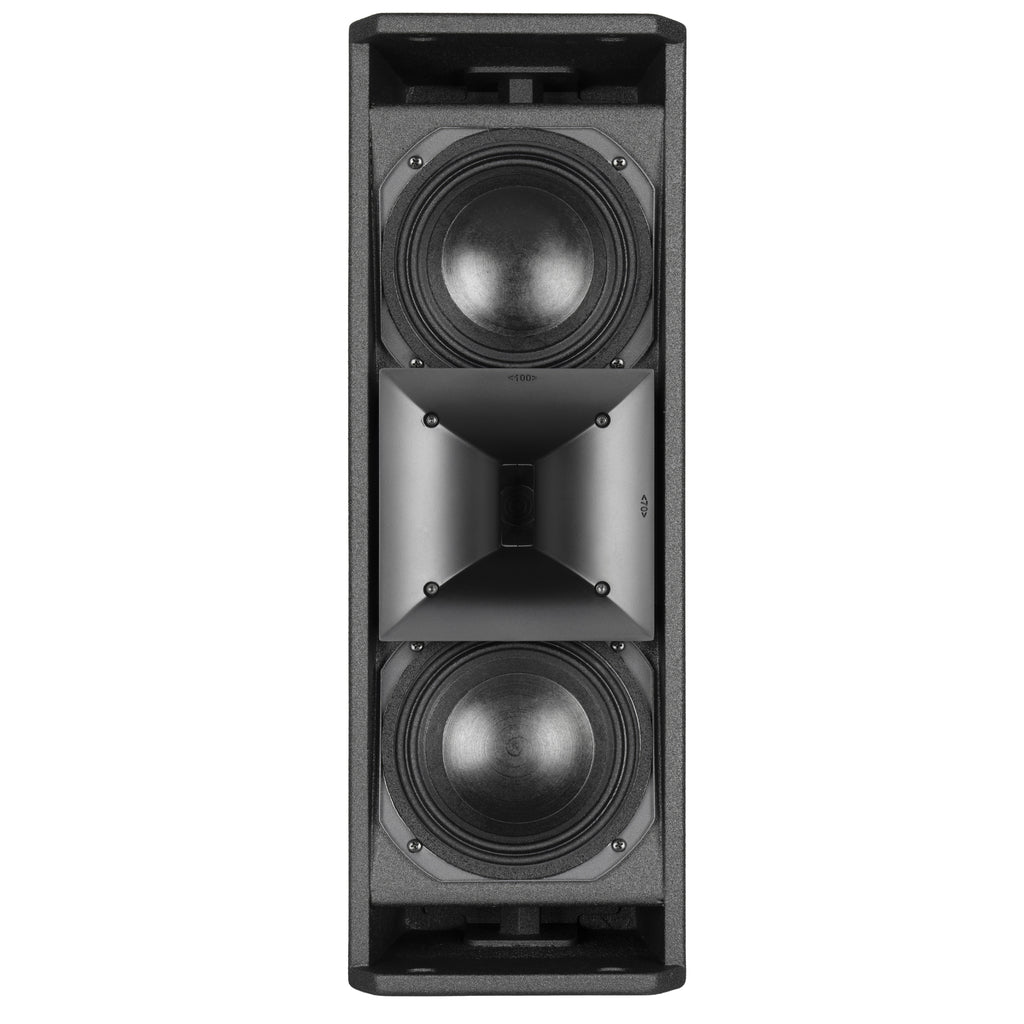

| Transducers |
Compression Driver 1 x 1.0'' neo, 1.75'' v.c |
| Woofer |
2 x 6.0'' neo, 2.0'' v.c |
| Input/Output Section |
| Input Signal |
Bal/Unbal |

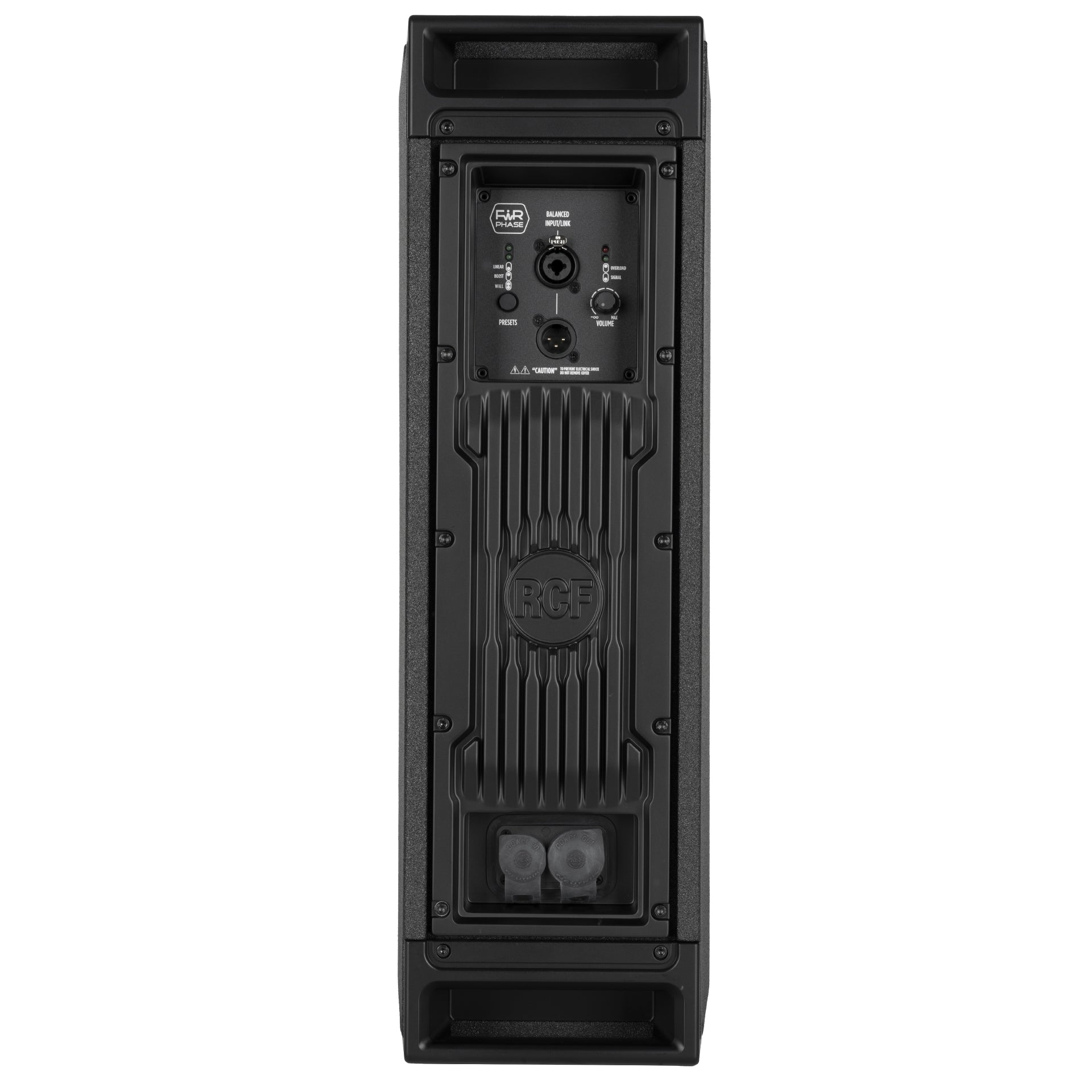

| Input Connectors |
Combo XLR/Jack |
| Output Connectors |
XLR |
| Input Sensitivity |
-2 dBu/+4 dBu |
| Processor Section |
| Crossover Frequencies |
1200 Hz |
| Protections |
Excursion |
| Limiter |
Fast Limiter |

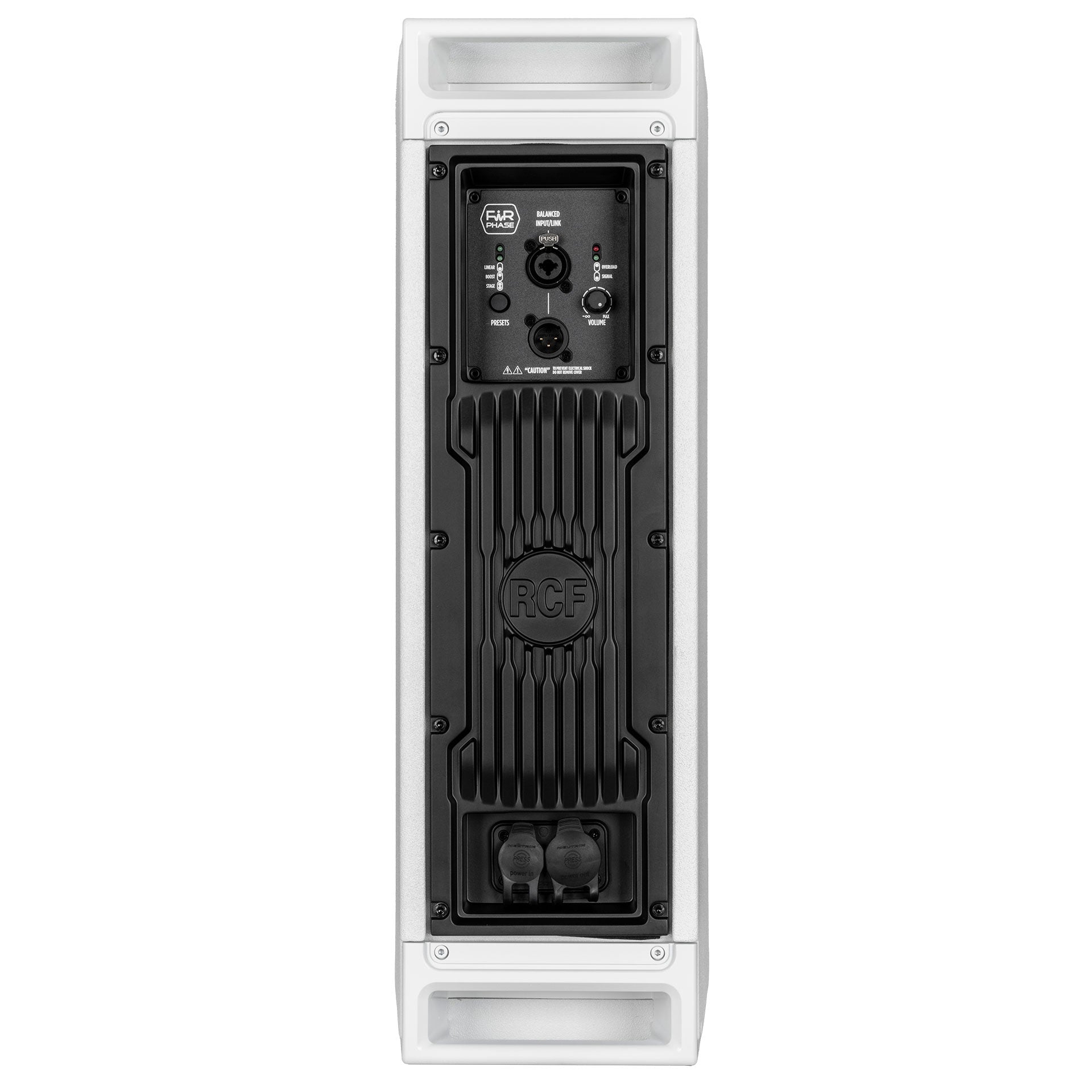

| Controls |
Linear/Boost/Stage Presets, Volume |
| Power Section |
| Total Power |
2100 W Peak |
| High Frequencies |
700 W Peak |
| Low Frequencies |
1400 W Peak |
| Cooling |
Convection |
| Connections |
Powercon TRUE1 TOP IN/OUT |
| Standard Compliance |
| Safety Agency |
CE Compliant |
| Physical Specifications |
| Cabinet/Case Material |
Plywood |
| Hardware |
2 x M10 Top and Bottom, 2 x Pin D.10 |
| Handles |
2, Top and Bottom |

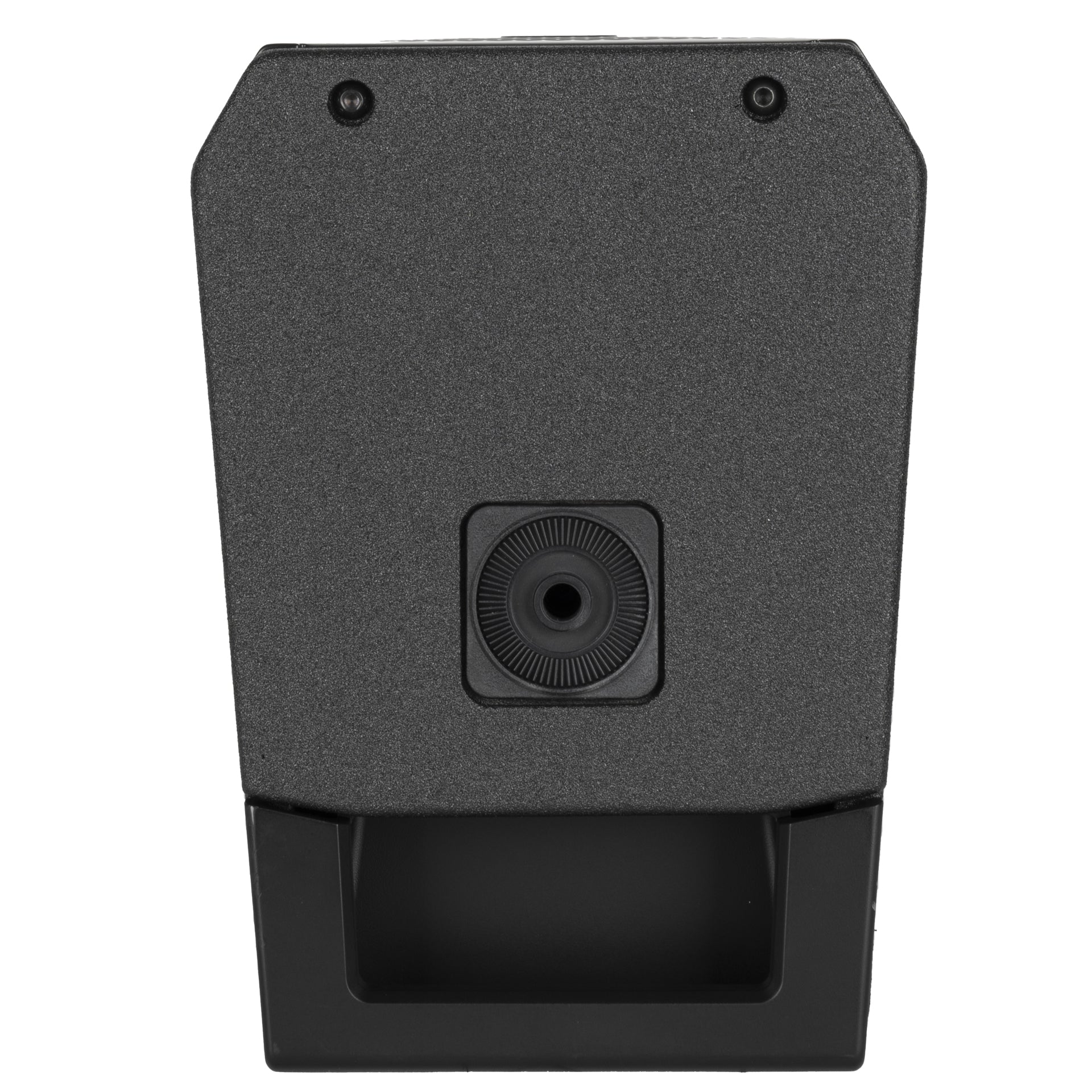

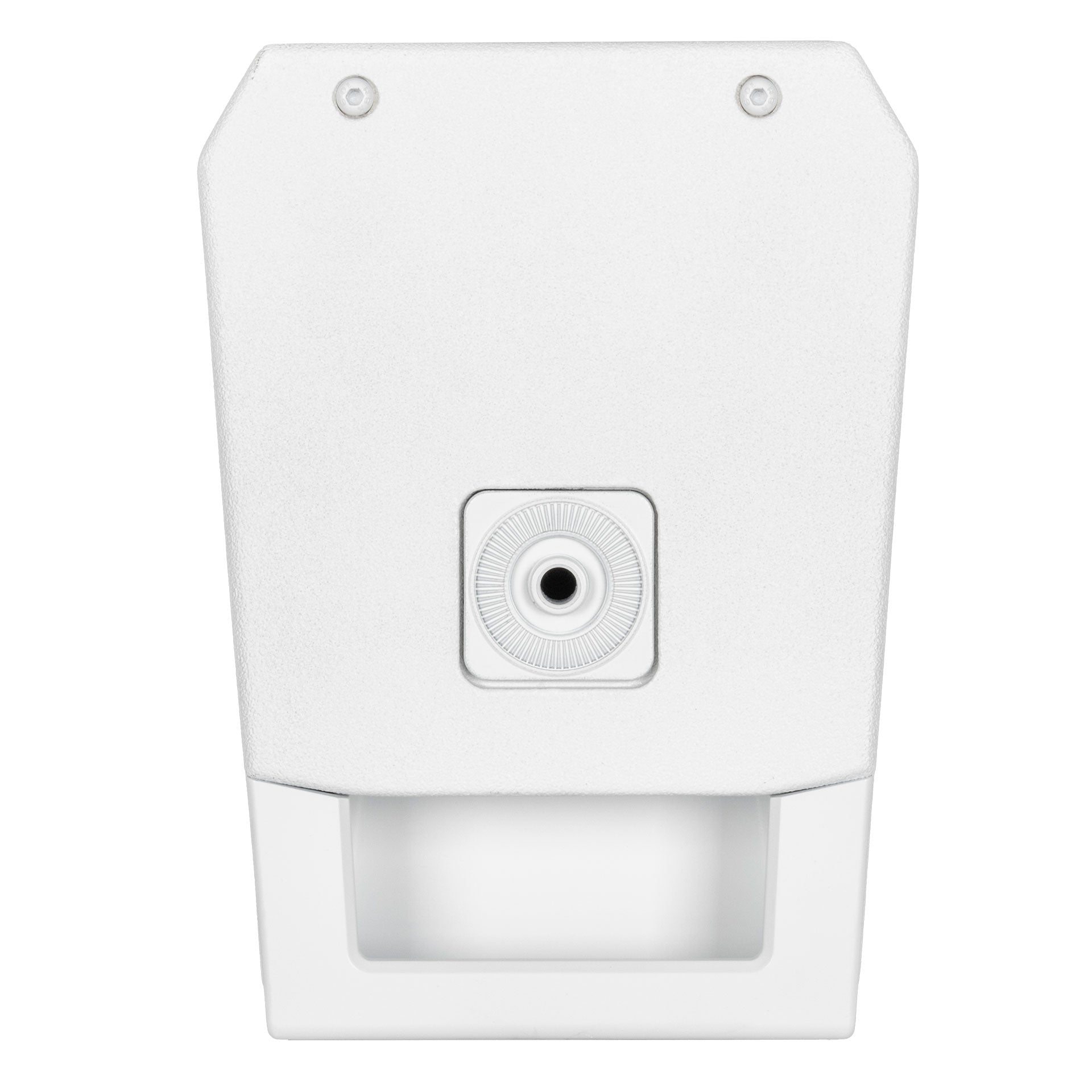

| Pole Mount/Cap |
Quick-fit socket |

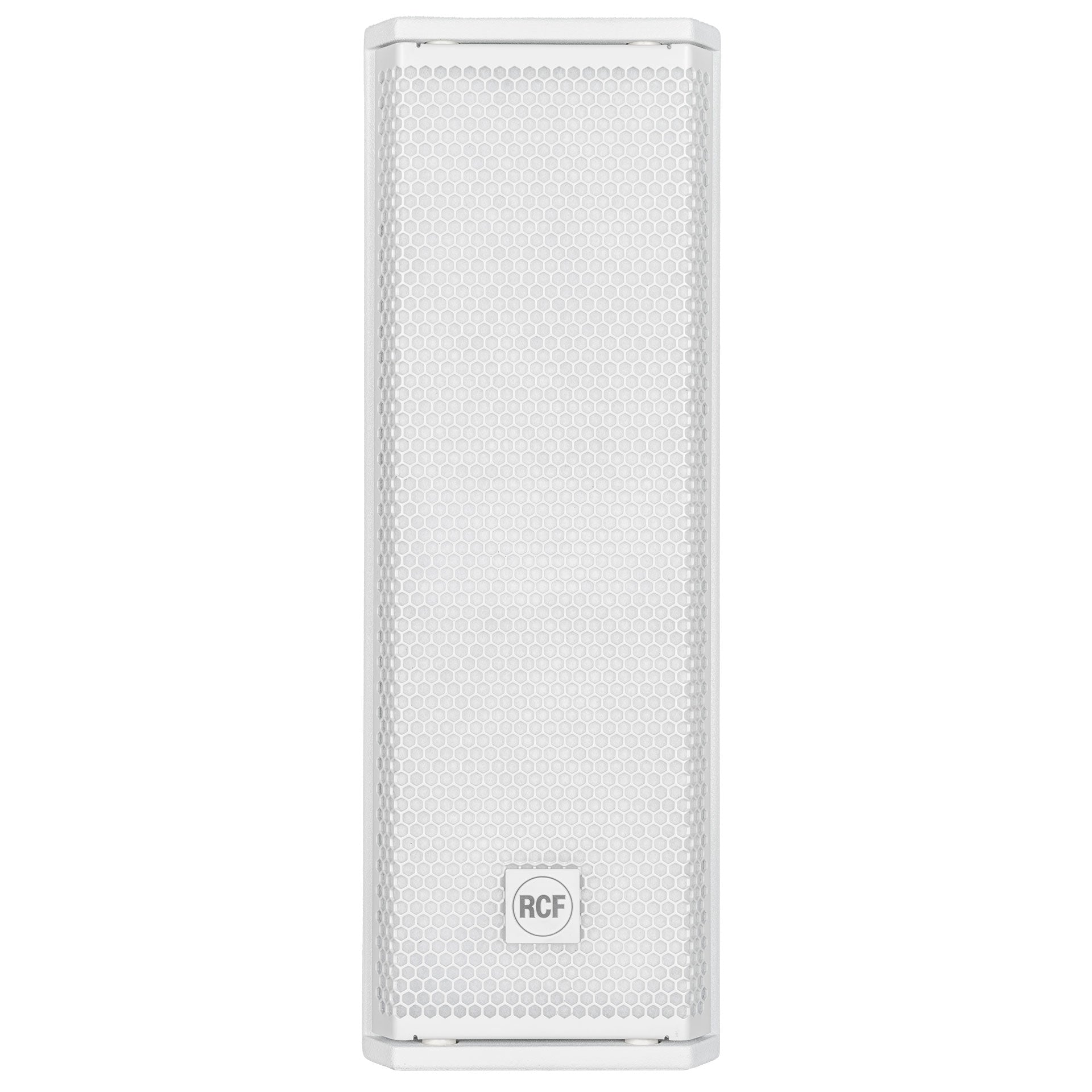

| Grille |
Steel |
| Color |
Black - RAL 9005, White - RAL 9003 |
| Size / Weight |
| Height |
567 mm / 22.32 inches |
| Width |
197 mm / 7.76 inches |
| Depth |
270 mm / 10.63 inches |
| Weight |
12.8 kg / 28.22 lbs |
| Shipping Information |
| Package Height |
600 mm / 23.62 inches |
| Package Width |
232 mm / 9.13 inches |
| Package Depth |
302 mm / 11.89 inches |
| Package Weight |
14.6 kg / 32.19 lbs |
