| Acoustical Specifications |
|---|
| Frequency Response |
40 Hz - 20000 Hz |
| Max SPL @ 1m |
138 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
60° |

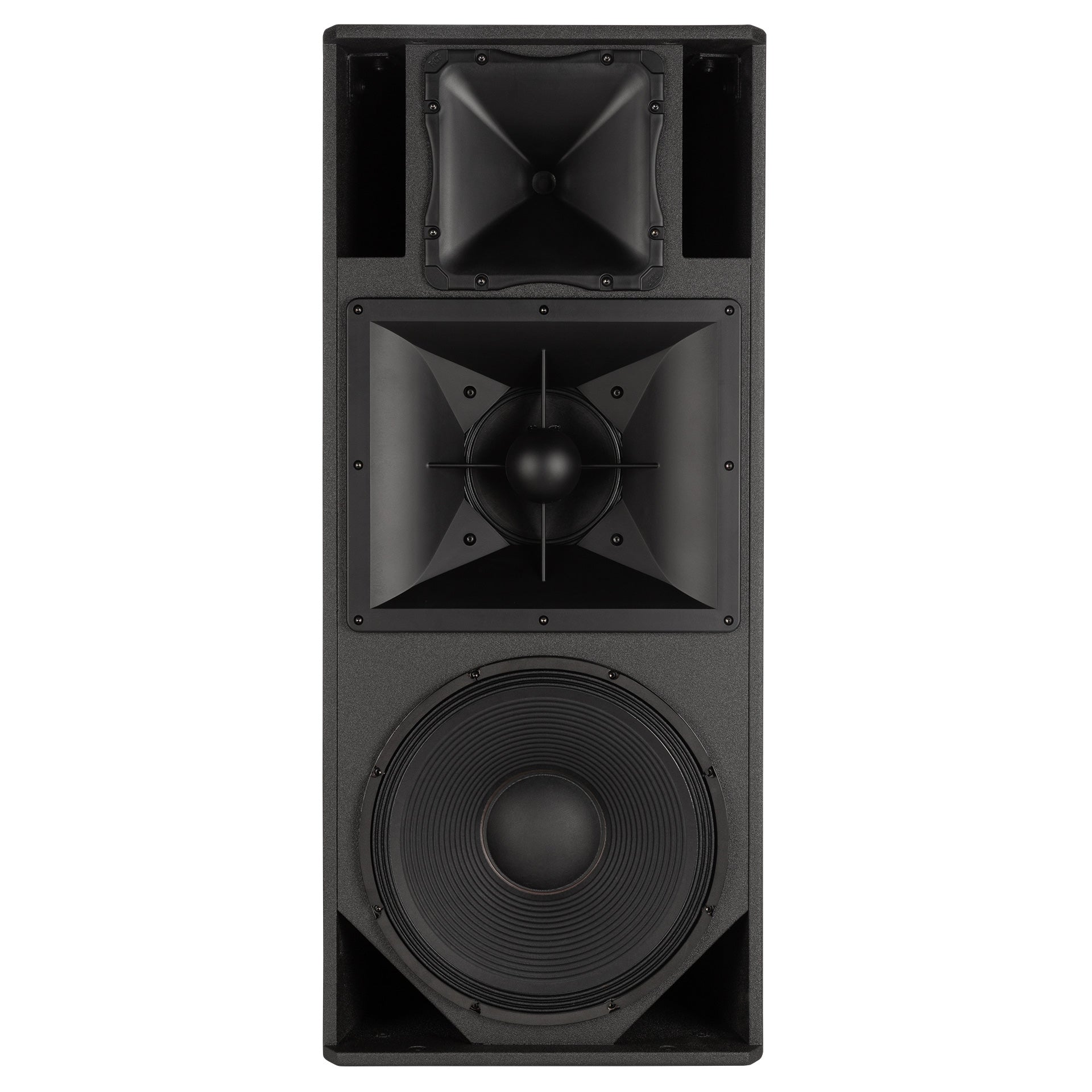

| Transducers |
Compression Driver 1 x 1.0'' neo, 1.75'' v.c |
| Midrange |
1 x 8'' neo, 2.5'' v.c |
| Woofer |
1 x 15'', 3.0'' v.c |

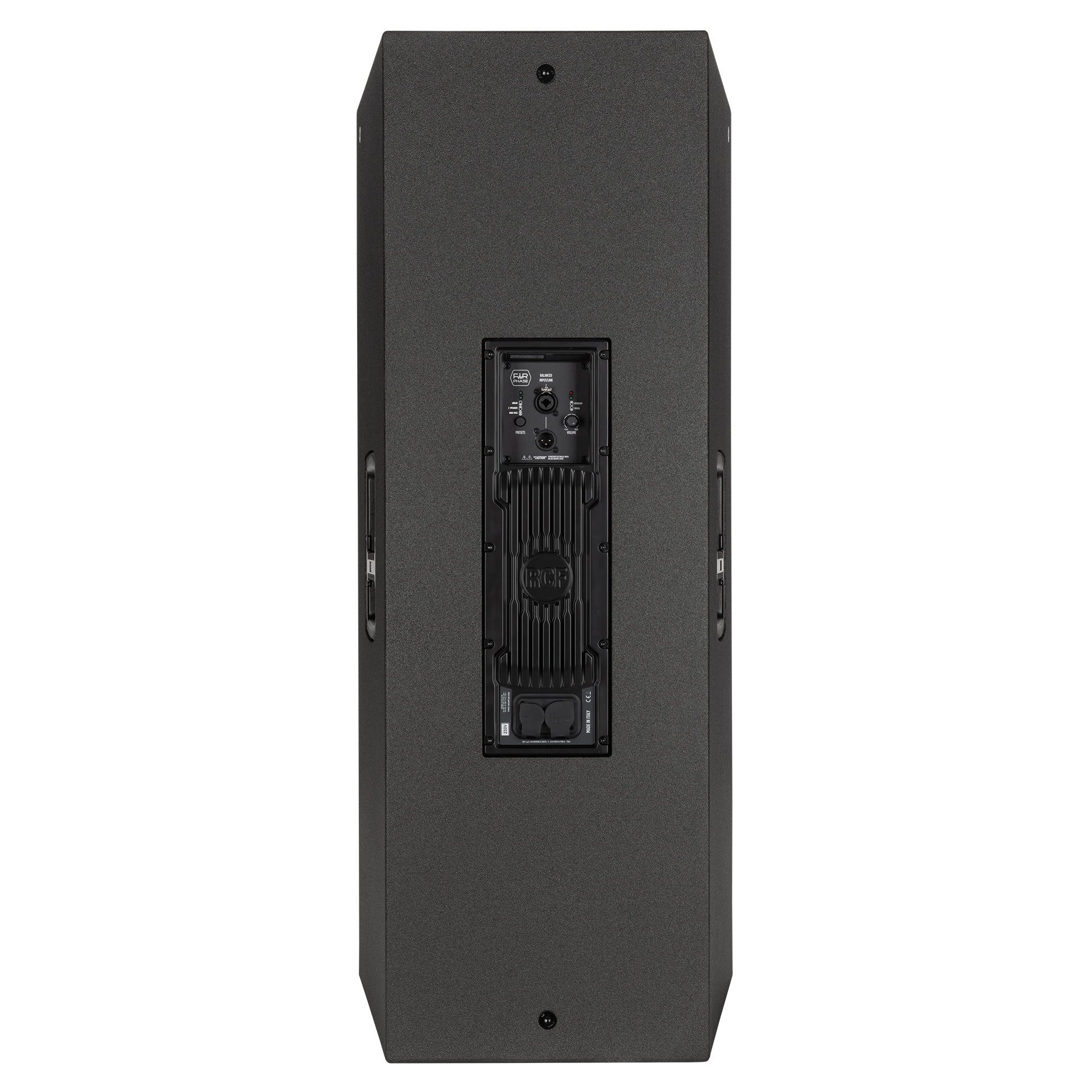

| Input/Output Section |
|---|
| Input Signal |
Bal/Unbal |
| Input Connectors |
Combo XLR/Jack |
| Output Connectors |
XLR |
| Input Sensitivity |
-2 dBu/+4 dBu |
| Processor Section |
|---|
| Crossover Frequencies |
Bass/Mid: 320 Hz, Mid/High: 1200 Hz |
| Protections |
Thermal, Excursion, RMS |
| Limiter |
Soft Limiter |
| Controls |
Linear, 2 Speakers, High Pass, Volume |
| Power Section |
|---|
| Total Power |
2100 W Peak |
| High Frequencies |
200 W Peak |
| Mid Frequencies |
500 W Peak |
| Low Frequencies |
1400 W Peak |
| Cooling |
Convection |
| Connections |
Powercon TRUE1 TOP IN/OUT |
| Standard Compliance |
|---|
| Safety Agency |
CE Compliant |
| Physical Specifications |
|---|
| Cabinet/Case Material |
Plywood |

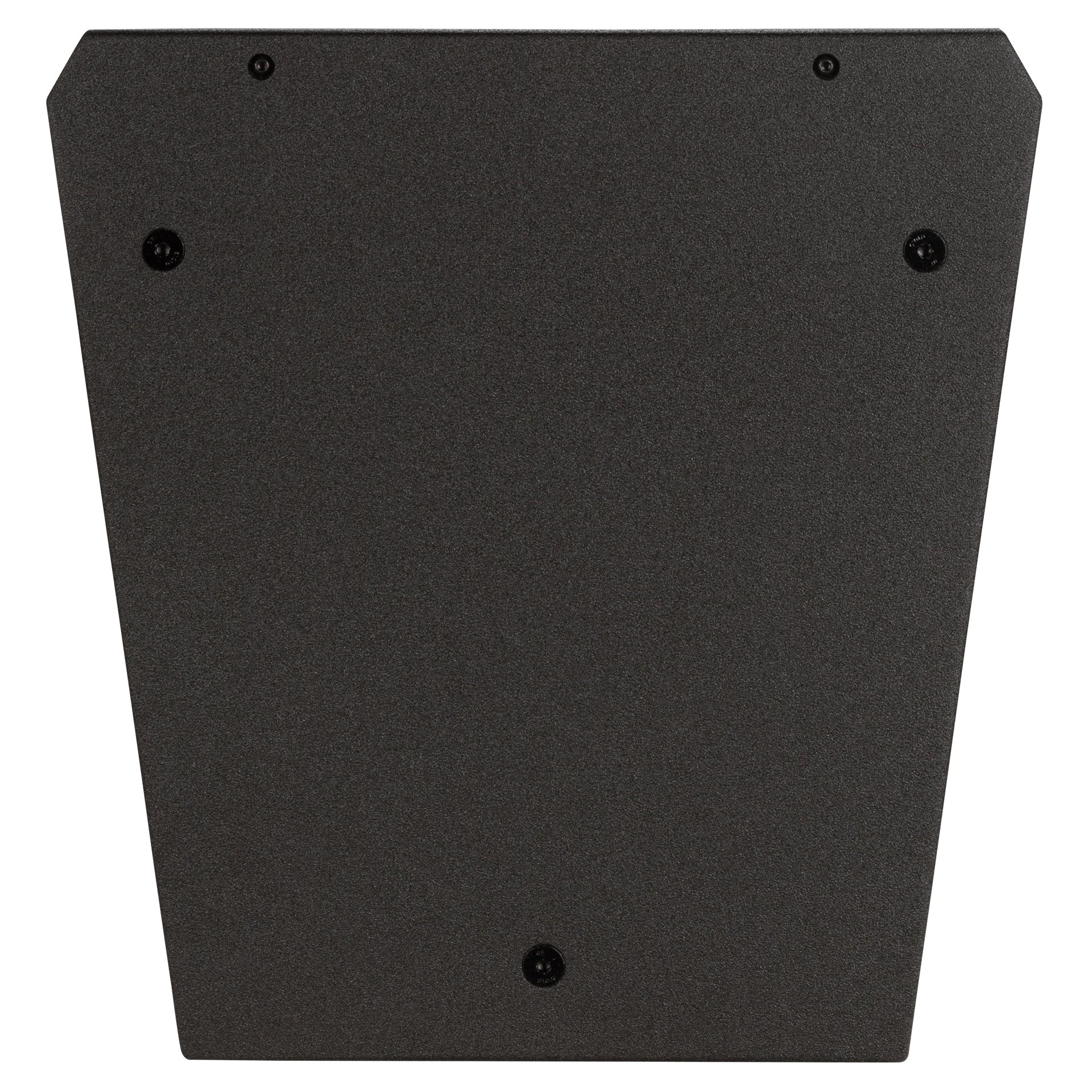

| Hardware |
3 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 2 x M10 rear |

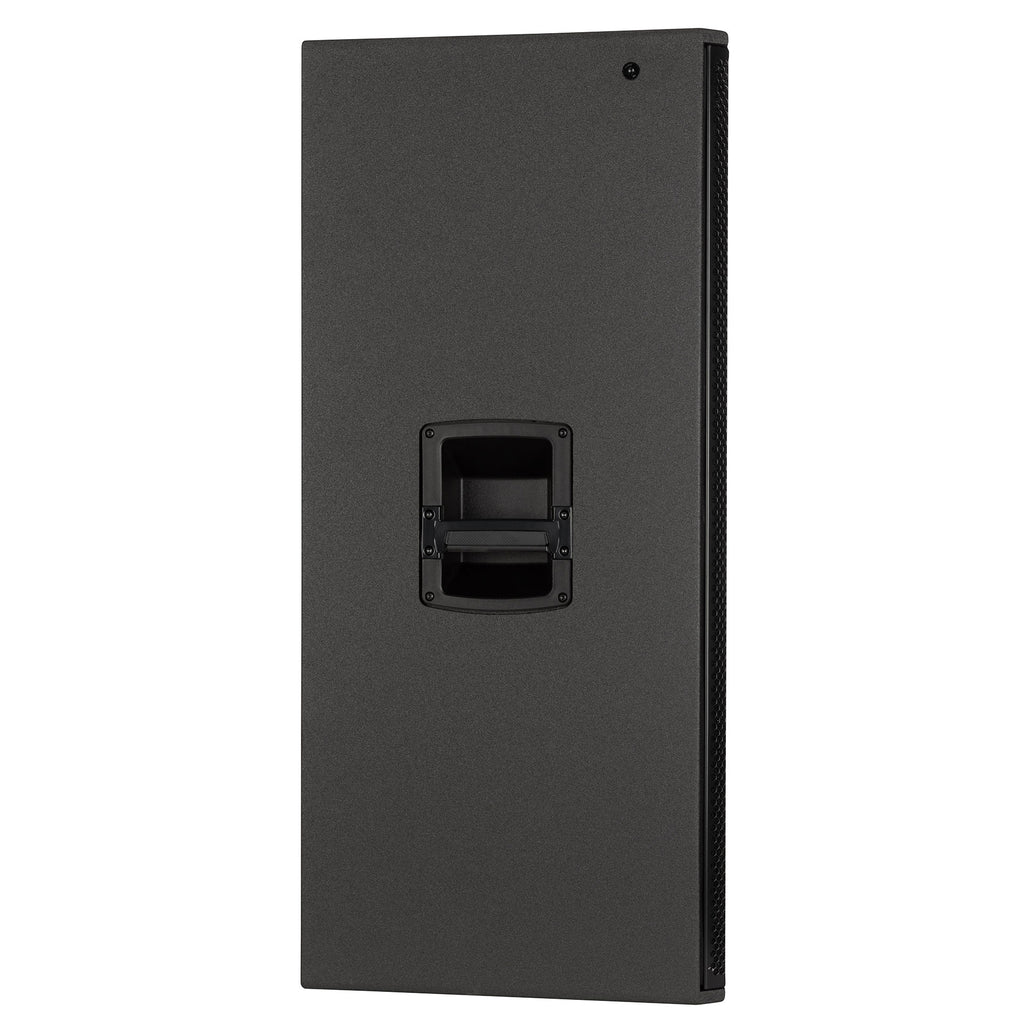

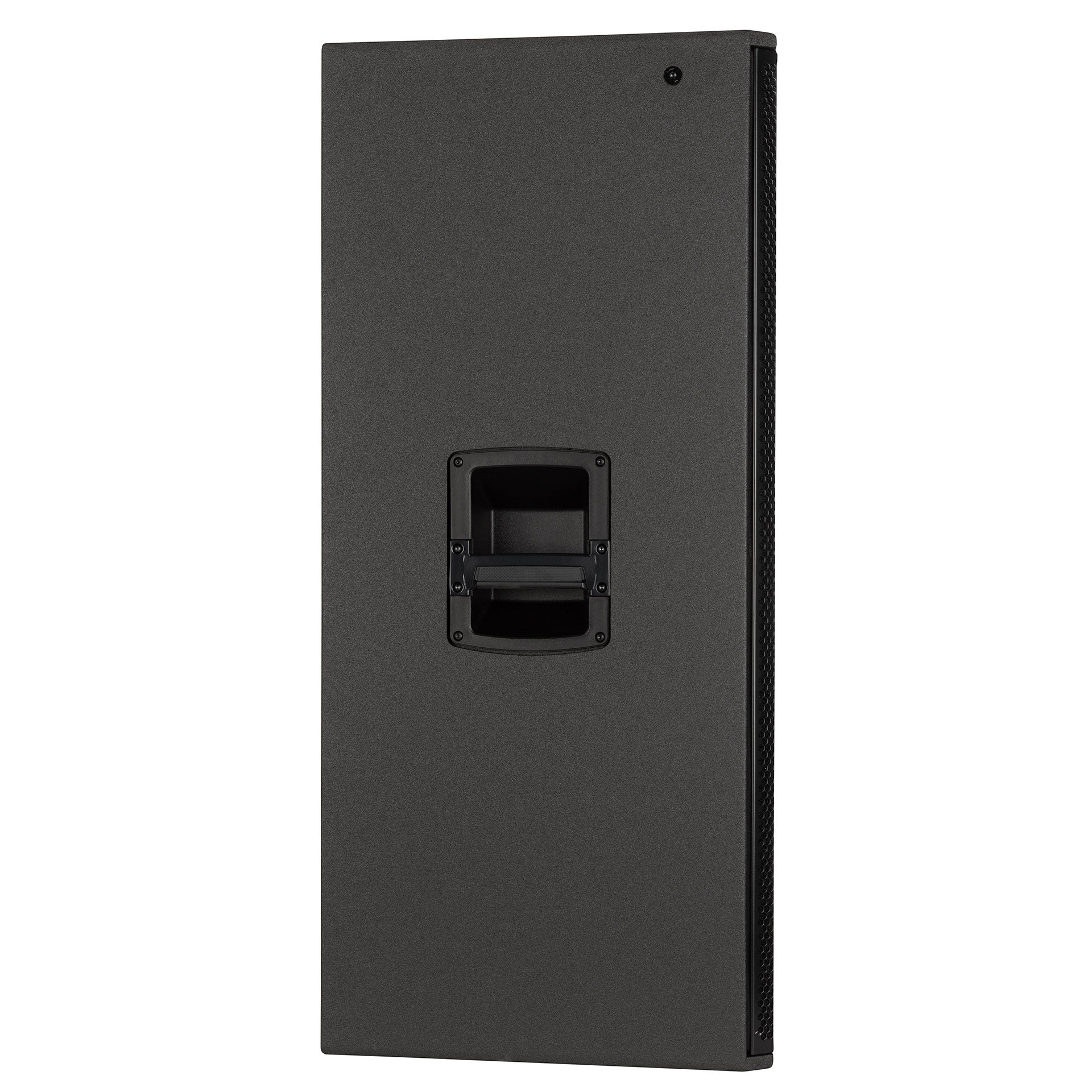

| Handles |
1 x Side |

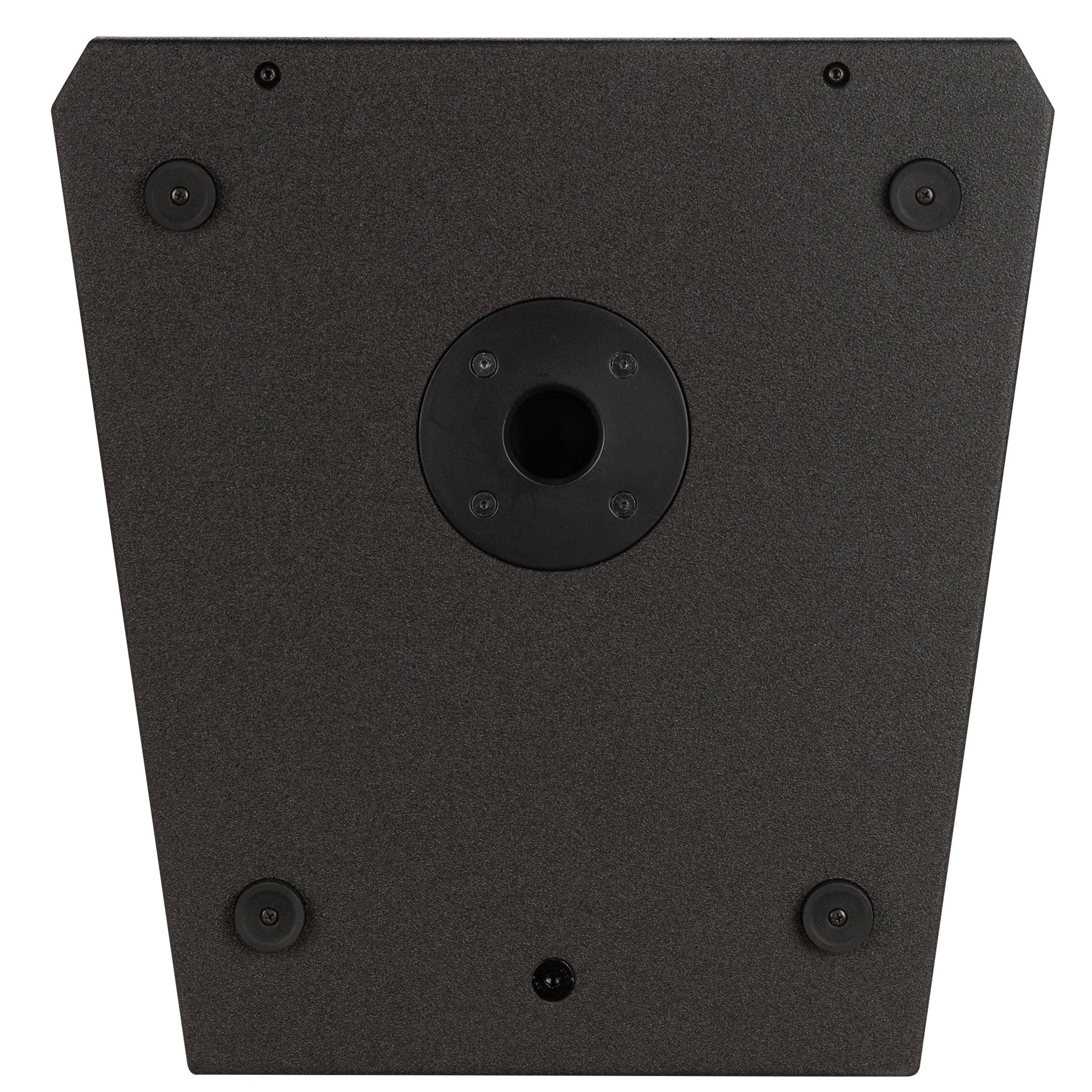

| Pole Mount/Cap |
35 mm insert |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
|---|
| Height |
1075 mm / 42.32 inches |
| Width |
461 mm / 18.15 inches |
| Depth |
475 mm / 18.7 inches |
| Weight |
45 kg / 99.21 lbs |
| Shipping Information |
|---|
| Package Height |
530 mm / 20.87 inches |
| Package Width |
1110 mm / 43.7 inches |
| Package Depth |
490 mm / 19.29 inches |
| Package Weight |
51 kg / 112.44 lbs |
