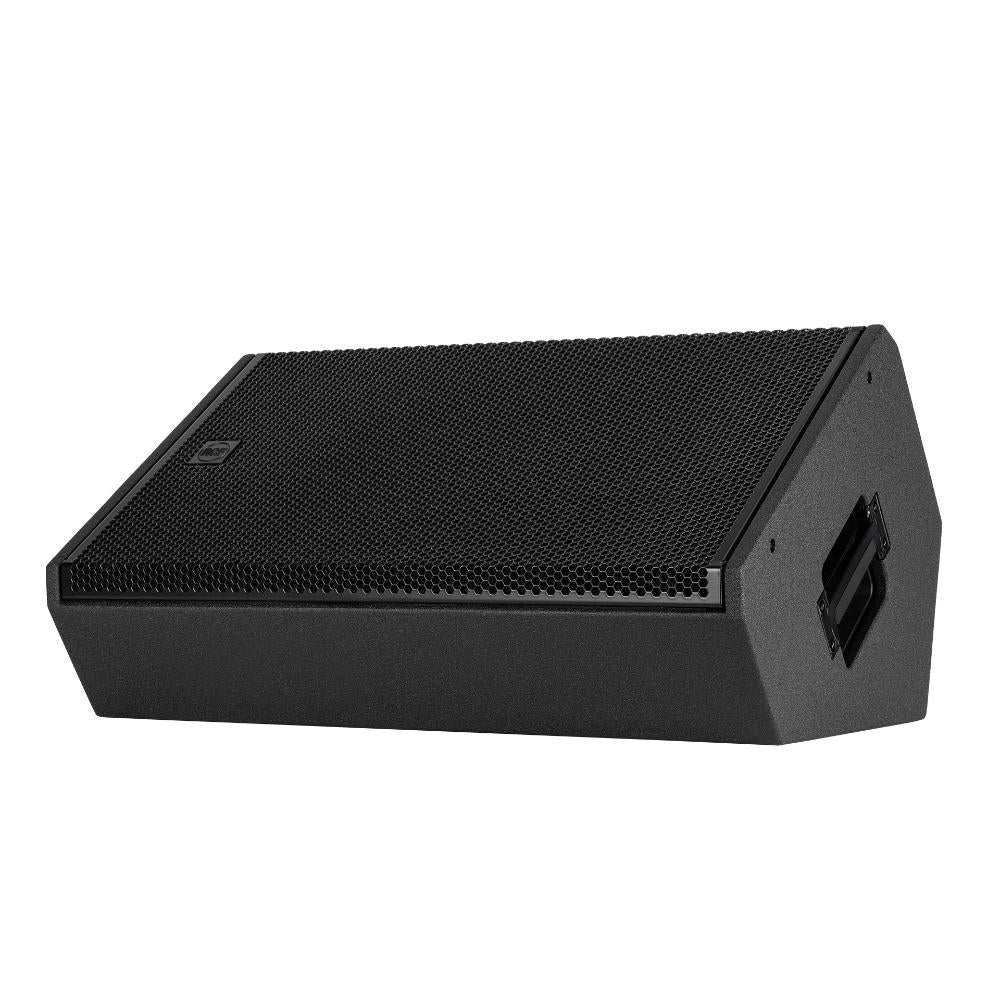

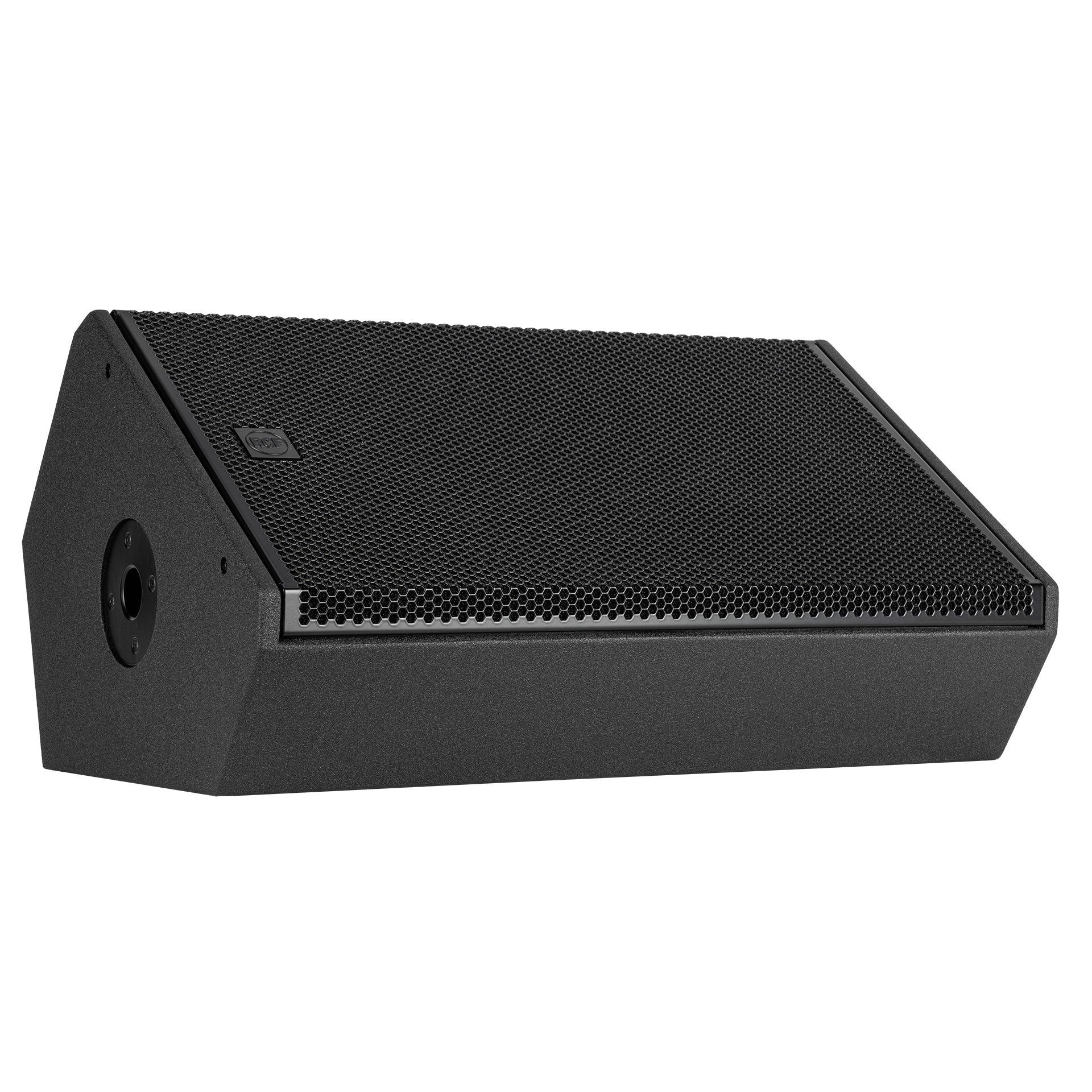

RCF NX 915-SMA Professional Active Stage Monitor

RCF NX 915-SMA PROFESSIONAL ACTIVE STAGE MONITOR Features

• Up to 131 dB Sound Pressure Level
• 2100W Class-D bi-amplification
• 45-20000 Hz linear frequency response

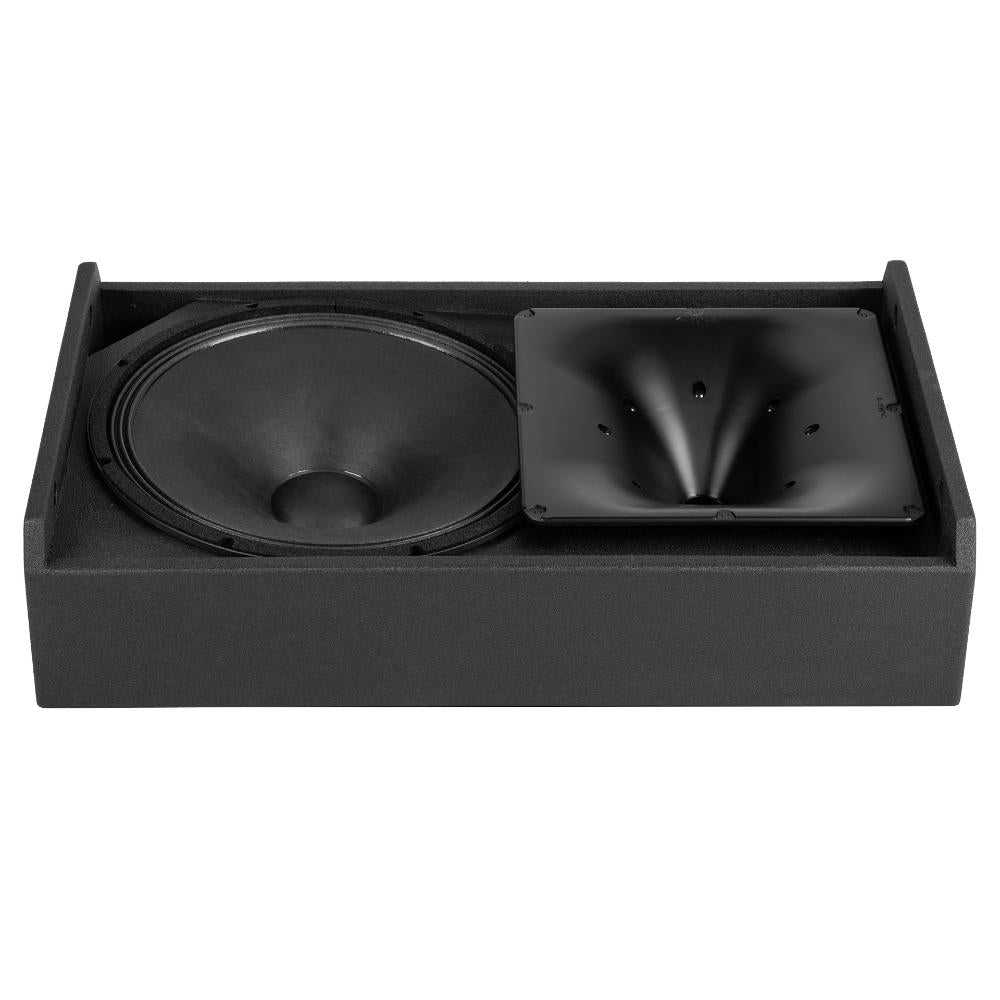

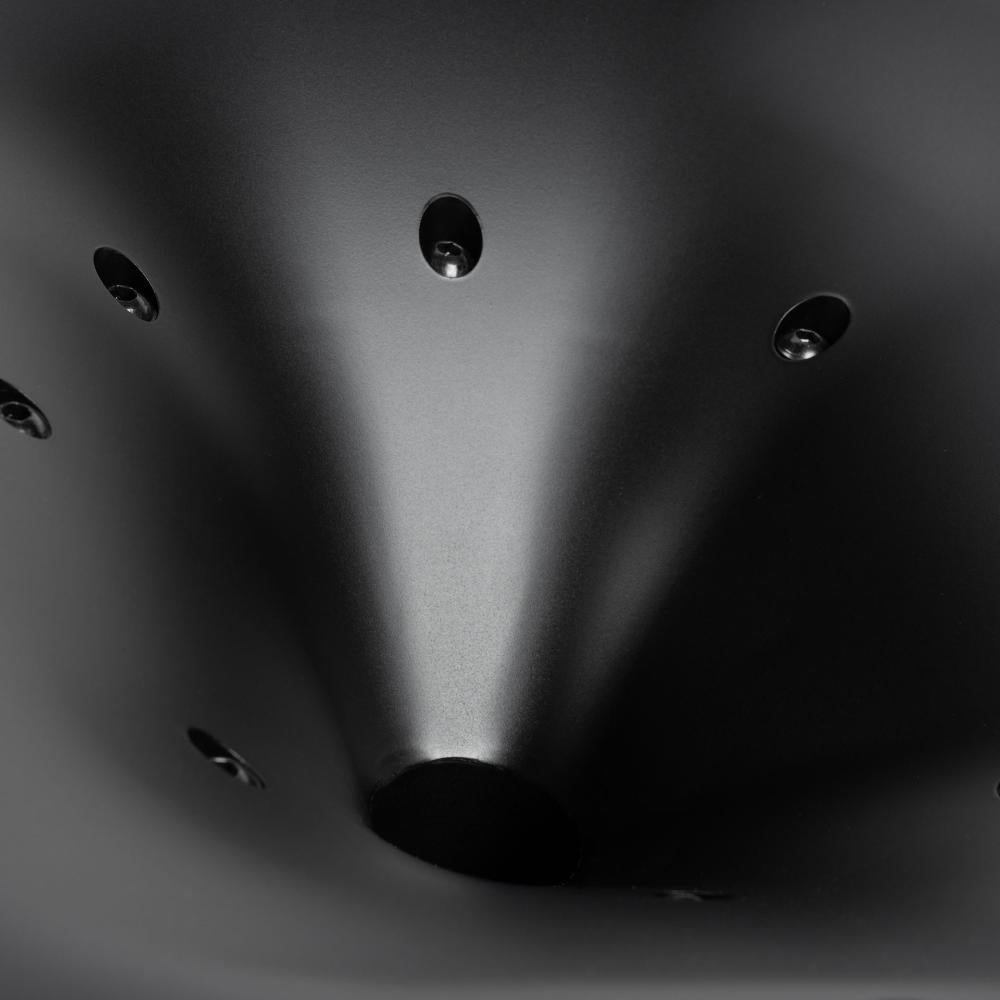

• 1.75" Compression Driver
• 15" Woofer
• FiRPHASE zero degrees phase technology
• Bass Motion Control woofer excursion management
• 70ºx100º Constant Directivity Coverage Angle
• Perfectly tailored for horizontal or vertical deployment


RCF NX 915-SMA PROFESSIONAL ACTIVE STAGE MONITOR Specifications

Acoustical Specifications
Frequency Response	45 Hz - 20000 Hz
Max SPL @ 1m	131 dB
Horizontal Coverage Angle	100°
Vertical Coverage Angle	70°

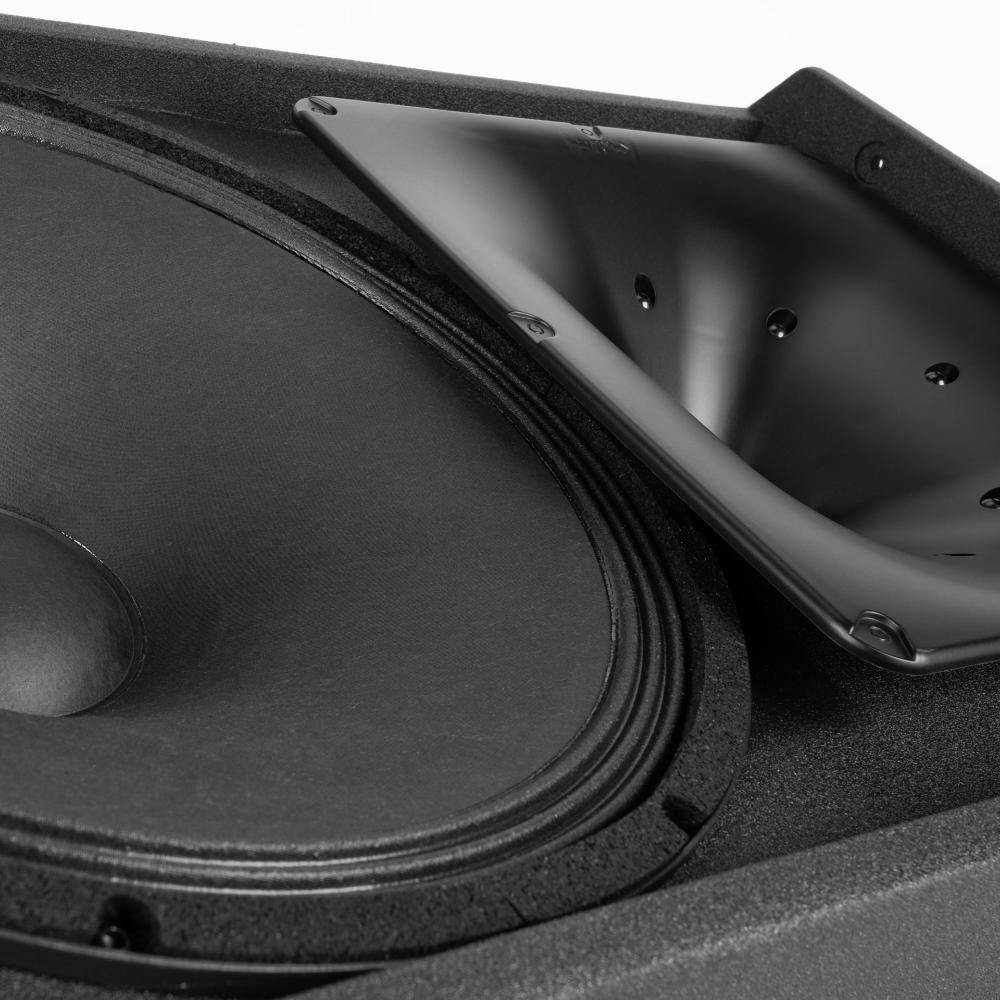

Transducers	Compression Driver 1 x 1.0'', 1.75'' v.c
Woofer	1 x 15'', 2.5'' v.c

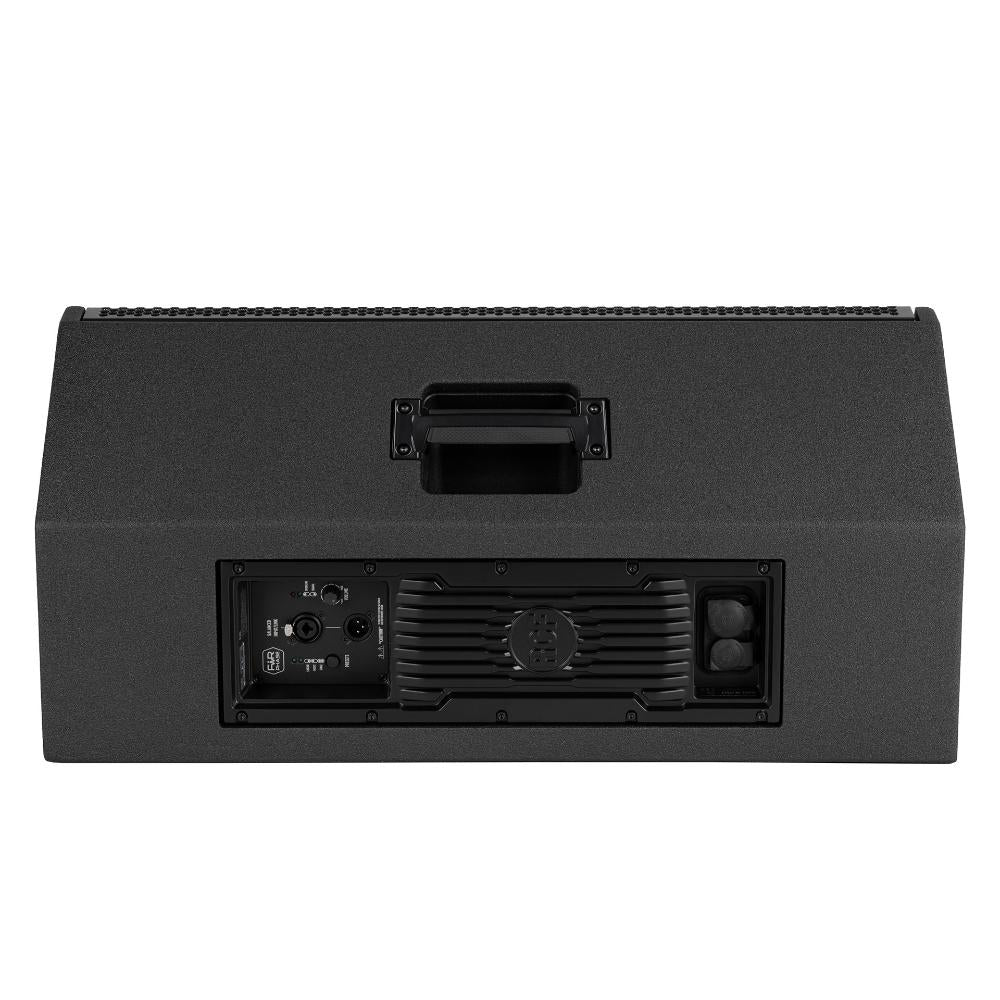

Input/Output Section
Input Signal	Bal/Unbal
Input Connectors	Combo XLR/Jack
Output Connectors	XLR
Input Sensitivity	-2 dBu/+4 dBu
Processor Section
Crossover Frequencies	1600 Hz
Protections	Thermal, RMS
Limiter	Soft Limiter
Power Section
Total Power	2100 W Peak
High Frequencies	700 W Peak
Low Frequencies	1400 W Peak
Cooling	Convection
Connections	Powercon TRUE1 TOP IN/OUT
Standard Compliance
Safety Agency	CE Compliant
Physical Specifications
Cabinet/Case Material	Plywood

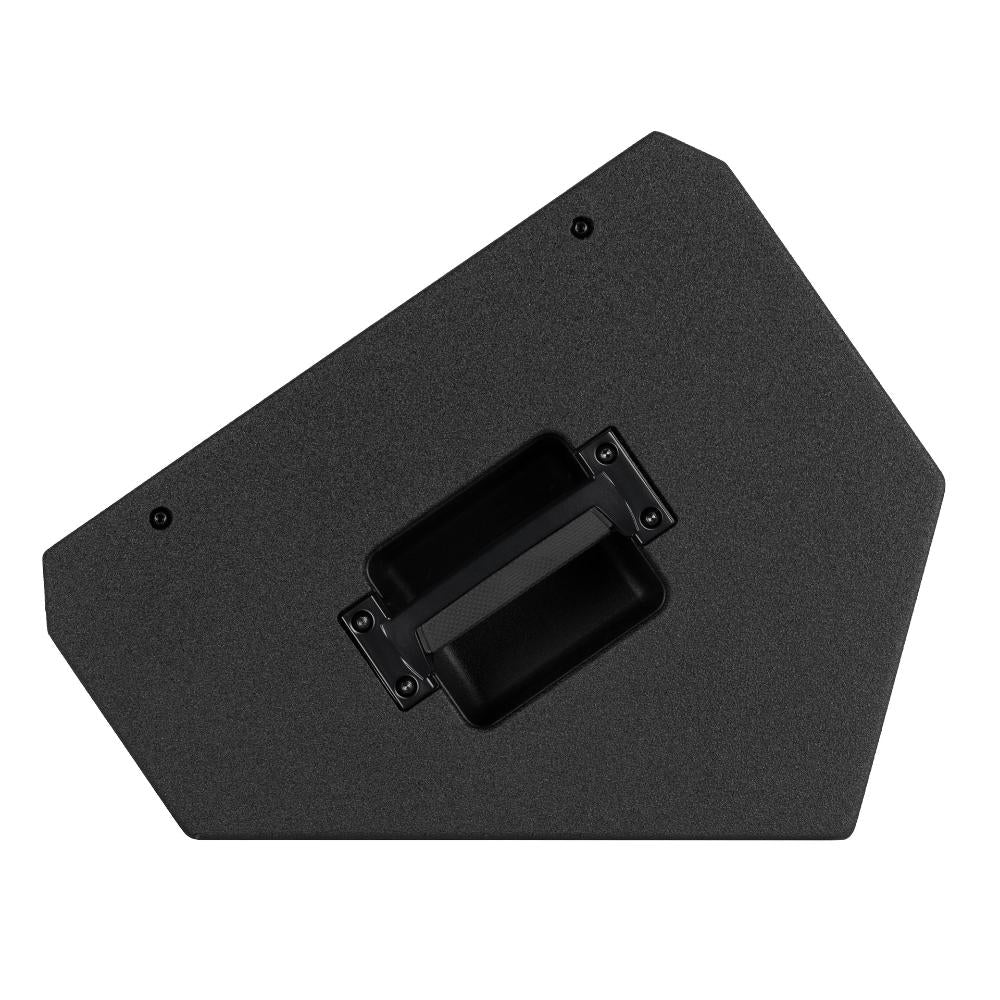

Handles	1 on Side and 1 on Top

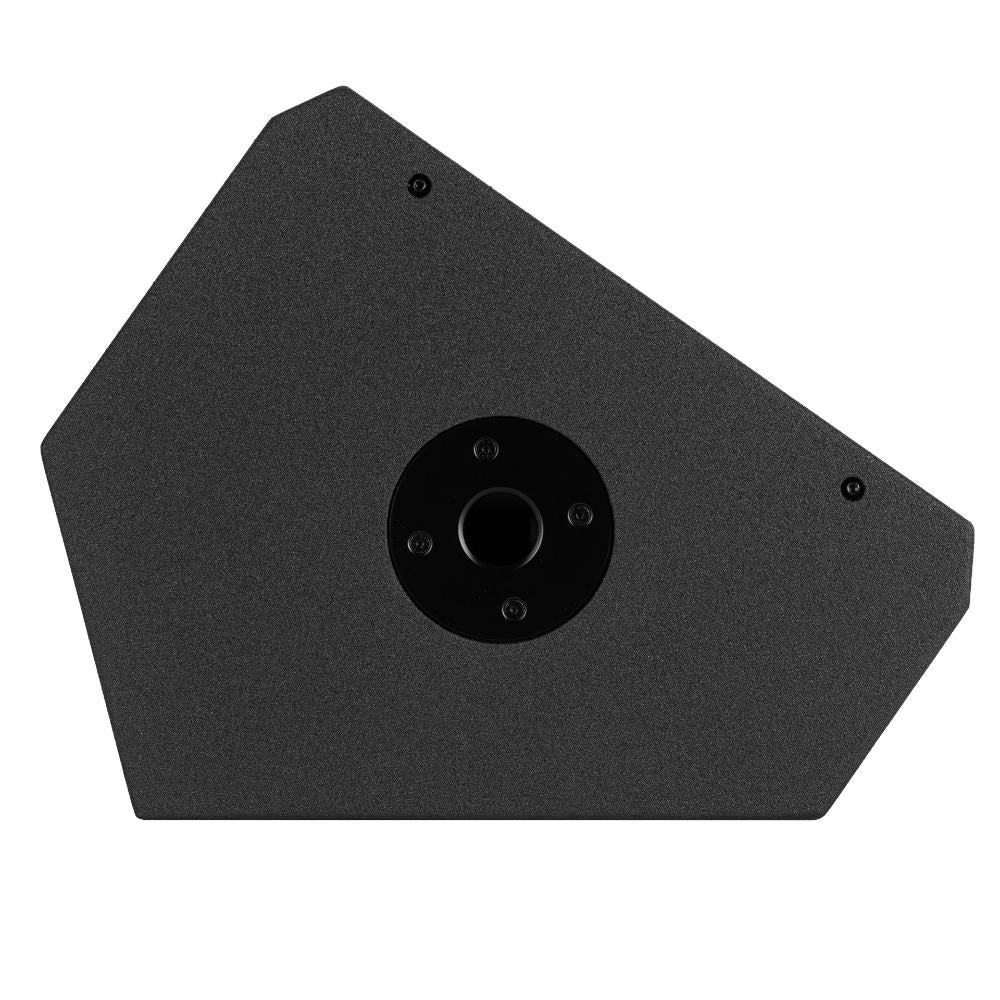

Pole Mount/Cap	35 mm insert

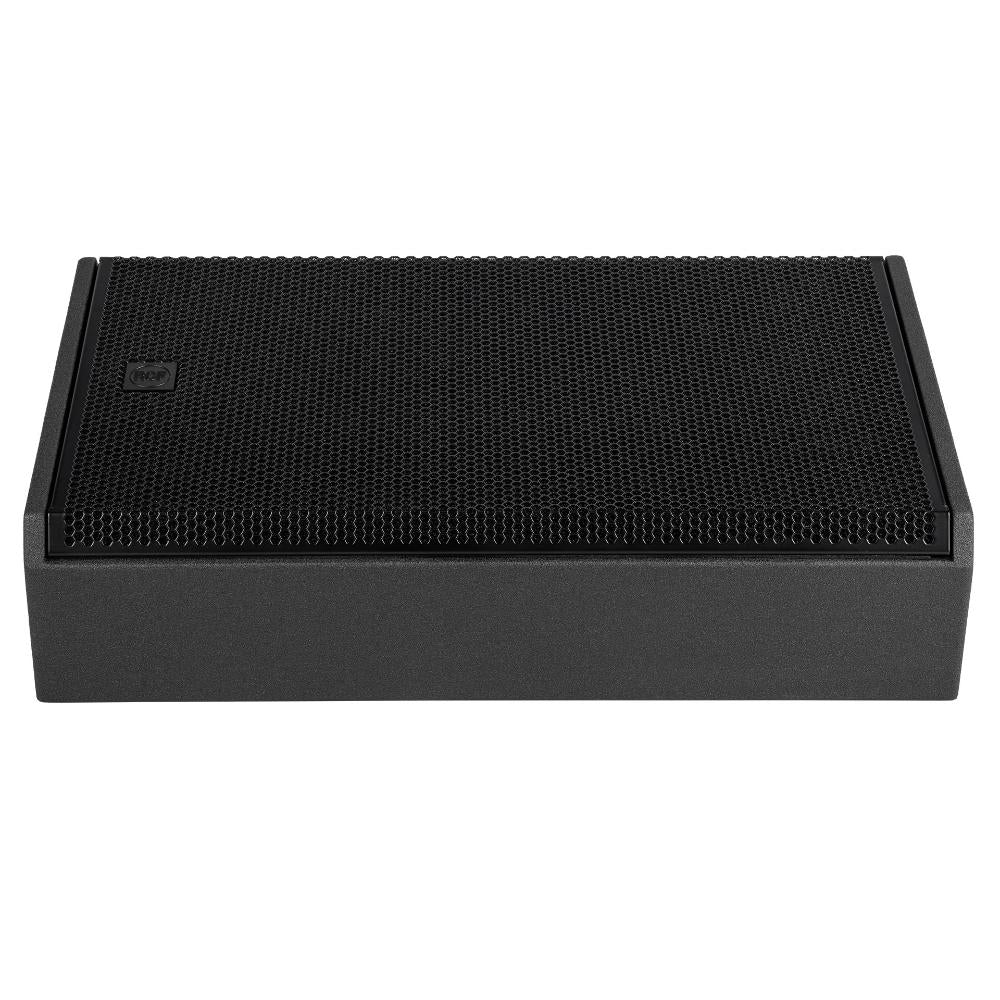

Grille	Steel
Color	Black
Size / Weight
Height	357.3 mm / 14.07 inches
Width	705 mm / 27.76 inches
Depth	456.6 mm / 17.98 inches
Weight	23.8 kg / 52.47 lbs
Shipping Information
Package Height	745 mm / 29.33 inches
Package Width	505 mm / 19.88 inches
Package Depth	425 mm / 16.73 inches
Package Weight	27.5 kg / 60.63 lbs
