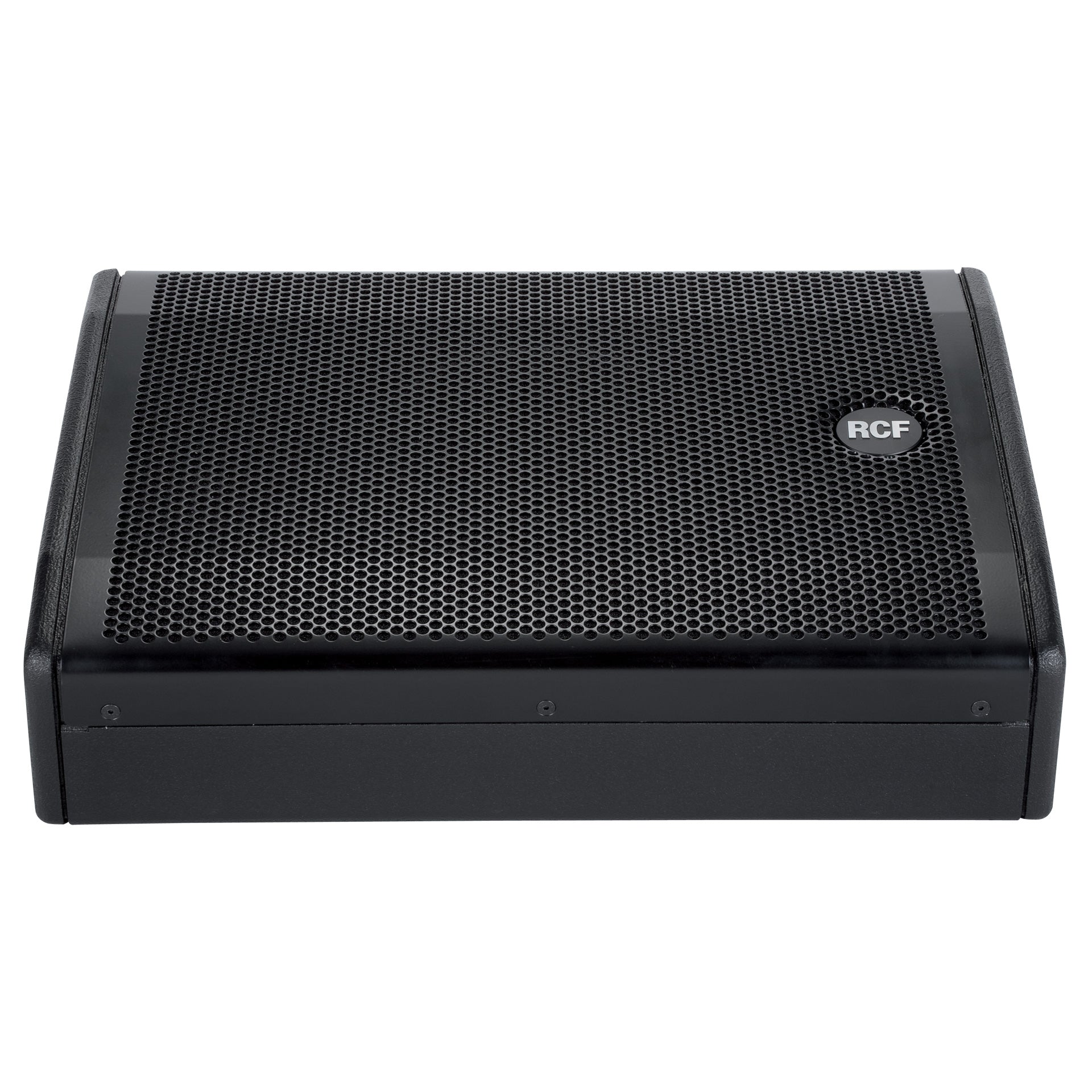

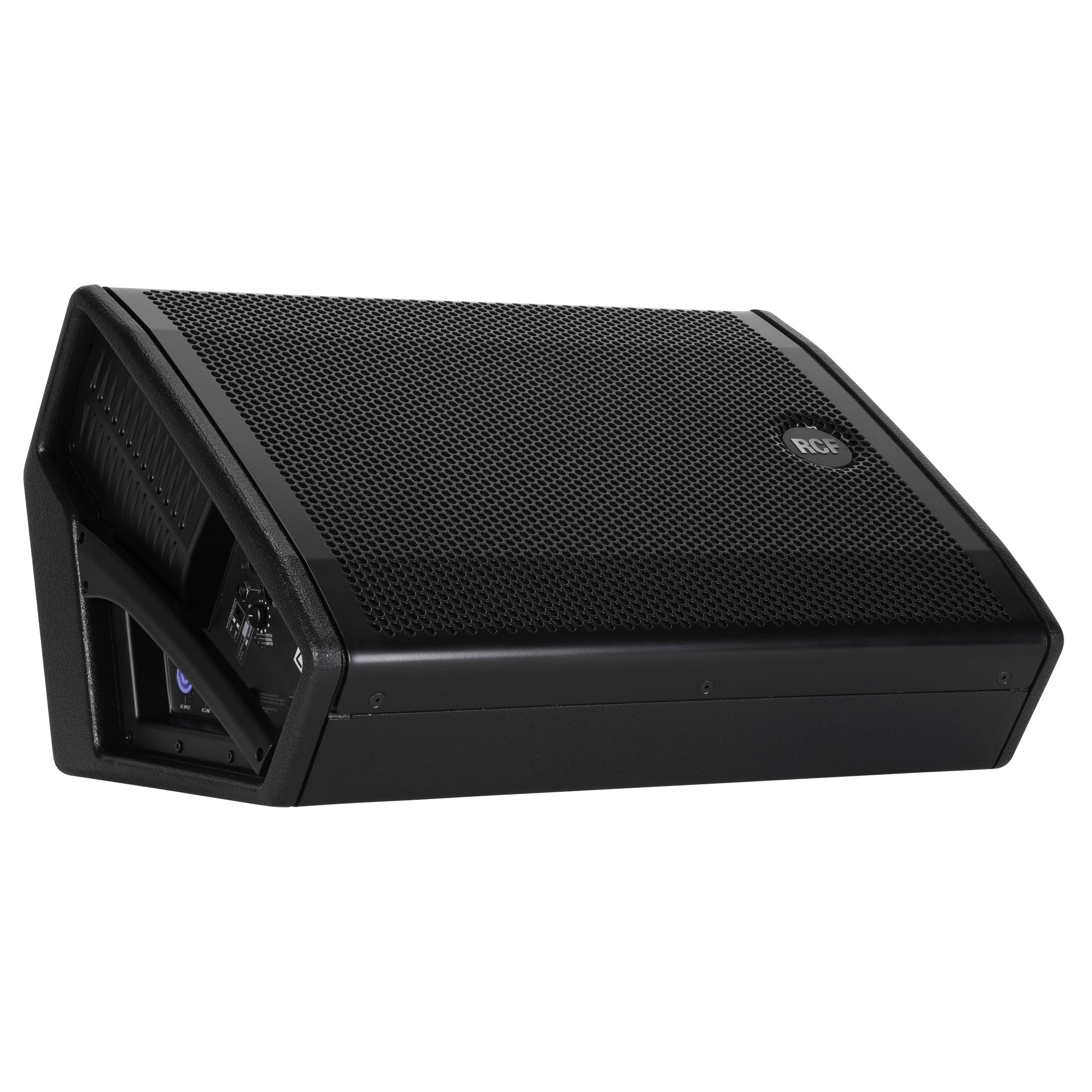

RCF NX 12-SMA ACTIVE COAXIAL STAGE MONITOR

Features

• 1400 Watt Peak, 700 Watt RMS digital bi-amplification
• 129 dB max spl
• 60° x 60° constant directivity horn

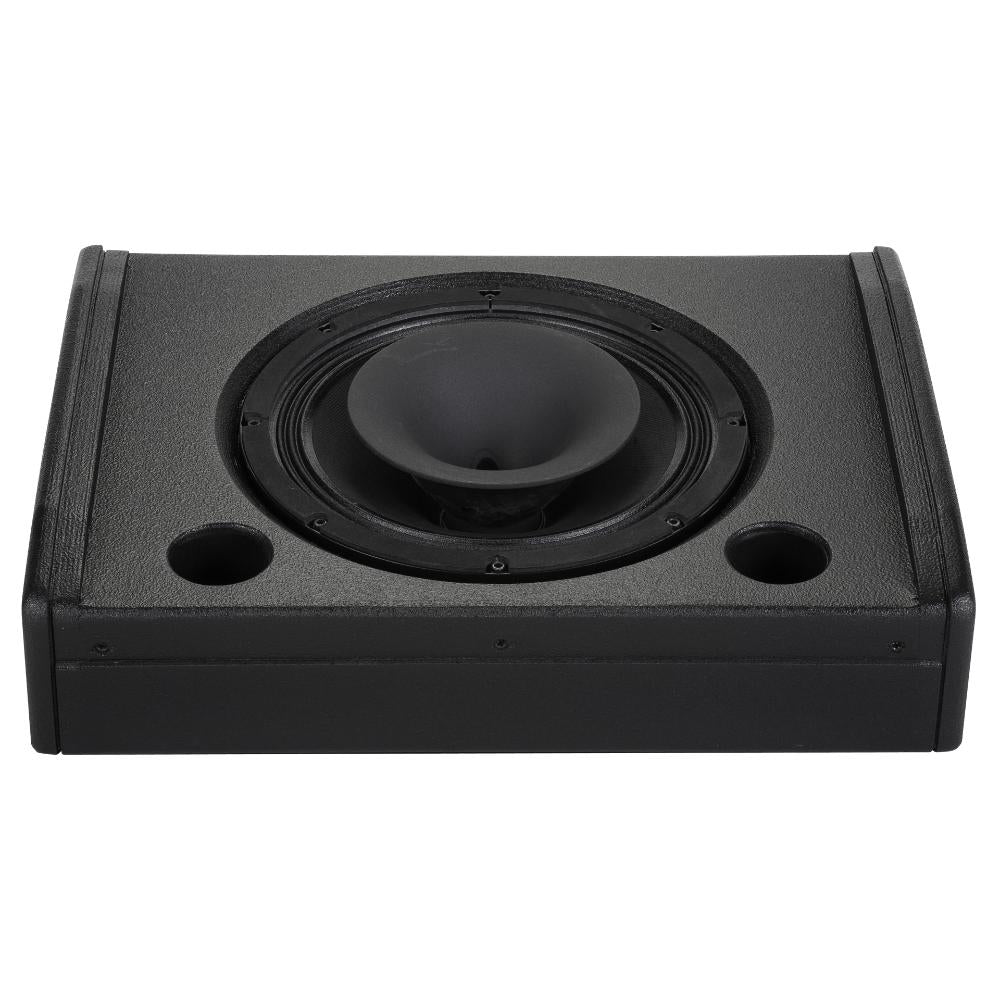

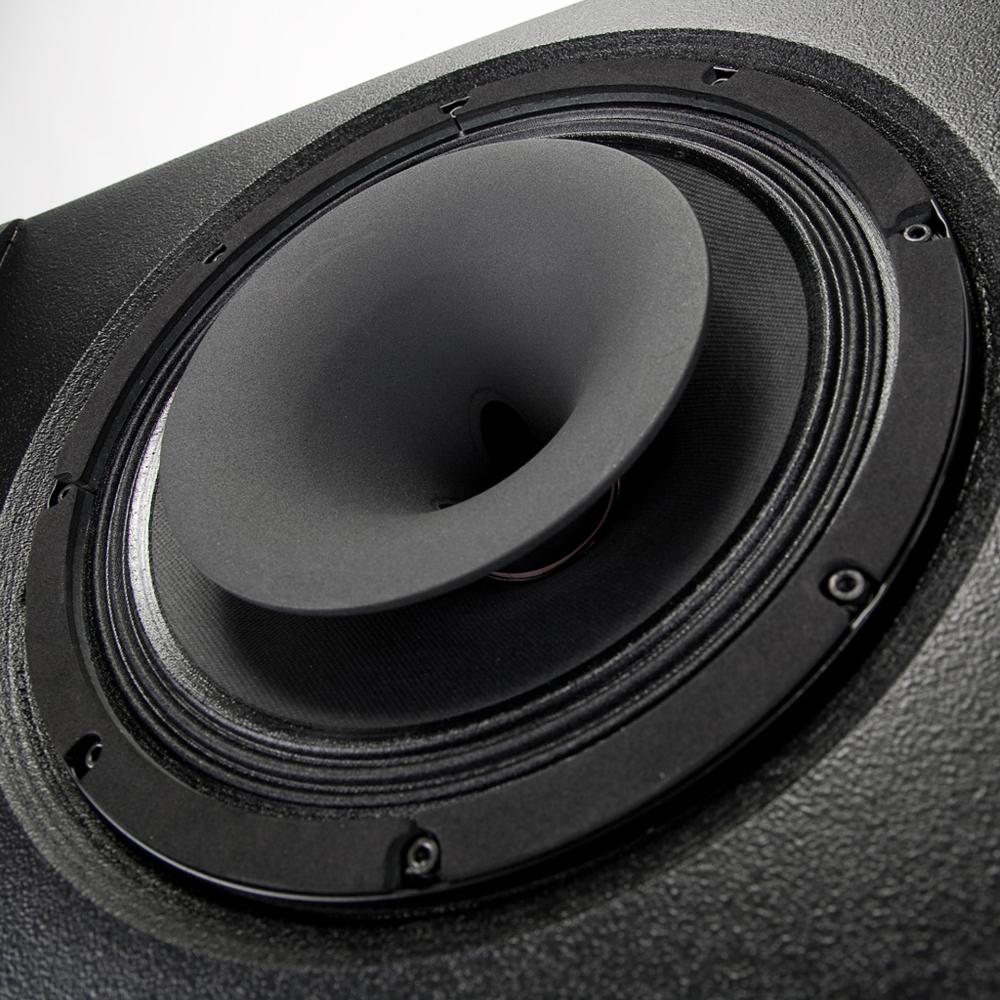

• 12" High power neodymium woofer, 2.5" voice coil
• 1.7" kapton dome, 1" exit, neodymium high frequency driver
• DSP processing, floor - fre field equalization, soft limiter and protection

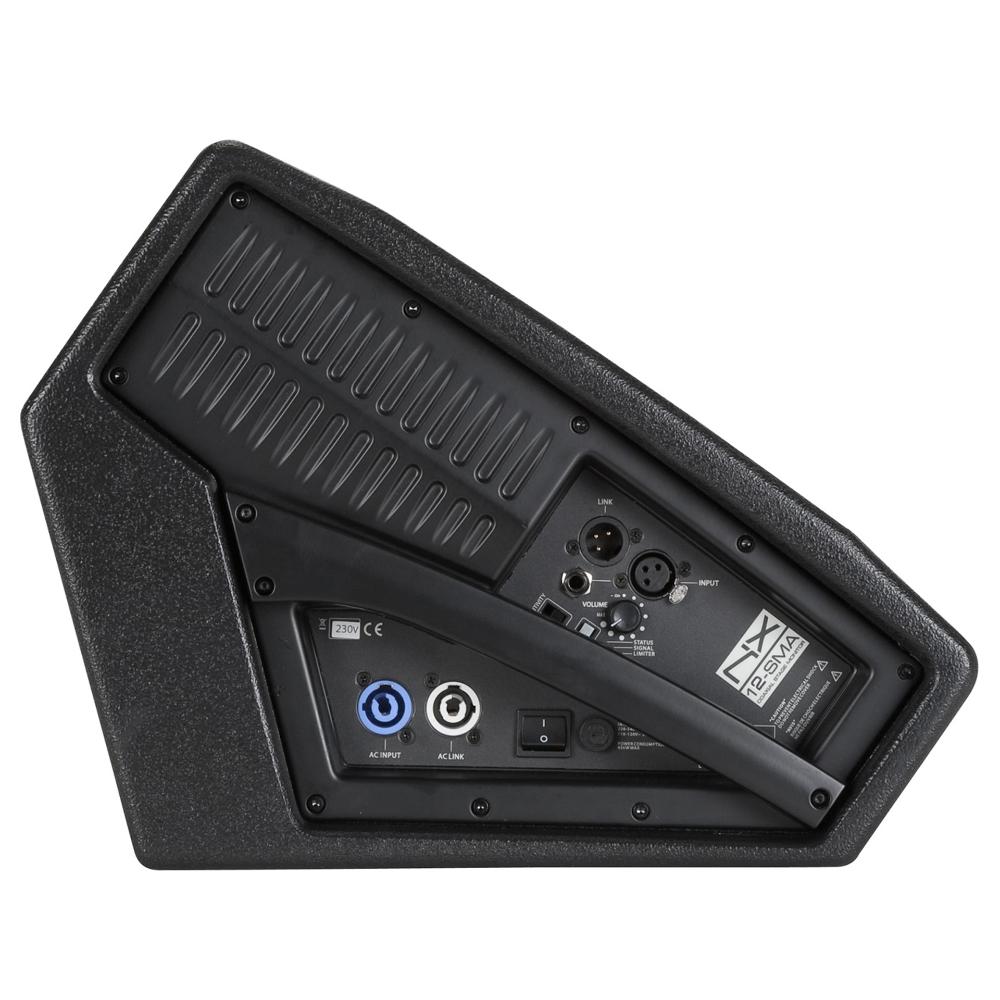

• Combo xlr/jack input, xlr signal output

Specifications

Specification	Details
Frequency Response	50 Hz – 20,000 Hz
Max SPL @ 1m	129 dB
Horizontal Coverage Angle	60°
Vertical Coverage Angle	60°
Compression Driver	Coaxial 1.0" neo, 1.75" voice coil
Woofer	1 x 12" neo, 2.5" voice coil
Input Signal	Balanced / unbalanced
Input Connectors	XLR, jack
Output Connectors	XLR
Input Sensitivity	+4 dBu
Protections	RMS, HF
Limiter	Soft limiter
Controls	Freefield, floor
Total Power	1400 W peak, 700 W RMS
High Frequencies	400 W peak, 200 W RMS
Low Frequencies	1000 W peak, 500 W RMS
Cooling	Convection
Connections	Powercon IN/OUT
Safety Agency	CE compliant
Cabinet / Case Material	Baltic birch plywood
Handles	1 on side
Pole Mount / Cap	35 mm insert

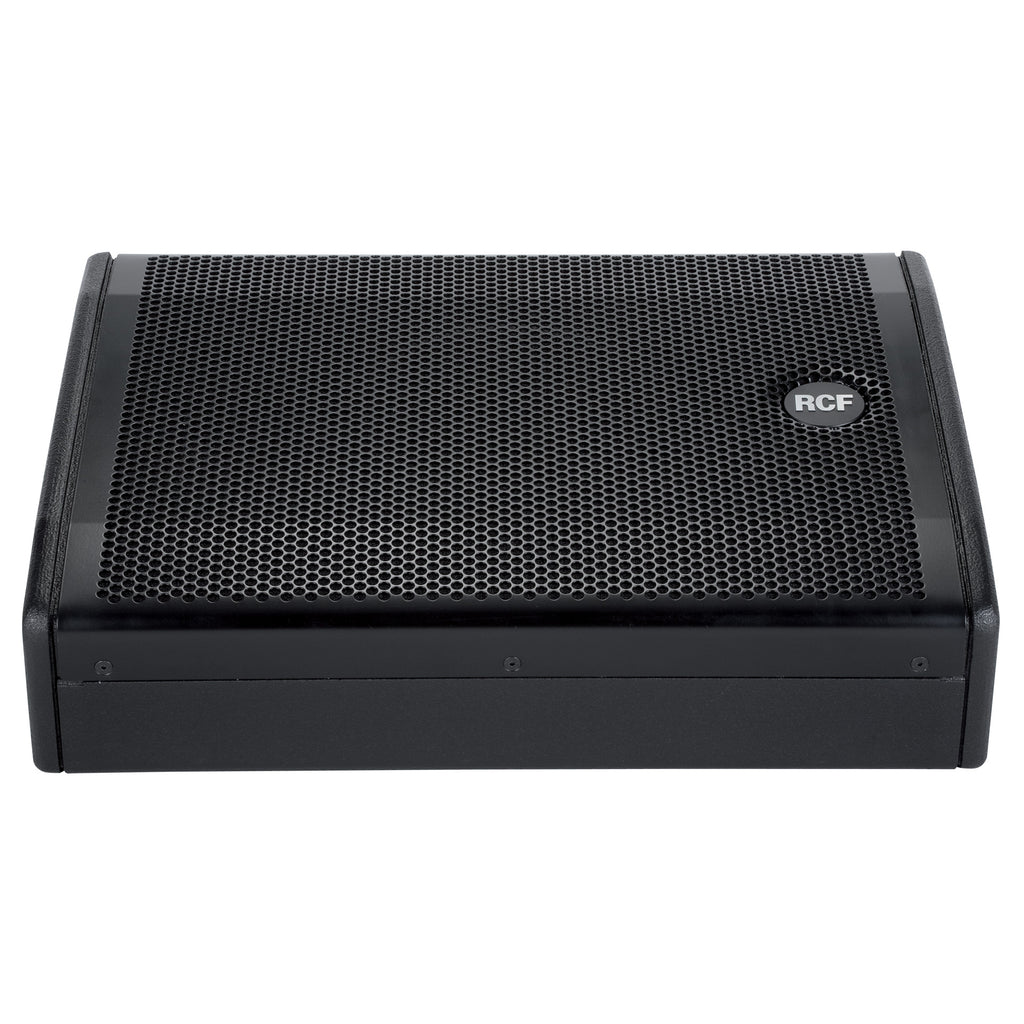

Grille	Steel
Color	Black
Dimensions (H x W x D)	324 x 550 x 417 mm (12.76 x 21.65 x 16.42 in)
Weight	16.6 kg (36.6 lb)
Package Dimensions (H x W x D)	604 x 504 x 404 mm (23.78 x 19.84 x 15.91 in)
Package Weight	20.2 kg (44.53 lb)
