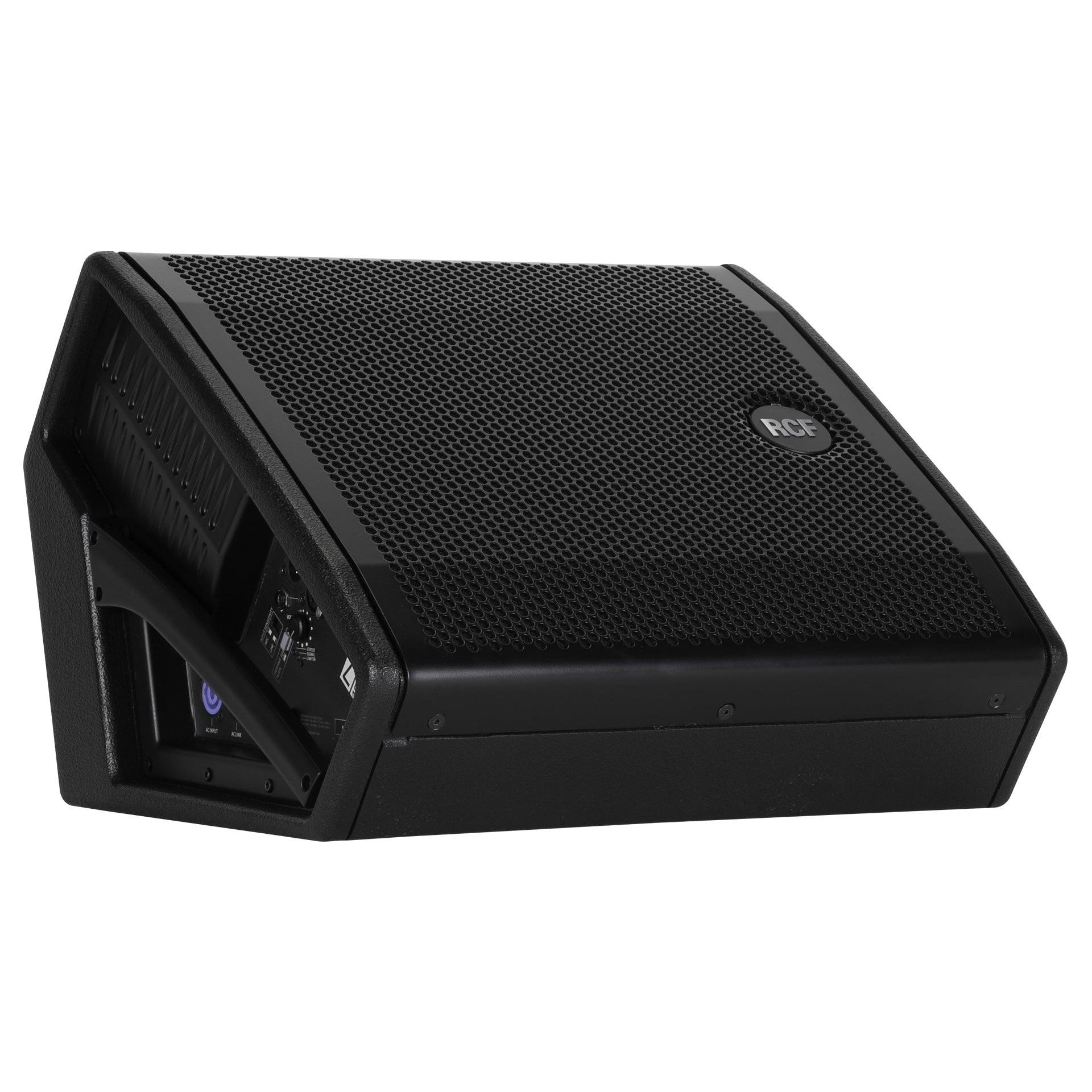

RCF NX 10-SMA Active Coaxial Stage Monitor

RCF NX 10-SMA ACTIVE COAXIAL STAGE MONITOR Features

• 800 Watt Peak, 400 Watt RMS digital bi-amplification
• 127 dB max spl
• 60° x 60° constant directivity horn
• 10" High power neodymium woofer, 2.5" voice coil
• 1.7 kapton dome, 1" exit, neodymium high frequency driver
• DSP processing, floor - fre field equalization, soft limiter and protection
• Combo xlr/jack input, xlr signal output

RCF NX 10-SMA ACTIVE COAXIAL STAGE MONITOR Specifications

Acoustical Specifications
Frequency Response	60 Hz - 20000 Hz
Max SPL @ 1m	127 dB
Horizontal Coverage Angle	60°
Vertical Coverage Angle	60°

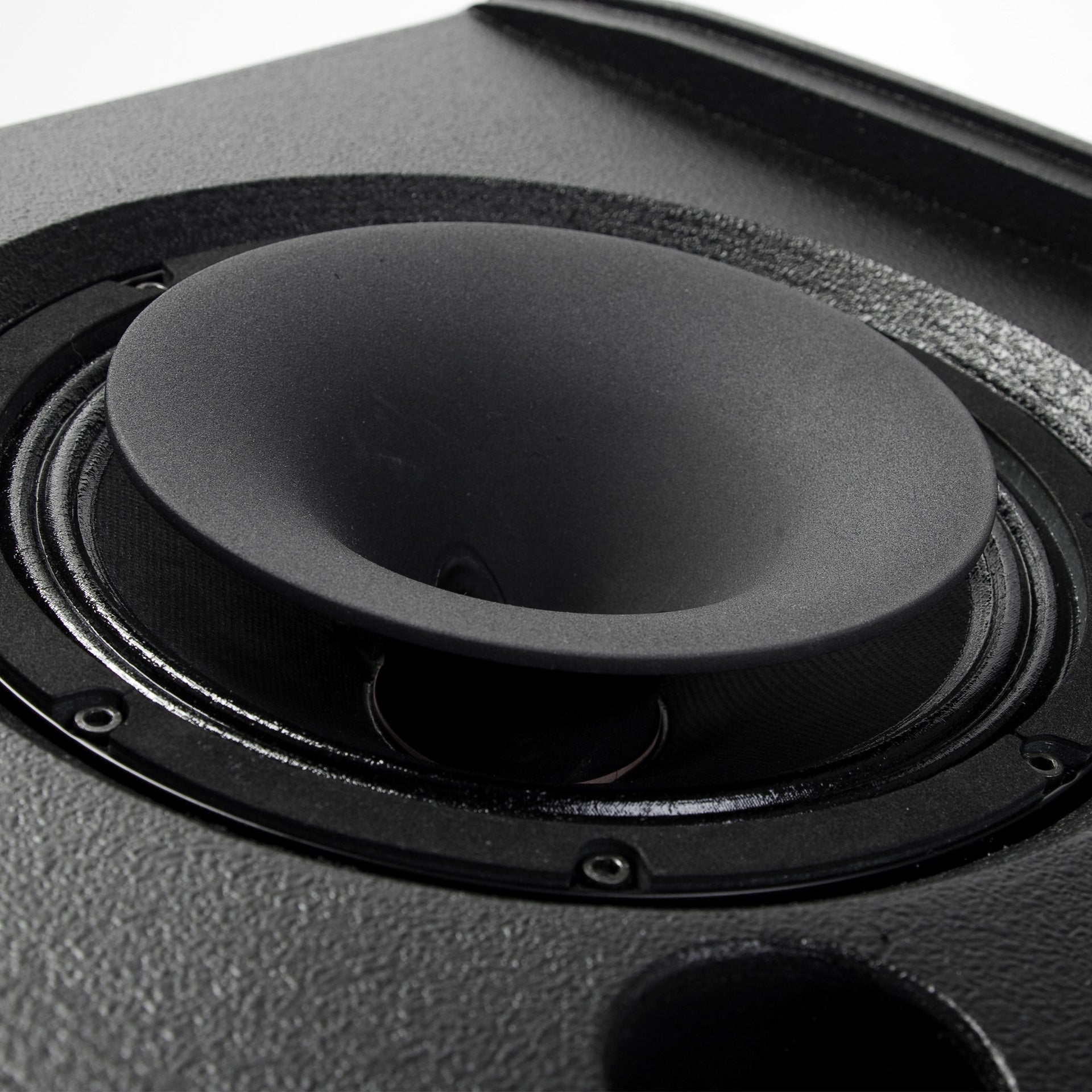

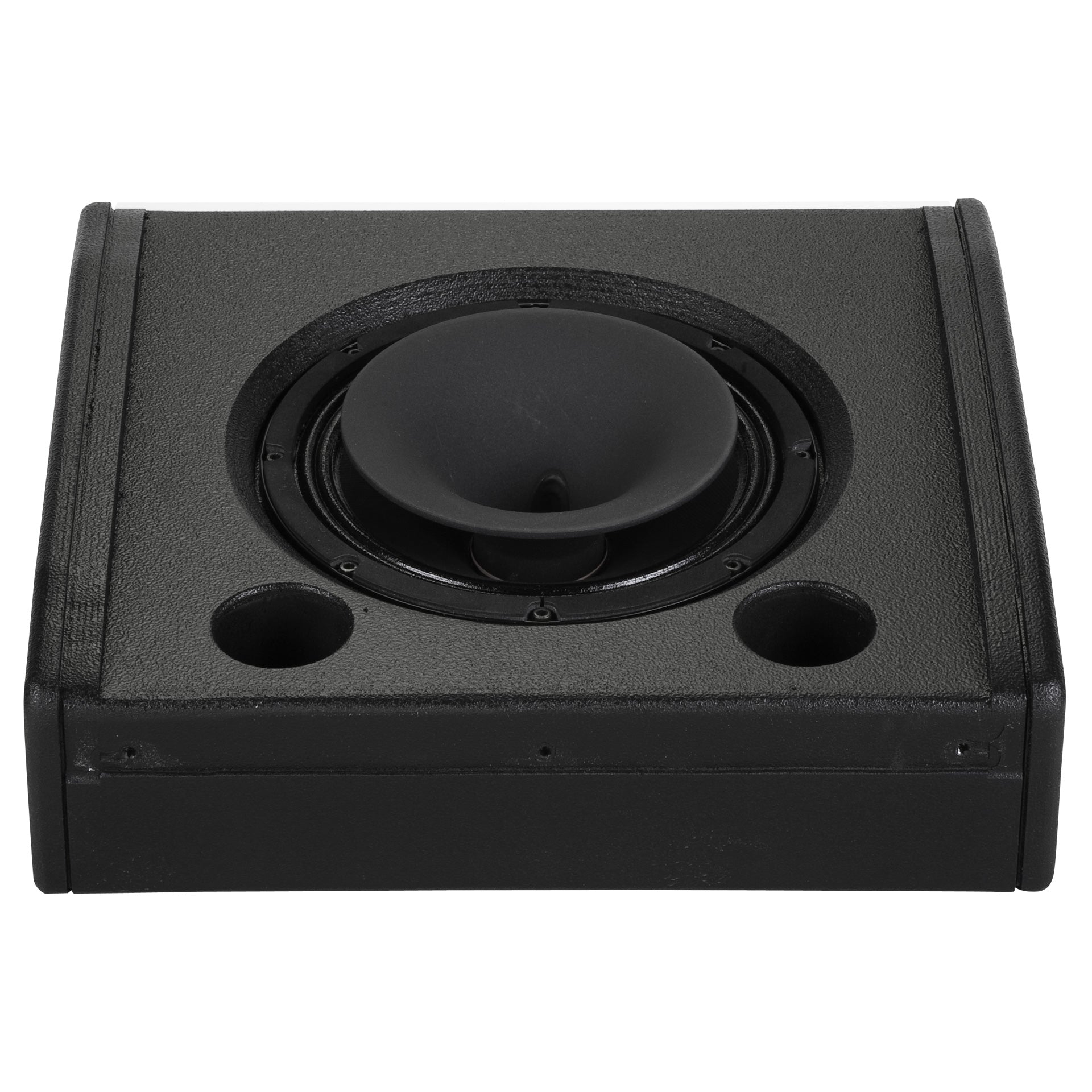

Transducers	Coaxial Compression Driver 1.0'' neo, 1.75'' v.c
Woofer	1 x 10'' neo, 2.5'' v.c

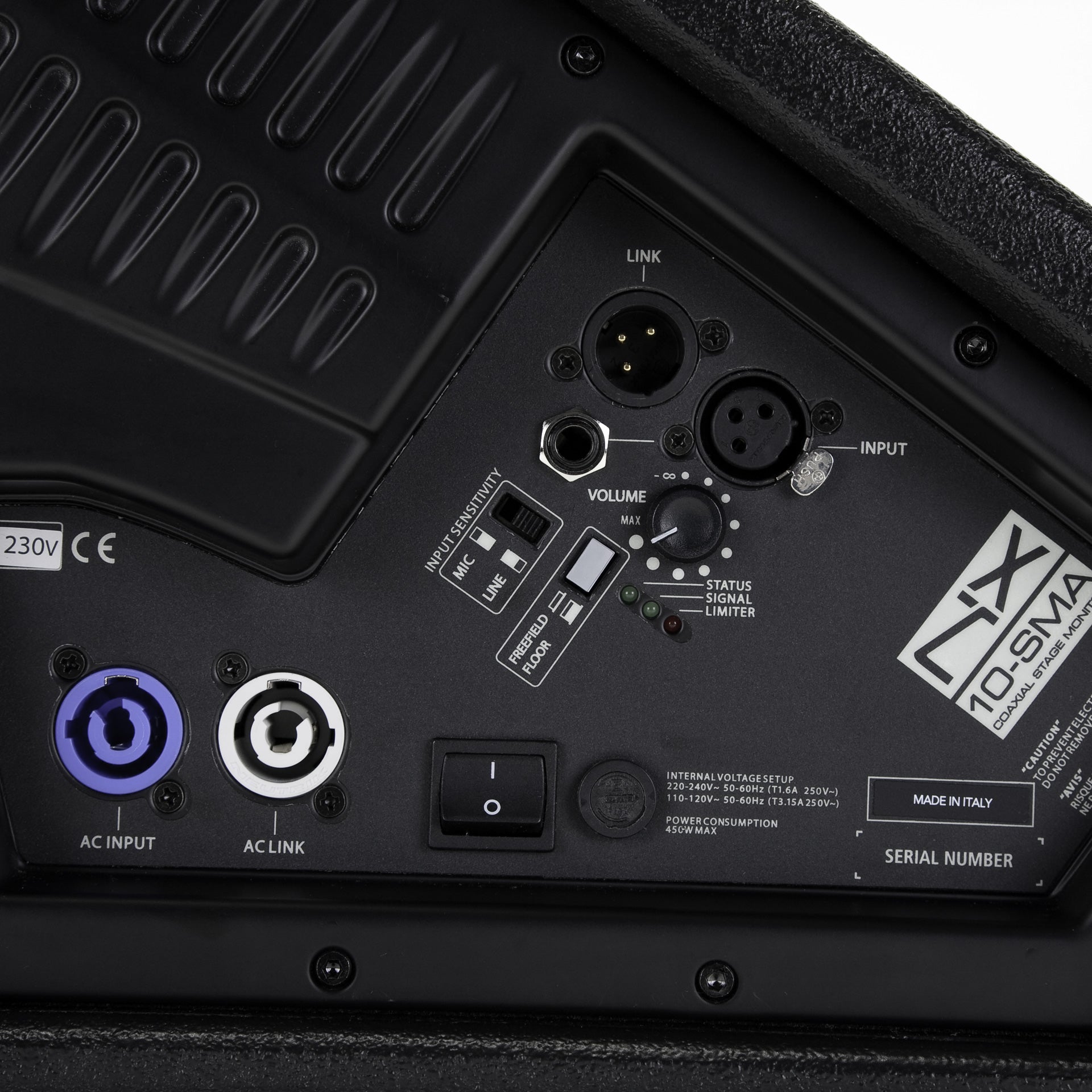

Input/Output Section
Input Signal	Bal/Unbal
Input Connectors	XLR, Jack
Output Connectors	XLR
Input Sensitivity	+4 dBu
Processor Section
Protections	RMS, HF
Limiter	Soft Limiter
Controls	Freefield, Floor
Power Section
Total Power	800 W Peak, 400 W RMS
High Frequencies	200 W Peak, 100 W RMS
Low Frequencies	600 W Peak, 300 W RMS
Cooling	Convection

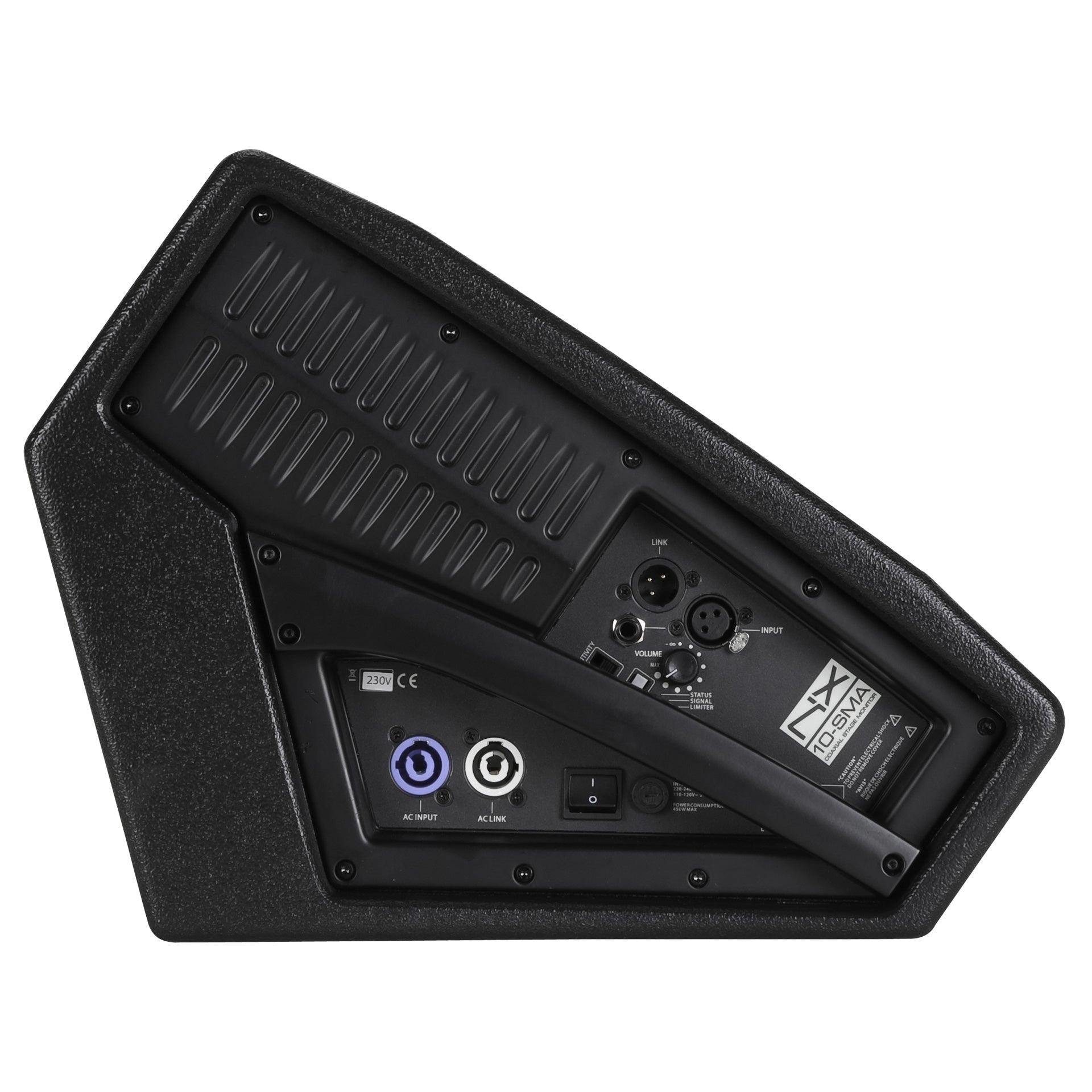

Connections	Powercon IN/OUT
Standard Compliance
Safety Agency	CE Compliant
Physical Specifications
Cabinet/Case Material	Baltic Birch Plywood

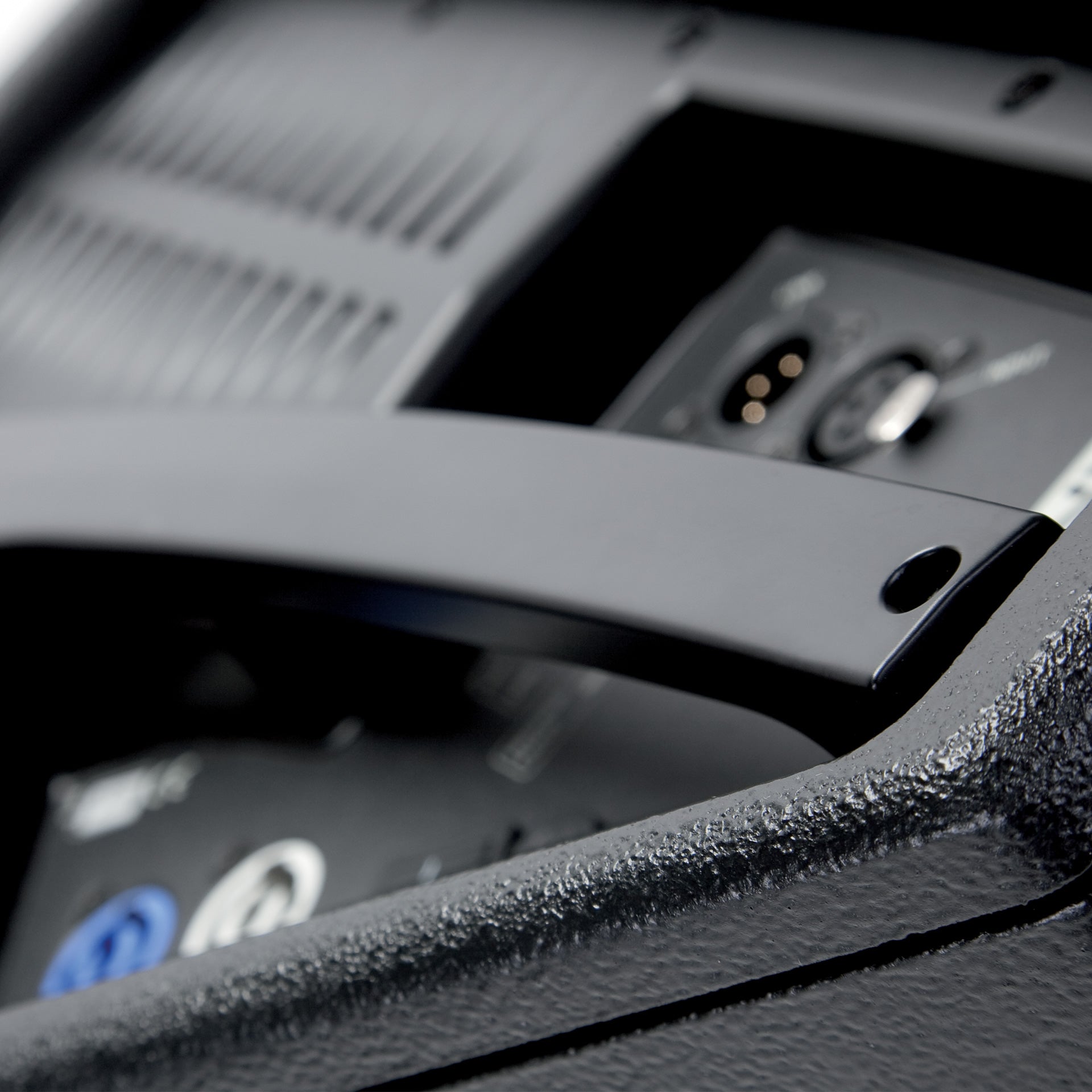

Handles	1 on Side

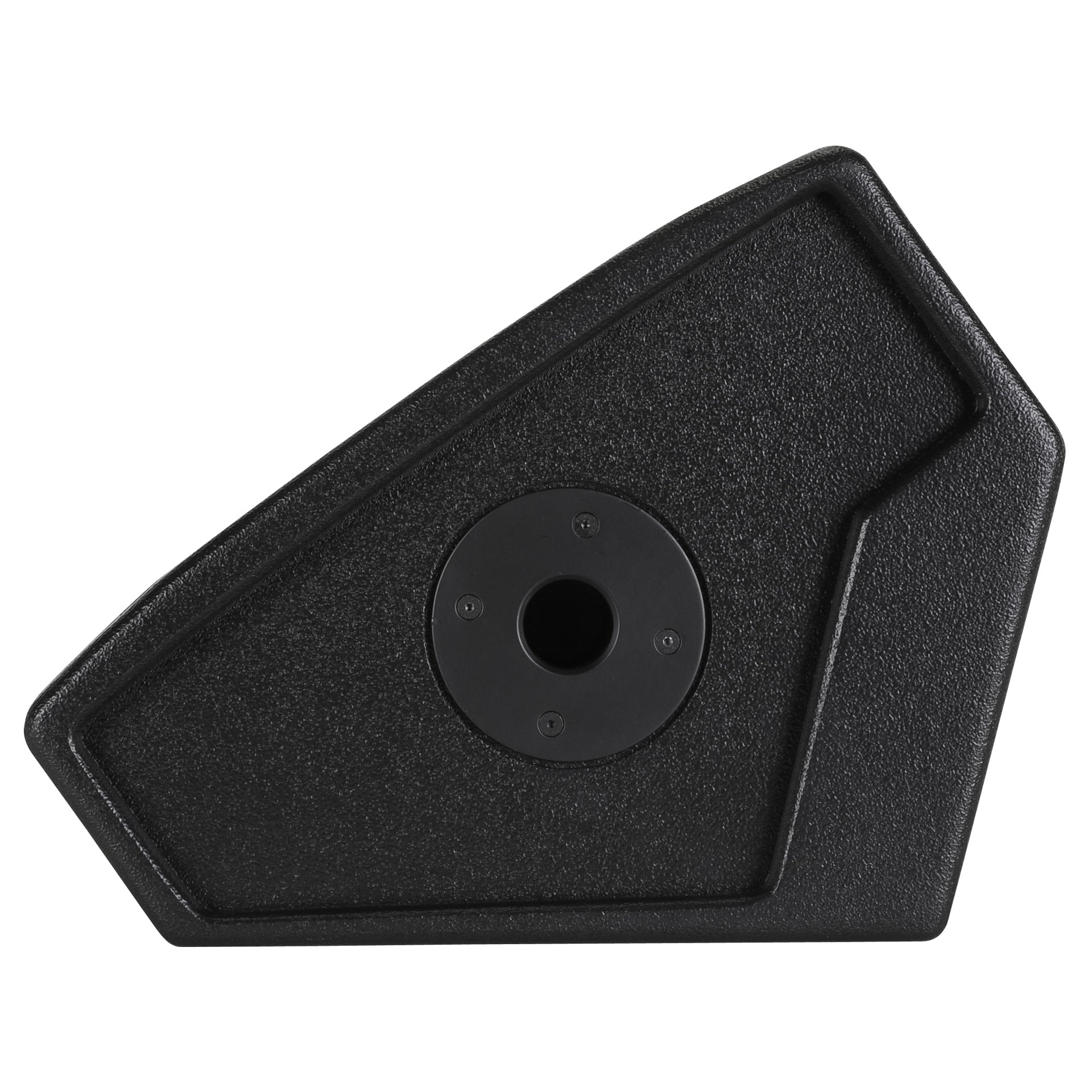

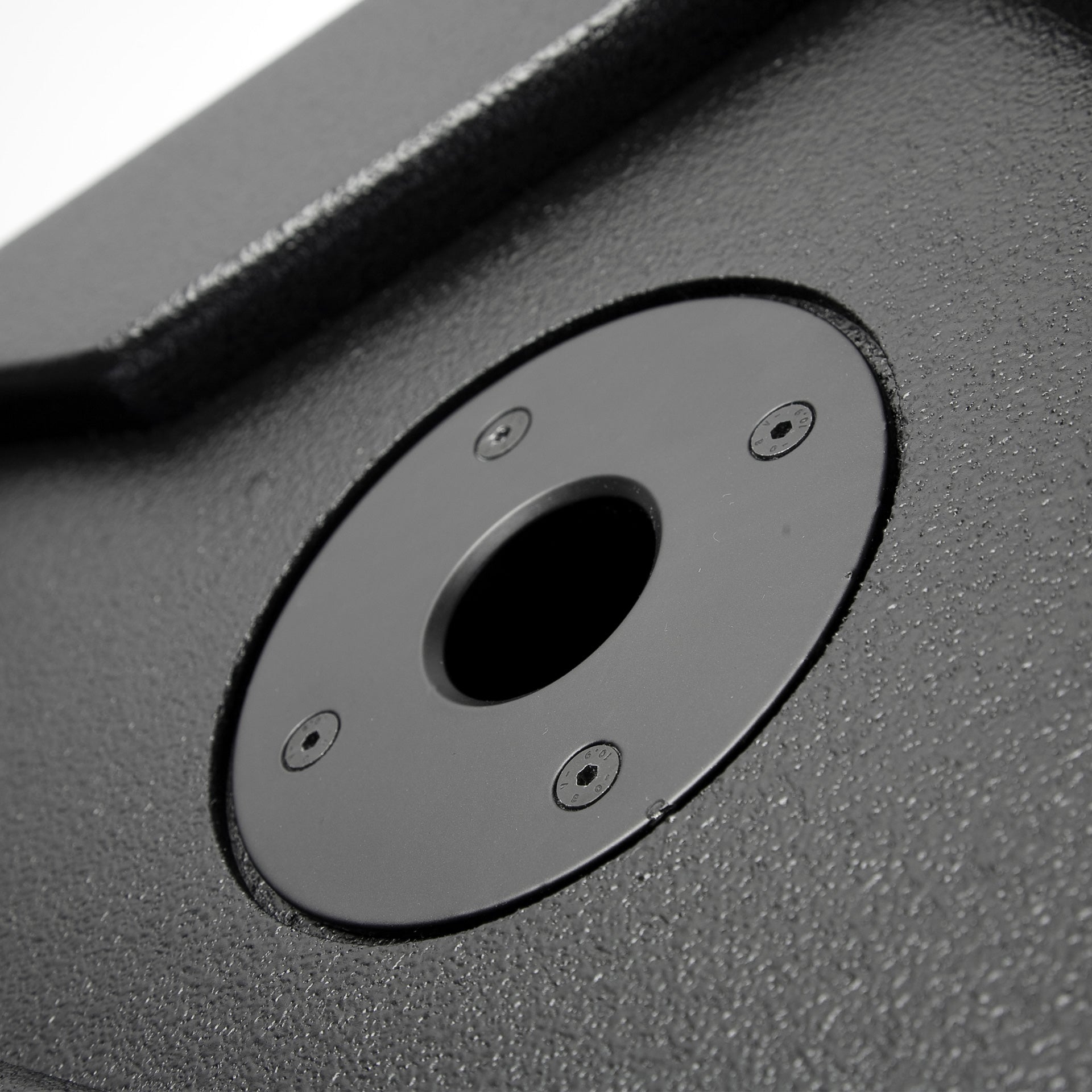

Pole Mount/Cap	35 mm insert

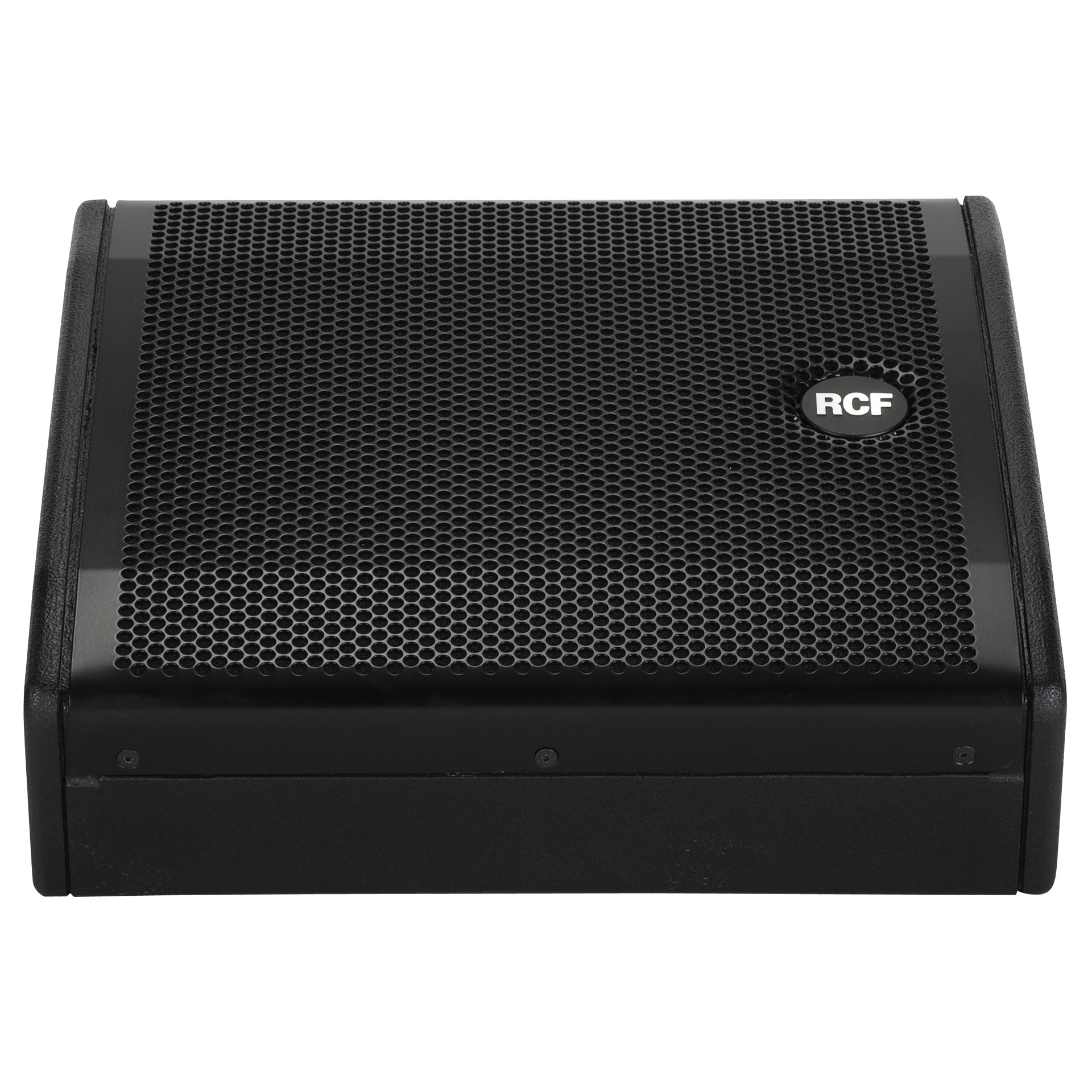

Grille	Steel
Color	Black
Size / Weight
Height	324 mm / 12.76 inches
Width	450 mm / 17.72 inches
Depth	417 mm / 16.42 inches
Weight	14.3 kg / 31.53 lbs
Shipping Information
Package Height	504 mm / 19.84 inches
Package Width	504 mm / 19.84 inches
Package Depth	404 mm / 15.91 inches
Package Weight	17.4 kg / 38.36 lbs
