Features
- 40 W (8 ohm) / 20 W - 10 W - 5 W - 2.5 W (70/100V) power handling
- 108 dB max SPL
- 70 ÷ 20000 Hz frequency range
- 110° x 100° coverage angles

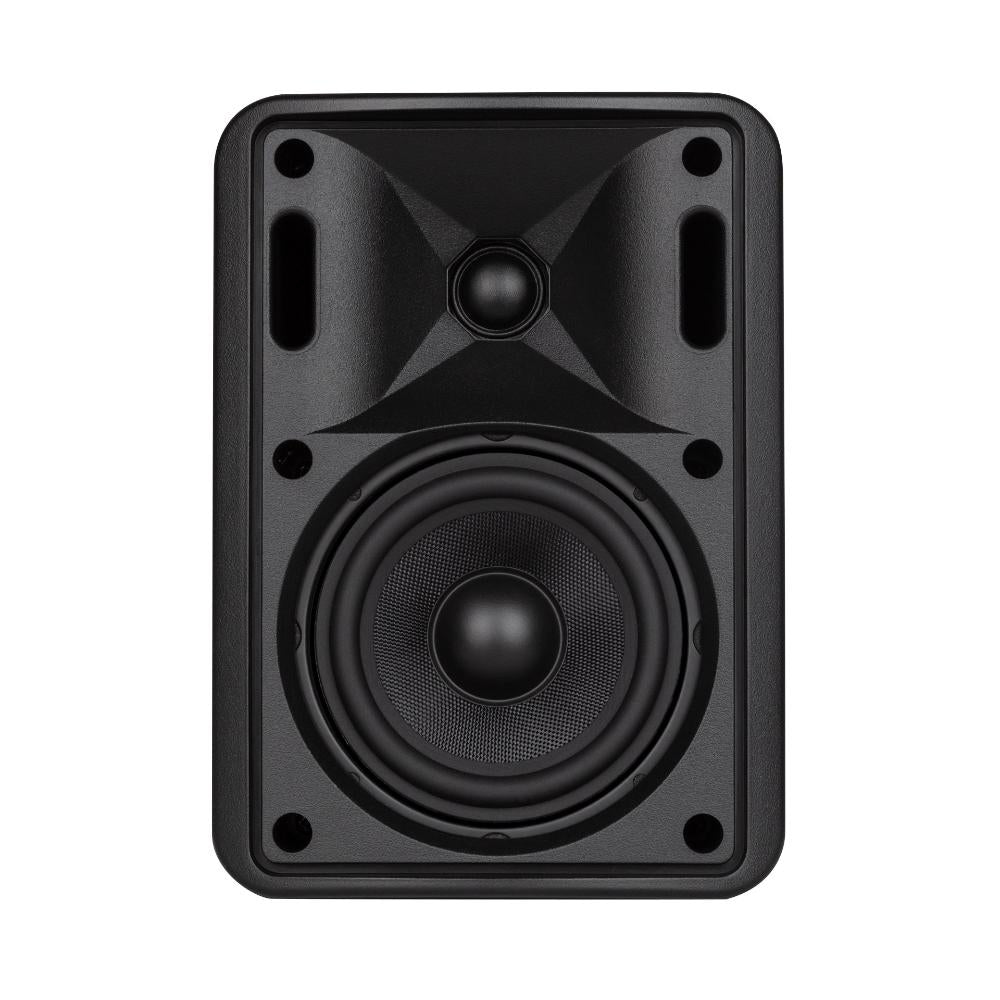

- 1 x 4" woofer (1’’ v.c.)
- 1 x 1" dome tweeter (0.8’’ v.c.) neodymium magnet
- Colour black RAL 9005 and white RAL 9003
- IP 55 protection grade

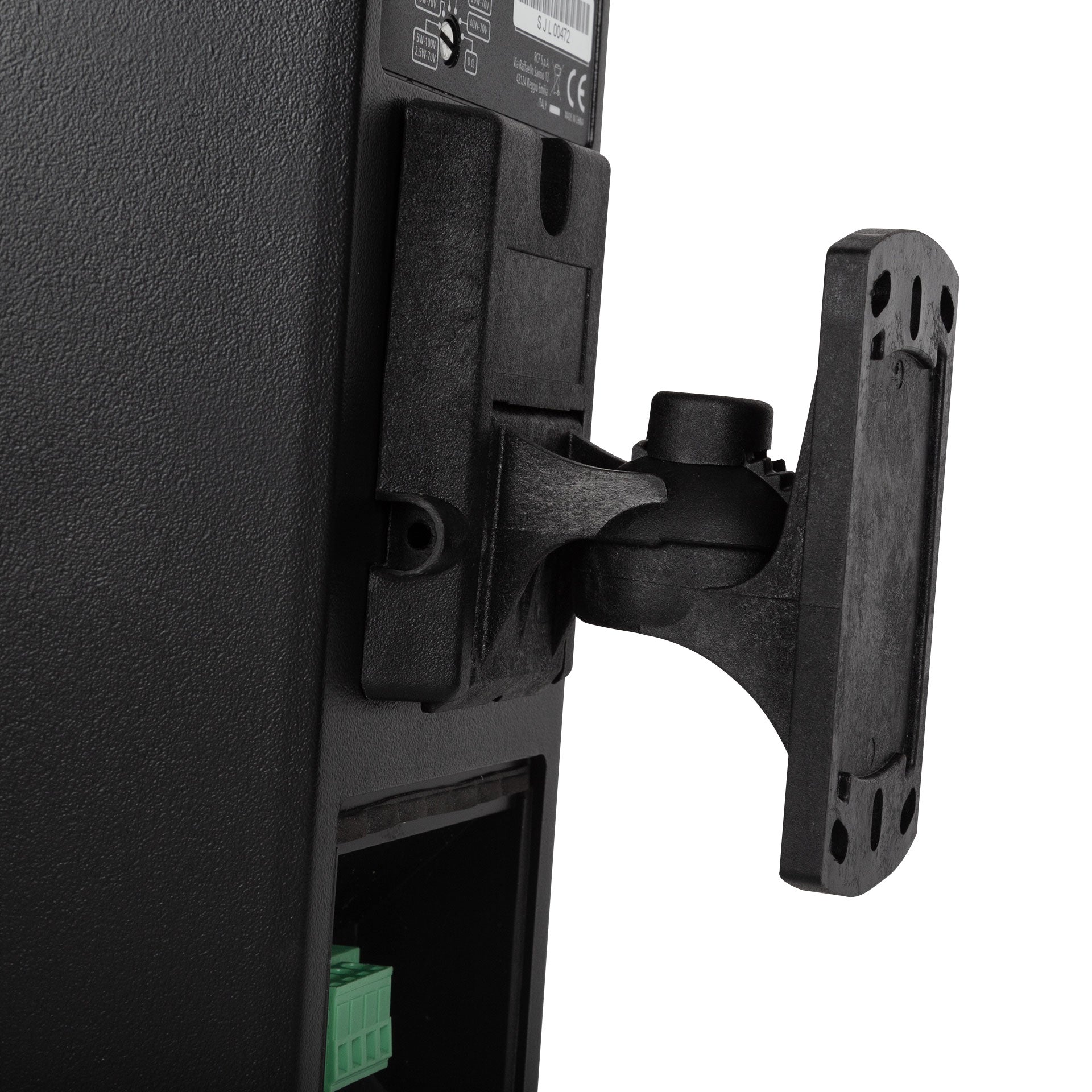

- Swivel wall mount accessory included

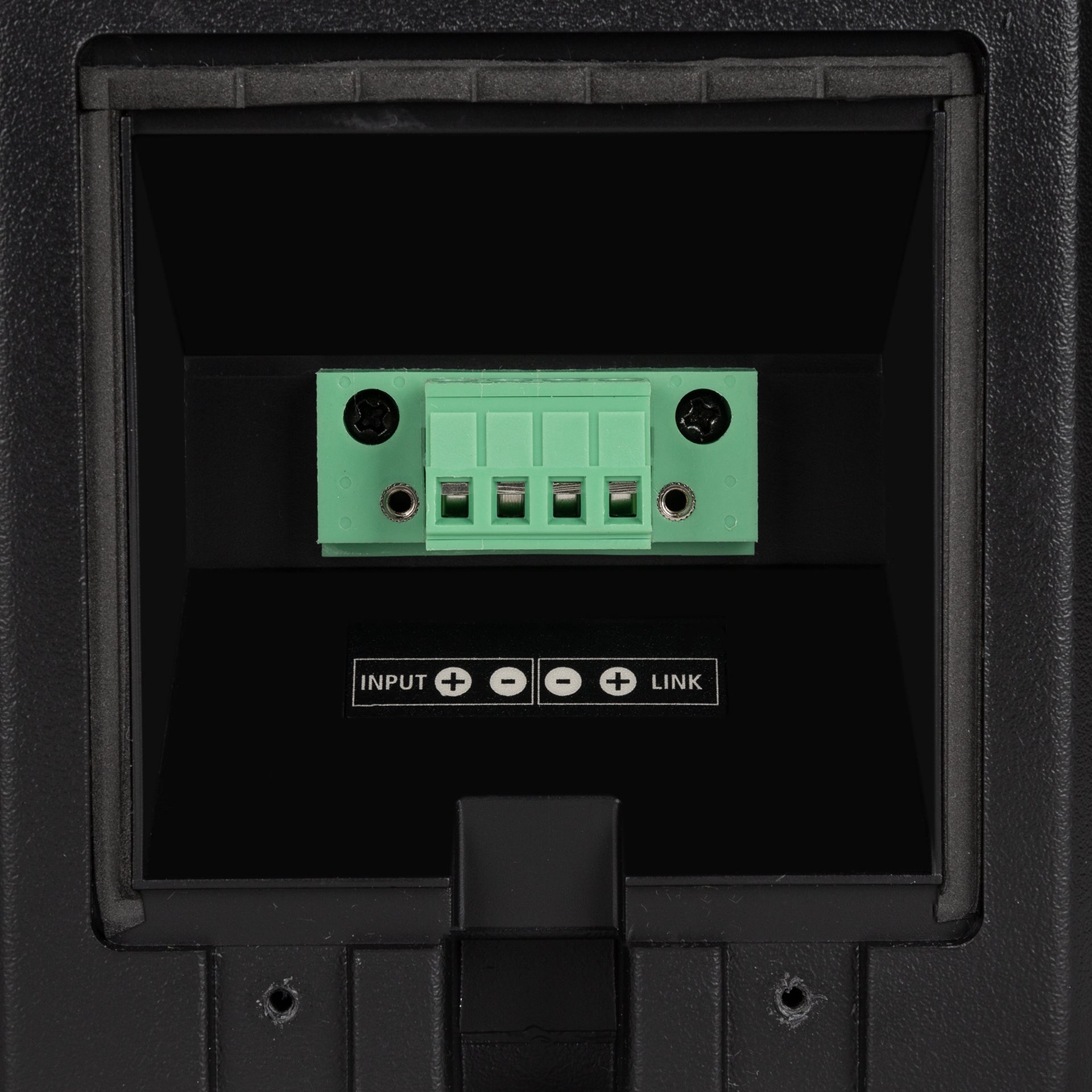

- 4 pole EUROBLOCK connector

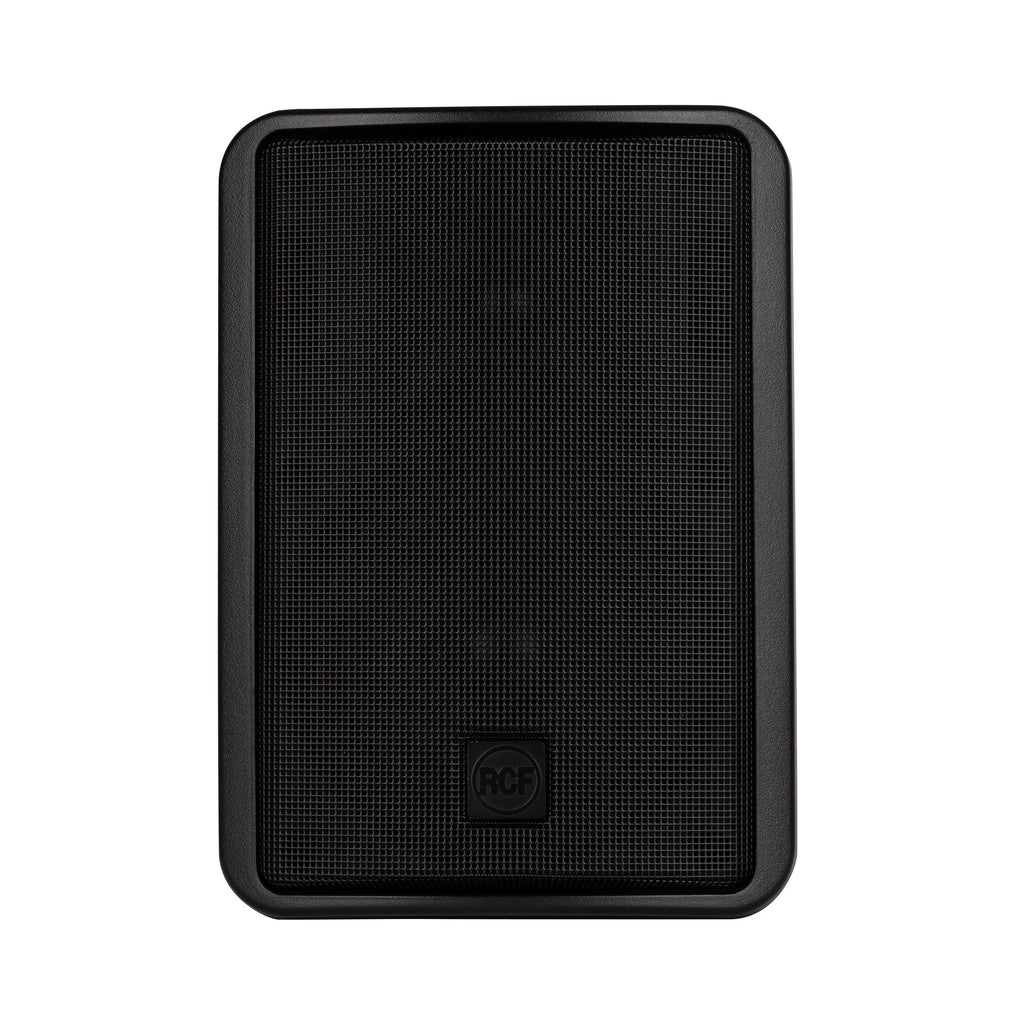

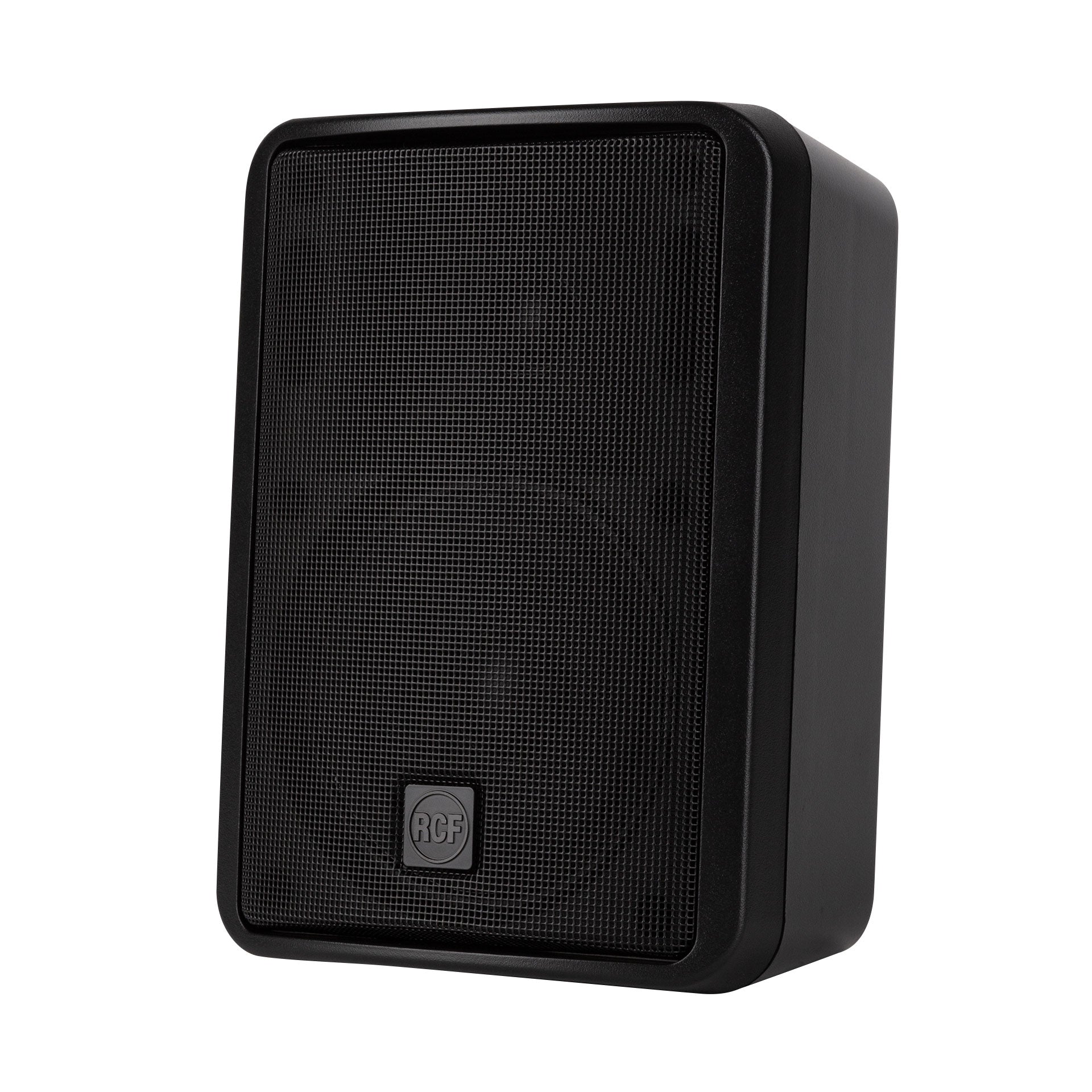

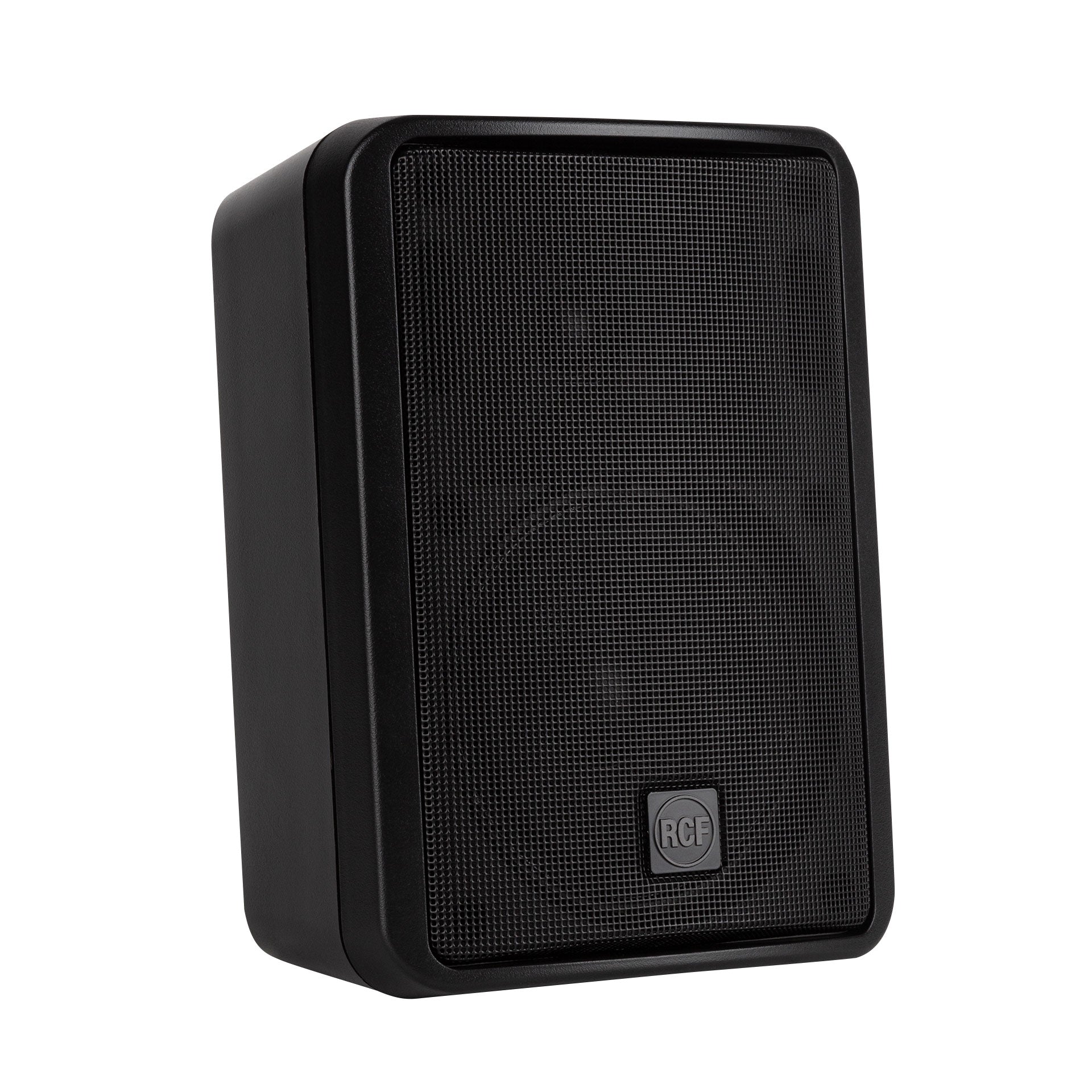

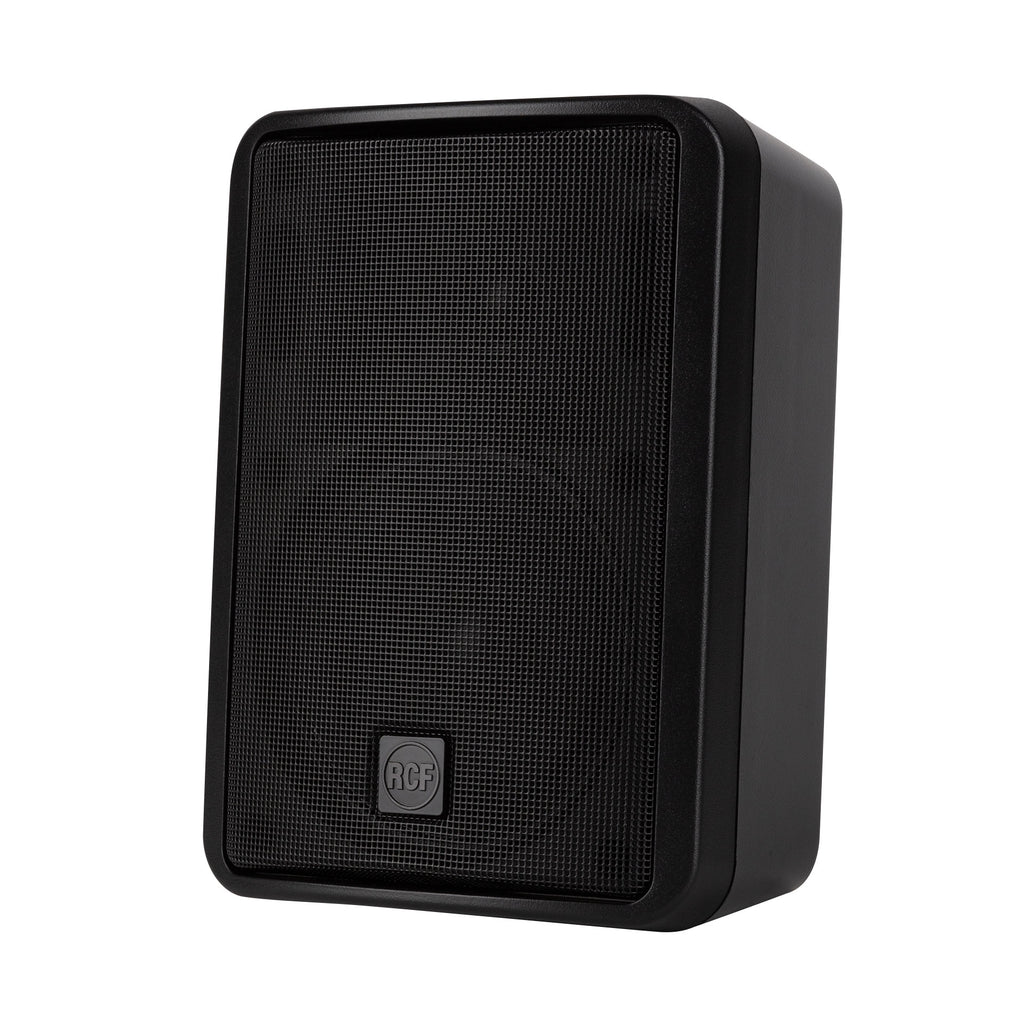

The RCF MR 40T is a high-performance, bass-reflex two-way speaker pair meticulously engineered to deliver uncompromised audio performance and exceptional reliability in architectural fixed installations. Designed to elegantly blend in with any commercial environment, these compact cabinets provide surprisingly deep bass extension, a remarkably smooth midrange, and a finely-detailed high-frequency transient response. Premium internal components and a highly careful acoustic architecture make the RCF MR 40T the perfect speaker package for listening in the most demanding public address and background music applications.
Housed in a rugged plastic cabinet with a rustproof aluminum grille, the versatile RCF MR 40T is designed with an IP 55 protection grade rating, making it perfectly suitable for both indoor and outdoor distributed sound installations. Each compact monitor integrates a constant voltage line transformer supporting 70V and 100V lines, alongside a low-impedance 8-ohm bypass capable of continuous 40 Watt power handling (160 Watts Peak). Input and link connections are made clean via a reliable 4-pole Euroblock connector interface. Complete with an included swivel wall mount bracket kit for simple, precise directional aiming, this premium loudspeaker pairing offers a wide 110° x 100° coverage angle to distribute uniform, articulate audio across patios, retail paths, restaurants, and classrooms.
Specifications
| Acoustical Specifications |
| Frequency Response (-10dB) |
70 Hz - 20,000 Hz |
| Max SPL @ 1m |
108 dB |
| Horizontal Coverage Angle |
110° |
| Vertical Coverage Angle |
100° |
| Directivity Index Q |
7 |
| System Sensitivity |
86 dB |
| Power Section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
40 W |
| Peak Power Handling |
160 W Peak |
| Protections |
Bulb Lamp |
| Crossover Frequencies |
3000 Hz |
| Transducers |
| Dome Tweeter |
1 x 1.0" Neo, 0.8" v.c. |
| Woofer |
1 x 4.0", 1.0" v.c. |
| Input/Output Section |
| Input Connectors |
Euroblock |
| Output Connectors |
Euroblock |

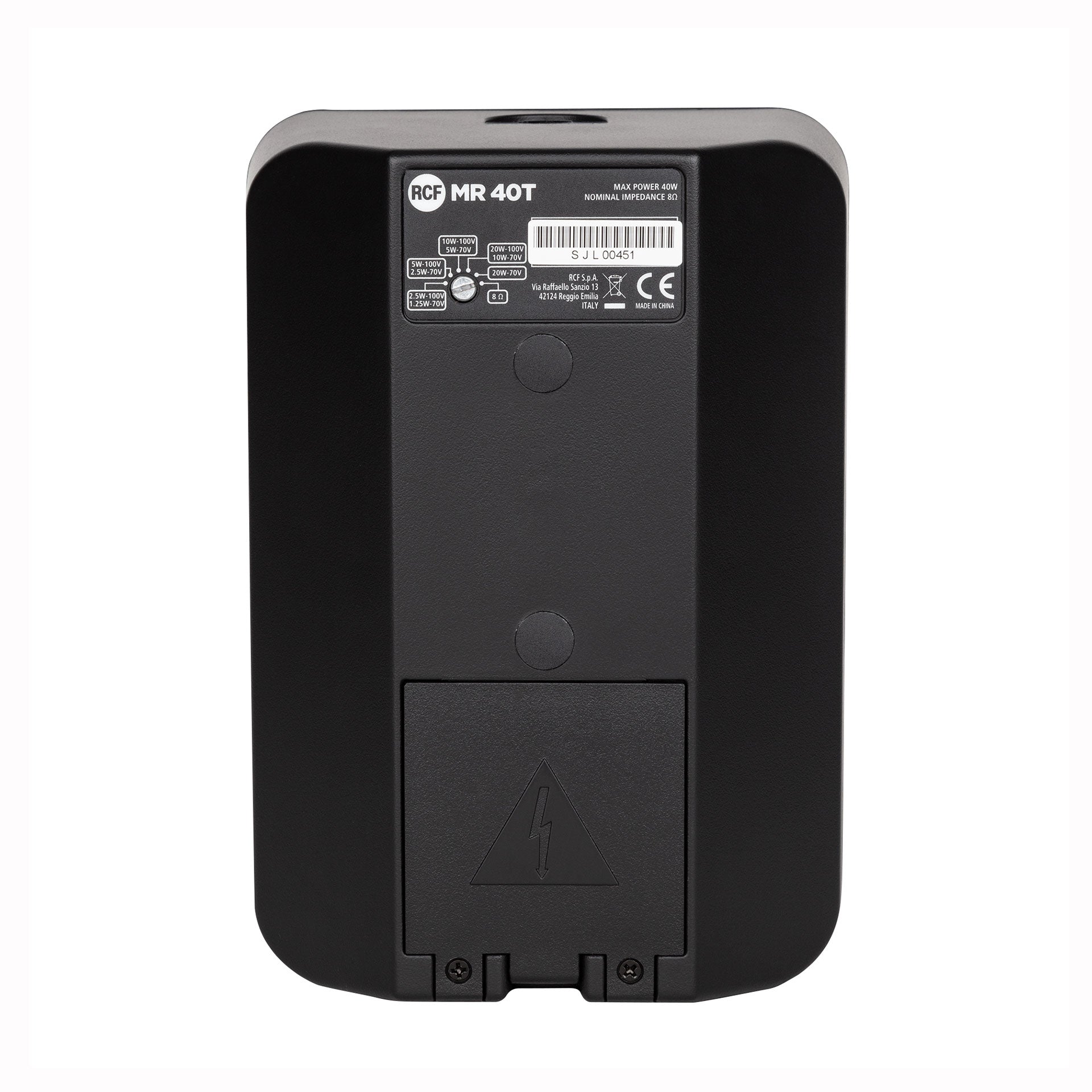

| Constant Voltage Transformer |
70/100 V |
| Power Selection 1 |
20 W - 500 ohm |
| Power Selection 2 |
10 W - 1000 ohm |
| Power Selection 3 |
5 W - 2000 ohm |
| Power Selection 4 |
2.5 W - 4000 ohm |
| Standard Compliance |
| IP Protection Grade |
IP 55 |
| Safety Agency |
CE Compliant |
| Physical Specifications |
| Cabinet/Case Material |
Plastic |
| Hardware |
Wall Mount Bracket |
| Grille |
Aluminium |
| Color |
Black - RAL 9005, White - RAL 9003 |
| Size / Weight |
| Height |
216 mm / 8.5 inches |
| Width |
154 mm / 6.06 inches |

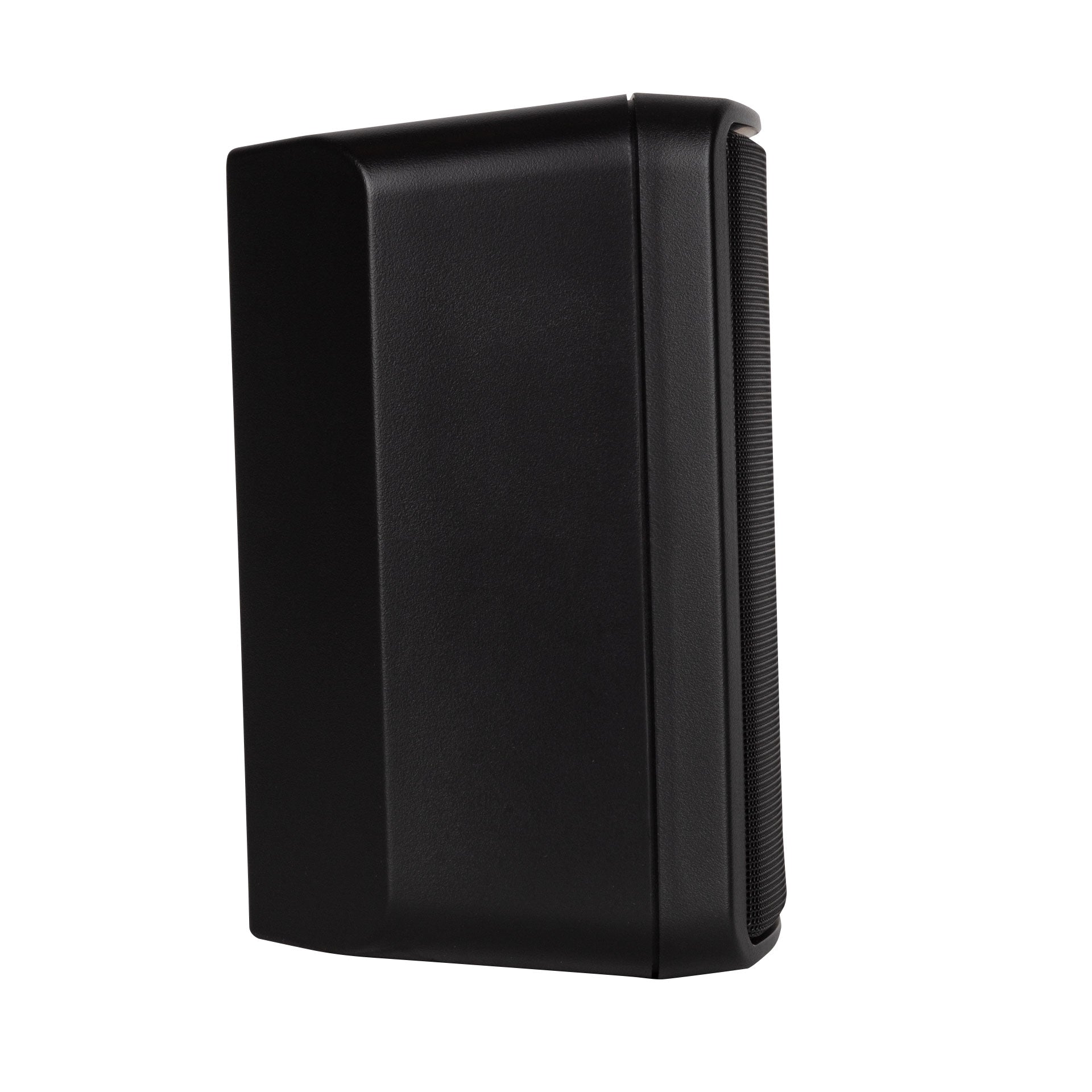

| Depth |
135 mm / 5.31 inches |
| Weight |
2.3 kg / 5.07 lbs |
| Shipping Information |
| Package Height |
285 mm / 11.22 inches |
| Package Width |
400 mm / 15.75 inches |
| Package Depth |
235 mm / 9.25 inches |
| Package Weight |
5.5 kg / 12.13 lbs |
