| Frequency Response |
50 Hz – 20,000 Hz |
| Max SPL @ 1m |
137 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
70° |

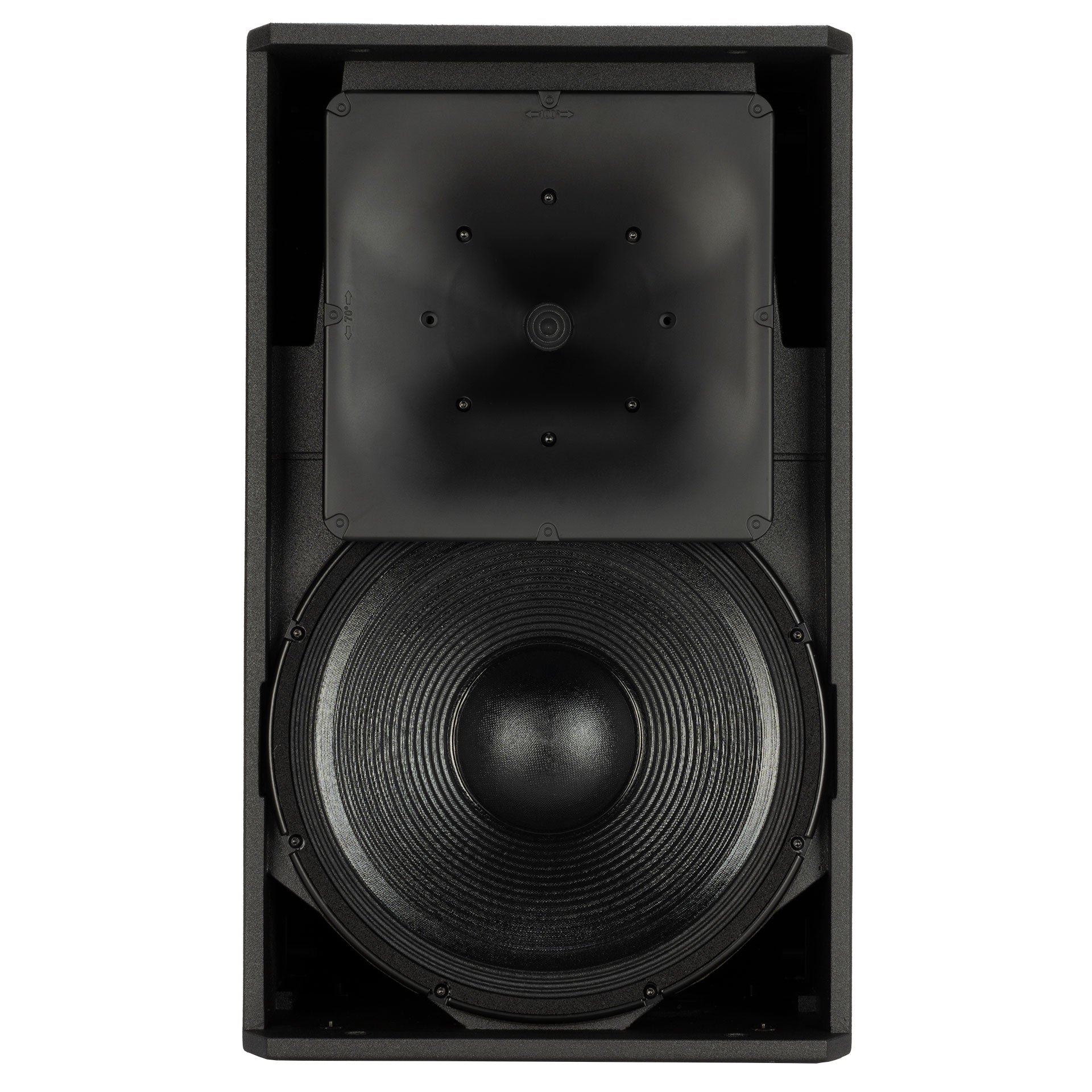

| Compression Driver |
1.4" neo, 4.0" voice coil |
| Woofer |
1 x 15" neo, 3.5" voice coil |
| Input Signal |
Balanced / unbalanced |

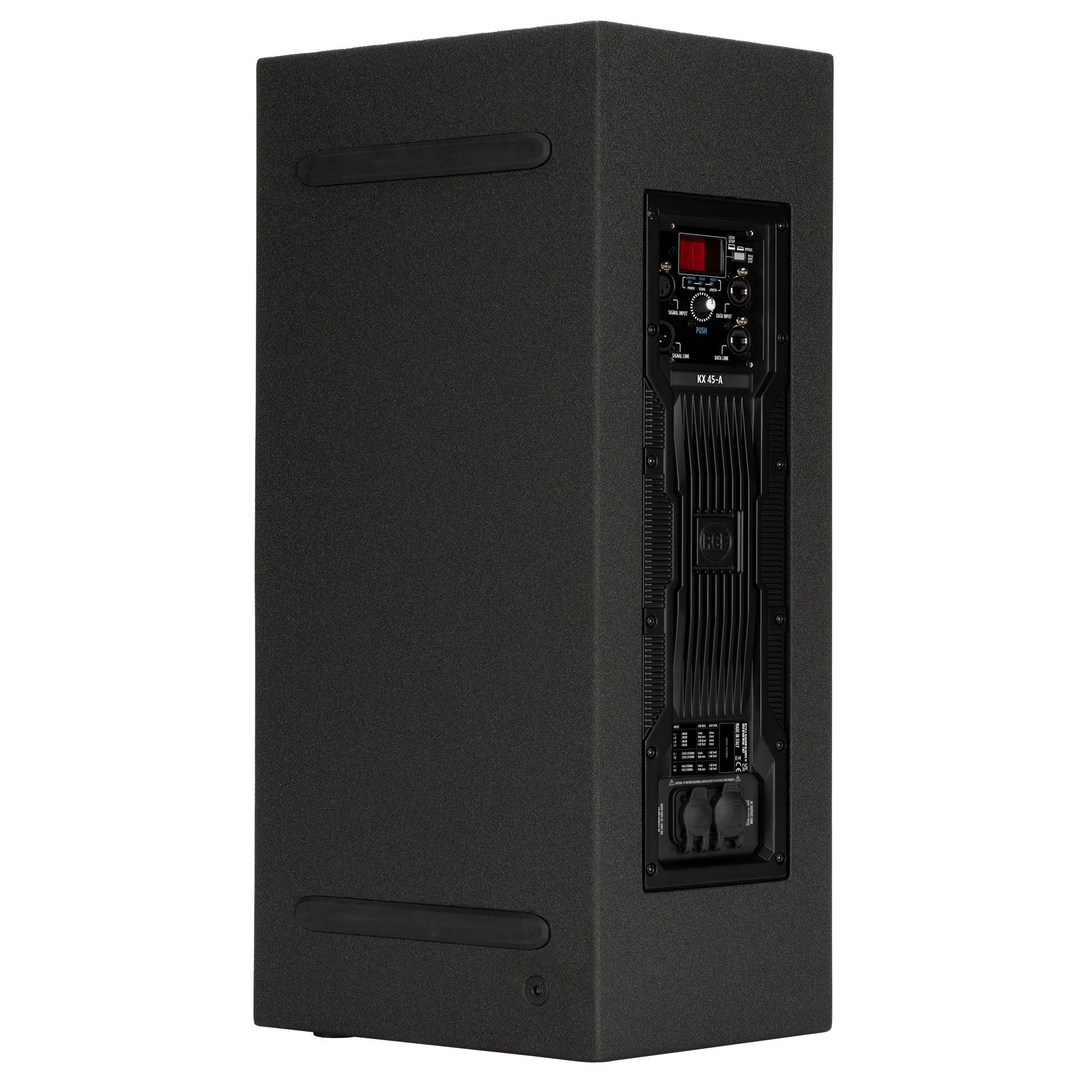

| Input Connectors |
XLR, RDNet Ethercon |
| Output Connectors |
XLR, RDNet Ethercon |
| Input Sensitivity |
-2 dBu / +4 dBu |
| Crossover Frequencies |
750 Hz |
| Protections |
Thermal, HF |
| Limiter |
Fast limiter |

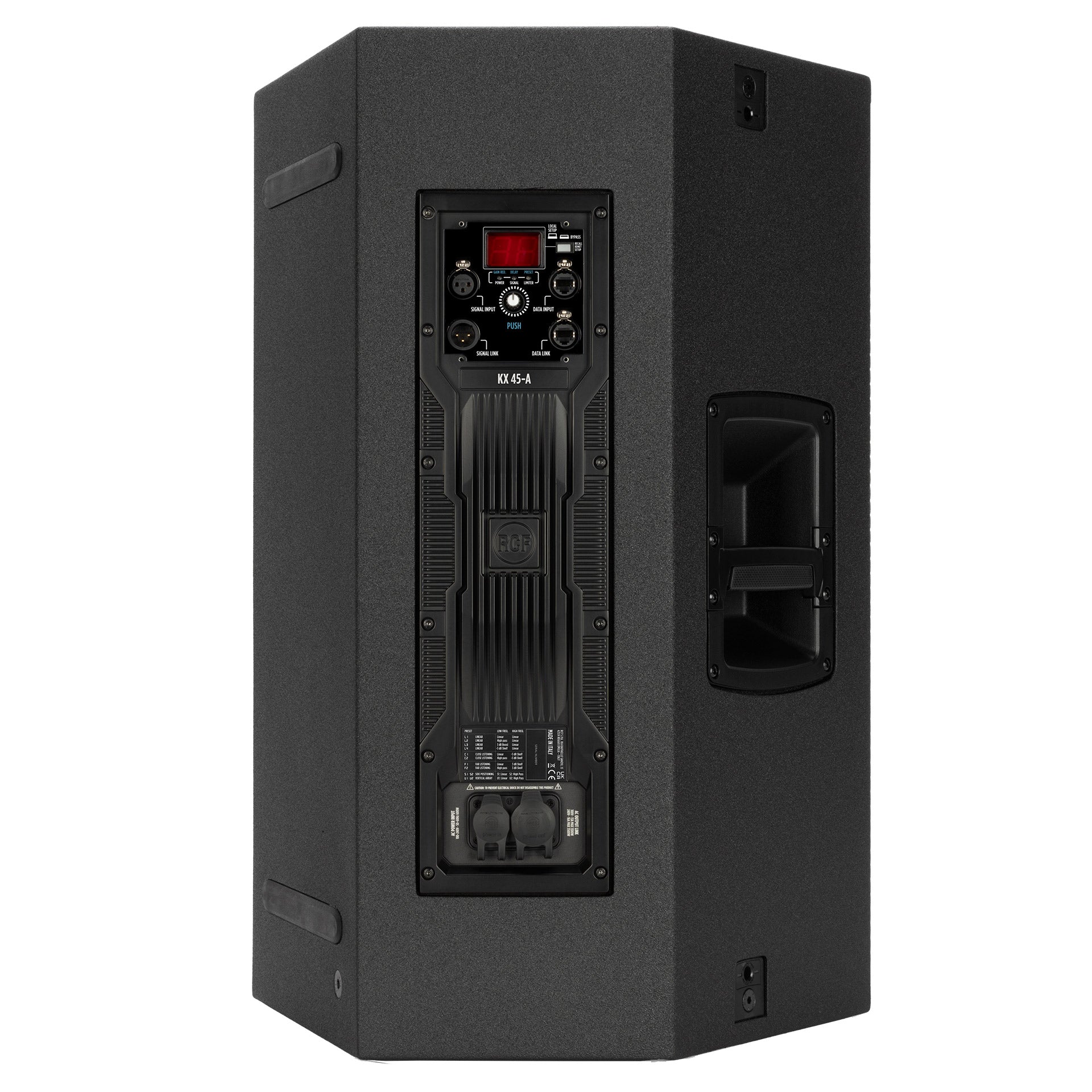

| Controls |
Gain reduction, processing, 8 selectable presets |
| RDNet |
Onboard |
| Total Power |
3200 W peak |
| High Frequencies |
1200 W peak |
| Low Frequencies |
2000 W peak |
| Cooling |
Convection |
| Connections |
Powercon TRUE1 TOP IN/OUT |
| Safety Agency |
CE compliant |
| Cabinet / Case Material |
Baltic birch plywood |

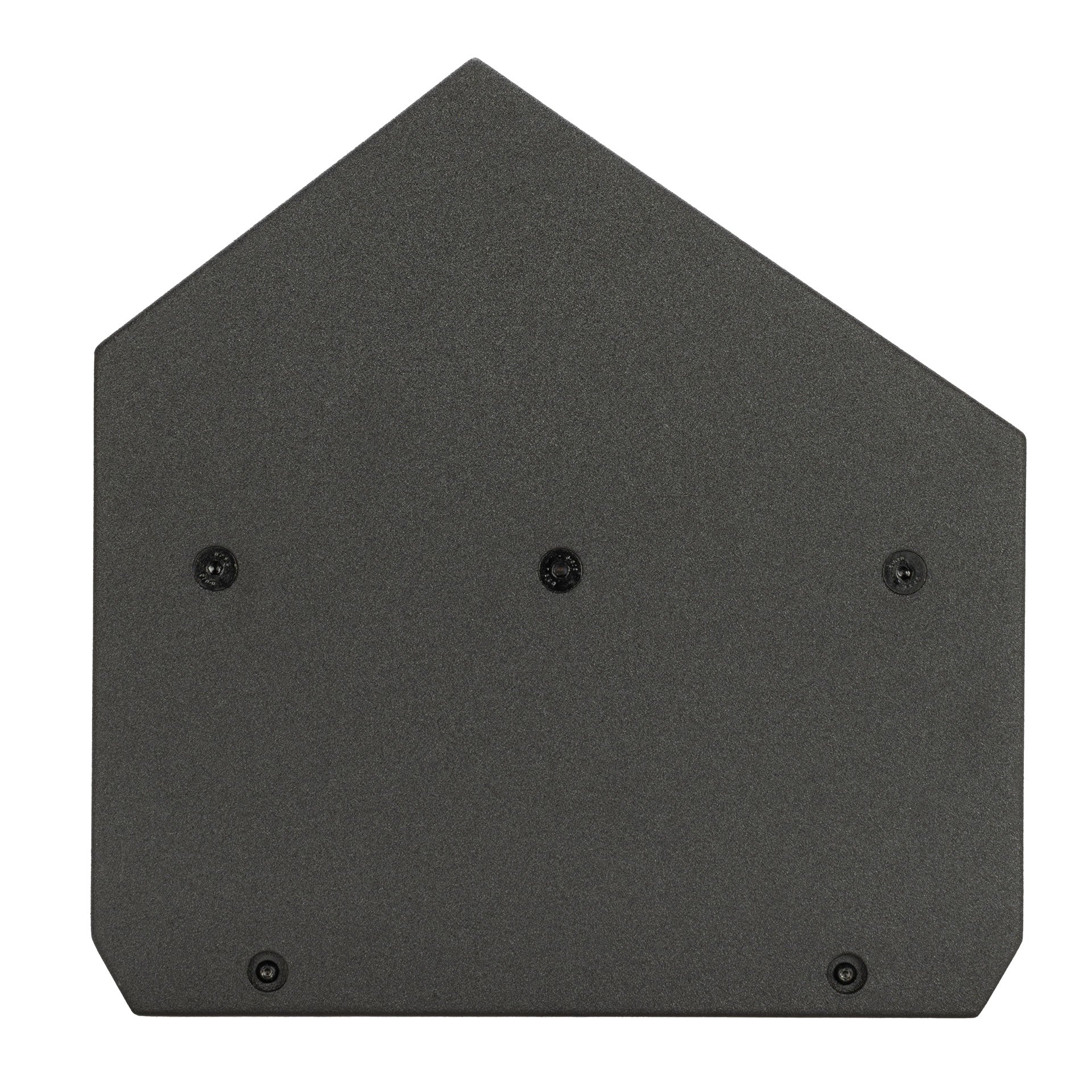

| Hardware |

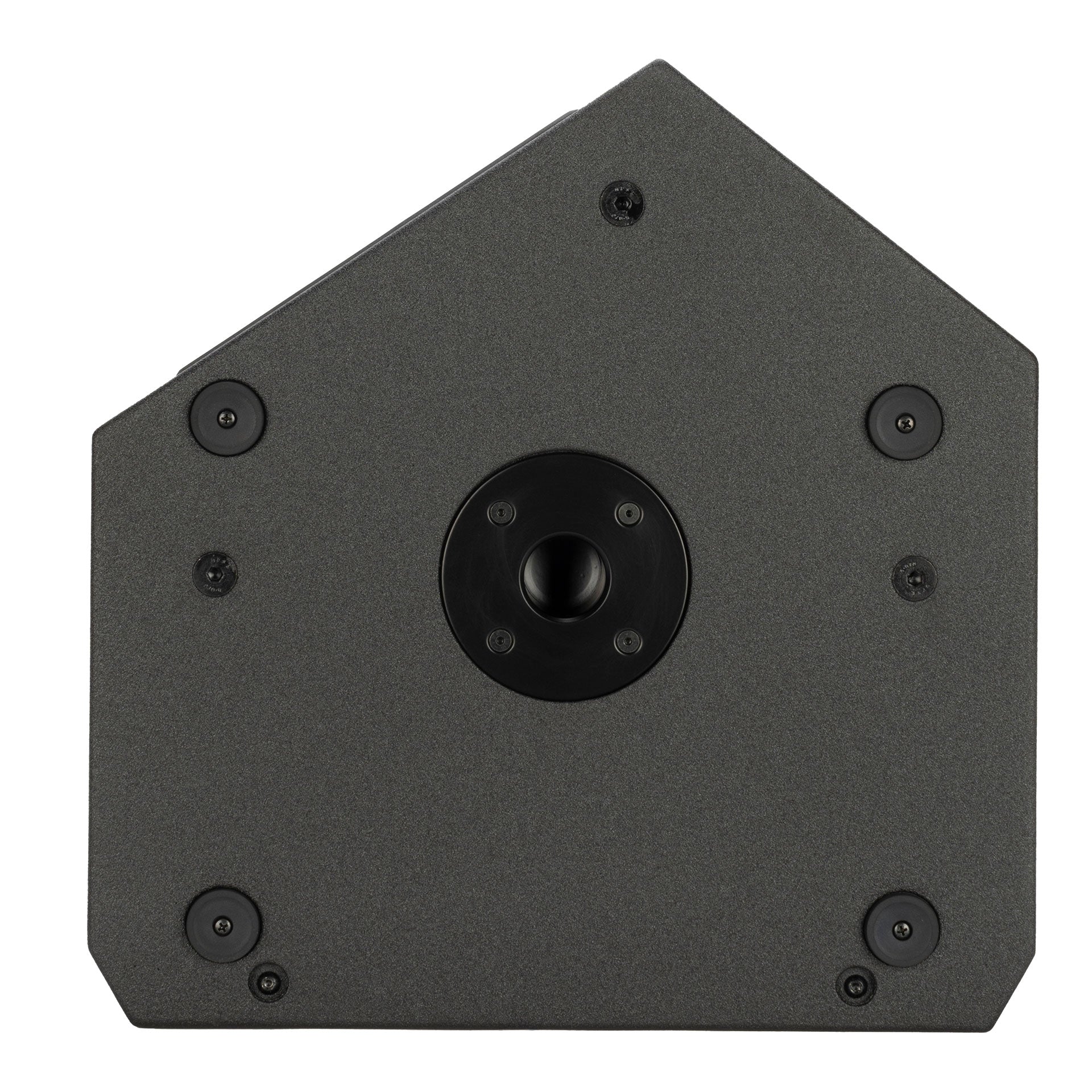

Quick lock, pole mount, 3 M10 on top, 3 M10 on bottom sides |

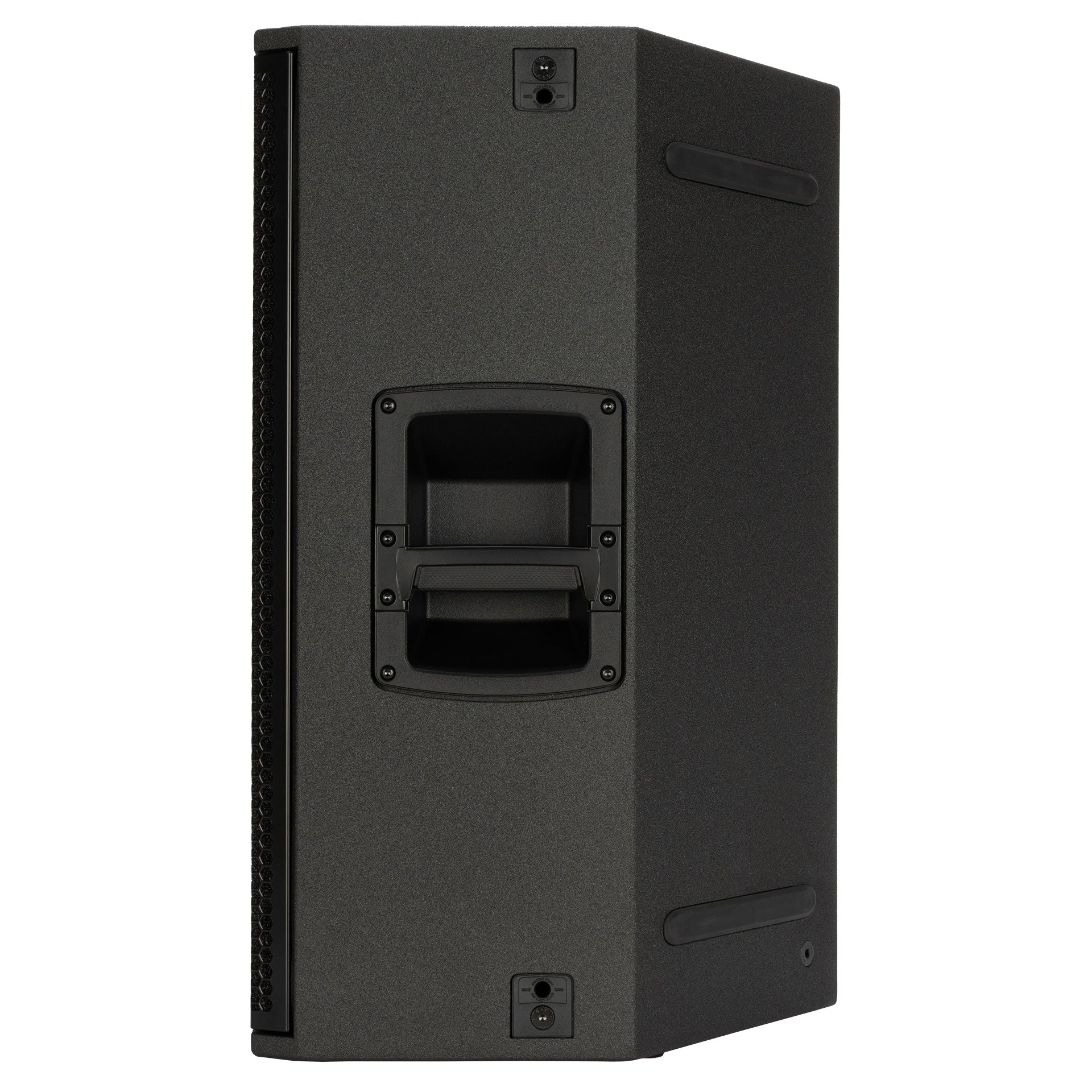

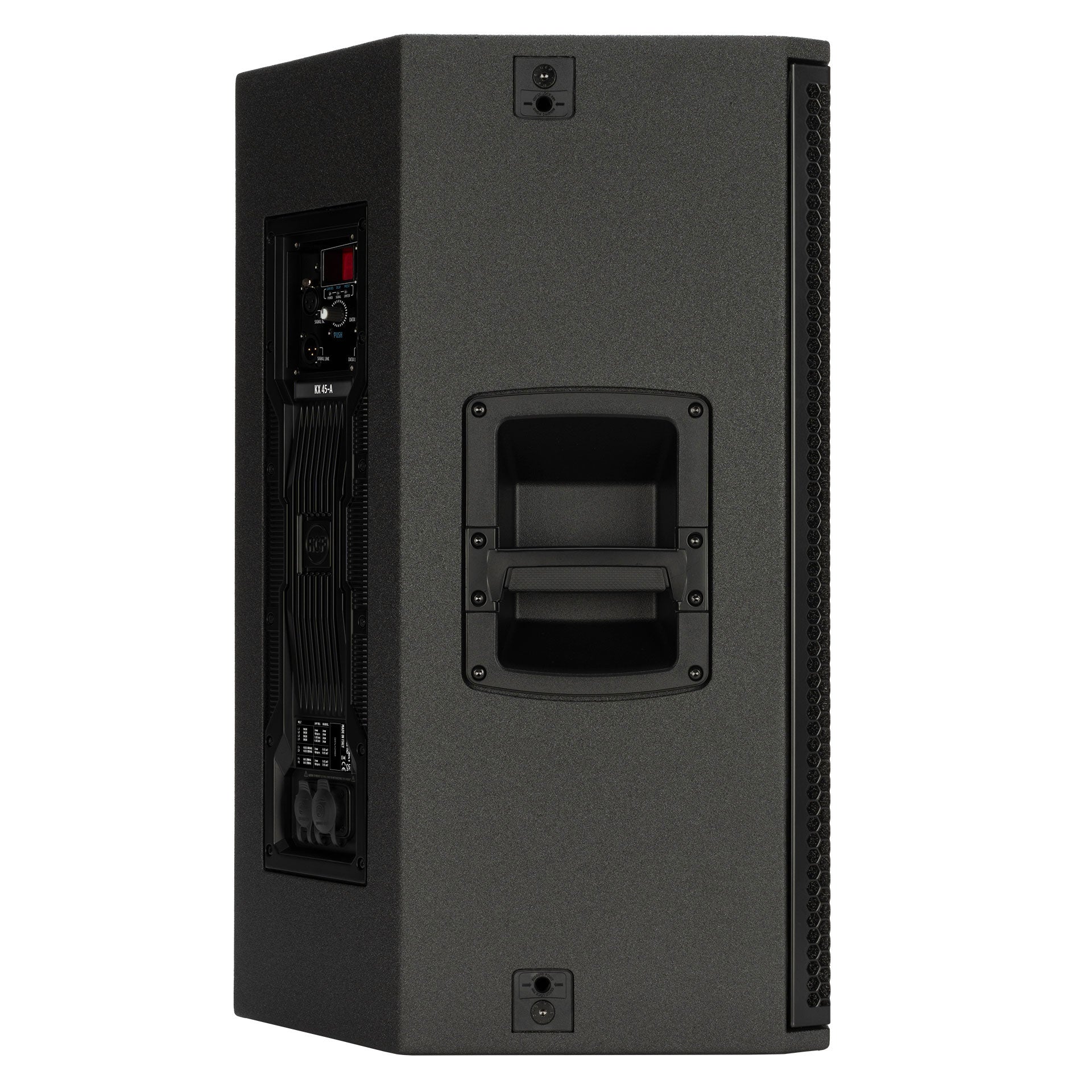

| Handles |
2 on side |
| Pole Mount / Cap |
35 mm insert |

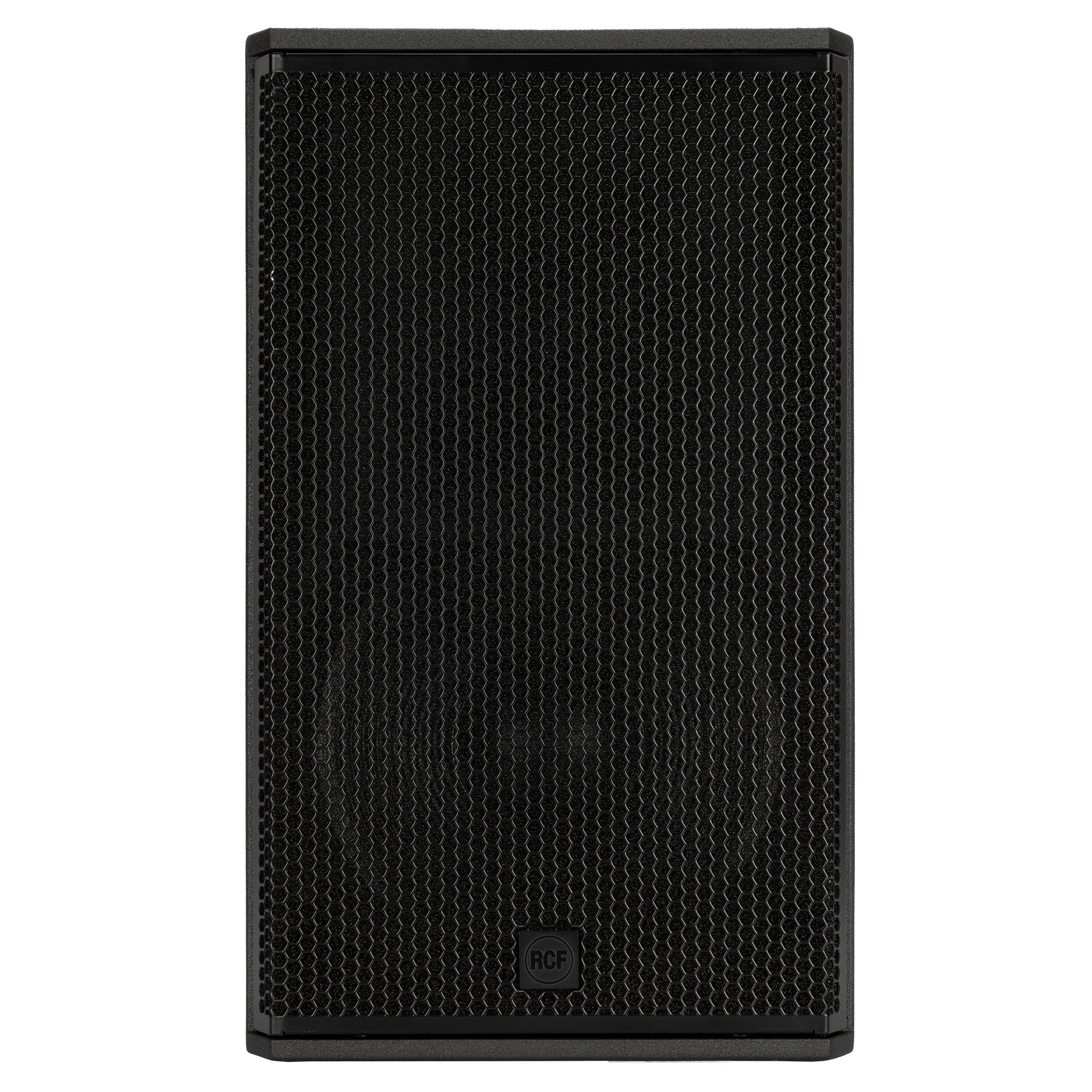

| Grille |
Steel with cloth backing |
| Color |
Black |
| Dimensions (H x W x D) |
705 x 419.6 x 430 mm (27.76 x 16.52 x 16.93 in) |
| Weight |
28.4 kg (62.61 lb) |
| Package Dimensions (H x W x D) |
801 x 484 x 474 mm (31.54 x 19.06 x 18.66 in) |
| Package Weight |
32 kg (70.55 lb) |
