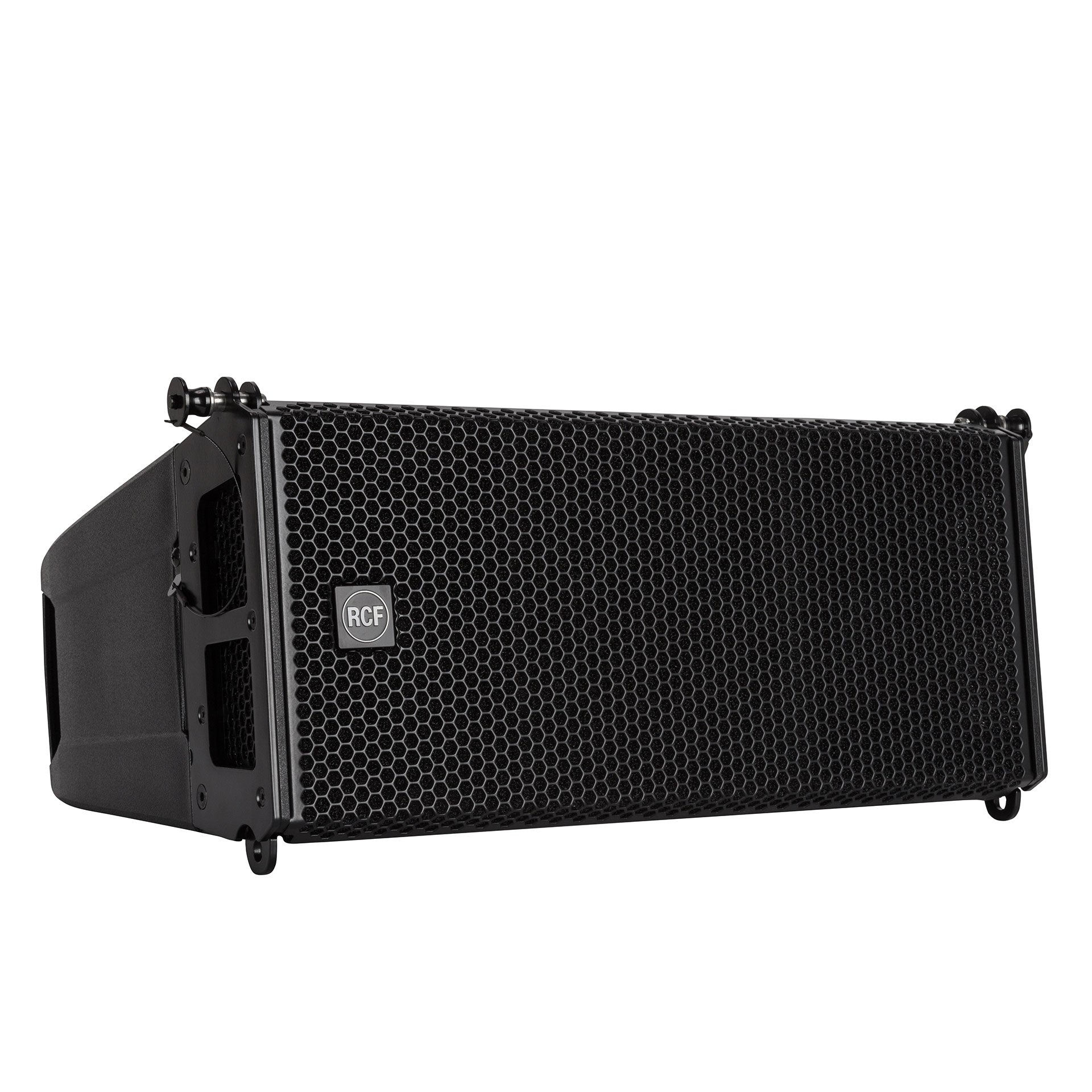

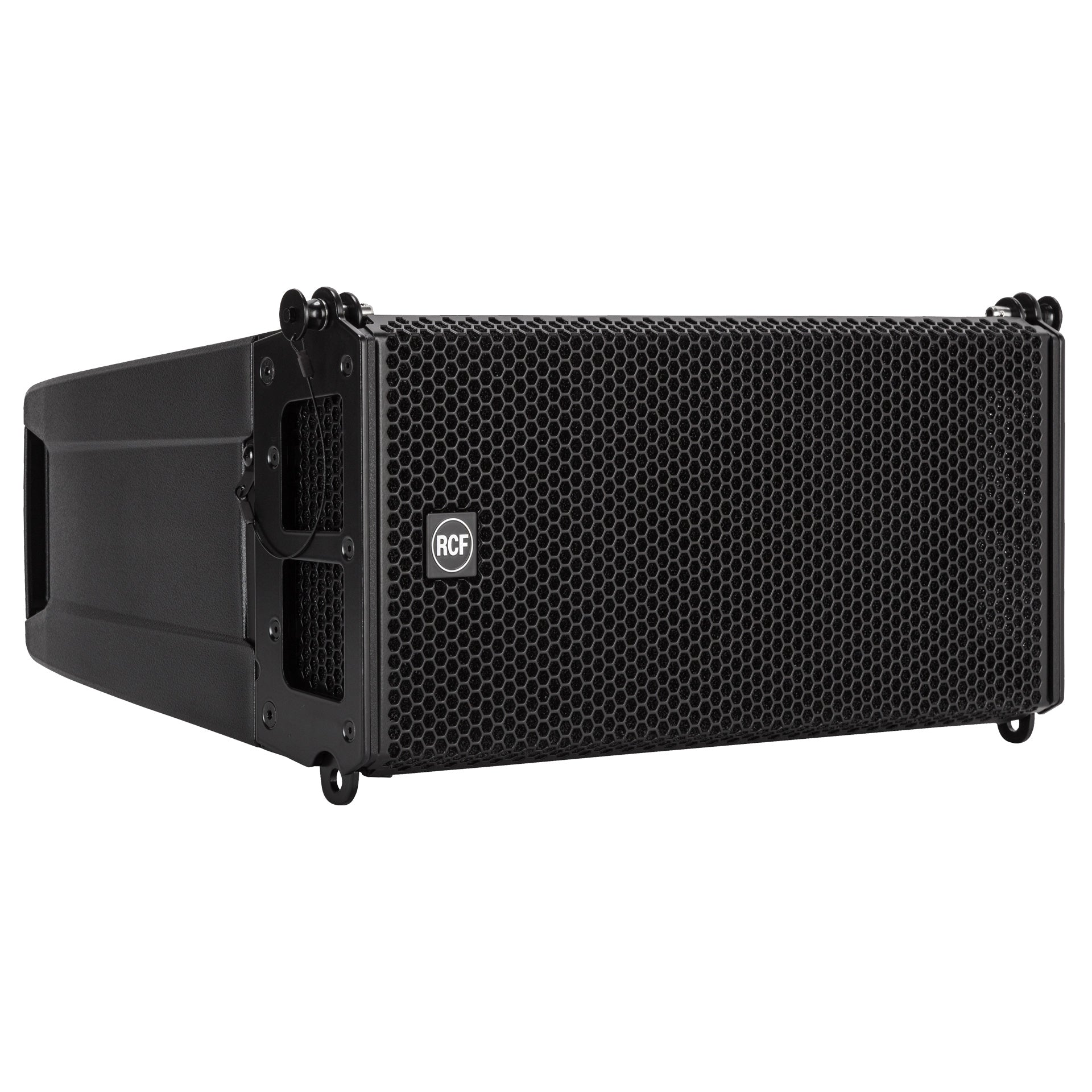

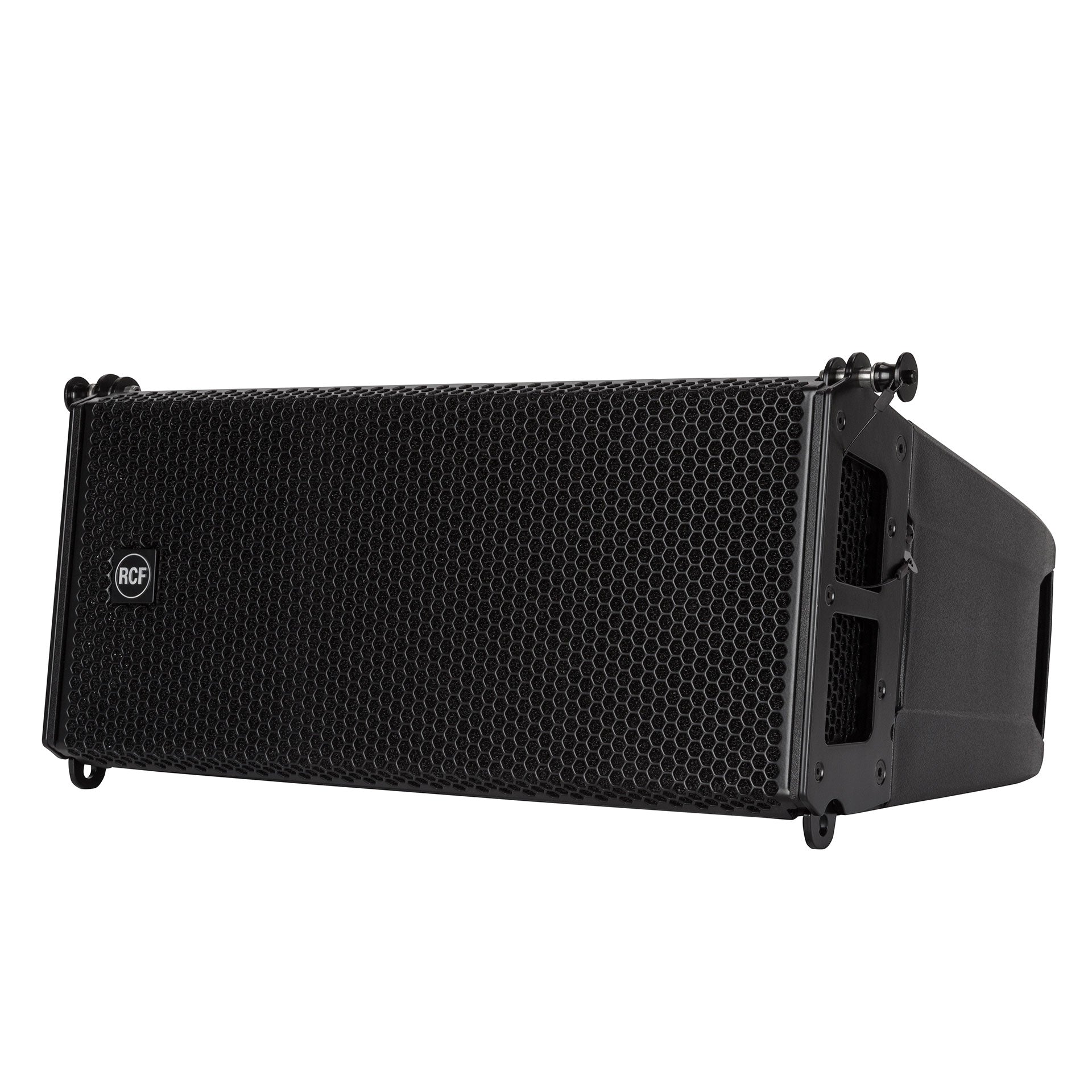

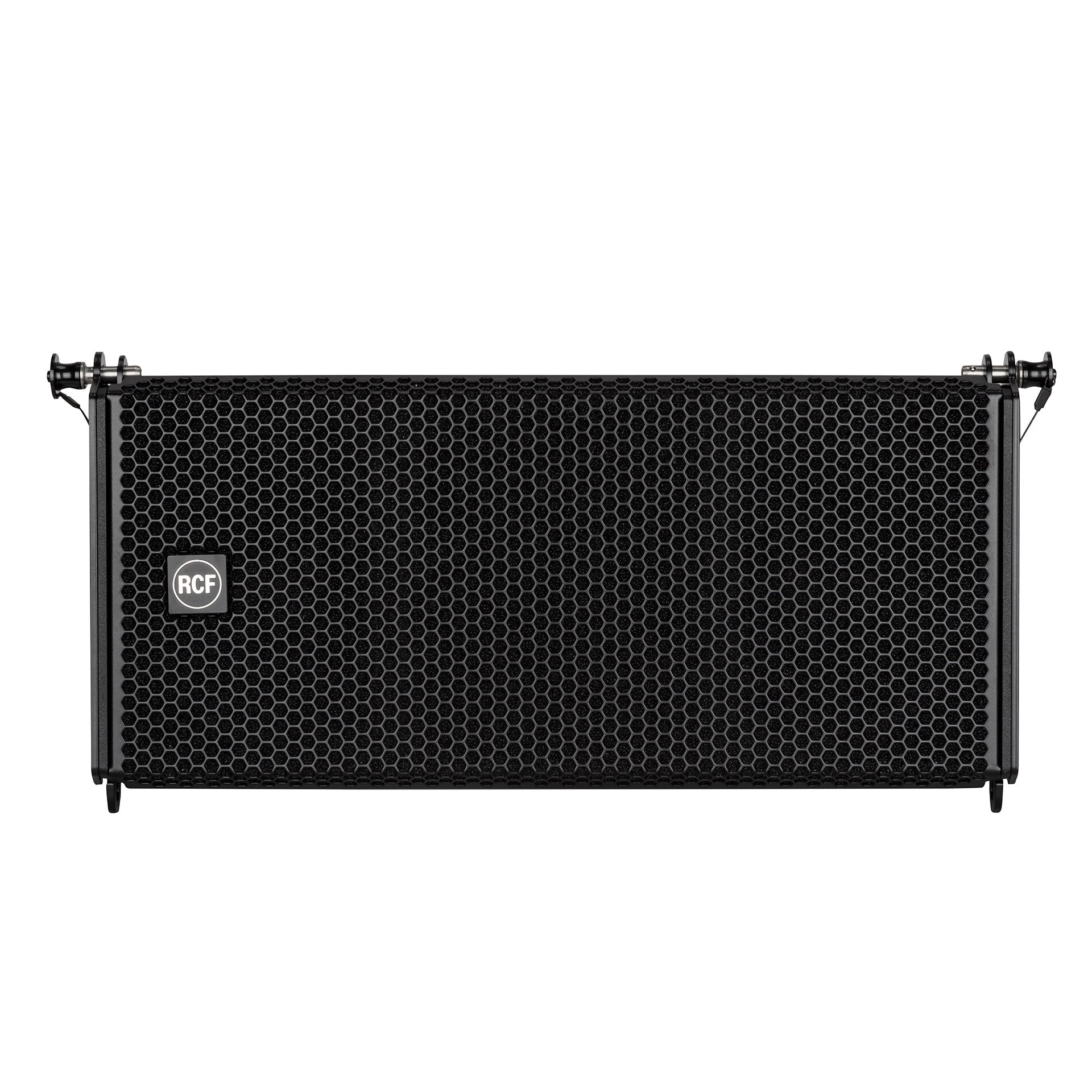

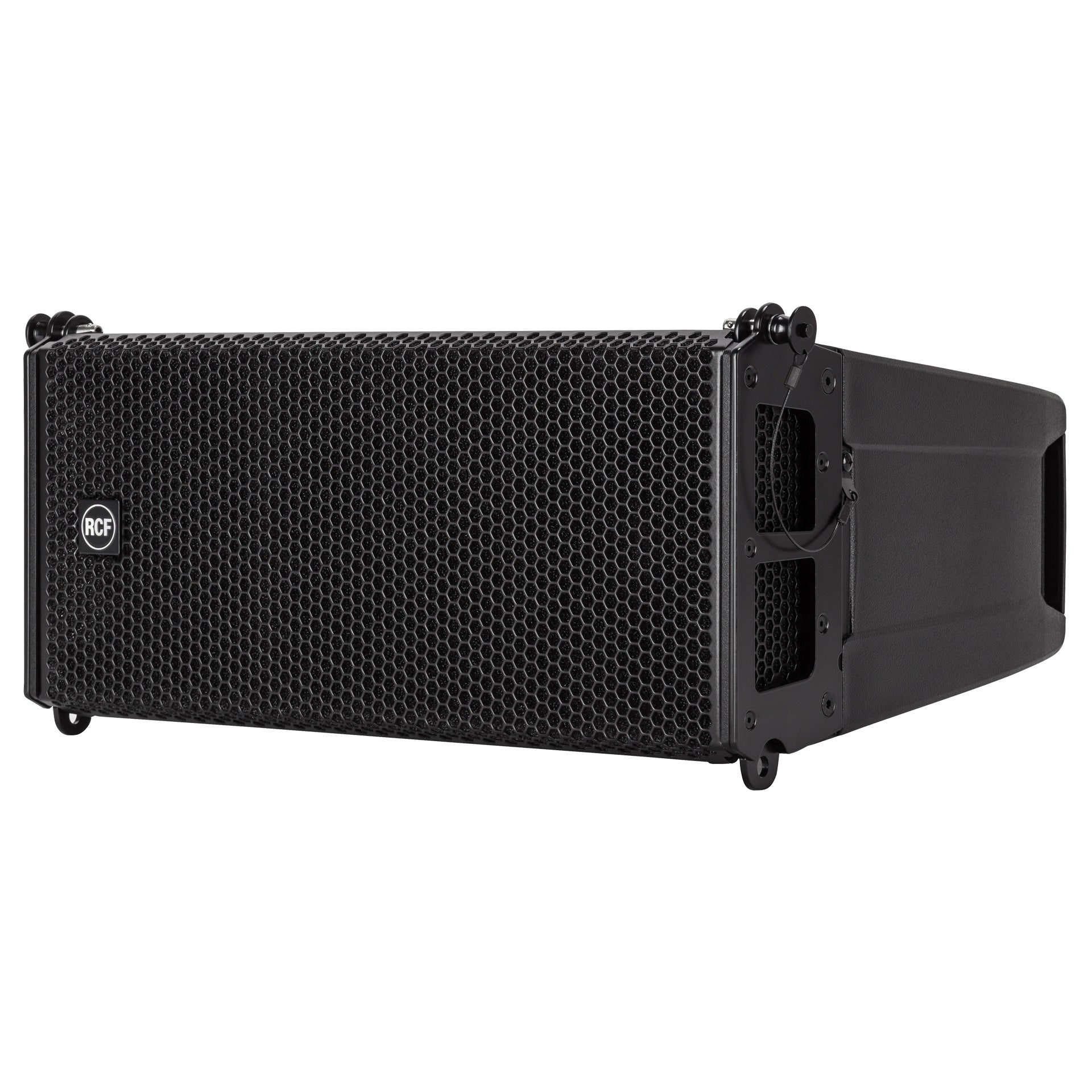

RCF HDL 6-A Active Line Array Module

Features

• 1400 W, two-way amplification
• 131 dB max SPL
• 1.7" voice coil neodymium compression driver
• 2 x high power neodymium 6.0"woofers
• 48 kHz, 32 bit floating point DSP processing
• Symmetrical design
• Extremely low weight
• FiRPHASE processing

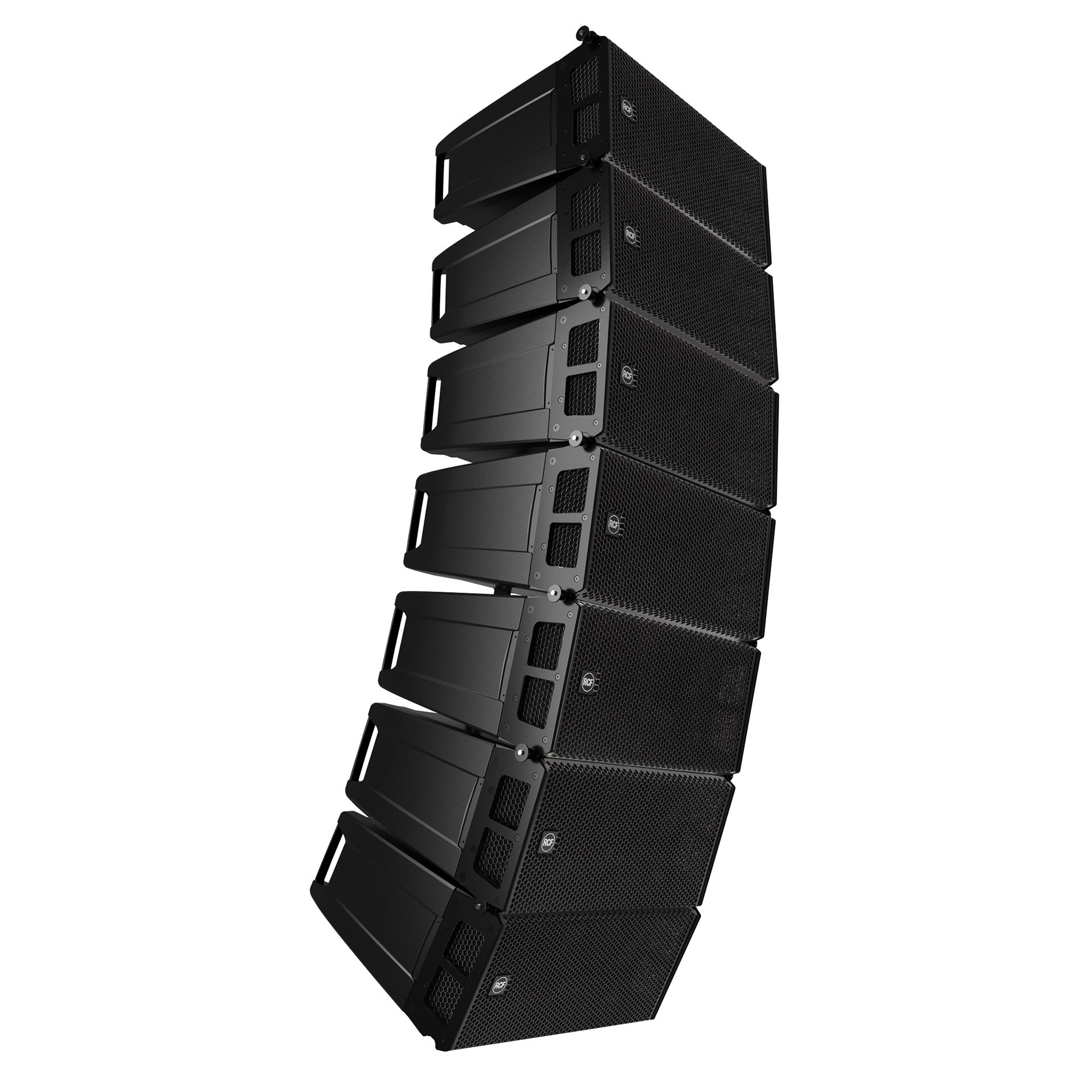

The RCF HDL 6-A active line array module is the ideal acoustic solution when true line array performance is required alongside a fast, straightforward equipment setup. Driven by a high-power 1400 W two-channel Class-D amplifier, this compact system delivers an impressive 131 dB maximum sound pressure level. A comprehensive 48 kHz, 32-bit floating-point onboard DSP handles complex internal sound management, including precision crossover tuning, phase correction, soft limiting, and transducer protection. Because of this advanced architectural optimization, the system maintains ultra-clear audio fidelity even at high output volumes.

Engineered with state-of-the-art RCF transducers, the RCF HDL 6-A features two high-power 6.0” neodymium woofers for impactful bass response coupled with a premium 1.7” voice coil compression driver. This high-definition compression driver is mounted onto a precise 100° x 10° waveguide, ensuring pristine vocal clarity and exceptional high-frequency dynamics across its coverage field. Built with a symmetrical design and an extremely low weight, the lightweight PP composite cabinet is reinforced for demanding live sound applications. Additionally, the unit incorporates proprietary FiRPHASE linear phase filtering to achieve transparent sound imaging, making the RCF HDL 6-A an incredible asset for mobile audio providers and permanent concert venues alike.

Specifications

Acoustical Specifications
Frequency Response	65 Hz - 20,000 Hz
Max SPL @ 1m	131 dB
Horizontal Coverage Angle	100°
Vertical Coverage Angle	10°
Transducers
Compression Driver	1 x 1.0" Neo, 1.75" v.c.
Woofer	2 x 6.0" Neo, 2.0" v.c.

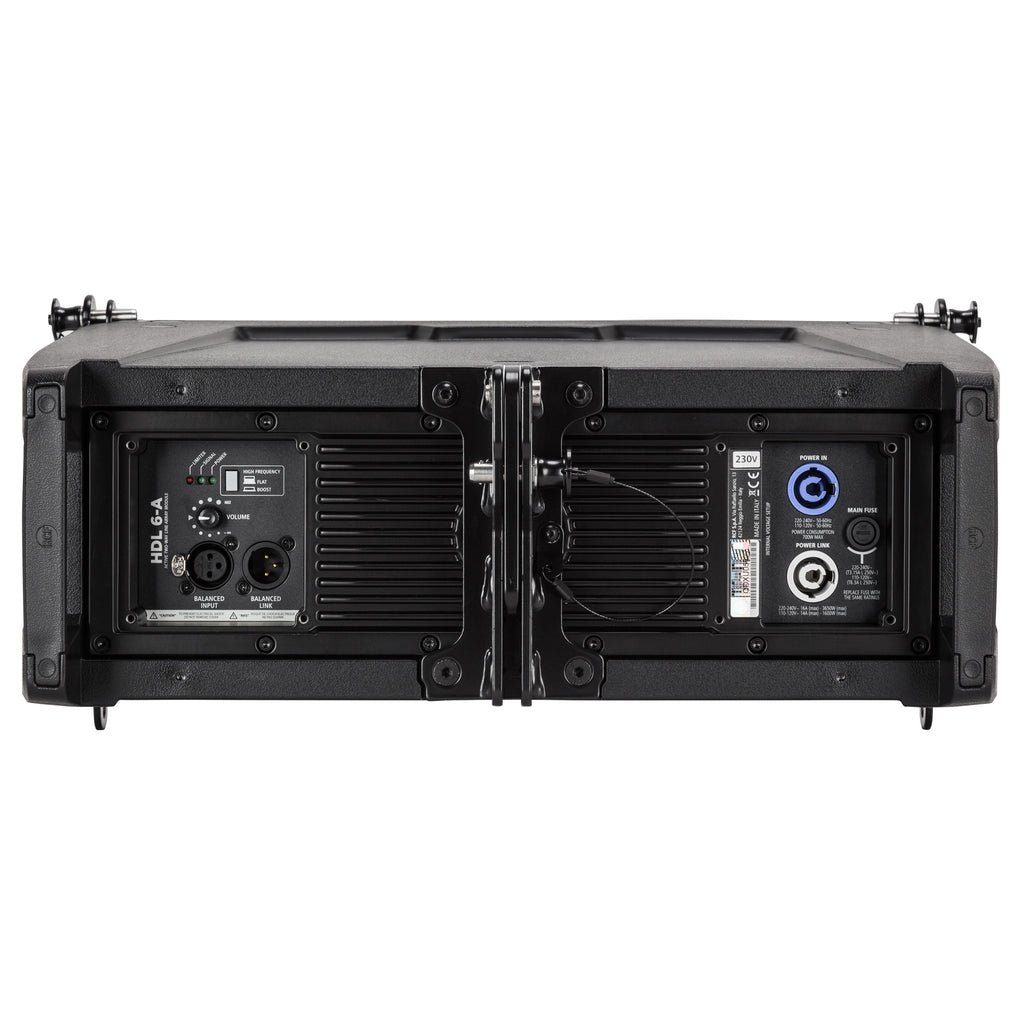

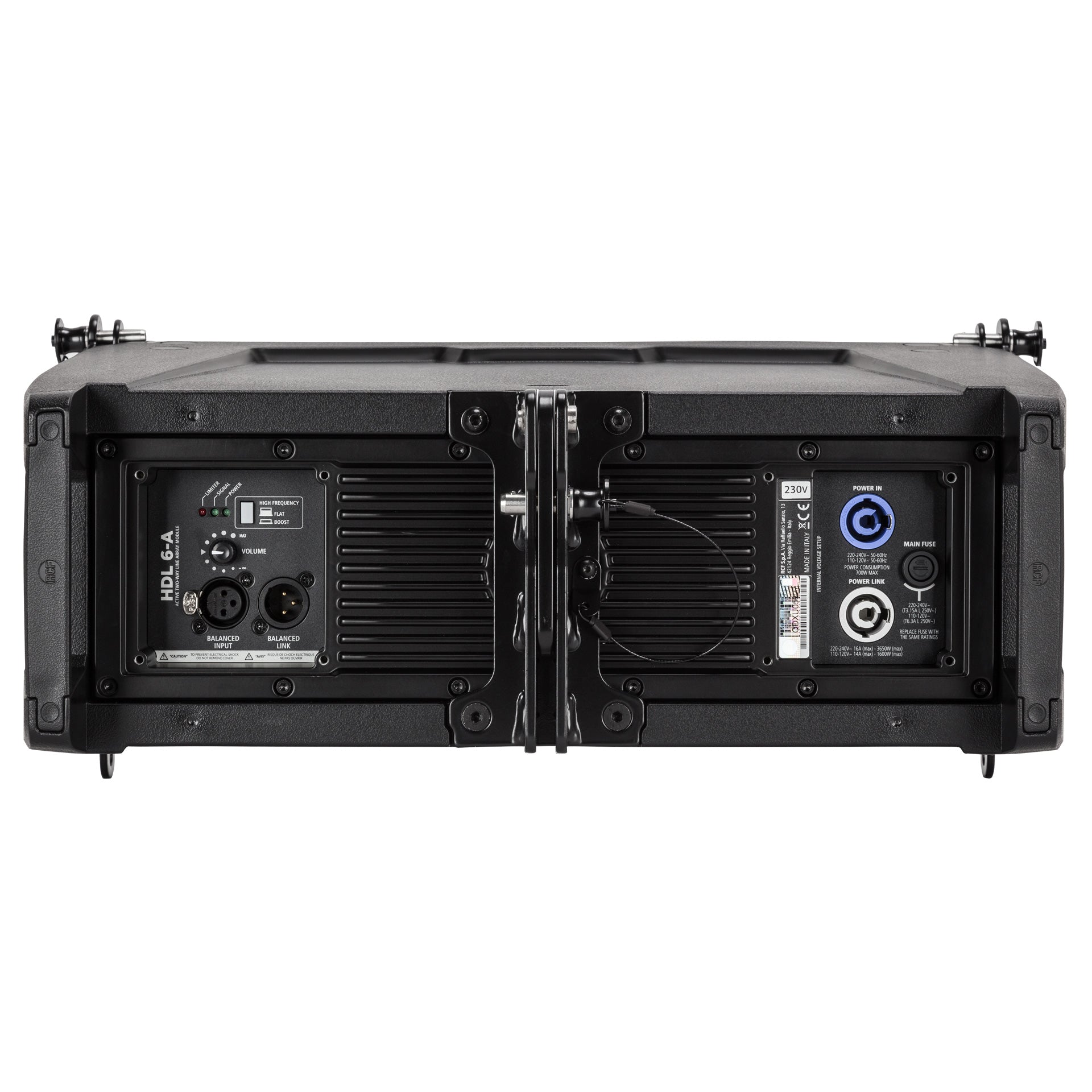

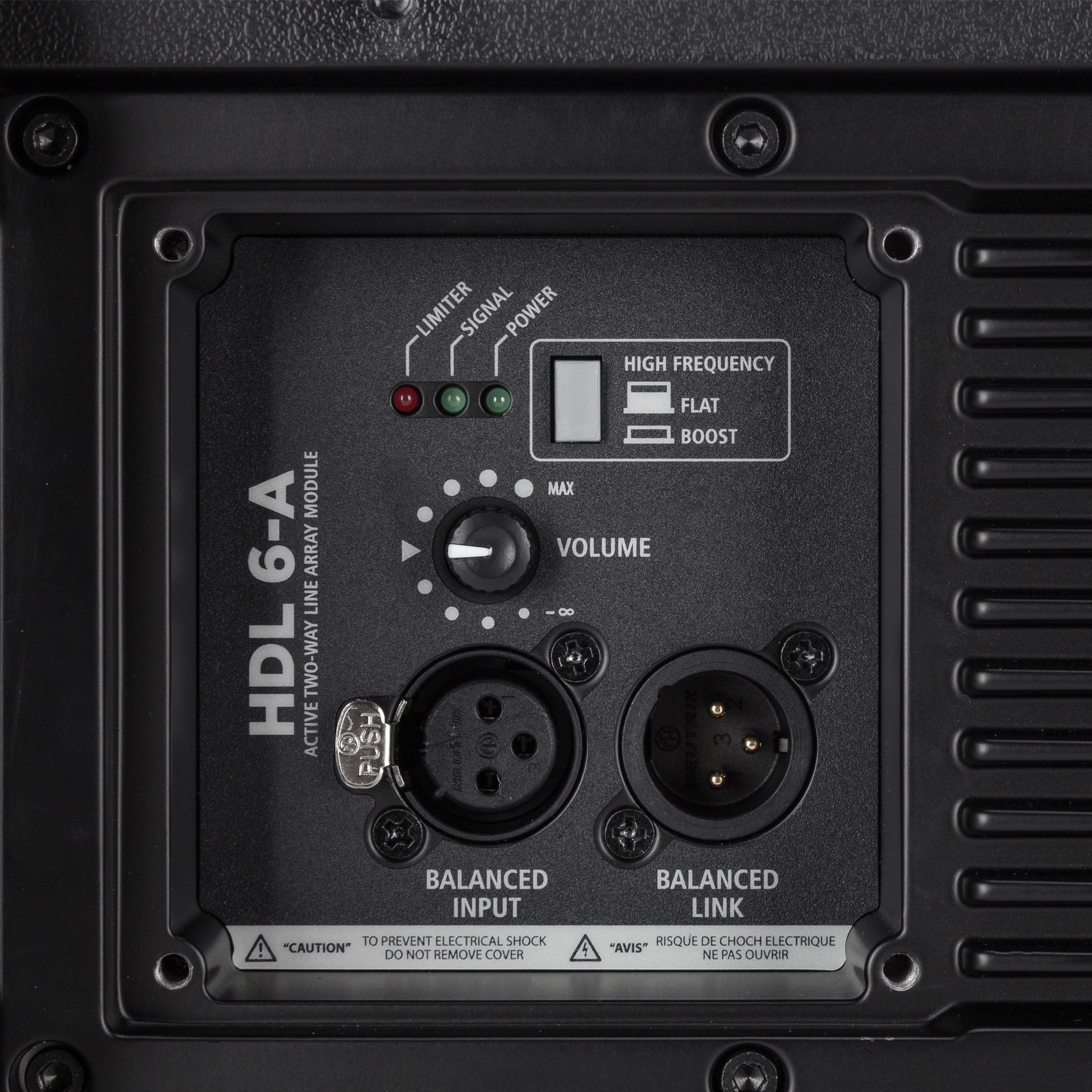

Input/Output Section
Input Signal	Bal/Unbal
Input Connectors	XLR
Output Connectors	XLR
Input Sensitivity	+4 dBu
Processor Section
Crossover Frequencies	900 Hz
Protections	Thermal, RMS
Limiter	Soft Limiter
Controls	HF Correction
Power Section
Total Power	1400 W Peak, 700 W RMS
High Frequencies	400 W Peak, 200 W RMS
Low Frequencies	1000 W Peak, 500 W RMS
Cooling	Convection

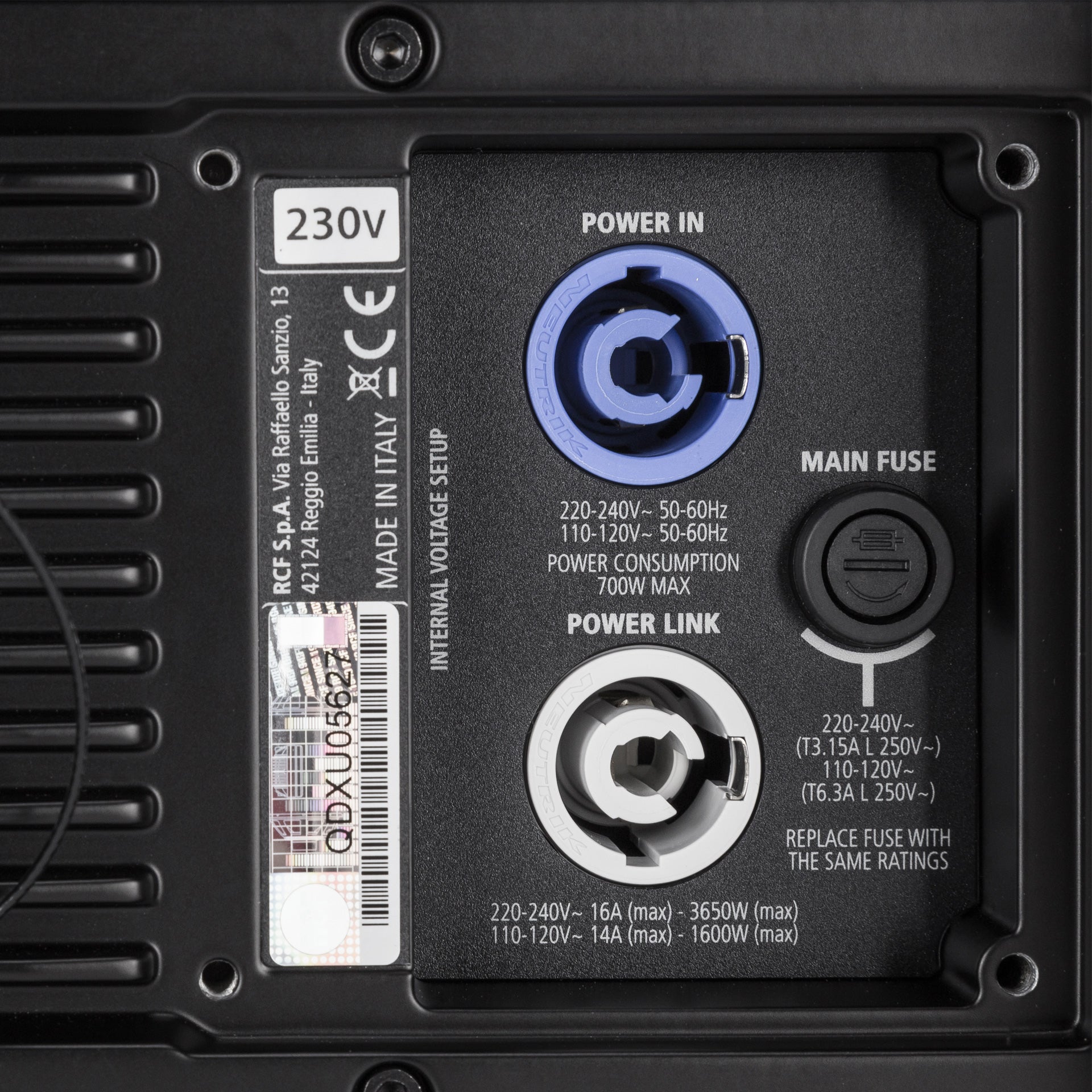

Connections	Powercon IN/OUT
Standard Compliance
Safety Agency	CE Compliant
Physical Specifications
Cabinet/Case Material	PP Composite

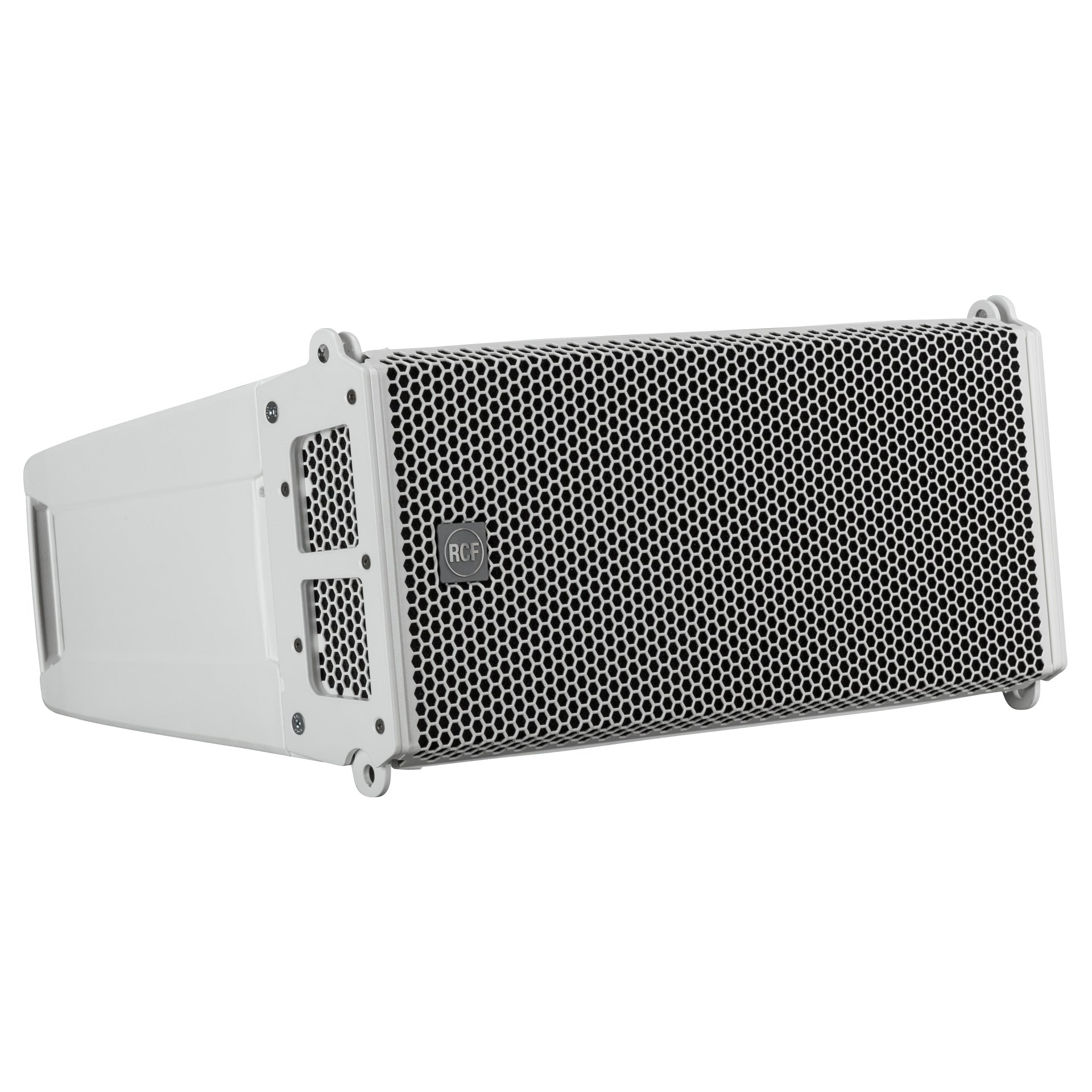

Hardware	Array Fittings
Handles	2 Back
Grille	Steel

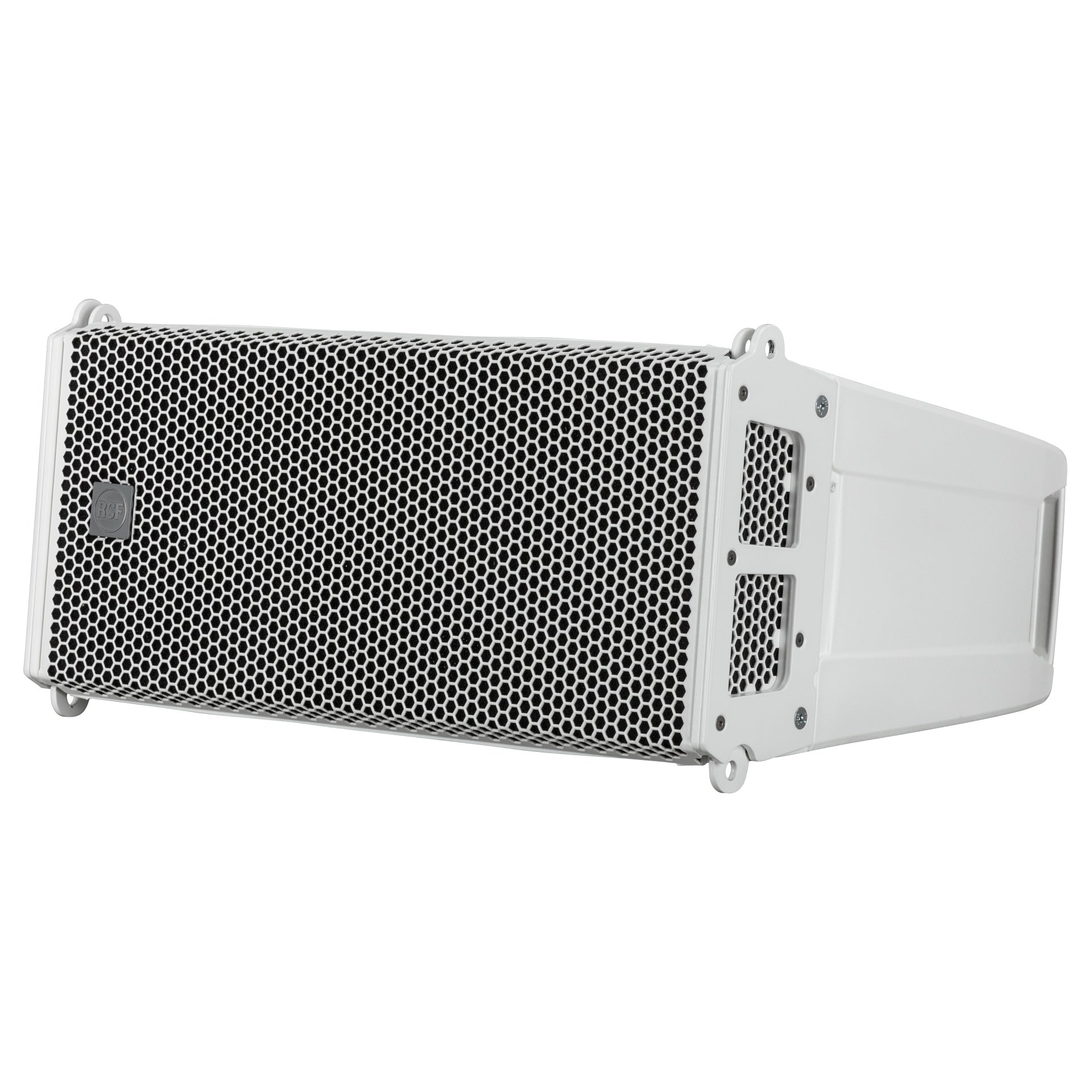

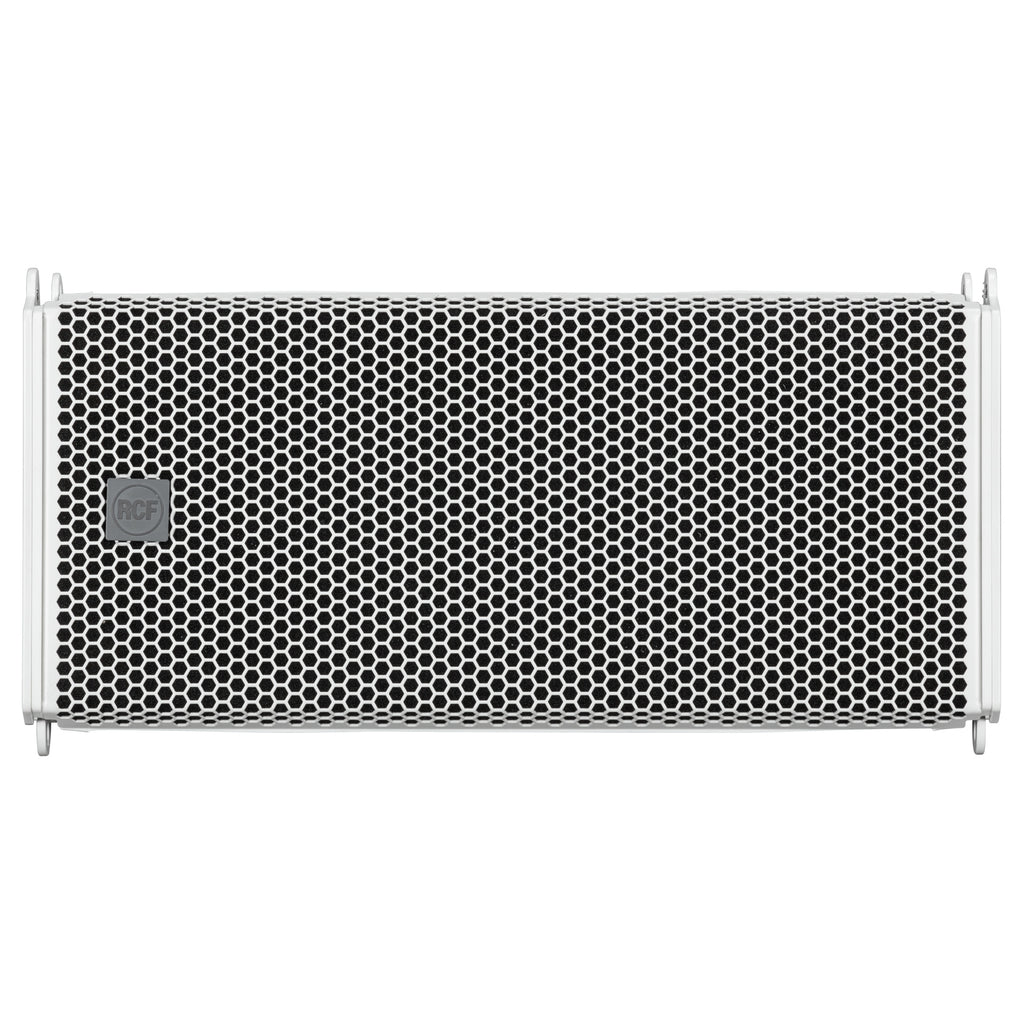

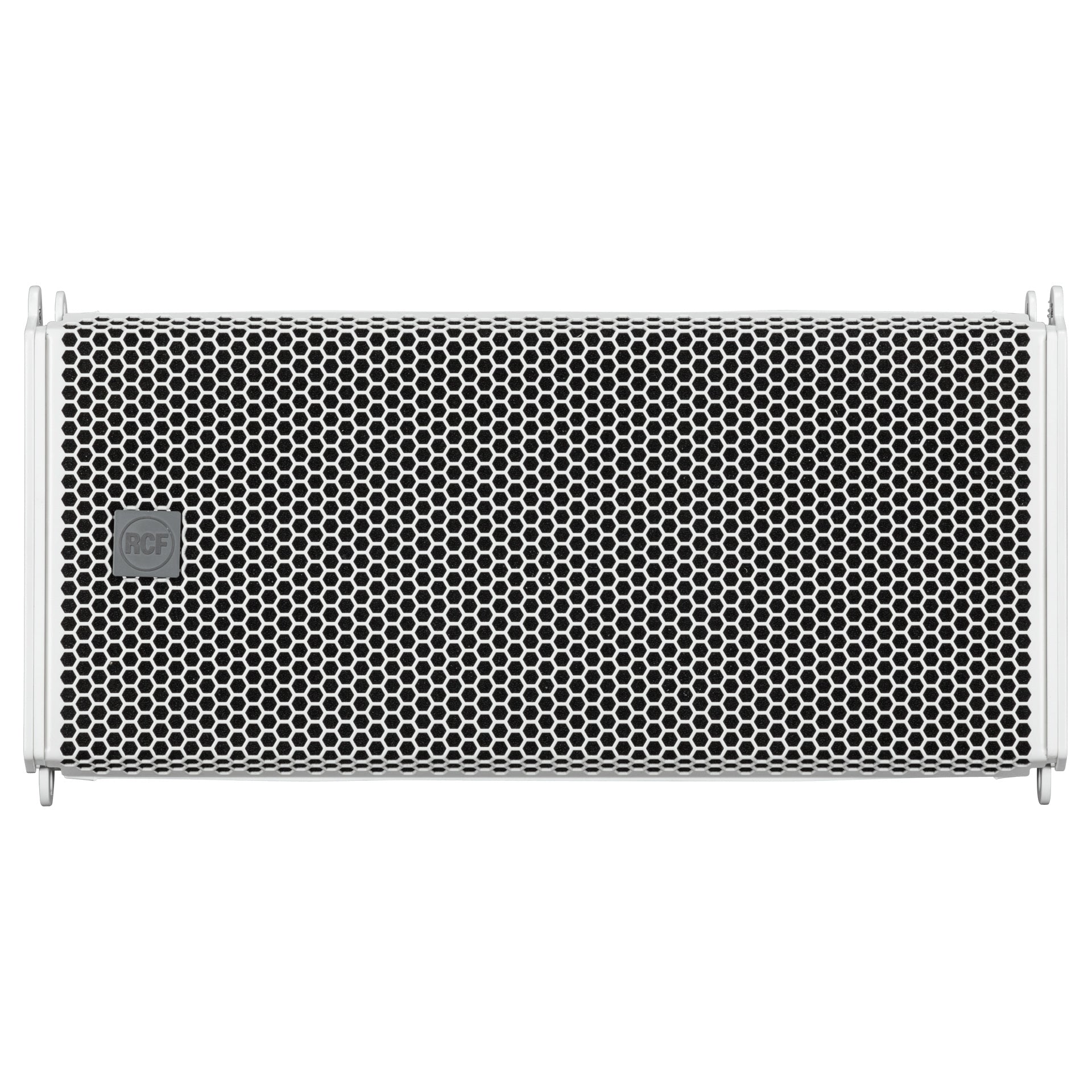

Color	Black, White
Size / Weight
Height	237 mm / 9.33 inches
Width	470 mm / 18.5 inches
Depth	377 mm / 14.84 inches
Weight	11.6 kg / 25.57 lbs
Shipping Information
Package Height	260 mm / 10.24 inches
Package Width	550 mm / 21.65 inches
Package Depth	425 mm / 16.73 inches
Package Weight	13 kg / 28.66 lbs
