Features
- 136 dB Max SPL
- 3200W peak class-D Amplifier
- 30-140 Hz frequency response
- RDNet Networked Management

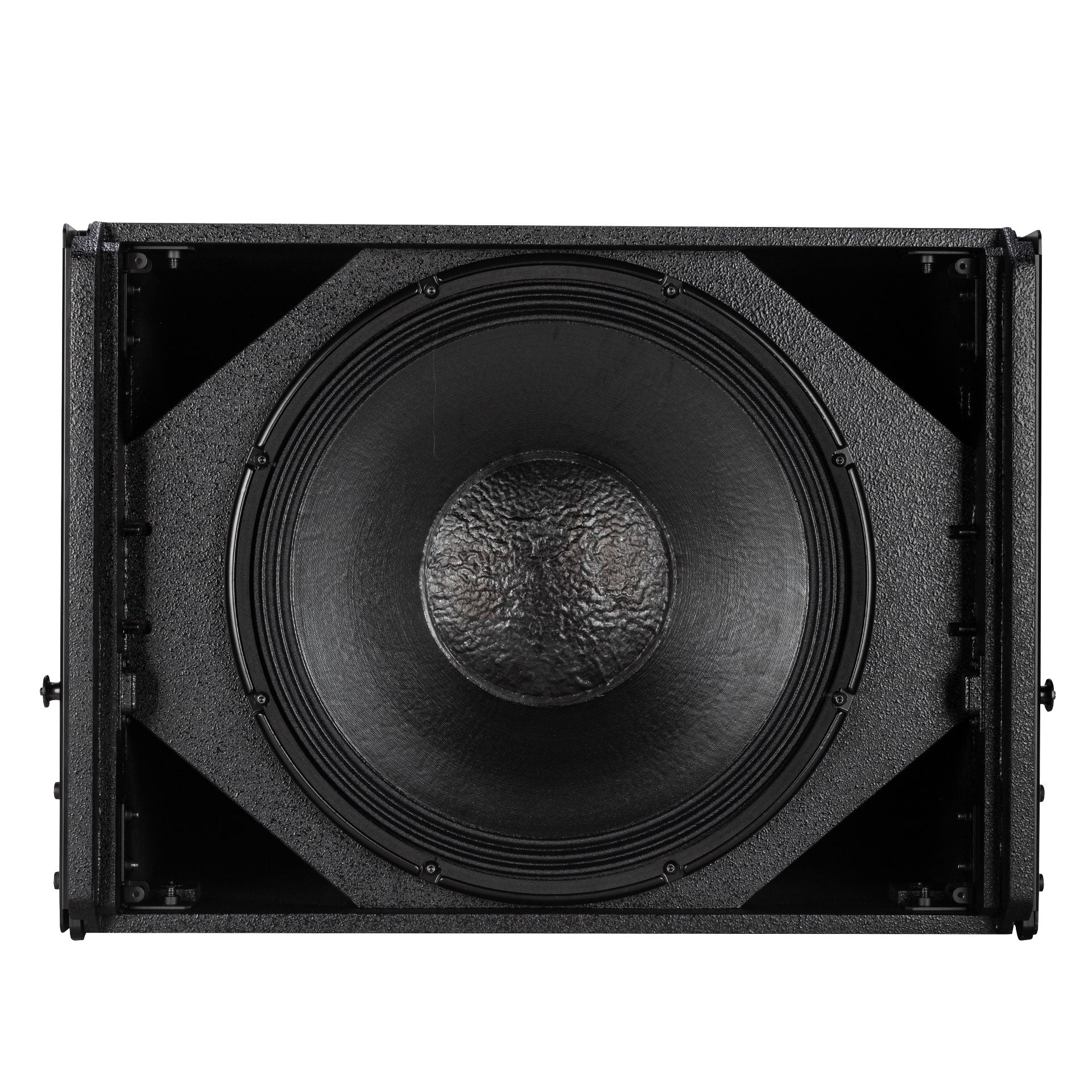

- 1x18” Neodymium Woofer, 4.0” voice coil
RCF HDL 38-AS Active Flyable Subwoofer Module is a professional flyable active subwoofer designed for the HDL 30-A array system, delivering up to 136 dB Max SPL with a 3200W peak Class-D amplifier and RDNet network management. The RCF HDL 38-AS Active Flyable Subwoofer Module features a high-performance 18-inch neodymium woofer with a 4.0-inch voice coil for powerful, accurate low-frequency reproduction.It features one 4.0” voice coil, 18” Neodymium woofer to handle 136 dB SPL Max from 30 Hz to 140 Hz with the maximum linearity and low distortion. The HDL 38-AS is perfect to create flown systems for theatrical and indoor requirements. The built-in 3200W class-D amplifier delivers excellent playback clarity and up to 136 decibels SPL max. Due to its compatibility with RDNet - remote monitoring and control, the HDL 38-AS is part of the professional HDL System.
Specifications
| Acoustical Specifications |
| Frequency Response |
30 Hz - 140 Hz |
| Max SPL @ 1m |
136 dB |
| Transducers |
| Woofer |
1 x 18" Neo, 4.0" v.c. |
| Input/Output Section |
| Input Signal |
Bal/Unbal |
| Input Connectors |
XLR, RDNet Ethercon |
| Output Connectors |
XLR, RDNet Ethercon |
| Input Sensitivity |
+4 dBu |
| Processor Section |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |

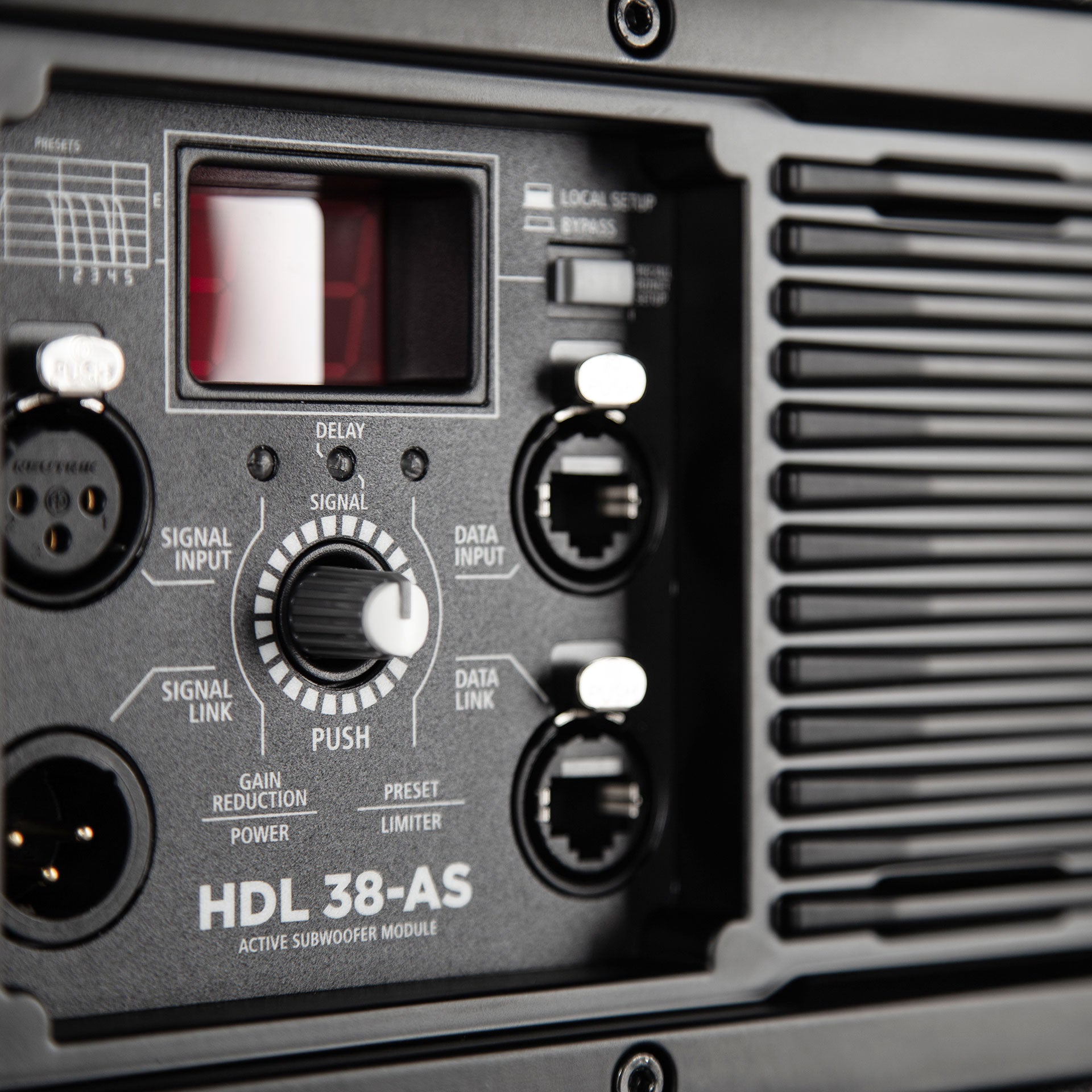

| Controls |
Volume, Preset Selection |
| RDNet |
Onboard |
| Power Section |
| Total Power |
3200 W Peak, 1600 W RMS |
| Low Frequencies |
3200 W Peak, 1600 W RMS |
| Cooling |
Convection |
| Connections |
Powercon IN/OUT |
| Standard Compliance |
| Safety Agency |
CE Compliant |
| Physical Specifications |
| Cabinet/Case Material |
Baltic Birch Plywood |
| Hardware |
Array Fittings 1 x M20 |
| Handles |
2 Side |
| Pole Mount/Cap |
M20 Thread |
| Grille |
Steel |
| Color |
Black, White - RAL 9003 |
| Size / Weight |
| Height |
502 mm / 19.76 inches |
| Width |
700 mm / 27.56 inches |
| Depth |
621 mm / 24.45 inches |
| Weight |
48.7 kg / 107.36 lbs |
| Shipping Information |
| Package Height |
550 mm / 21.65 inches |
| Package Width |
670 mm / 26.38 inches |
| Package Depth |
750 mm / 29.53 inches |
| Package Weight |
51 kg / 112.44 lbs |
