RCF F 10XR – 10 channel mixing console with multi-FX & Recording
The RCF F 10XR is a professional audio product from the RCF F Series series, designed for mixers applications. Built to RCF's exacting standards of Italian engineering excellence, this product delivers reliable, high-performance audio in professional environments.
Product Details
-
Model: F 10XR
-
Series: F Series
-
Application: MIXERS
-
SKU: 17140089
Description
MIXING CONSOLESPORTABLE
F 10XR
10-channel mixing console with multi-FX & Recording
- Sturdy Metal Chassis
- PRO DSP FX onboard with 16 presets
- Stereo Recording and Playback via USB port
- Balanced main output audio path from input to output
Features
- Sturdy Metal Chassis
- PRO DSP FX onboard with 16 presets
- Stereo Recording and Playback via USB port
- Balanced main output audio path from input to output
- 2 single control compressors
- Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
- Robust, compact and attractive design.
- Designed and Engineered in Italy
- External Universal Power Supply
RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in five formats from 6 to 24 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, F-16XR and F-24XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.
RCF’s next-generation F Series analog mixers build on a rich legacy, providing high-quality sound in five models ranging from 6- to 24-channel inputs. With an aesthetically pleasing interface and rugged connectors, F Series makes it easy to mix your music with minimal technical expertise. Housed in a rugged metal chassis, each mixer is fully balanced with low noise from input to output, independently controlled compressors* to limit signal peaks and a modern-sounding EQ.

Shape your sound
The tonal balance is adjustable via the powerful F Series equalizer.
The F 24XR and F 16XR EQ feature a semi-parametric mid-band EQ with selectable frequency.
Single control compressors
The F Series compressor is completely transparent and limits the dynamic range of any instrument and voice. Simply plug in the instrument or microphone, set your gain, and shape the sound by adjusting a single knob. Incredibly ease to use, the end result is musical, without compromising your sound.
24 bit effects

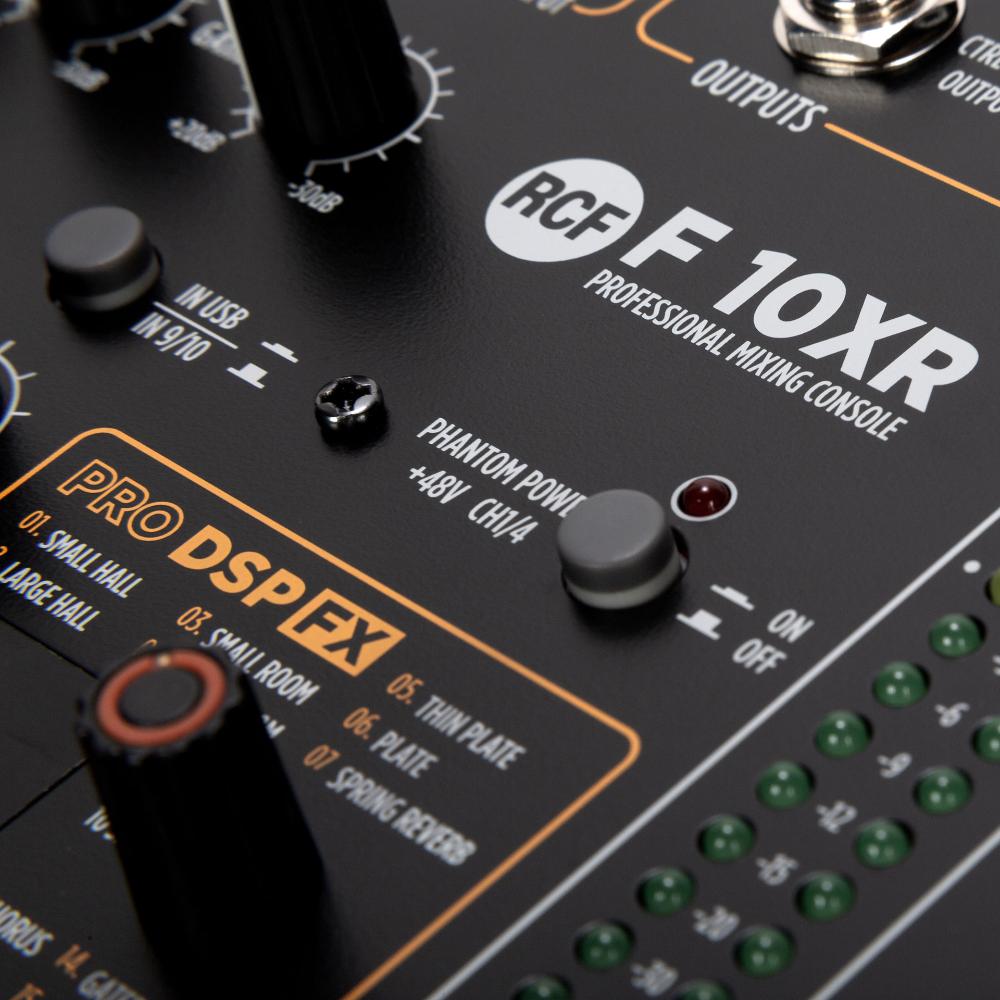

RCF has selected 16 studio-quality effects, designed for everyday use when you need great quality FX processing without the need of an external FX unit.
The F Series feature a powerful 20/27 bit PRO DSP FX effects engine packed with 24-bit effects such as Reverbs (halls, rooms, plates, spring), Delays (mono, stereo and multi-tap), Chorus, Flangers and Echo.
USB recording and playback
Achieve pro-quality recordings straight to your computer. No need for external interfaces or multiple connections and levels to check. Just plug in a USB lead to a PC, or to your iPhone / iPad (2 or later) using Apple’s Camera Connection Kit / Lightning to USB Camera Adapter. Select the USB routing and you have CD-quality recording and stereo playback, effortlessly. The driver-less Class Compliant design allows recording and playback from Windows, MacOs and iOS (through USB adapter) without any additional software.


Forget the DI box, Hi-Z inputs are very useful when connecting low-current musical instruments.
Route your signals
AUX sends can feed stage monitors and/or the PRO DSP FX, independent of the main mix. In addition to the input/output options, the F 12XR provides one stereo output BUS and two AUX sends while the F 24XR and F 16XR provide two stereo output BUSSES and 4 AUX sends.
Technical Specifications
Professional 10-Channel Audio Mixer
Electronic Specifications
| Frequency Response |
20 Hz - 20 kHz |
| THD+N, 20dB gain, 0dBu out |
<0.02% A-Weighted |
| Dynamic Range |
>85dB |
Input Channels
| Total Channels |
10 |
| Input Connectors |
XLR, Jack, RCA |
Microphone Inputs
| Mic Channels |
4 |
| Gain Range |
0 dB - -50 dB |
| Input Noise Level |
-124 dBu A-Weighted |
| Mic Inputs Impedance |
14 kohm |
| Low Cut |
80 Hz |
| Phantom Power +48V |
Yes |
Line Inputs
| Mono Line Channels |
2 |
| Mono Line Gain Selection |
20 dB - -30 dB |
| Line Input Impedance |
21 kohm |
| Stereo Line Channels |
4 |
| Stereo Line Gain Selection |
20 dB - -30 dB |
| Stereo Line Input Impedance |
15 kohm |
Outputs
| Main MIX |
1 |
| Control Room |
Yes |
| FX Send |
1 |
| AUX Output |
1 |
| Phones |
1 |
| Output Connectors |
XLR, Jack |
Output Specifications
| Main Out Level |
28 dBu |
| Aux Out Level |
28 dBu |
| Phones Out Impedance |
150 ohm |
Processing & Effects
| RCF Compressors |
2 Single Control Compressors on Channels 1 & 2 |
| Internal Send Effects |
1 |
Input Channel EQ
| EQ Type |
2 Shelving / 1 Generic |
| High |
+/-15 dB @ 10 kHz Shelving |
| Mid |
+/-15 dB @ 1,250 kHz Bell |
| Low |
+/-15 dB @ 100 Hz Shelving |
USB Audio Interface
| USB Audio Interface |
Yes |
| Type |
B |
| Play Tracks |
2 |
| Record Tracks |
2 |
| Supported Sample Rate |
44.1, 48.0 kHz |
Electrical Specifications
| Power Supply |
External |
| Voltage Requirements |
100 V - 240 V |
| Power Consumption (MAX) |
18 W |
Standard Compliance
| Safety Agency |
CE compliant |
Physical Specifications
| Cabinet/Case Material |
Metal |
| Color |
Black |
Size & Weight
| Height |
82 mm / 3.23 inches |
| Width |
294 mm / 11.57 inches |
| Depth |
275 mm / 10.83 inches |
| Weight |
2.8 kg / 6.17 lbs |
Shipping Information
| Package Height |
130 mm / 5.12 inches |
| Package Width |
400 mm / 15.75 inches |
| Package Depth |
345 mm / 13.58 inches |
| Package Weight |
3.8 kg / 8.38 lbs |
