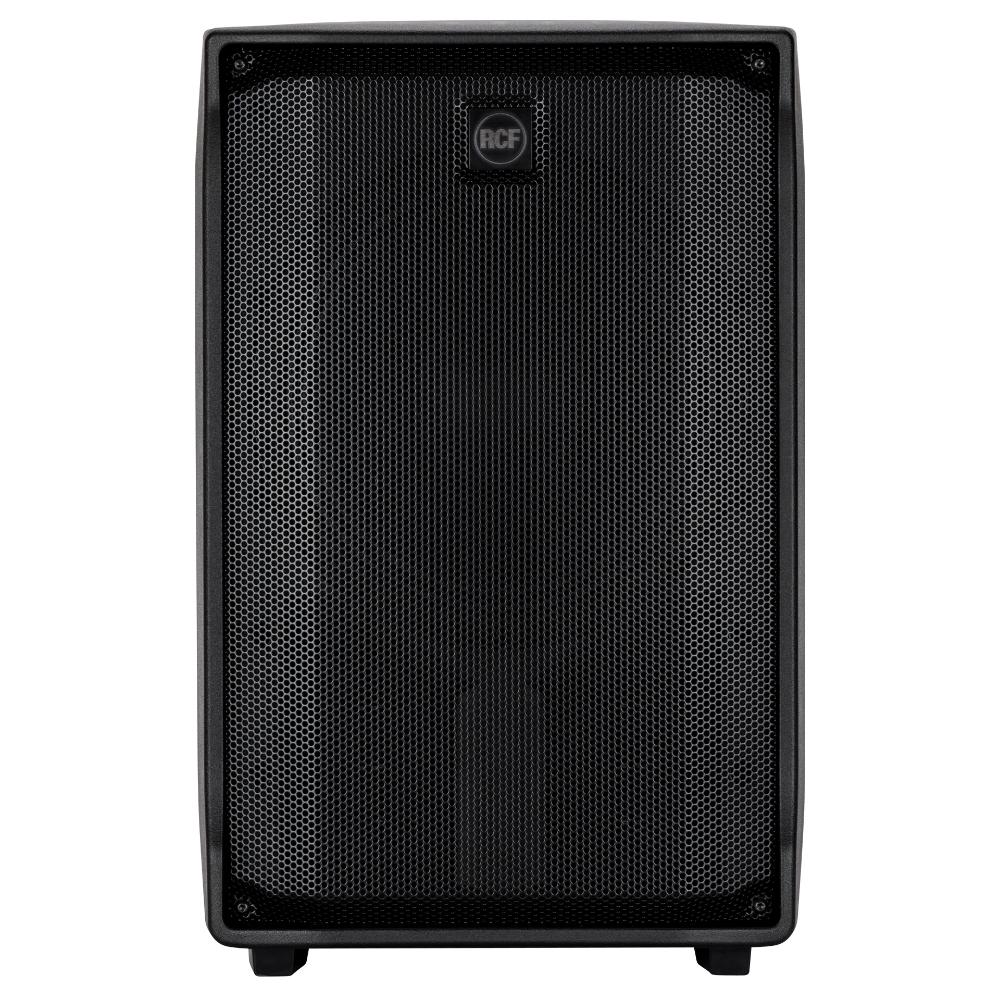

RCF EVOX JMIX8 – Evox J8 with digital mixer

The RCF EVOX JMIX8 is a professional audio product from the RCF EVOX series, designed for portable applications. Built to RCF's exacting standards of Italian engineering excellence, this product delivers reliable, high-performance audio in professional environments.

Product Details

• PORTABLE

  EVOX JMIX8

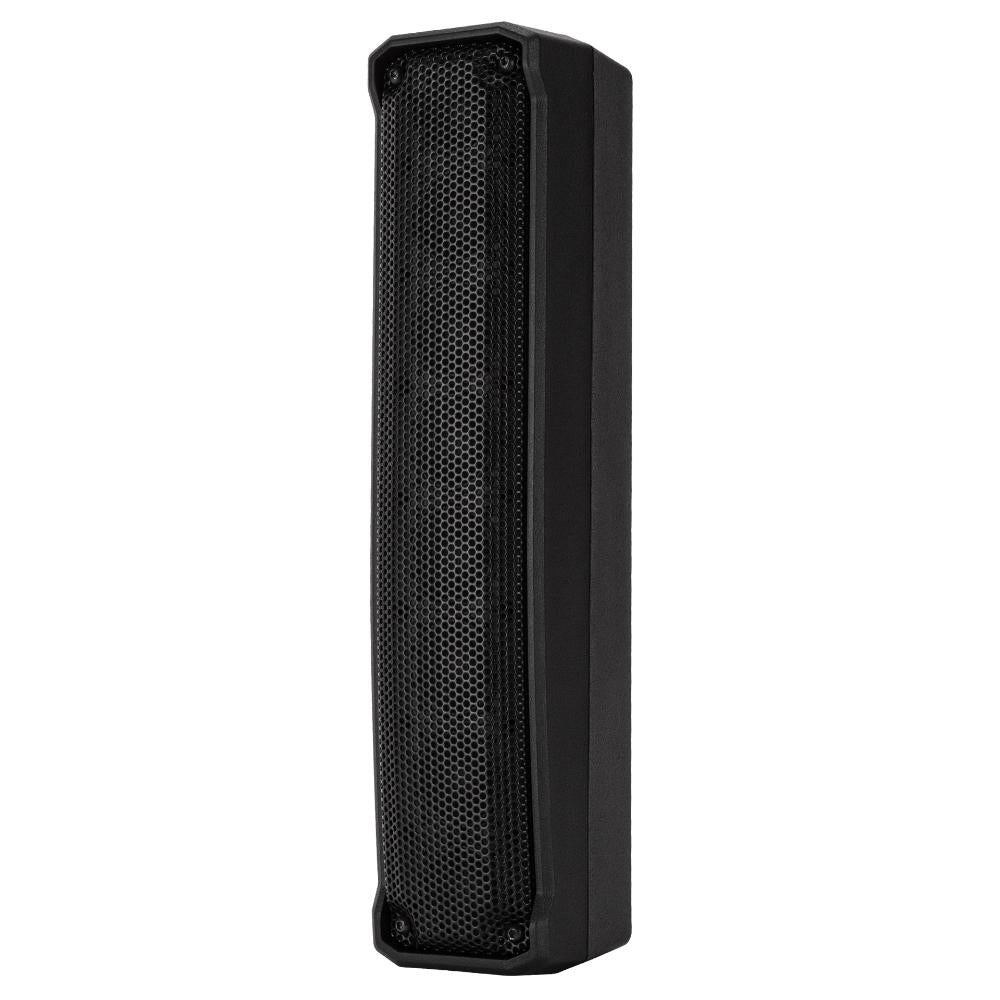

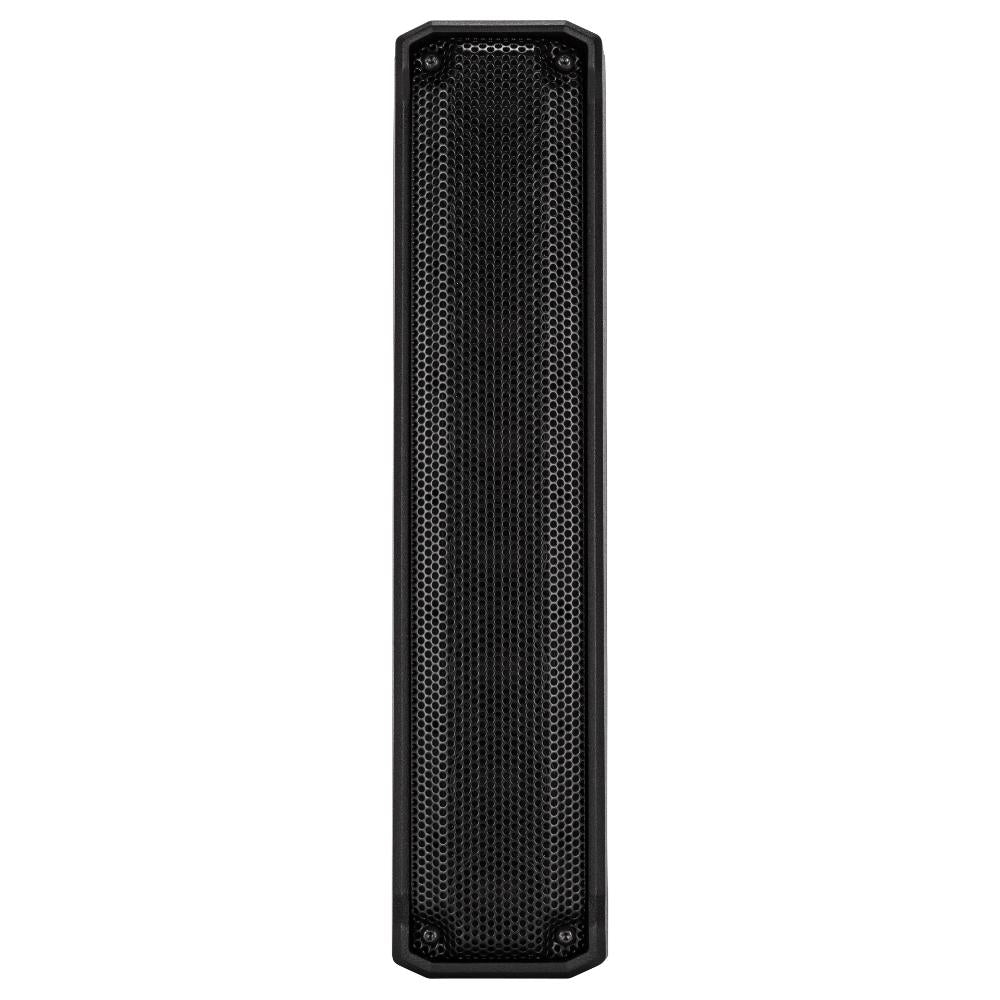

  ACTIVE TWO WAY ARRAY MUSIC SYSTEM

  • 128 dB Max SPL
  • 1400 Watt 2-way power
  • 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
  • DSP Processing with FiRPHASE

Features

• 128 dB Max SPL
• 1400 Watt 2-way power
• 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
• DSP Processing with FiRPHASE

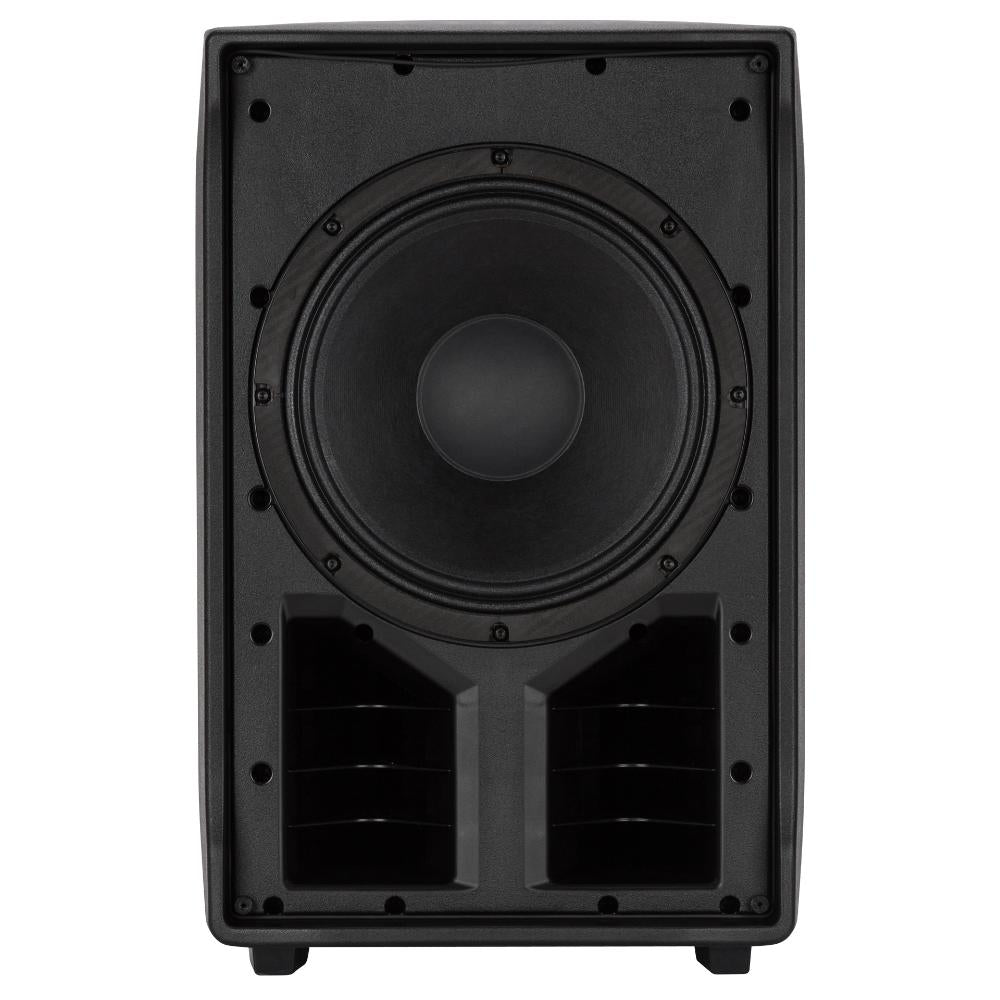

• 12" woofer, high power 2.5" voice coil

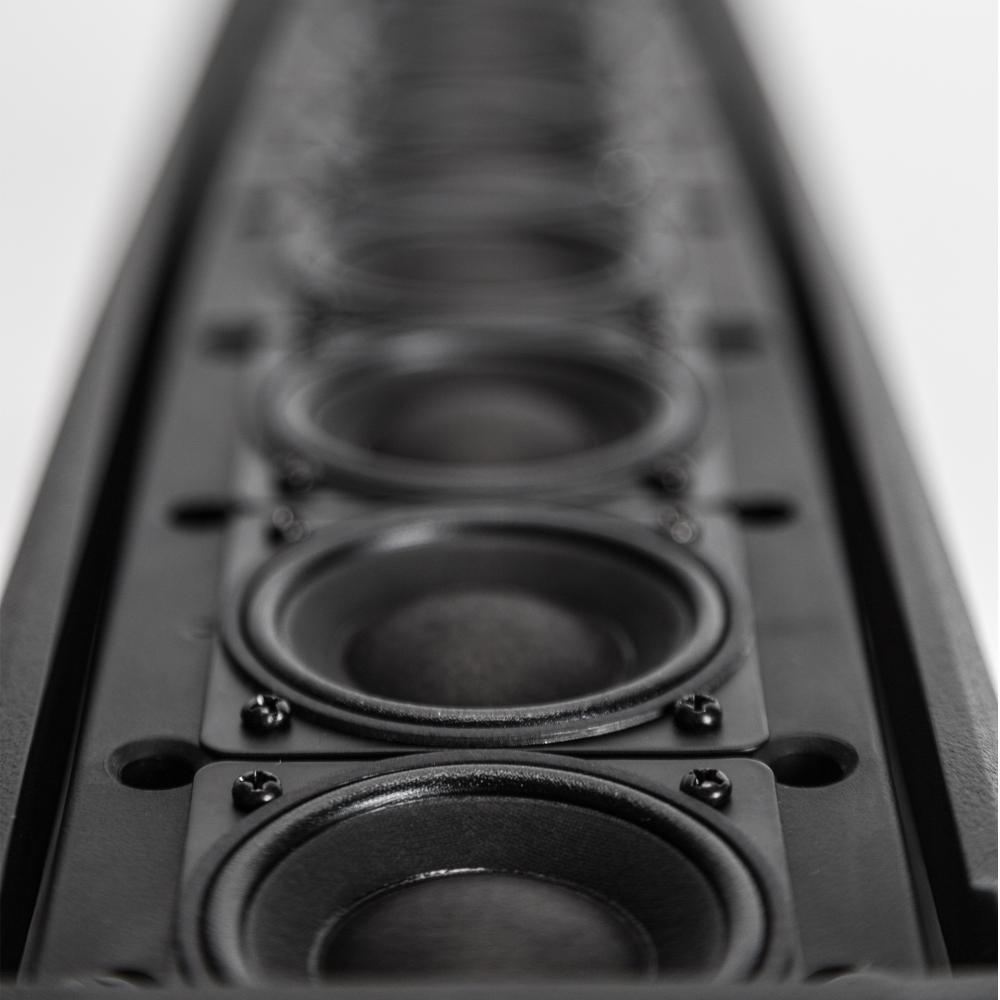

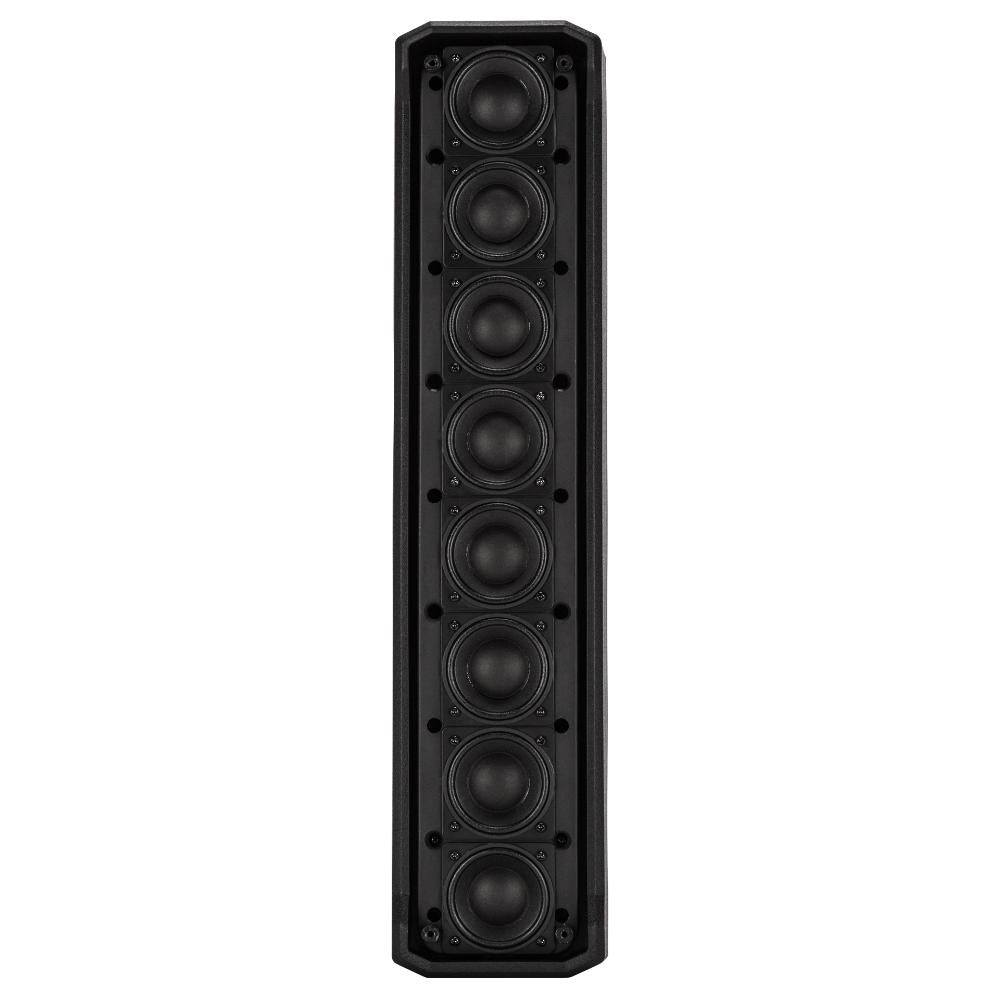

• 8 x 2" ultra compact fullrange 1.0" voice coil
• 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
• 24,4/53.8 kg/lbs

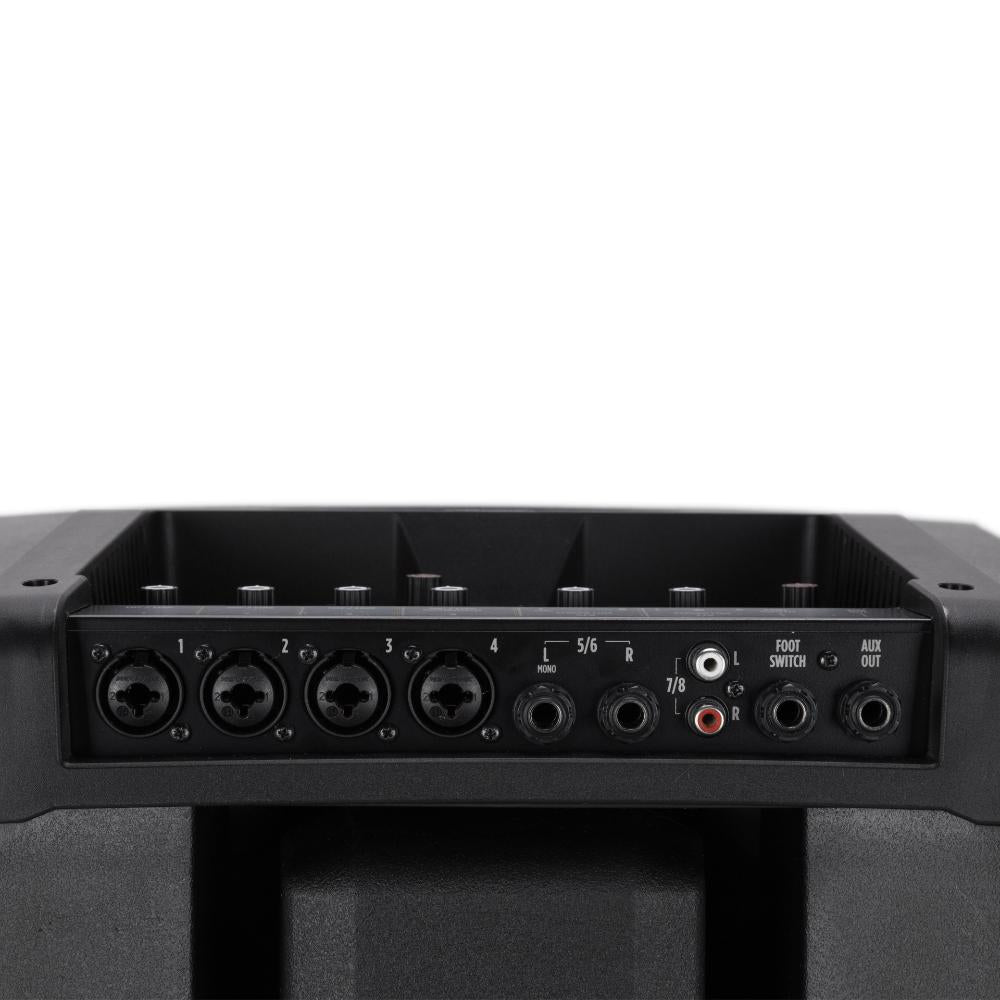

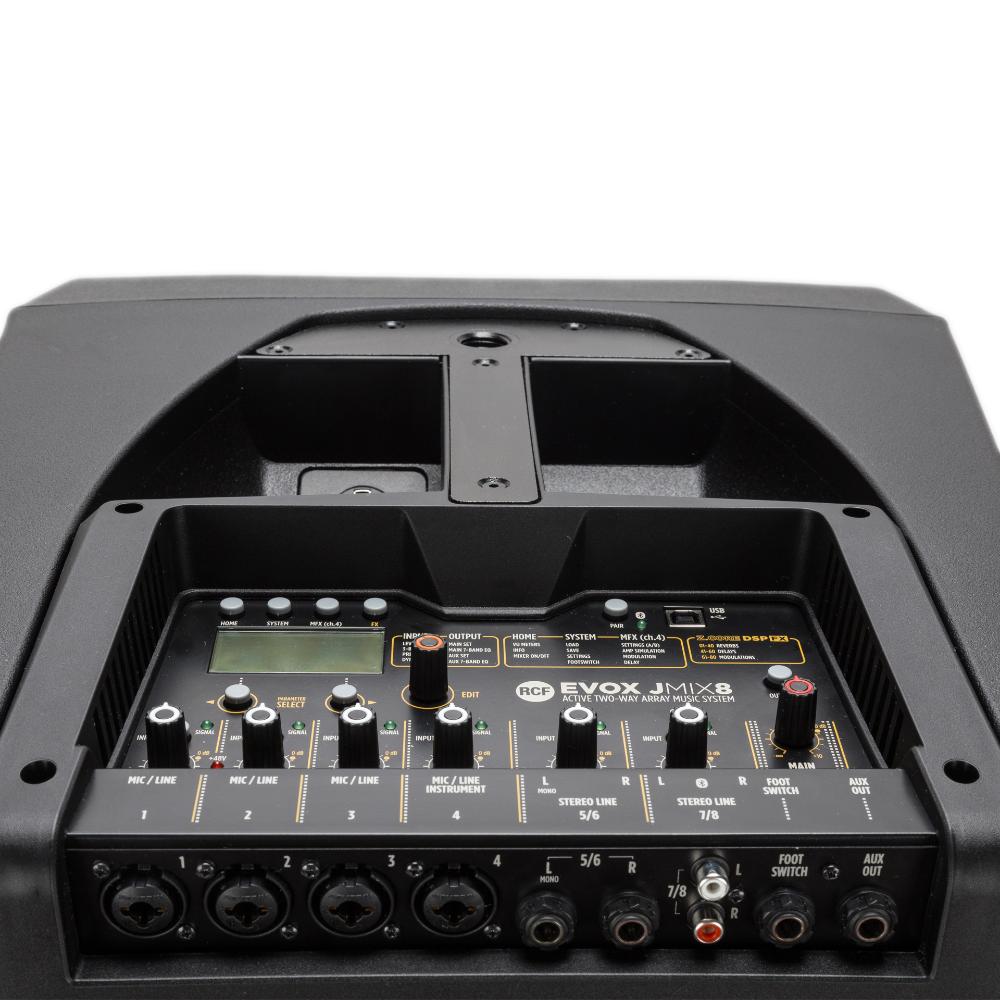

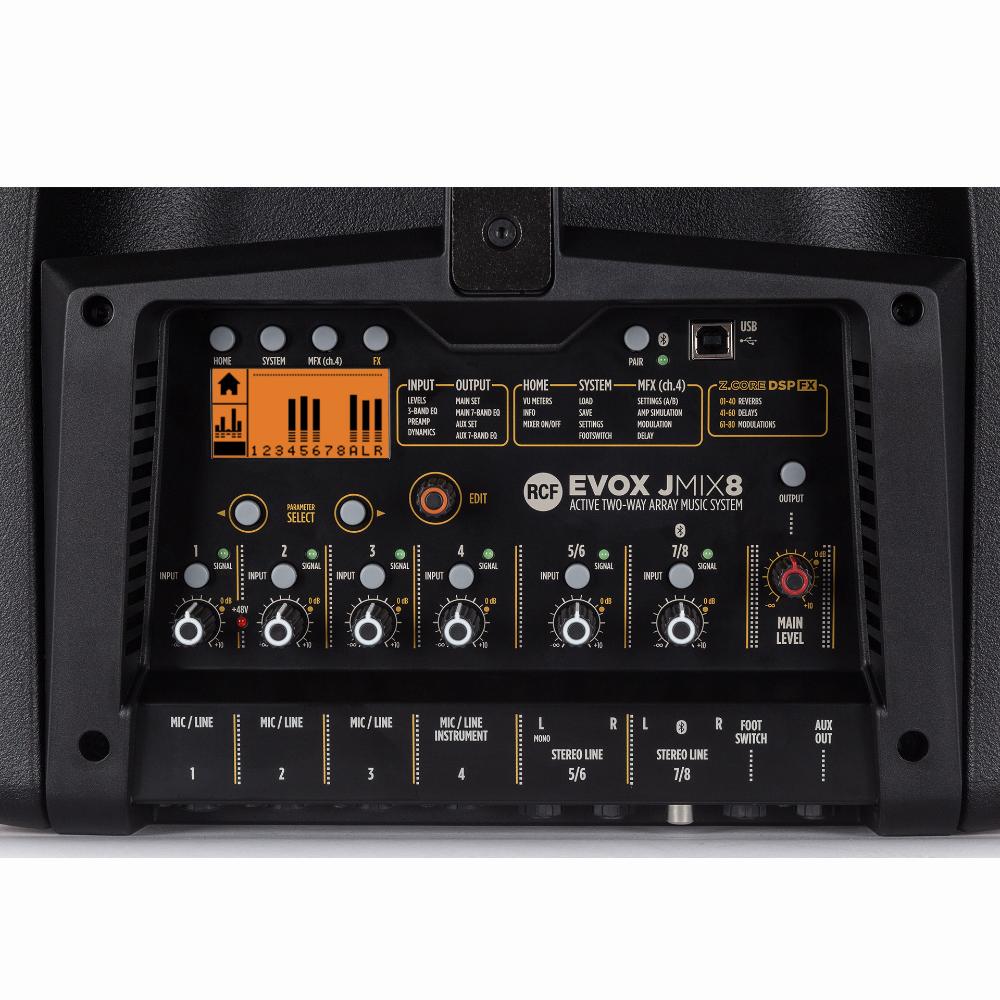

Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer

EVOX APP

The RCF EVOX App ensures a comprehensive control of J Series mixers: all the processing you need, on your smartphone, via Bluetooth. Featuring attractive and intuitive graphics created by audio professionals, the app allows you to navigate between pages and fully control the mixer’s parameters even while playing. RCF EVOX J The EVOX App is available for iOS and Android operating systems.

Dynamic Compressor

MIC/LINE inputs 1 to 4 are provided with a single control dynamic compressor. The control slider acts on the amount of compressor intervention. A dedicated button toggles the compressor ON and OFF. Up to 6 different presets can be selected from the Compressor Model list: Light, Heavy, Vocal, Bass, Acoustic, and Drum.

Main Channel

A 7-band graphic EQ on the Main Channel lets you shape the frequency response of the system. In order to have a powerful overall sound, limiting peaks and more RCF EVOX J harmonics, four mastering processing presets can be selected: MASTERING, MASTER BOOST, LOUD & PROUD, and HI-FI.

Guitar Amps And Cabinets Included

The line input 4 can be switched to a Hi-Z mode and host several realistic amp modeling simulators. Guitar and Bass players can count on a whole range of 15 realistic emulations tuned for the maximum reality: Darkface ’65, Jazz C, Rock’64, Rock 800 Crunch, Rock 900 Lead, Top30, Modern, Bassamp, Bassmate, Markbass 1, Markbass 2, Slo 88 Crunch, Slo 88 Lead, Overange 120, Heavy 51 and others. Shape the sound of each amp via 4 different parameters, store it in the Preset memory and recall via EVOX App, Panel, or Footswitch. A wide range of integrated sound options at your fingertips.

presets from the premium RCF Z.CORE.DSP, each with three parameter controls: 40 different reverbs, providing a realistic simulation of large spaces, such as halls, rooms or hardware reverbs; 20 different delay types; 20 modulation effects to shape any nuance of your music.

Ready to play in a few simple steps

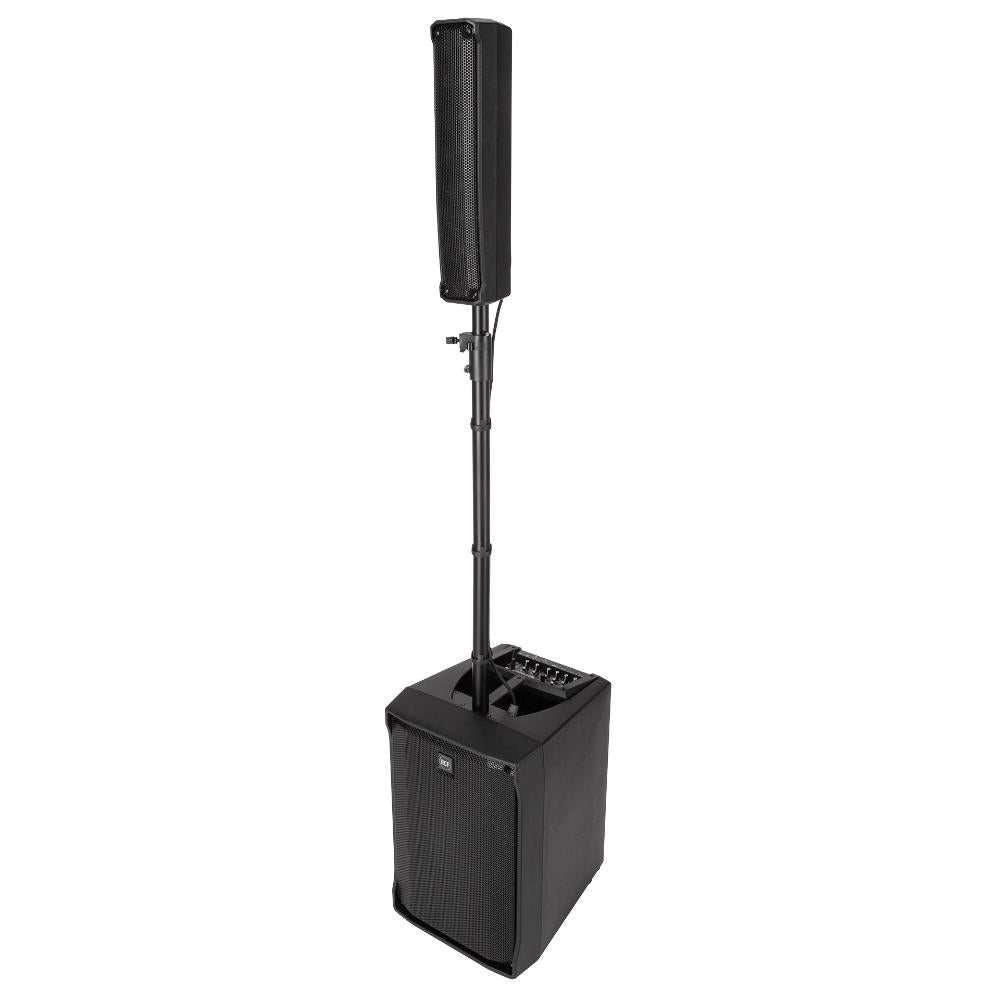

PORTABILITY In addition to the handle on top of the woofer’s cabinet, transportation is made easy thanks to the trolley, that is fully integrated into the optional cover of the speaker. During transportation, the metal pole is safely attached to the trolley with the cover’s handles.

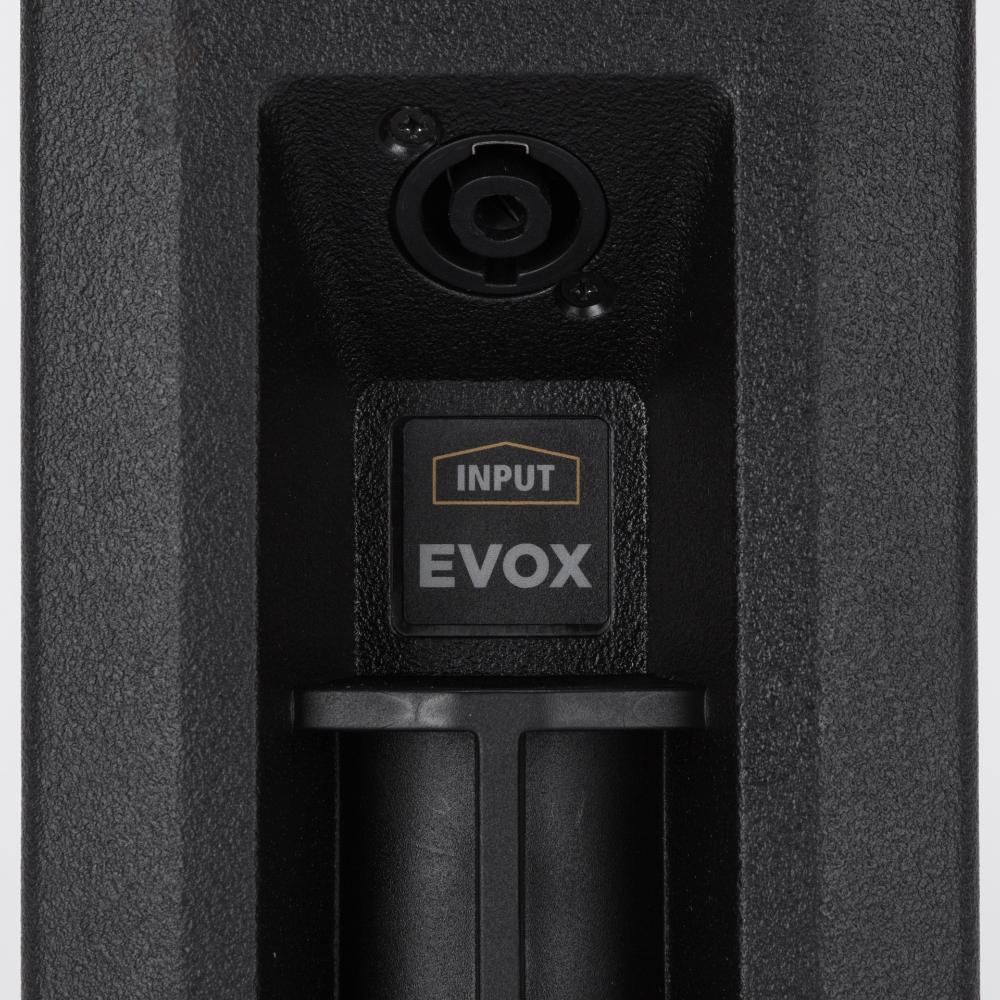

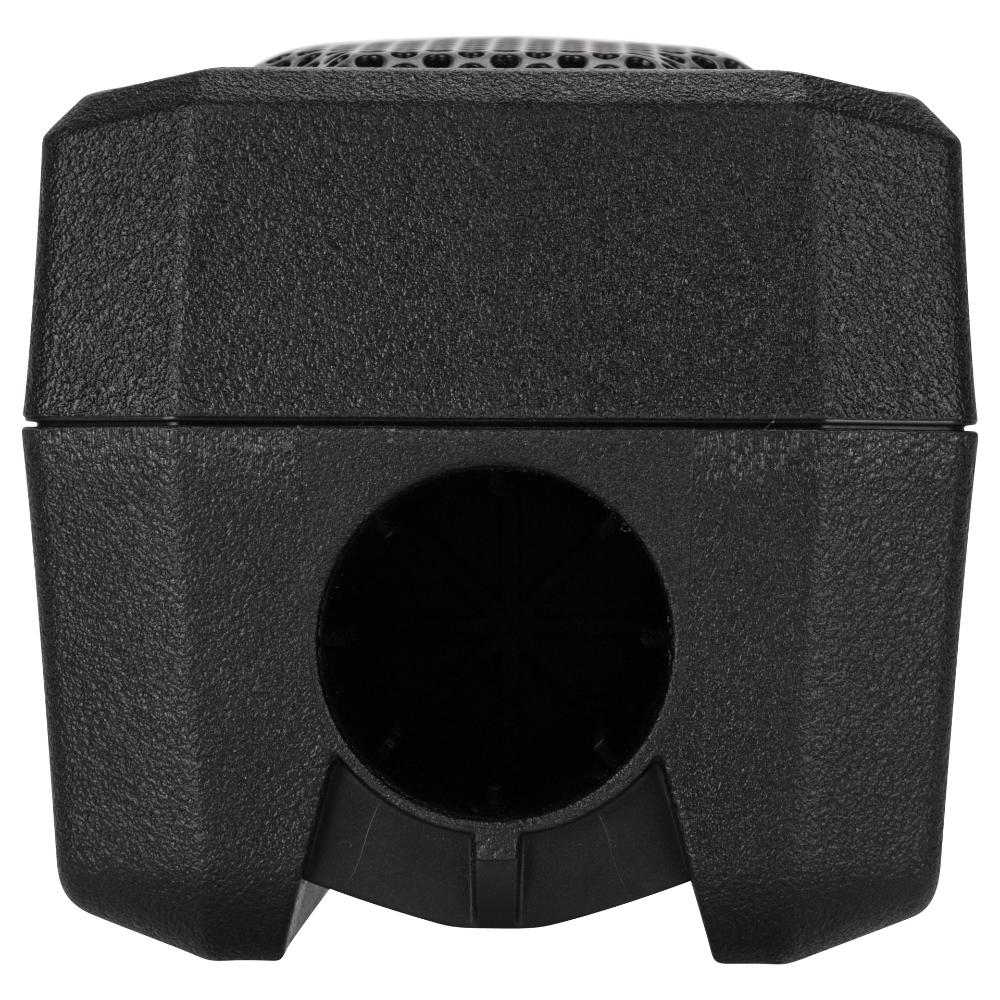

MOUNTING Screw the pole into the pole mount on top of the subwoofer. Insert the top column, connect the SpeakOn and it’s done! An adjustable fastener allows the pole’s length to be adapted.

PLAY! Carrying and mounting your audio system has never been so quick.

MFX

A whole range of easy-to-use effects helps the musician to find the right sound in any song: chorus, tremolo and flanger on the modulation effects unit, plus a useful delay for musical instruments.

The Transducer Innovators

RCF boasts over 75 years of experience in designing and manufacturing transducers, with a particular focus on moving coil loudspeakers. Our transducers are engineered to optimize the balance between power delivery and sound purity, achieving minimal distortion and the capacity to endure high power levels for extended periods.

Heritage

RCF's legacy includes pioneering advanced transducer technologies and the application of high-tech materials such as Neodymium, Carbon Fibre, Titanium, Kevlar, Modified Polyether Ether Ketone (PKX), Kapton, and Mylar hybrids.

Endurance

Our models are subjected to a rigorous evaluation process, featuring a 200-hour continuous signal test designed to challenge the transducers' limits. This demanding stress test ensures that only transducers meeting our stringent standards for durability and performance are selected.

Vanguard

RCF is at the forefront of technological advancements, continually striving for the optimal listening experience. Our design methodology integrates rigorous measurement tests with critical listening sessions, underscoring our commitment to precision tailored for the human ear.

High-Grade Materials

The inclusion of a high-damping cellulose cone, double polycotton-polyurethane spiders for outstanding stability and control over the moving mass, and a substantial heavy-gauge treated triple cloth surround, contribute to the moving mass's exceptional strength and excursion control. Additionally, a water-repellent treatment ensures suitability across various environments.

Advanced Compression Drivers

Kapton®, extensively used in space and for temperature-resistant insulation, is chosen for its ability to retain a unique combination of mechanical properties under the most extreme conditions of heat and vibration.

Titanium, recognized for its high resistance to corrosion, fatigue and temperature, with high tensile strength-to-density ratio and crack resistance merges durability with superior frequency response.

PKX (Modified Polyether Ether Ketone) is a rigid, yet lightweight material enhanced with reinforcing ribs for slim dome designs, offering greater precision and reliability than other polymeric materials.

High Power Magnet Designs

Techniques such as computer-aided magnet optimization and FEM analysis refine magnet weight, flux density, and field saturation, significantly reducing driver weight and harmonic distortion.

The T-pole design minimizes flux modulation in the magnetic assembly during typical voice coil movements within the gap. We developed specially designed rings in copper for compression drivers and aluminum for cone transducers. Pressed onto the pole piece, the ring modifies and reduces the magnetic circuit and voice coil inductance, enabling a controlled extension of the acoustic frequency response.

High-Class Neodymium

Neodymium, a rare earth material, enhances efficiency, power handling, and weight reduction. Using a 20% stronger magnetic field than typical neodymium grades, this new design enables precise control and higher force.

Ferrite Ceramics

Our engineering team has introduced a new ferrite magnet that delivers higher flux in a lightweight design, setting a new standard for ferrite products by minimizing weight without compromising performance.

Dual Forced Hyperventing System

Hypervented cooling designs combine various components to create an ideal ventilation system. The RCF engineering team emphasizes finned cooling channels and optimizes the surface area of the front magnetic plate for efficient heat dissipation. The double silicone sealed spider design functions as an air pump, expelling hot air and drawing in fresh air with each movement of the cone assembly.

Diaphragm Assembly

The diaphragm and suspension are precision-crafted significantly reducing distortion by eliminating resonance points and aiding in suspension breakup mode control. RCF has mastered an oxygen-free process for molding titanium ultrathin films into high-quality, precisely shaped diaphragms. Our current Polyimide-Kapton dome with new bonding technology and reinforced ribs, is ten times more durable than previous models.

Direct Drive Voice Coil

This setup ensures optimal energy transfer between the voice coil and the dome assembly, resulting in a smoother, extended frequency response beyond 10 kHz, reducing break-up modes, and lowering distortion. This assembly delivers not only high power handling but also excellent mechanical and thermal properties, making RCF compression drivers robust and reliable.

Phase Plugs

Through extensive computer-assisted mathematical modeling and testing, we've developed phase plug geometries that ensure balanced acoustic performance by controlling and lowering air distortion and maximizing output. This allows for a lower compression ratio, generating substantially lower distortion artifacts. The result is high output with smooth acoustic frequency response and low harmonic distortion artifacts.

Extreme Power Handling

Significant investment in material science, design topology research, and power testing enables us to produce products with unmatched structural integrity, optimal thermal properties, and superior power handling capabilities. Our engineers have developed composite polyimide and fiberglass former materials that withstand peak temperatures above 380°C, far exceeding the thermal demands of contemporary professional audio systems.

Inside/Outside Voice Coils

RCF's unique voice coil design offers several advantages: the dissipation surface is doubled; the adhesion area to the former is doubled; and during thermal expansion, the former is squeezed between inside and outside layers, offering the best mechanical resistance.
