RCF EVOX J8 Active Two Way Portable Array

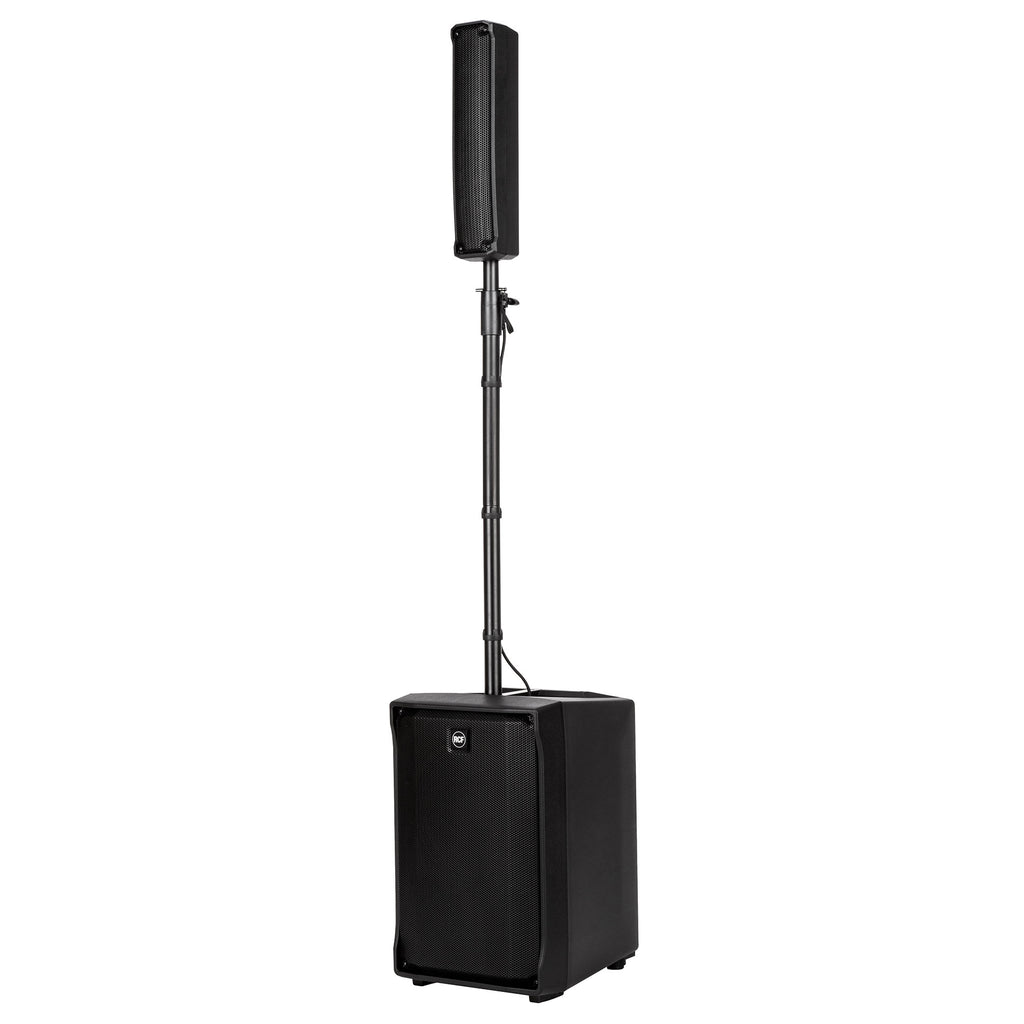

RCF EVOX J8 active two-way portable array front view showing compact column speaker

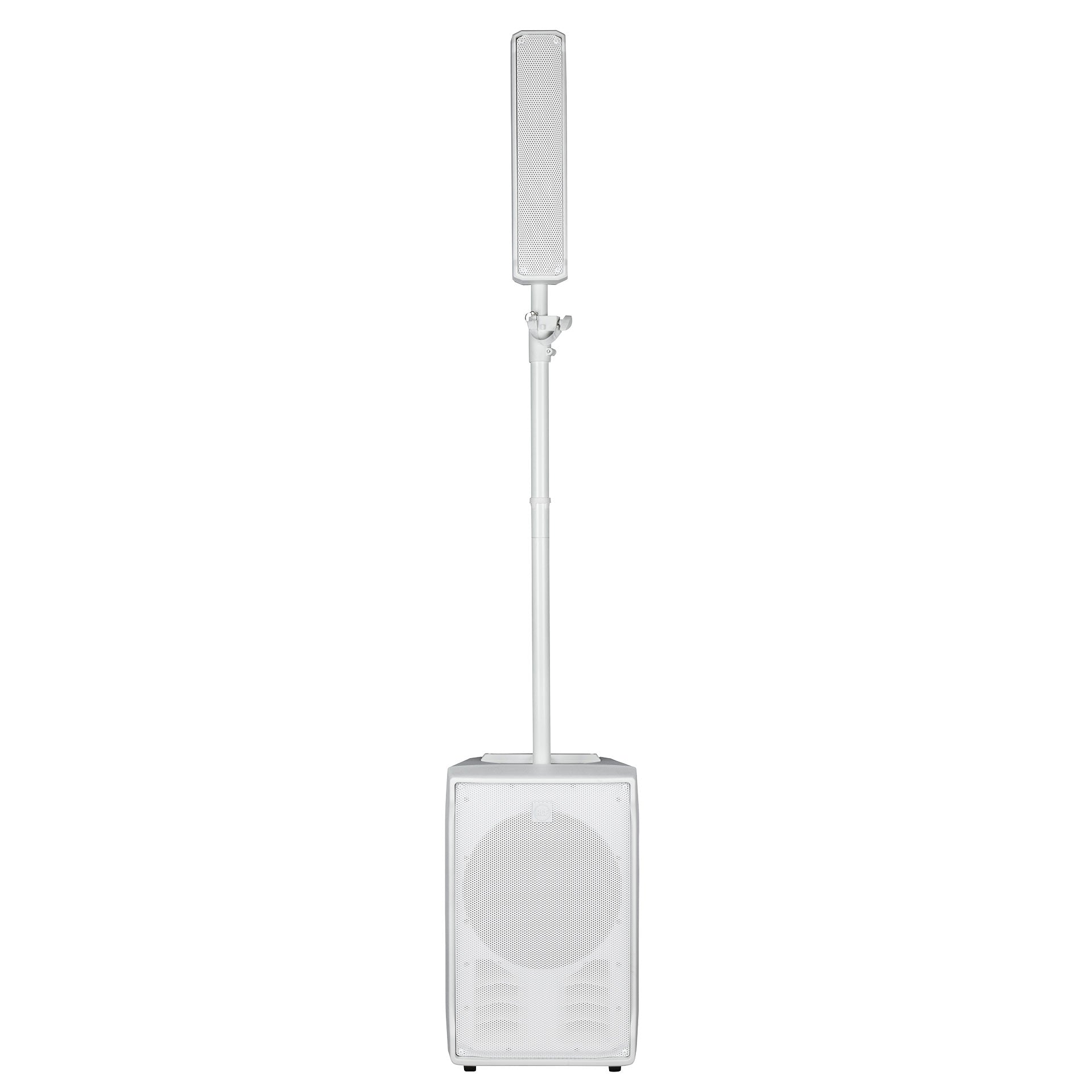

RCF EVOX J8 front facing view highlighting fullrange transducer array

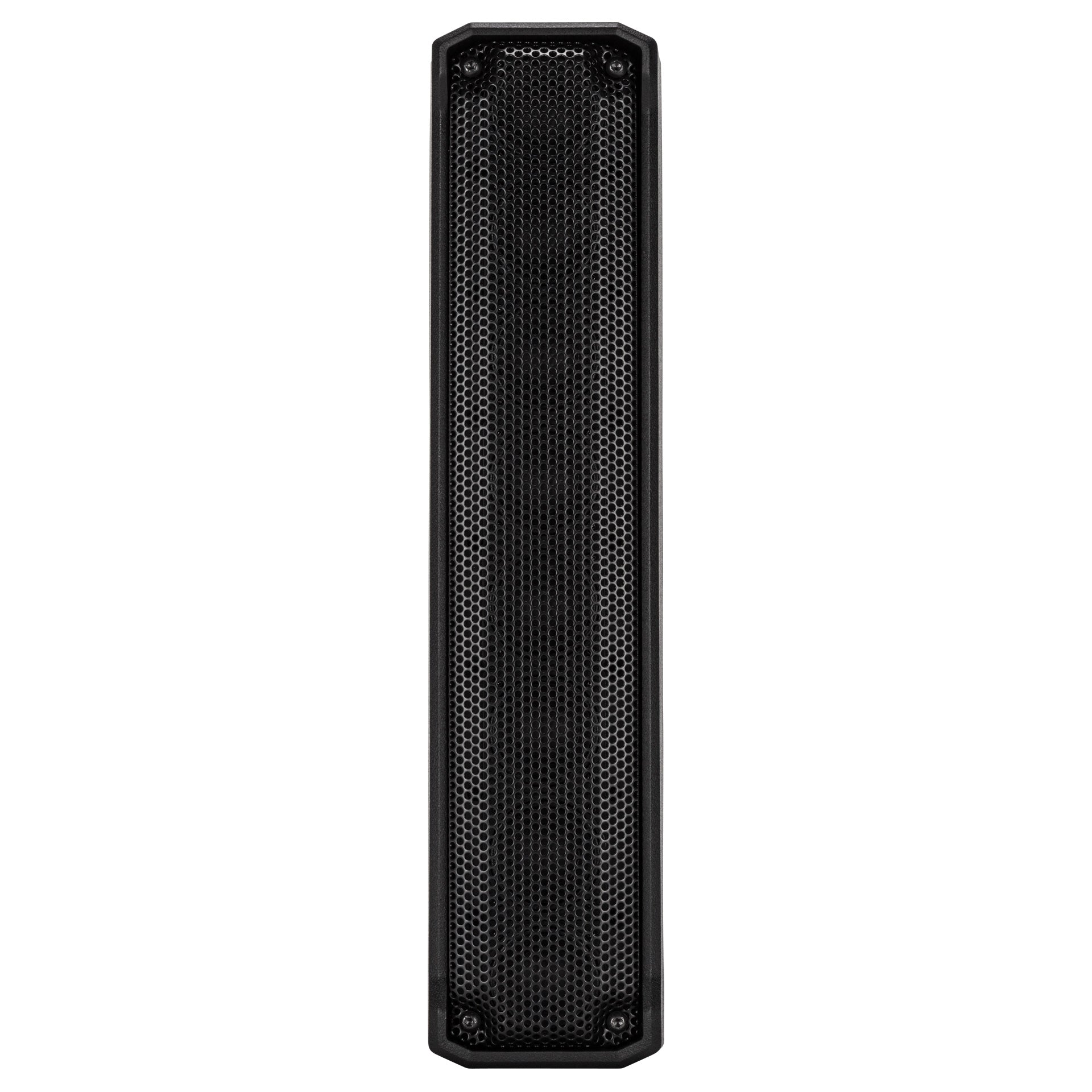

Front view of RCF EVOX J8 portable PA system with black cabinet finish

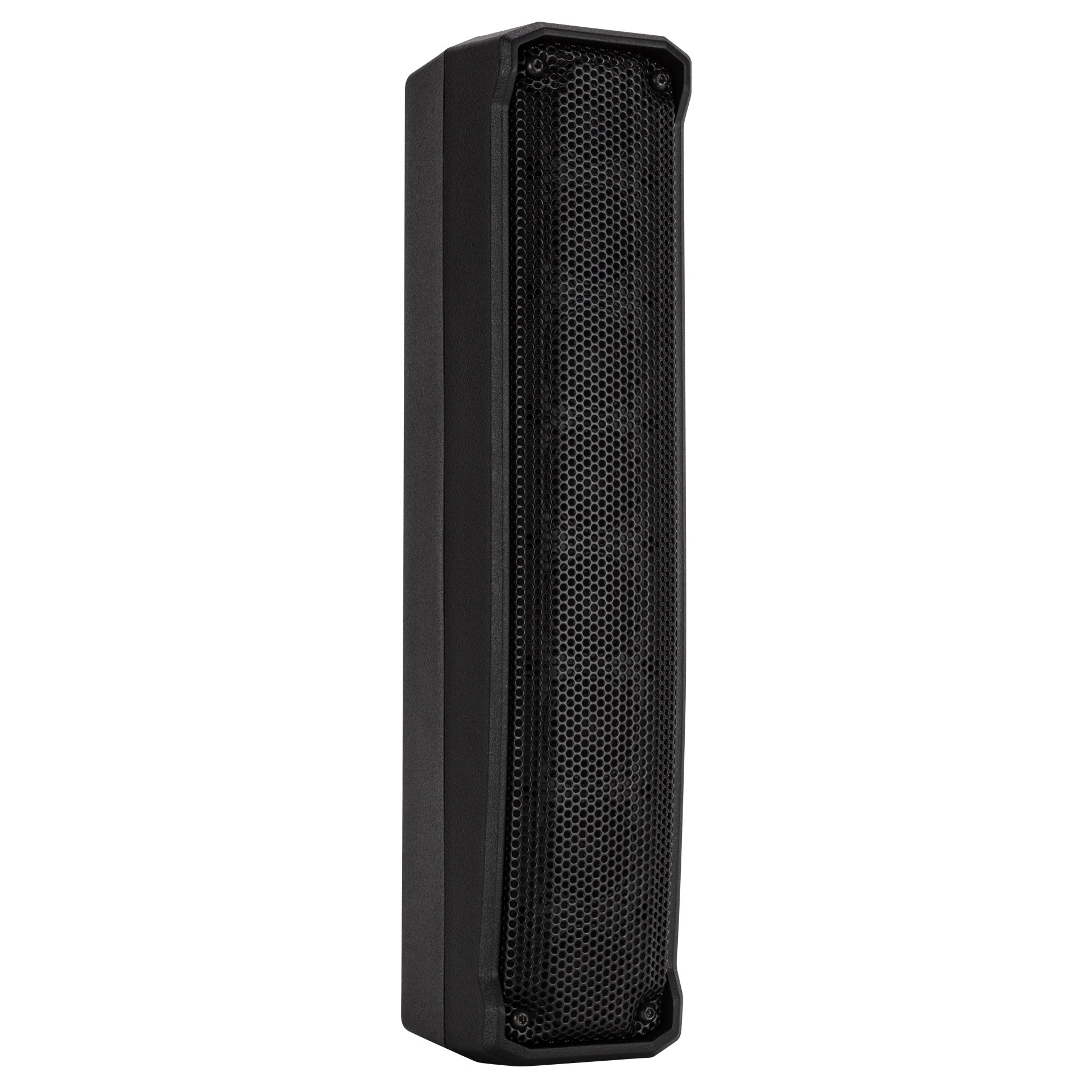

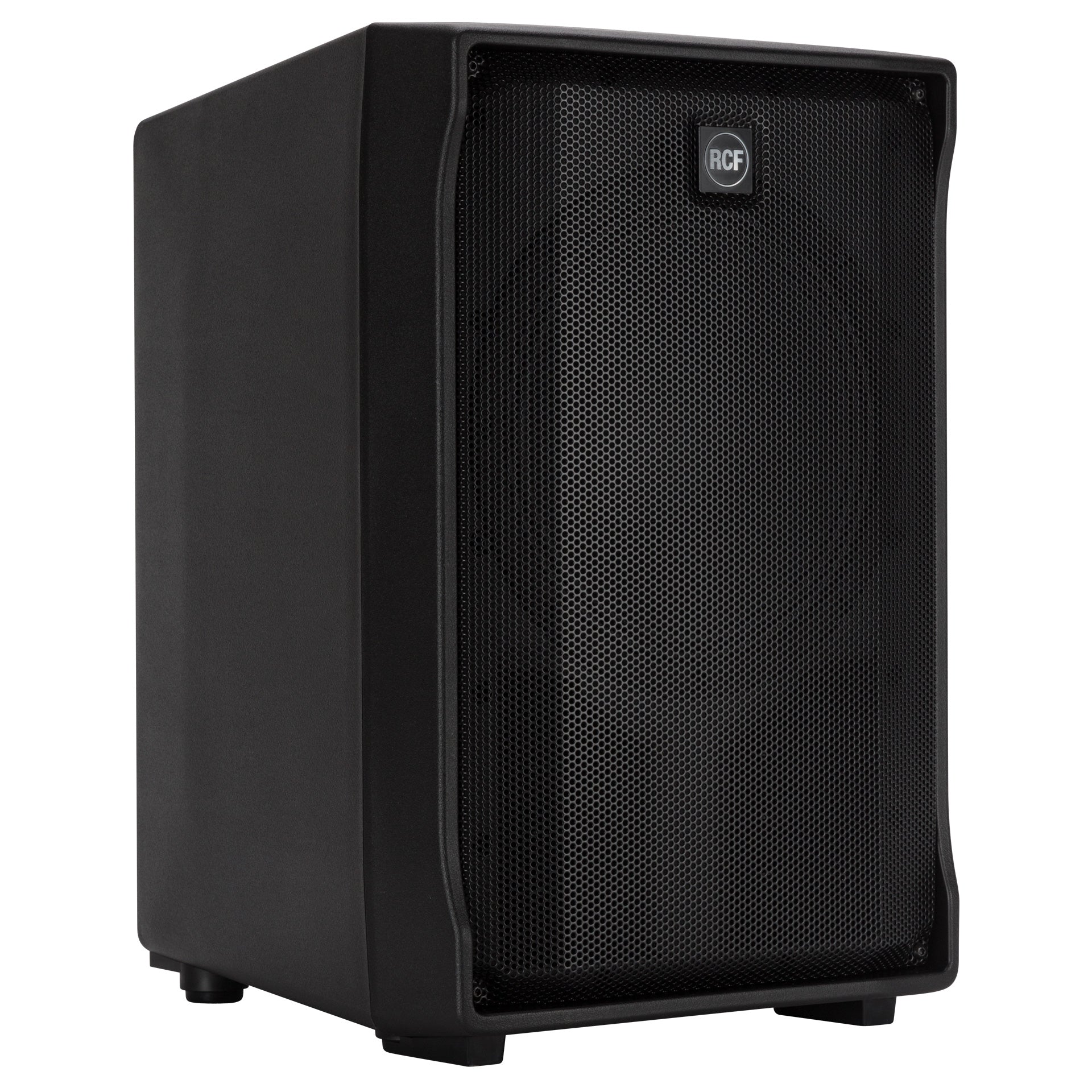

RCF EVOX J8 right side view showing column array height and depth

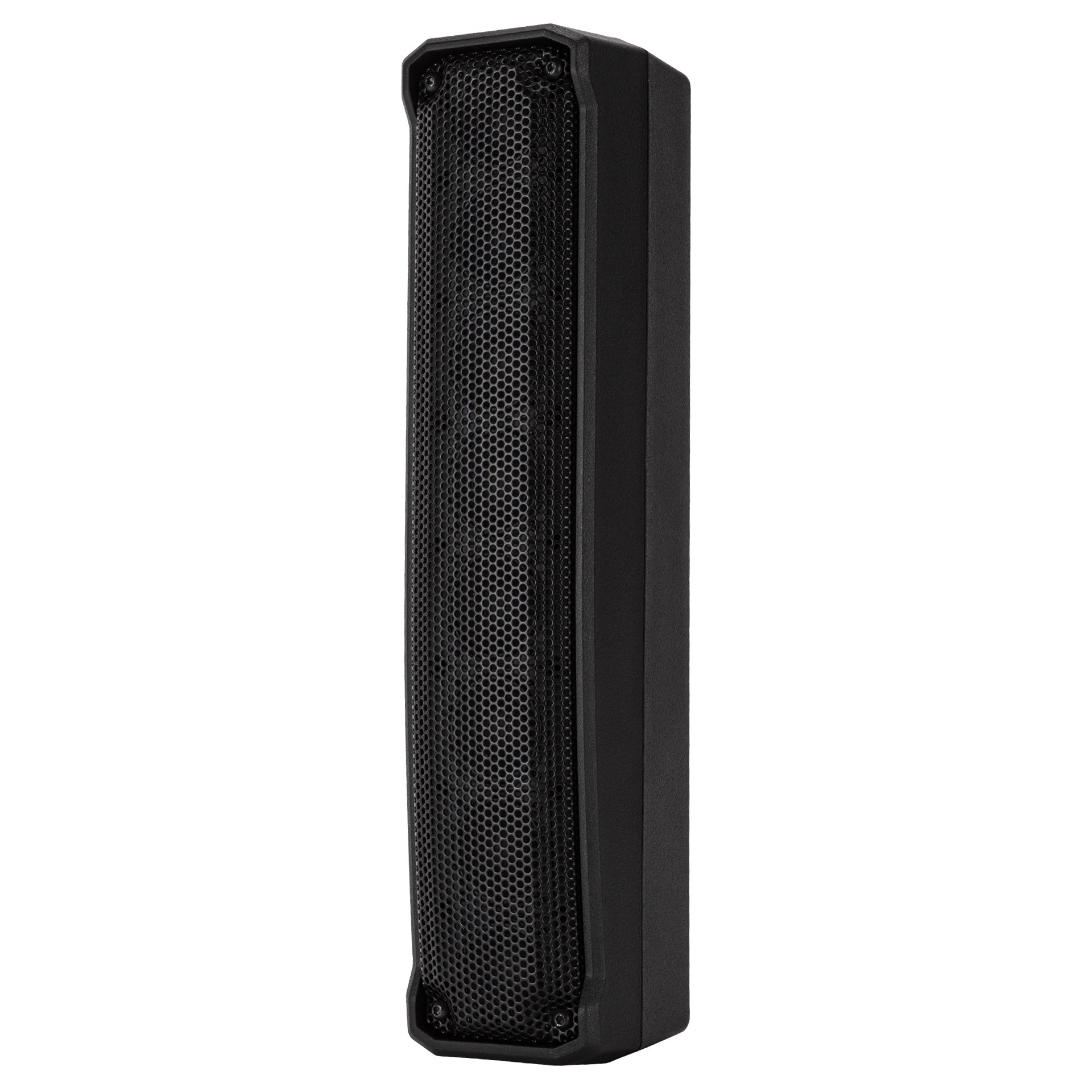

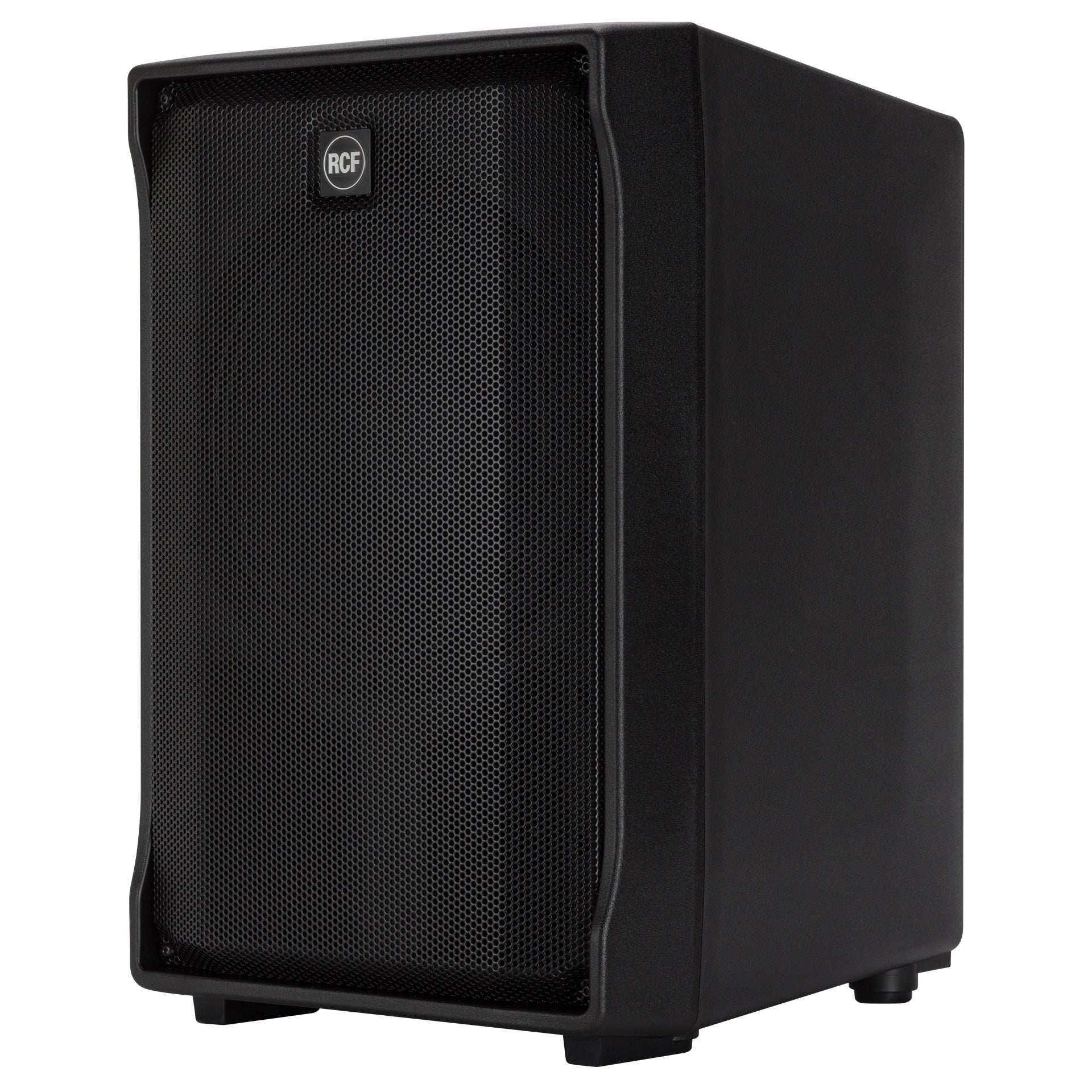

RCF EVOX J8 left side view showing cabinet depth and pole socket

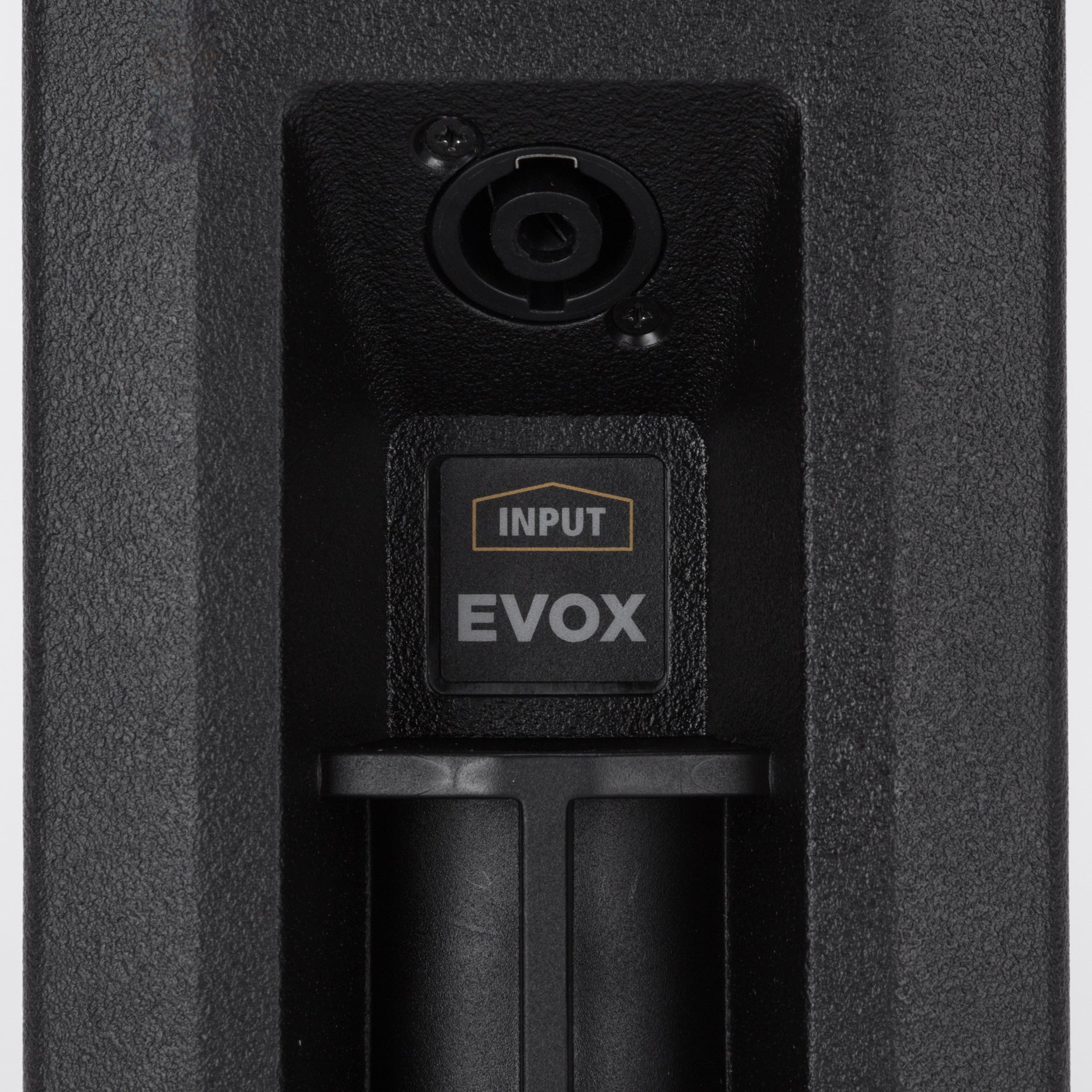

RCF EVOX J8 connector panel detail showing XLR Jack input and output

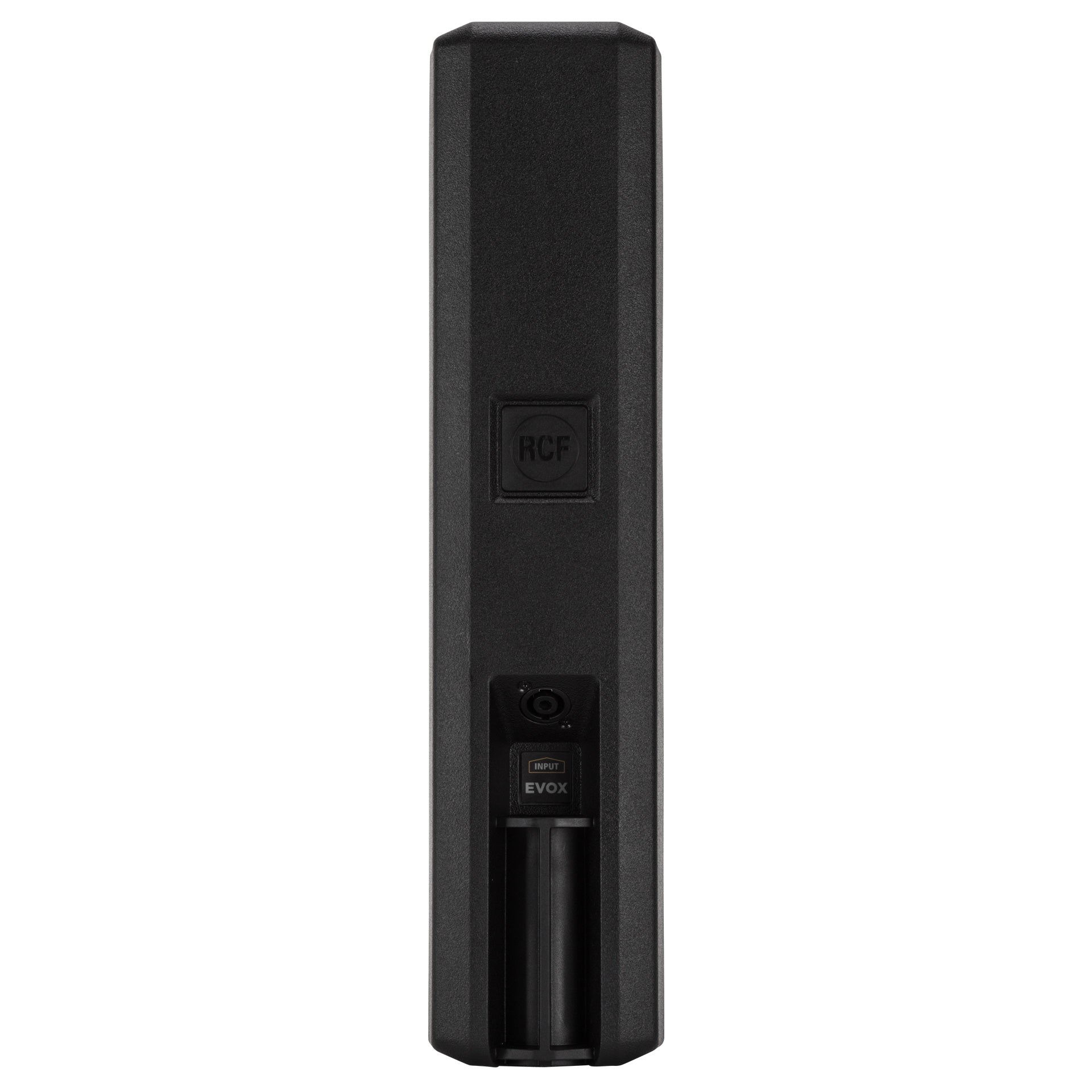

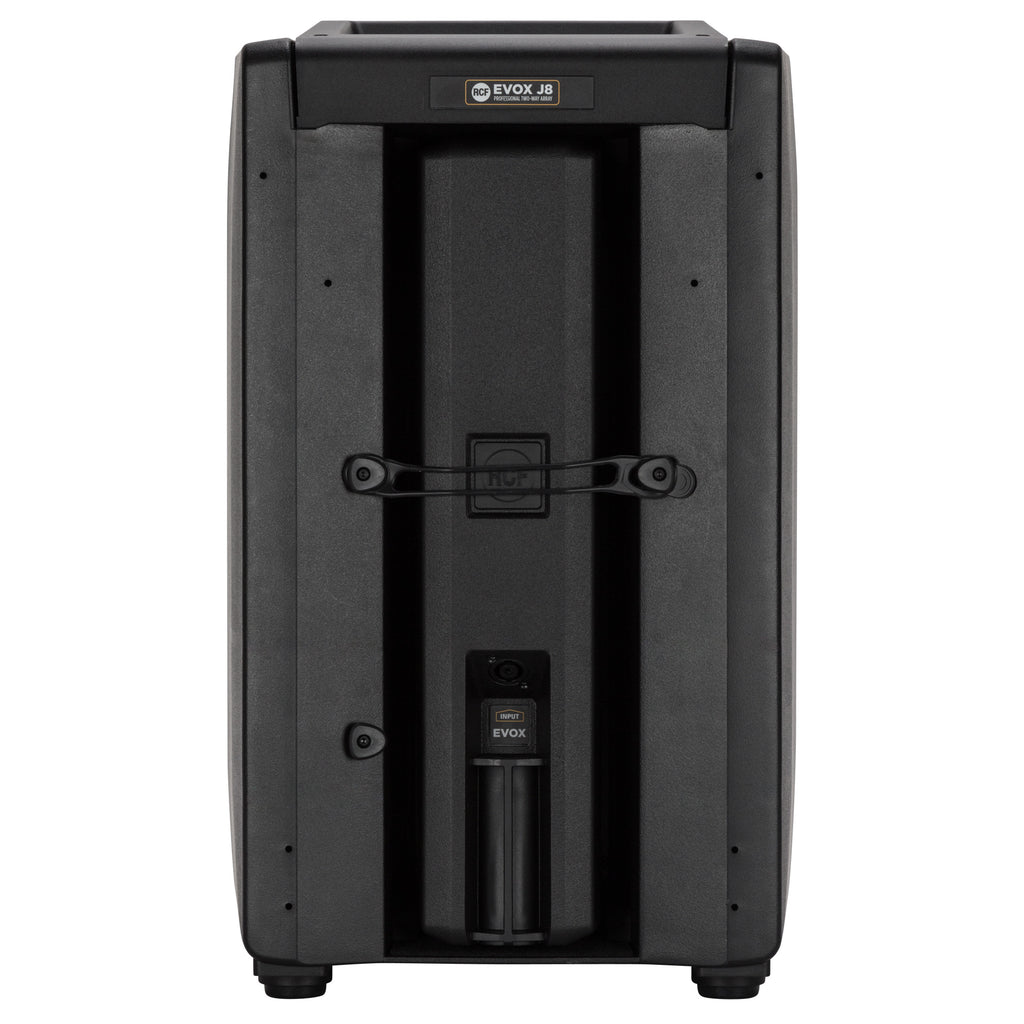

RCF EVOX J8 rear view showing input and output connector panel

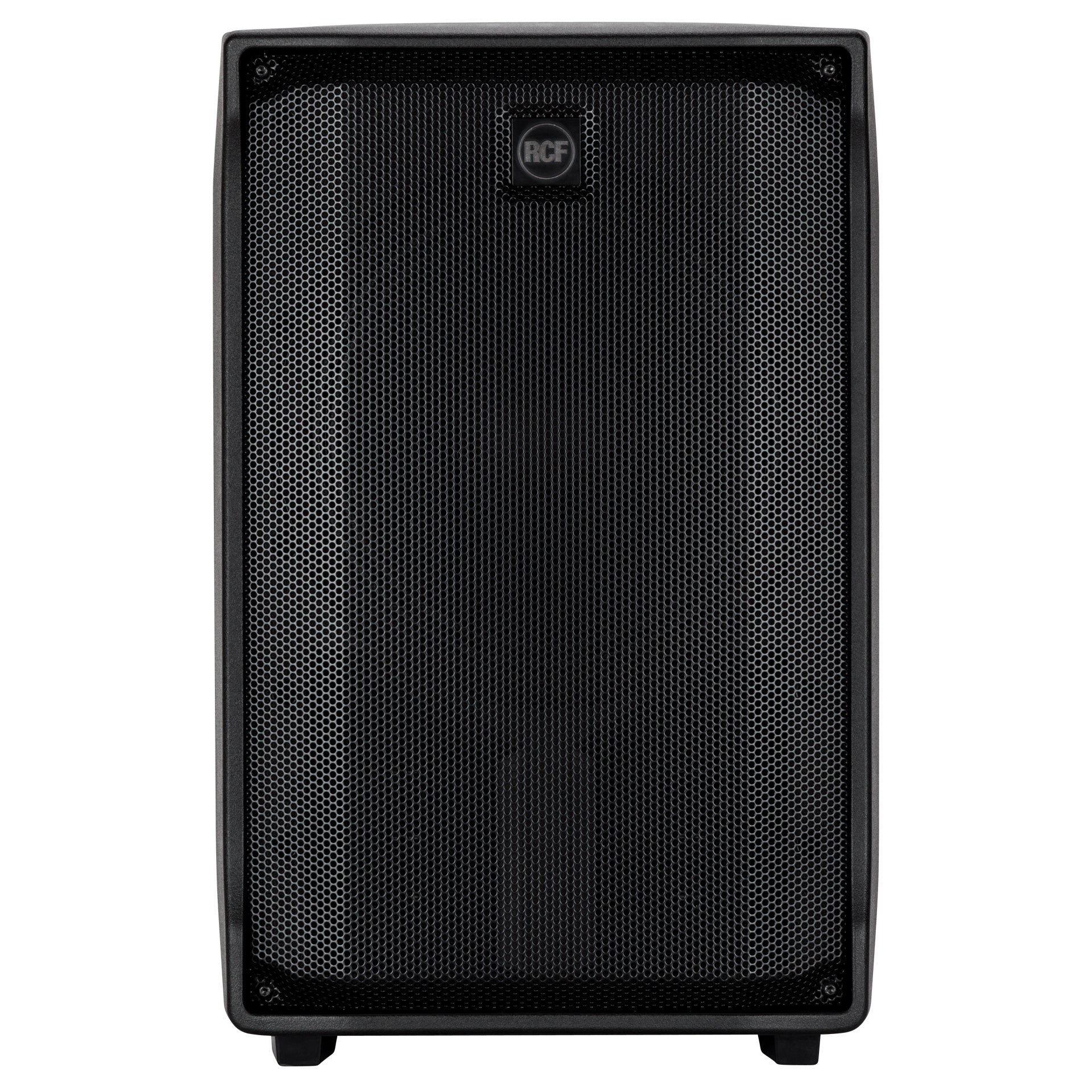

RCF EVOX J8 compact column array front panel view showing grille and base module

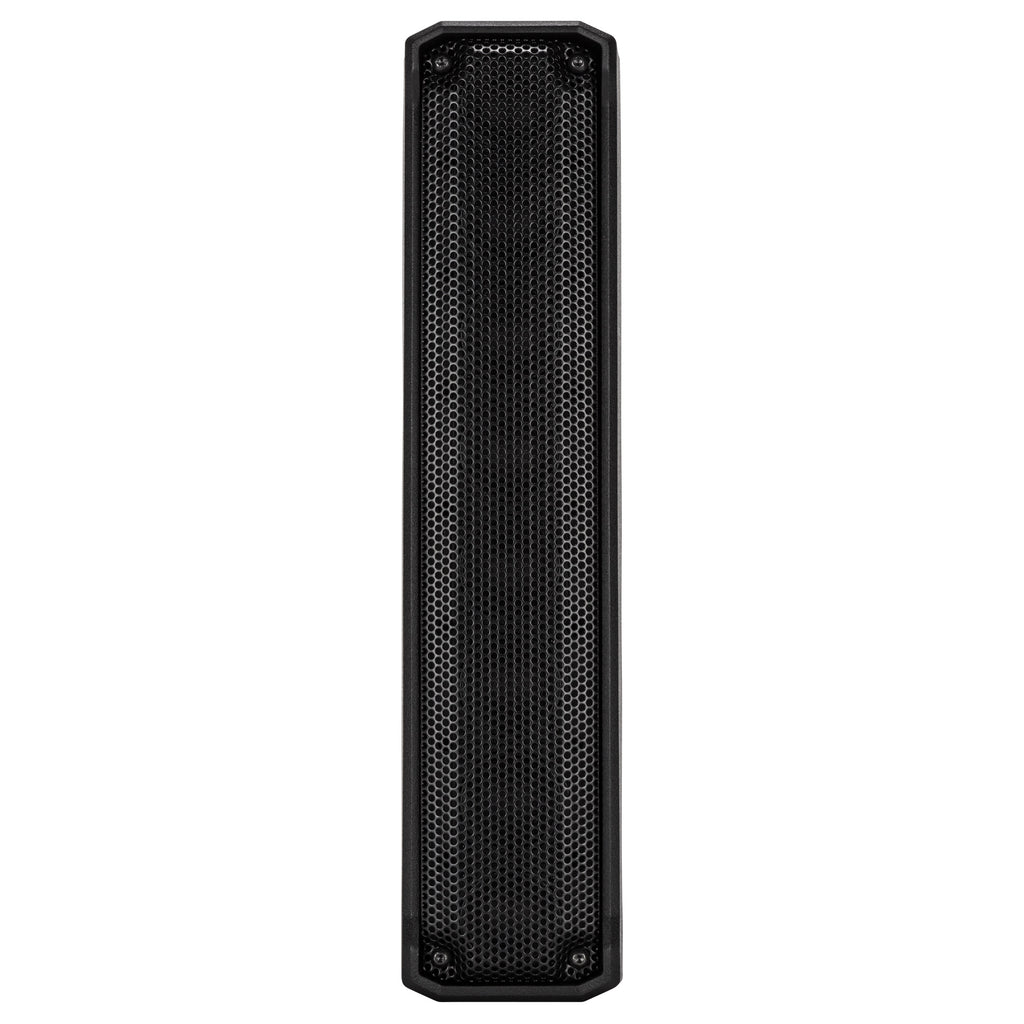

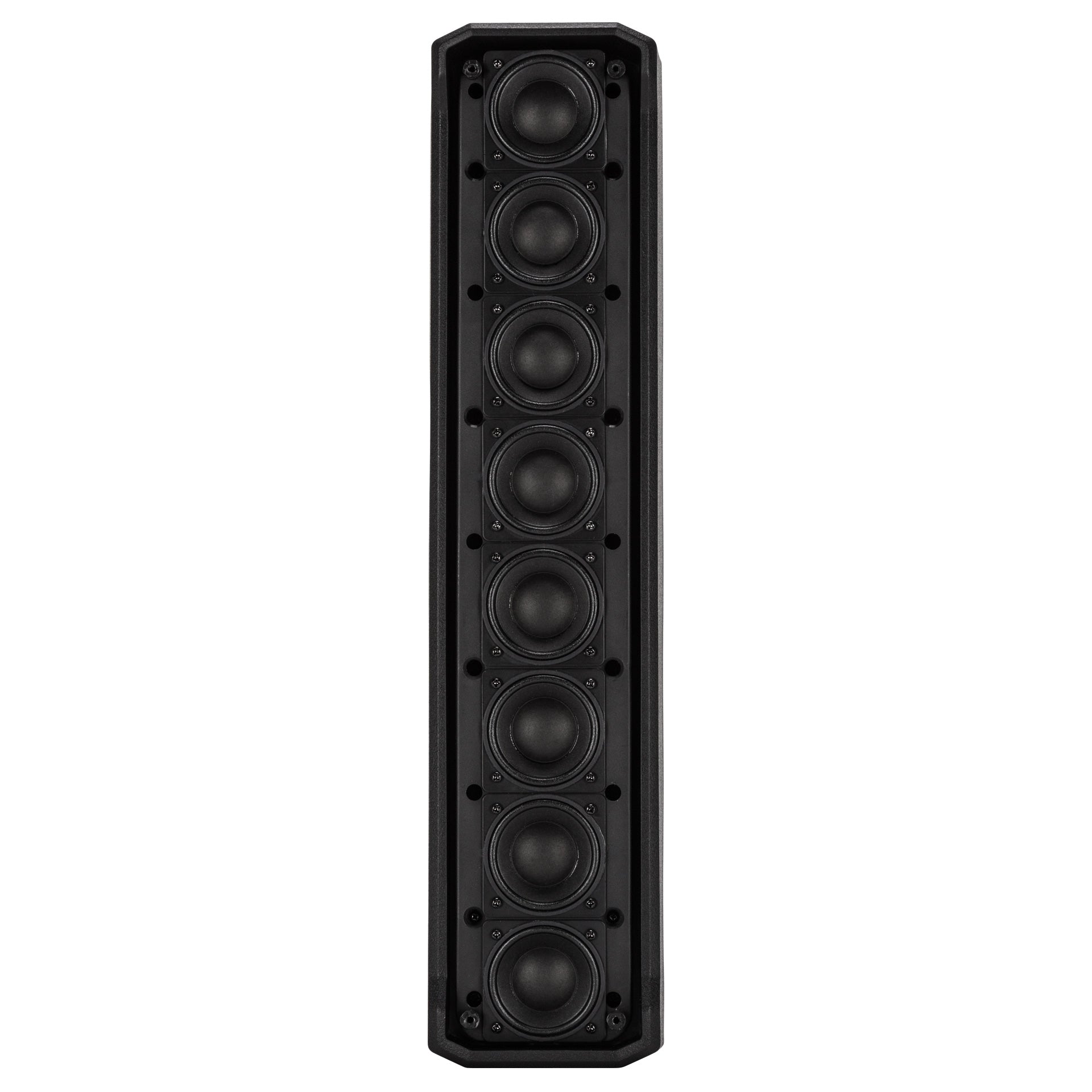

RCF EVOX J8 transducer detail showing fullrange driver array

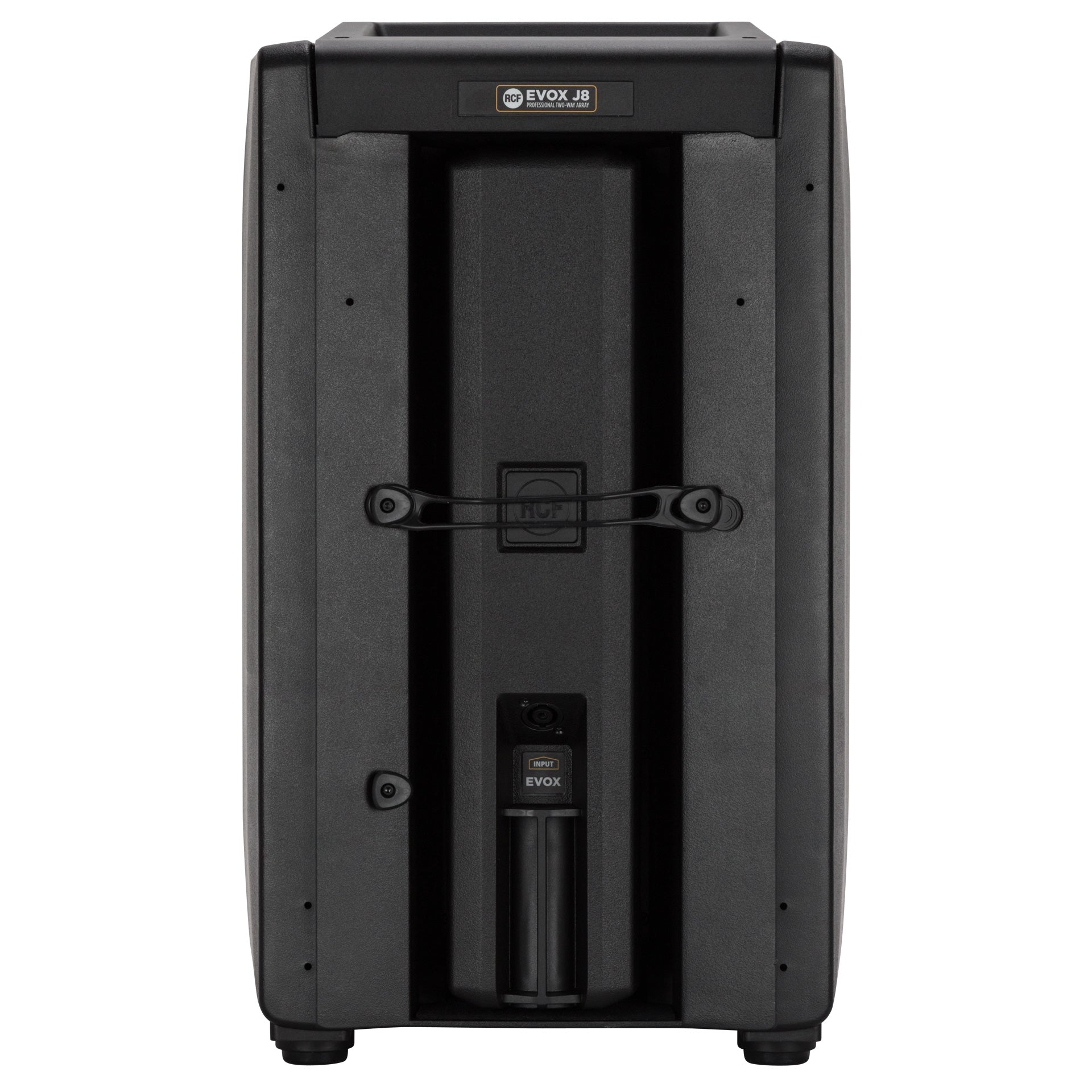

RCF EVOX J8 back view highlighting power section and connections

RCF EVOX J8 transducer detail showing fullrange driver array

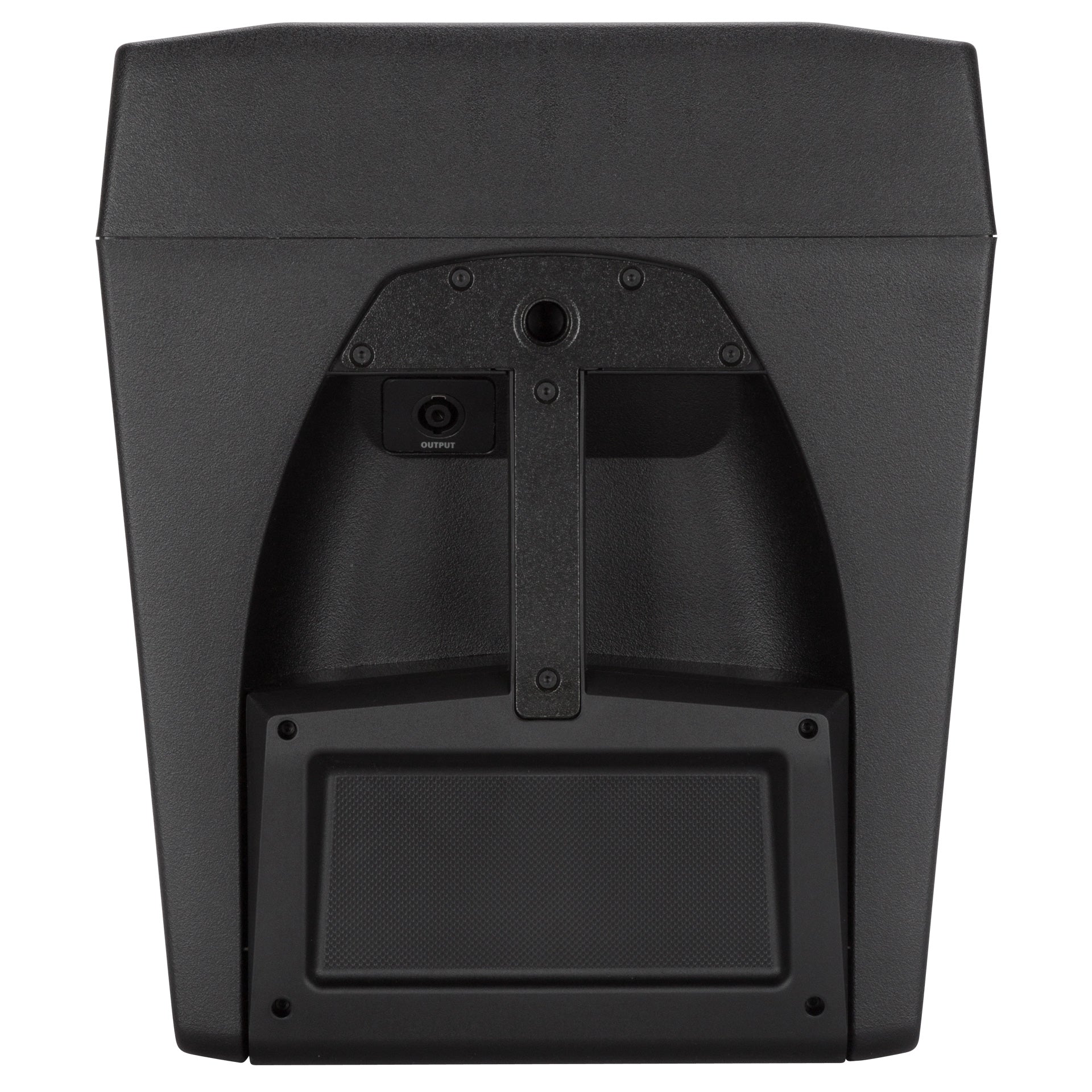

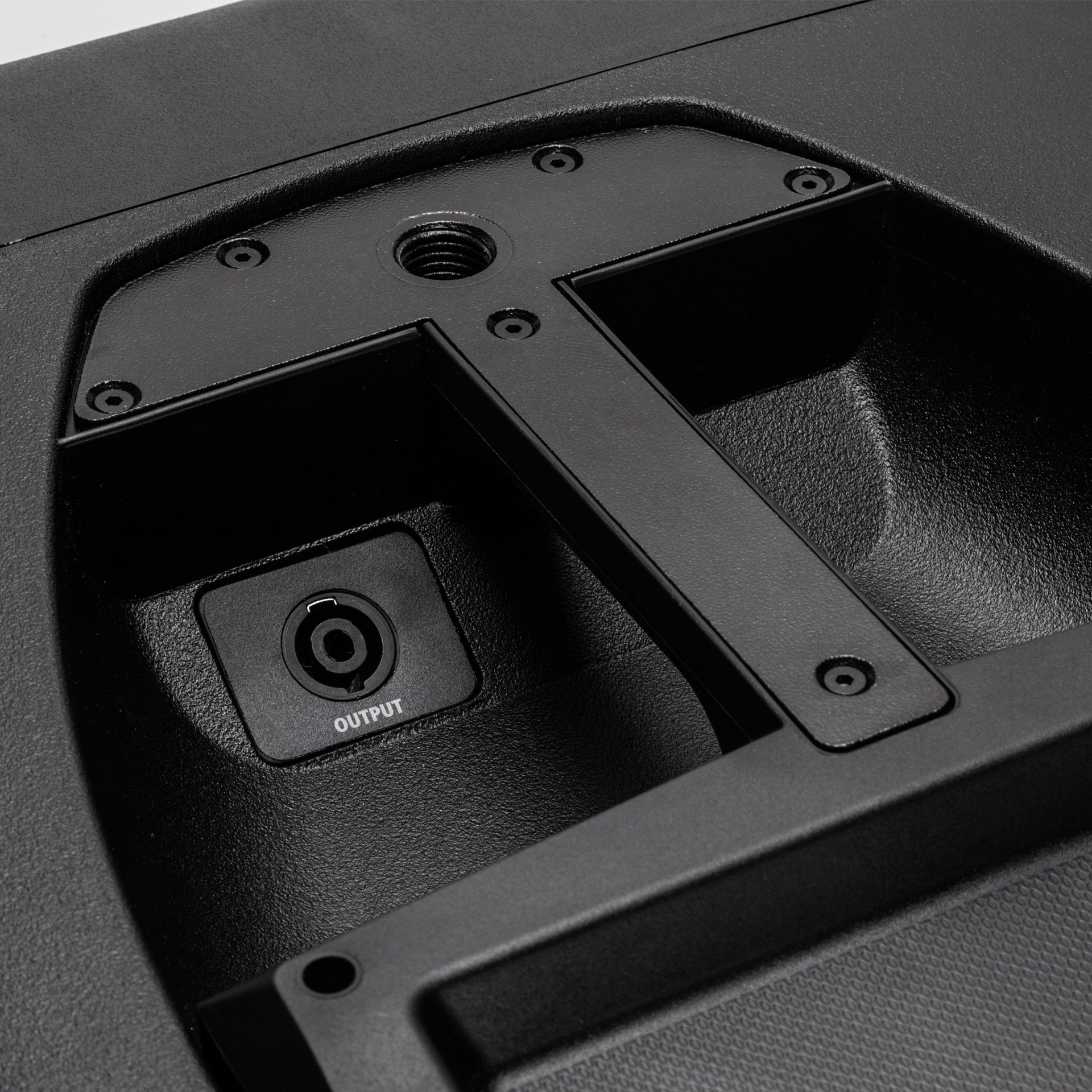

RCF EVOX J8 Close-up of a black electronic component with 'OUTPUT' label on a dark background

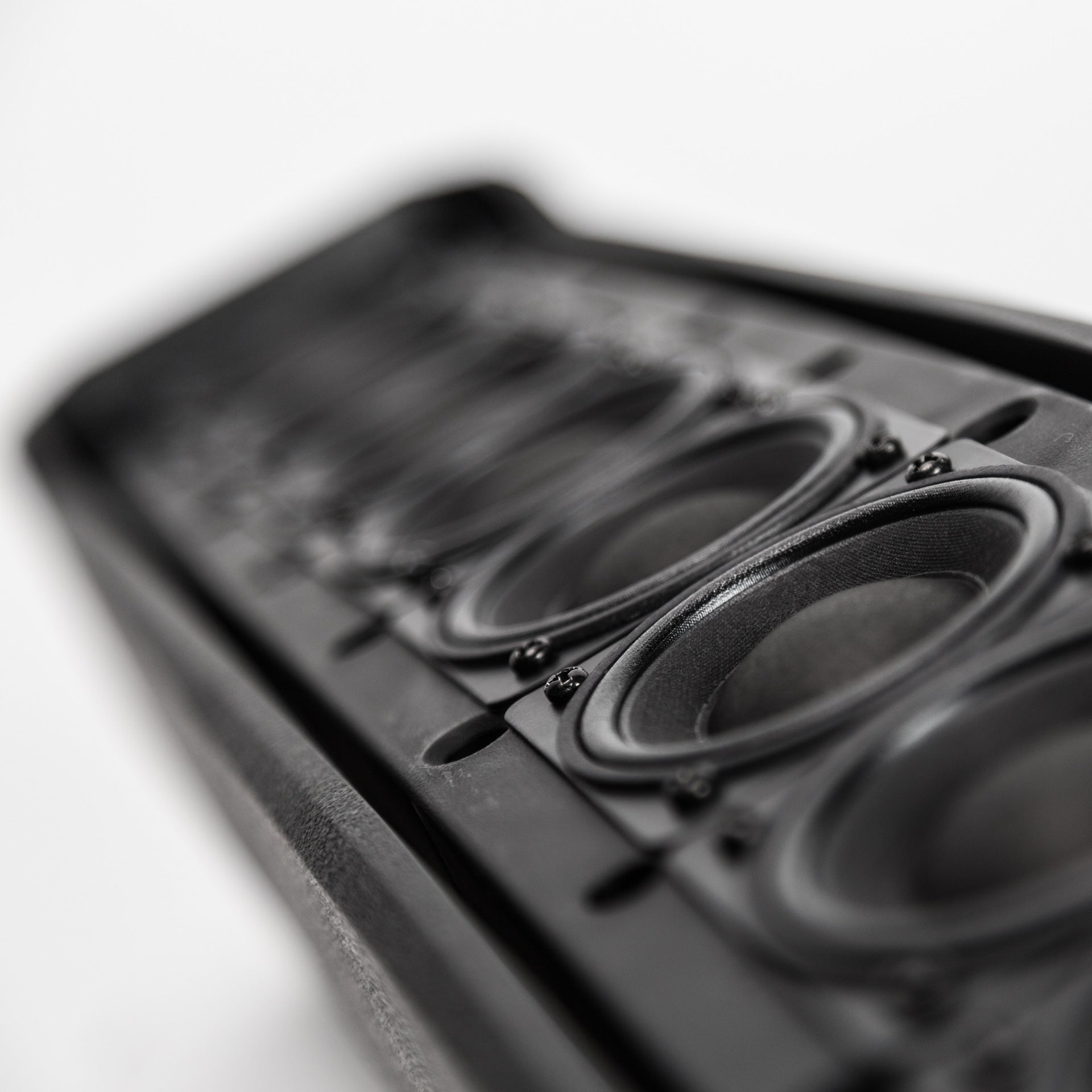

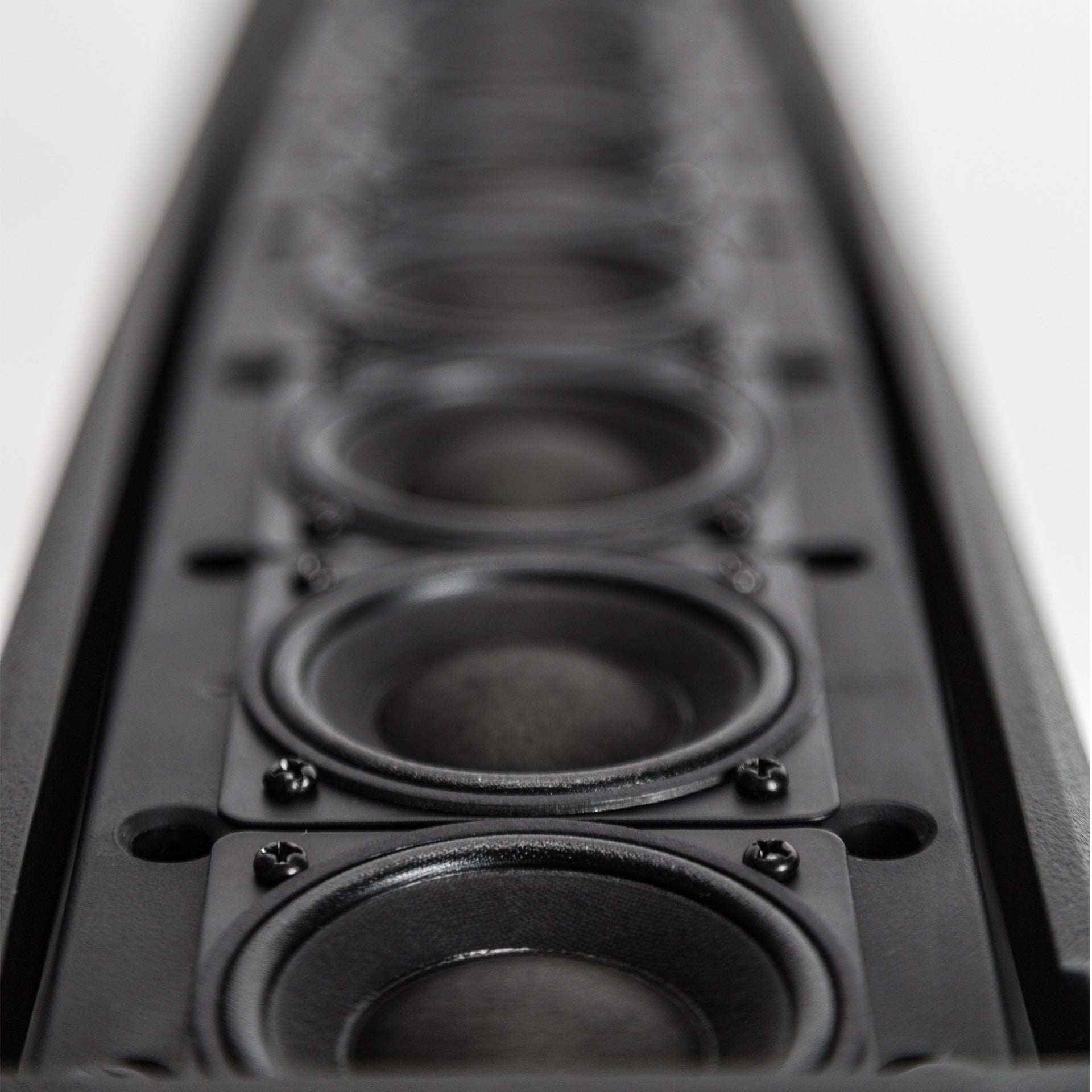

RCF EVOX J8 transducer detail showing fullrange driver array -detail view

RCF EVOX J8 active two-way portable array detail view showing compact column speaker

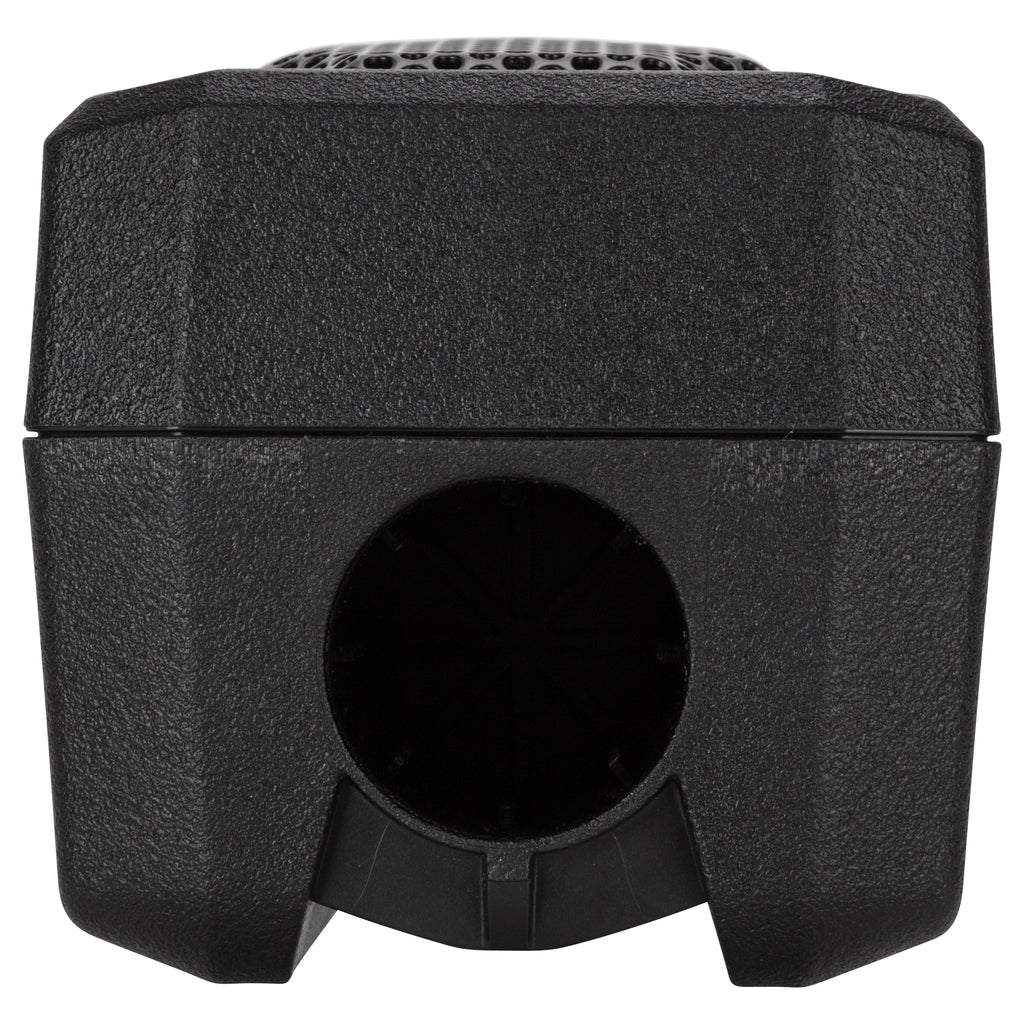

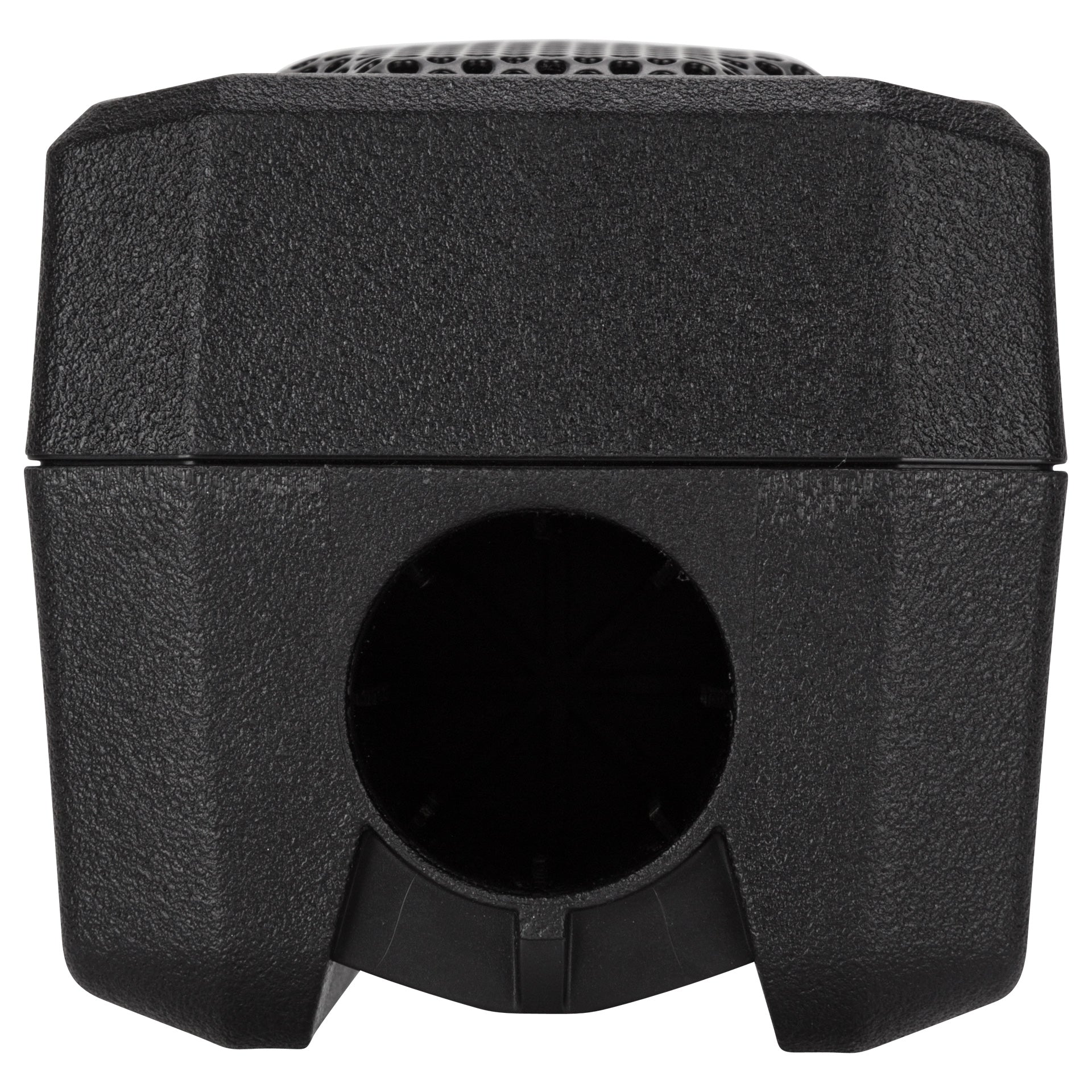

RCF EVOX J8 Black plastic container with a circular opening on a white background

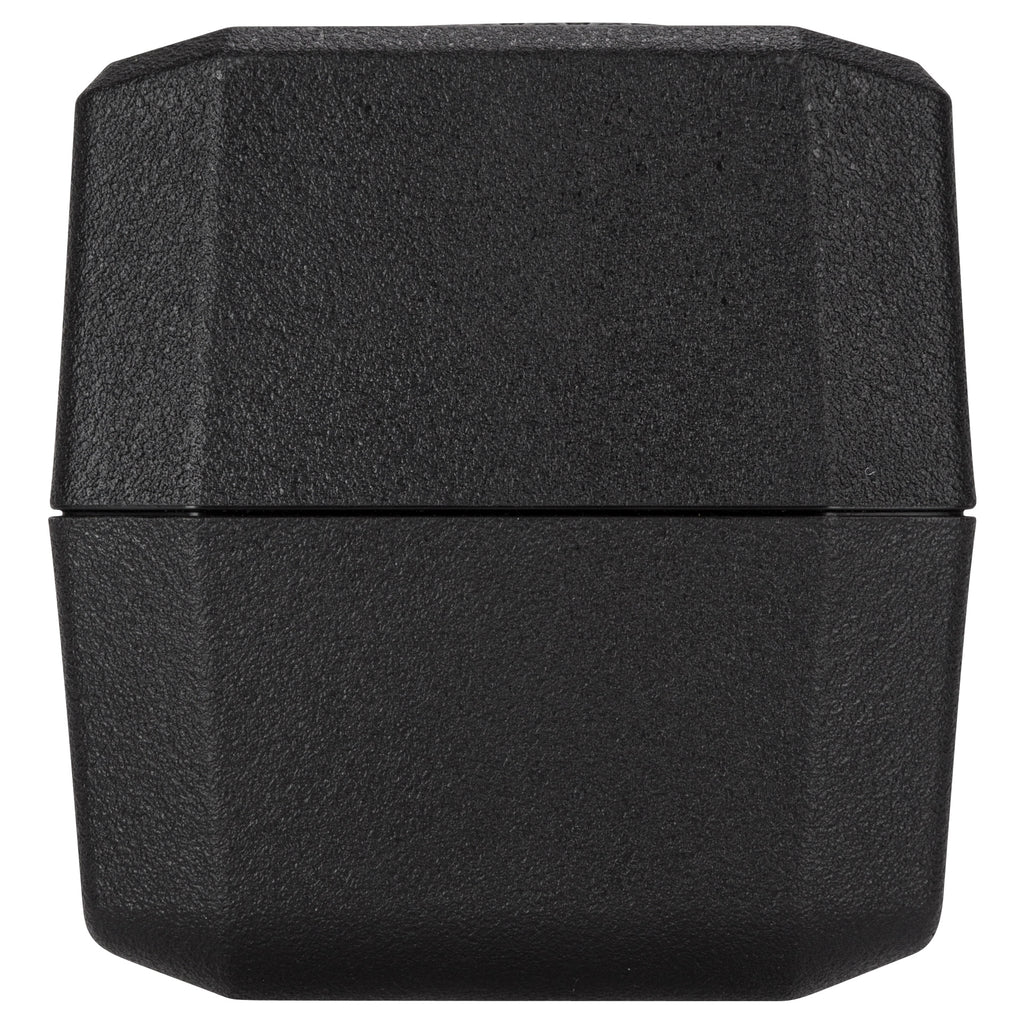

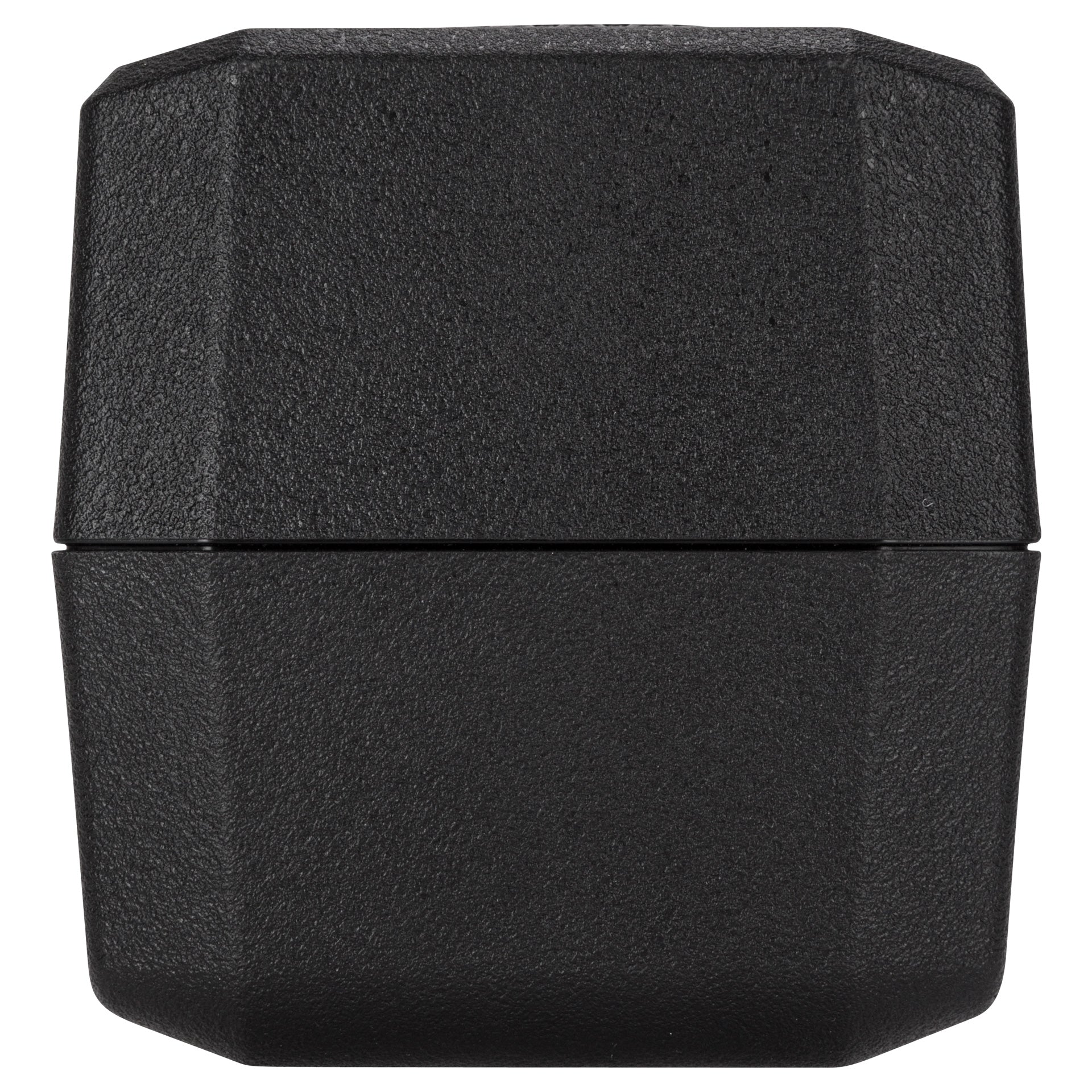

RCF EVOX J8 Black hexagonal object on a white background

RCF EVOX J8 active two-way portable array front view showing compact column speaker

RCF EVOX J8 front facing view highlighting fullrange transducer array

Front view of RCF EVOX J8 portable PA system with black cabinet finish

RCF EVOX J8 right side view showing column array height and depth

RCF EVOX J8 left side view showing cabinet depth and pole socket

RCF EVOX J8 connector panel detail showing XLR Jack input and output

RCF EVOX J8 rear view showing input and output connector panel

RCF EVOX J8 compact column array front panel view showing grille and base module

RCF EVOX J8 transducer detail showing fullrange driver array

RCF EVOX J8 back view highlighting power section and connections

RCF EVOX J8 transducer detail showing fullrange driver array

RCF EVOX J8 Close-up of a black electronic component with 'OUTPUT' label on a dark background

RCF EVOX J8 transducer detail showing fullrange driver array -detail view

RCF EVOX J8 active two-way portable array detail view showing compact column speaker

RCF EVOX J8 Black plastic container with a circular opening on a white background

RCF EVOX J8 Black hexagonal object on a white background

Features

128 dB Max SPL
1400 Watt 2-way power
DSP Processing with FiRPHASE
12" woofer, high power 2.5" voice coil
8 x 2" ultra compact fullrange 1.0" voice coil
2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
23,8/52.5 kg/lbs

Specifications

Acoustical Specifications
Frequency Response	40 Hz - 20000 Hz
Max SPL @ 1m	128 dB
Horizontal Coverage Angle	120°
Vertical Coverage Angle	30°

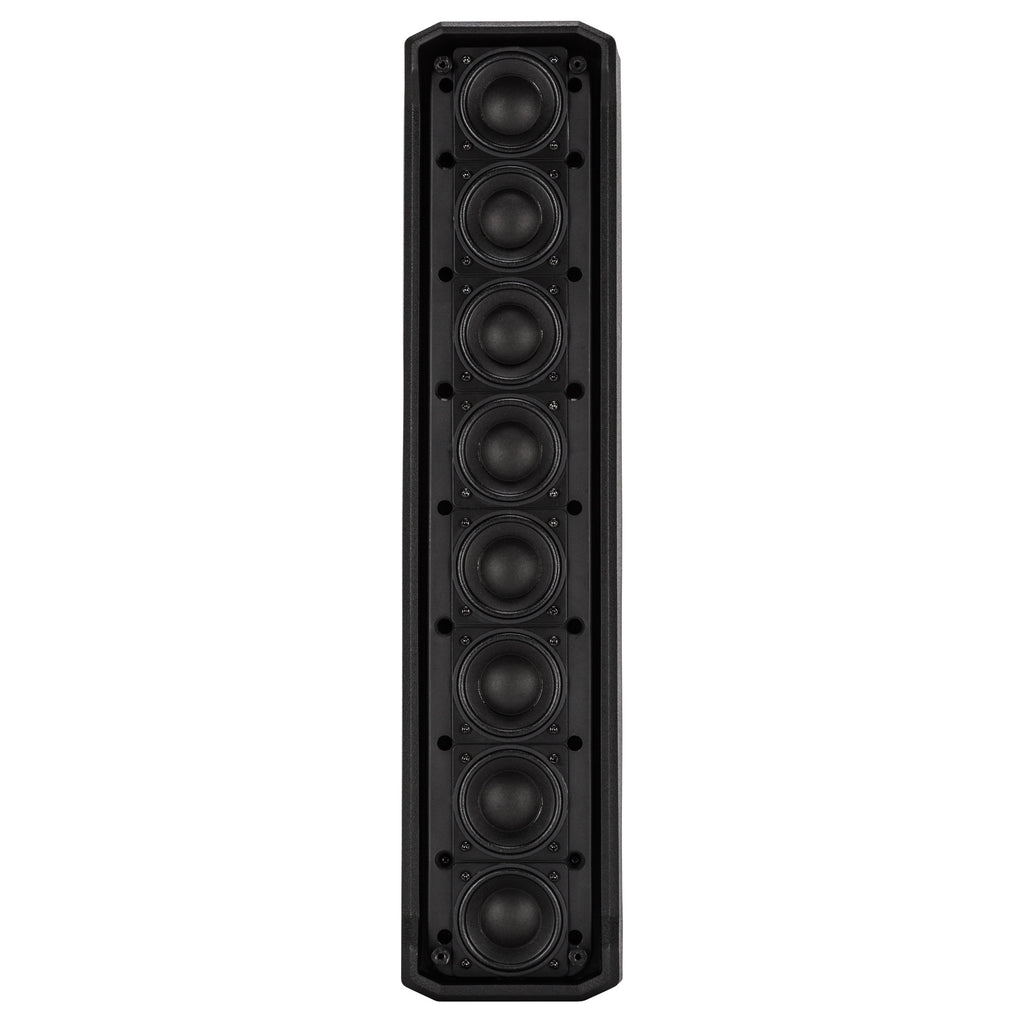

Transducers	Fullrange 8 x 2.0'', 1.0'' v.c

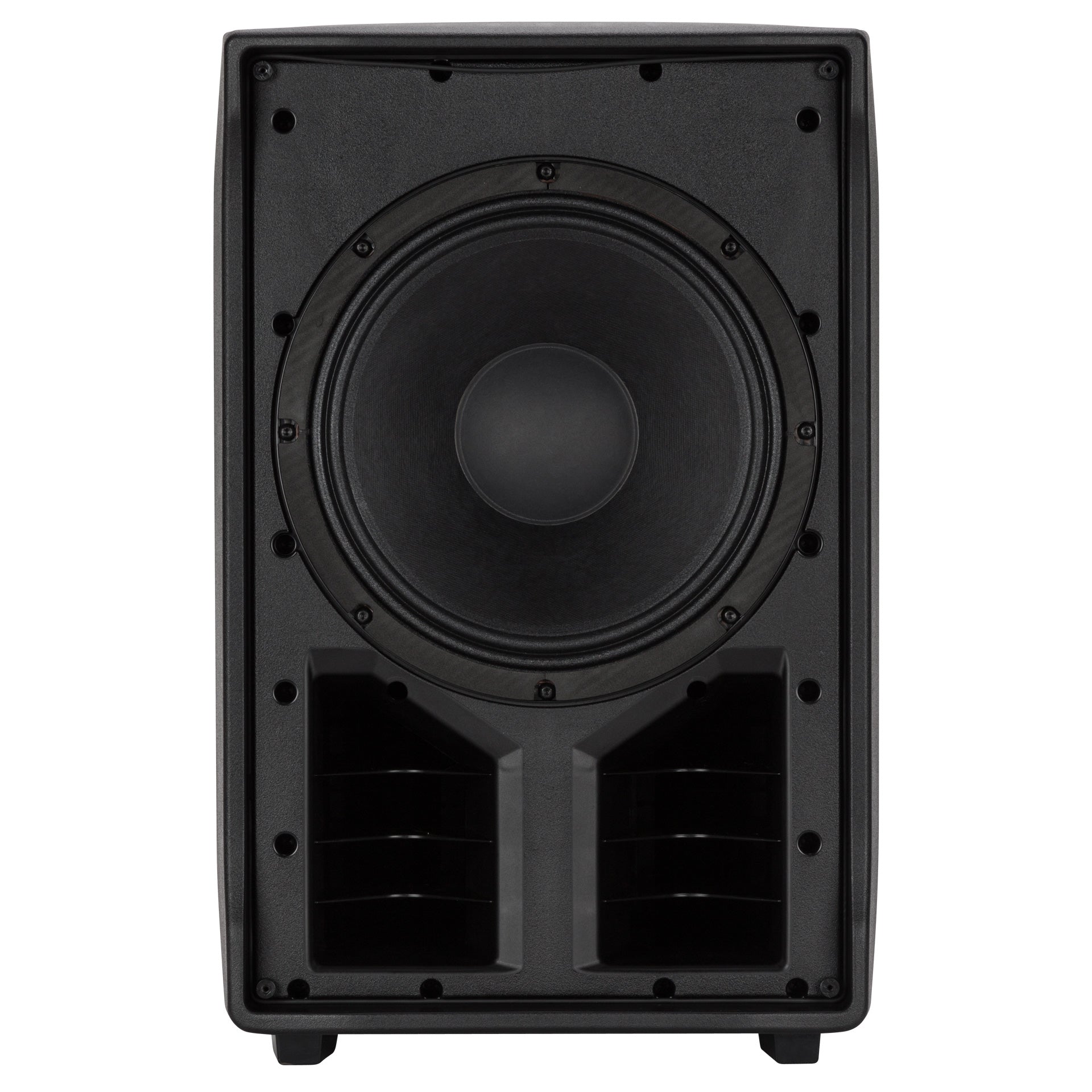

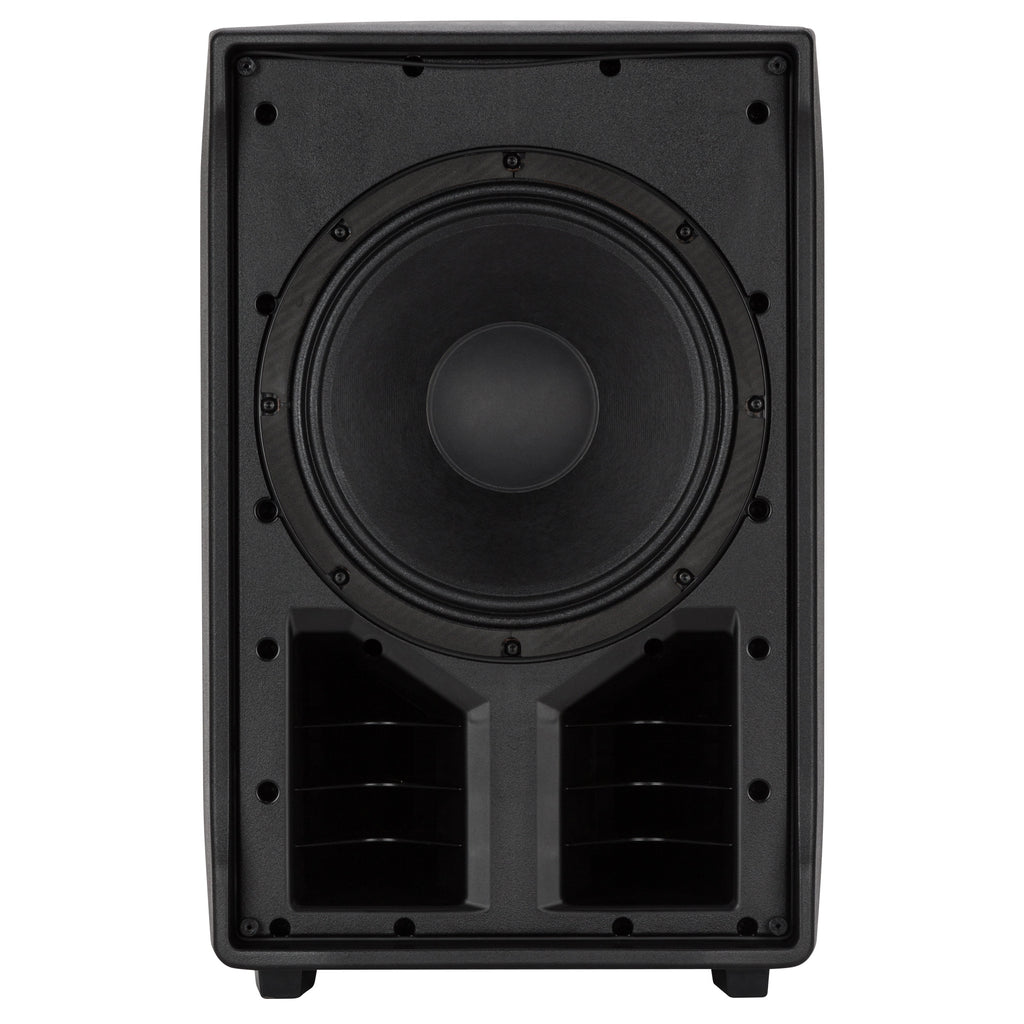

Woofer	1 x 12'', 2.5'' v.c
Input/Output Section
Input Signal	Bal/Unbal
Input Connectors	XLR, Jack
Output Connectors	XLR
Input Sensitivity	-2 dBu/+4 dBu
Processor Section
Crossover Frequencies	220 Hz
Protections	Thermal, RMS
Limiter	Soft Limiter
Controls	Volume, Boost, Mic/Line
Power Section
Total Power	1400 W Peak, 700 W RMS
High Frequencies	400 W Peak, 200 W RMS
Low Frequencies	1000 W Peak, 500 W RMS
Cooling	Convection
Connections	VDE
Standard Compliance
Safety Agency	CE Compliant
Physical Specifications
Cabinet/Case Material	PP Composite
Handles	1 Top
Grille	Steel
Color	Black, White
Size / Weight
Height	2285 mm / 89.96 inches
Width	400 mm / 15.75 inches
Depth	460 mm / 18.11 inches
Weight	20.2 kg / 44.53 lbs
Shipping Information
Package Height	676 mm / 26.61 inches
Package Width	451 mm / 17.76 inches
Package Depth	581 mm / 22.87 inches
Package Weight	29.9 kg / 65.92 lbs
