Features
- 2 x 160 W Class-D power amplifier
- 20 ÷ 20000 Hz frequency range
- Full on-board processing
- RCF speakers’ presets
- Proprietary bass enhancer algorithm
- FiRPHASE linear phase filters
- Flexible and scalable multi-room architecture
- Suitable for desktop or rack installation
- RDNet ready for networked management
The RCF DMA 162P is a premium, two channels Class-D power amplifier equipped with an extremely powerful onboard DSP platform designed for flexible commercial audio distribution. Primarily engineered to combine with a primary DMA matrix unit, this amplifier easily scales up system power and drives advanced multi-room architectures for business music grids. However, the comprehensive integration of dedicated input processing, configuration control tools, and flexible connectivity also allows the RCF DMA 162P to excel as a highly reliable stand-alone audio amplifier for architectural installations.

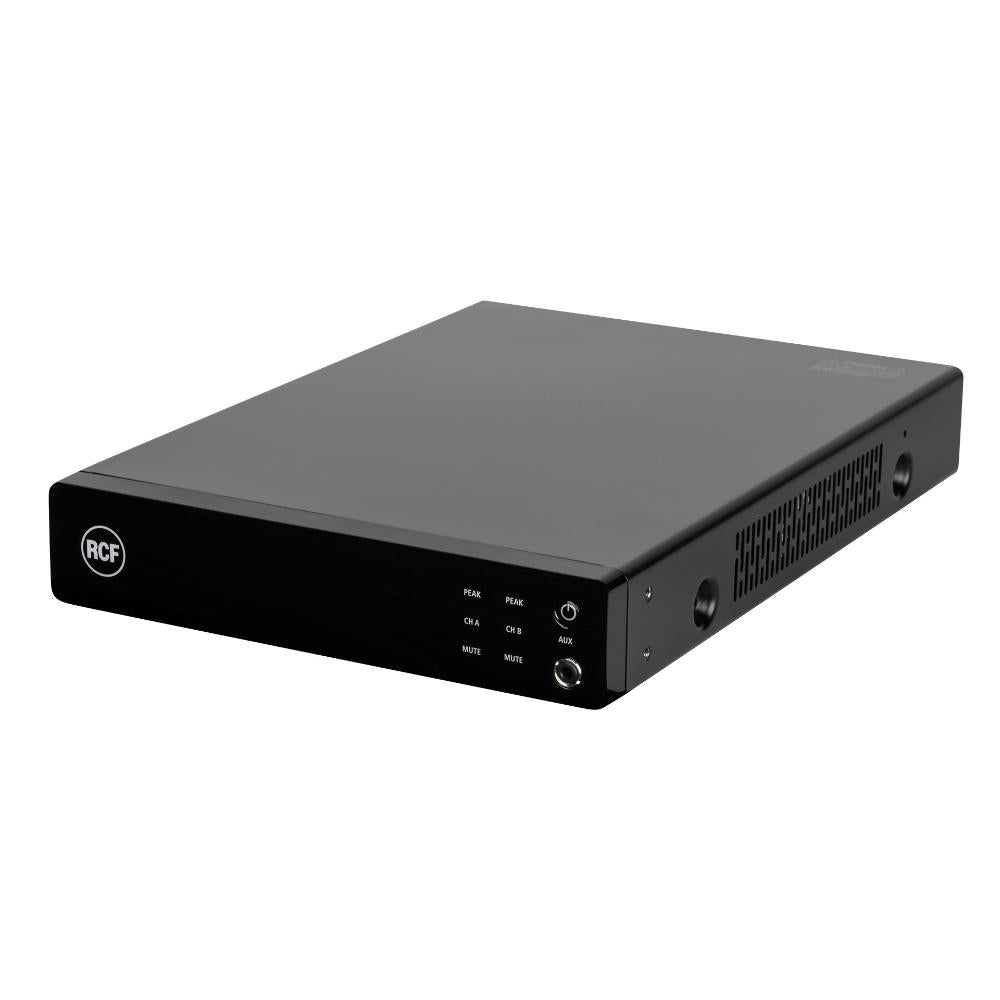

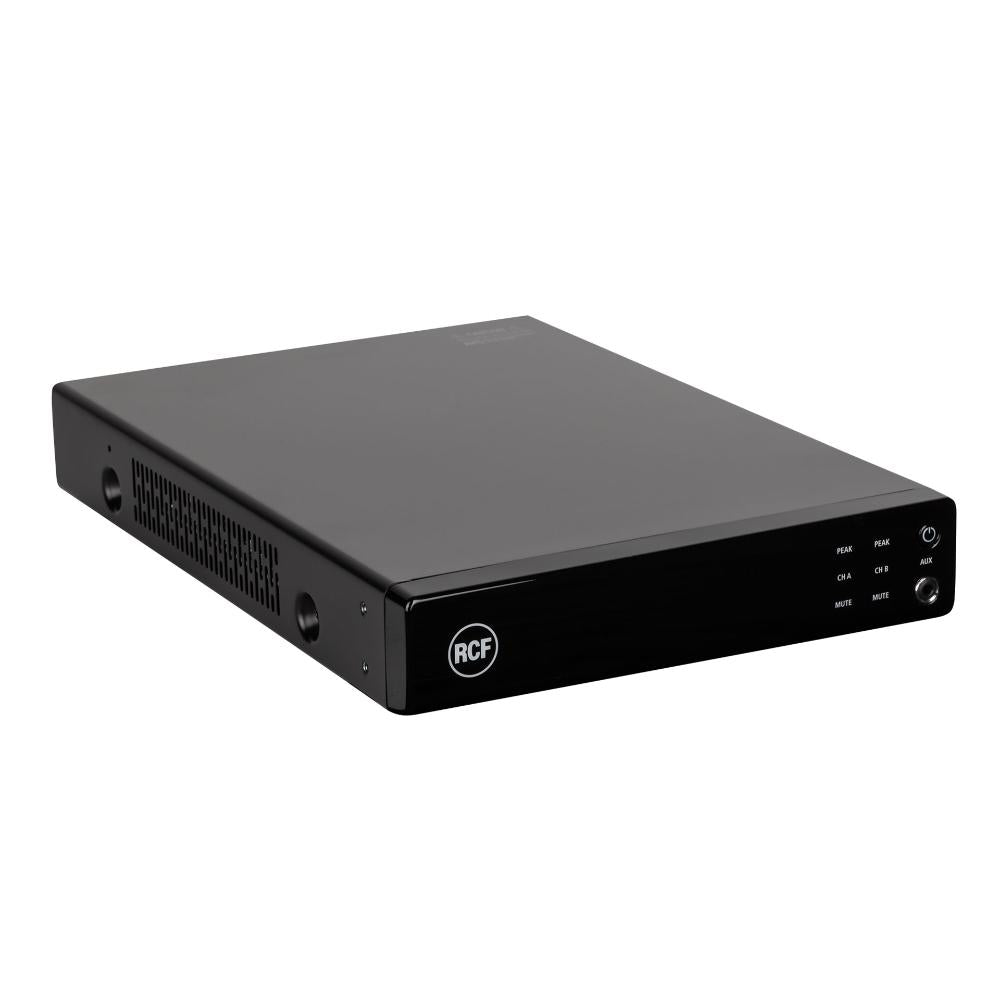

Housed in an incredibly compact half-rack 1U metal chassis, the RCF DMA 162P delivers a robust 2 x 160 Watts at both 4-ohm and 8-ohm loads, or up to 1 x 320 Watts when running in a bridged configuration or driving direct 70V constant-voltage lines. By upgrading the unit with an optional RDNet network board, installers gain deep software control over all advanced DSP matrix functions, including structural equalization filters, safety compressors, a proprietary bass enhancer algorithm, and optimized RCF speaker presets. Running advanced FiRPHASE linear phase filters to maintain optimal phase-coherent response, this robust business music amplifier incorporates forced-air cooling alongside an extensive safety network that guards against short circuits, thermal overload, DC faults, high frequencies (VHF), and blown fuses.
Specifications
| Amplifier Specifications |
| Amplifier Class |
D |
| Output Power (All Channels Driven) |
2 x 160 W @ 4 ohm
2 x 160 W @ 8 ohm
1 x 320 W @ 4 ohm (bridge)
1 x 320 W @ 8 ohm (bridge) |
| Output Power @ 70 V |
1 x 320 W @ 70 V |
| Frequency Response (-3dB) |
20 Hz - 20,000 Hz |
| SNR Analog Inputs ("A" Weighted) |
>93 dB |
| Distortion (THD+N) @ 1 kHz Nominal Power |
<0.01 % |
| Input Section |
| Total Number of Inputs |
6 |
| Balanced |
4 |
| Unbalanced |
2 |
| Mono |
4 |
| Stereo |
2 |
| Line Inputs |
6 |
| General Purpose Inputs (GPI) |
2 |

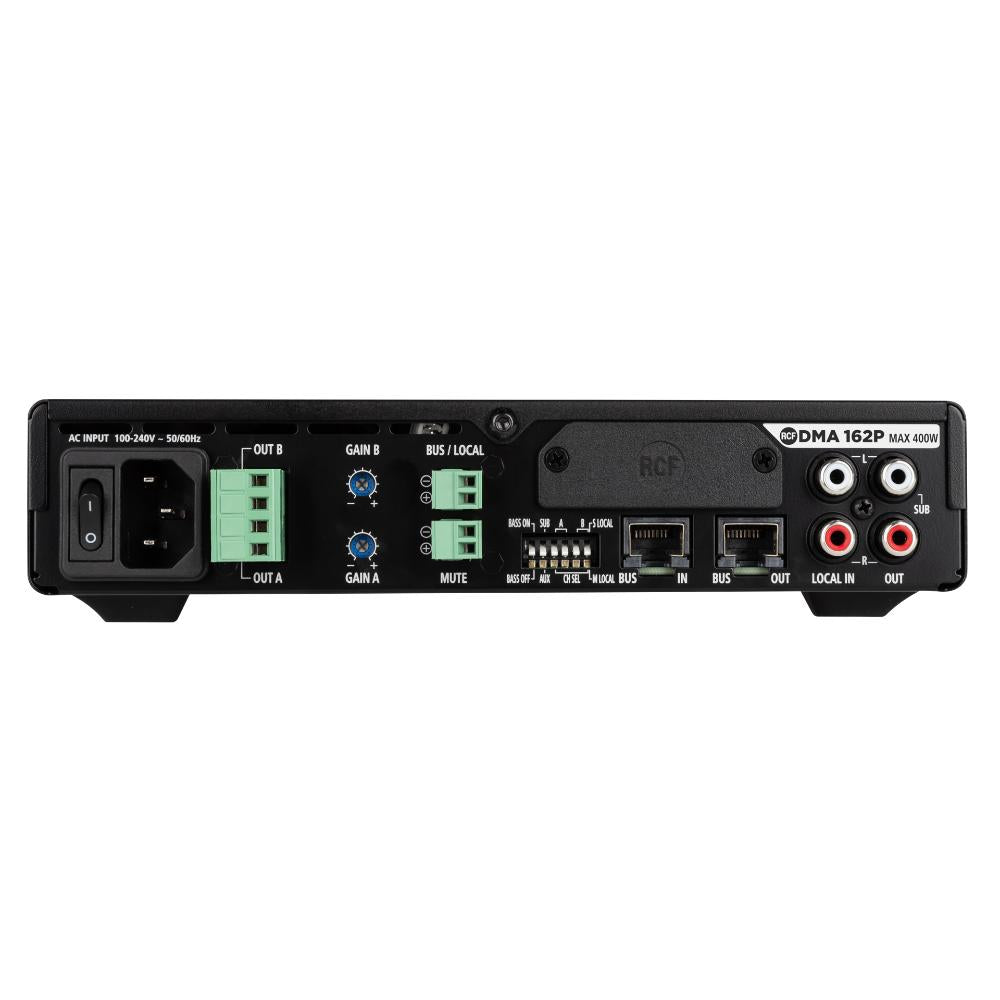

| Output Section |
| Signal Output Number |
1 |
| Signal Output Connectors |
RCA |
| Power Output Connectors |
Euroblock |
| Processing |
| DSP |
Yes |
| EQ Filters |
Yes |
| FIR |
Yes |
| Compressors |
Yes |
| Tone Controls |
Yes |
| High-Pass Filter |
80 Hz - 200 Hz |
| Configuration and Control |
| Configuration |
DIP Switch, PC Software |
| RCF Speakers Presets |
Yes |
| Protections |
| Cooling |
Forced |
| Short Circuit |
Yes |
| Thermal |
Yes |
| DC |
Yes |
| Fuses |
Yes |
| VHF (Very High Frequencies) |
Yes |
| Power Requirement |
| Operating Voltage |
90-240 V~ 50/60Hz |
| Power Consumption (MAX) |
400 W |
| Standard Compliance |
| Safety Agency |
CE Compliant, UL 62368-1 |
| Physical Specifications |
| Cabinet/Case Material |
Metal |
| Color |
Black |
| Rack Mounting |
1/2 19", 1U, Optional Rack Mounting Accessory Required |
| Size / Weight |
| Height |
44 mm / 1.73 inches |
| Width |
213 mm / 8.39 inches |
| Depth |
304 mm / 11.97 inches |
| Weight |
1.65 kg / 3.64 lbs |
| Shipping Information |
| Package Height |
106 mm / 4.17 inches |
| Package Width |
360 mm / 14.17 inches |
| Package Depth |
381 mm / 15 inches |
| Package Weight |
2.65 kg / 5.84 lbs |
