RCF COMPACT C 32 TWO-WAY PROFESSIONAL SPEAKER

RCF COMPACT C 32 TWO-WAY PROFESSIONAL SPEAKER Features

• 600 W power handling (RMS)
• 137 dB max SPL
• 54 ÷ 20000 Hz frequency range
• 100° x 50° constant directivity coverage angle

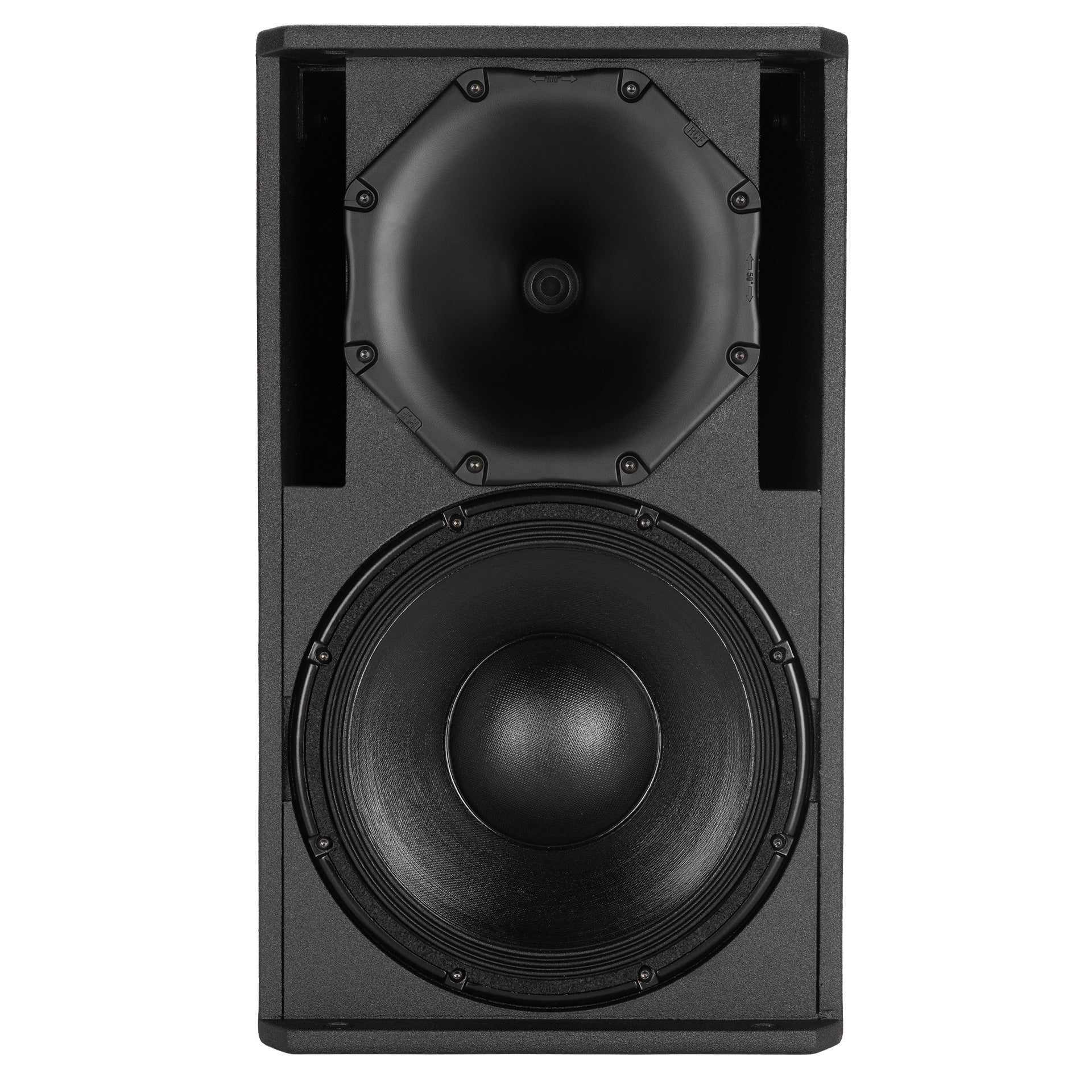

• 1x12" neo LF and 1x3.0" v.c. neo HF
• Rotatable horn
• High quality birch plywood cabinet

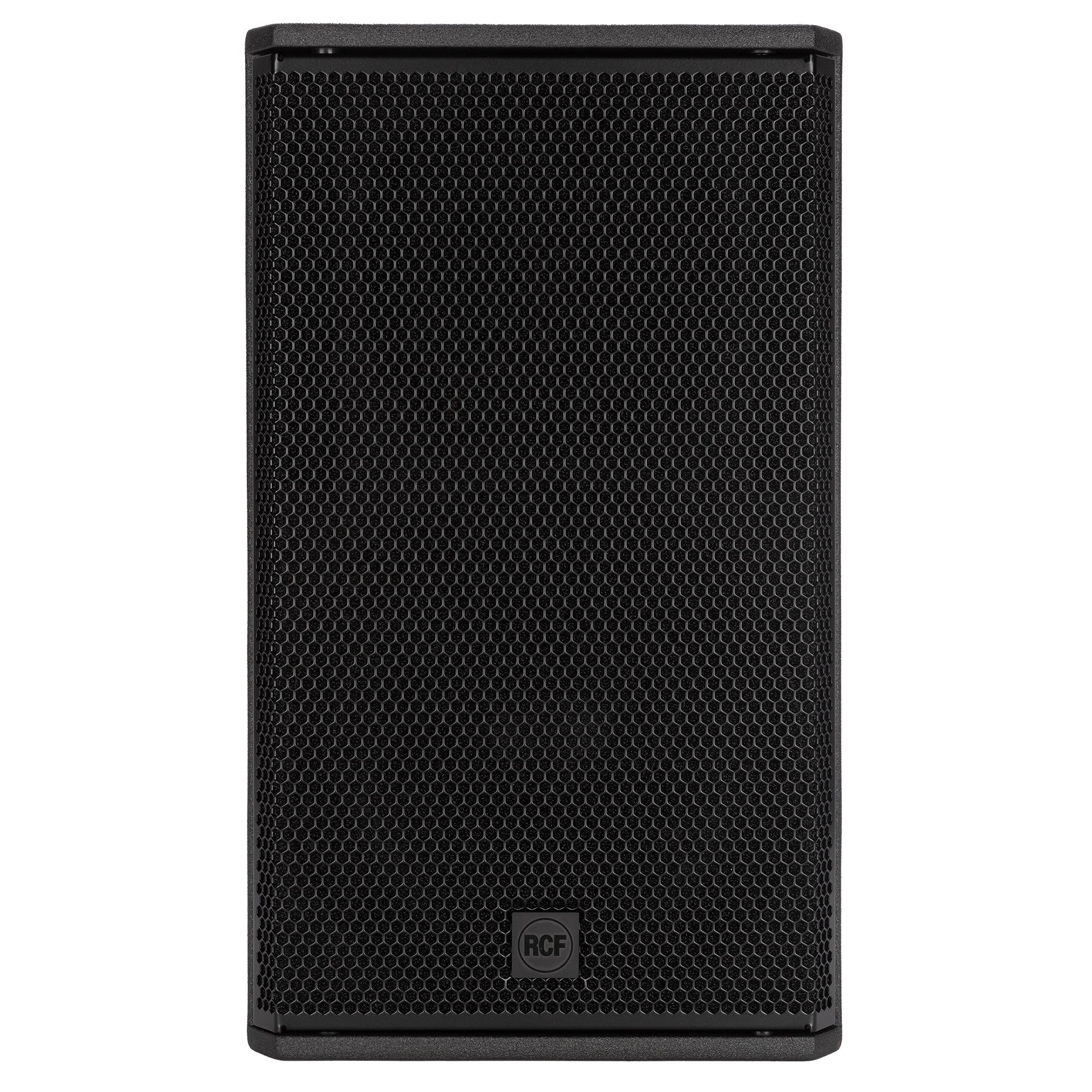

• Steel front grille with clothing

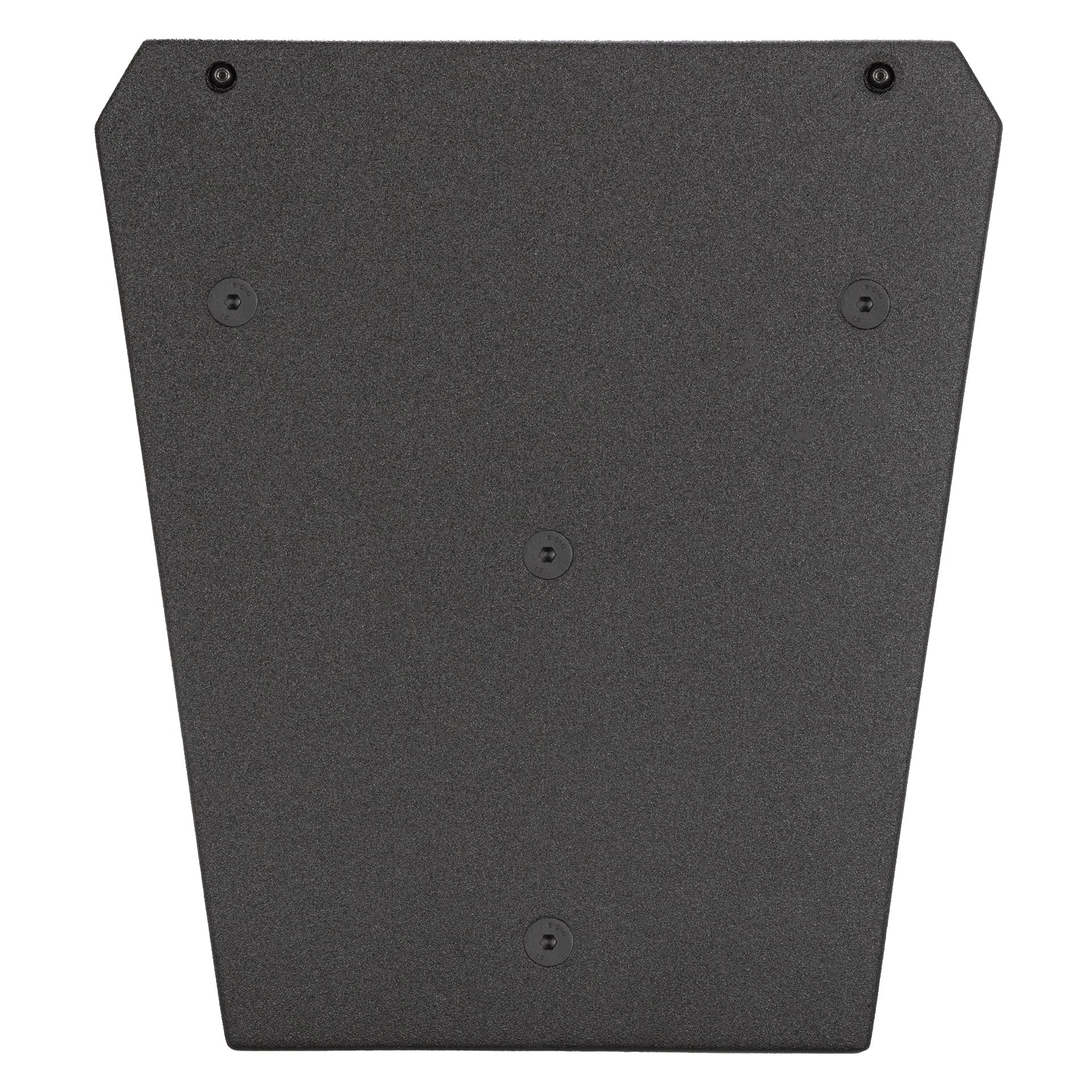

• Installation points available on top, bottom, rear and side panels

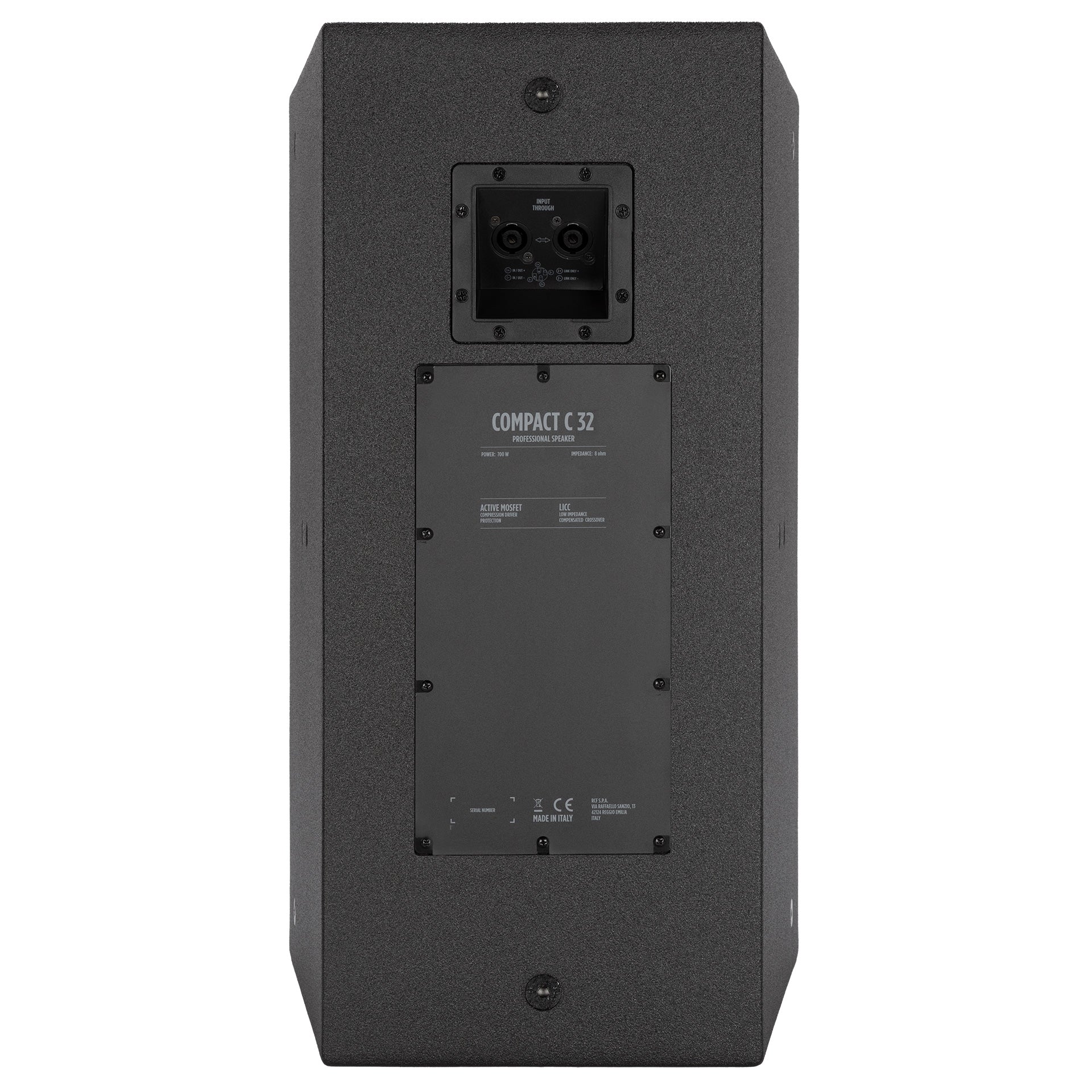

• SPEAKON in/out connectors

RCF COMPACT C 32 TWO-WAY PROFESSIONAL SPEAKER Specifications

Acoustical Specifications
Frequency Response (-10dB)	54 Hz - 20000 Hz
Max SPL @ 1m	137 dB
Horizontal Coverage Angle	100°
Vertical Coverage Angle	50°
Directivity Index Q	10
System Sensitivity	97 dB
Power Section
Amplification	Full Range
Nominal Impedance	8 ohm
Power Handling	600 W RMS
Peak Power Handling	2400 W Peak
Protections	Dynamic Active Mosfet
Crossover Frequencies	1100 Hz
Recommended Amplifiers	XPS Series, KPS Series
Transducers
Compression Driver	1 x 1.4'' neo, 3.0'' v.c
Woofer	1 x 12'' neo, 3.5'' v.c
Input/Output Section
Input Connectors	Speakon
Output Connectors	Speakon
Standard Compliance
IP Protection Grade	IP 21C
Safety Agency	CE Compliant
EN54-24 Certified	Yes
CPR Number	0068-CPR-234/2025
Physical Specifications
Cabinet/Case Material	Birch Plywood
Hardware	4 x M8, 14 x M10
Grille	Steel with cloth
Color	Black - RAL 9005
Size / Weight
Height	620 mm / 24.41 inches
Width	361.8 mm / 14.24 inches
Depth	404 mm / 15.91 inches
Weight	23.5 kg / 51.81 lbs
