RCF COMPACT A 15 – Speaker system 15" + 1.75" v.c, 450 W AES

The RCF COMPACT A 15 is a professional audio product from the RCF COMPACT A series, designed for installed sound applications. Built to RCF's exacting standards of Italian engineering excellence, this product delivers reliable, high-performance audio in professional environments.

Product Details

• Model: COMPACT A 15
• Series: COMPACT A
• Application: INSTALLED SOUND
• SKU: 13000740

Description

COMPACT A 15

TWO-WAY PROFESSIONAL SPEAKER

• 450 W power handling
• Up to 130 dB Sound Pressure Level
• 50-20000 Hz linear frequency response
• 1.75" Compression Driver

  Features

  • 450 W power handling
  • Up to 130 dB Sound Pressure Level
  • 50-20000 Hz linear frequency response
  • 1.75" Compression Driver
  • 15" High Power Woofer
  • Robust composite material cabinet
  • Steel full front grille
  • Optional mounting accessories
  • 2 x SPEAKON connectors

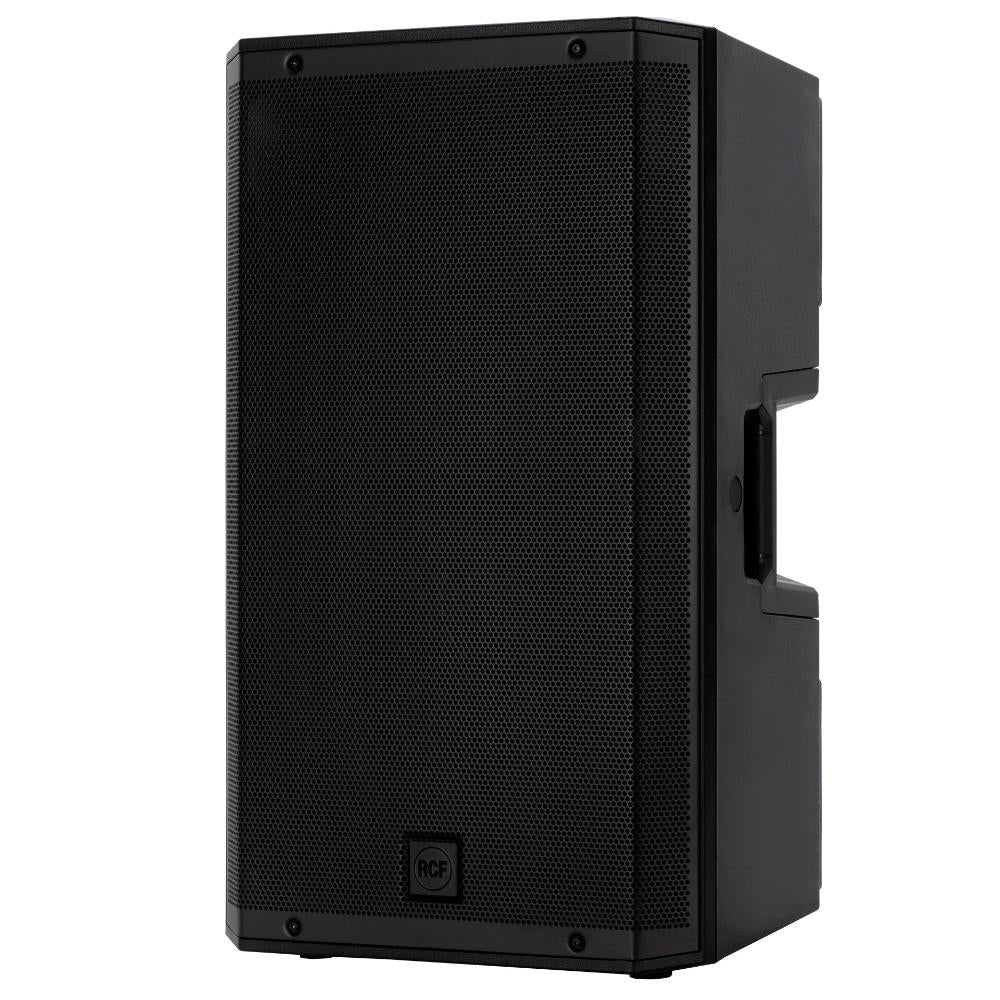

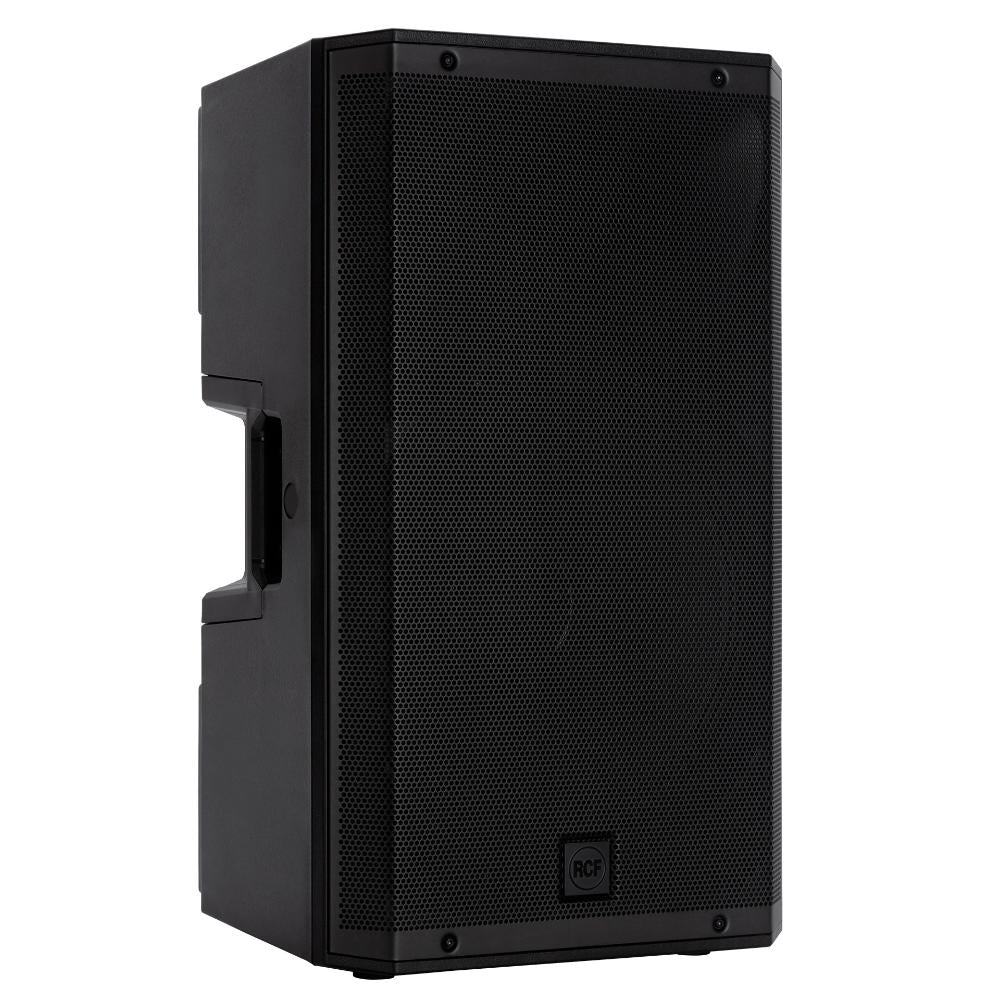

  COMPACT A 15 is a multipurpose two-way full-range professional speaker system, suitable for a wide range of applications, such as live sound reinforcement and stage monitoring as well as distributed sound systems for clubs or music venues. The combination of a 1.75" compression driver, 15" woofer, and the constant directivity True Resistive Waveguide produces coherent 100° x 60° coverage for the listening area with high SPL, distortion-free sound. The sleek and lightweight cabinet uses a special polypropylene composite material with an M-brace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points and available accessories.

  Multipurpose sound
  Elegant design aesthetics and RCF signature sound quality that delivers a supreme audio experience in any application, from restaurants and retail shops to clubs, corporate spaces and venues. Available in three sizes - starting from 10-inch to 15-inch woofers with excellent acoustic performance for both background and foreground music.



  Superior transducers

  Lightweight and powerful, RCF drivers are a true reference for high performance. All transducers are designed by RCF engineers in Italy for maximum reliability and perfectly matched components. The internal crossover frequency is set at a lower frequency than usual, resulting in a clear and accurate vocal reproduction with Dynamic Active Mosfet protection.



  High frequencies

  The new 1.75" compression driver voice-coil design with Polyimide-Kapton dome features a new bonding technology and reinforced ribs making it 10 times more durable than previous designs. The redesigned phase plug increases sound clarity, enhancing transient response and improving coupling with the low-frequency transducer.



  Low frequencies

  Low-frequency transducer design gains more stability over higher currents, with less distortion, and is highly efficient in terms of heat dissipation. RCF quality control is very strict. Our woofers are tested with a 200 hours continuous signal to stress the transducer at extreme levels.




  M-Bracing a new cabinet design

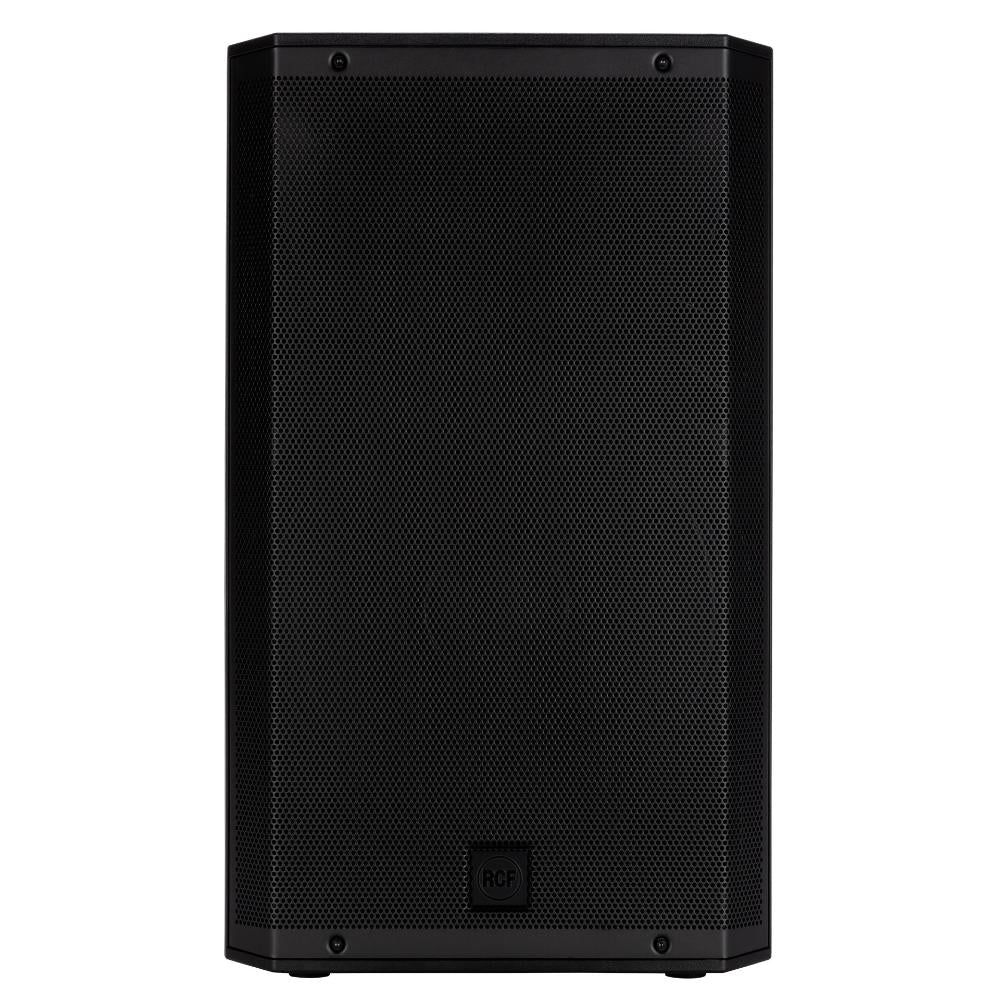

  COMPACT A professional appearance of an is ideal for live events or installed applications. The sleek cabinet uses a special polypropylene composite material with a radically new construction concept. The grille cover is heavy-duty steel protecting both transducers and vented ports. The purpose-designed M-brace connects the four internal sides of the cabinet and amplifier, preventing any deformation for a completely inert body, with augmented acoustical damping even at maximum volume settings. It also performs as a reinforcement structure, for greater resistance to mechanical stress.



  New paradigms in electroacoustics

  The advanced design of COMPACT A lies within the housing of the speaker. The new True Resistive Waveguide is the result of several refinements in both the transducers' and the vented ports' design with Finite Element Analysis, and constant measurement in RCF anechoic chambers. Thanks to our transducers, the new shape, and the placement of the ports, the speaker now acts as a single ideal source for a perfect sound image. Acoustically, the TRW waveguide mimics a resonance-free pure resistive load reducing the high-frequency distortion of a classic horn. With its asymmetrical sound shaping, the coverage angle of the waveguide provides constant directivity to the entire listening area and improved stereo panorama.



  Easy to handle, fast to install

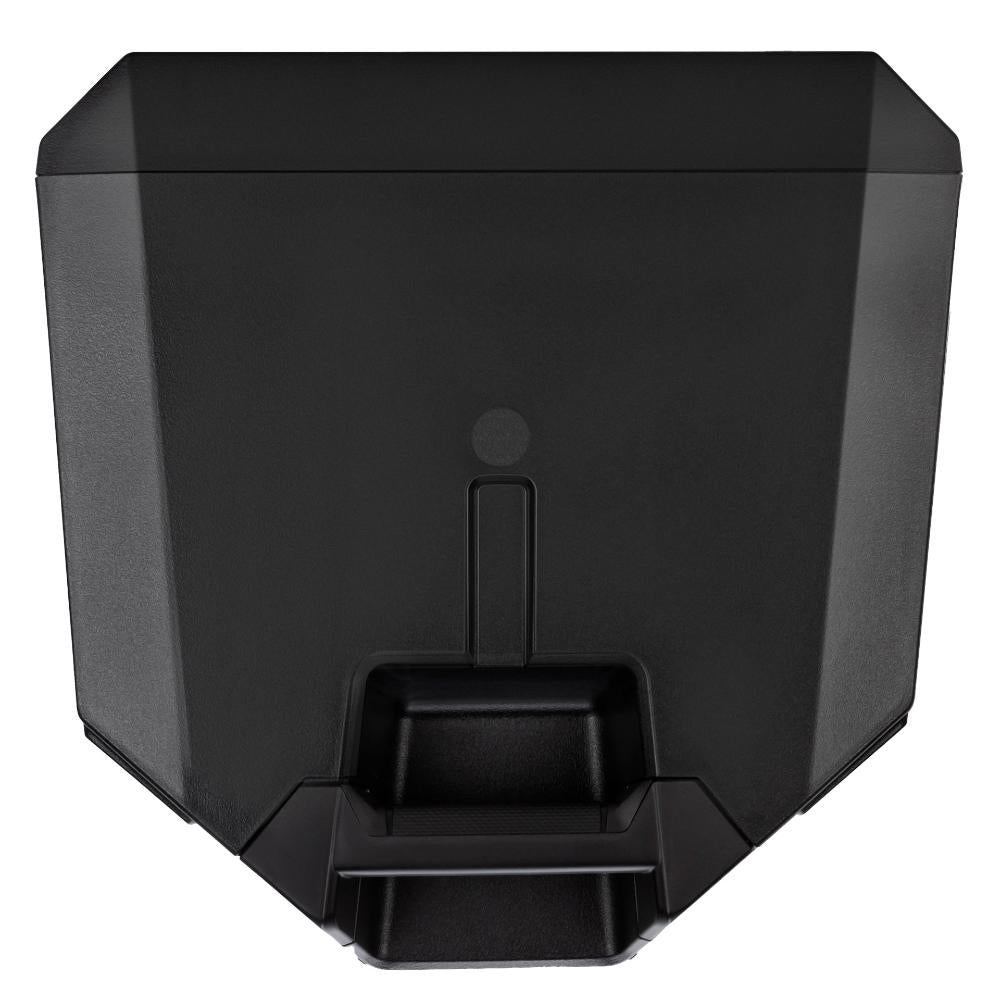

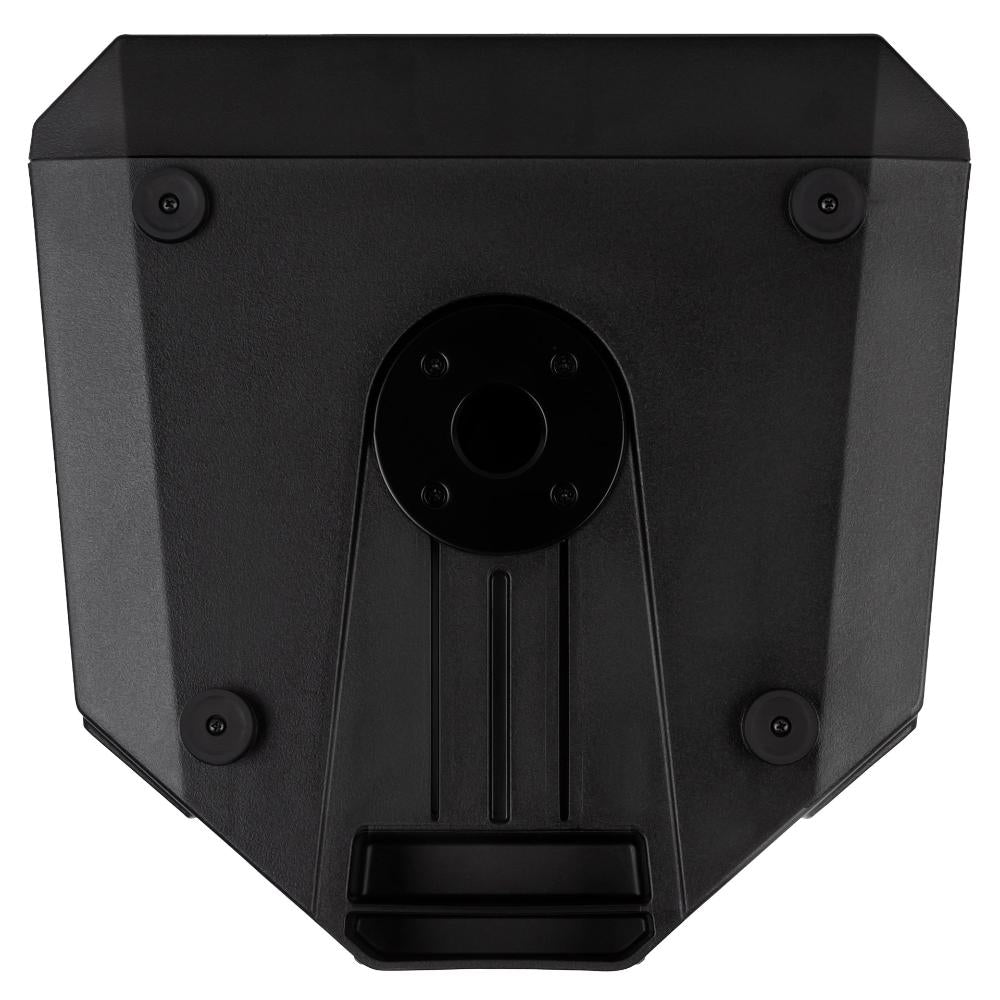

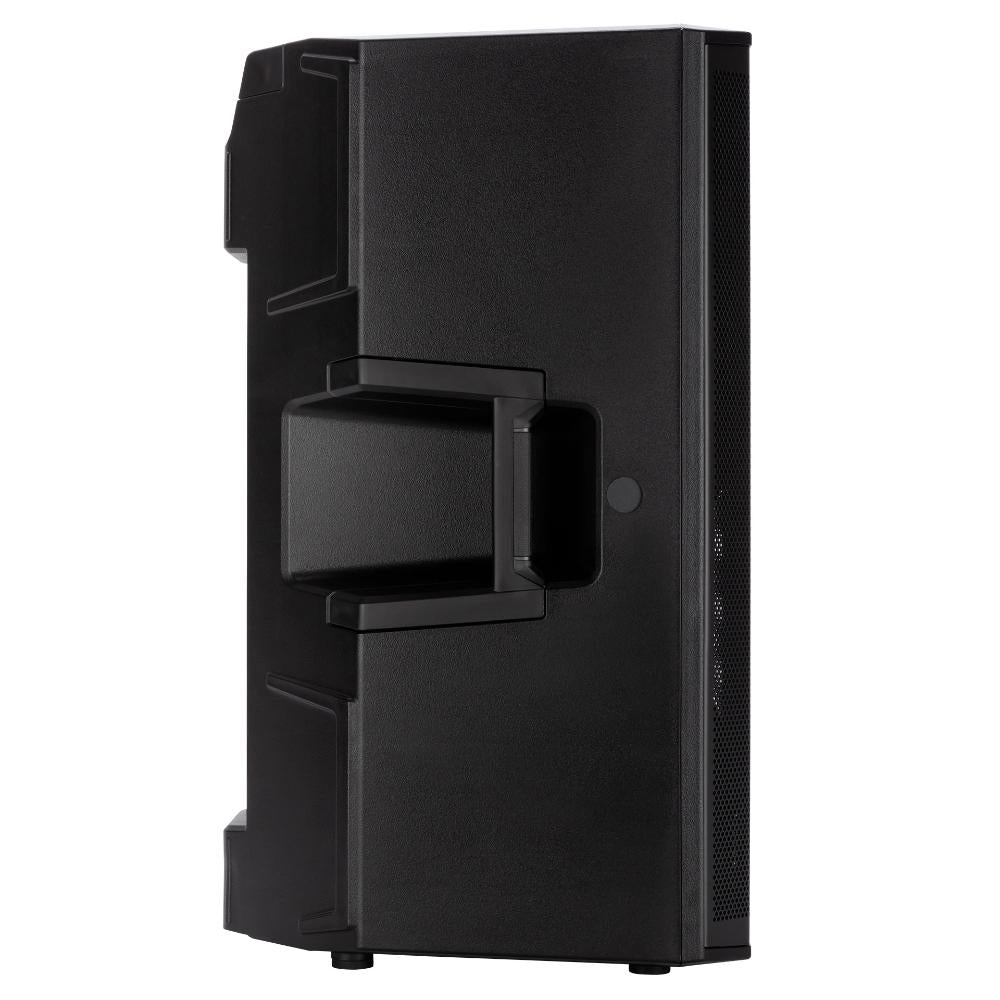

  COMPACT A is flexible and makes it a smart choice for a wide range of applications. The cabinet is easy to carry, thanks to ergonomic handles on both sides and the top. The lower side includes a steel pole socket for mounting on a stand or subwoofer pole. Each model can also be flown, wall- or truss-mounted using multiple M10 rigging points and special accessories. From molding to the final texture, COMPACT A offers maximum strength for fixed installation.



  Pole mount on subwoofer



  Pole mount on floor stand



  Stage monitor



  Horizontal wall/hanged mount



  Vertical wall/hanged mount

  Hanged mount







  specifications

  Acoustical specifications

  Frequency Response (-10dB)

  50 Hz - 20000 Hz

  Max SPL @ 1m

  130 dB

  Horizontal coverage angle

  100°

  Vertical coverage angle

  60°

  System Sensitivity

  98 dB

  Power section

  Amplification

  Full Range

  Nominal Impedance

  8 ohm

  Power Handling

  450 W

  Peak Power Handling

  1800 W PEAK

  Protections

  Dynamic Active Mosfet

  Crossover Frequencies

  1200 Hz

  Transducers

  Compression Driver

  1 x 1.0'', 1.75'' v.c

  Woofer

  1 x 15'', 3.0'' v.c

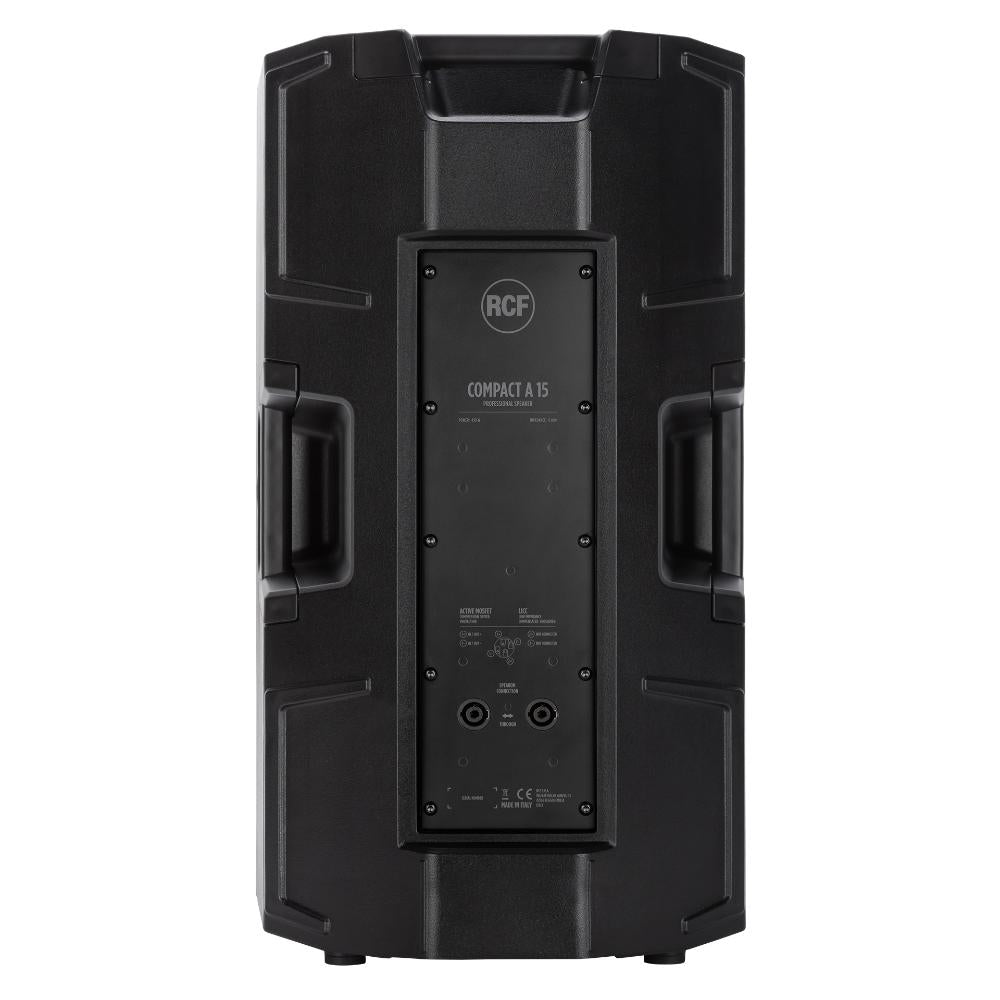

  Input/Output section

  Input connectors

  Speakon

  Output connectors

  Speakon

  Standard compliance

  Safety agency

  CE compliant

  Physical specifications

  Cabinet/Case Material

  PP Composite

  Hardware

  1 x M10 top, 1 x M10 each side

  Handles

  1 top, 1 each side

  Pole mount/Cap

  35 mm insert

  Grille

  Steel

  Color

  Black - RAL 9005

  Size / Weight

  Height

  716.6 mm / 28.21 inches

  Width

  414.9 mm / 16.33 inches

  Depth

  410 mm / 16.14 inches

  Weight

  23.5 kg / 51.81 lbs

  Shipping information

  Package Height

  760 mm / 29.92 inches

  Package Width

  475 mm / 18.7 inches

  Package Depth

  470 mm / 18.5 inches

  Package Weight

  25.5 kg / 56.22 lbs
