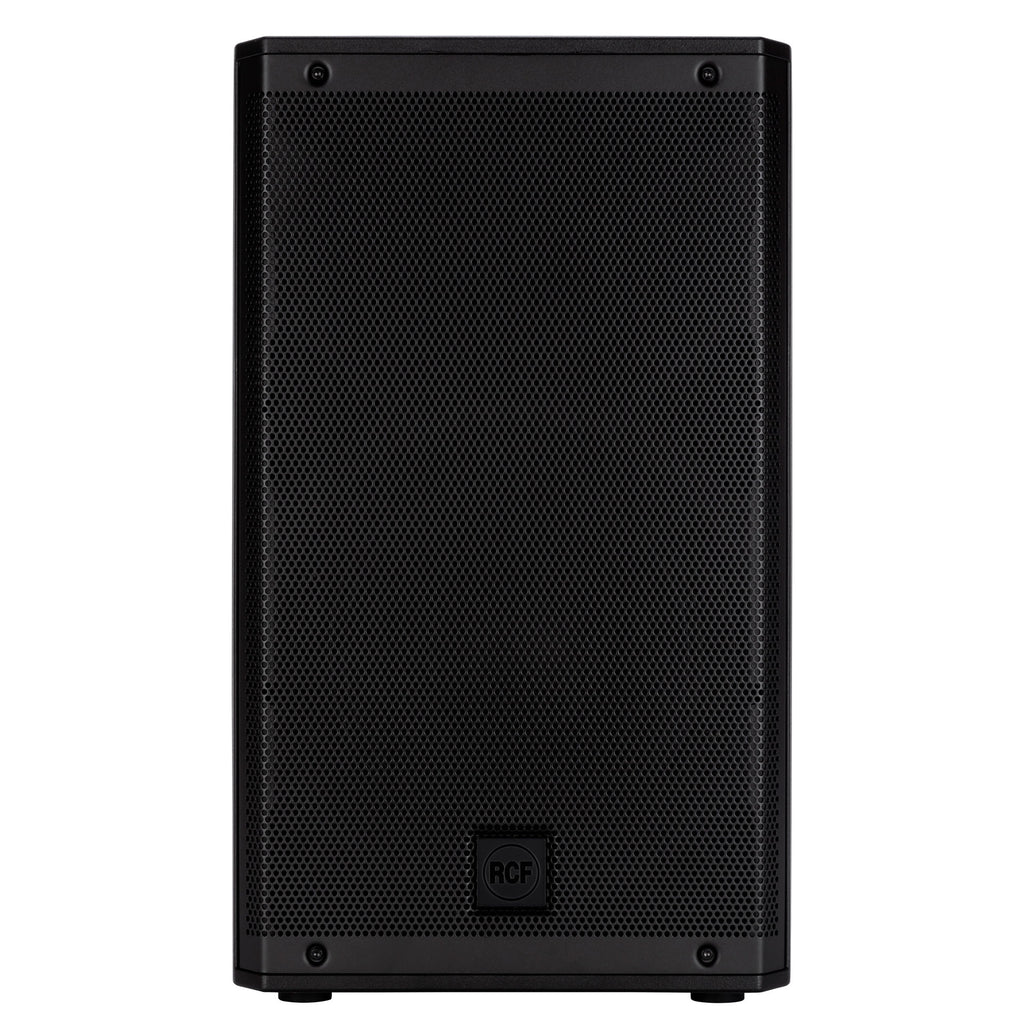

RCF COMPACT A 10 TWO-WAY PROFESSIONAL SPEAKER

RCF COMPACT A 10 TWO-WAY PROFESSIONAL SPEAKER Features

• 350 W power handling
• Up to 128 dB Sound Pressure Level
• 60-20000 Hz linear frequency response
• 1.75" Compression Driver

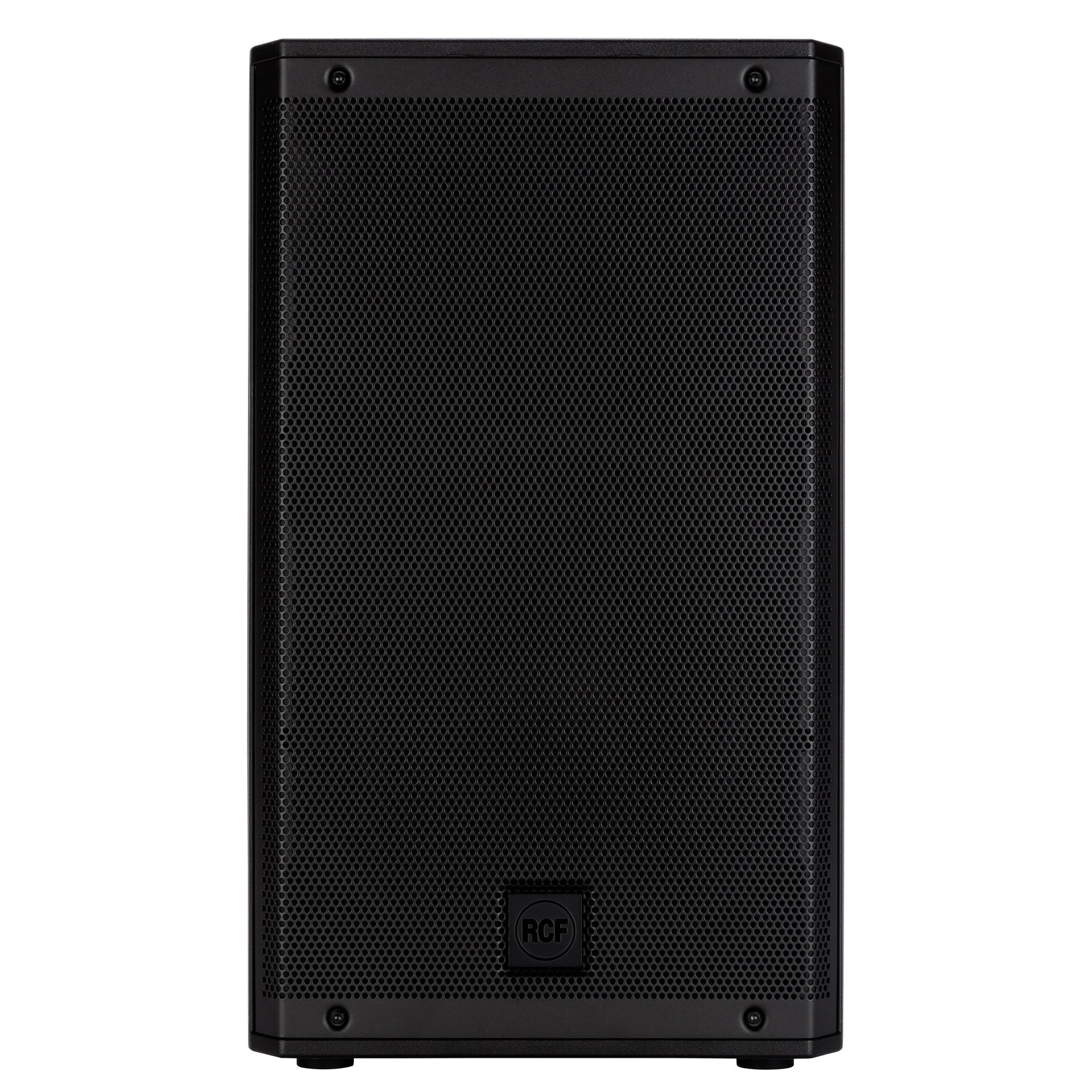

• 10" High Power Woofer
• Robust composite material cabinet
• Steel full front grille
• Optional mounting accessories
• 2 x SPEAKON connectors

RCF COMPACT A 10 TWO-WAY PROFESSIONAL SPEAKER Specifications

Acoustical Specifications
Frequency Response (-10dB)	60 Hz - 20000 Hz
Max SPL @ 1m	128 dB
Horizontal Coverage Angle	100°
Vertical Coverage Angle	60°
System Sensitivity	97 dB
Power Section
Amplification	Full Range
Nominal Impedance	8 ohm
Power Handling	350 W
Peak Power Handling	1400 W Peak
Protections	Dynamic Active Mosfet
Crossover Frequencies	1400 Hz
Recommended Amplifiers	KPS Series, QPS Series, IPS Series, DMA 504
Transducers
Compression Driver	1 x 1.0'', 1.75'' v.c
Woofer	1 x 10'', 2.5'' v.c
Input/Output Section

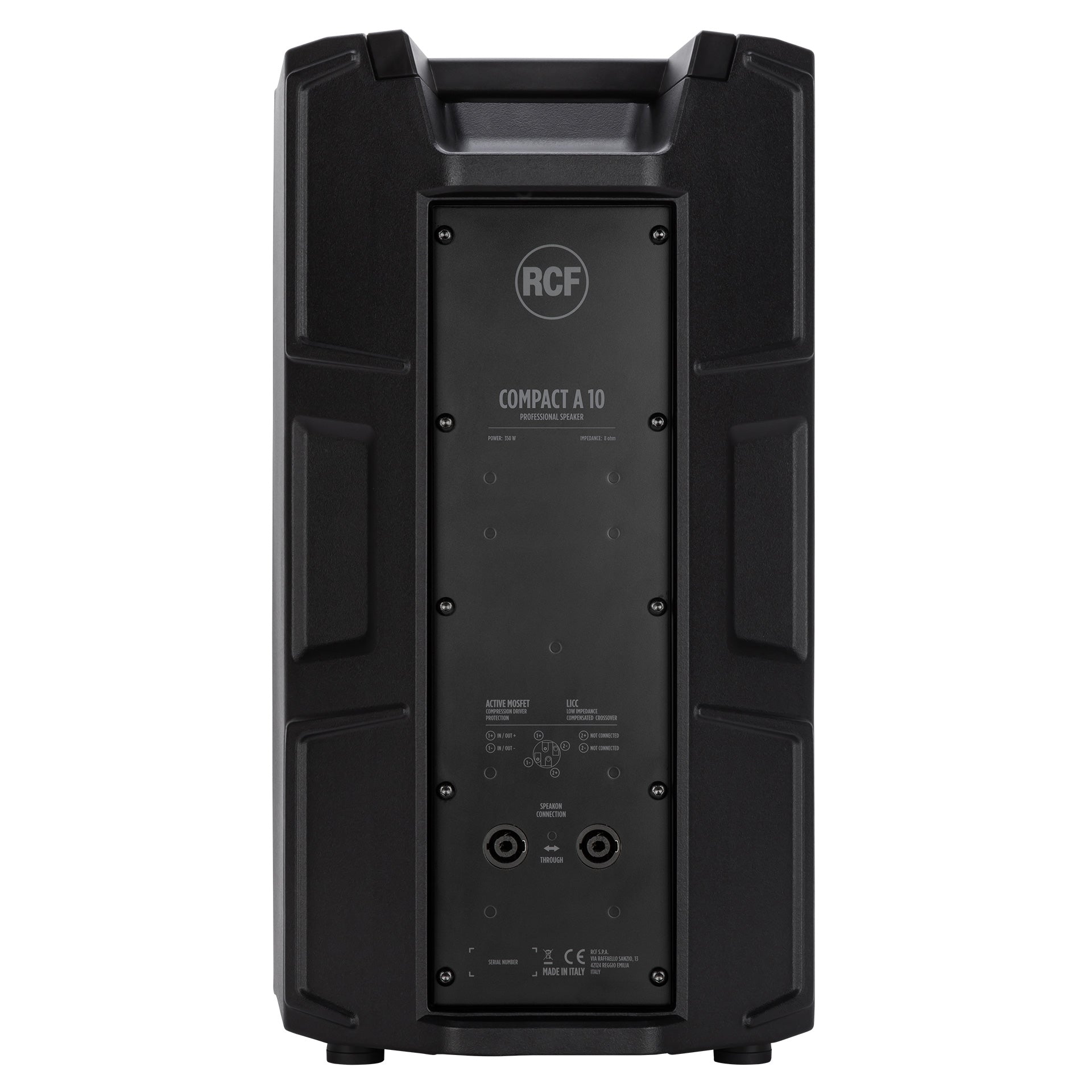

Input Connectors	Speakon
Output Connectors	Speakon
Standard Compliance
Safety Agency	CE Compliant
Physical Specifications
Cabinet/Case Material	PP Composite
Hardware	1 x M10 Top and Bottom

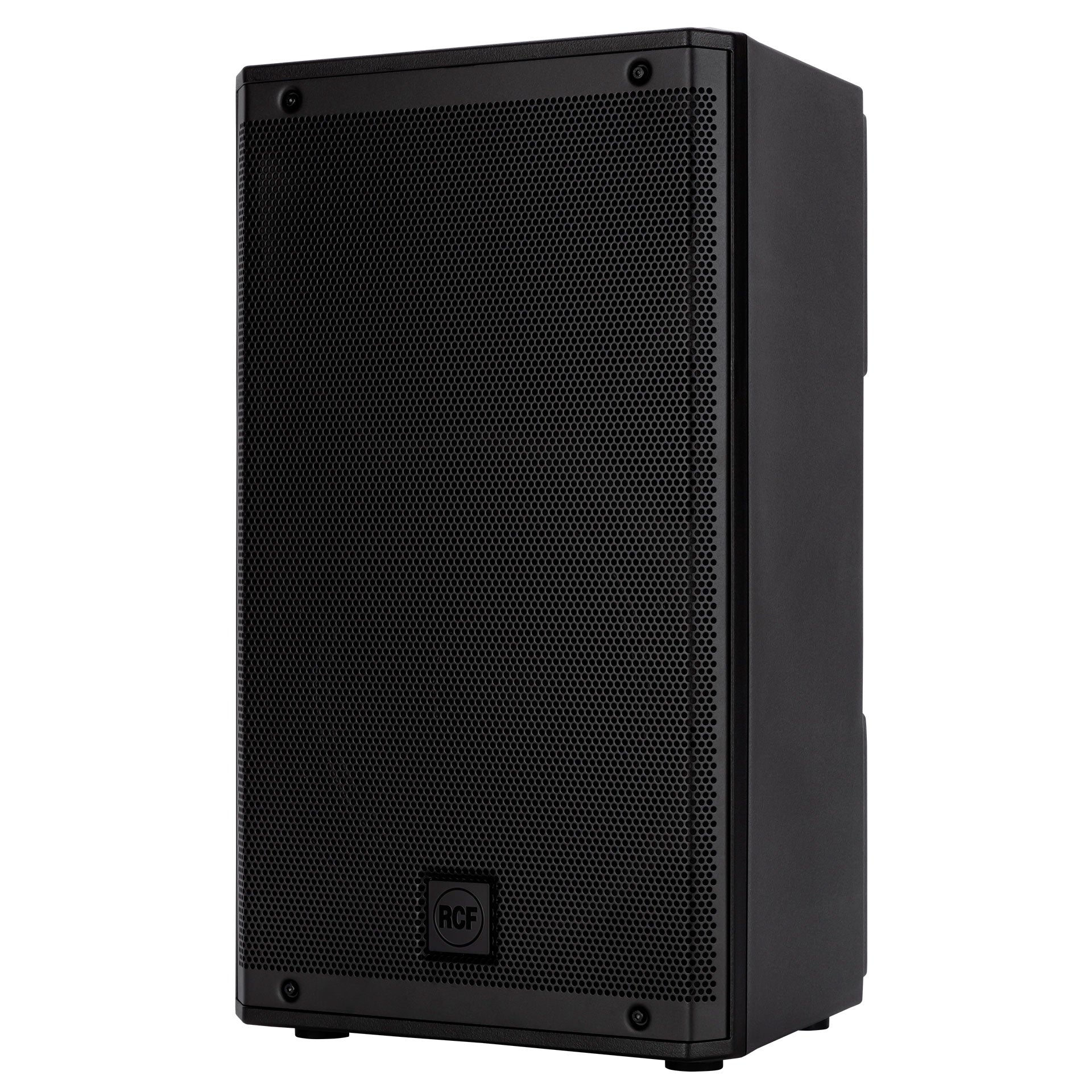

Handles	1 Top

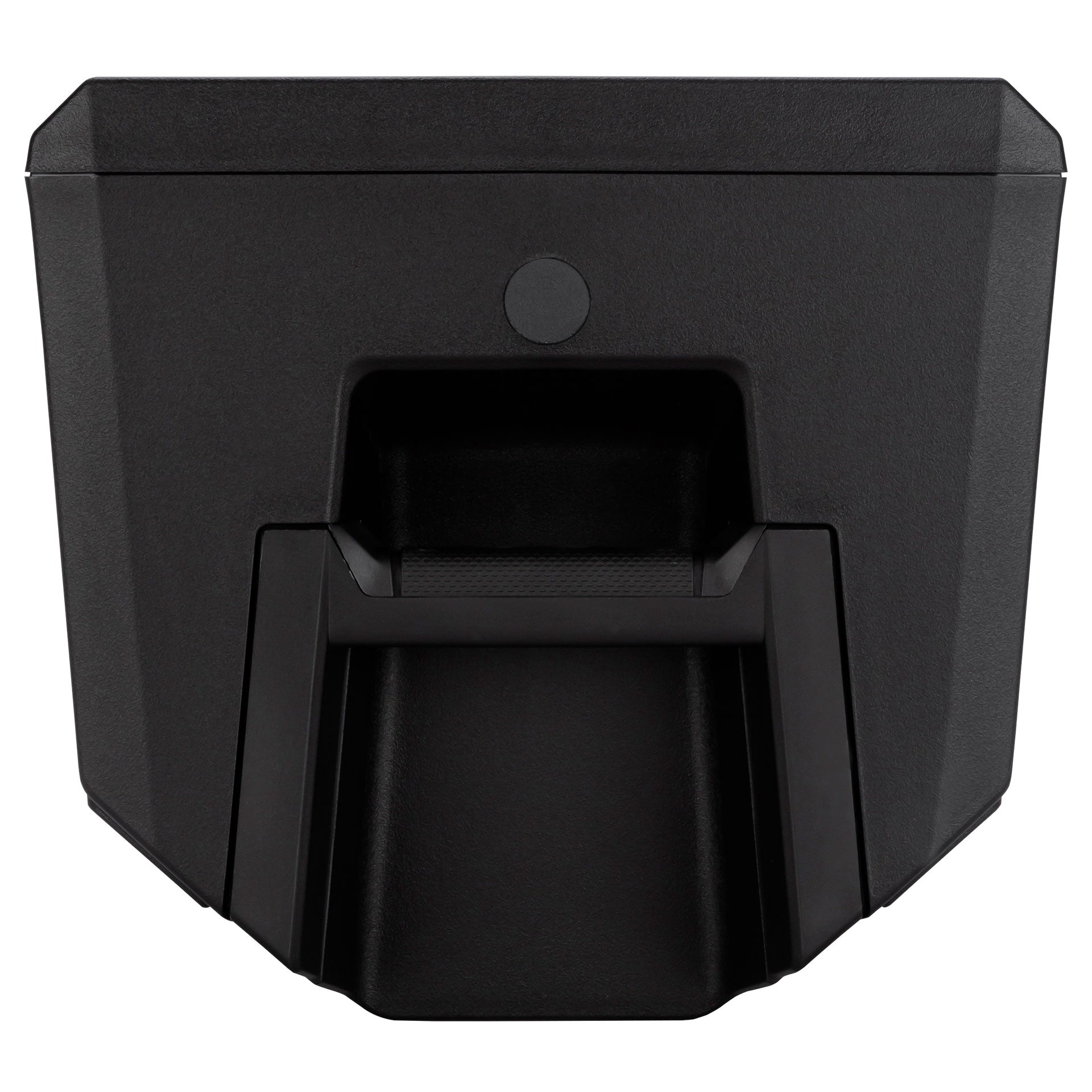

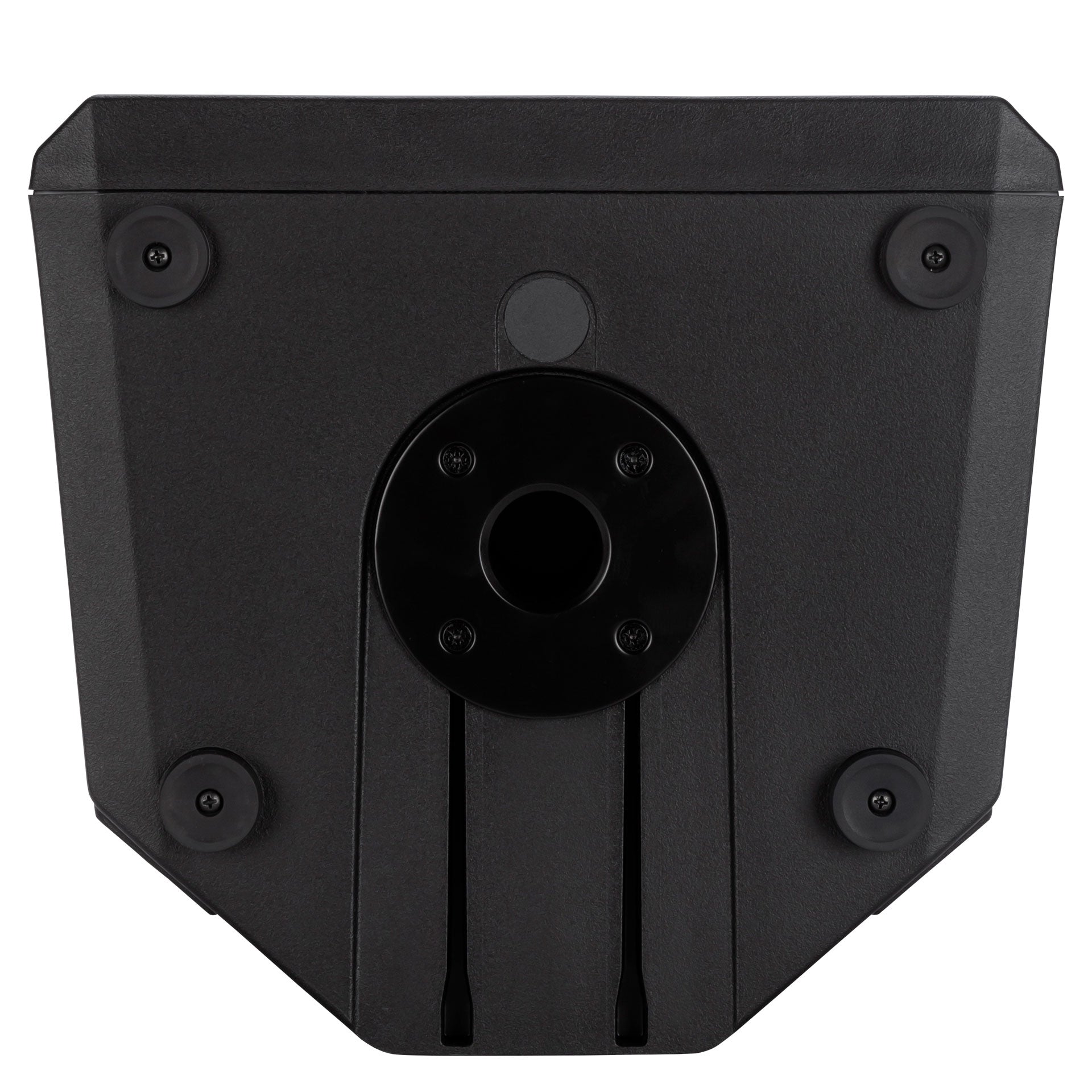

Pole Mount/Cap	35 mm insert
Grille	Steel
Color	Black - RAL 9005
Size / Weight

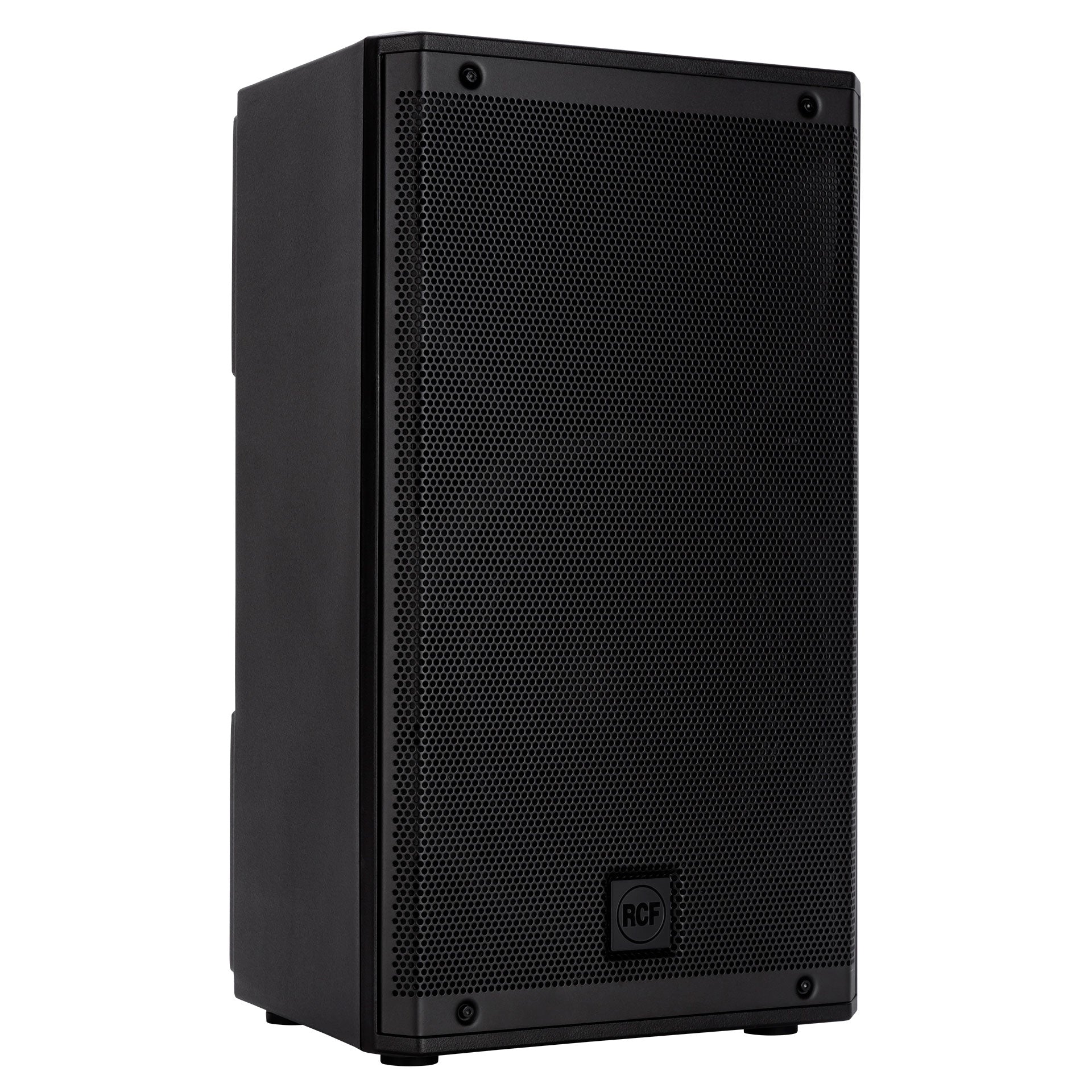

Height	572.1 mm / 22.52 inches
Width	329.9 mm / 12.99 inches
Depth	310 mm / 12.2 inches
Weight	16.2 kg / 35.71 lbs
Shipping Information
Package Height	616 mm / 24.25 inches
Package Width	370 mm / 14.57 inches
Package Depth	390 mm / 15.35 inches
Package Weight	18.2 kg / 40.12 lbs
