Features
- 80W RMS power handling
- 114 dB max SPL
- 70 ÷ 20000 Hz frequency range
- 130° constant directivity conical coverage angle
- 6.5" high power woofer
- 1" neodymium dome tweeter
- Self extinguishing plastic body and metal backcan

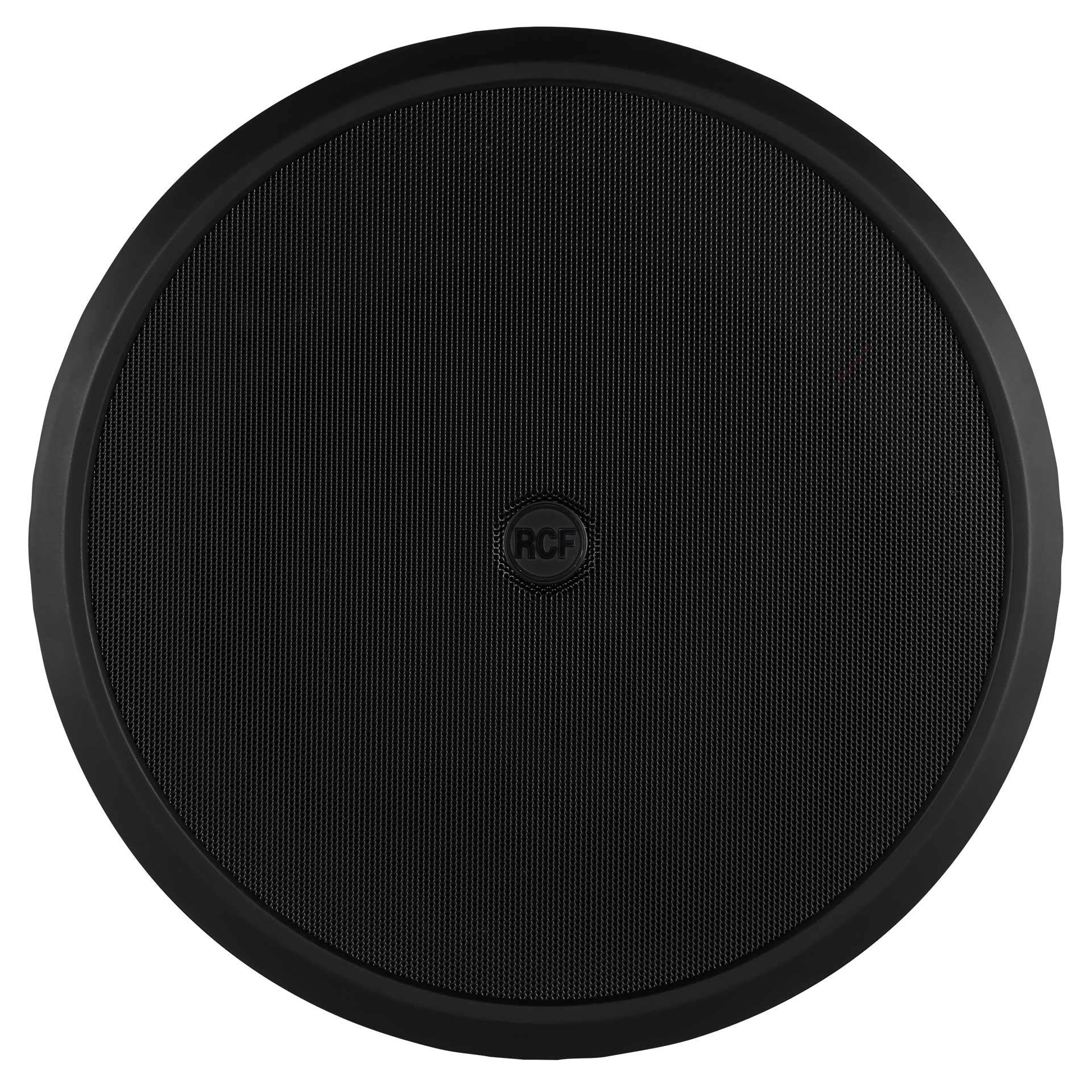

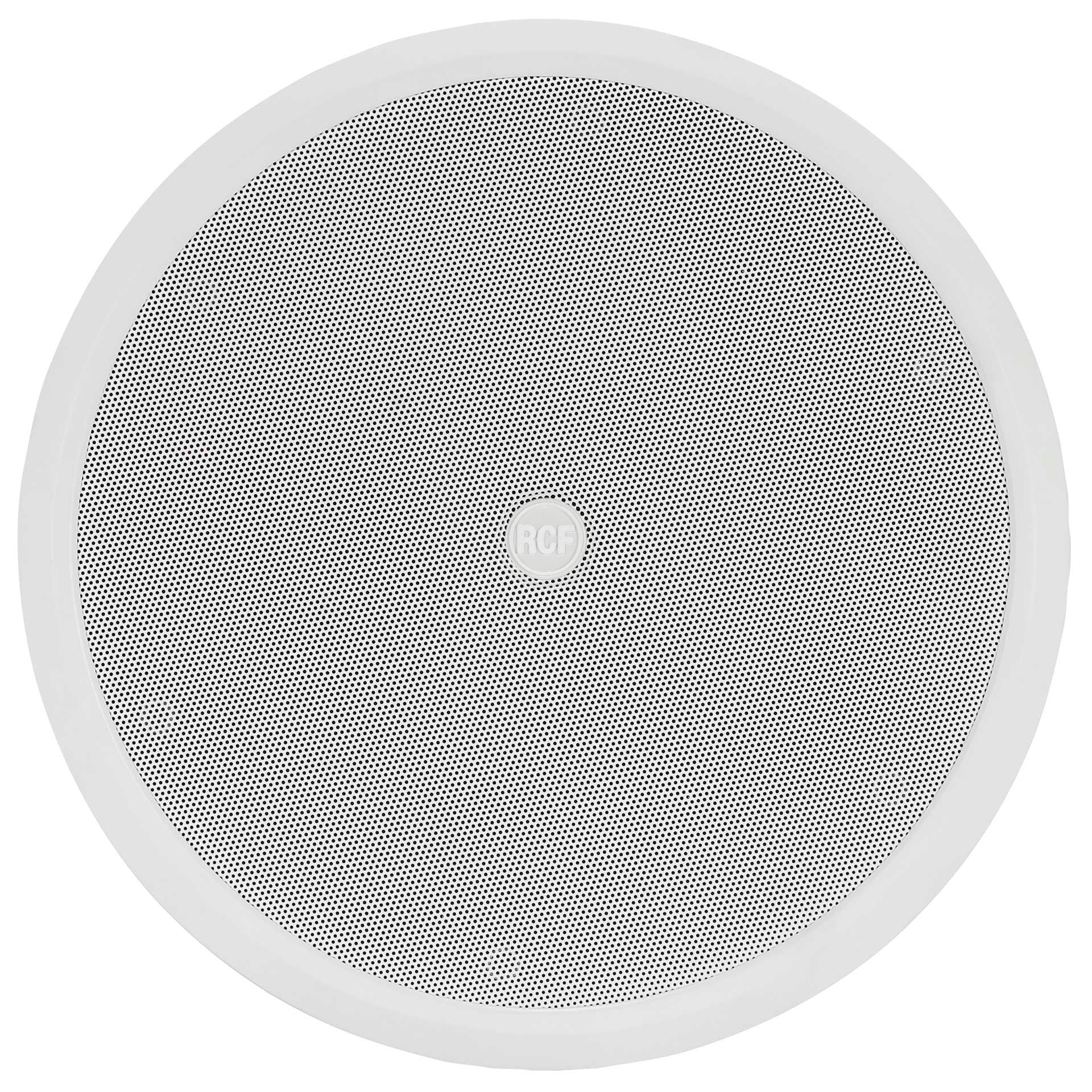

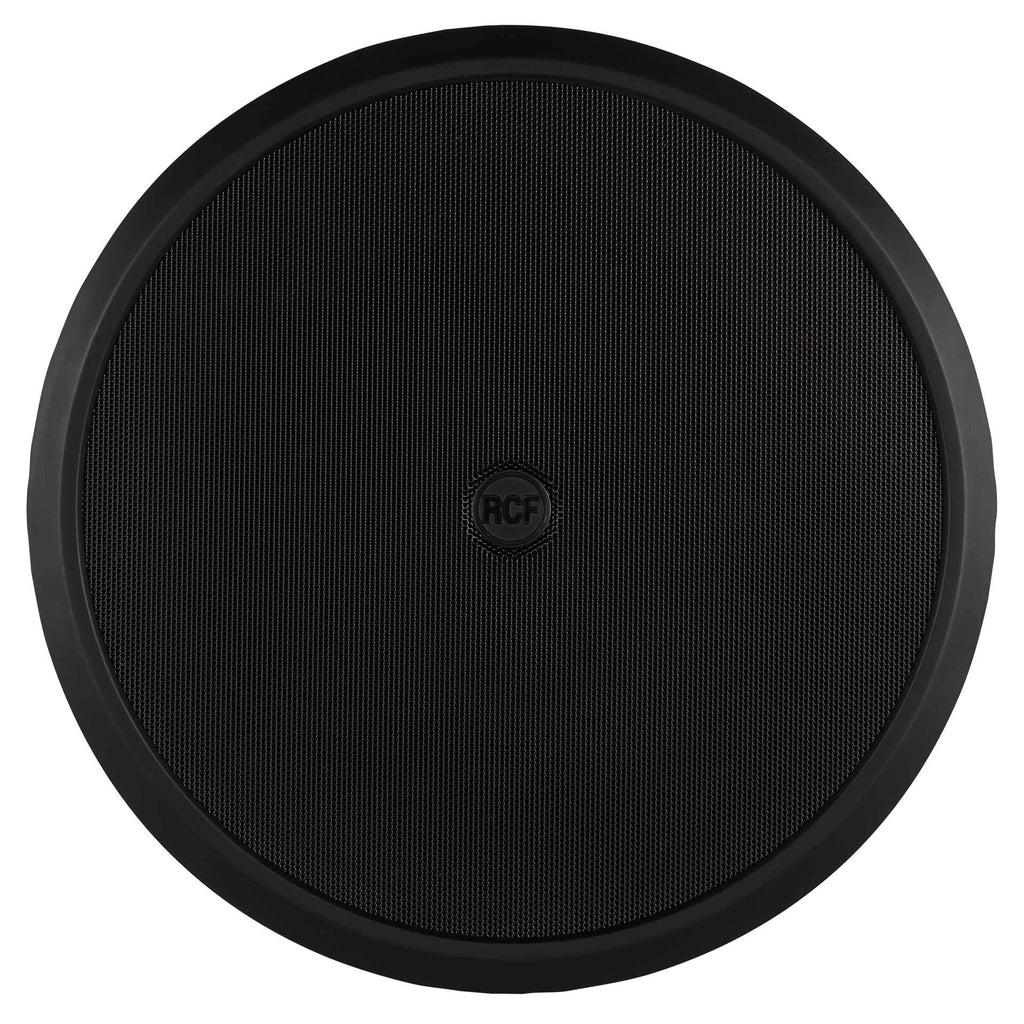

- Steel magnetic front grille

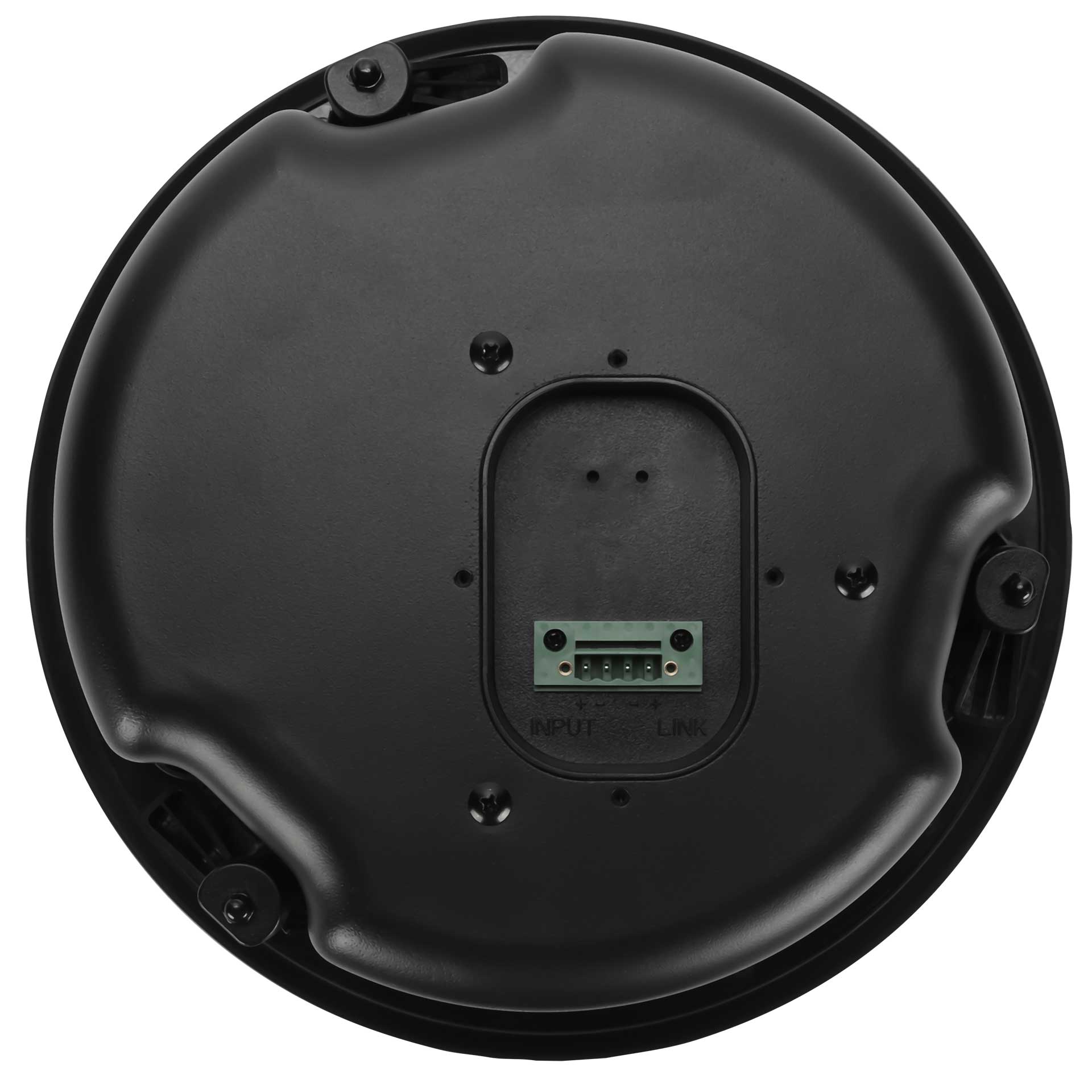

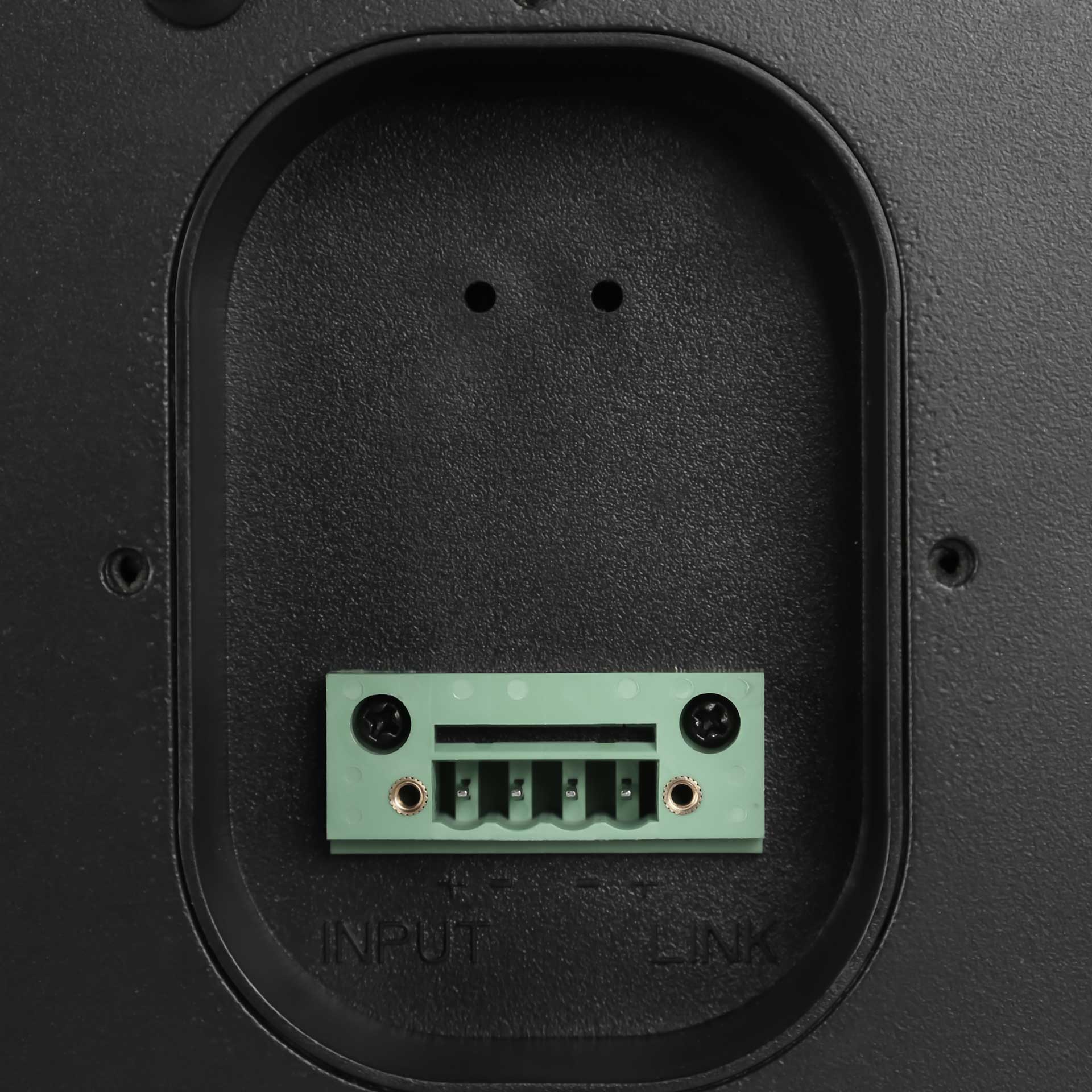

- 4 pole EUROBLOCK connector (audio input and parallel link output)
- 5 different power levels selectable

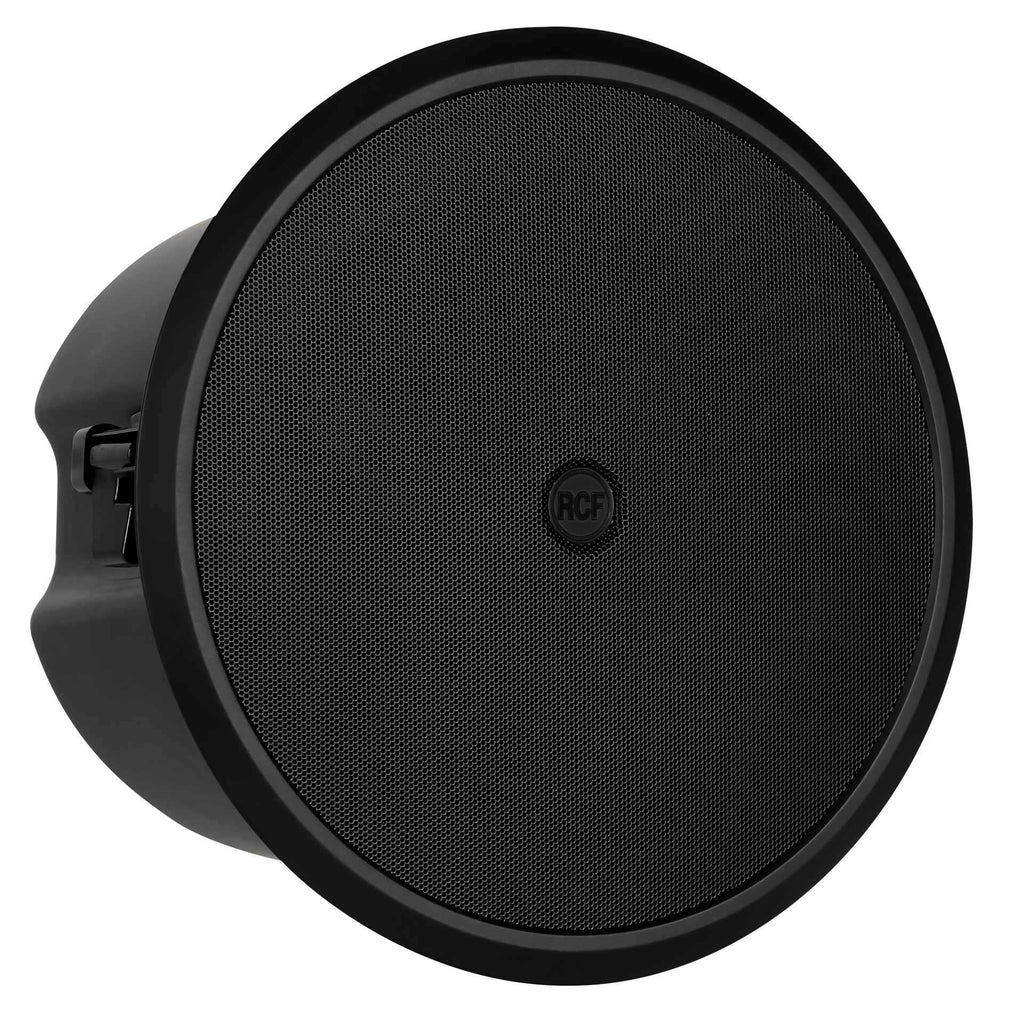

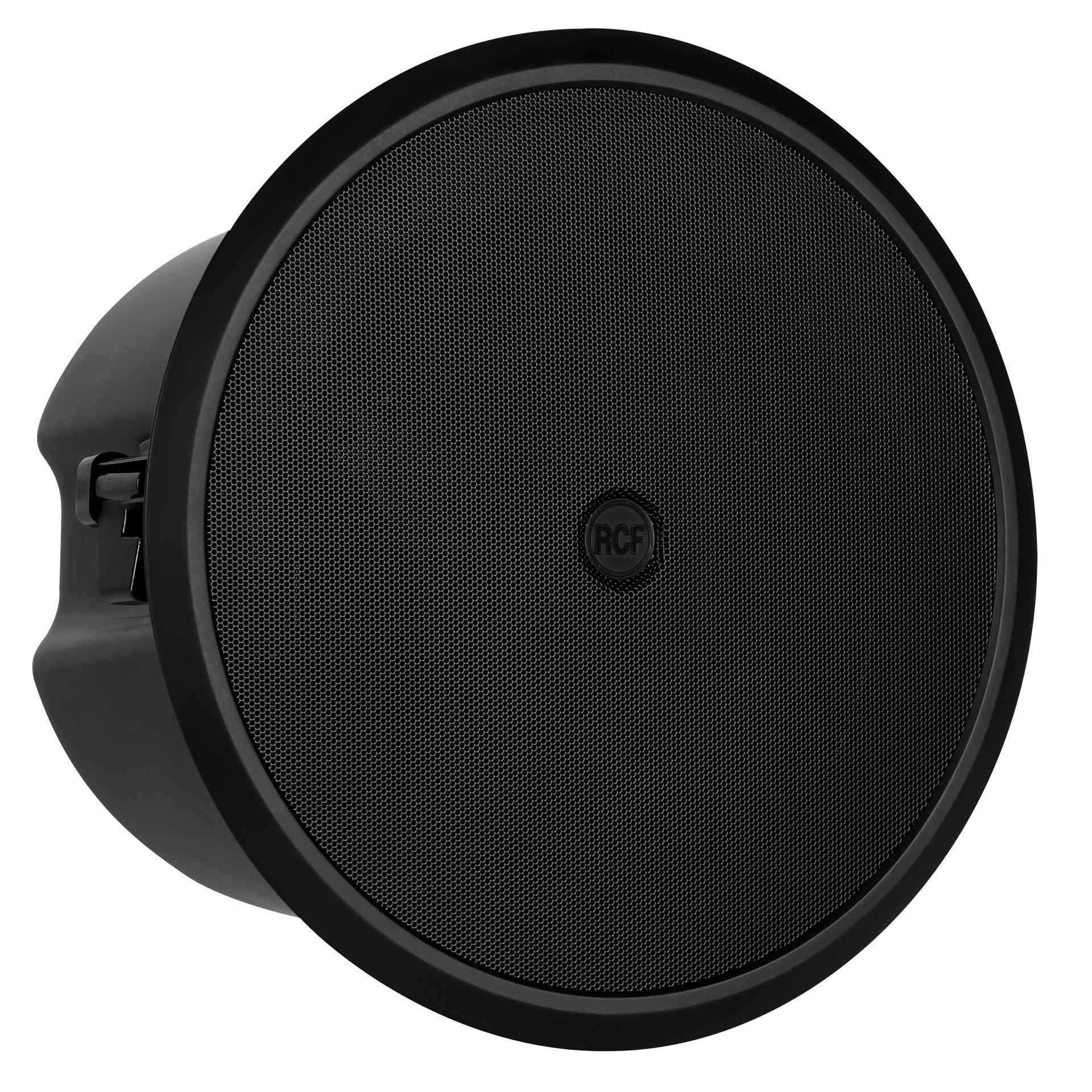

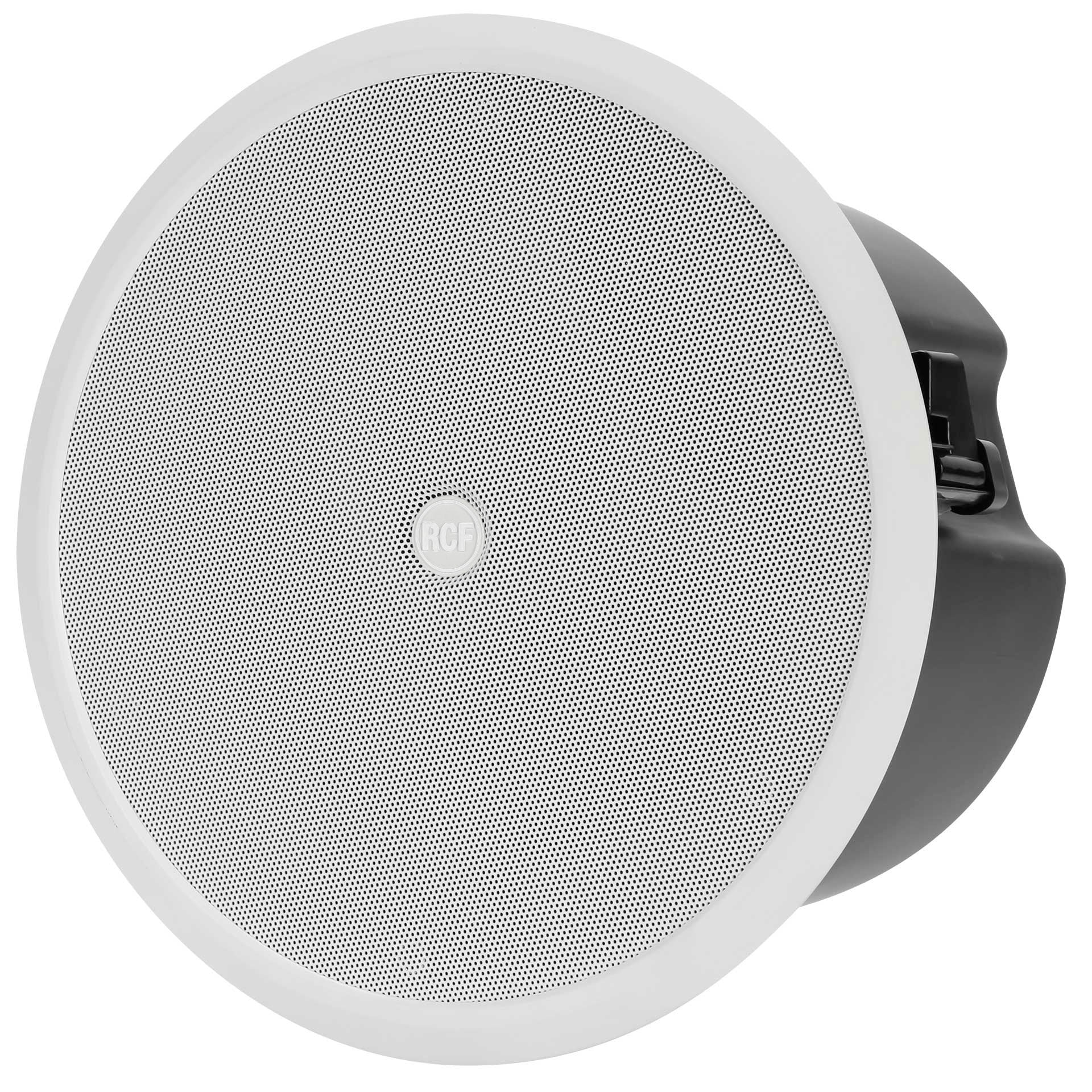

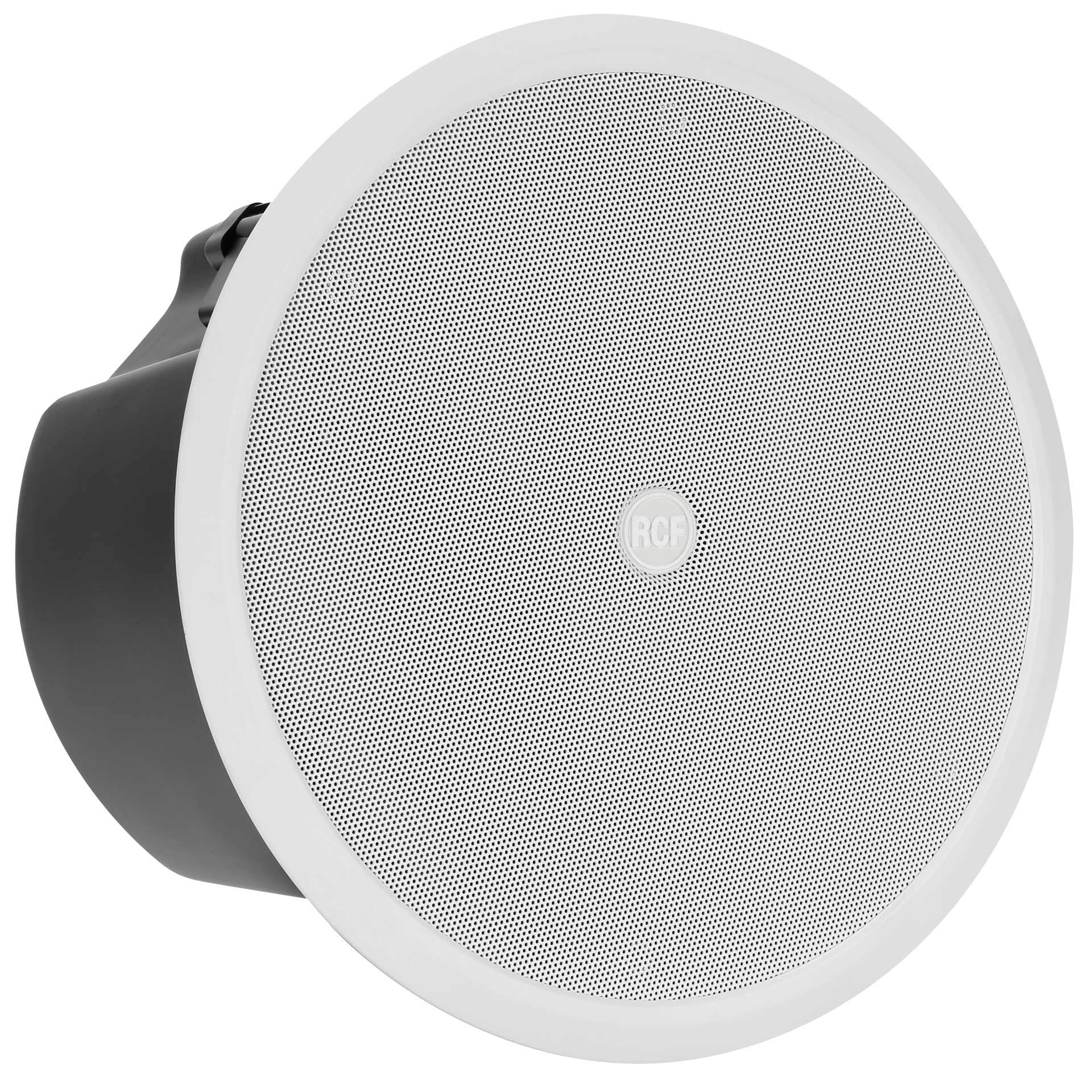

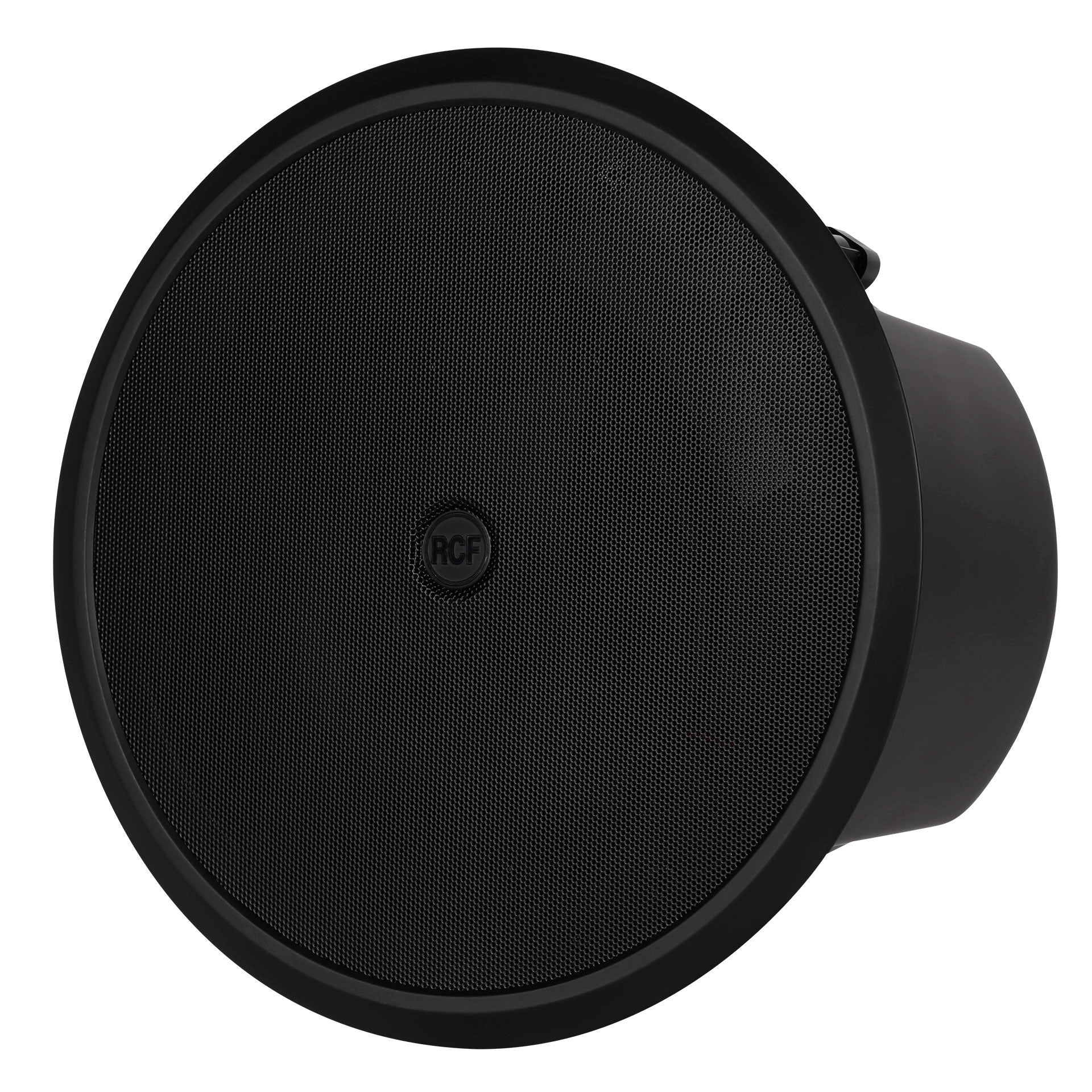

The RCF CMR 60T is a premium, multipurpose two-way in-ceiling speaker designed to deliver exceptional audio performance and structural reliability in architectural fixed installations. Engineered to blend seamlessly into any upscale commercial environment, this compact loudspeaker pair provides a remarkably smooth midrange, deep bass extension, and high-fidelity transient response across a wide 70 Hz to 20,000 Hz frequency range. High-quality transducers aligned in an intricate coaxial configuration make the RCF CMR 60T the perfect solution for critical background music, foreground music, and demanding public address sound reinforcement applications.

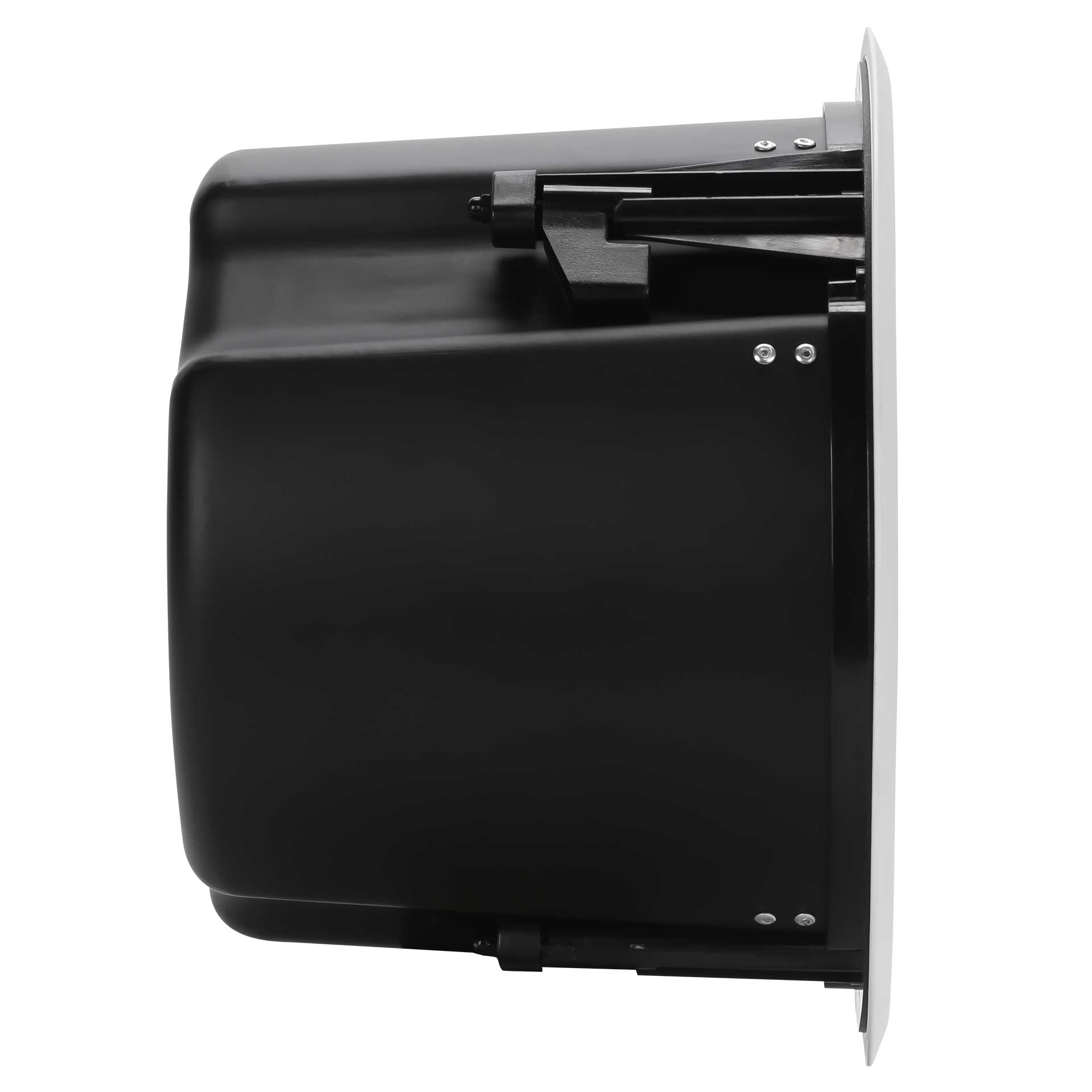

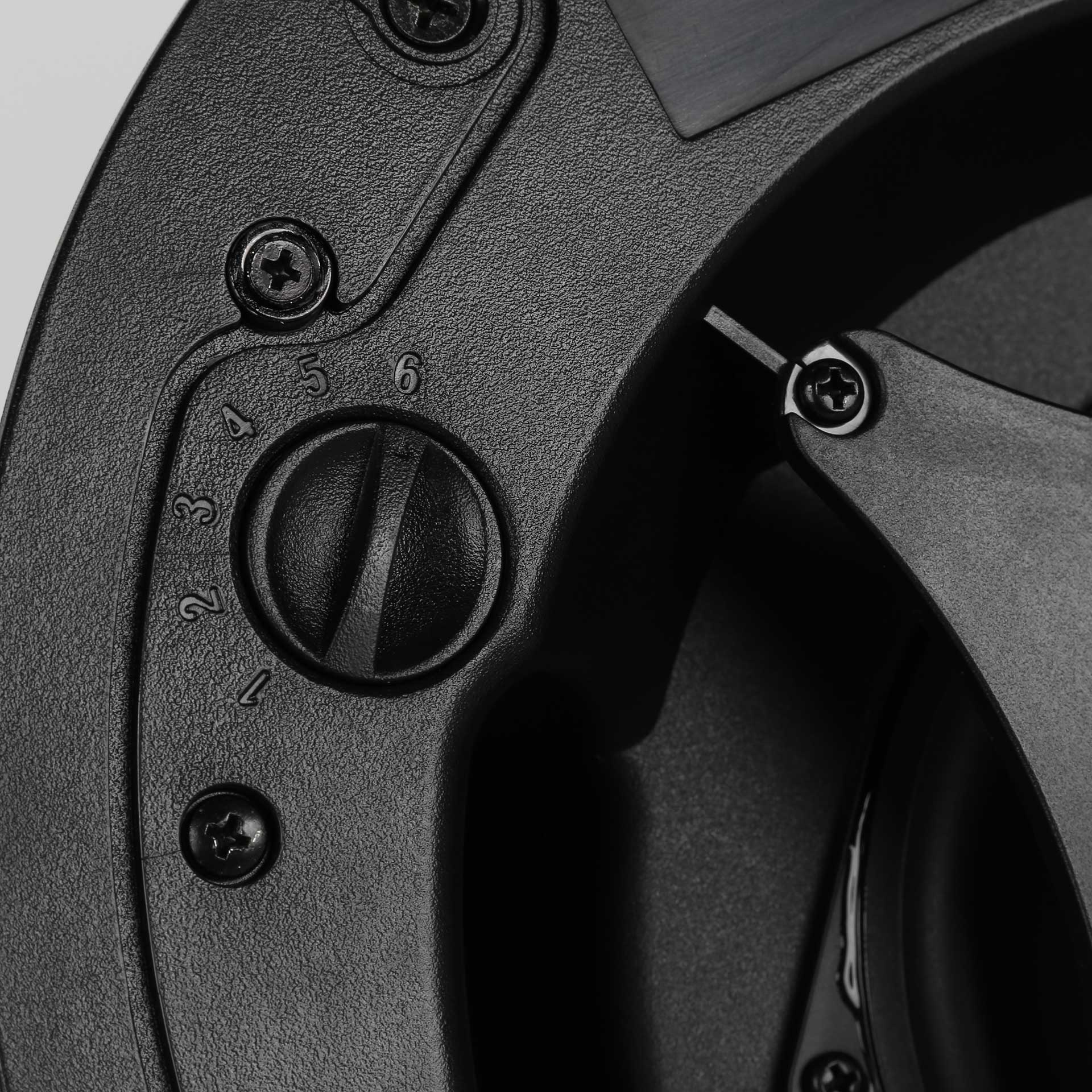

Housed in a self-extinguishing plastic ABS body equipped with a heavy-duty metal backcan, the robust RCF CMR 60T features a modern steel magnetic front grille that matches any building's clean aesthetic layout. For versatile audio distribution networks, each speaker integrates a high-quality constant voltage line transformer supporting 70V and 100V lines with an 8-ohm bypass capable of 80 Watts RMS power handling (320 Watts Peak). The front-facing magnetic grille provides immediate, tool-free access to a 5-step rotary power level selector (80W, 40W, 20W, 10W, and 5W). Boasting a wide 130° constant directivity conical coverage angle to minimize spatial dead zones, this ceiling monitor facilitates fast, efficient three-clamp overhead installation alongside clean 4-pole Euroblock connector inputs and parallel link outputs.
Specifications
| Acoustical Specifications |
| Frequency Response (-10dB) |
70 Hz - 20,000 Hz |
| Max SPL @ 1m |
114 dB |
| Coverage Angle |
130° |
| System Sensitivity |
89 dB |
| Power Section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
80 W RMS |
| Peak Power Handling |
320 W Peak |
| Protections |
Bulb Lamp |
| Crossover Frequencies |
2500 Hz |
| Recommended Amplifiers |
XPS Series, KPS Series, DMA Series |
| Transducers |
| Dome Tweeter |
1 x 1.0" Neo, 1.0" v.c. |
| Woofer |
1 x 6.5", 1.2" v.c. |
| Input/Output Section |
| Input Connectors |
Euroblock |
| Output Connectors |
Euroblock |
| Constant Voltage Transformer |
70/100 V |
| Power Selection 1 |
80 W - 125 ohm |
| Power Selection 2 |
40 W - 250 ohm |
| Power Selection 3 |
20 W - 500 ohm |
| Power Selection 4 |
10 W - 1000 ohm |
| Power Selection 5 |
5 W - 2000 ohm |
| Standard Compliance |
| Safety Agency |
CE Compliant, UL 1480A |
| Physical Specifications |
| Cabinet/Case Material |
ABS |
| Hardware |

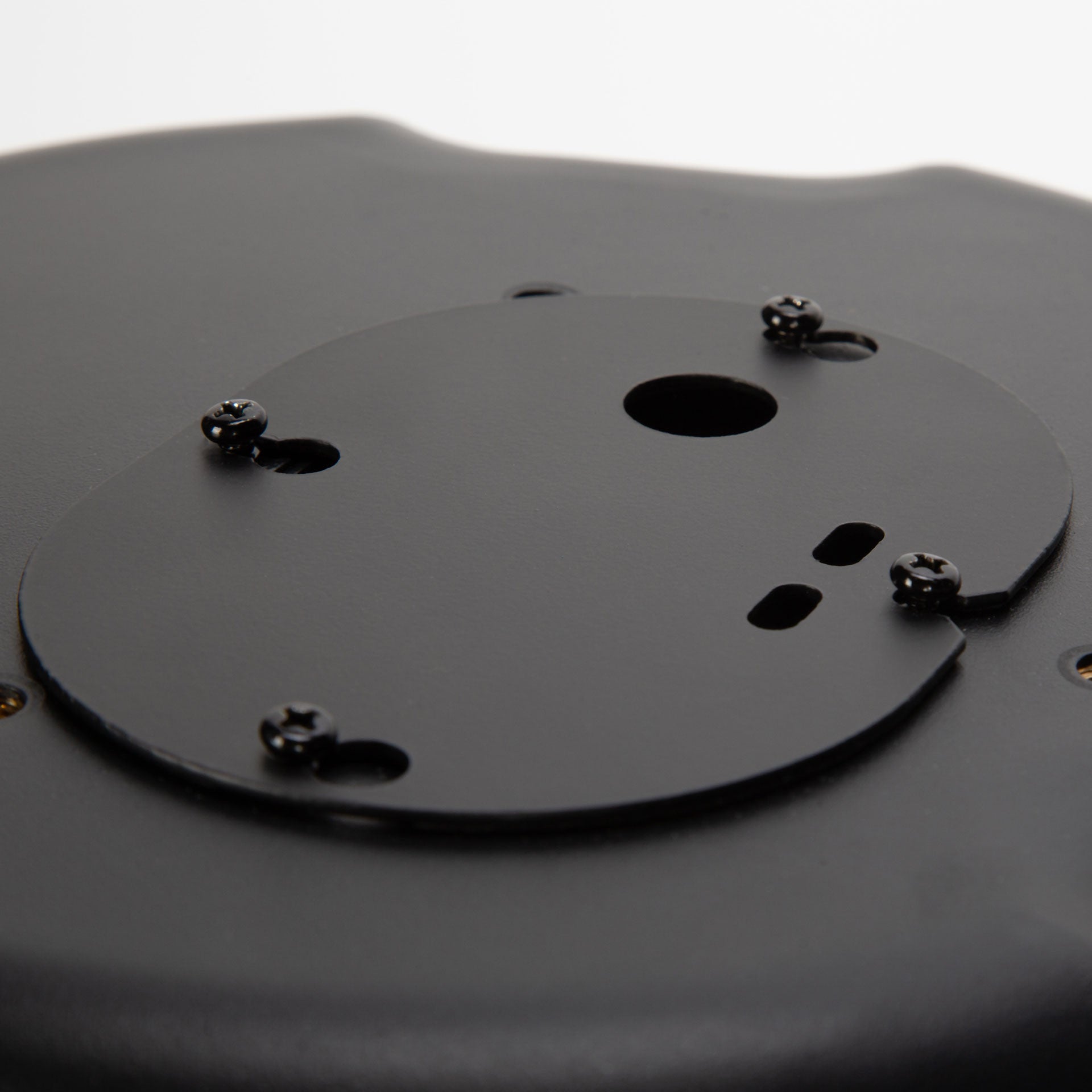

Steel Backcan |
| Grille |
Steel |
| Color |
White - RAL 9003 |
| Size / Weight |
| Depth |
202 mm / 7.95 inches |
| Recessed Depth |
193 mm / 7.6 inches |
| Diameter |
300 mm / 11.81 inches |
| Cut Out Diameter |
260 mm / 10.24 inches |
| Weight |
4.5 kg / 9.92 lbs |
| Shipping Information |
| Package Height |
280 mm / 11.02 inches |
| Package Width |
362 mm / 14.25 inches |
| Package Depth |
362 mm / 14.25 inches |
| Package Weight |
6 kg / 13.23 lbs |
