| Acoustical Specifications |
| Frequency Response |
45 Hz - 20000 Hz |
| Max SPL @ 1m |
133 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
60° |

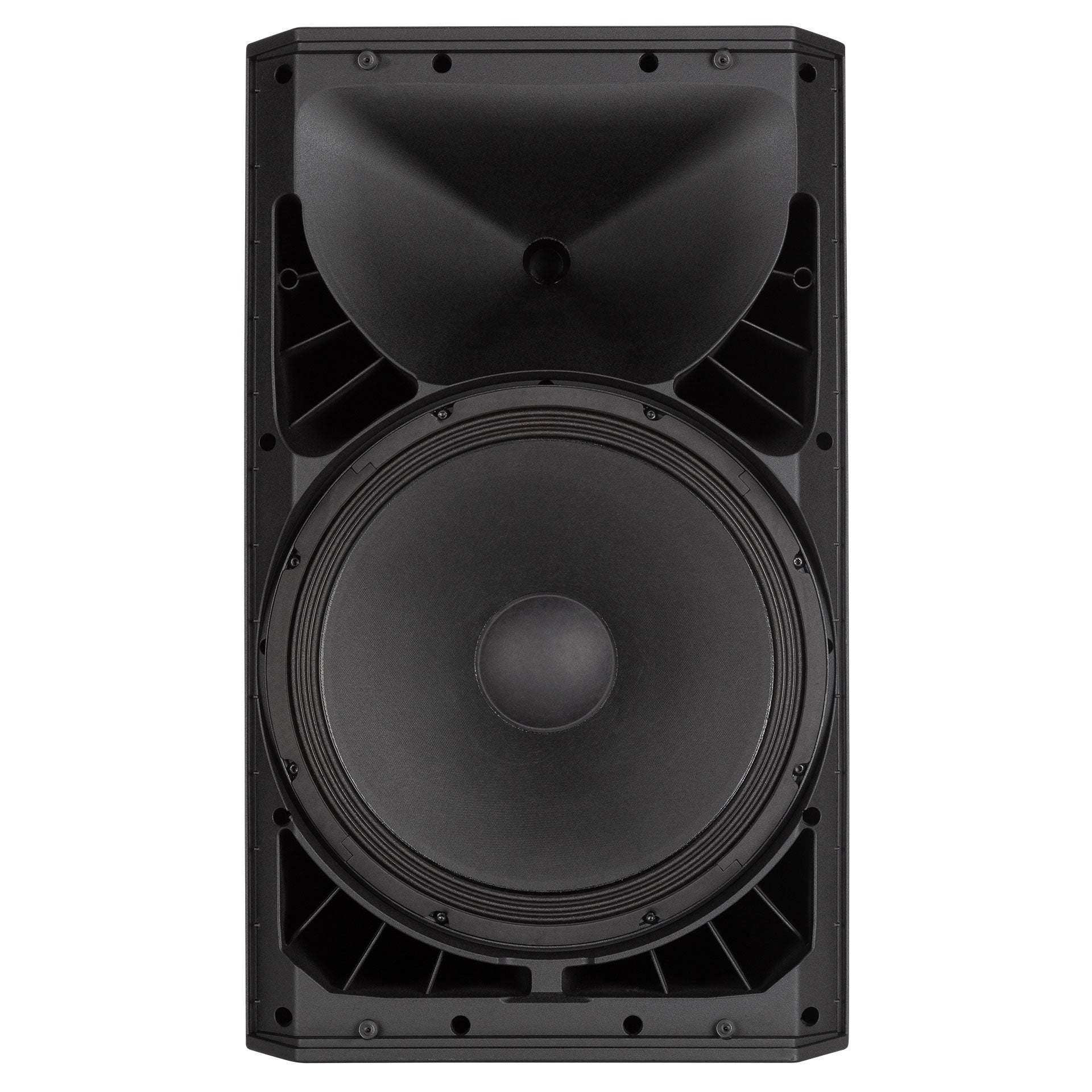

| Transducers |
Compression Driver 1 x 1.4'' neo, 3.0'' v.c |
| Woofer |
1 x 15'', 3.0'' v.c |

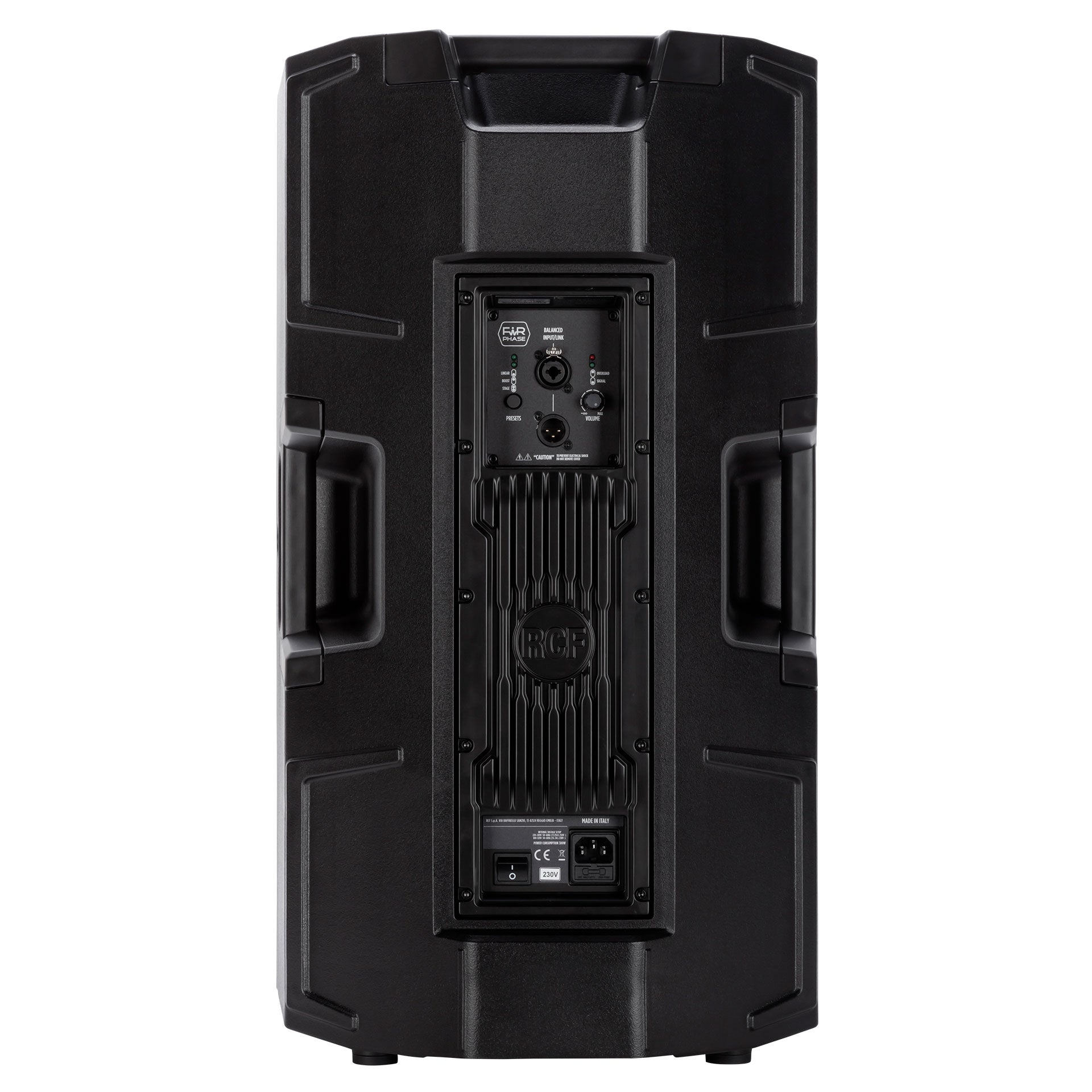

| Input/Output Section |
| Input Signal |
Bal/Unbal |
| Input Connectors |
XLR, Jack |
| Output Connectors |
XLR |
| Input Sensitivity |
-2 dBu/+4 dBu |
| Processor Section |
| Crossover Frequencies |
800 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |

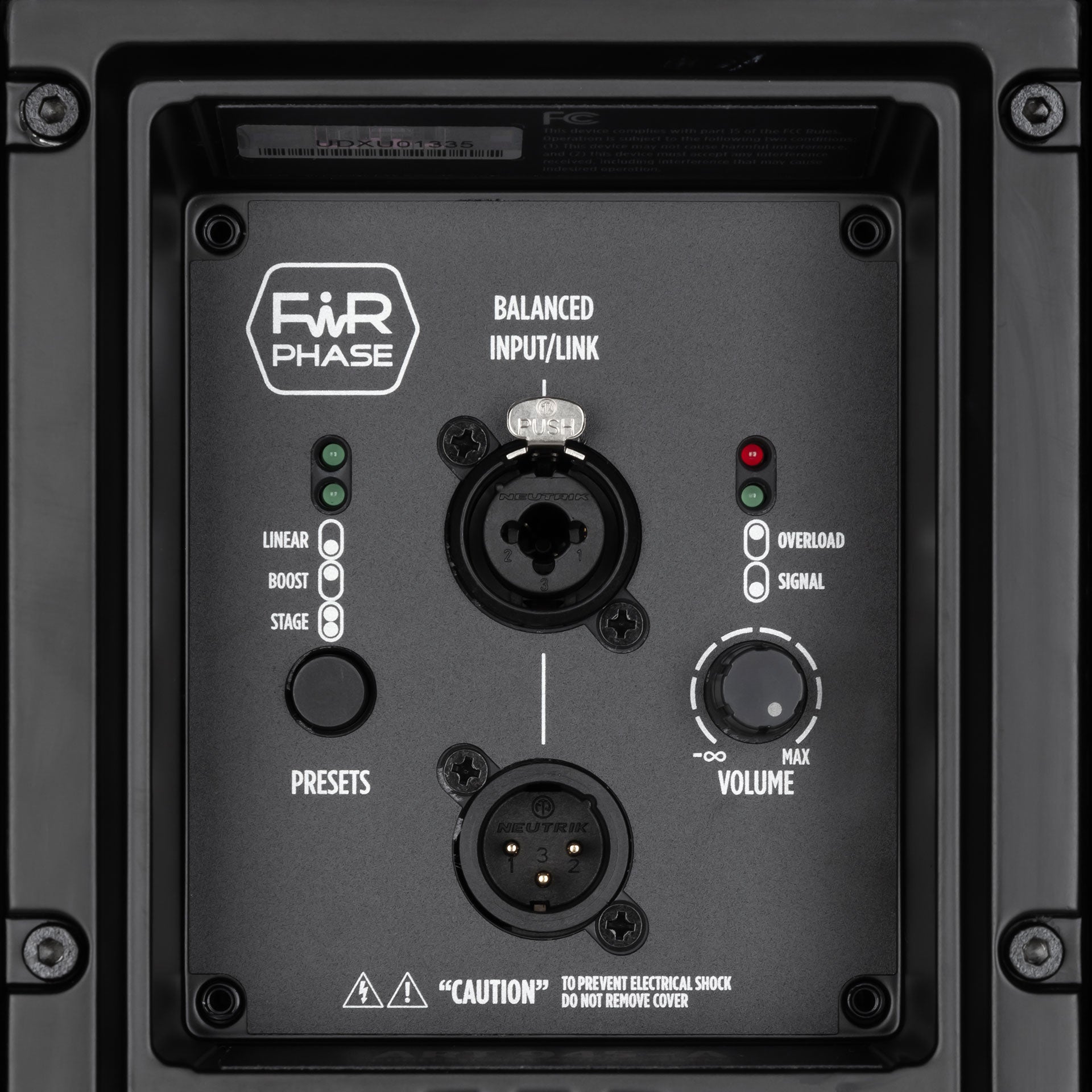

| Controls |
Linear, Boost Stage, Volume |
| Power Section |
| Total Power |
2100 W Peak |
| High Frequencies |
700 W Peak |
| Low Frequencies |
1400 W Peak |
| Cooling |
Convection |
| Connections |
VDE |
| Standard Compliance |
| Safety Agency |
CE Compliant |
| Physical Specifications |
| Cabinet/Case Material |
PP Composite |
| Hardware |
1 x M10 Top, 1 x M10 each side |

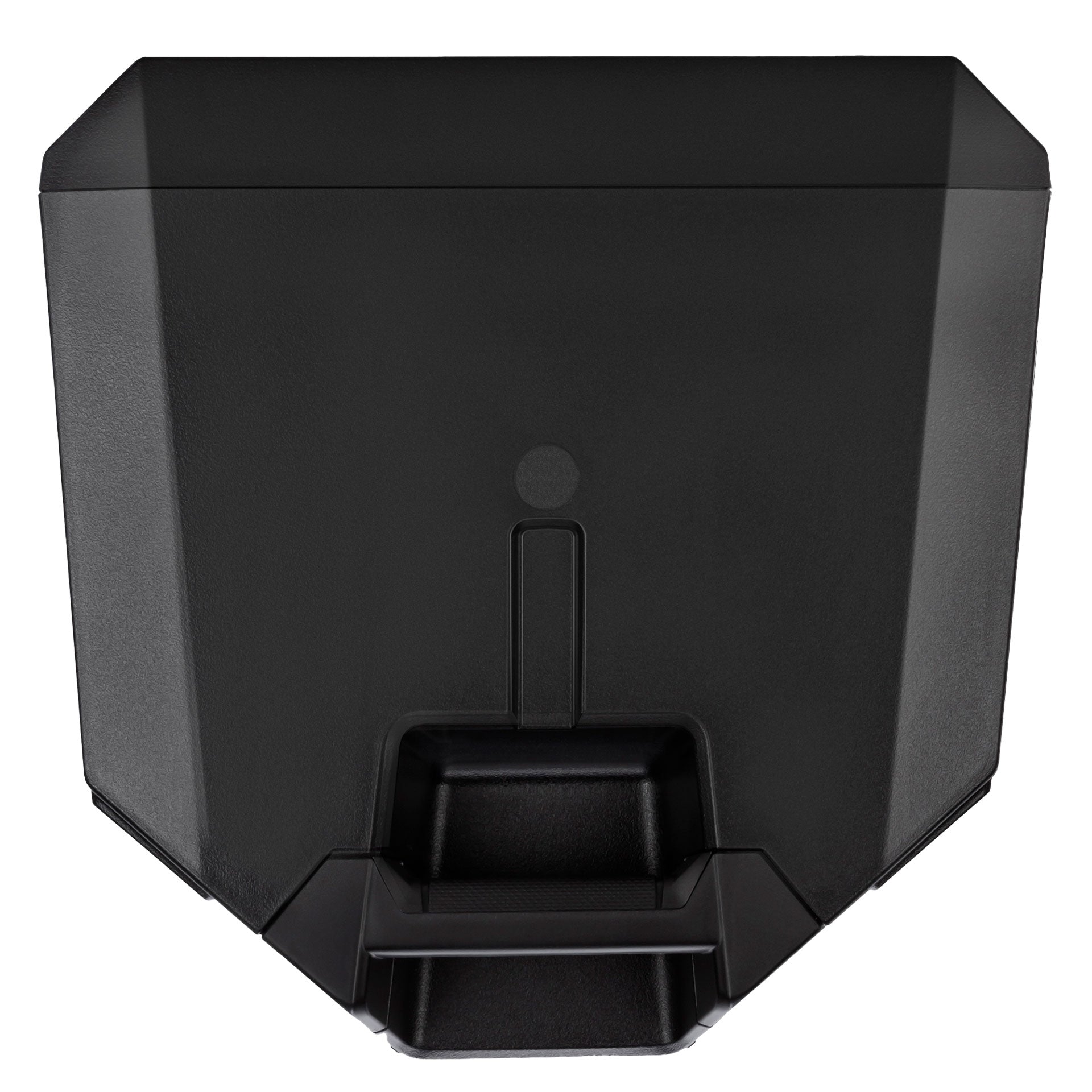

| Handles |
1 Top, 1 each side |

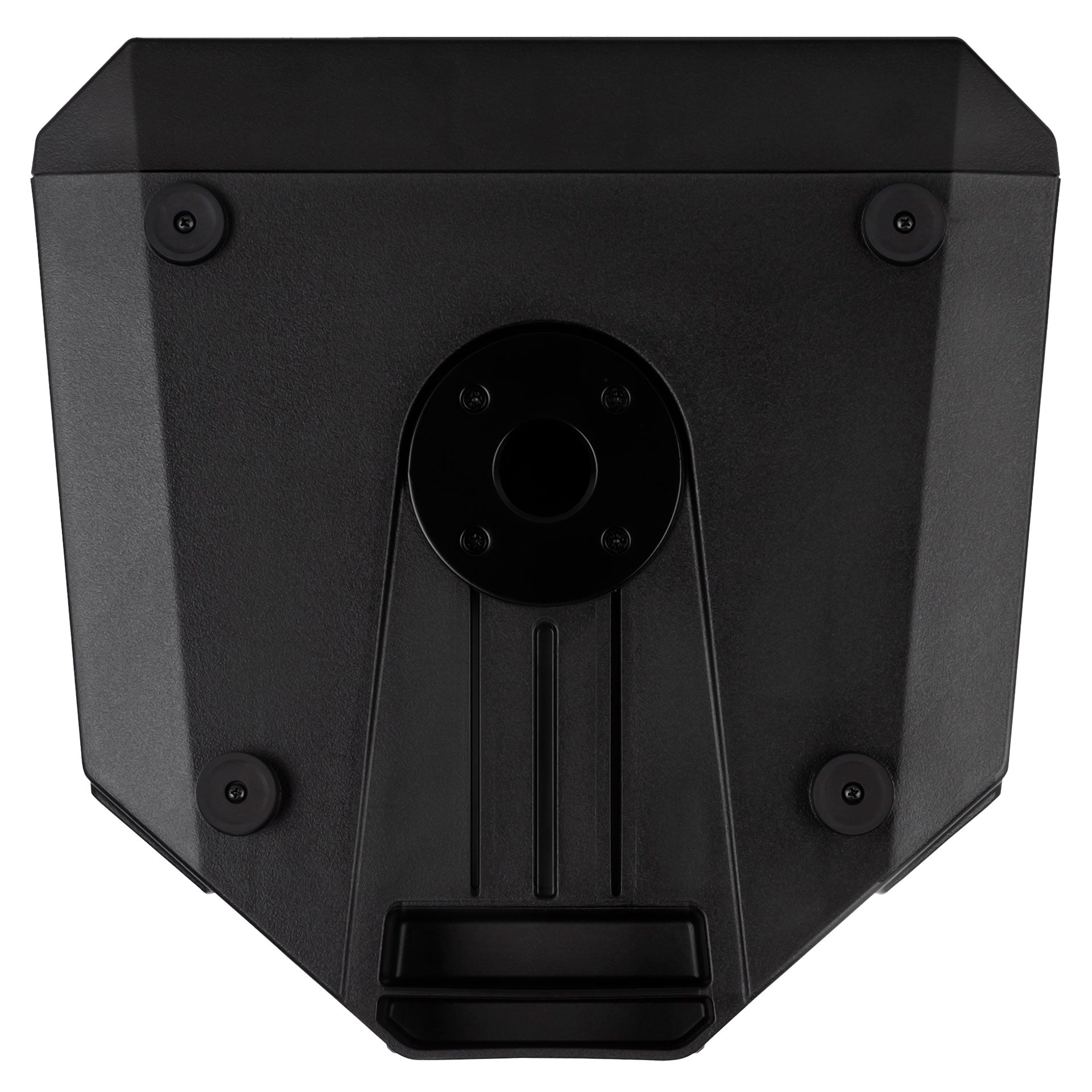

| Pole Mount/Cap |
35 mm insert |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
| Height |
717 mm / 28.23 inches |
| Width |
415 mm / 16.34 inches |
| Depth |
410 mm / 16.14 inches |
| Weight |
24.6 kg / 54.23 lbs |
| Shipping Information |
| Package Height |
760 mm / 29.92 inches |
| Package Width |
475 mm / 18.7 inches |
| Package Depth |
470 mm / 18.5 inches |
| Package Weight |
28.4 kg / 62.61 lbs |
