| Acoustical Specifications |
| Frequency Response |
50 Hz - 20000 Hz |
| Max SPL @ 1m |
132 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
60° |

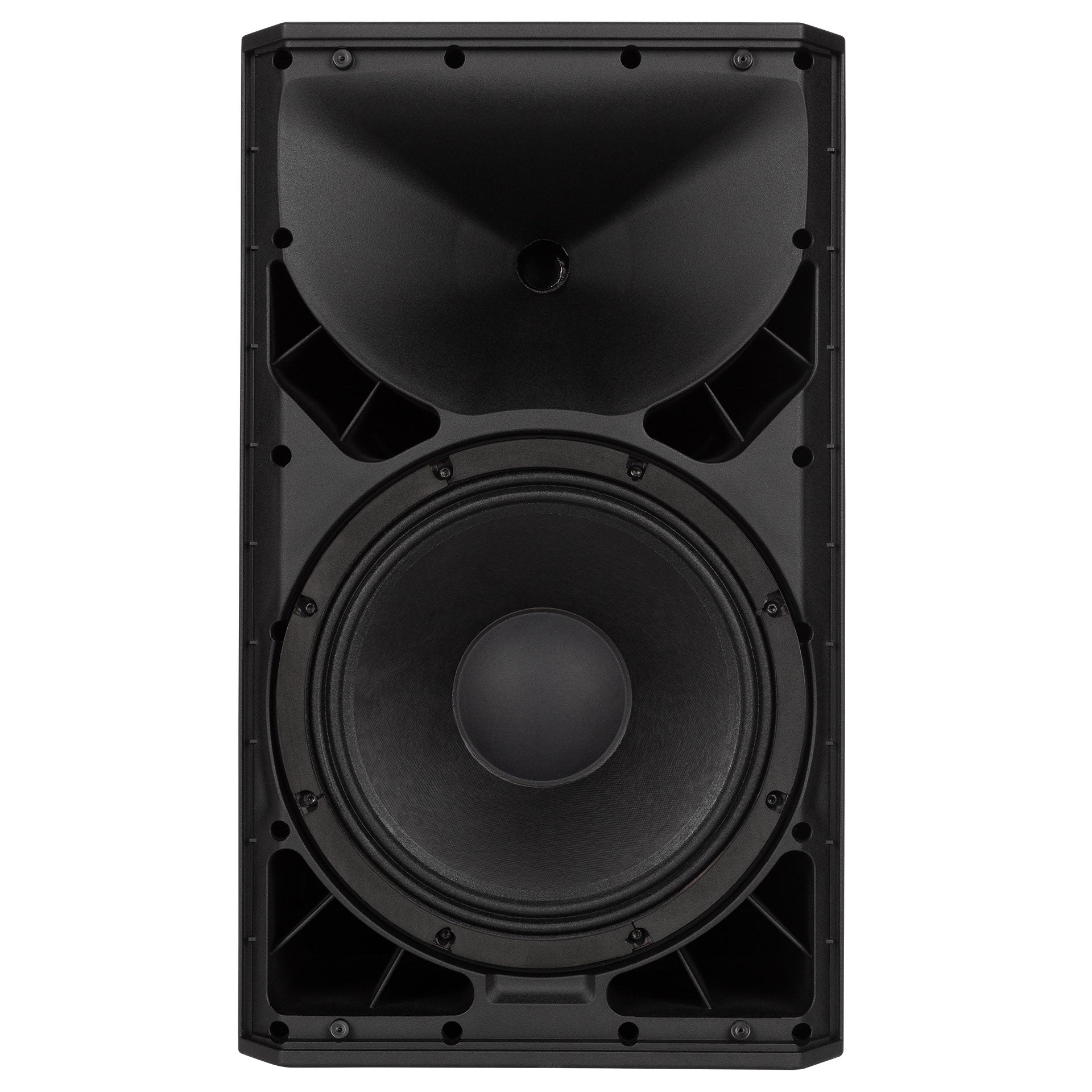

| Transducers |
Compression Driver 1 x 1.4'' neo, 3.0'' v.c |
| Woofer |
1 x 12'', 2.5'' v.c |
| Input/Output Section |
| Input Signal |
Bal/Unbal |

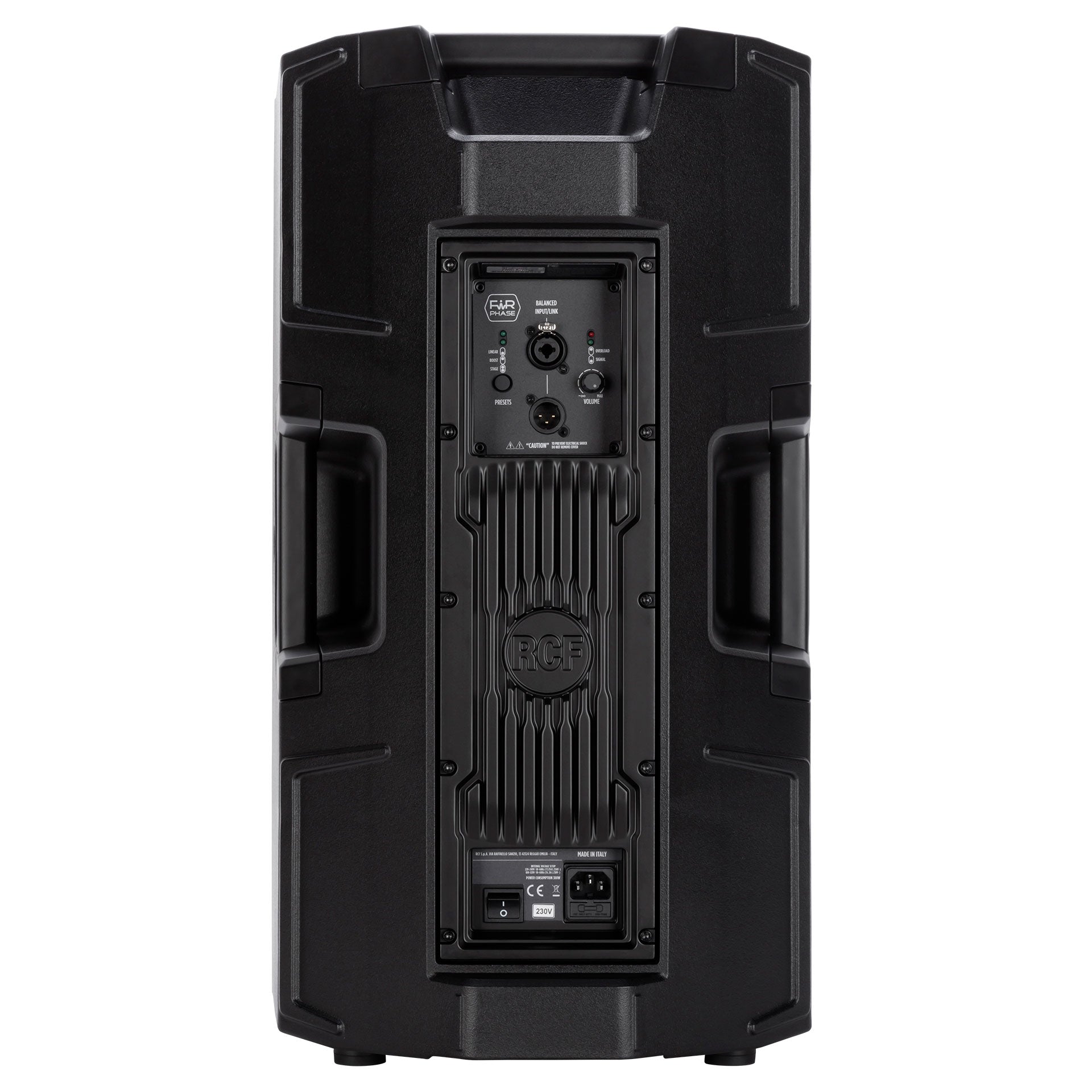

| Input Connectors |
XLR, Jack |
| Output Connectors |
XLR |
| Input Sensitivity |
-2 dBu/+4 dBu |
| Processor Section |
| Crossover Frequencies |
700 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |
| Controls |
Linear, Boost, Stage, Volume |
| Power Section |
| Total Power |
2100 W Peak |
| High Frequencies |
700 W Peak |
| Low Frequencies |
1400 W Peak |
| Cooling |
Convection |
| Connections |
VDE |
| Standard Compliance |
| Safety Agency |
CE Compliant |
| Physical Specifications |
| Cabinet/Case Material |
PP Composite |
| Hardware |
1 x M10 Top, 1 x M10 each side |
| Handles |
1 Top, 1 each side |

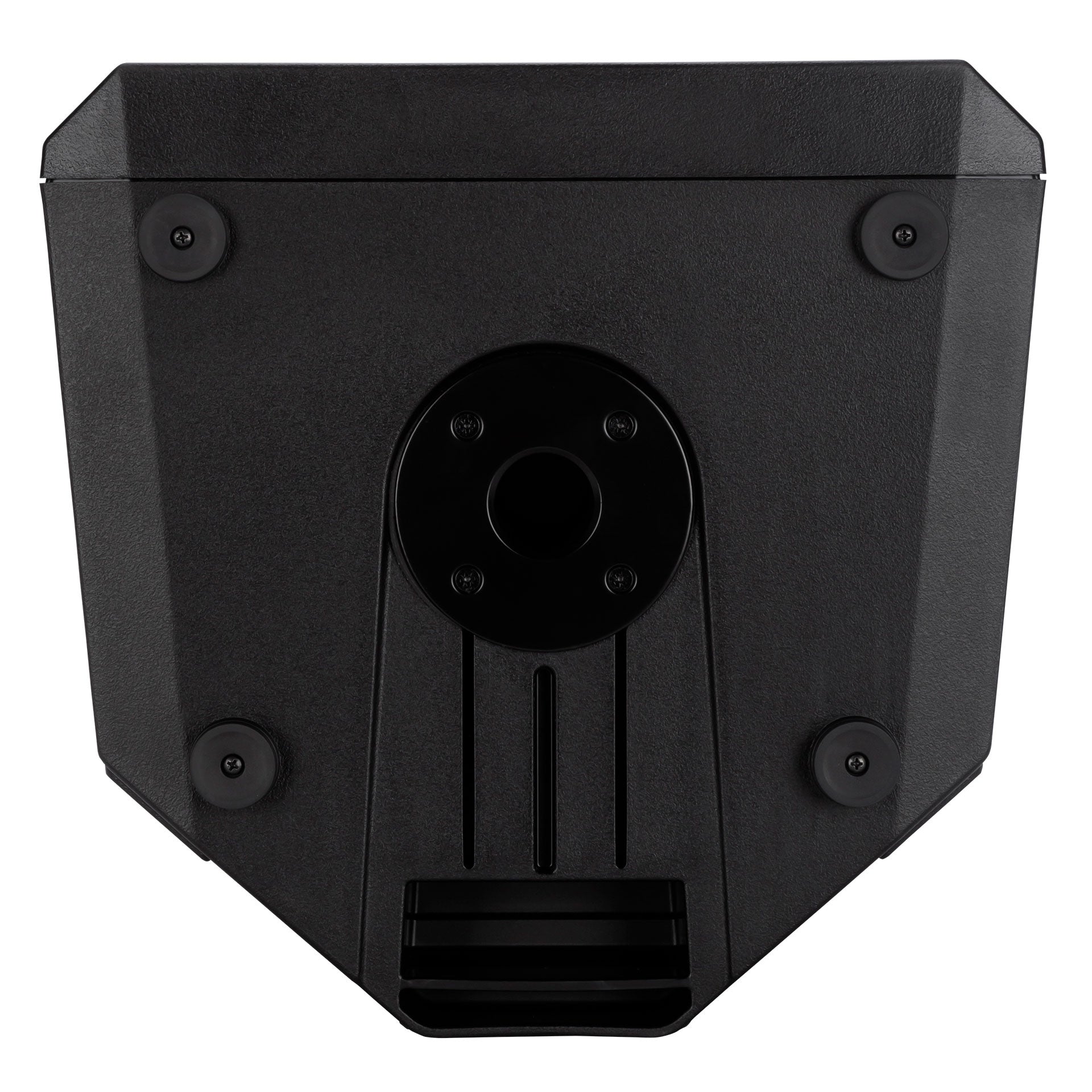

| Pole Mount/Cap |
35 mm insert |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
| Height |
642 mm / 25.28 inches |
| Width |
370 mm / 14.57 inches |
| Depth |
363 mm / 14.29 inches |
| Weight |
19.2 kg / 42.33 lbs |
| Shipping Information |
| Package Height |
685 mm / 26.97 inches |
| Package Width |
430 mm / 16.93 inches |
| Package Depth |
423 mm / 16.65 inches |
| Package Weight |
22.2 kg / 48.94 lbs |
