Features
- Built-in 6-channel Digital Mixer
- Advanced User Interface w/ touch panel and remote control
- 1.75" Compression Driver and 15" Woofer
- Up to 131 dB Sound Pressure Level
- 2100W Class-D Bi-Amplification
- Dual combo preamp with 48V Power and Mini-jack stereo line input
- Bluetooth® stereo audio input, with dual speaker pairing option
- True Resistive Waveguide, FiRPHASE, and Bass Motion Control
The RCF ART 915-AX is a top-notch solution for any audio application, featuring 48V microphone preamps, line inputs, and an internal 6-channel digital mixer with advanced DSP. Built for exceptional performance, this RCF ART 915-AX speaker offers Bluetooth stereo audio input with a dual speaker pairing option to make setups completely seamless.

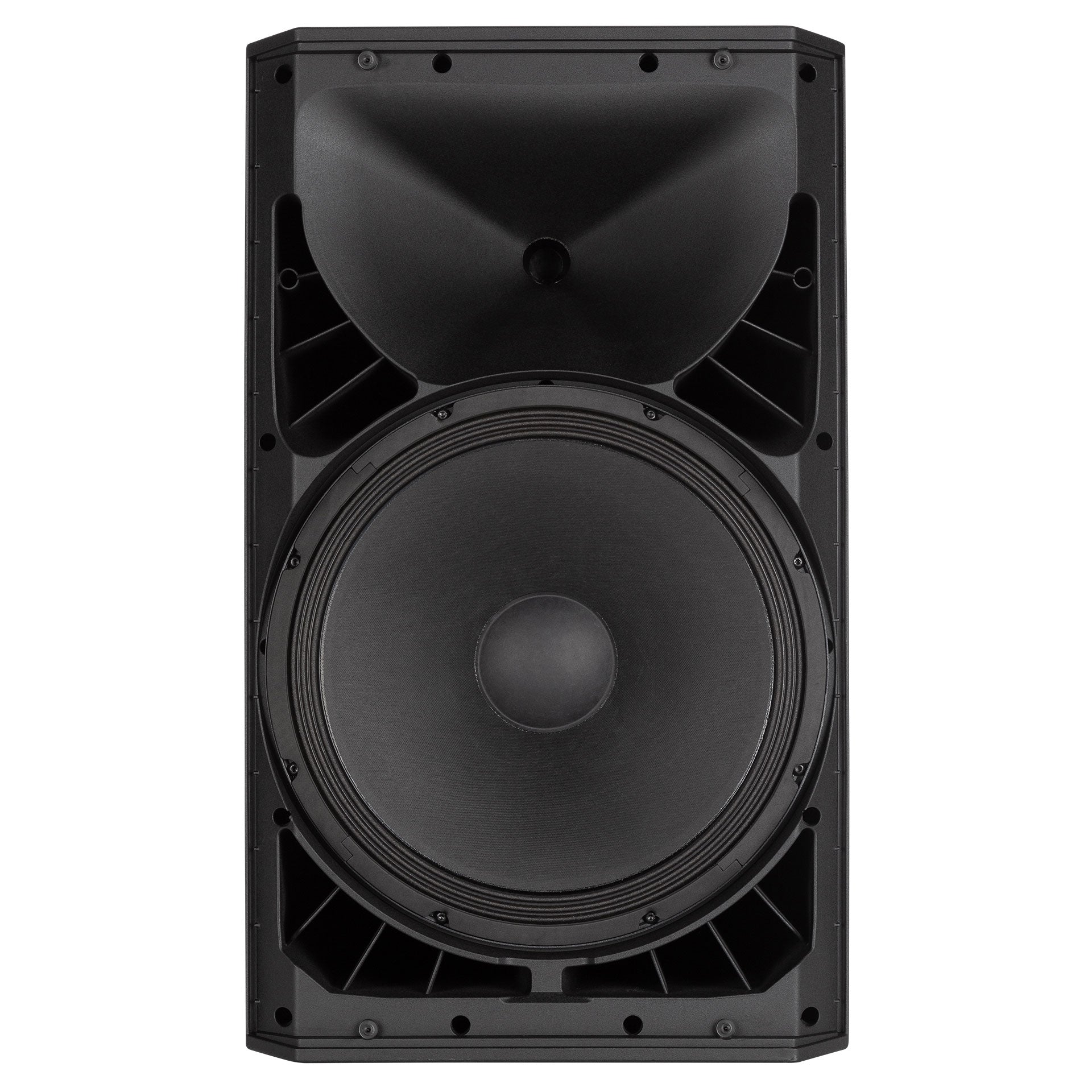

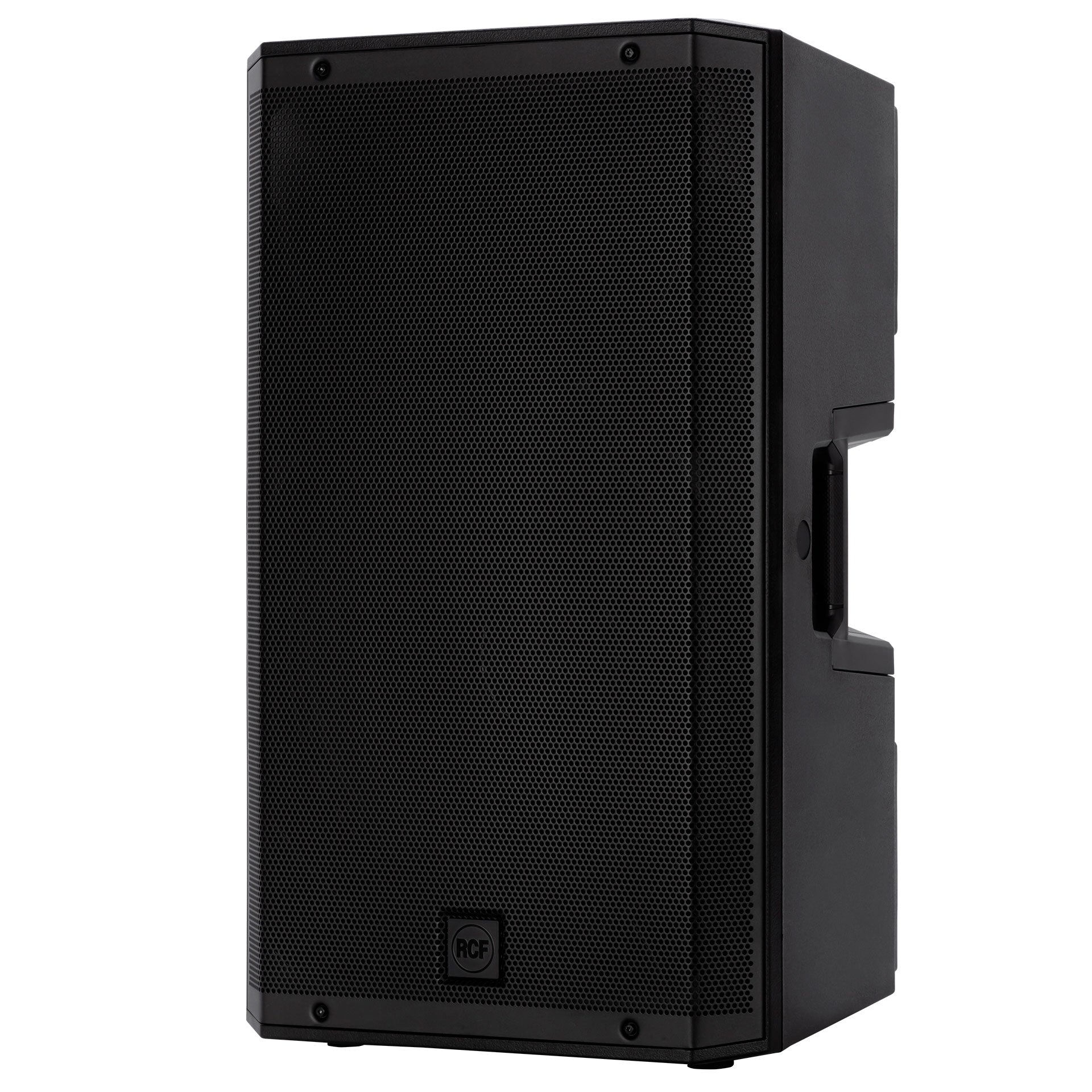

The combination of a 1.75" compression driver, 15" woofer, and a two-channel 2100W amplifier allows the RCF ART 915-AX to produce a constant directivity coverage of 100° x 60° for the listening area with up to 131 dB SPL of distortion-free sound. The sleek cabinet of the RCF ART 915-AX uses a special polypropylene composite material with an M-brace internal reinforcement, making this premium RCF ART 915-AX unit easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.
Specifications
| Acoustical Specifications |
| Frequency Response |
45 Hz - 20,000 Hz |
| Max SPL @ 1m |
131 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
60° |
| Transducers |
| Compression Driver |
1 x 1.0", 1.75" v.c. |
| Woofer |
15", 2.5" v.c. |
| Input/Output Section |
| Input Signal |
Bal/Unbal |
| Input Connectors |
Combo XLR/Jack |
| Output Connectors |
XLR |
| Processor Section |
| Crossover Frequencies |
1600 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |

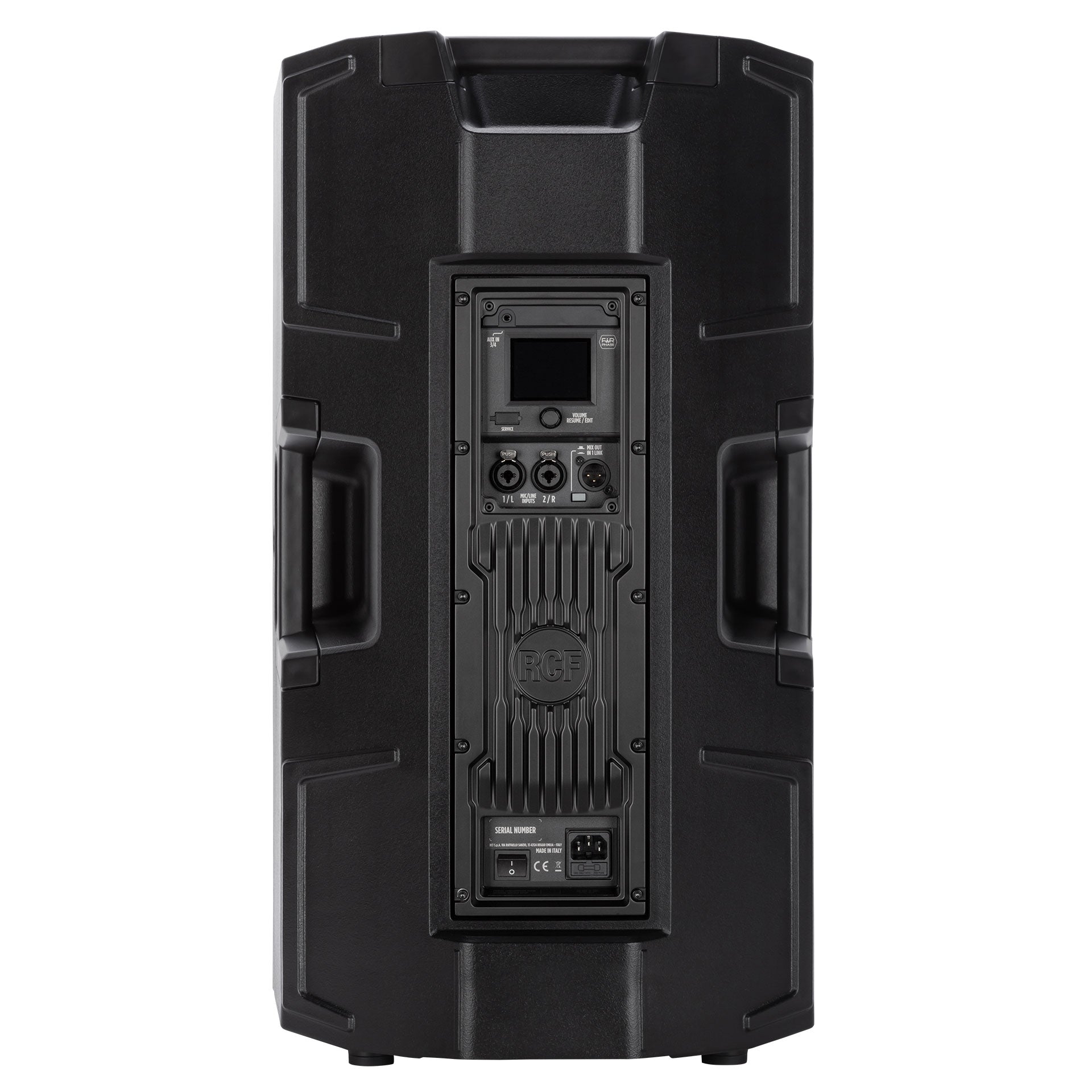

| Controls |
Color Touch Panel, Data Entry/Volume Encoder, Dedicated App for iOS and Android |
| Power Section |
| Total Power |
2100 W Peak |
| High Frequencies |
700 W Peak |
| Low Frequencies |
1400 W Peak |
| Cooling |
Convection |
| Connections |
VDE |
| Electronic Specifications |
| Frequency Response |
20 Hz - 20,000 Hz |
| THD+N, 20dB Gain, 0dBu Out |
0.005% A-Weighted |
| Processing |
| Processing Channels |
6 |
| Signal Processing |
24 Bit |
| A/D-D/A Conversion |
32 Bit @ 48.0 kHz |
| Dynamic Range |
110 |
| Inputs |
| Mic |
2 |
| Remote Controlled Storable Gain |
Yes |
| Gain Range |
0 dB - 42 dB |
| Input Noise Level |
-114 dBu A-Weighted |
| Mic Inputs Impedance |
6 kohm |
| Low Cut |
20 Hz - 400 Hz |
| Phantom Power +48V |
Yes |
| Mono Line |
2 |
| Gain Selection (Mono Line) |
0 dB - 22 dB |
| Line Input Impedance |
21 kohm |
| A/D Dynamic Range |
114 dB |
| Stereo Line |
1 |
| Gain Selection (Stereo Line) |
0 dB - 10 dB |
| Stereo Line Input Impedance |
13 kohm |
| Outputs |
| Main MIX |
1 |
| Outputs Specifications |
| Main Out Impedance |
150 ohm |
| Main Out Level |
22 dBu |
| D/A Dynamic Range |
114 dB |
| Compressors |
| RCF Compressors |
Compressors on MIC/LINE CH1 & CH2 Inputs |
| EQ |
| Input Channels EQ |
2 Shelving 1 |
| Description |
3 Band EQ: High and Low Band Shelving, MID Band Peak on IN. 5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN Output. |
| Internal Effects |
| Send Effects |
1 |
| Mastering Processors |
| Main OUT Type |
MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS Presets, STEREO OUTPUT, CH1 LINK OUT |
| Standard Compliance |
| Safety Agency |
CE Compliant |
| Physical Specifications |
| Cabinet/Case Material |
PP Composite |
| Hardware |
1 x M10 Top, 1 x M10 Each Side |

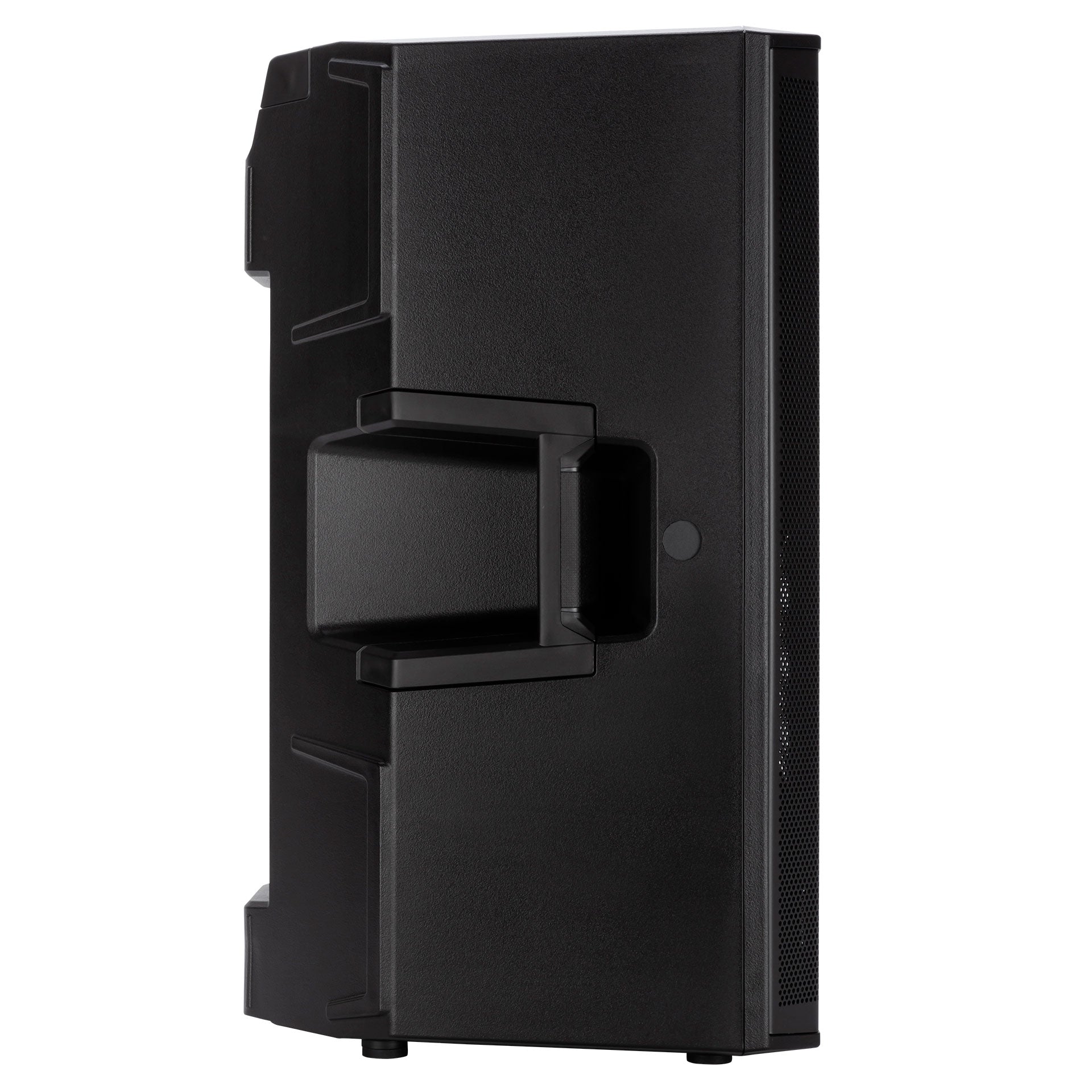

| Handles |
1 Top, 1 Each Side |

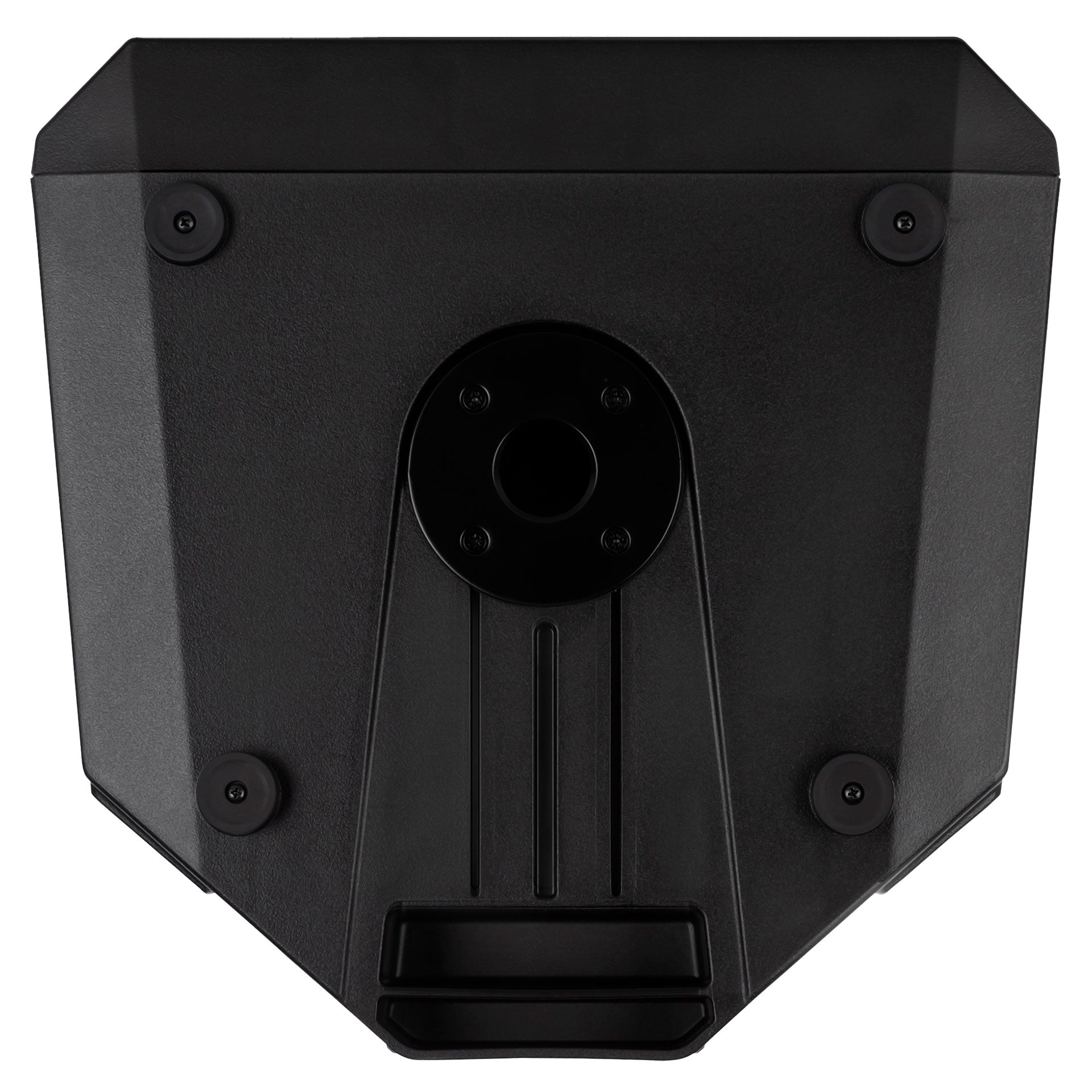

| Pole Mount/Cap |
35 mm Insert |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
| Height |
717 mm / 28.23 inches |
| Width |
415 mm / 16.34 inches |
| Depth |
410 mm / 16.14 inches |
| Weight |
20.4 kg / 44.97 lbs |
| Shipping Information |
| Package Height |
760 mm / 29.92 inches |
| Package Width |
470 mm / 18.5 inches |
| Package Depth |
475 mm / 18.7 inches |
| Package Weight |
24.5 kg / 54.01 lbs |
