| Frequency Response |
45 Hz – 20,000 Hz |
| Max SPL @ 1m |
131 dB |
| Horizontal Coverage Angle |
100° |
| Vertical Coverage Angle |
60° |

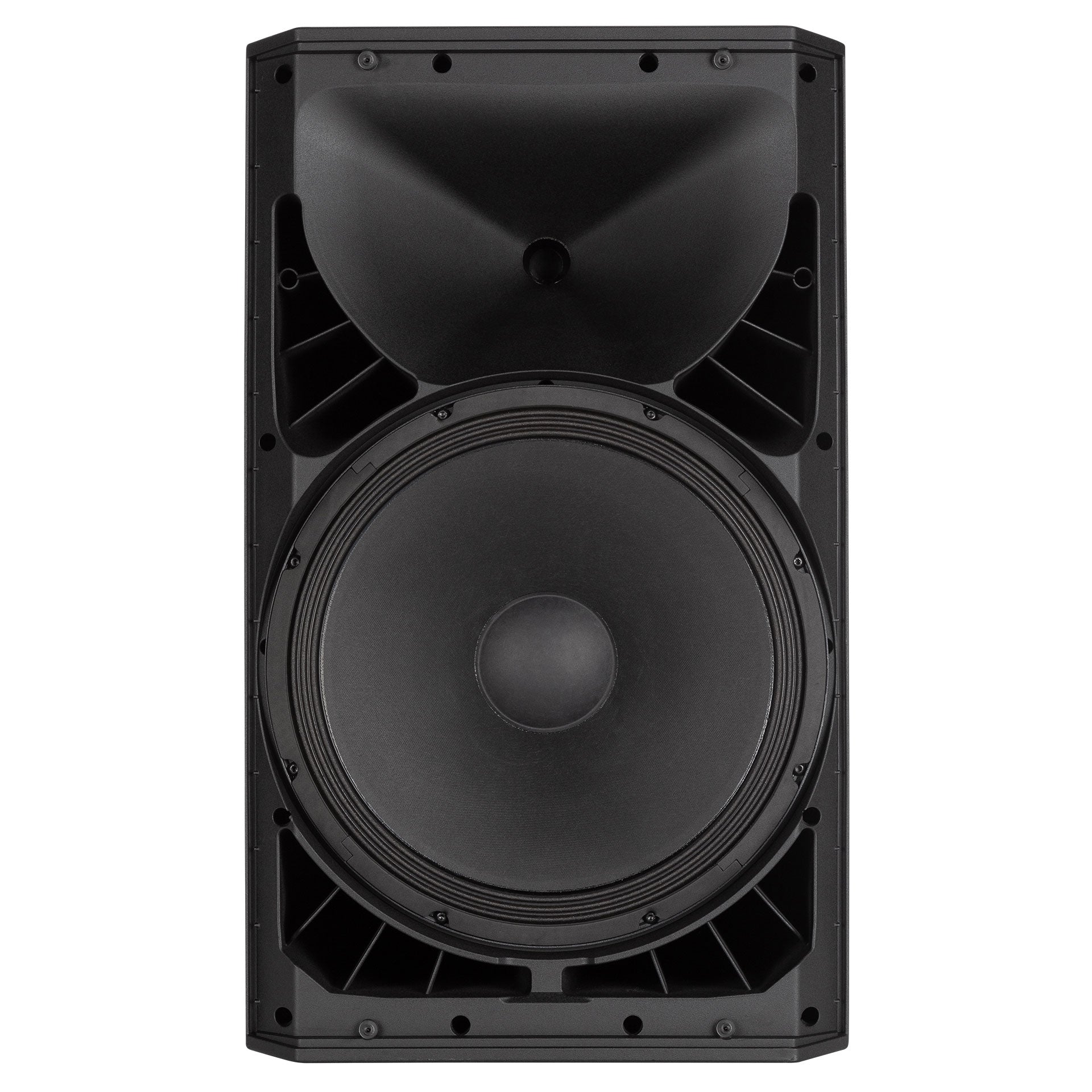

| Compression Driver |
1 x 1.0", 1.75" voice coil |
| Woofer |
1 x 15", 2.5" voice coil |
| Input Signal |
Balanced / unbalanced |

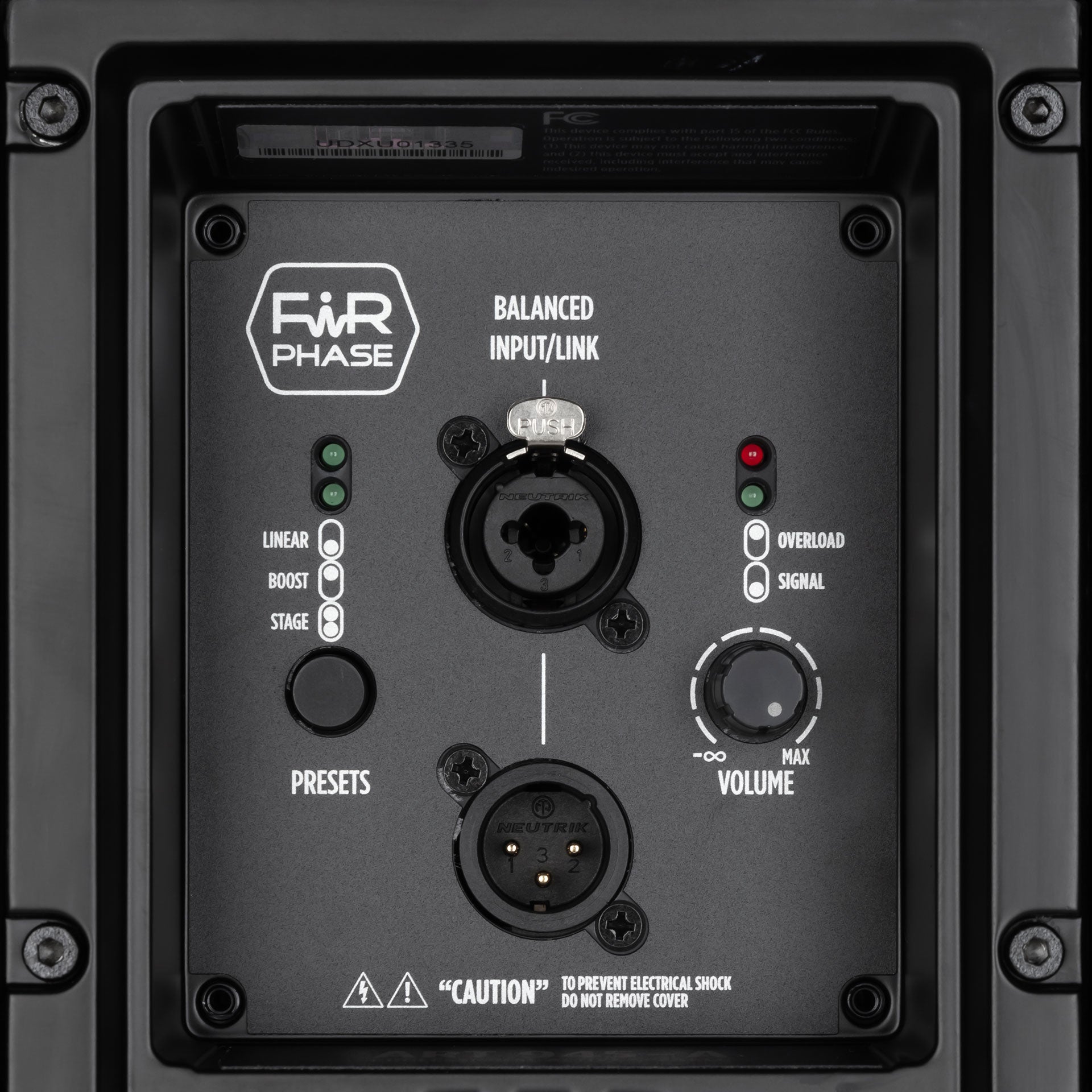

| Input Connectors |
XLR, jack |
| Output Connectors |
XLR |
| Input Sensitivity |
-2 dBu / +4 dBu |
| Crossover Frequencies |
1800 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft limiter |

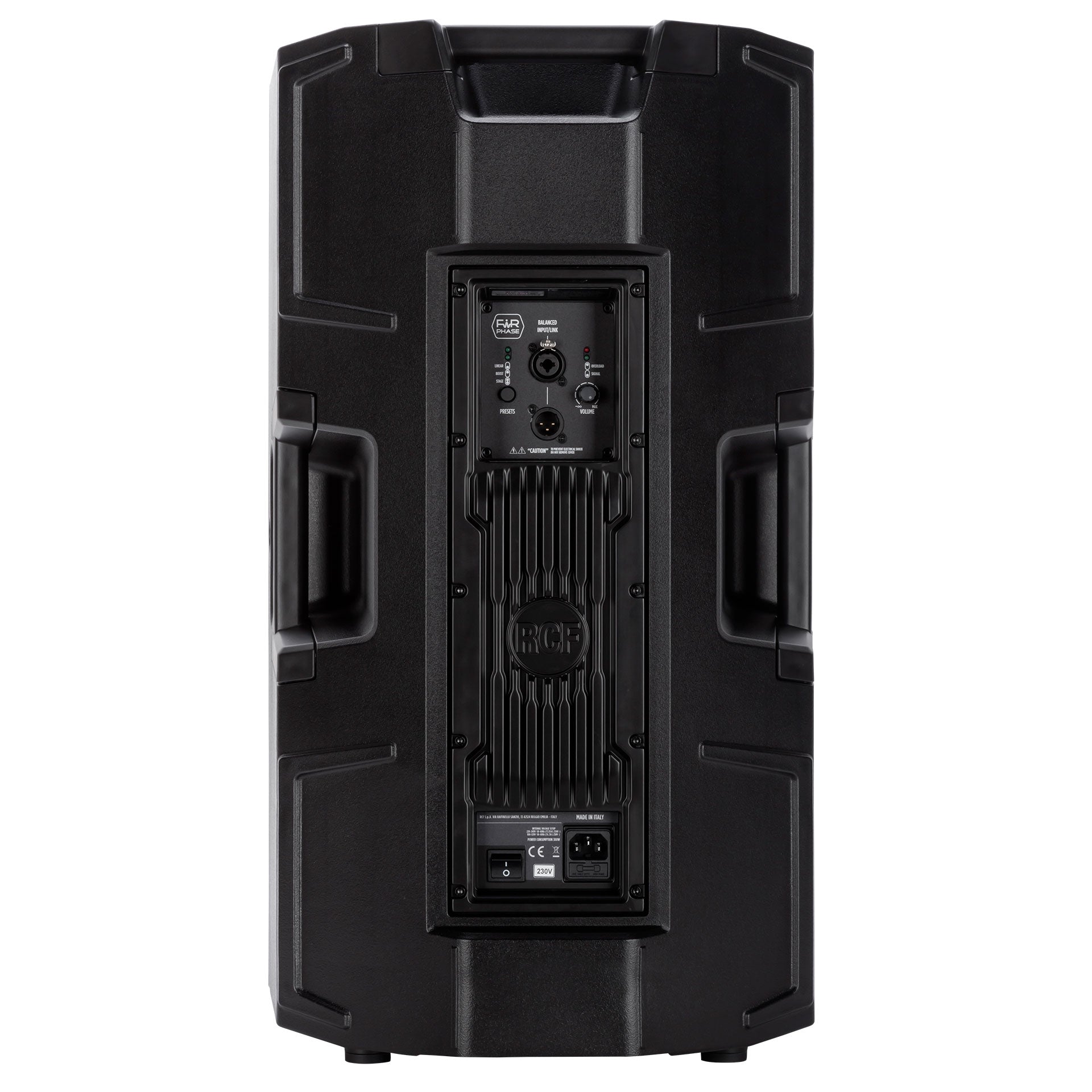

| Controls |
Linear, boost, stage, volume |
| Total Power |
2100 W peak |
| High Frequencies |
700 W peak |
| Low Frequencies |
1400 W peak |
| Cooling |
Convection |
| Connections |
VDE |
| Safety Agency |
CE compliant |
| Cabinet / Case Material |
PP composite |

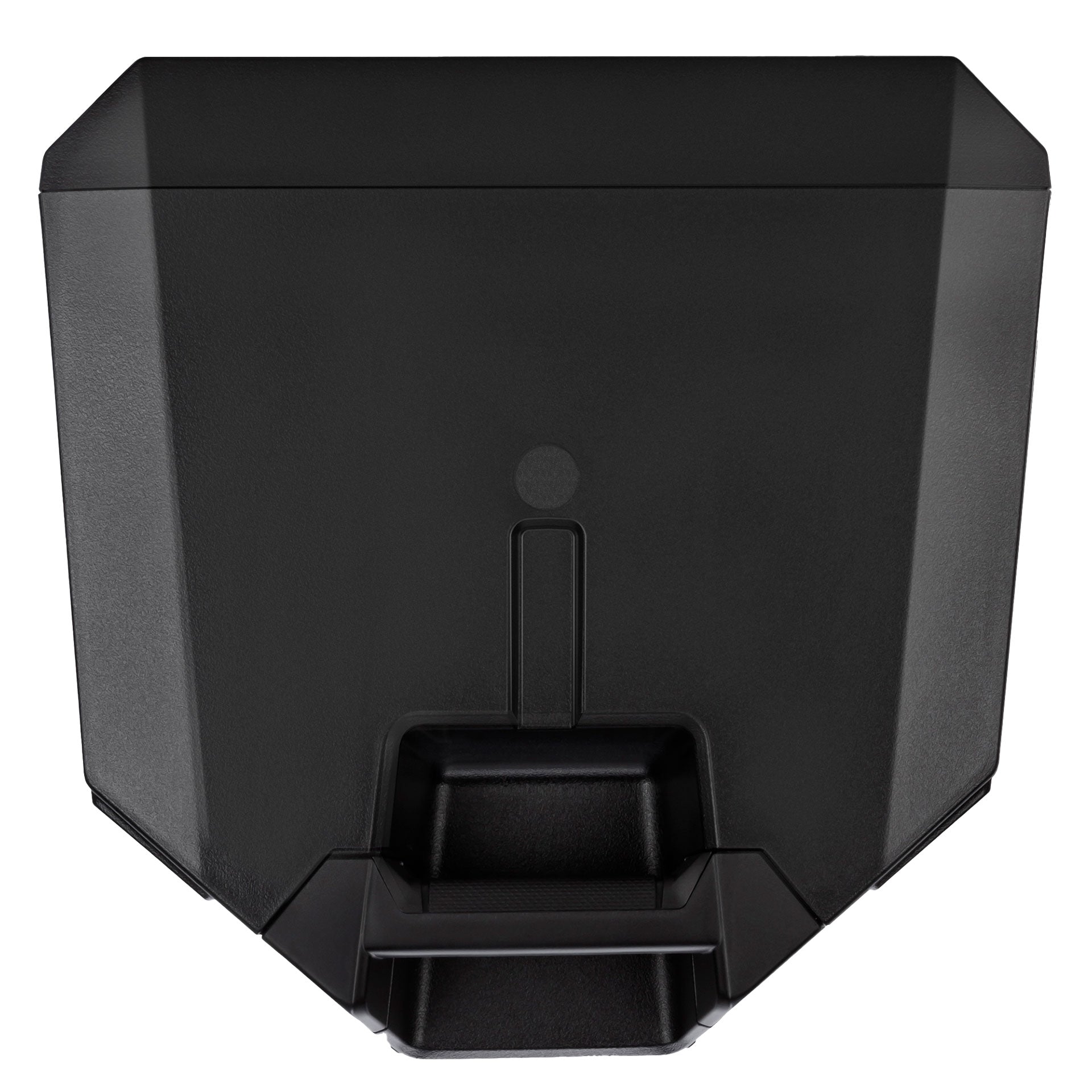

| Hardware |
1 x M10 top, 1 x M10 each side |

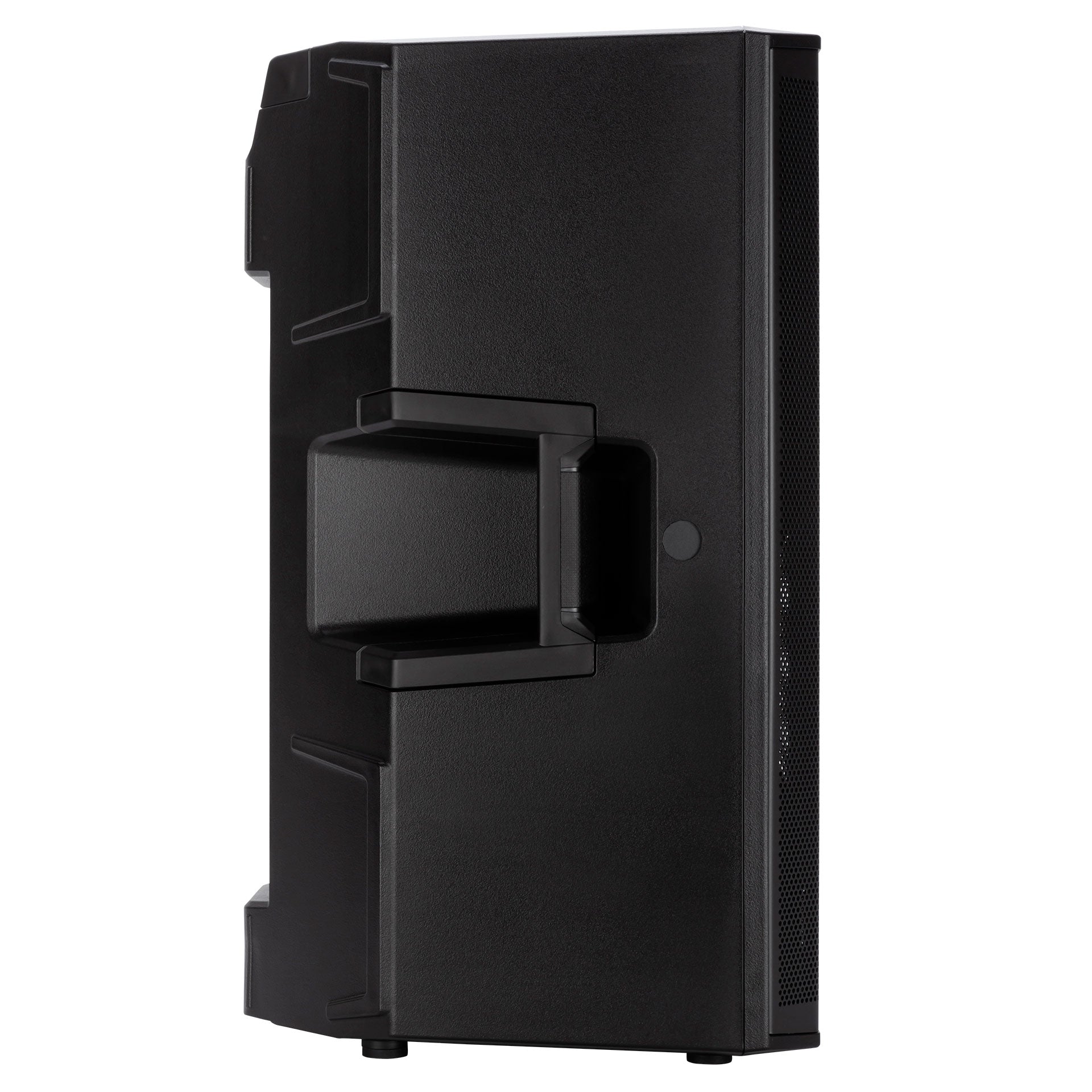

| Handles |
1 top, 1 each side |

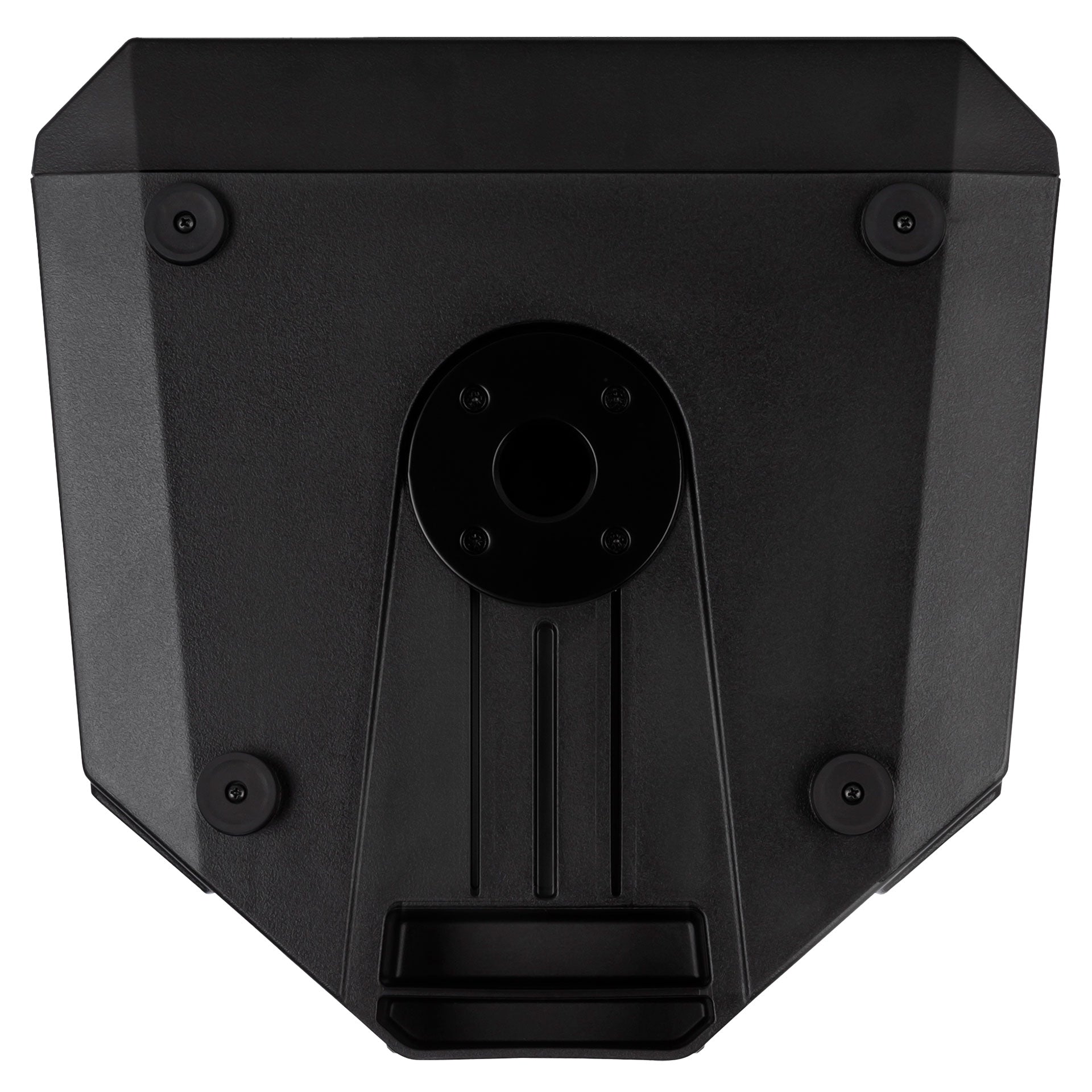

| Pole Mount / Cap |
35 mm insert |

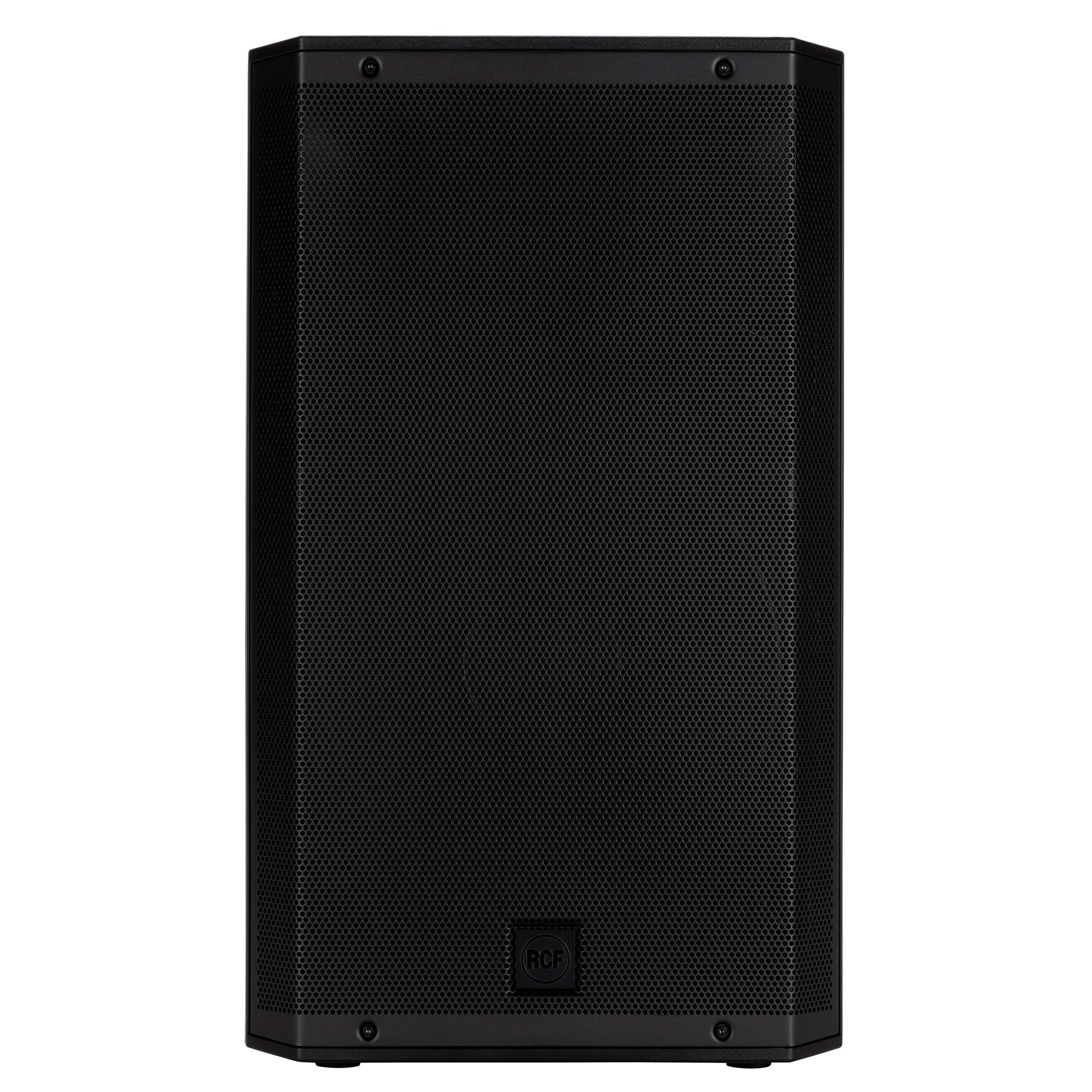

| Grille |
Steel |
| Color |
Black |
| Dimensions (H x W x D) |
717 x 415 x 410 mm (28.23 x 16.34 x 16.14 in) |
| Weight |
22.4 kg (49.38 lb) |
| Package Dimensions (H x W x D) |
760 x 475 x 470 mm (29.92 x 18.7 x 18.5 in) |
| Package Weight |
26.2 kg (57.76 lb) |
