Features
- 133 dB Max SPL
- 1400 WATT 2-way peak power
- 90° x 60°, Wide dispersion constant directivity horn
- Innovative DSP Processing
- 4" Compression Neodymium Driver with Titanium diaphragm
- 15" Neodymium Woofer
- FiRPHASE Technology
- XBOOST Low Frequencies Enhancer

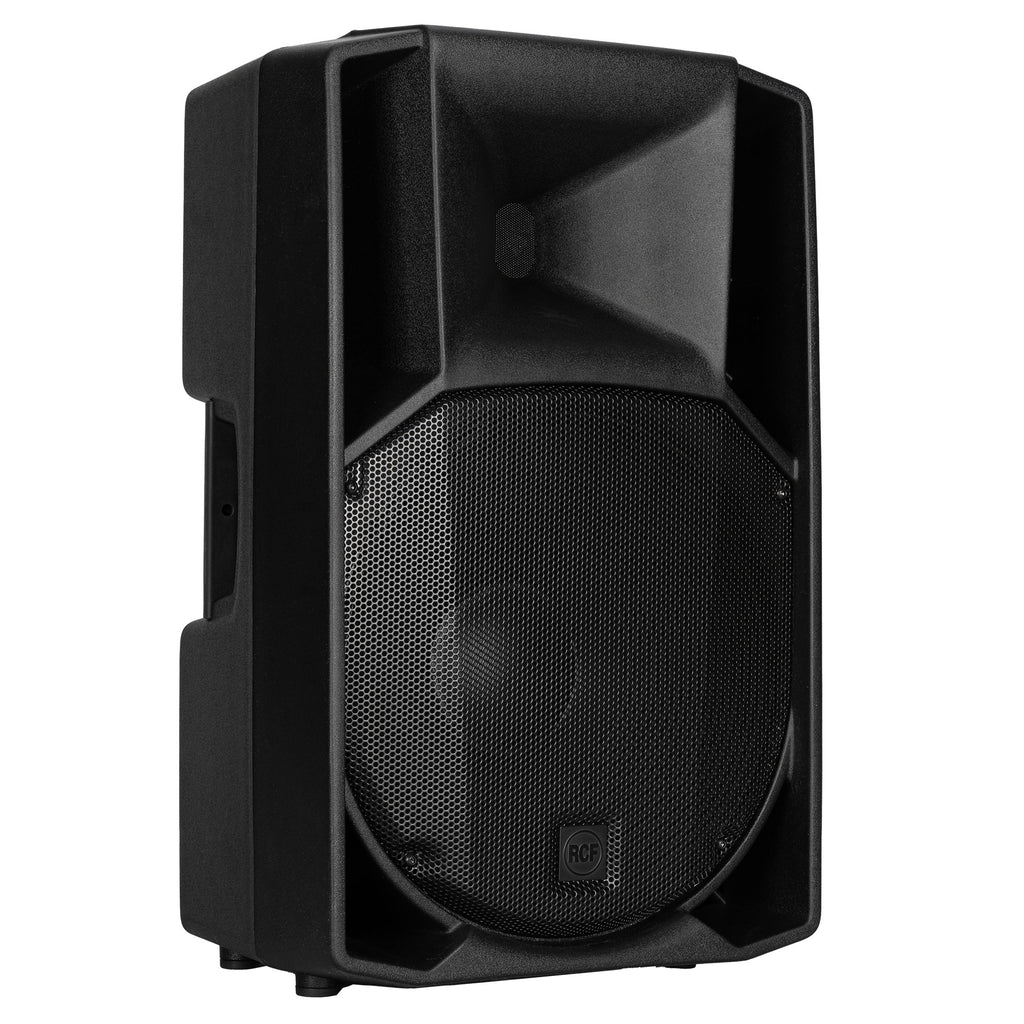

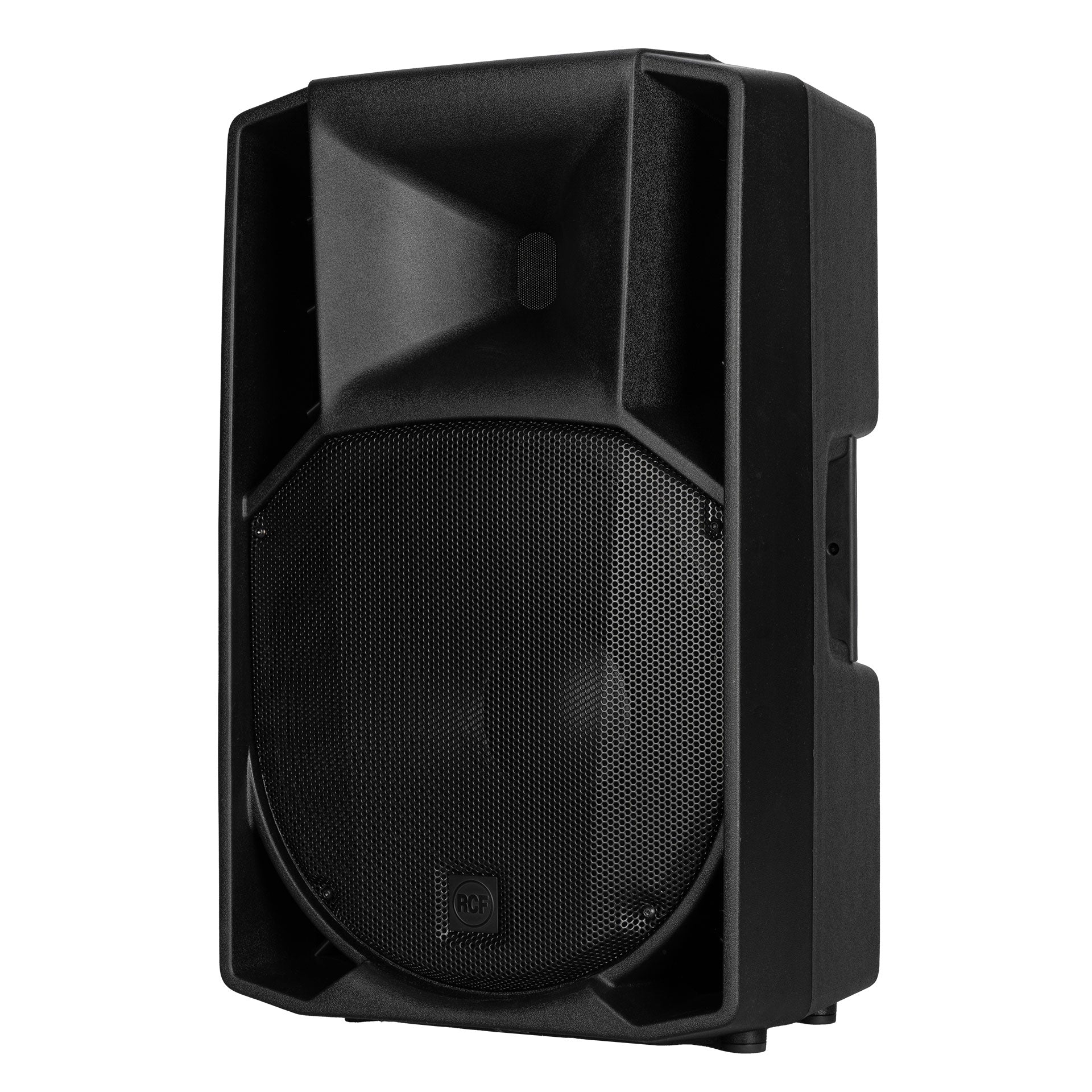

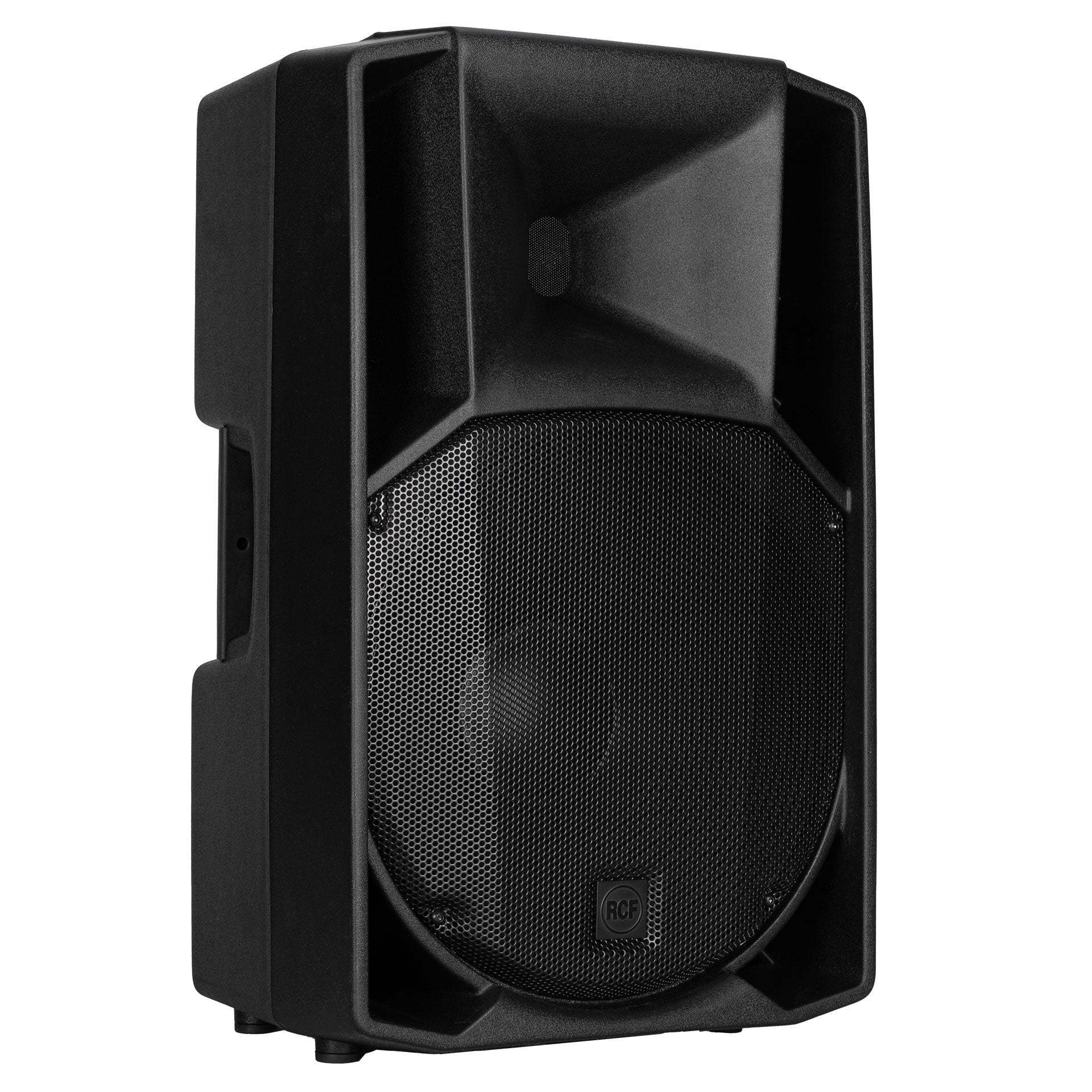

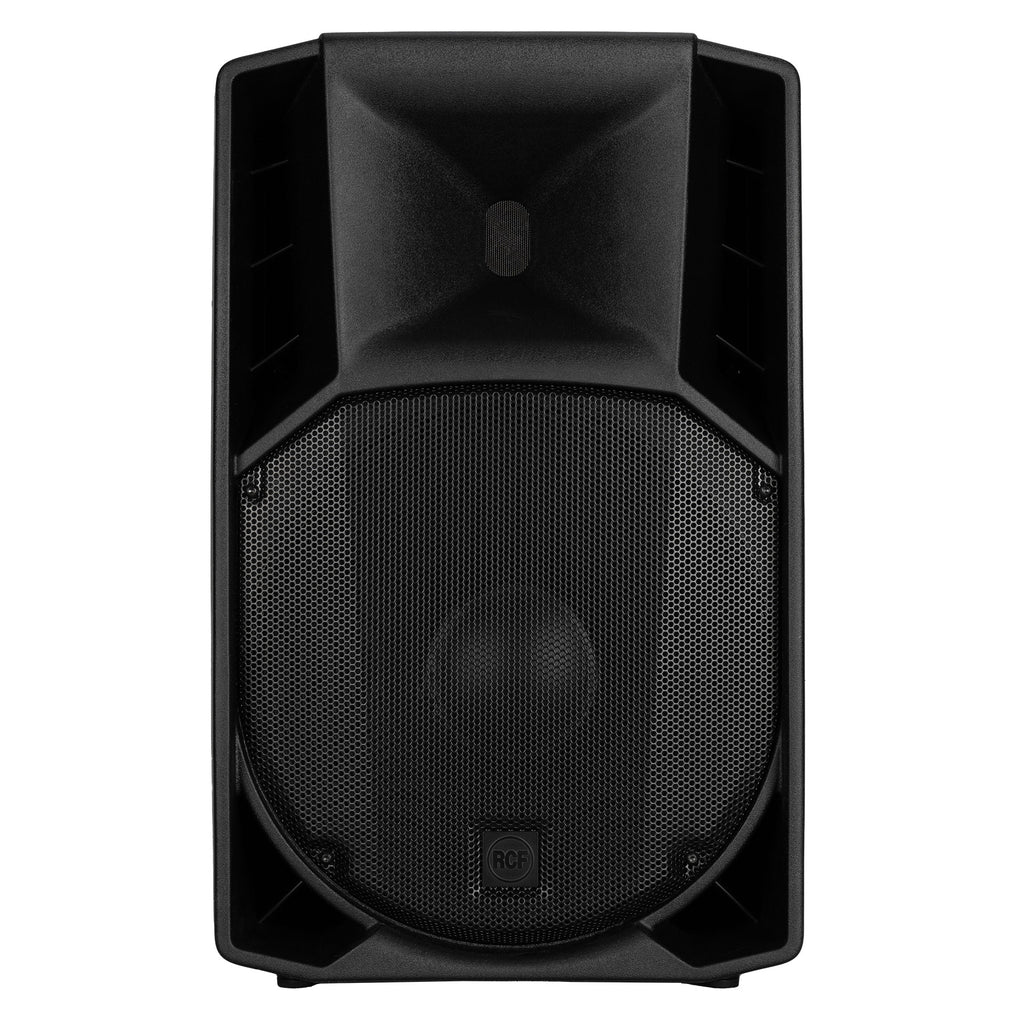

The ART 745-A MK5 is the flagship speaker in its category. The titanium dome, 4.0” voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 15” neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections
Specifications
| Acoustical Specifications |
| Frequency Response |
45 Hz - 20,000 Hz |
| Max SPL @ 1m |
133 dB |
| Horizontal Coverage Angle |
90° |
| Vertical Coverage Angle |
60° |
| Transducers |
| Compression Driver |
1 x 1.4" Neo, 4.0" v.c. |
| Woofer |
1 x 15" Neo, 3.5" v.c. |
| Input/Output Section |
| Input Signal |
Bal/Unbal |
| Input Connectors |
XLR, Jack |
| Output Connectors |
XLR |
| Input Sensitivity |
-2 dBu/+4 dBu |
| Mic. Input Sensitivity |
-32 dBu |
| Processor Section |
| Crossover Frequencies |
650 Hz |
| Protections |
Thermal, RMS |
| Limiter |
Soft Limiter |

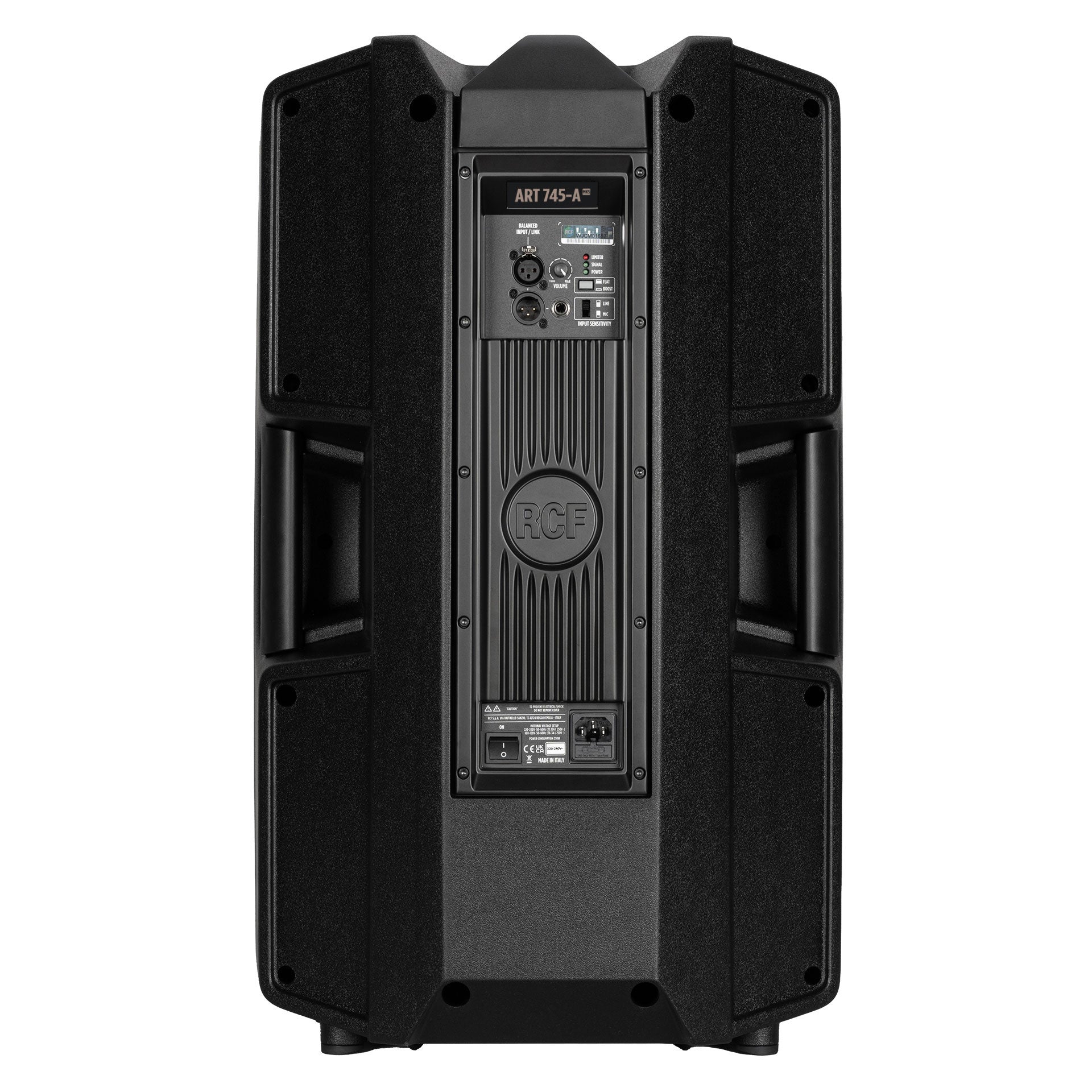

| Controls |
Volume, Boost, MIC/Line |
| Power Section |
| Total Power |
1400 W Peak |
| High Frequencies |
400 W Peak |
| Low Frequencies |
1000 W Peak |
| Cooling |
Convection |
| Connections |
VDE |
| Standard Compliance |
| Safety Agency |
CE Compliant |
| Physical Specifications |
| Cabinet/Case Material |
PP Composite |
| Hardware |
2 x M10 |

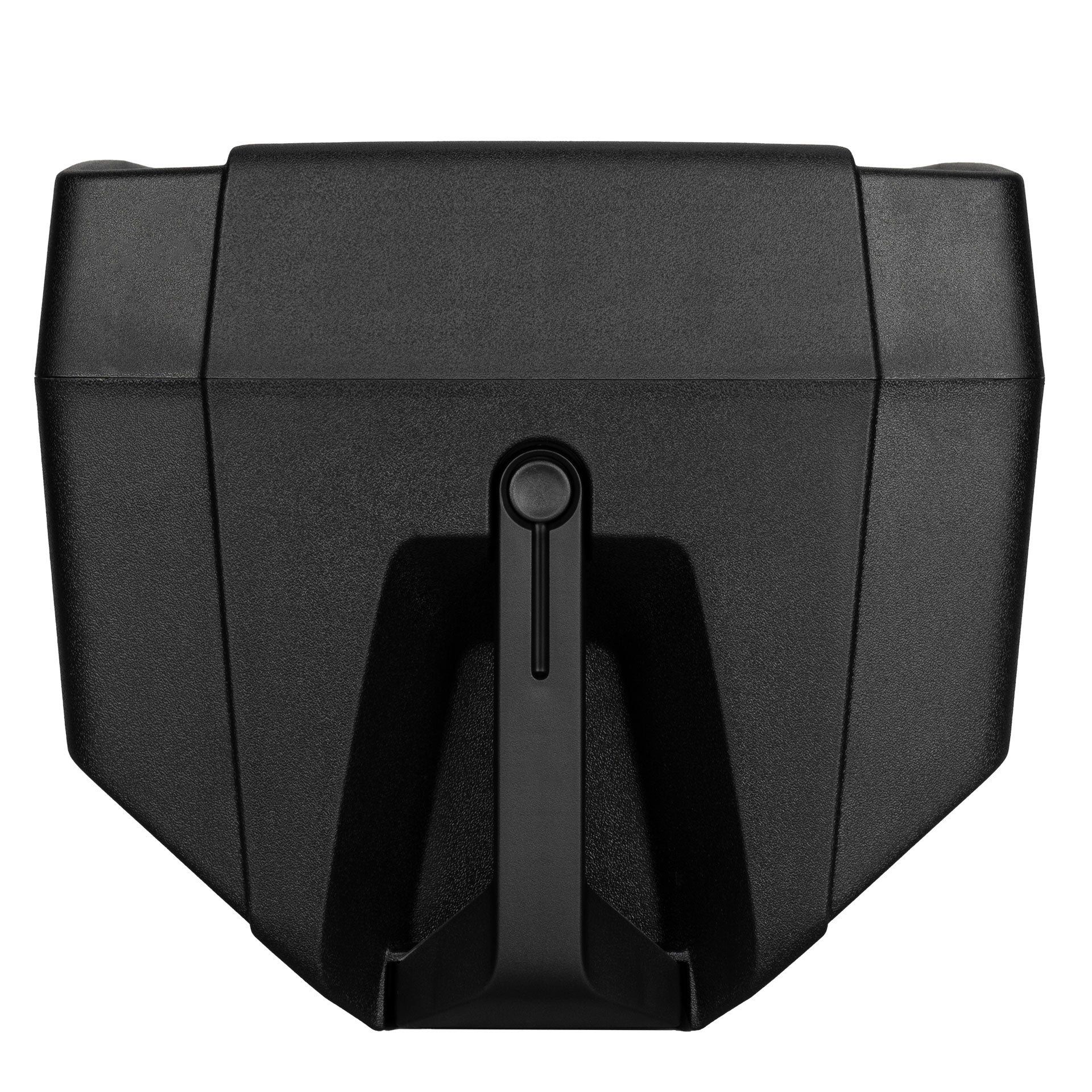

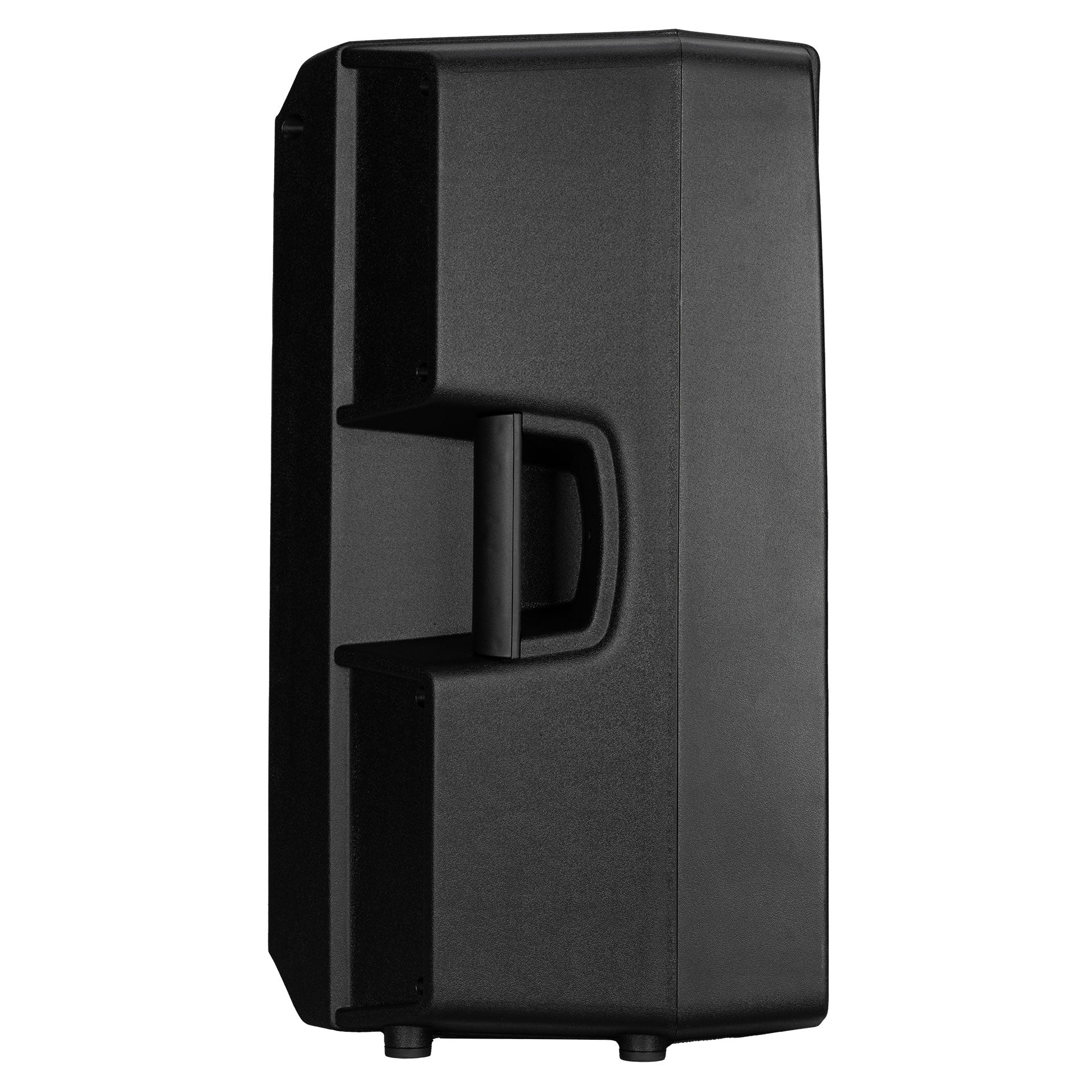

| Handles |
1 on Top, 1 Each Side |

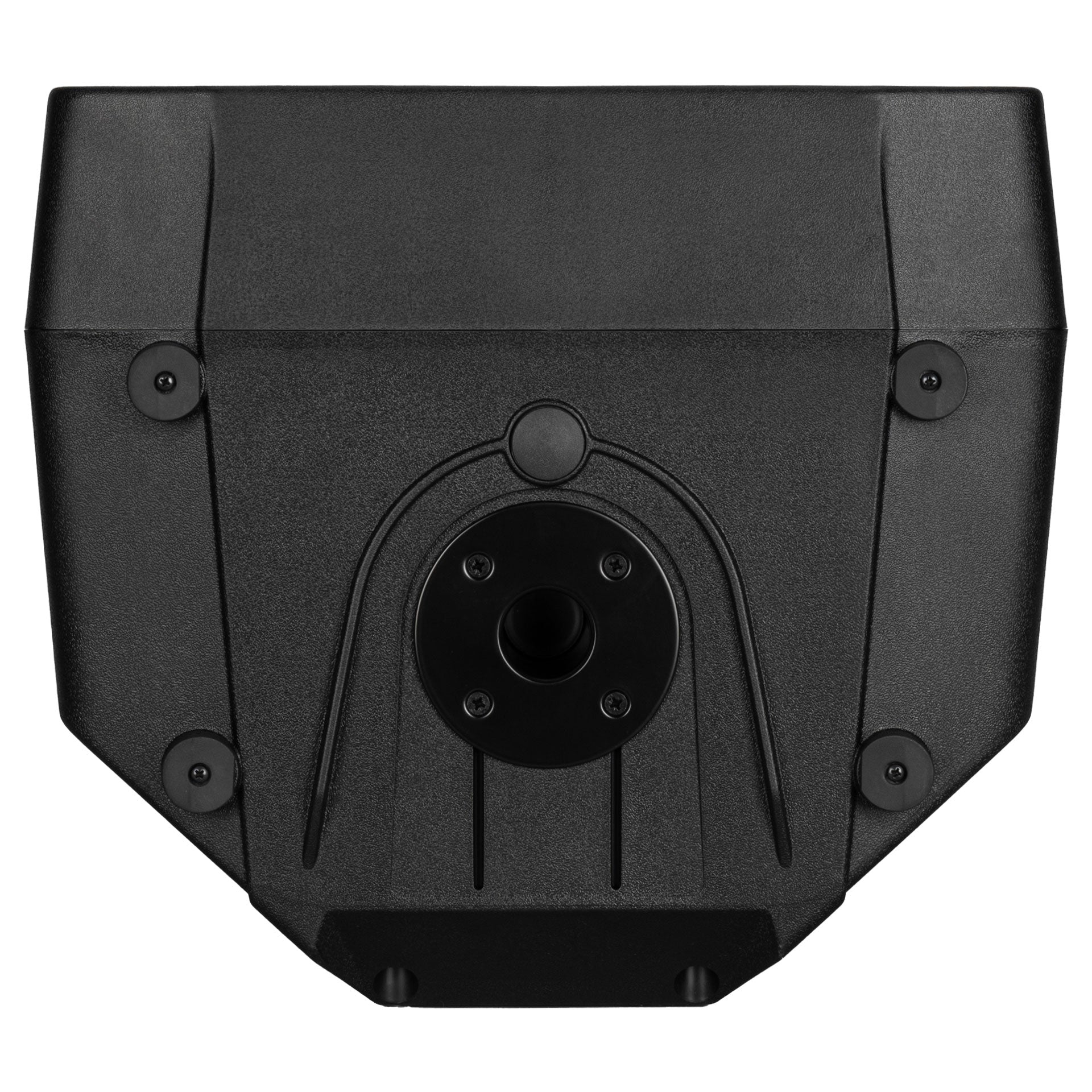

| Pole Mount/Cap |
35 mm Insert |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
| Height |
708 mm / 27.87 inches |
| Width |
437 mm / 17.2 inches |
| Depth |
389 mm / 15.31 inches |
| Weight |
18.8 kg / 41.45 lbs |
| Shipping Information |
| Package Height |
750 mm / 29.53 inches |
| Package Width |
500 mm / 19.69 inches |
| Package Depth |
440 mm / 17.32 inches |
| Package Weight |
22 kg / 48.5 lbs |
