Features
- 1.4" compression driver with 3" voice coil
- 15" woofer, high power, 3.5" voice coil
- 133 dB max spl
- Input Power Rating: 650 W AES

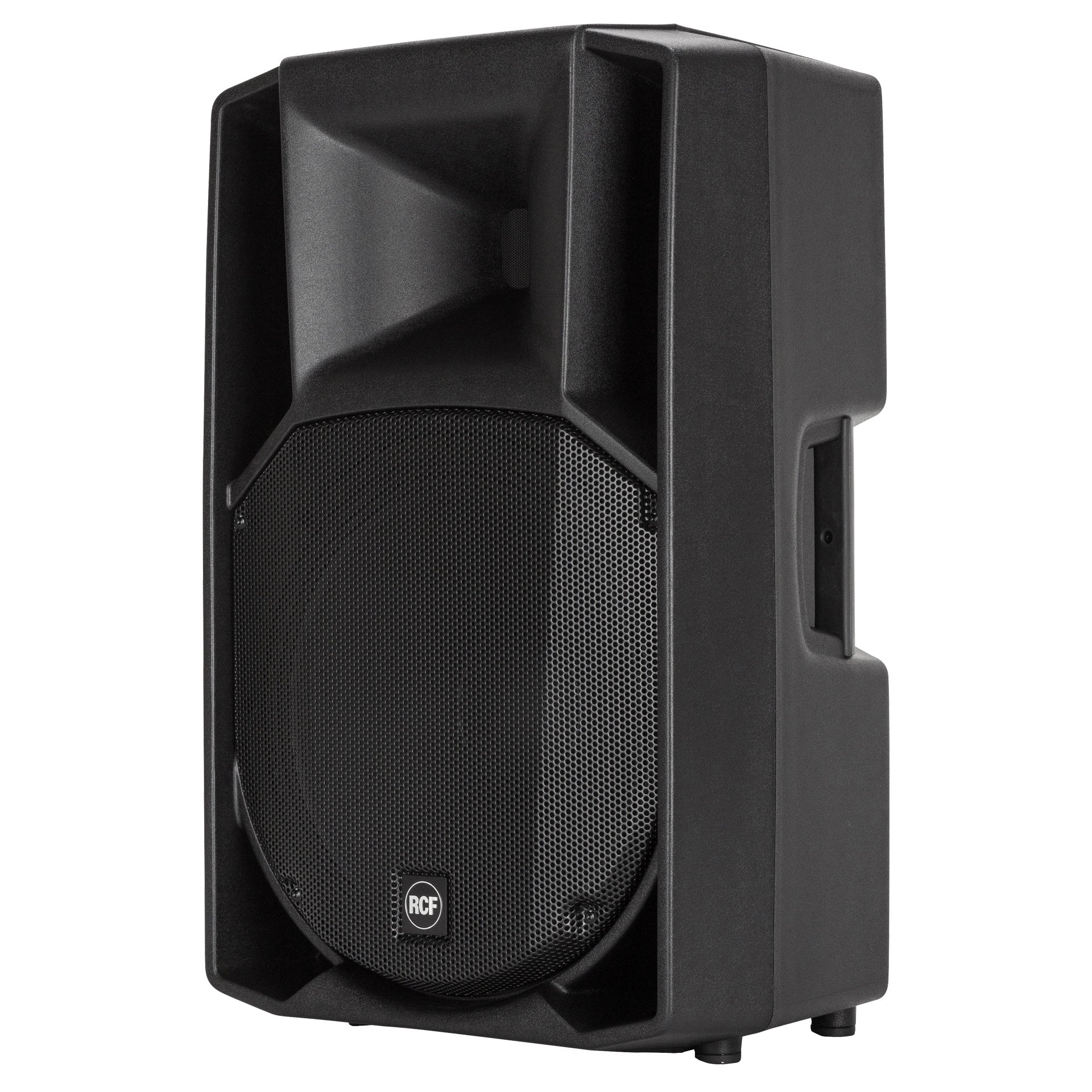

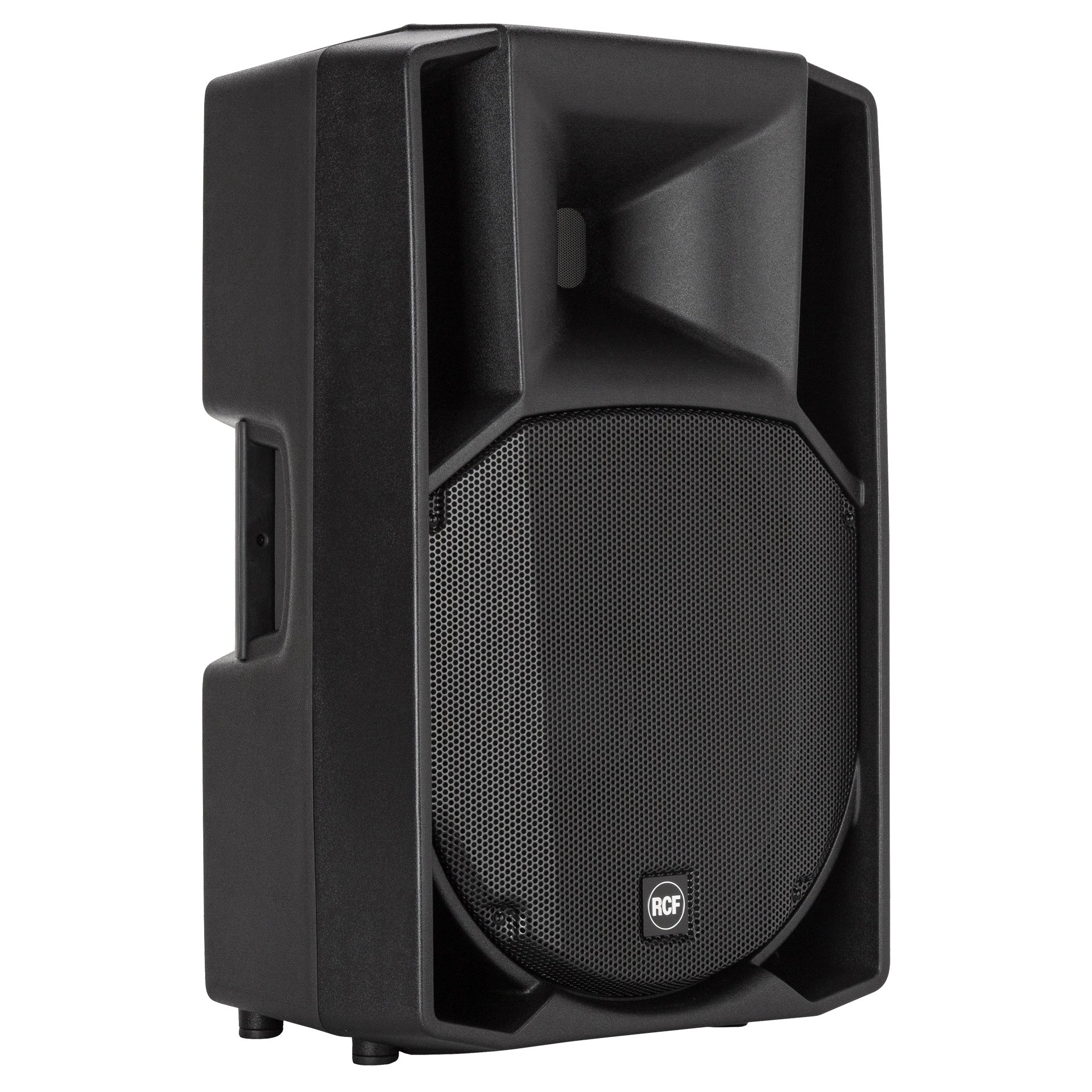

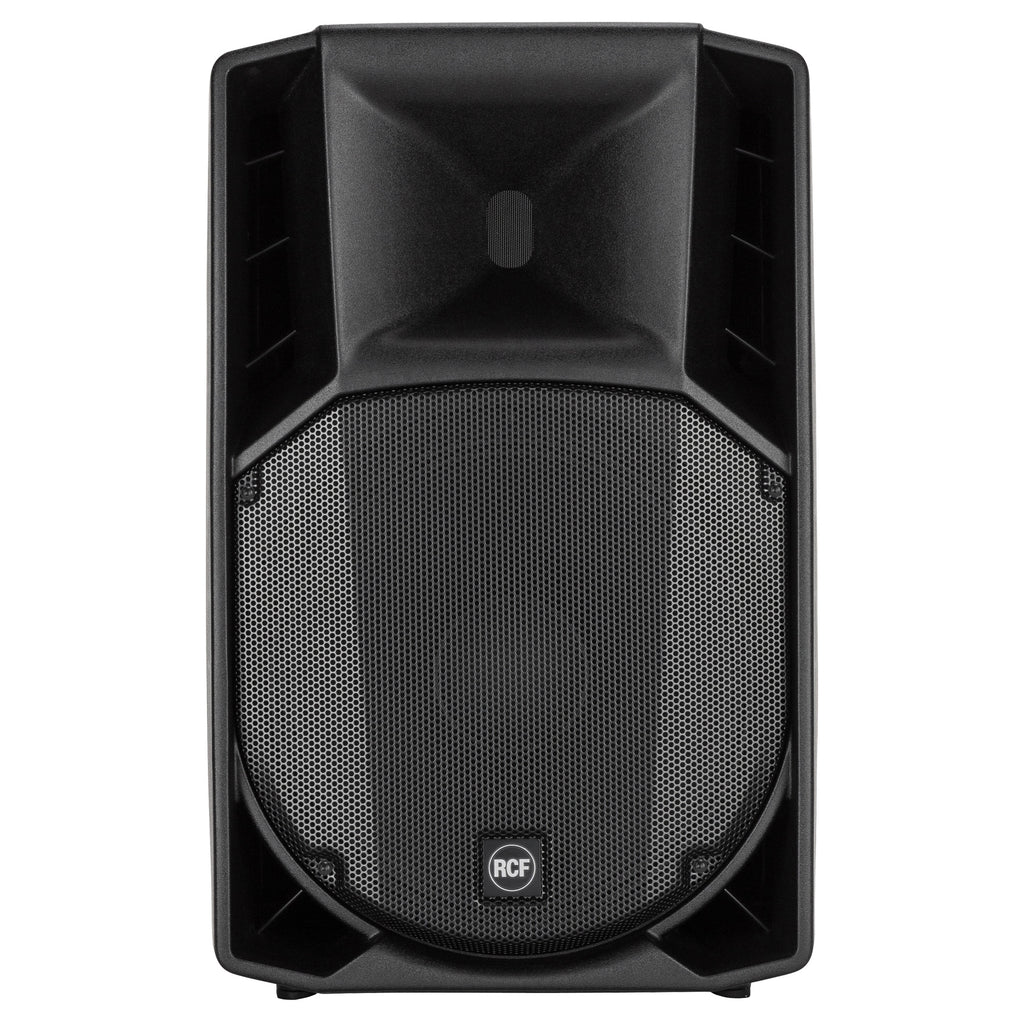

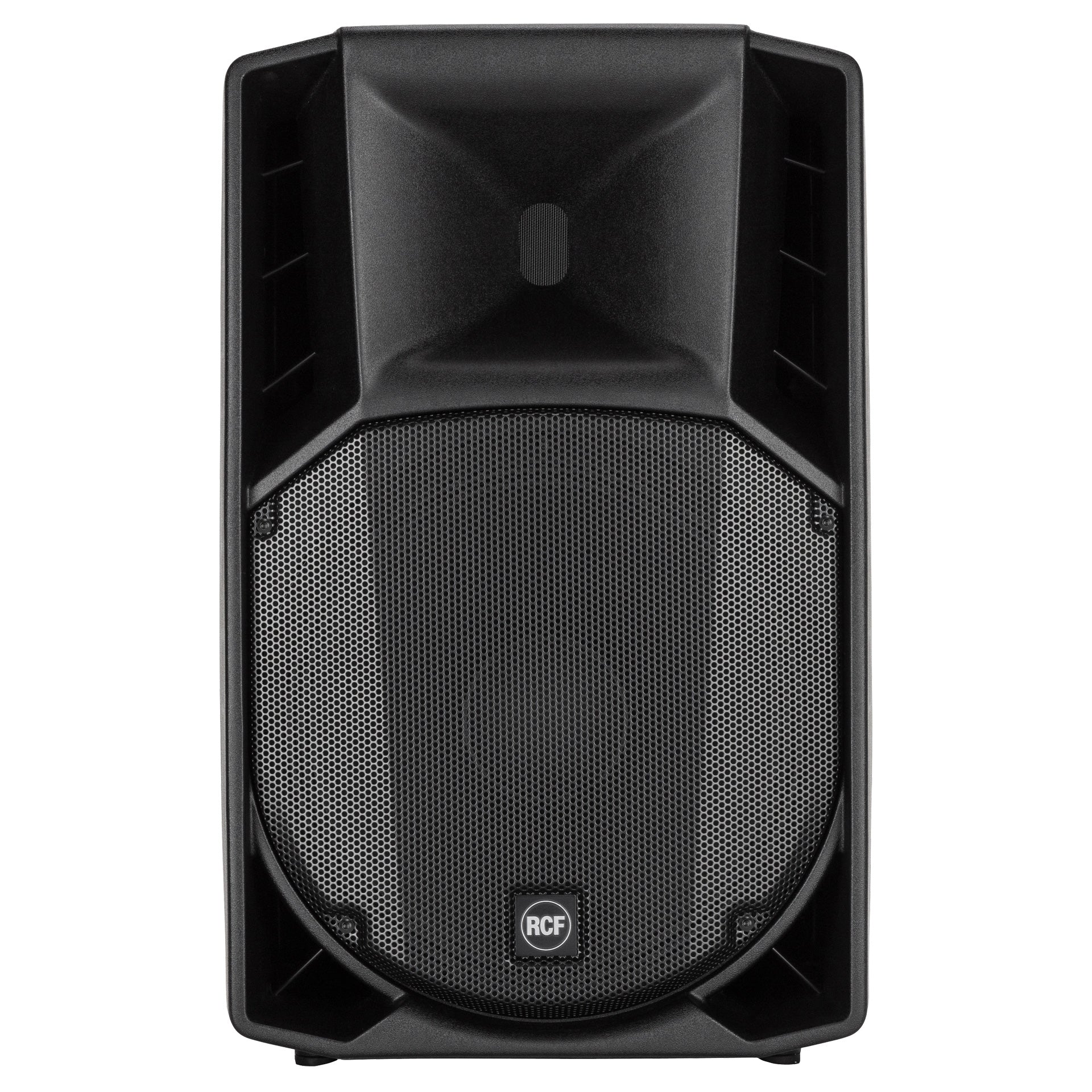

The RCF ART 725 MK4 two-way passive speaker system is masterfully engineered with an accurate acoustic design intended for high-end club installations and intensive live music venues. Built to handle demanding performance environments, this passive powerhouse delivers an incredible 133 dB maximum sound pressure level alongside an impressive peak power handling rating of 2800W.
At the center of its acoustic design, the RCF ART 725 MK4 features a high-quality 1.4" neodymium compression driver with a 3" voice coil alongside a high-power 15" neodymium woofer featuring a 3.5" voice coil. This precision-engineered transducer configuration ensures that the RCF ART 725 MK4 delivers pristinely clear high frequencies, a punchy low-end bass response, and completely precise mid frequencies.

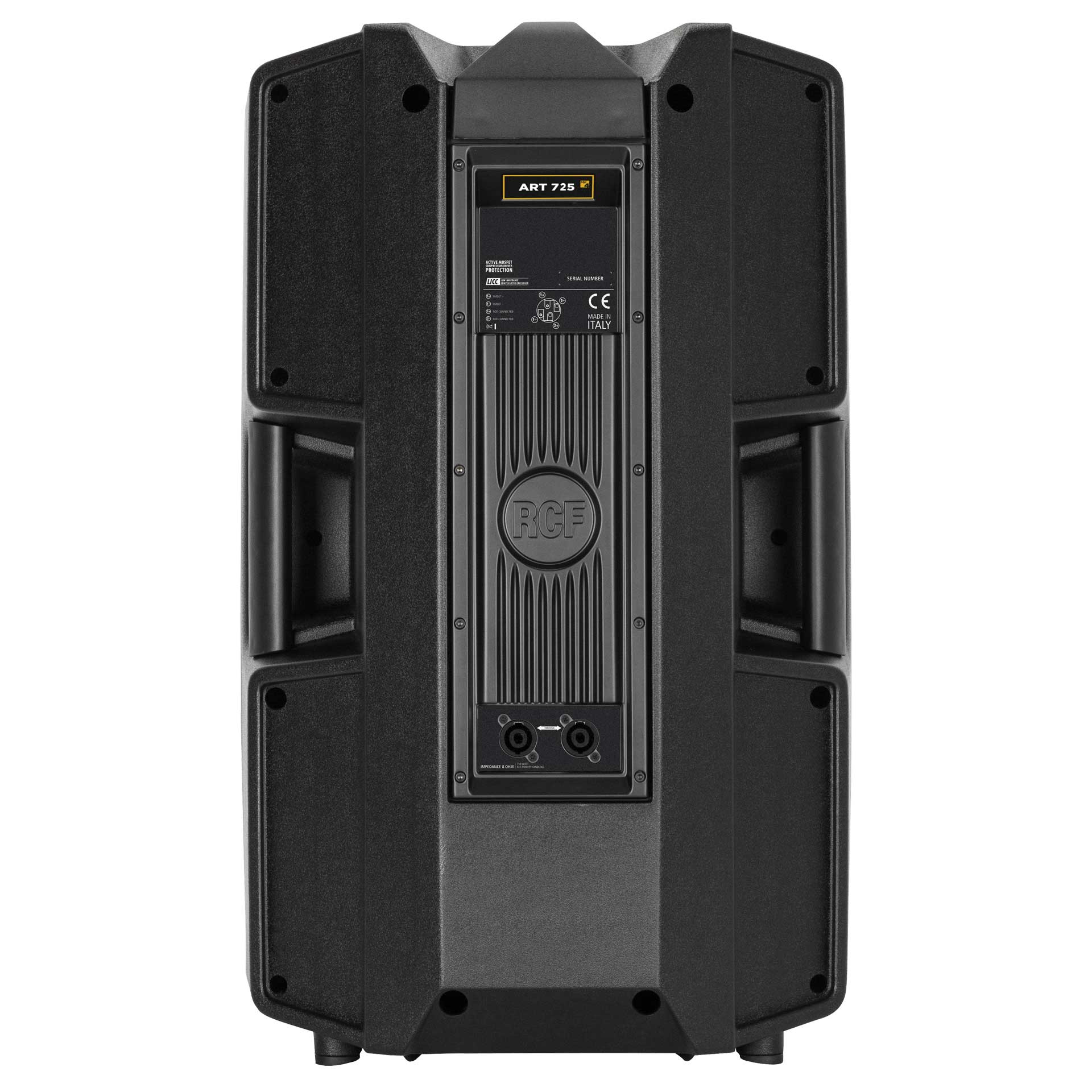

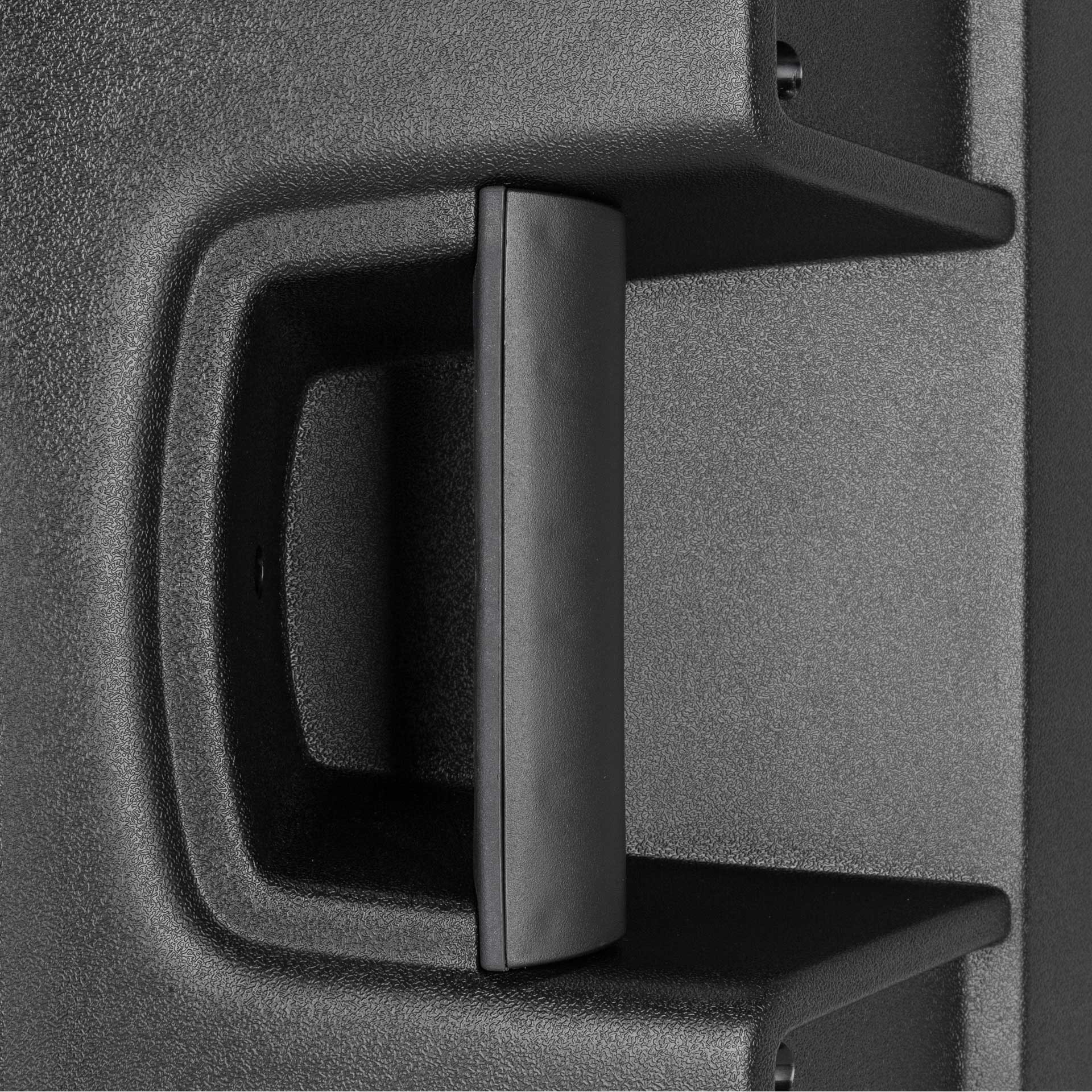

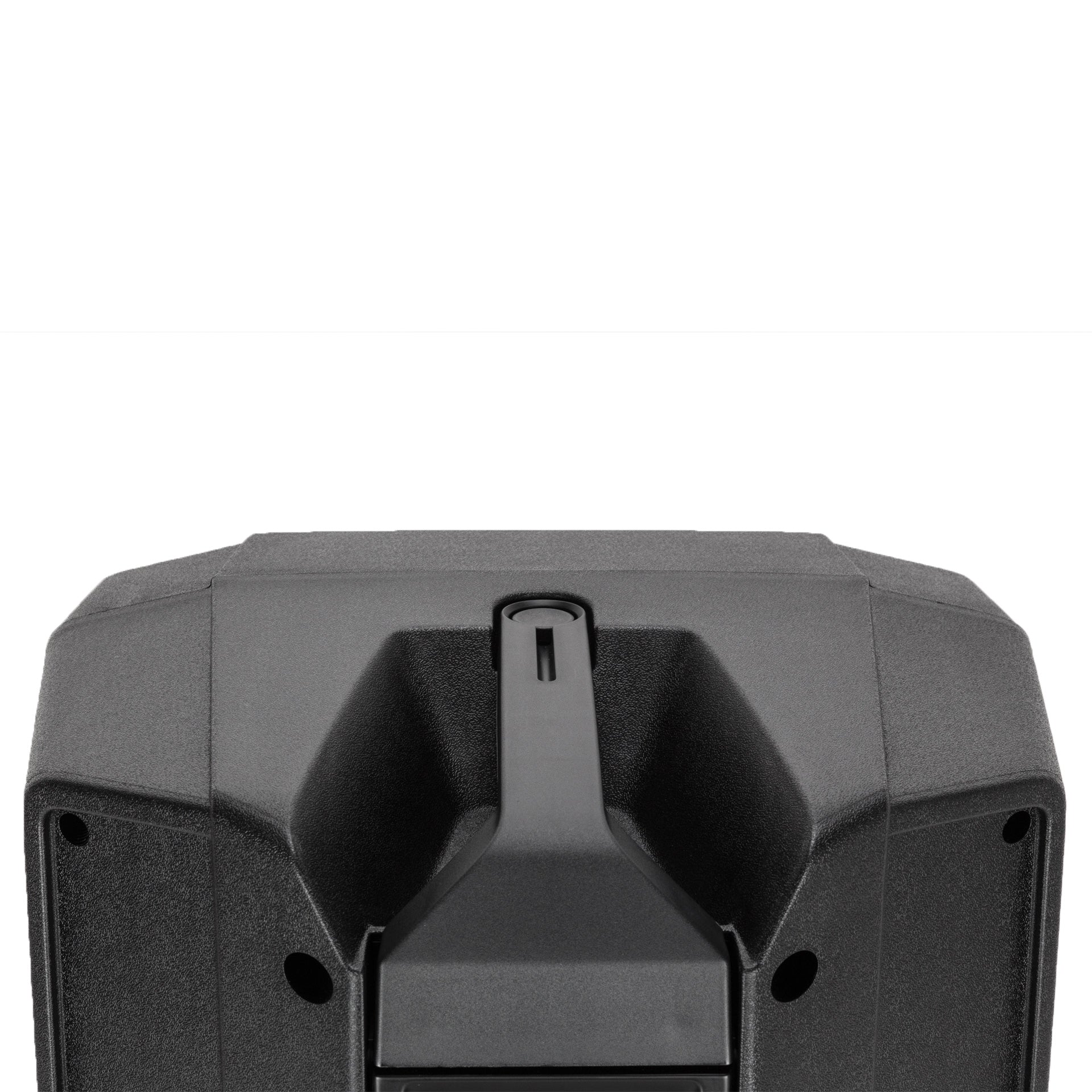

Designed for straightforward system integration, the newly designed aluminum rear panel comes fully equipped with industry-standard Speakon NL4 input and output connectors for secure daisy-chaining. The lightweight yet highly durable polypropylene composite cabinet is reinforced to withstand heavy live sound environments. Featuring two side handles, a top handle, an integrated 35mm pole mount socket, and dual M10 rigging points, it stands out as an exceptionally versatile solution for permanent installations or touring sound setups.
Specifications
| Acoustical Specifications |
| Frequency Response (-10dB) |
55 Hz - 20,000 Hz |
| Max SPL @ 1m |
133 dB |
| Horizontal Coverage Angle |
90° |
| Vertical Coverage Angle |
60° |
| System Sensitivity |
99 dB |
| Power Section |
| Amplification |
Full Range |
| Nominal Impedance |
8 ohm |
| Power Handling |
700 W |
| Peak Power Handling |
2800 W Peak |
| Crossover Frequencies |
1400 Hz |
| Transducers |
| Compression Driver |
1 x 1.4" Neo, 3.0" v.c. |
| Woofer |
1 x 15" Neo, 3.5" v.c. |
| Input/Output Section |
| Input Connectors |
Speakon® NL4 |
| Output Connectors |
Speakon® NL4 |
| Standard Compliance |
| Safety Agency |
CE Compliant |
| Physical Specifications |
| Cabinet/Case Material |
PP Composite |
| Hardware |
2 x M10 |
| Handles |
1 Top, 2 Side |
| Pole Mount/Cap |
35 mm Insert |
| Grille |
Steel |
| Color |
Black |
| Size / Weight |
| Height |
708 mm / 27.87 inches |
| Width |
437 mm / 17.2 inches |
| Depth |
389 mm / 15.31 inches |
| Weight |
20.5 kg / 45.19 lbs |
| Shipping Information |
| Package Height |
725 mm / 28.54 inches |
| Package Width |
550 mm / 21.65 inches |
| Package Depth |
505 mm / 19.88 inches |
| Package Weight |
23.7 kg / 52.25 lbs |
