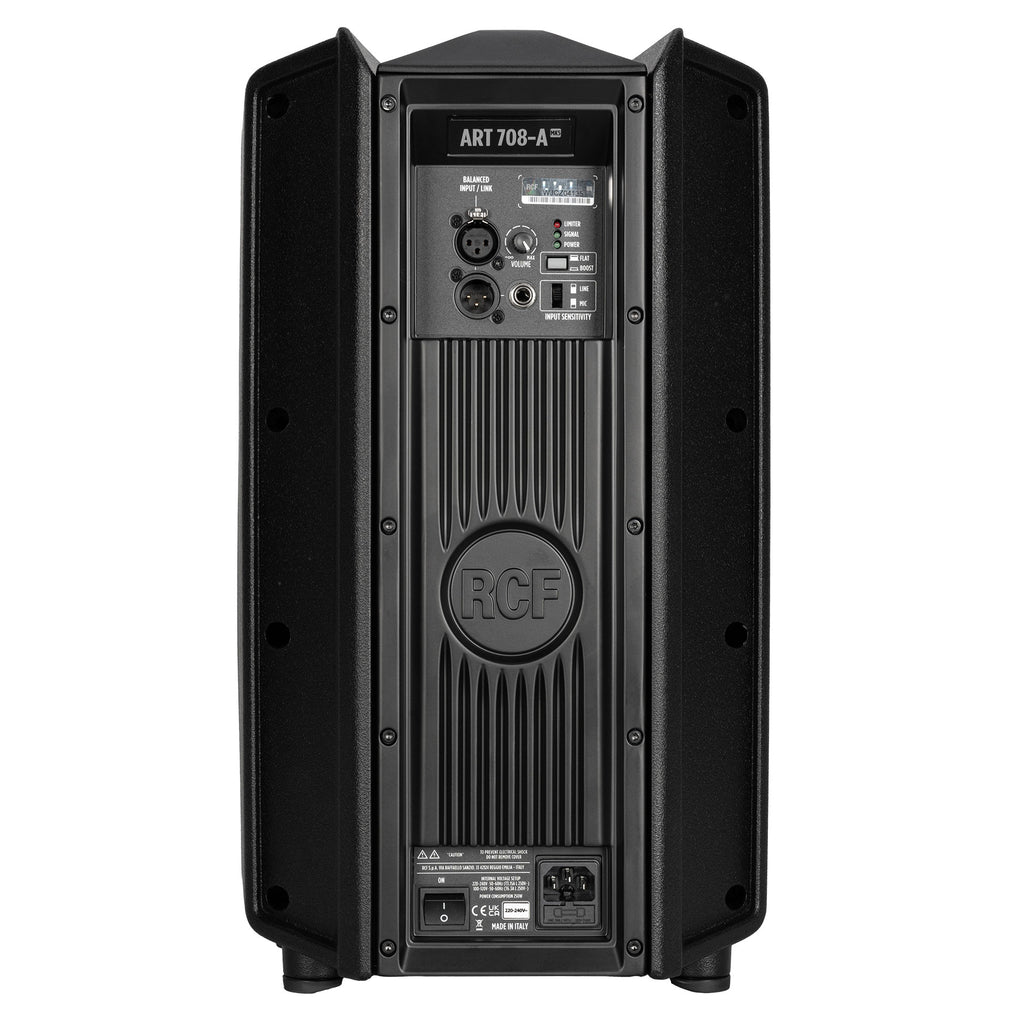

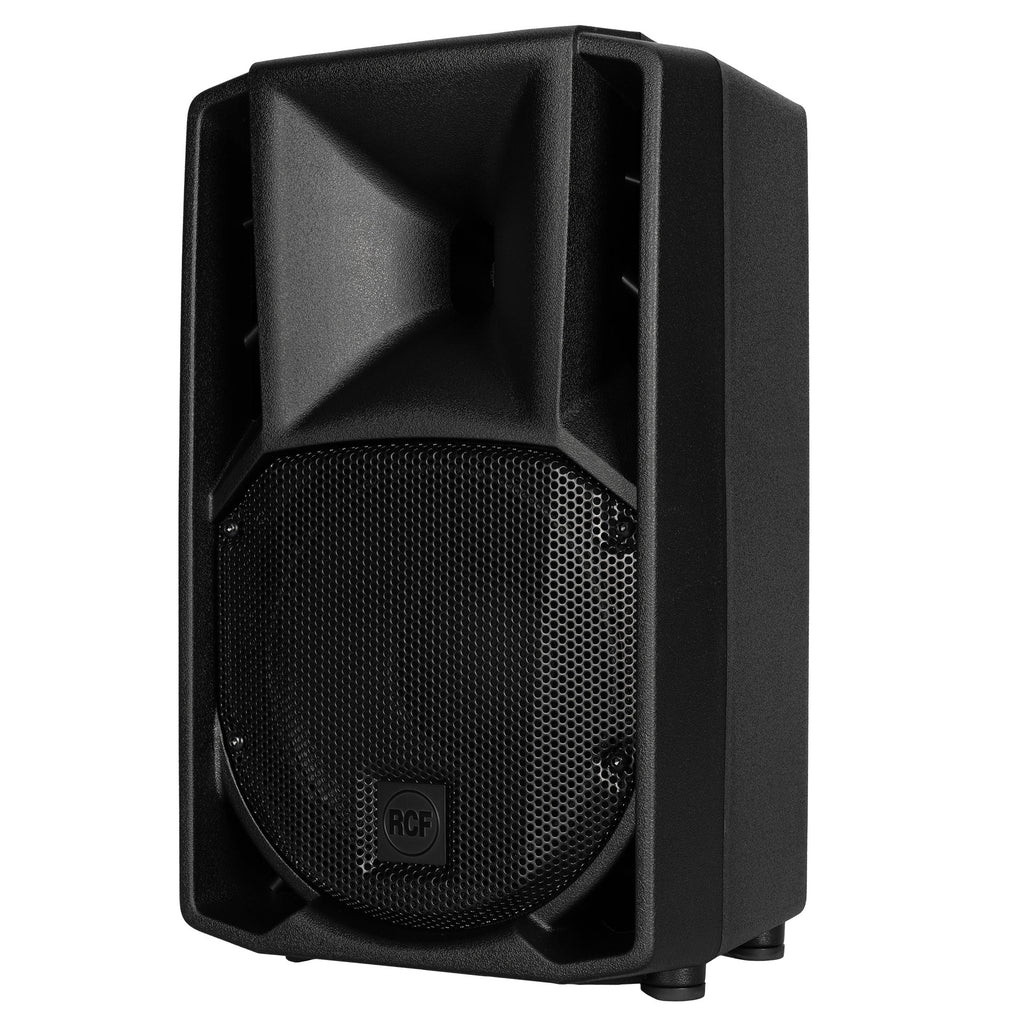

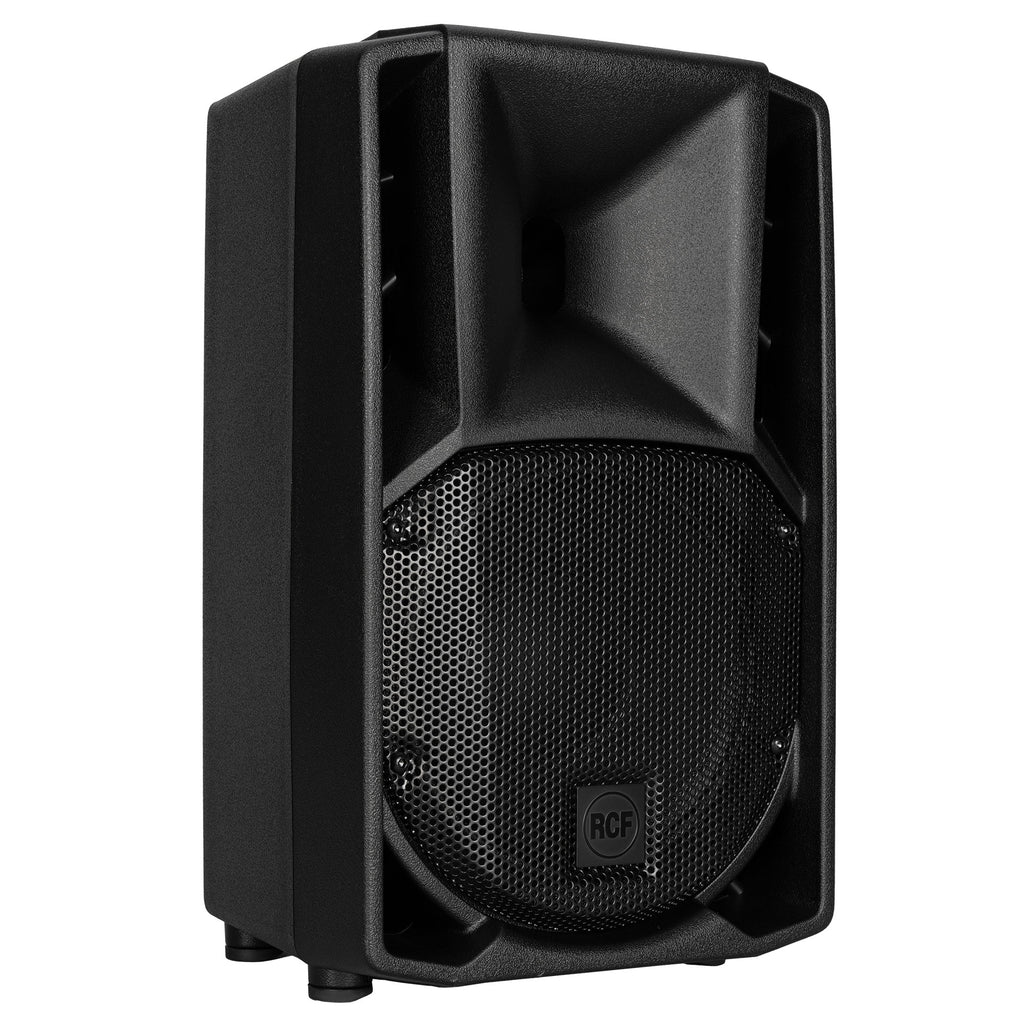

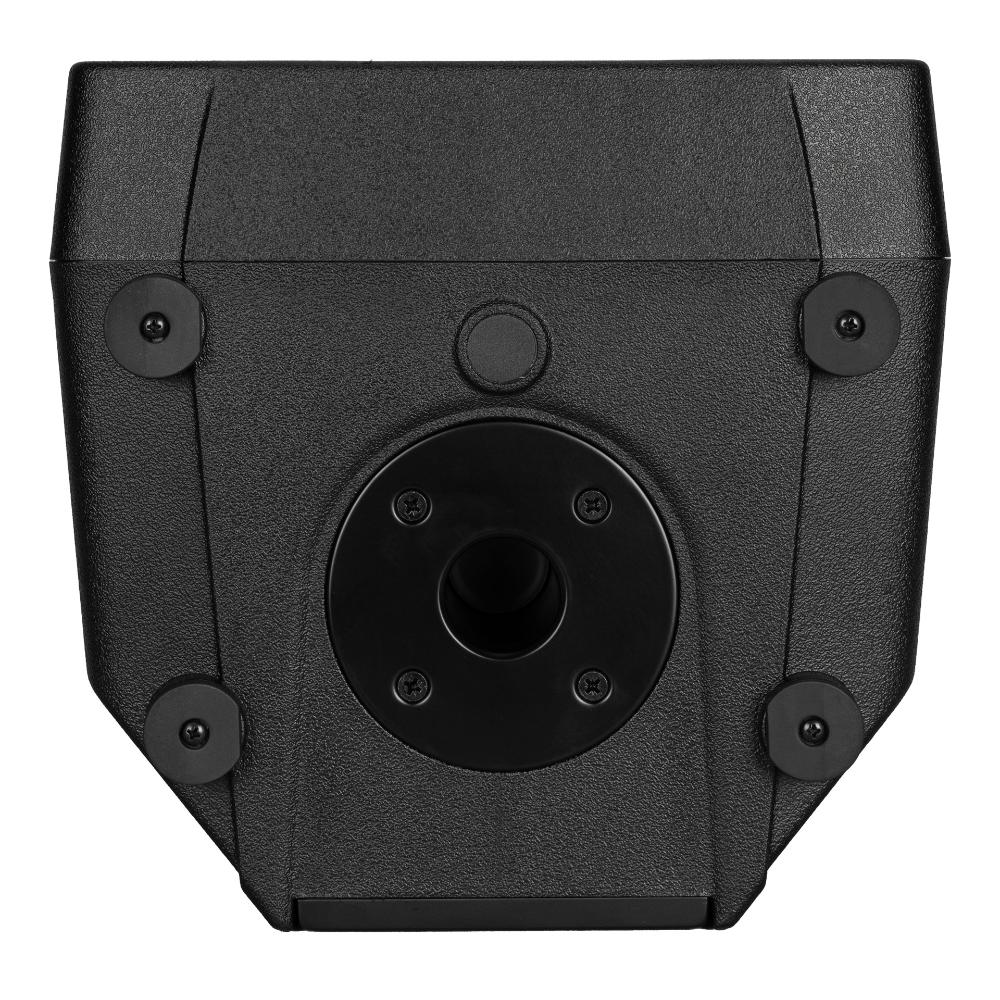

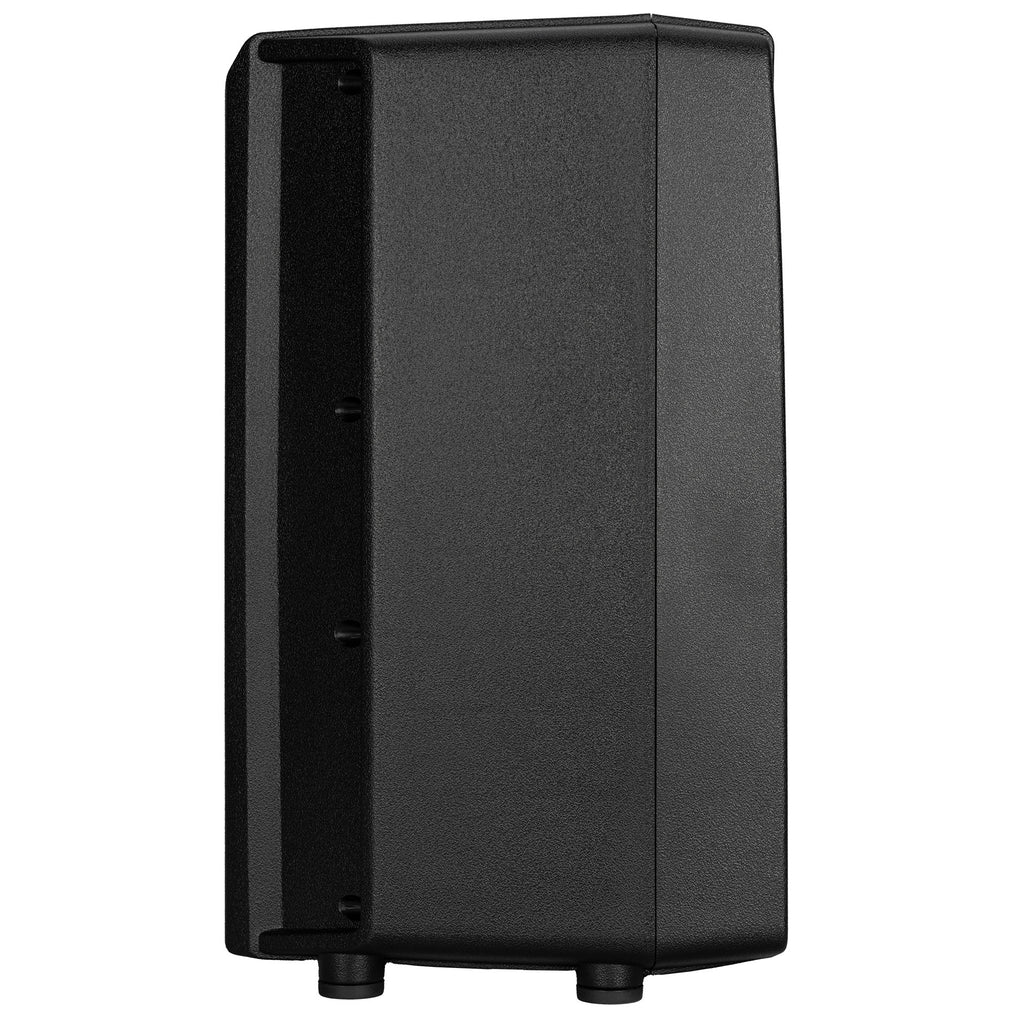

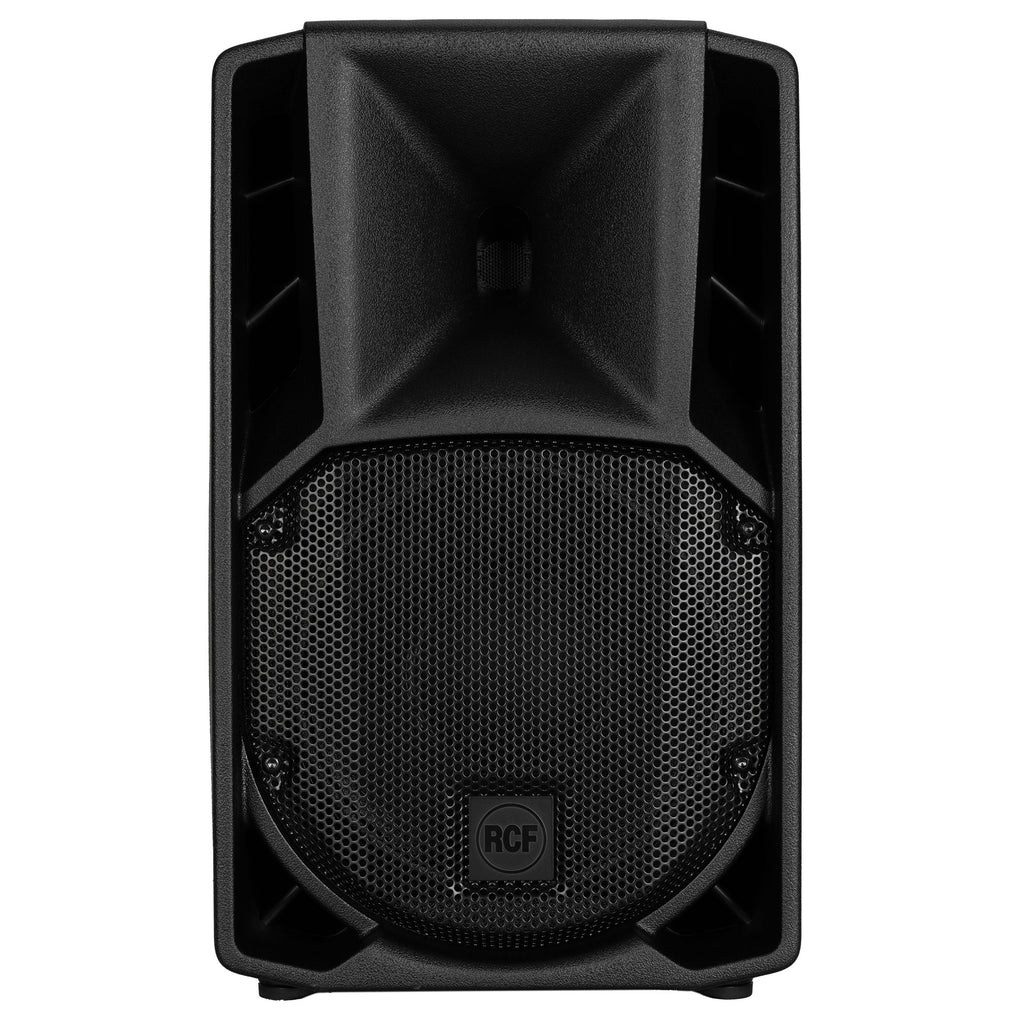

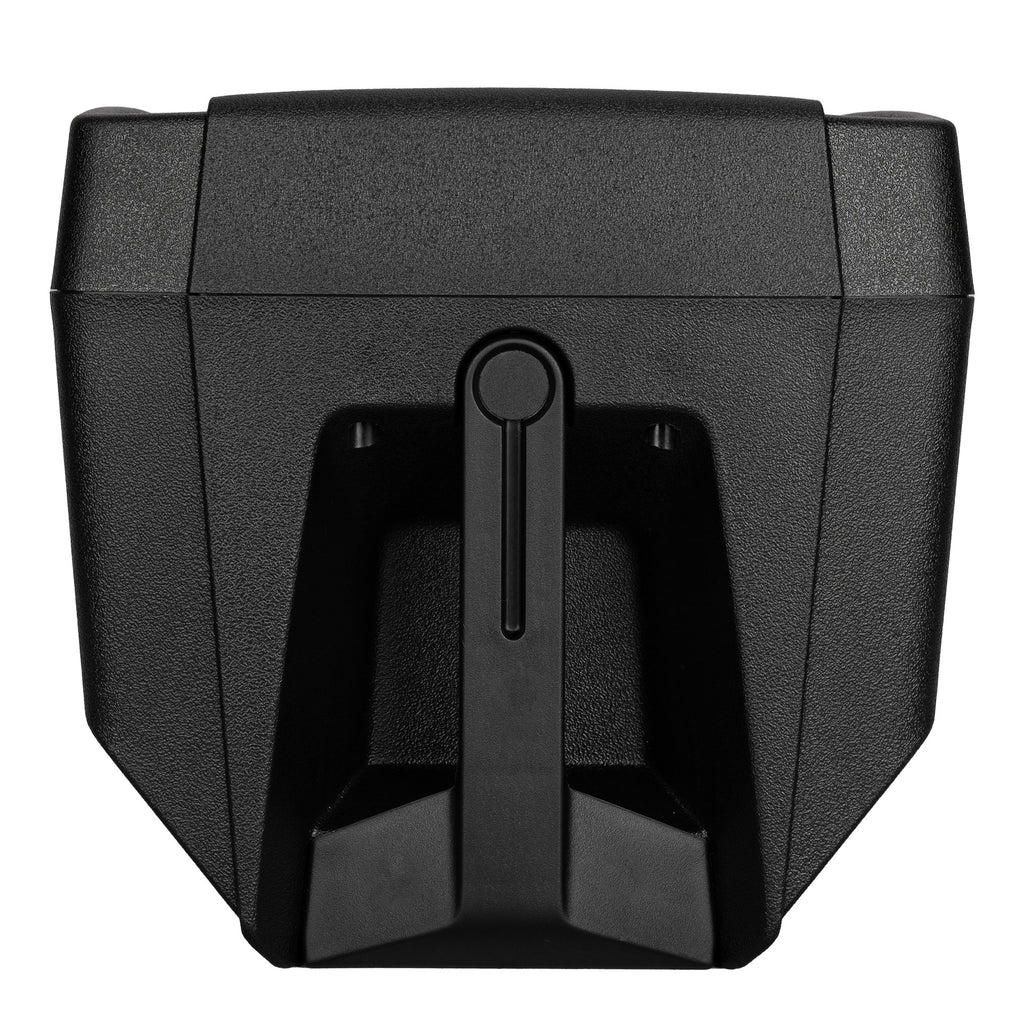

RCF ART 708-A MK5 Active Two-Way Speaker

RCF ART 708-A MK5 Active Two-Way Speaker Features

• 128 dB Max SPL
• 1400 WATT 2-way peak power
• 90° x 70°, Wide dispersion constant directivity horn
• Innovative DSP Processing
• 1,4" Compression Driver.
• 8" Woofer
• FiRPHASE Technology
• XBOOST Low Frequencies Enhancer

RCF ART 708-A MK5 Active Two-Way Speaker Specifications

Acoustical Specifications
Frequency Response	60 Hz - 20000 Hz
Max SPL @ 1m	128 dB
Horizontal Coverage Angle	90°
Vertical Coverage Angle	70°
Transducers	Compression Driver 1 x 1.0'', 1.4'' v.c
Woofer	1 x 8'', 2.0'' v.c
Input/Output Section
Input Signal	Bal/Unbal
Input Connectors	XLR, Jack
Output Connectors	XLR
Input Sensitivity	-2 dBu/+4 dBu
Mic. Input Sensitivity	-32 dBu
Processor Section
Crossover Frequencies	1600 Hz
Protections	Thermal, RMS
Limiter	Soft Limiter
Controls	Volume, Boost, MIC/Line
Power Section
Total Power	1400 W Peak
High Frequencies	400 W Peak
Low Frequencies	1000 W Peak
Cooling	Convection
Connections	VDE
Standard Compliance
Safety Agency	CE Compliant
Physical Specifications
Cabinet/Case Material	PP Composite
Hardware	2 x M10
Handles	1 on top
Pole Mount/Cap	35 mm insert
Grille	Steel
Color	Black
Size / Weight
Height	480 mm / 18.9 inches
Width	291 mm / 11.46 inches
Depth	276 mm / 10.87 inches
Weight	10.4 kg / 22.93 lbs
Shipping Information
Package Height	520 mm / 20.47 inches
Package Width	331 mm / 13.03 inches
Package Depth	346 mm / 13.62 inches
Package Weight	12.2 kg / 26.9 lbs
