| Drivers |
High-efficiency 200 mm (8 in) dual-cone driver with 25 mm (1 in) diameter voice coil, Kapton coil former, and high-temperature voice coil wire |
| Frequency Range (-10dB) |
100 Hz – 16 kHz |
| Sensitivity |
96 dB (2 kHz – 6 kHz) |
| Coverage Angle |
100° conical |
| Maximum SPL (1m) |
108 dB (low-impedance, 116 dB peak)
106 dB (top 70V/100V tap) |
| Impedance |
8 ohms (in direct/thru setting) |
| Transformer Taps |
10 W, 5 W, 2.5 W (plus 1.3 W @ 70V) |
| Recommended Protective High-Pass |
90 Hz high-pass (24 dB/oct) for 8Ω direct or any 70V or 100V tap setting |
| Power Capacity (at low-Z) |
40 W continuous program power
20 W continuous pink noise |
| Power Rating |
See transformer taps |
| Input Connectors |
Bare wire inside protected, touch-proof wiring compartment |

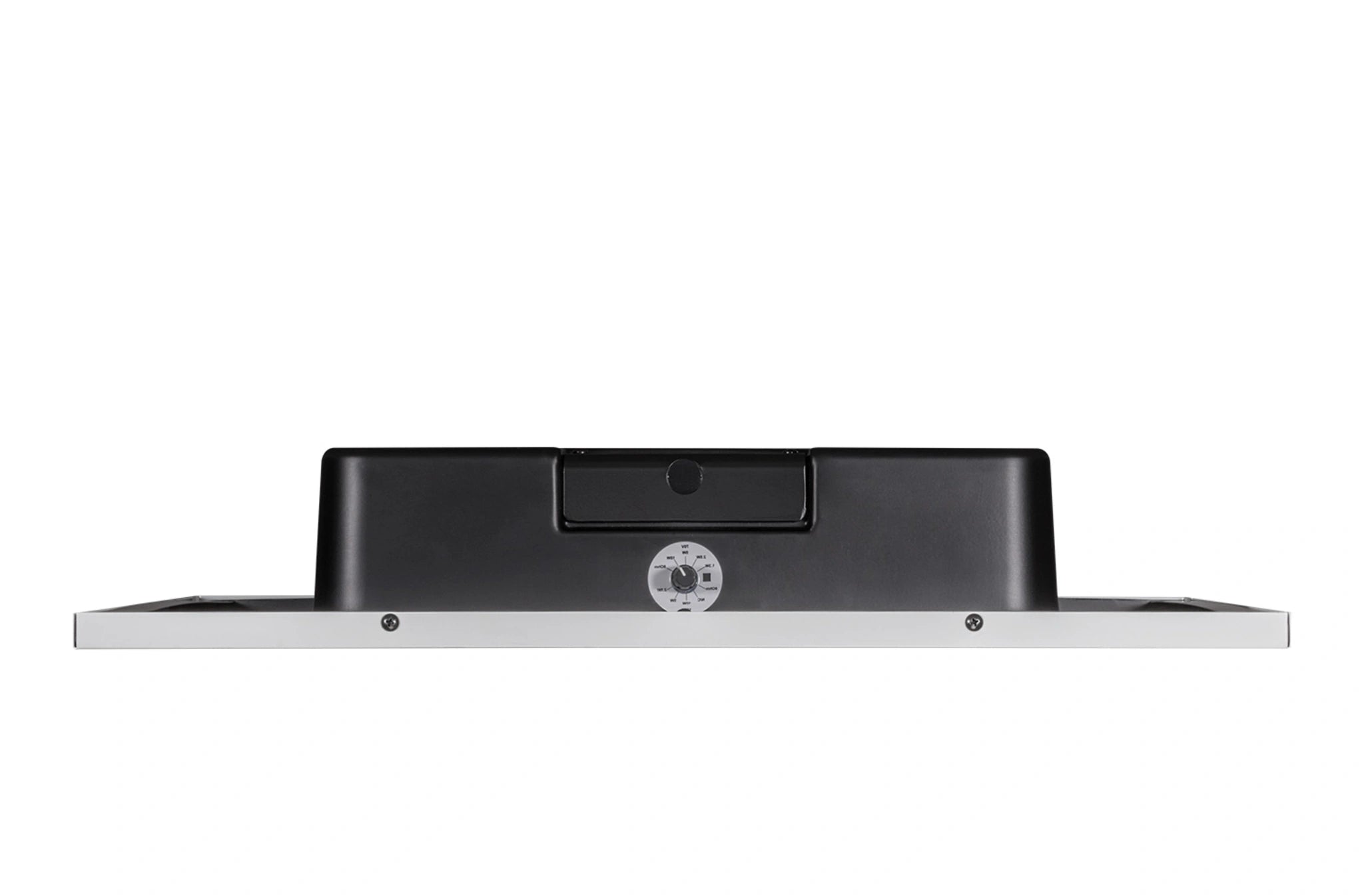

| Tap Selector |
Rotary switch accessible from side of backcan |
| Materials |
Steel rear enclosure, front baffle, and perforated grille |
| Grille Color |
White |
| Color |
White |
| Baffle/Rim |
Metal |

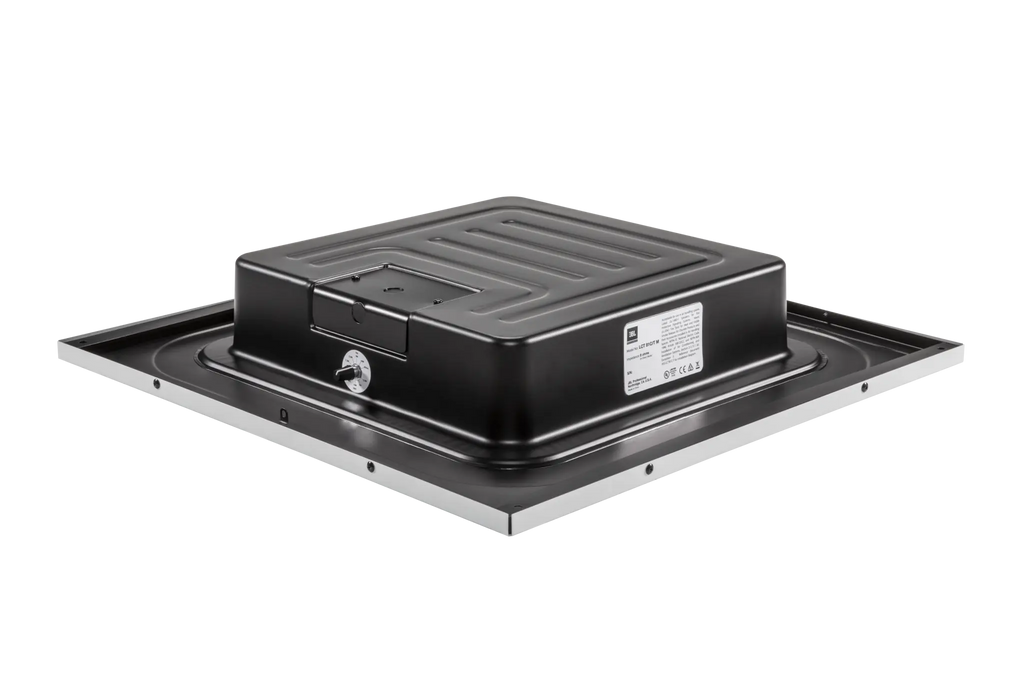

| Backcan |
Formed steel (blind-mount) |
| Plenum Usage |
Yes, backcan included |
| Safety Agency |
Suitable for use in air handling spaces certified per UL1480A (Speakers for Commercial and Professional Use); UL2043 (Standard for Fire Test for Heat and Visible Smoke Release for Discrete Products Installed in Air-Handling Spaces); NFPA90 & NFPA70; S7232/UL Listed, Signaling Speaker |

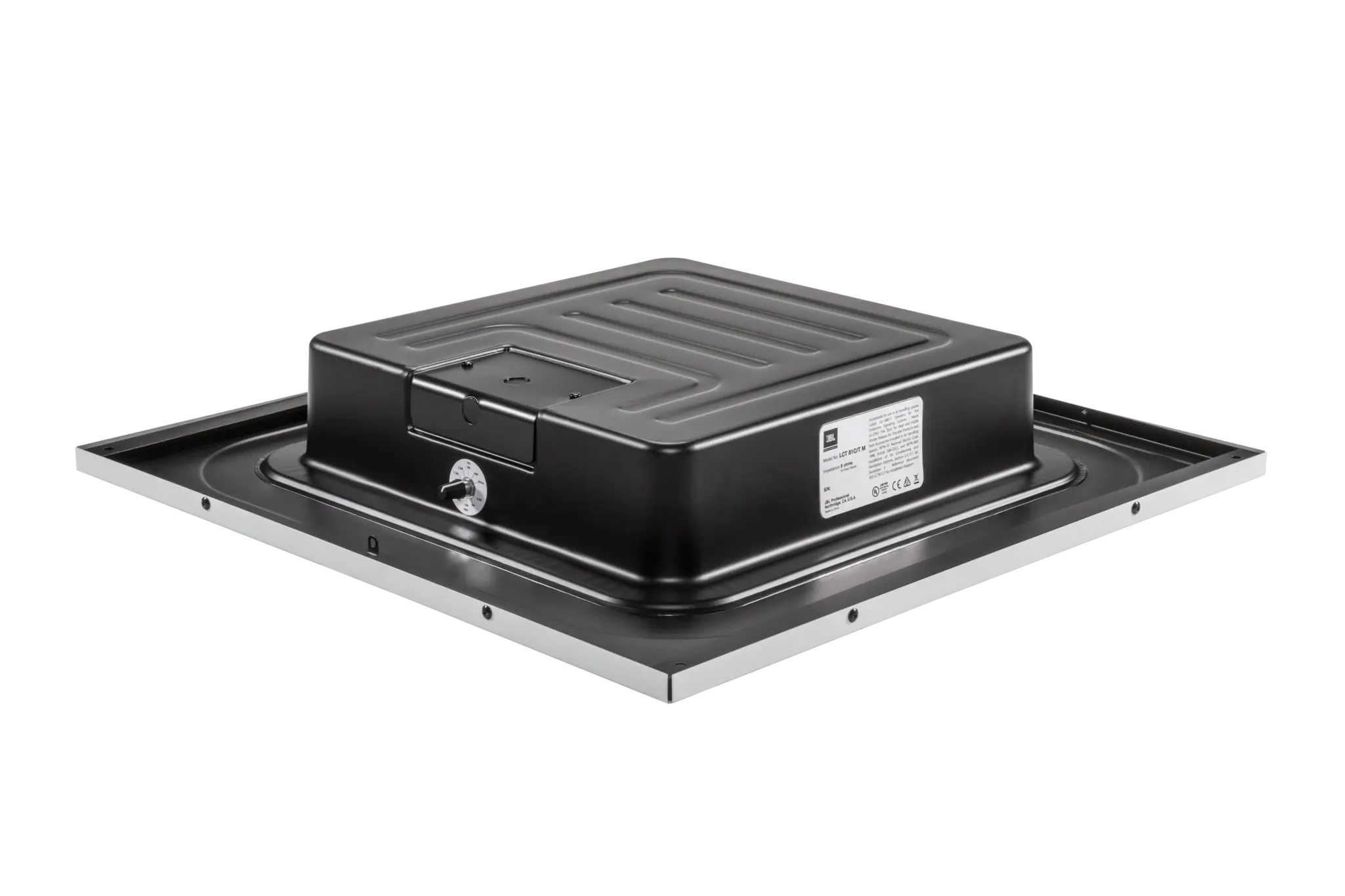

| Dimensions |
595 x 595 x 103 mm (23.4 x 23.4 x 4.1 in) |
| Net Weight |
6.9 kg (15.2 lb) each |
| Shipping Weight |
15.5 kg (34.2 lb) per pair-pack |

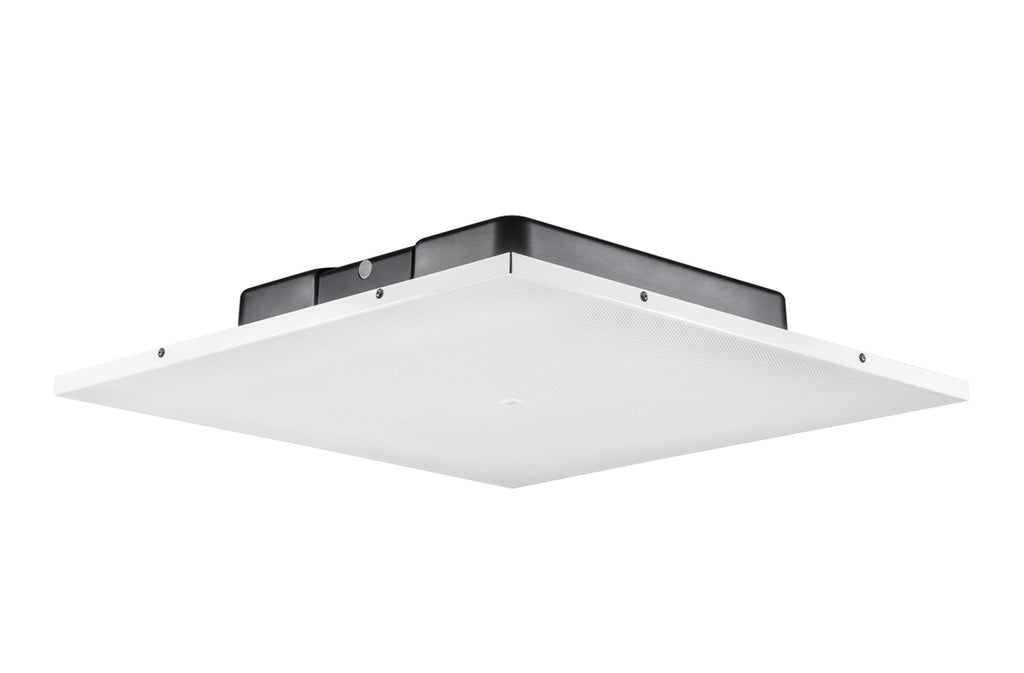

| Ceiling Cutout Size |
No cutout required — speaker drops into ceiling grid |
| Suspension / Safety-Seismic Attachment Points |
Two tabs on back baffle, plus 4 holes in corners |
