| Frequency Range (-10dB) |
65 Hz – 20 kHz |
| Frequency Response (±3dB) |
90 Hz – 18 kHz |
| Power Rating |
100 W continuous program (2 hrs)
50 W (200 W peak) continuous pink noise (2 hrs)
30 W (120 W peak) continuous pink noise (100 hrs) |
| Sensitivity |
87 dB (avg 300 Hz – 12 kHz) |
| Maximum SPL |
110 dB peak (104 dB continuous, 2 hr) @ 1m |
| Coverage Pattern |
70° conical |
| Nominal Impedance |
8Ω (at 8Ω tap) |
| Transformer Taps |
70V: 30 W, 15 W, 7.5 W
100V: 30 W, 15 W |
| Drivers |
165 mm (6.5 in) woofer, polypropylene cone, 25 mm (1 in) voice coil on aluminum voice coil former
25 mm (1.0 in) titanium dome, neodymium magnet assembly, Kapton™ voice coil former |
| Terminals |
Bare wire with dielectric-gel-filled wire nuts (1 meter single jacketed cable, 2 wires with 18 AWG) |
| Enclosure Material |
Polycarbonate + ABS, UL94V-0 flammability rated |
| Color |

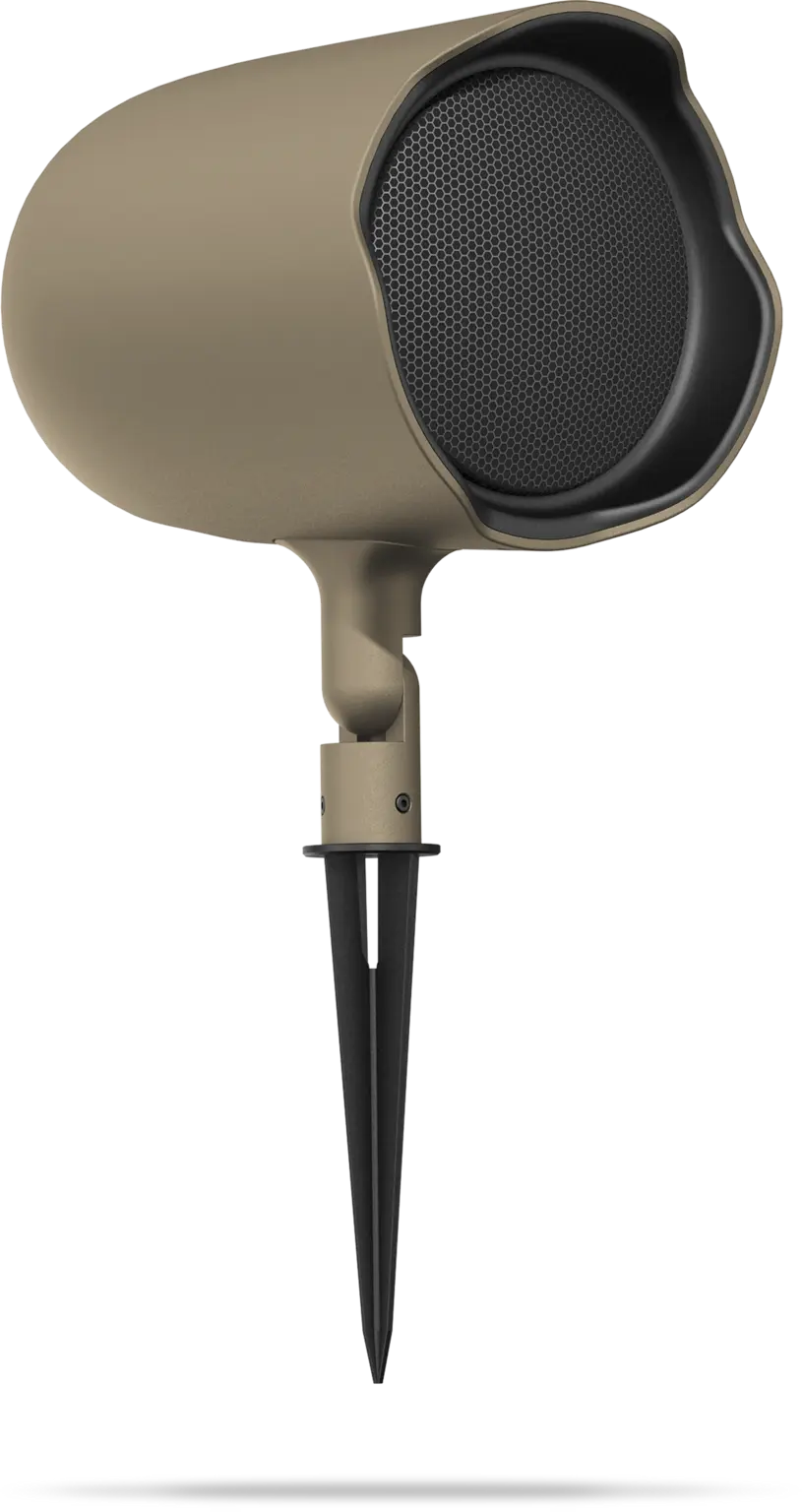

Pine Green RAL 6028, or Beige Grey RAL 7006 |
| Dimensions |
Cabinet 218 mm diameter x 293 mm deep (8.6 x 11.6 in). Assembly height 444 mm (17.5 in) with L-bracket base (at 90°) and 544 mm (21.5 in) with ground stake base. |
| Net Weight |
3.5 kg (7.7 lb) |
| Included Accessories |

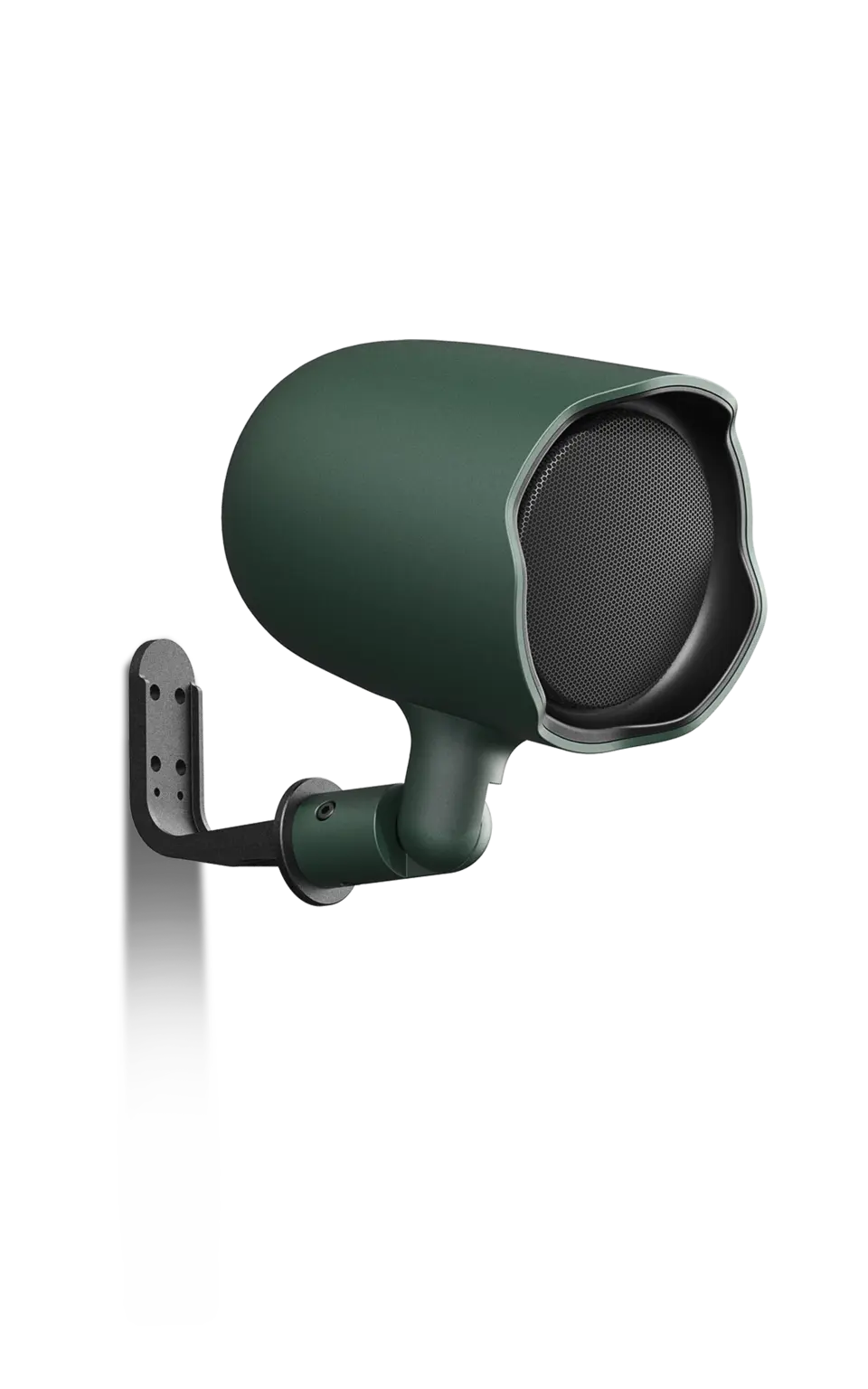

(1) ground stake bracket; (1) L-bracket |
