| Frequency Range (-10dB) |
74 Hz – 20 kHz |
| Frequency Response (±3dB) |
120 Hz – 15 kHz |
| Power Rating |
60 W continuous program (2 hrs)
30 W (120 W peak) continuous pink noise (2 hrs)
20 W (80 W peak) continuous pink noise (100 hrs) |
| Sensitivity |
84 dB (43 Hz – 110 Hz) |
| Maximum SPL |
103 dB peak (95 dB continuous, 2 hr) @ 1m |
| Coverage Pattern |
90° conical |
| Directivity Factor (Q) |
7.9 |
| Directivity Index (DI) |
9 dB |
| Nominal Impedance |
8Ω (at 8Ω tap) |
| Transformer Taps |
70V: 15 W, 7.5 W, 3.75 W
100V: 15 W, 7.5 W |

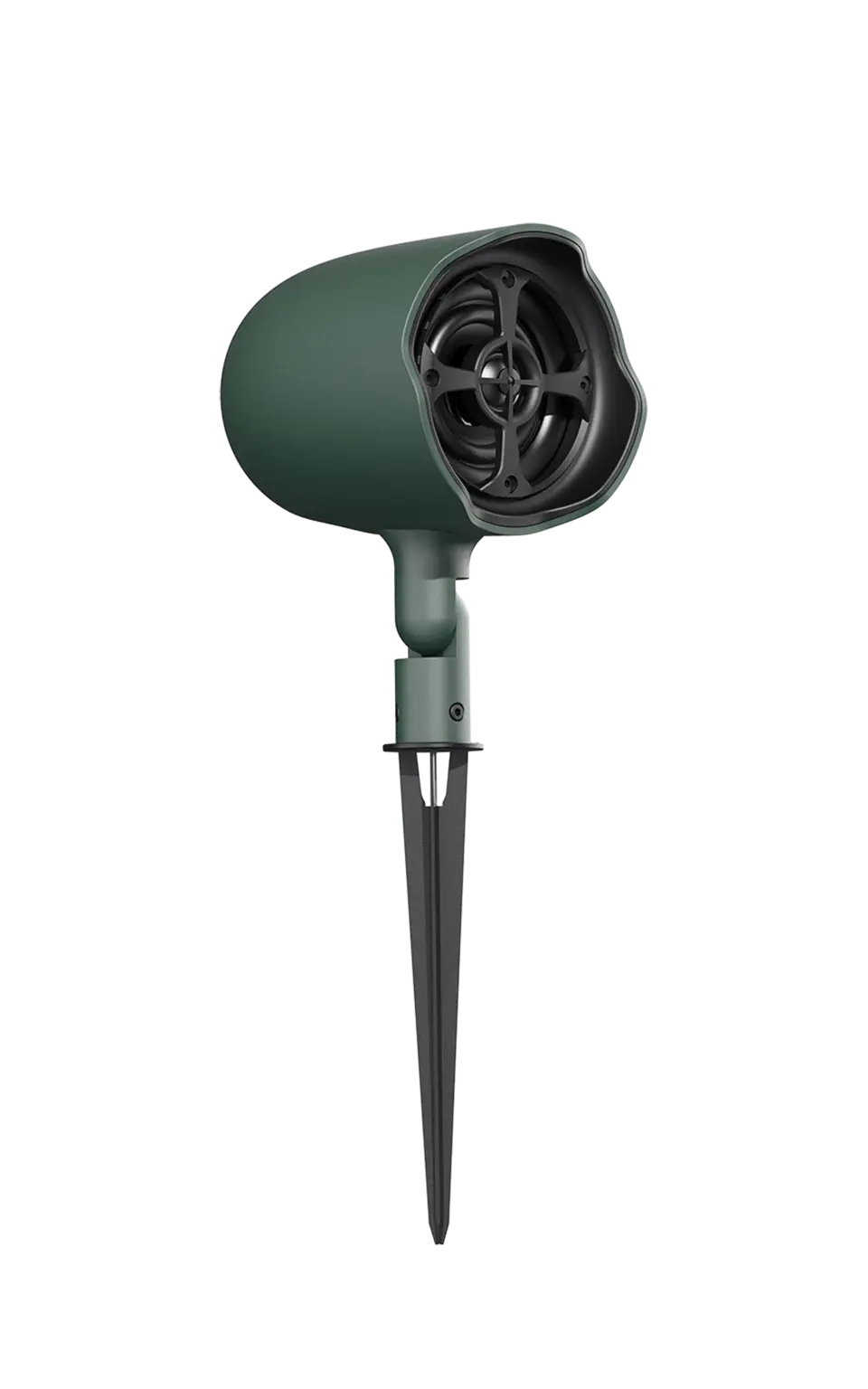

| Drivers |
83 mm (3 in) woofer, polypropylene cone, 25 mm (1 in) voice coil on Kapton™ voice coil former
20 mm (0.8 in) titanium dome, neodymium magnet assembly, Kapton™ voice coil former |
| Terminals |
Bare wire with dielectric-gel-filled wire nuts (1 meter single jacketed cable, 2 wires with 18 AWG) |
| Enclosure Material |
Polycarbonate + ABS, UL94V-0 flammability rated |
| Color |

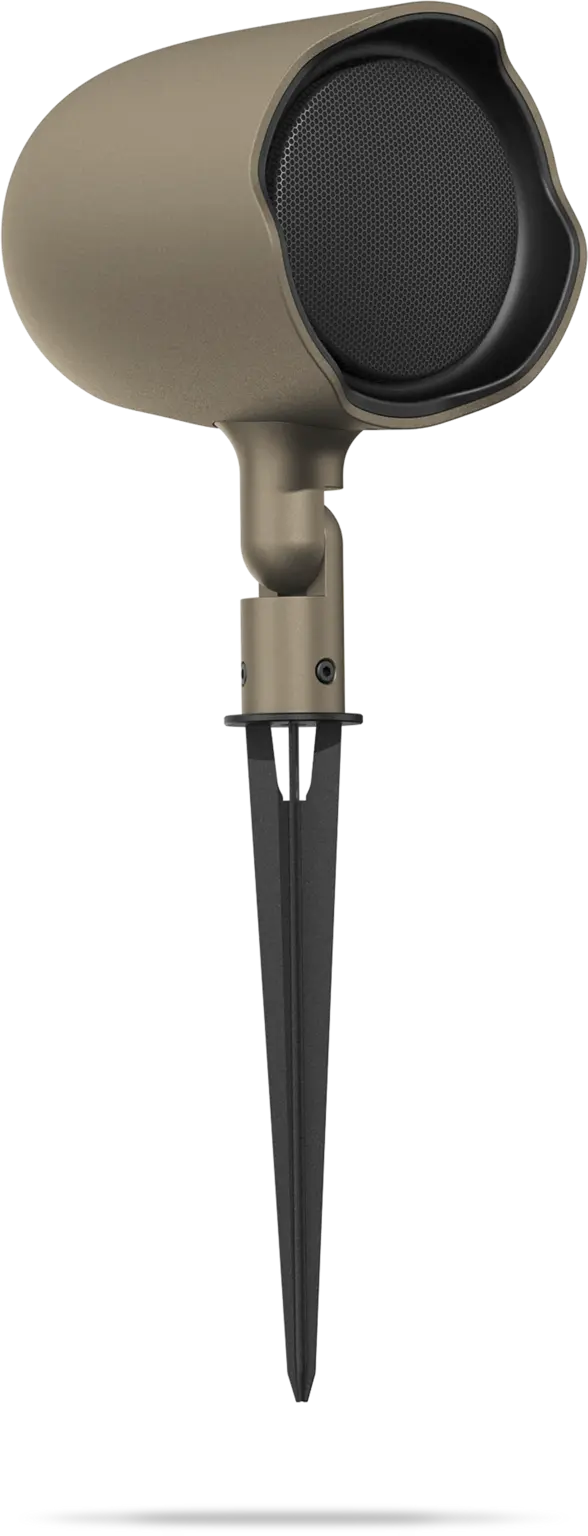

Pine Green RAL 6028, or Beige Grey RAL 7006 |
| Dimensions |
Cabinet 132 mm diameter x 167 mm deep (5.2 x 6.6 in). Assembly height 289 mm (11.4 in) with L-bracket base (at 90°) and 430 mm (17.0 in) with ground stake base. |
| Net Weight |
1.7 kg (3.8 lb) |
| Included Accessories |

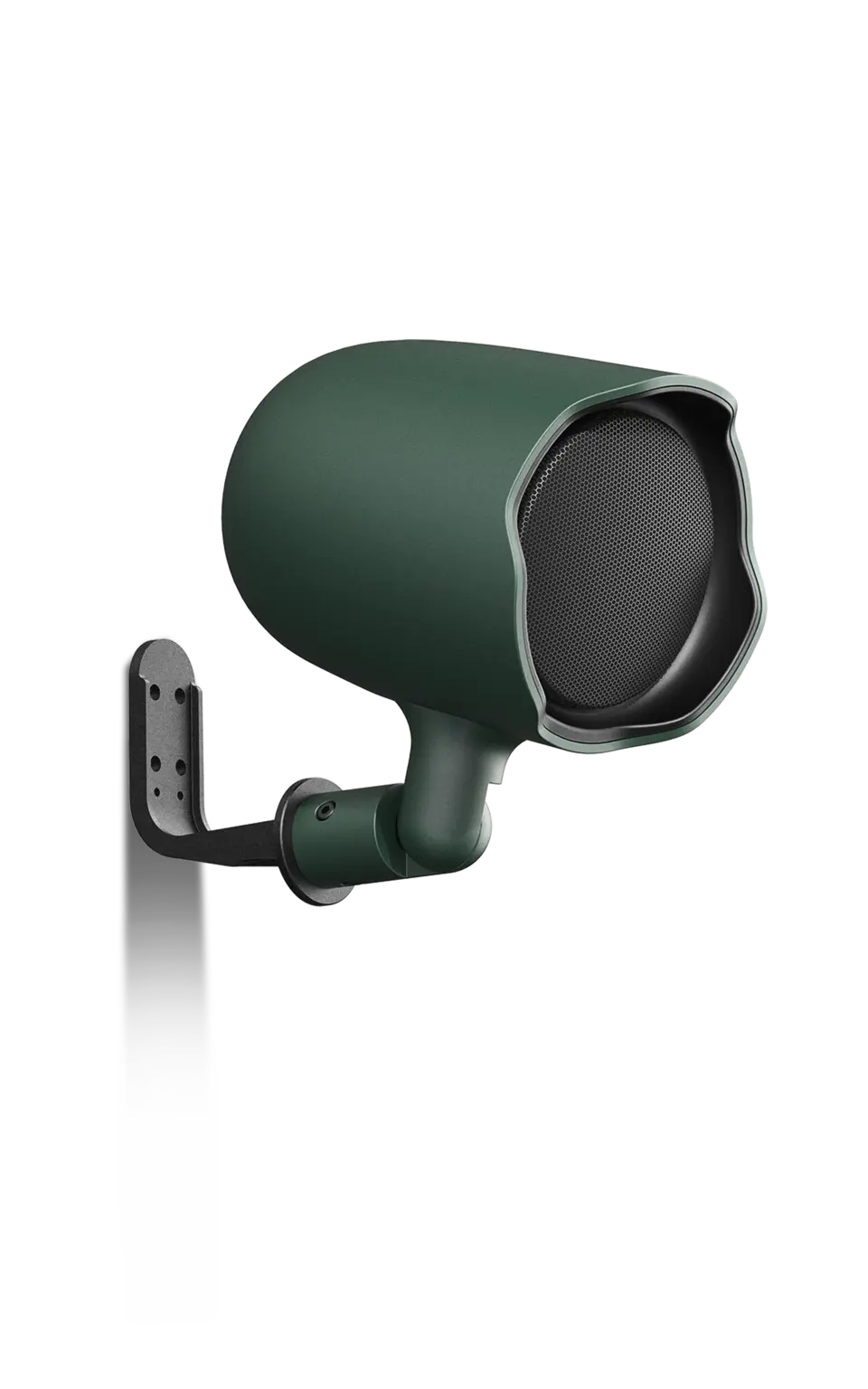

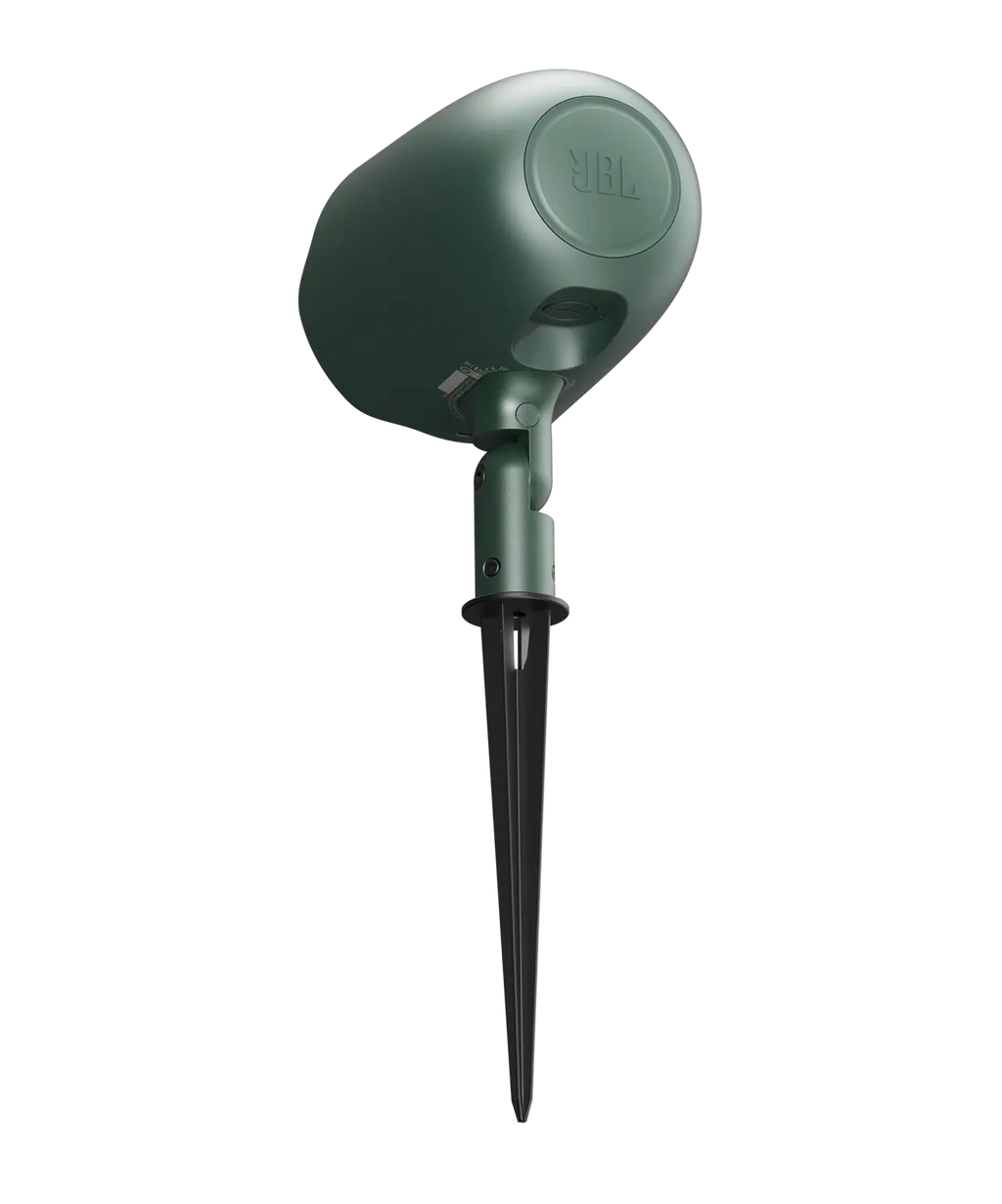

(1) ground stake bracket; (1) L-bracket |
