| Frequency Range (-10dB) |
35 Hz – 130 Hz |
| Frequency Response (±3dB) |
43 Hz – 120 Hz |
| Power Rating |
500 W continuous program (2 hrs)
250 W (1000 W peak) continuous pink noise (2 hrs)
150 W (600 W peak) continuous pink noise (100 hrs) |
| Sensitivity |
84 dB (avg 43 Hz – 110 Hz) |
| Maximum SPL |
114 dB peak (108 dB continuous, 2 hr) @ 1m |
| Coverage Pattern |
Omnidirectional |
| Nominal Impedance |
6Ω (at 6Ω tap) |
| Transformer Taps |
70V: 100 W, 50 W, 25 W
100V: 100 W, 50 W |
| Driver |

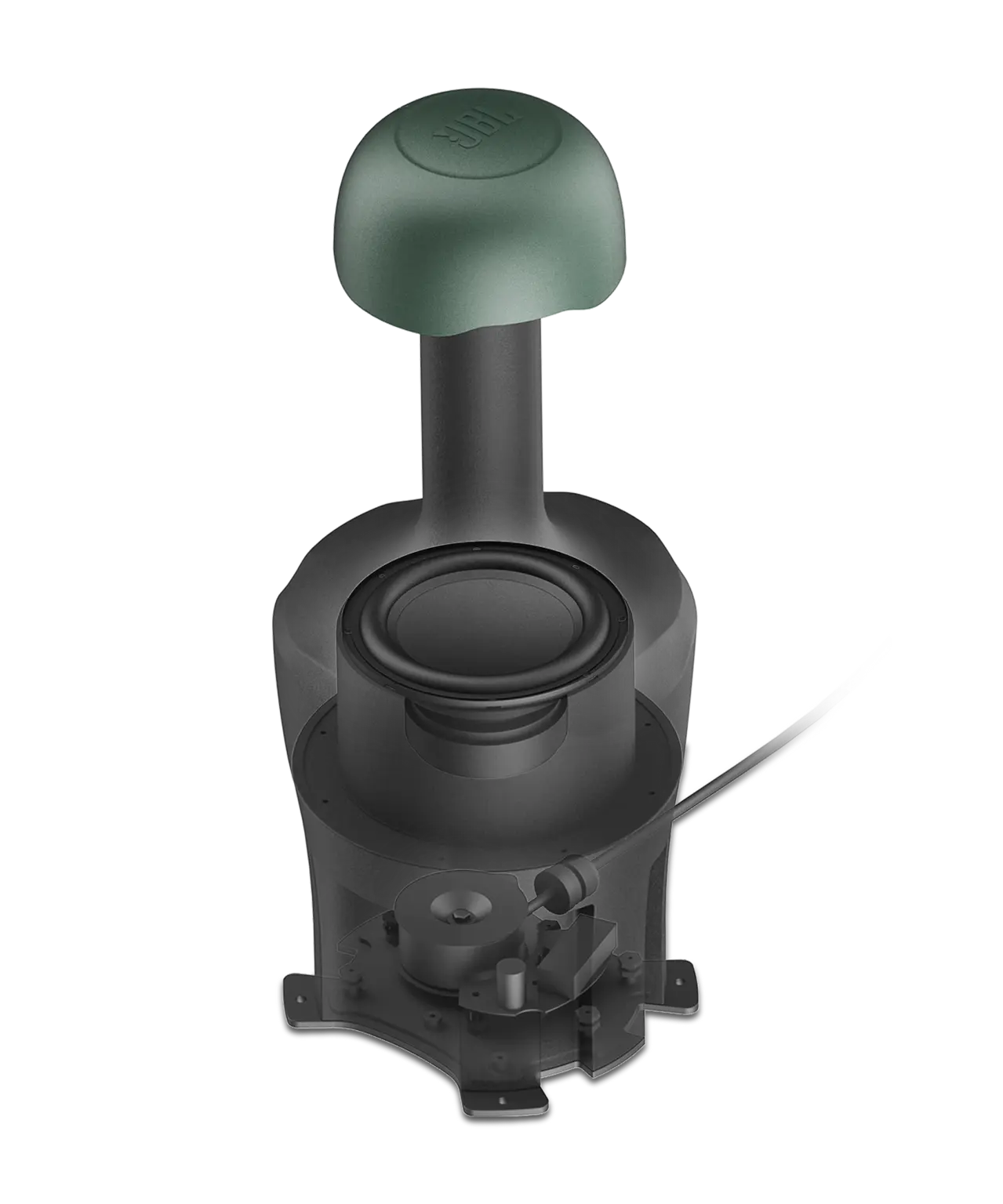

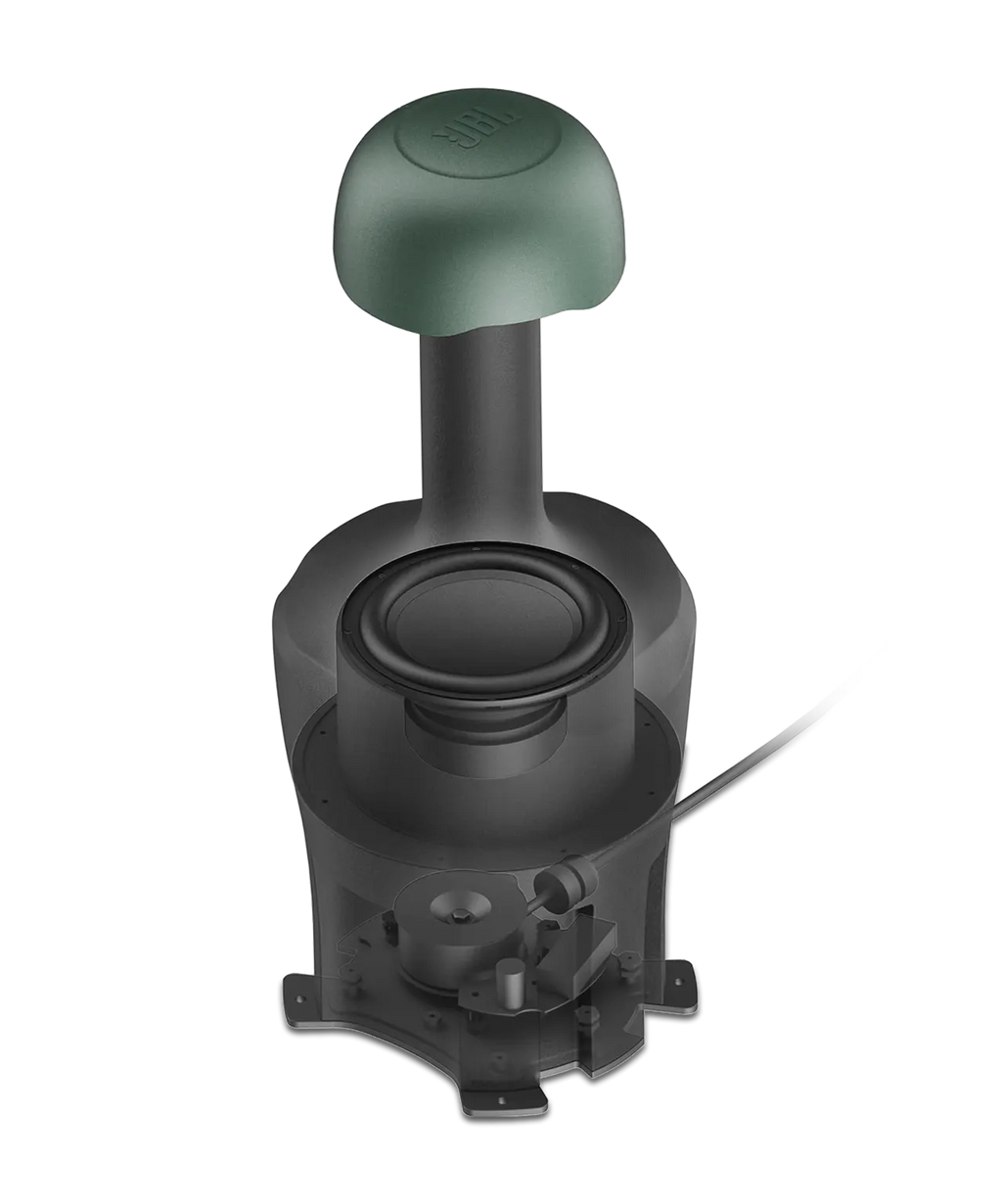

209 mm (8 in) driver, polypropylene injection cone, thermoplastic vulcanizate surround, 50 mm (2 in) voice coil on glass fiber former |
| Terminals |
Bare wire with dielectric-gel-filled wire nuts (1 meter single jacketed cable, 7 wires with 14 AWG) |
| Enclosure Material |
LDPE polyethylene plastic, 6 mm minimum wall thickness, color throughout |
| Color |
Pine Green RAL 6028, or Beige Grey RAL 7006 |
| Dimensions |
768 mm height x 311 mm diameter (30.1 x 12.2 in) |
| Net Weight |
9.3 kg (20.5 lb) |
| Included Accessories |
(7) gel-filled wire nuts |
